DVR RECORDERS

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

e

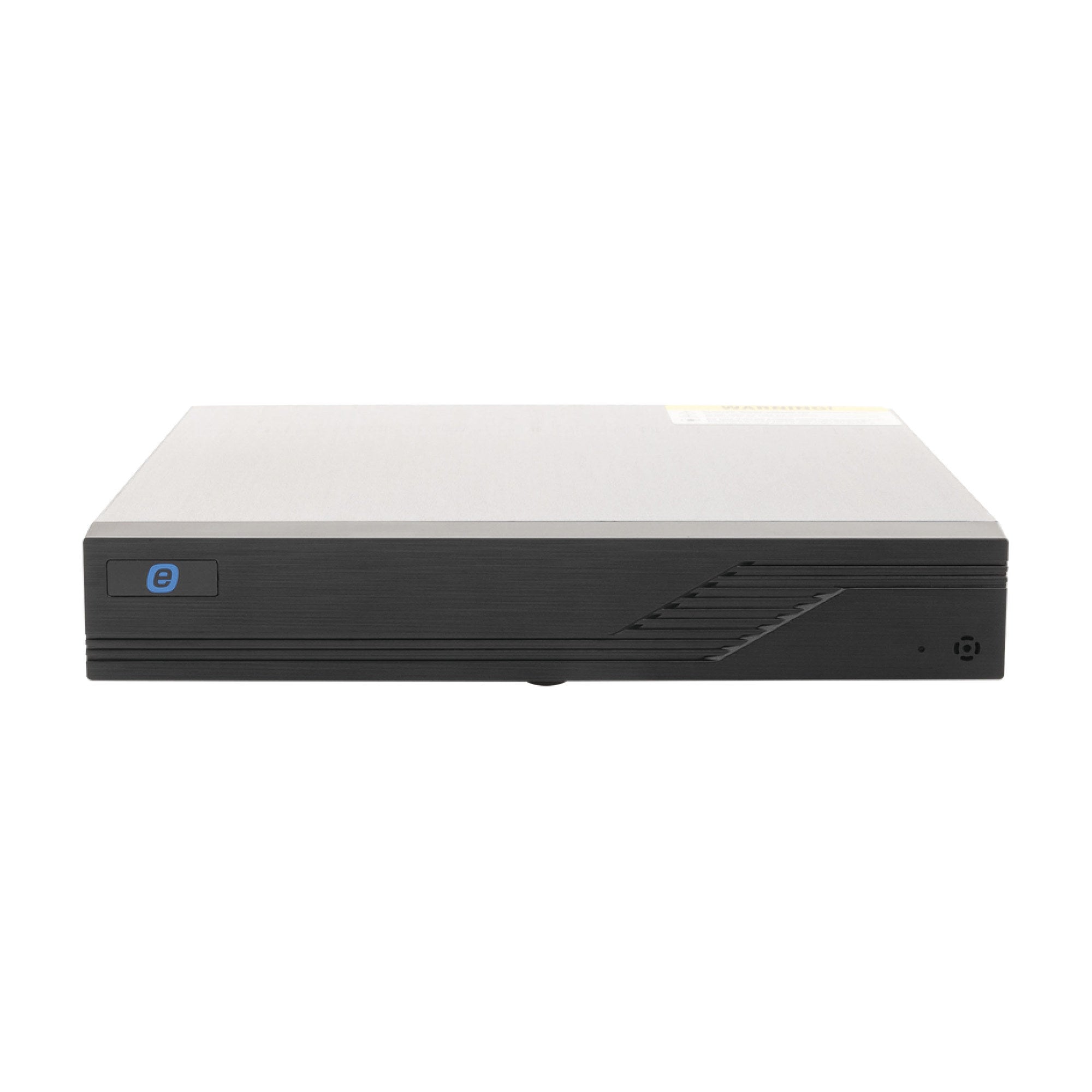

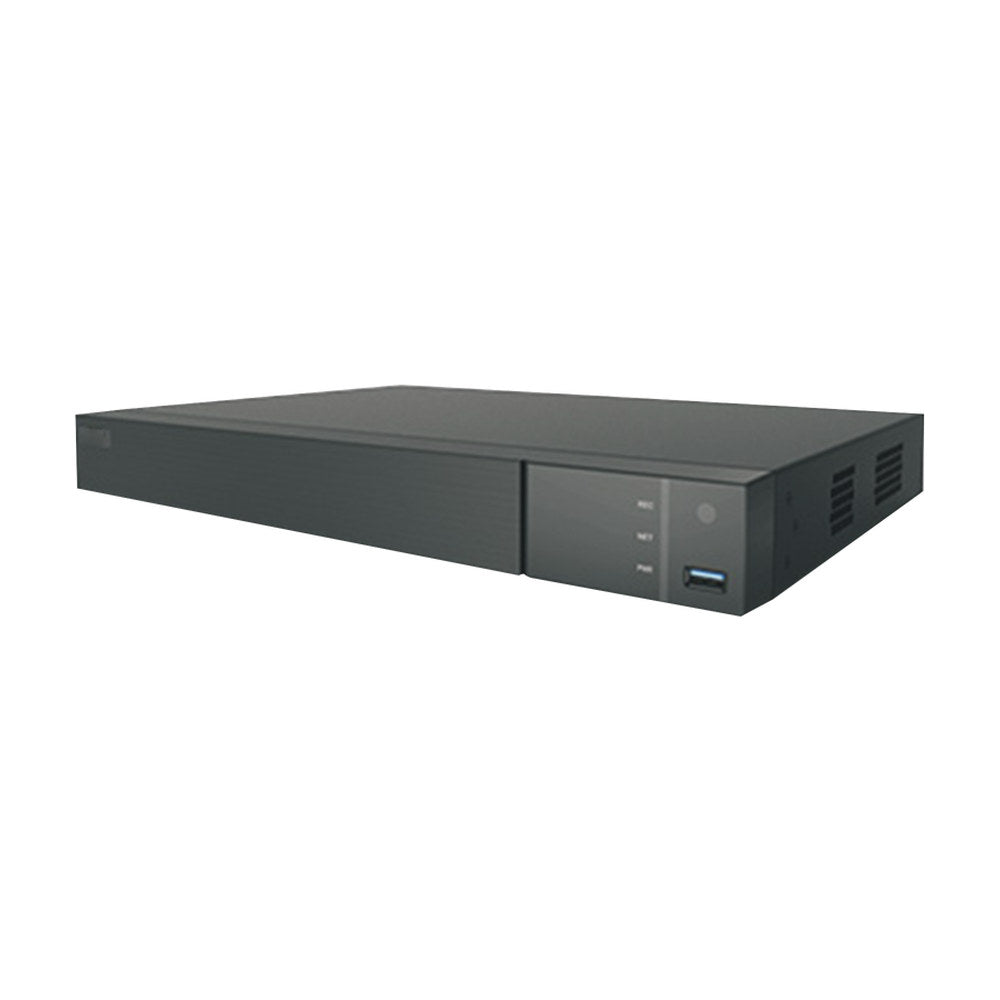

DVR 5MP Lite / 32 Channels TURBOHD + 8 Channels IP / Support 4 Hard Disk / Smart Sense (Avoid False Alarms) / Video Output FULL HD / H.265 / Audio by Coaxitron / AHD, TVI, CVBS, CVI / 16 Channels Audio / Cloud Video Recording

(0)

$711.89 $790.99

-10%

In stock · 9 pcs

Receives in 3 days.

e

DVR 8MP (4K) / 8 Channels TURBOHD + 8 Channels IP / Support 2 Hard Disk / Video Output 4K / H.265 / AHD, TVI, CVBS, CVI / 8 Channels Audio / Audio by Coaxitron / Cloud Video Recording

(0)

$455.39 $505.99

-10%

In stock · 19 pcs

Receives in 3 days.

e

DVR 8MP (4K) / 16 Channels TURBOHD + 8 Channels IP / Support 2 Hard Disk / Smart Sense (Avoid False Alarms) / Video Output 4K / H.265 / AHD, TVI, CVBS, CVI / 8 Channels Audio / Audio by Coaxitron / Cloud Video Recording

(0)

$595.79 $661.99

-10%

16-Channel Hybrid DVR · 8MP (4K) · H.265+

16 channels of 4K,
less storage, more reach.

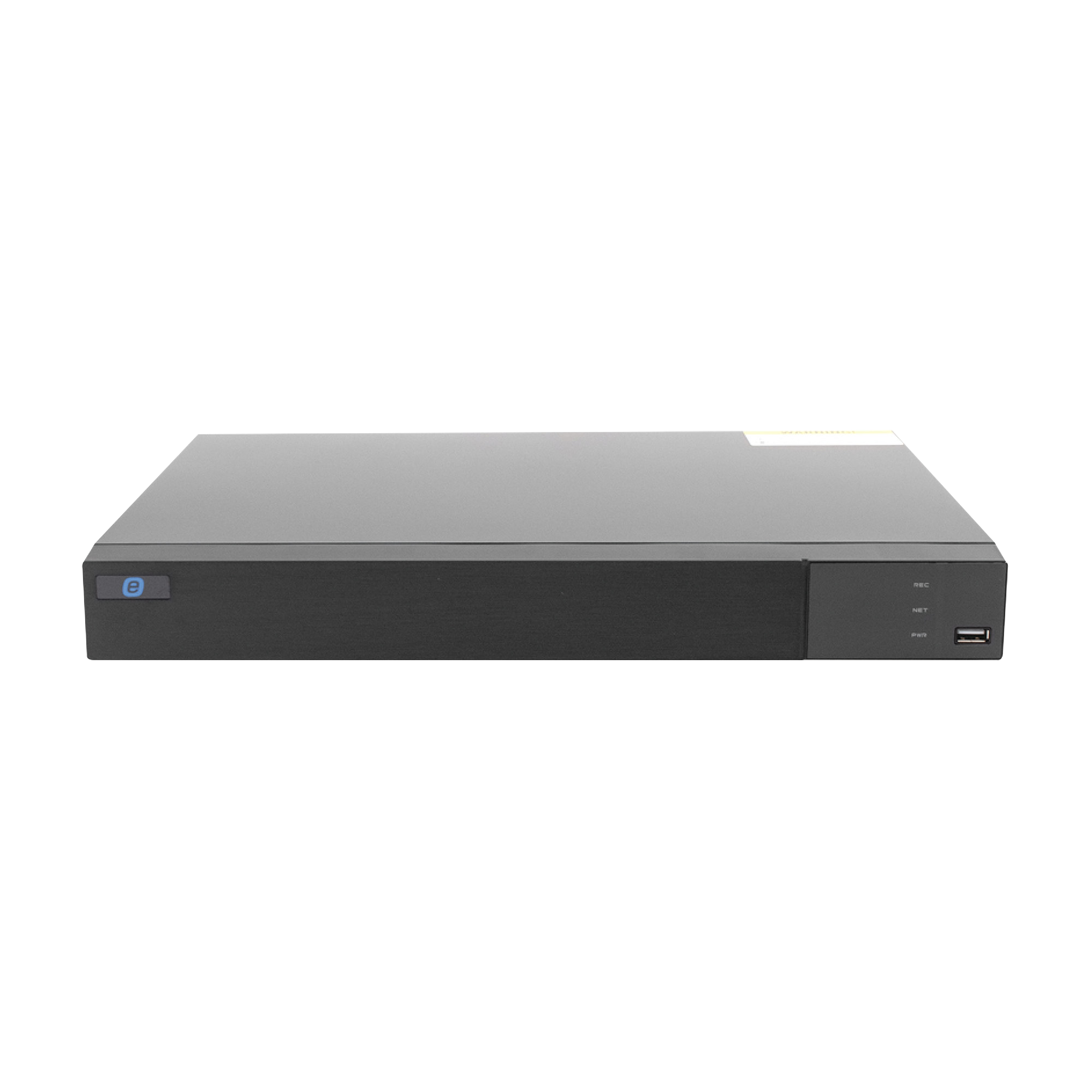

The EV8016TURBOGEN3(B)(T) is a hybrid DVR that takes 16 analog TurboHD/AHD/CVI channels plus 8 IP channels, compresses everything with H.265+, and outputs in true 4K — all with NDAA-compliant hardware.

✓ 16 Analog + 8 IP Channels ✓ H.265+ Compression ✓ NDAA Compliant ✓ 5-Year Warranty

Request pricing →

16 Analog + 8 IP Channels Up to 8MP @15fps HDMI 4K + VGA 2 HDD Bays, up to 10TB each DC12V / 4A AHD / TVI / CVI / CVBS

⚠ NDAA Compliant

This model is NDAA compliant, making it eligible for U.S. federal, state and local government projects subject to Section 889 restrictions.

H.265+ compression

H.265+ can reduce storage requirements by up to 80% compared to standard compression, so the same hard drives hold far more recorded video.

Compression	H.264 / H.265 / H.265+
Max. resolution	8MP @15fps
Storage	2 bays, up to 10TB each

16 analog + 8 IP, one box

A hybrid design covers 16 TurboHD/AHD/CVI channels plus 8 IP channels in the same unit, with 8 of the analog inputs switchable to IP for mixed-camera sites.

Analog input	16CH (BNC)
IP input	8CH (up to 16CH)
Total input	Up to 24CH

Video & Recording

16CH analog (TVI/AHD/CVI) + 8CH IP, up to 24CH total
Analog channels: up to 8MP @15fps
IP channels: up to 8MP @25/30fps
H.264 / H.265 / H.265+ compression
Multi-mode recording: manual, timed, motion, sensor, AI
16CH simultaneous playback

Network & Mobile

RJ45 1000Mbps port
Incoming bandwidth: 32Mbps (max. 64Mbps)
Outgoing bandwidth: 96Mbps
Remote access via Web Client or CMS
Mobile surveillance on iOS and Android
Up to 10 simultaneous client connections

Physical & Power

Power supply: DC12V / 4A
Consumption: ≤30W (without HDD)
Dimensions: 14.96" x 10.55" x 1.77" (38 x 26.8 x 4.5 cm)
Working environment: 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
2 SATA bays (up to 10TB each) + 1 eSATA
USB 3.0 x1, USB 2.0 x1

Where the 16-channel hybrid design earns its place

Full analog and IP coverage, 4K output and NDAA-eligible hardware, in a single recorder.

Mid-to-large sites

Warehouses, retail chains, schools and offices that need 16+ camera coverage from one recorder.

Mixed analog/IP upgrades

Keep existing coax runs while adding IP cameras on the same recorder, with 8 channels switchable between the two.

Government & regulated projects

NDAA-compliant hardware for projects that require it under Section 889.

Pick the right e-series hybrid DVR

All three share H.265+ compression, HDMI/VGA output and hybrid analog+IP input — they differ in channel count and maximum resolution.

Model	Channels	Max. resolution	Typical use
EV8008TURBOGEN3(B)(T)	8 analog + 8 IP	8MP (4K)	Small to mid sites
EV8016TURBOGEN3(B)(T)	16 analog + 8 IP	8MP (4K)	Mid to large sites needing full 4K
EV4016TURBOGEN3(B)(T)	16 analog + 8 IP	5MP Lite	Budget-friendly 16-channel coverage

Full specifications

Video
Compression	H.264 / H.265 / H.265+
Analog video input	16CH, BNC connectors
IP video input	8CH by default (up to 16CH)
Total input	Up to 24CH
Analog resolution / frame rate	4K@8fps · 4K Lite@12/15fps · 5MP@12fps · 5MP Lite@20fps · 4MP/3MP@12/15fps · 4MP Lite/1080P/720P/WD1/D1@25/30fps
IP resolution / frame rate	8MP @25/30fps
Live view	TVI/AHD/CVI: 4K@15fps · 5MP@20fps · 4MP/3MP/1080P/720P/WD1@30fps
Video output	HDMI x1: 3840x2160 / 1920x1080 / 1280x1024 · VGA x1: 1920x1080 / 1280x1024 · BNC x1 (CVBS, main or spot)
Multi-screen display	1/4/6/8/9/13/16/25
Audio
Audio input	RCA x8
Audio output	RCA x1 (linear, 600Ω)
Two-way audio	1CH
Audio compression	G.711 (U/A)
Recording & Playback
Recording mode	Manual, timed, motion, sensor, smart event
Playback	16CH simultaneous
Search	Time slice, time, event, tag and smart search
Network
Interface	RJ45, 1000Mbps x1
Protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, NTP, SMTP
Bandwidth	Incoming: 32Mbps (max. 64Mbps) · Outgoing: 96Mbps
Mobile devices	iOS, Android
Client connections	Max. 10 users
Storage & Ports
HDD	SATA x2, up to 10TB per HDD · eSATA x1
Local backup	U disk, USB mobile HDD
USB	USB 3.0 x1 · USB 2.0 x1
RS-485	Yes (half-duplex), for PTZ or keyboard
Physical & Power
Power supply	DC12V / 4A
Power consumption	≤30W (without HDD)
Dimensions (W x D x H)	14.96" x 10.55" x 1.77" (38 x 26.8 x 4.5 cm)
Working environment	14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
Operating system	Embedded Linux
Certifications	CE, FCC · RoHS, WEEE, REACH compliant · NDAA compliant
Warranty	5 years with Epcom

16 channels, 4K output, one recorder.

Hybrid analog + IP input, H.265+ compression and NDAA-compliant hardware — built for sites that need real channel count without giving up resolution.

Request pricing →

In stock · 118 pcs

Receives in 3 days.

e

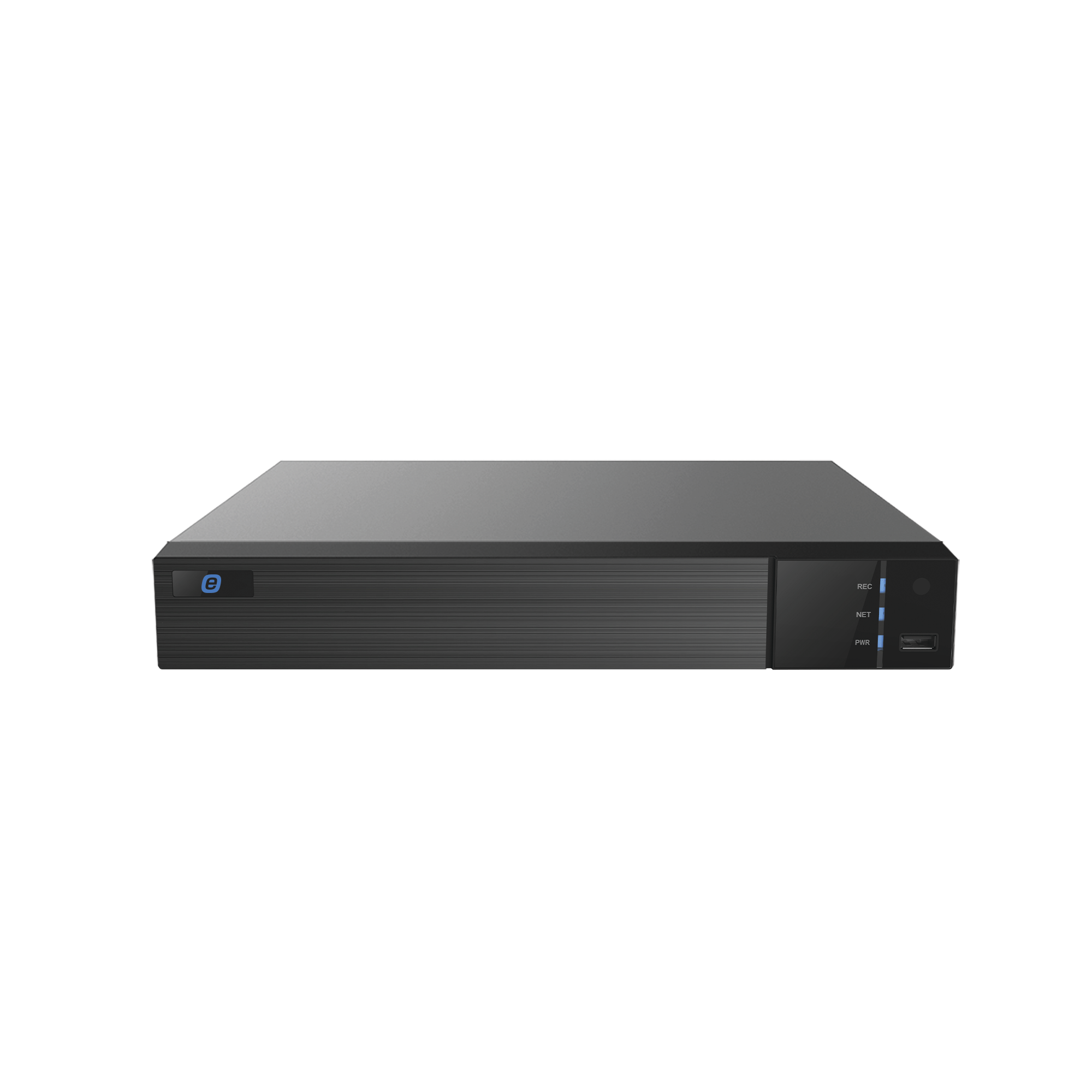

DVR 8MP (4K) / 8 Channels TURBOHD + 8 Channels IP / Smart Sense (Avoid False Alarms) / Support 2 Hard Disk / Video Output 4K / H.265 / AHD, TVI, CVBS, CVI / 8 Channels Audio / Audio by Coaxitron / Cloud Video Recording

(0)

$369.89 $410.99

-10%

8-Channel Hybrid DVR · 8MP (4K) · AI Analytics

8 channels of 4K,
with AI built in.

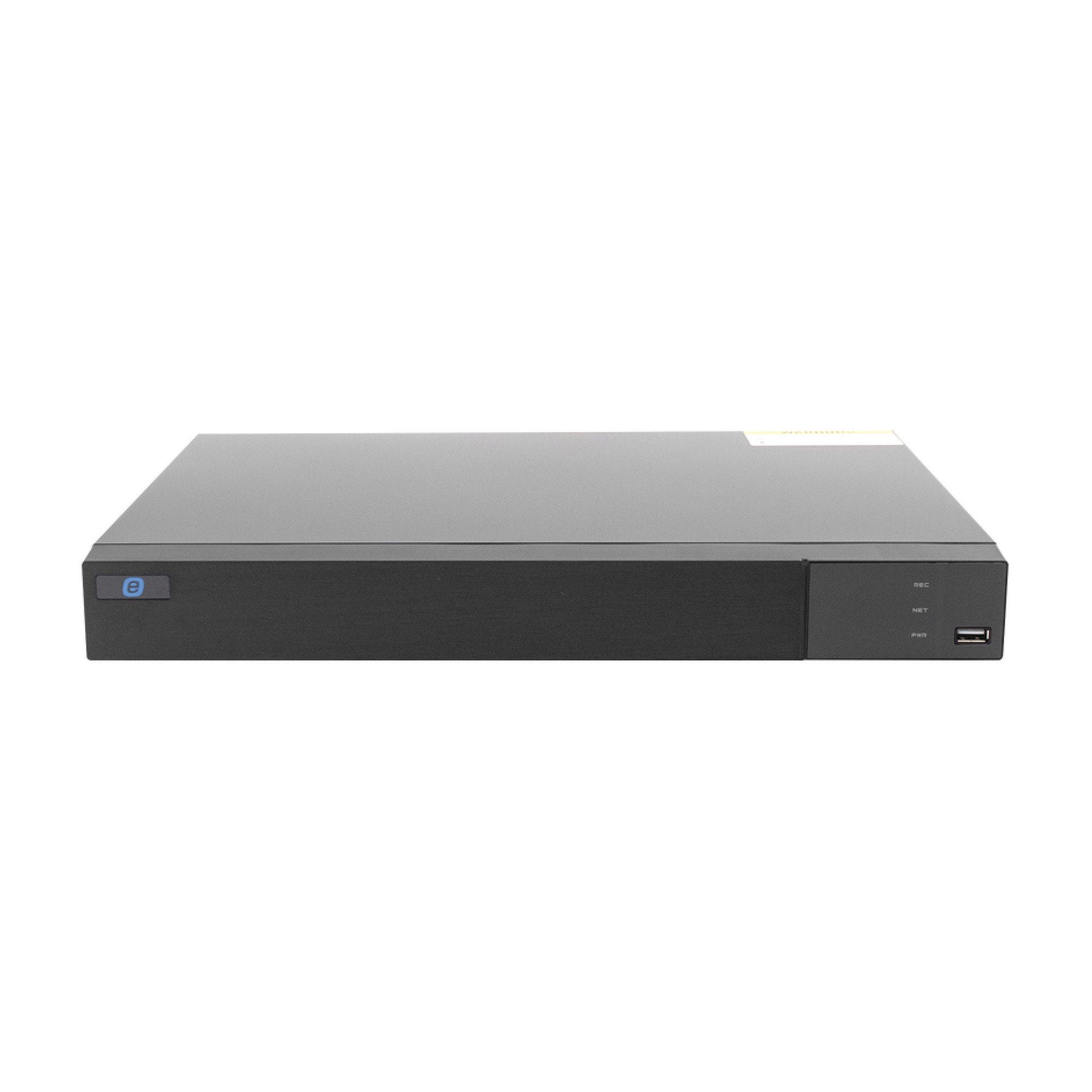

The EV8008TURBOGEN3(B)(T) is a hybrid DVR that takes 8 analog TurboHD/AHD/CVI channels plus 8 IP channels, adds human and vehicle detection, compresses everything with H.265+, and outputs in true 4K — all with NDAA-compliant hardware.

✓ 8 Analog + 8 IP Channels ✓ AI Human & Vehicle Detection ✓ NDAA Compliant ✓ 5-Year Warranty

Request pricing →

8 Analog + 8 IP Channels Up to 8MP @30fps HDMI 4K + VGA 2 HDD Bays, up to 10TB each DC12V / 4A AHD / TVI / CVI / CVBS

⚠ NDAA Compliant

This model is NDAA compliant, making it eligible for U.S. federal, state and local government projects subject to Section 889 restrictions.

AI analytics built in

Advanced AI analytics can tell people and vehicles apart from other movement, so alerts focus on what actually matters instead of every branch or shadow that crosses the frame.

AI function	Human & vehicle detection
Also included	Smart motion detection
Also included	Perimeter protection

8 analog + 8 IP, one box

A hybrid design covers 8 TurboHD/AHD/CVI channels plus 8 IP channels in the same unit, with all 8 analog inputs switchable to IP for mixed-camera sites.

Analog input	8CH (BNC)
IP input	8CH (up to 16CH)
Total input	Up to 16CH

Video & Recording

8CH analog (TVI/AHD/CVI) + 8CH IP, up to 16CH total
Analog channels: up to 8MP @15fps
IP channels: up to 8MP @25/30fps
H.264 / H.265 / H.265+ compression
Multi-mode recording: manual, timed, motion, sensor, AI
8CH simultaneous playback

Network & Mobile

RJ45 1000Mbps port
Incoming bandwidth: 32Mbps (max. 64Mbps)
Outgoing bandwidth: 96Mbps
Remote access via Web Client or CMS
Mobile surveillance on iOS and Android
Up to 10 simultaneous client connections

Physical & Power

Power supply: DC12V / 4A
Consumption: ≤15W (without HDD)
Dimensions: 14.96" x 10.55" x 1.77" (38 x 26.8 x 4.5 cm)
Working environment: 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
2 SATA bays (up to 10TB each) + 1 eSATA
USB 3.0 x1, USB 2.0 x1

Where the 8-channel hybrid design earns its place

Full analog and IP coverage, AI-assisted alerts and NDAA-eligible hardware, in a single recorder.

Small to mid sites

Retail stores, small offices and homes that need up to 8 cameras with room to add IP devices.

Perimeters and entry points

AI-based human and vehicle detection cuts down false alerts from wind, animals or lighting changes.

Government & regulated projects

NDAA-compliant hardware for projects that require it under Section 889.

Pick the right e-series hybrid DVR

All three share H.265+ compression, HDMI/VGA output and hybrid analog+IP input — they differ in channel count and maximum resolution.

Model	Channels	Max. resolution	Typical use
EV8008TURBOGEN3(B)(T)	8 analog + 8 IP	8MP (4K)	Small to mid sites needing 4K + AI analytics
EV8016TURBOGEN3(B)(T)	16 analog + 8 IP	8MP (4K)	Mid to large sites needing full 4K
EV4008-TURBO-GEN3(B)	8 analog + 4 IP	5MP Lite	Budget-friendly 8-channel coverage

Full specifications

Video
Compression	H.264 / H.265 / H.265+
Analog video input	8CH, BNC connectors
IP video input	8CH by default (up to 16CH)
Total input	Up to 16CH
Analog resolution / frame rate	4K@8fps · 4K Lite@12/15fps · 5MP@12fps · 5MP Lite@20fps · 4MP/3MP@12/15fps · 4MP Lite/1080P/720P/WD1/D1@25/30fps
IP resolution / frame rate	8MP @25/30fps
Live view	TVI/AHD/CVI: 4K@15fps · 5MP@20fps · 4MP/3MP/1080P/720P/WD1@30fps
Video output	HDMI x1: 3840x2160 / 1920x1080 / 1280x1024 · VGA x1: 1920x1080 / 1280x1024 · BNC x1 (CVBS, main or spot)
Multi-screen display	1/4/6/8/9/13/16
Audio
Audio input	RCA x8
Audio output	RCA x1 (linear, 600Ω)
Two-way audio	1CH
Audio compression	G.711 (U/A)
Recording & Playback
Recording mode	Manual, timed, motion, sensor, smart event
Playback	8CH simultaneous
Search	Time slice, time, event, tag and smart search
Network
Interface	RJ45, 1000Mbps x1
Protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, NTP, SMTP
Bandwidth	Incoming: 32Mbps (max. 64Mbps) · Outgoing: 96Mbps
Mobile devices	iOS, Android
Client connections	Max. 10 users
Storage & Ports
HDD	SATA x2, up to 10TB per HDD · eSATA x1
Local backup	U disk, USB mobile HDD
USB	USB 3.0 x1 · USB 2.0 x1
RS-485	Yes (half-duplex), for PTZ or keyboard
Physical & Power
Power supply	DC12V / 4A
Power consumption	≤15W (without HDD)
Dimensions (W x D x H)	14.96" x 10.55" x 1.77" (38 x 26.8 x 4.5 cm)
Working environment	14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
Operating system	Embedded Linux
Certifications	CE, FCC · RoHS, WEEE, REACH compliant · NDAA compliant
Warranty	5 years with Epcom

8 channels, 4K output, AI on board.

Hybrid analog + IP input, H.265+ compression and NDAA-compliant hardware — built for sites that want smarter alerts without giving up resolution.

Request pricing →

In stock · 111 pcs

Receives in 3 days.

e

DVR 8 MP Lite / 8 Channels TURBOHD + 4 Channels IP / Support 1 Hard Disk / Smart Sense (Avoid False Alarms) / Video Outpout FULL HD / H.265 / AHD, TVI, CVBS, CVI / 8 Channels Audio / Audio by Coaxitron / Cloud Video Recording

(0)

$190.79 $211.99

-10%

8-Channel Hybrid DVR · 8MP Lite · H.265+

8 channels, hybrid by design,
built to grow.

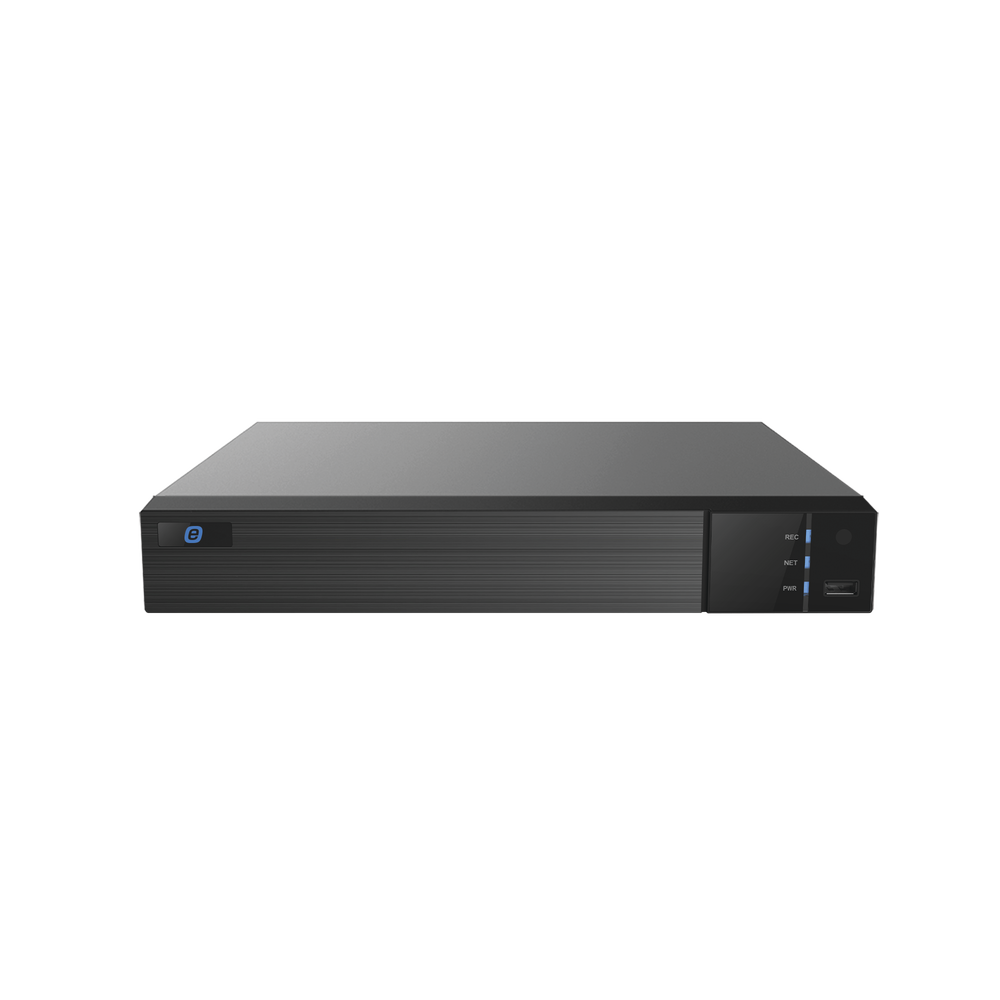

The EV4008TURBOGEN3(B)(T)(LA) is a hybrid DVR that takes 8 analog TurboHD/AHD/CVI channels plus 4 IP channels, compresses everything with H.265+, and outputs in FULL HD — with NDAA-compliant hardware.

✓ 8 Analog + 4 IP Channels ✓ H.265+ Compression ✓ NDAA Compliant ✓ 5-Year Warranty

Request pricing →

8 Analog + 4 IP Channels Up to 5MP @30fps (IP) HDMI + VGA (1080p) 1 HDD Bay, up to 10TB DC12V / 2A AHD / TVI / CVI / CVBS

⚠ NDAA Compliant

This model is NDAA compliant, making it eligible for U.S. federal, state and local government projects subject to Section 889 restrictions.

H.265+ compression

H.265+ can reduce storage requirements by up to 80% compared to standard compression, so the same hard drive holds far more recorded video.

Compression	H.264 / H.265 / H.265+
IP resolution	Up to 5MP @30fps
Storage	1 bay, up to 10TB

8 analog + 4 IP, one box

A hybrid design covers 8 TurboHD/AHD/CVI channels plus 4 IP channels in the same unit, with the 8 analog inputs switchable to IP for mixed-camera sites.

Analog input	8CH (BNC)
IP input	4CH (up to 12CH)
Total input	Up to 12CH

Video & Recording

8CH analog (TVI/AHD/CVI) + 4CH IP, up to 12CH total
Live view: 4K@15fps, 5MP@20fps, 4MP/1080P/720P@30fps
Recording: up to 8MP Lite (analog), up to 5MP @30fps (IP)
H.264 / H.265 / H.265+ compression
Multi-mode recording: manual, timed, motion, sensor, AI
8CH simultaneous playback

Network & Mobile

RJ45 100Mbps port
Incoming bandwidth: 32Mbps (max. 60Mbps)
Outgoing bandwidth: 60Mbps
Remote access via Web Client or CMS
Mobile surveillance on iOS and Android
Up to 5 simultaneous client connections

Physical & Power

Power supply: DC12V / 2A
Consumption: ≤10W (without HDD)
Dimensions: 11.81" x 9.80" x 1.77" (30 x 24.9 x 4.5 cm)
Working environment: 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
1 SATA bay (up to 10TB) + 1 eSATA
USB 2.0 x2

Where the 8-channel hybrid design earns its place

Full analog and IP coverage and NDAA-eligible hardware, in a single recorder sized for smaller deployments.

Small businesses

Retail stores, restaurants and single-location offices that need up to 8 cameras with room to grow into IP.

Mixed analog/IP upgrades

Keep existing coax runs while adding IP cameras on the same recorder, with all 8 channels switchable between the two.

Government & regulated projects

NDAA-compliant hardware for projects that require it under Section 889.

Pick the right e-series hybrid DVR

All three share H.265+ compression, HDMI/VGA output and hybrid analog+IP input — they differ in channel count and maximum resolution.

Model	Channels	Max. resolution	Typical use
EV4008-TURBO-GEN3(B)	8 analog + 4 IP	8MP Lite / FULL HD output	Small sites on a budget
EV8008TURBOGEN3(B)(T)	8 analog + 8 IP	8MP (4K)	Small to mid sites needing true 4K + AI
EV4016TURBOGEN3(B)(T)	16 analog + 8 IP	5MP Lite	Larger sites needing more channels

Full specifications

Video
Compression	H.264 / H.265 / H.265+
Analog video input	8CH, BNC connectors (1.0Vp-p, 75Ω)
IP video input	4CH by default (up to 12CH)
Total input	Up to 12CH
Live view	TVI/AHD/CVI: 4K@15fps · 5MP@20fps · 4MP/1080P/720P@30fps · supports CVBS
Record resolution	8MP Lite / 5MP Lite / 4MP Lite / 1080P / 1080P Lite / 720P / WD1
Analog frame rate	8MP Lite@8fps · 5MP Lite@12fps · 4MP Lite/1080P@12/15fps · 1080P Lite/720P/WD1/D1@25/30fps
IP frame rate	Up to 5MP @30fps · 25/30fps
Video output	HDMI x1: 1920x1080 / 1280x1024 / 1024x768 · VGA x1: same · BNC x1 (CVBS, main or spot)
Multi-screen display	1/4/6/8/9/13/16
Bit rate	32Kbps ~ 4Mbps
Audio
Audio input	RCA x8
Audio output	RCA x1 (linear, 600Ω)
Two-way audio	1CH (uses one audio input channel)
Audio compression	G.711 (U/A)
Recording, Alarm & Playback
Recording mode	Manual, timed, motion, sensor, smart event
Playback	8CH simultaneous
Search	Time slice, time, event, tag and smart search
Alarm	8CH input, 1CH output · smart motion detection (8CH) · perimeter protection (1CH)
Network
Interface	RJ45, 100Mbps x1
Protocols	TCP/IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, 802.1x, FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP, WebSocket, SNMP, IGMP
Bandwidth	Incoming: 32Mbps (max. 60Mbps) · Outgoing: 60Mbps
Mobile devices	iOS, Android
Client connections	Max. 5 users
Storage & Ports
HDD	SATA x1, up to 10TB · eSATA x1
Local backup	U disk, USB mobile HDD
USB	USB 2.0 x2
RS-485	Yes (half-duplex), for PTZ or keyboard
Physical & Power
Power supply	DC12V / 2A
Power consumption	≤10W (without HDD)
Dimensions (W x D x H)	11.81" x 9.80" x 1.77" (30 x 24.9 x 4.5 cm)
Working environment	14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
Operating system	Embedded Linux
Certifications	CE, FCC · RoHS, WEEE, REACH compliant · NDAA compliant
Warranty	5 years with Epcom

8 channels, hybrid input, room to grow.

Analog + IP support, H.265+ compression and NDAA-compliant hardware — built for smaller sites that still want a real upgrade path.

Request pricing →

In stock · 367 pcs

Receives in 3 days.

e

DVR 8MP (4K) / 4 Channels TURBOHD + 2 Channels IP / Support 1 Hard Disk / Smart Motion Detection (Avoid False Alarms) / Video Output 4K / H.265 / AHD, TVI, CVBS, CVI / 4 Channels Audio / Audio by Coaxitron / Cloud Video Recording

(0)

$201.59 $223.99

-10%

4-Channel Hybrid DVR · 8MP (4K) · H.265+

A compact 4K recorder
for small sites.

The EV8004TURBOGEN3(B)(T) is a hybrid DVR that takes 4 analog TurboHD/AHD/CVI channels plus 2 IP channels, compresses everything with H.265+, and outputs in true 4K — sized for homes, small offices and single-location businesses.

✓ 4 Analog + 2 IP Channels ✓ H.265+ Compression ✓ 4K HDMI Output ✓ Mobile App Support

Request pricing →

4 Analog + 2 IP Channels Up to 8MP @20fps HDMI 4K + VGA 1 HDD Bay, up to 10TB DC12V / 1.5A AHD / TVI / CVI / CVBS

⚠ NDAA Compliant

This model is NDAA compliant, making it eligible for U.S. federal, state and local government projects subject to Section 889 restrictions.

H.265+ compression

Standard H.265 high profile compression, paired with an advanced SOC, keeps every channel recording in real time while getting high-quality video at a much lower bit rate.

Compression	H.264 / H.265 / H.265+
Max. resolution	8MP @20fps (IP)
Bit rate	32Kbps ~ 4Mbps

4 analog + 2 IP, one box

A hybrid design covers 4 TurboHD/AHD/CVI channels plus 2 IP channels in the same unit, with all 4 analog inputs switchable to IP for mixed-camera sites.

Analog input	4CH (BNC)
IP input	2CH (up to 6CH)
Total input	Up to 6CH

Video & Recording

4CH analog (TVI/AHD/CVI) + 2CH IP, up to 6CH total
Analog channels: up to 8MP @15fps
IP channels: up to 8MP @20fps
H.264 / H.265 / H.265+ compression
Multi-mode recording: manual, timed, motion, sensor, AI
4CH simultaneous playback

Network & Mobile

RJ45 100Mbps port
Incoming bandwidth: 16Mbps (max. 40Mbps)
Outgoing bandwidth: 40Mbps
Remote access via Web Client or CMS
Mobile surveillance on iOS and Android
Up to 10 simultaneous client connections

Physical & Power

Power supply: DC12V / 1.5A
Consumption: ≤10W (without HDD)
Dimensions: 11.81" x 9.80" x 1.77" (30 x 24.9 x 4.5 cm)
Working environment: 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
1 SATA bay (up to 10TB) + 1 eSATA
USB 2.0 x2

Where the compact 4-channel design earns its place

Full analog and IP coverage and 4K output in a footprint sized for a single small site.

Homes & small offices

Enough coverage for a house, a small retail counter or a single-office site with room to add a couple of IP cameras.

Mixed analog/IP starter systems

Keep existing coax runs while adding 1-2 IP cameras on the same recorder, with all 4 channels switchable between the two.

Budget-conscious 4K upgrades

A low power draw (≤10W) and compact chassis for sites that want 4K output without a large recorder.

Pick the right e-series hybrid DVR

All three share H.265+ compression, HDMI/VGA output and hybrid analog+IP input — they differ in channel count.

Model	Channels	Max. resolution	Typical use
EV8004TURBOGEN3(B)(T)	4 analog + 2 IP	8MP (4K)	Homes and small sites needing 4K
EV8008TURBOGEN3(B)(T)	8 analog + 8 IP	8MP (4K)	Small to mid sites needing more channels
EV8016TURBOGEN3(B)(T)	16 analog + 8 IP	8MP (4K)	Mid to large sites needing full 4K

Full specifications

Video
Compression	H.264 / H.265 / H.265+
Analog video input	4CH, BNC connectors (1.0Vp-p, 75Ω)
IP video input	2CH by default (up to 6CH)
Total input	Up to 6CH
Analog resolution / frame rate	4K@8fps · 4K Lite@12/15fps · 5MP@12fps · 5MP Lite@20fps · 4MP/3MP@12/15fps · 4MP Lite/1080P/720P/WD1@25/30fps
IP resolution / frame rate	8MP@20fps · lower resolutions @25/30fps
Live view	TVI/AHD/CVI: 4K@15fps · 5MP@20fps · 4MP/3MP/1080P/720P/WD1@30fps
Video output	HDMI x1: 3840x2160 / 1920x1080 / 1280x1024 · VGA x1: 1920x1080 / 1280x1024 · BNC x1 (CVBS, main or spot)
Multi-screen display	1/4/6/9
Bit rate	32Kbps ~ 4Mbps
Audio
Audio input	RCA x4
Audio output	RCA x1 (linear, 600Ω)
Two-way audio	1CH (uses one audio input channel)
Audio compression	G.711 (U/A)
Recording & Playback
Recording mode	Manual, timed, motion, sensor, smart event
Playback	4CH simultaneous
Search	Time slice, time, event, tag and smart search
Alarm	4CH input, 1CH output · smart motion detection (4CH) · perimeter protection (1CH)
Network
Interface	RJ45, 100Mbps x1
Protocols	TCP/IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, 802.1x, FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP, WebSocket, SNMP, IGMP
Bandwidth	Incoming: 16Mbps (max. 40Mbps) · Outgoing: 40Mbps
Mobile devices	iOS, Android
Client connections	Max. 10 users
Storage & Ports
HDD	SATA x1, up to 10TB · eSATA x1
Local backup	U disk, USB mobile HDD
USB	USB 2.0 x2
RS-485	Yes (half-duplex), for PTZ or keyboard
Physical & Power
Power supply	DC12V / 1.5A
Power consumption	≤10W (without HDD)
Dimensions (W x D x H)	11.81" x 9.80" x 1.77" (30 x 24.9 x 4.5 cm)
Working environment	14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
Operating system	Embedded Linux
Certifications	CE, FCC · RoHS, WEEE, REACH compliant

4 channels, 4K output, small footprint.

Hybrid analog + IP input and H.265+ compression — built for sites that want real 4K without a large recorder.

Request pricing →

In stock · 49 pcs

Receives in 3 days.

e

DVR 1080p / 16 Channels TURBOHD + 2 Channels IP / Support 1 Hard Disk / Video Output FULL HD / H.265 / AHD, TVI, CVBS, CVI / 1 Channel Audio / Cloud Video Recording / Supports audio by coaxitron

(0)

$130.49 $144.99

-10%

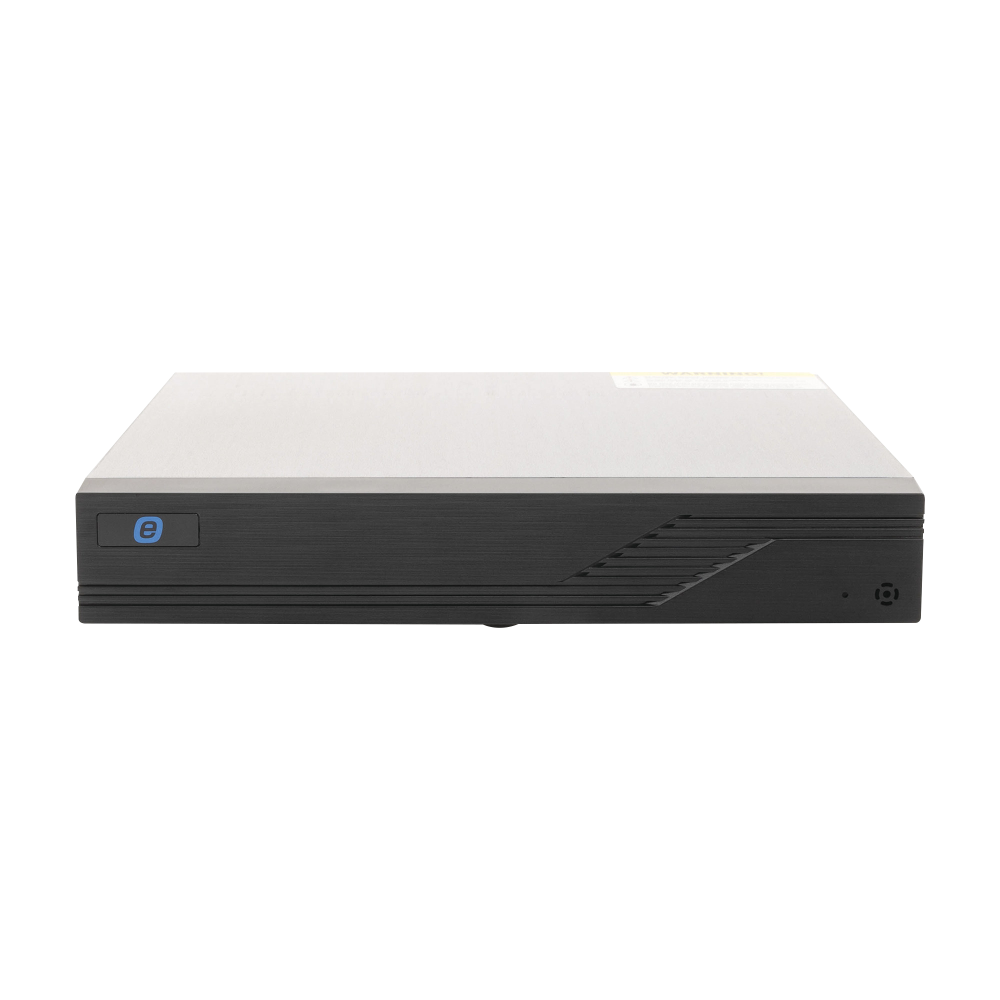

18-Channel Hybrid DVR · 1080p · H.265

16 channels, 5 technologies.

The S16TURBOGEN3(B)(T)(LA) is a hybrid DVR that takes 16 analog TurboHD/AHD/CVI/CVBS channels plus 2 IP channels 18 channels total and outputs in FULL HD with H.265 compression.

✓ 16 Analog + 2 IP Channels ✓ 5 Technologies: TVI/CVI/AHD/CVBS/IP ✓ Audio by Coaxitron ✓ 5-Year Warranty

Request pricing →

16 Analog + 2 IP (18CH total) Video Output FULL HD H.265 / H.264 1 SATA Bay AHD / TVI / CVI / CVBS

⚠ NDAA Compliant

This model is NDAA compliant, making it eligible for U.S. federal, state and local government projects subject to Section 889 restrictions.

16 analog + 2 IP, 18 channels total

A hybrid design covers 16 TurboHD/AHD/CVI/CVBS channels plus 2 IP channels in the same unit — five video technologies supported on one recorder.

Analog input	16CH
IP input	2CH
Total input	18CH

Cloud & mobile ready

Supports cloud recording through EpcomCloud (license required) and remote viewing from the E-Connect App on iOS and Android.

Cloud recording	EpcomCloud (licensed)
Cloud adapter	Requires ADAPTERCLOUD-08
Mobile app	E-Connect App (iOS/Android)

Video & Recording

16CH analog (TVI/AHD/CVI/CVBS) + 2CH IP
18 channels total
Video output: FULL HD
Compression: H.265 / H.264
Multi-mode recording: manual, timed, motion, AI

Audio & Connectivity

1 channel audio
Supports audio by coaxitron
Remote viewing via E-Connect App
Cloud video recording (EpcomCloud, licensed)

Storage & Support

1 SATA hard disk bay
5 technologies: TVI, CVI, AHD, CVBS, IP
5-year warranty with Epcom

Where the 16-channel hybrid design earns its place

Wide analog channel coverage with room for a couple of IP cameras, on a single recorder.

Larger analog installations

Sites with 16 or more existing analog cameras that need a single recorder to cover them all.

Mostly-analog with a little IP

Keep the existing coax cameras and add up to 2 IP cameras without a second recorder.

Remote monitoring on a budget

Coaxitron audio and mobile app access, on FULL HD output, for sites that don't need 4K.

Pick the right e-series hybrid DVR

All three are hybrid analog+IP DVRs from the e-series — they differ in channel count and maximum resolution.

Model	Channels	Max. resolution	Typical use
S16TURBOGEN3(B)(T)	16 analog + 2 IP	FULL HD (1080p)	Larger analog sites on a budget
EV4008-TURBO-GEN3(B)	8 analog + 4 IP	8MP Lite / FULL HD output	Small sites needing more IP headroom
EV8016TURBOGEN3(B)(T)	16 analog + 8 IP	8MP (4K)	Sites needing true 4K and more IP channels

Confirmed specifications

Video
Compression	H.265 / H.264
Analog video input	16CH
IP video input	2CH
Total input	18CH
Video output	FULL HD
Supported technologies	AHD, TVI, CVBS, CVI, IP
Audio
Audio	1 channel
Coaxitron audio	Supported
Recording
Recording mode	Manual, timed, motion, AI recording
Cloud recording	Supported via EpcomCloud (license required; needs ADAPTERCLOUD-08)
Storage & Software
HDD	1 SATA bay
Mobile app	E-Connect App (iOS, Android)
Warranty	5 years with Epcom

Dimensions, power supply, power consumption, network bandwidth, HDD capacity, USB ports and multi-screen display options could not be confirmed from the available datasheet and are not shown here rather than estimated.

16 analog channels, 2 IP, one recorder.

Hybrid input, H.265 compression, coaxitron audio and cloud/mobile access — built for larger analog sites that don't need 4K.

Request pricing →

In stock · 376 pcs

Receives in 3 days.

e

DVR 1080p / 8 Channels TURBOHD + 2 Channels IP / Support 1 Hard Disk / Video Output FULL HD / H.265 / AHD, TVI, CVBS, CVI / 1 Channel Audio / Cloud Video Recording / Supports audio by coaxitron

(0)

$82.79 $91.99

-10%

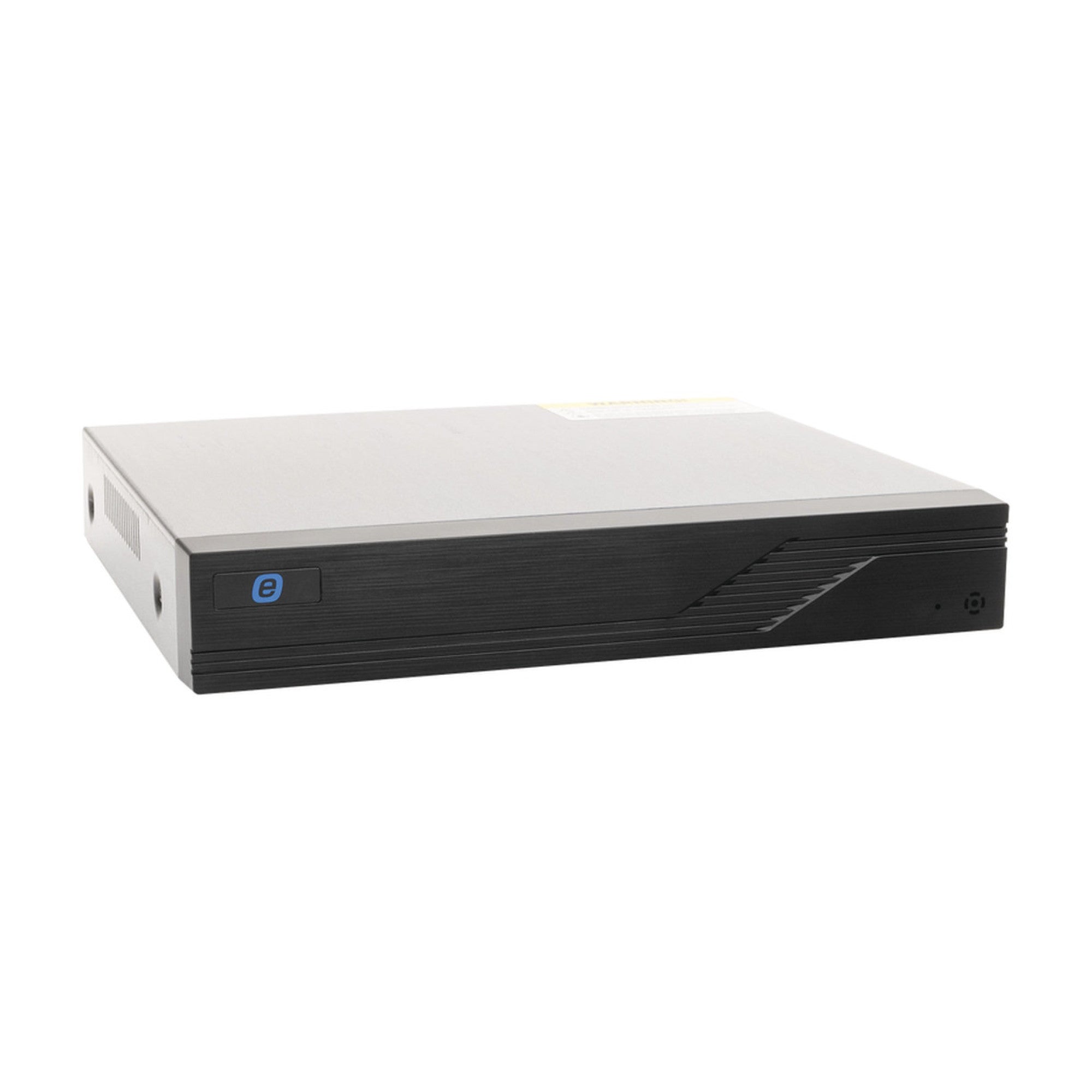

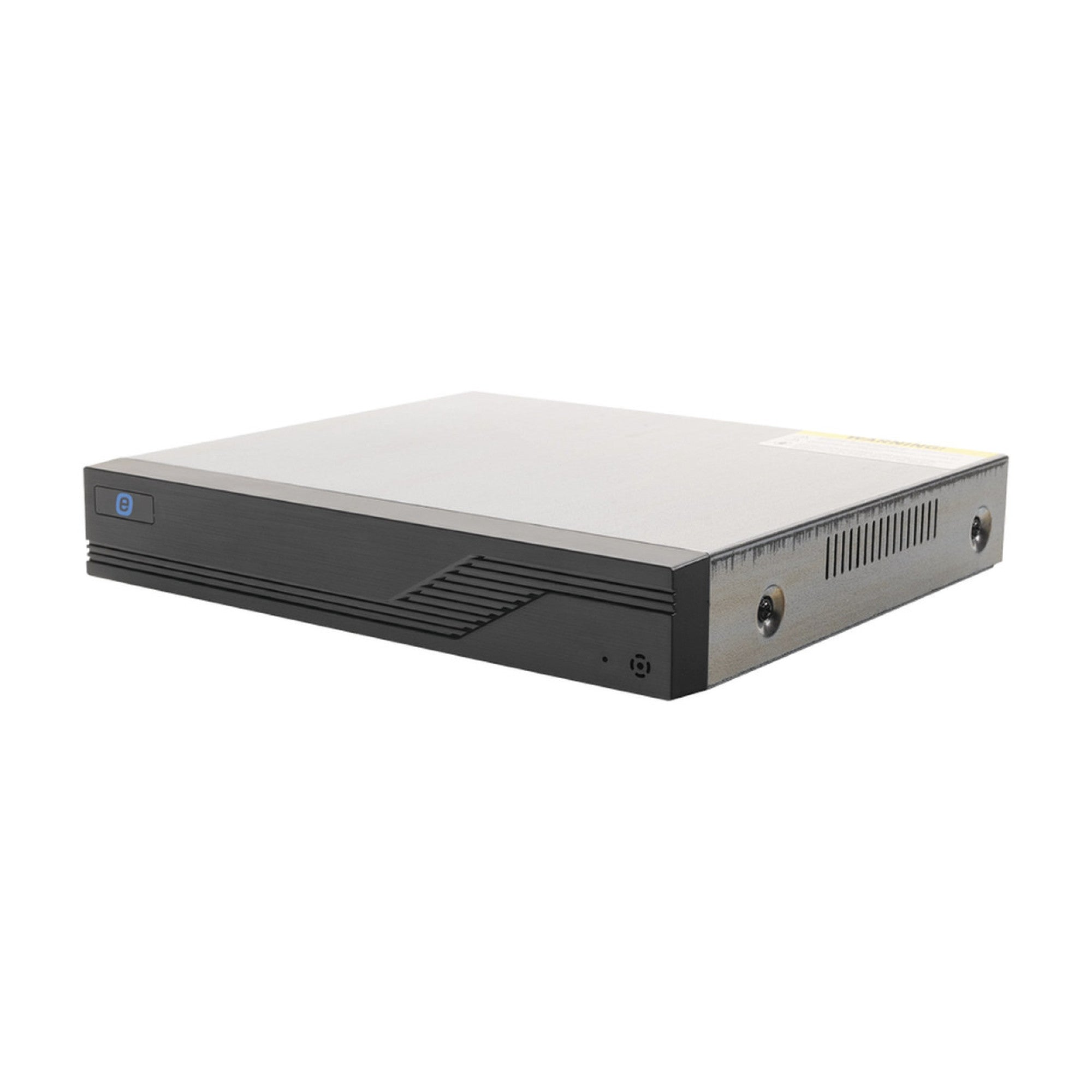

10-Channel Hybrid DVR · 1080p · H.265

8 channels, hybrid ready,
crystal clear at 5MP.

The S08TURBOGEN3(B)(T)(LA) is a compact hybrid DVR that takes 8 analog TurboHD/AHD/CVI/CVBS channels plus 2 IP channels — 10 channels total — with H.265 compression and FULL HD output.

✓ 8 Analog + 2 IP Channels ✓ Up to 5MP (IP) ✓ Audio by Coaxitron ✓ 5-Year Warranty

Request pricing →

8 Analog + 2 IP (10CH total) Up to 5MP (IP) 1 SATA Bay, up to 8TB DC12V / 1.5A AHD / TVI / CVI / CVBS

⚠ NDAA Compliant

This model is NDAA compliant, making it eligible for U.S. federal, state and local government projects subject to Section 889 restrictions.

8 analog + 2 IP, 10 channels total

A hybrid design covers 8 TurboHD/AHD/CVI/CVBS channels plus 2 IP channels in one compact recorder — five video technologies supported.

Analog input	8CH
IP input	2CH
Total input	10CH

Coaxitron audio, cloud & mobile

Audio transmits over the same coax cable via coaxitron, and the DVR supports cloud recording plus remote monitoring from a mobile app.

Audio	1 input / 1 output (RCA)
Cloud recording	EpcomCloud (licensed)
Mobile app	SuperLive Plus (iOS/Android)

Video & Recording

8CH analog (TVI/AHD/CVI/CVBS) + 2CH IP
10 channels total
Resolutions: 1080p / 1080p Lite / 720p / 720p Lite (analog); WD1 (CVBS); up to 5MP (IP)
Compression: H.265 / H.264
Multi-mode recording: manual, timed, motion, AI

Audio & Software

1 audio input, 1 audio output (RCA)
Audio transmission over coaxial cable
Cloud video recording via EpcomCloud (licensed; requires ADAPTERCLOUD-08)
Remote monitoring with SuperLive Plus (iOS/Android)

Physical & Power

Power supply: DC12V / 1.5A (included)
Consumption: ≤5W (without HDD)
Dimensions: 10.04" x 8.74" x 1.65" (25.5 x 22.2 x 4.2 cm)
Working environment: 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
1 SATA bay, up to 8TB

Where the 8-channel hybrid design earns its place

A compact recorder that steps up from the 4-channel model without giving up the low power draw or NDAA-eligible hardware.

Small businesses & offices

Retail stores, small offices and homes that need up to 8 cameras with room for 2 IP devices.

Mixed analog/IP setups

Keep existing coax cameras and add up to 2 IP cameras (up to 5MP) on the same recorder.

Government & regulated projects

NDAA-compliant hardware for projects that require it under Section 889.

Pick the right e-series hybrid DVR

All three are compact hybrid analog+IP DVRs from the e-series — they differ in channel count.

Model	Channels	Max. resolution	Typical use

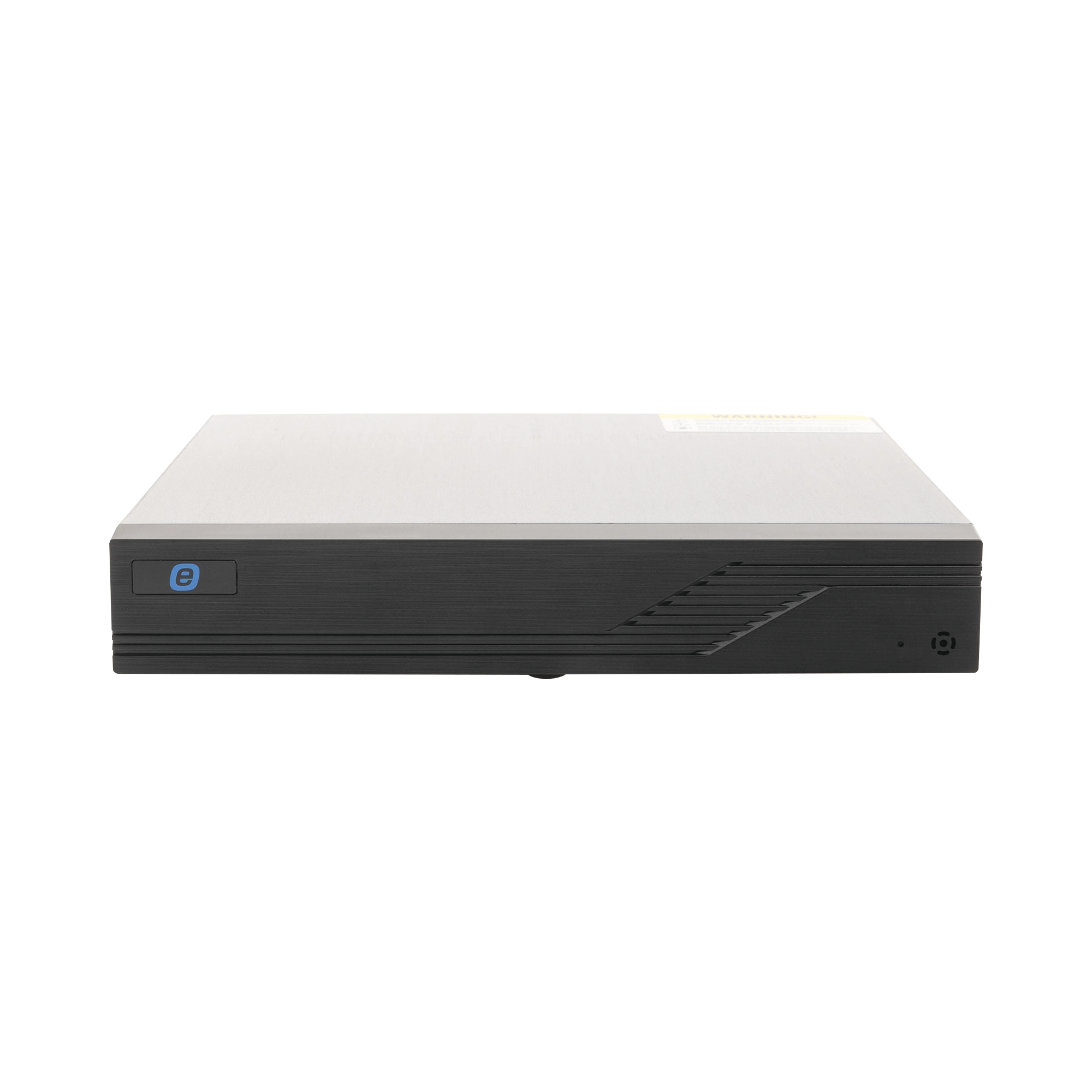

S04TURBOGEN3(B)	4 analog + 2 IP	1080p / FULL HD output	Smallest sites, homes, single offices
S08TURBOGEN3(B)(T)	8 analog + 2 IP	Up to 5MP (IP) / FULL HD output	Small to mid sites needing more channels
S16TURBOGEN3(B)(T)	16 analog + 2 IP	FULL HD (1080p)	Larger analog sites

Full specifications

Video
Compression	H.265 / H.264
Analog video input	8CH
IP video input	2CH
Total input	10CH
Resolutions	TVI/AHD/CVI: 1080p / 1080p Lite / 720p / 720p Lite · CVBS: WD1 · IP: up to 5MP
Audio
Audio input	1 (RCA)
Audio output	1 (RCA)
Coaxitron audio	Supported
Recording & Software
Recording mode	Manual, timed, motion, AI recording
Cloud recording	EpcomCloud (license required; needs ADAPTERCLOUD-08)
Mobile app	SuperLive Plus (iOS, Android)
Storage
HDD	1 SATA bay, up to 8TB
Physical & Power
Power supply	DC12V / 1.5A (included)
Power consumption	≤5W (without HDD)
Dimensions (W x D x H)	10.04" x 8.74" x 1.65" (25.5 x 22.2 x 4.2 cm)
Working environment	14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
Certifications	NDAA compliant
Warranty	5 years with Epcom

8 channels, hybrid ready, up to 5MP.

Analog + IP support, coaxitron audio and NDAA-compliant hardware — a step up in channel count without stepping up in complexity.

Request pricing →

In stock · 889 pcs

Receives in 3 days.

e

DVR 8MP (4K) / 8 Channels TURBOHD + 8 Channels IP / Smart Sense (Avoid False Alarms) / Support 2 Hard Disk / Video Output 4K / H.265 / AHD, TVI, CVBS, CVI / 8 Channels Audio / Audio by Coaxitron / Cloud Video Recording

(0)

$372.59 $413.99

-10%

8-Channel Hybrid DVR · 8MP (4K) · AI Analytics

8 channels of 4K,
with AI built in.

The EV8008TURBOGEN3(B)(T) is a hybrid DVR that takes 8 analog TurboHD/AHD/CVI channels plus 8 IP channels, adds human and vehicle detection, compresses everything with H.265+, and outputs in true 4K — all with NDAA-compliant hardware.

✓ 8 Analog + 8 IP Channels ✓ AI Human & Vehicle Detection ✓ NDAA Compliant ✓ 5-Year Warranty

Request pricing →

8 Analog + 8 IP Channels Up to 8MP @30fps HDMI 4K + VGA 2 HDD Bays, up to 10TB each DC12V / 4A AHD / TVI / CVI / CVBS

⚠ NDAA Compliant

This model is NDAA compliant, making it eligible for U.S. federal, state and local government projects subject to Section 889 restrictions.

AI analytics built in

Advanced AI analytics can tell people and vehicles apart from other movement, so alerts focus on what actually matters instead of every branch or shadow that crosses the frame.

AI function	Human & vehicle detection
Also included	Smart motion detection
Also included	Perimeter protection

8 analog + 8 IP, one box

A hybrid design covers 8 TurboHD/AHD/CVI channels plus 8 IP channels in the same unit, with all 8 analog inputs switchable to IP for mixed-camera sites.

Analog input	8CH (BNC)
IP input	8CH (up to 16CH)
Total input	Up to 16CH

Video & Recording

8CH analog (TVI/AHD/CVI) + 8CH IP, up to 16CH total
Analog channels: up to 8MP @15fps
IP channels: up to 8MP @25/30fps
H.264 / H.265 / H.265+ compression
Multi-mode recording: manual, timed, motion, sensor, AI
8CH simultaneous playback

Network & Mobile

RJ45 1000Mbps port
Incoming bandwidth: 32Mbps (max. 64Mbps)
Outgoing bandwidth: 96Mbps
Remote access via Web Client or CMS
Mobile surveillance on iOS and Android
Up to 10 simultaneous client connections

Physical & Power

Power supply: DC12V / 4A
Consumption: ≤15W (without HDD)
Dimensions: 14.96" x 10.55" x 1.77" (38 x 26.8 x 4.5 cm)
Working environment: 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
2 SATA bays (up to 10TB each) + 1 eSATA
USB 3.0 x1, USB 2.0 x1

Where the 8-channel hybrid design earns its place

Full analog and IP coverage, AI-assisted alerts and NDAA-eligible hardware, in a single recorder.

Small to mid sites

Retail stores, small offices and homes that need up to 8 cameras with room to add IP devices.

Perimeters and entry points

AI-based human and vehicle detection cuts down false alerts from wind, animals or lighting changes.

Government & regulated projects

NDAA-compliant hardware for projects that require it under Section 889.

Pick the right e-series hybrid DVR

All three share H.265+ compression, HDMI/VGA output and hybrid analog+IP input — they differ in channel count and maximum resolution.

Model	Channels	Max. resolution	Typical use
EV8008TURBOGEN3(B)(T)	8 analog + 8 IP	8MP (4K)	Small to mid sites needing 4K + AI analytics
EV8016TURBOGEN3(B)(T)	16 analog + 8 IP	8MP (4K)	Mid to large sites needing full 4K
EV4008-TURBO-GEN3(B)	8 analog + 4 IP	5MP Lite	Budget-friendly 8-channel coverage

Full specifications

Video
Compression	H.264 / H.265 / H.265+
Analog video input	8CH, BNC connectors
IP video input	8CH by default (up to 16CH)
Total input	Up to 16CH
Analog resolution / frame rate	4K@8fps · 4K Lite@12/15fps · 5MP@12fps · 5MP Lite@20fps · 4MP/3MP@12/15fps · 4MP Lite/1080P/720P/WD1/D1@25/30fps
IP resolution / frame rate	8MP @25/30fps
Live view	TVI/AHD/CVI: 4K@15fps · 5MP@20fps · 4MP/3MP/1080P/720P/WD1@30fps
Video output	HDMI x1: 3840x2160 / 1920x1080 / 1280x1024 · VGA x1: 1920x1080 / 1280x1024 · BNC x1 (CVBS, main or spot)
Multi-screen display	1/4/6/8/9/13/16
Audio
Audio input	RCA x8
Audio output	RCA x1 (linear, 600Ω)
Two-way audio	1CH
Audio compression	G.711 (U/A)
Recording & Playback
Recording mode	Manual, timed, motion, sensor, smart event
Playback	8CH simultaneous
Search	Time slice, time, event, tag and smart search
Network
Interface	RJ45, 1000Mbps x1
Protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, NTP, SMTP
Bandwidth	Incoming: 32Mbps (max. 64Mbps) · Outgoing: 96Mbps
Mobile devices	iOS, Android
Client connections	Max. 10 users
Storage & Ports
HDD	SATA x2, up to 10TB per HDD · eSATA x1
Local backup	U disk, USB mobile HDD
USB	USB 3.0 x1 · USB 2.0 x1
RS-485	Yes (half-duplex), for PTZ or keyboard
Physical & Power
Power supply	DC12V / 4A
Power consumption	≤15W (without HDD)
Dimensions (W x D x H)	14.96" x 10.55" x 1.77" (38 x 26.8 x 4.5 cm)
Working environment	14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
Operating system	Embedded Linux
Certifications	CE, FCC · RoHS, WEEE, REACH compliant · NDAA compliant
Warranty	5 years with Epcom

8 channels, 4K output, AI on board.

Hybrid analog + IP input, H.265+ compression and NDAA-compliant hardware — built for sites that want smarter alerts without giving up resolution.

Request pricing →

In stock · 37 pcs

Receives in 3 days.

e

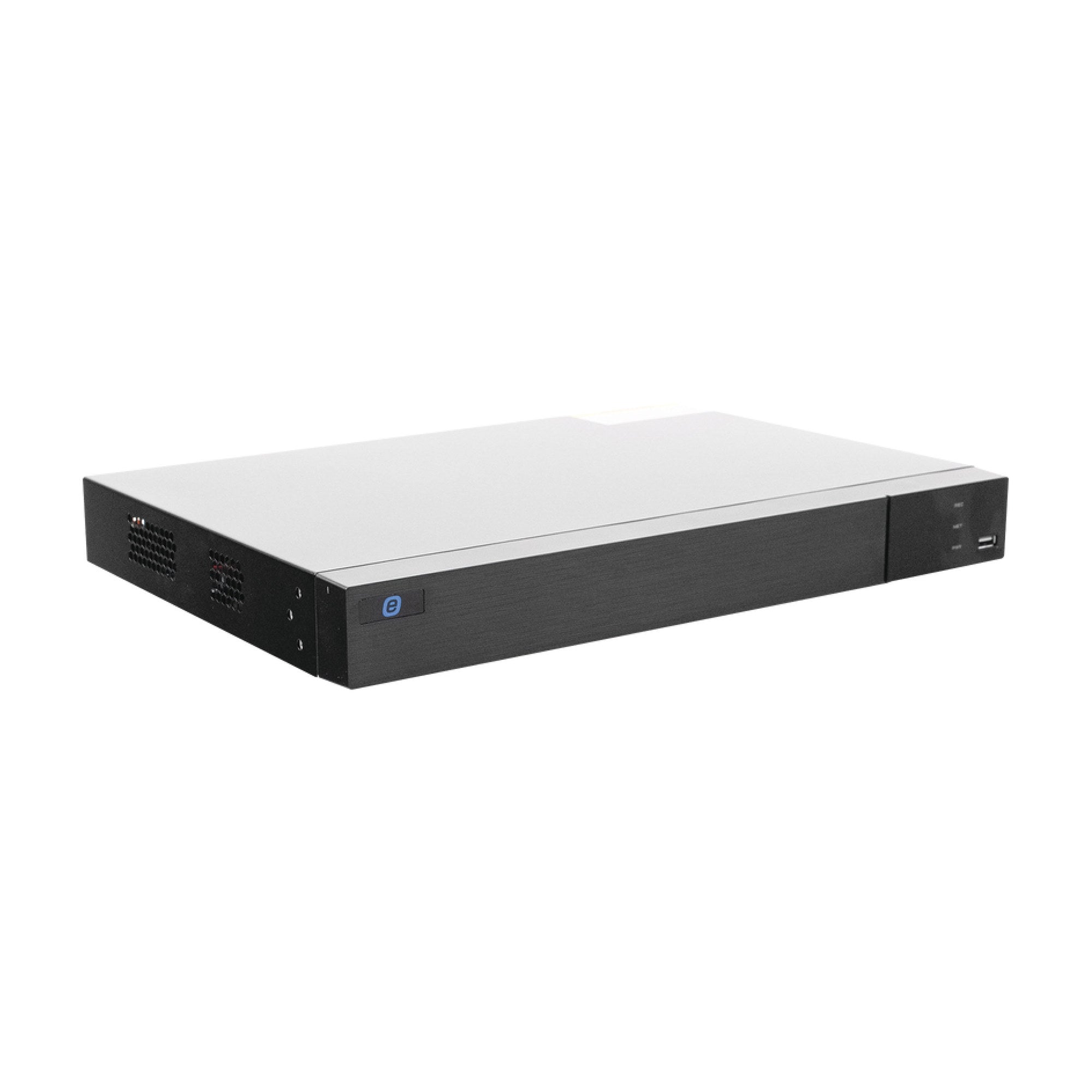

DVR 5MP Lite / 16 Channels TURBOHD + 8 Channels IP / Support 2 Hard Disk / Smart Sense (Avoid False Alarms) / Video Output FULL HD / H.265 / AHD, TVI, CVBS, CVI / 8 Channels Audio / Audio by Coaxitron / Cloud Video Recording

(0)

$368.09 $408.99

-10%

In stock · 85 pcs

Receives in 3 days.

e

DVR 8MP (4K) / 16 Channels TURBOHD + 8 Channels IP / Support 2 Hard Disk / Smart Sense (Avoid False Alarms) / Video Output 4K / H.265 / AHD, TVI, CVBS, CVI / 8 Channels Audio / Audio by Coaxitron / Cloud Video Recording

(0)

$755.09 $838.99

-10%

16-Channel Hybrid DVR · 8MP (4K) · H.265+

16 channels of 4K,
less storage, more reach.

The EV8016TURBOGEN3(B)(T) is a hybrid DVR that takes 16 analog TurboHD/AHD/CVI channels plus 8 IP channels, compresses everything with H.265+, and outputs in true 4K — all with NDAA-compliant hardware.

✓ 16 Analog + 8 IP Channels ✓ H.265+ Compression ✓ NDAA Compliant ✓ 5-Year Warranty

Request pricing →

16 Analog + 8 IP Channels Up to 8MP @15fps HDMI 4K + VGA 2 HDD Bays, up to 10TB each DC12V / 4A AHD / TVI / CVI / CVBS

⚠ NDAA Compliant

This model is NDAA compliant, making it eligible for U.S. federal, state and local government projects subject to Section 889 restrictions.

H.265+ compression

H.265+ can reduce storage requirements by up to 80% compared to standard compression, so the same hard drives hold far more recorded video.

Compression	H.264 / H.265 / H.265+
Max. resolution	8MP @15fps
Storage	2 bays, up to 10TB each

16 analog + 8 IP, one box

A hybrid design covers 16 TurboHD/AHD/CVI channels plus 8 IP channels in the same unit, with 8 of the analog inputs switchable to IP for mixed-camera sites.

Analog input	16CH (BNC)
IP input	8CH (up to 16CH)
Total input	Up to 24CH

Video & Recording

16CH analog (TVI/AHD/CVI) + 8CH IP, up to 24CH total
Analog channels: up to 8MP @15fps
IP channels: up to 8MP @25/30fps
H.264 / H.265 / H.265+ compression
Multi-mode recording: manual, timed, motion, sensor, AI
16CH simultaneous playback

Network & Mobile

RJ45 1000Mbps port
Incoming bandwidth: 32Mbps (max. 64Mbps)
Outgoing bandwidth: 96Mbps
Remote access via Web Client or CMS
Mobile surveillance on iOS and Android
Up to 10 simultaneous client connections

Physical & Power

Power supply: DC12V / 4A
Consumption: ≤30W (without HDD)
Dimensions: 14.96" x 10.55" x 1.77" (38 x 26.8 x 4.5 cm)
Working environment: 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
2 SATA bays (up to 10TB each) + 1 eSATA
USB 3.0 x1, USB 2.0 x1

Where the 16-channel hybrid design earns its place

Full analog and IP coverage, 4K output and NDAA-eligible hardware, in a single recorder.

Mid-to-large sites

Warehouses, retail chains, schools and offices that need 16+ camera coverage from one recorder.

Mixed analog/IP upgrades

Keep existing coax runs while adding IP cameras on the same recorder, with 8 channels switchable between the two.

Government & regulated projects

NDAA-compliant hardware for projects that require it under Section 889.

Pick the right e-series hybrid DVR

All three share H.265+ compression, HDMI/VGA output and hybrid analog+IP input — they differ in channel count and maximum resolution.

Model	Channels	Max. resolution	Typical use
EV8008TURBOGEN3(B)(T)	8 analog + 8 IP	8MP (4K)	Small to mid sites
EV8016TURBOGEN3(B)(T)	16 analog + 8 IP	8MP (4K)	Mid to large sites needing full 4K
EV4016TURBOGEN3(B)(T)	16 analog + 8 IP	5MP Lite	Budget-friendly 16-channel coverage

Full specifications

Video
Compression	H.264 / H.265 / H.265+
Analog video input	16CH, BNC connectors
IP video input	8CH by default (up to 16CH)
Total input	Up to 24CH
Analog resolution / frame rate	4K@8fps · 4K Lite@12/15fps · 5MP@12fps · 5MP Lite@20fps · 4MP/3MP@12/15fps · 4MP Lite/1080P/720P/WD1/D1@25/30fps
IP resolution / frame rate	8MP @25/30fps
Live view	TVI/AHD/CVI: 4K@15fps · 5MP@20fps · 4MP/3MP/1080P/720P/WD1@30fps
Video output	HDMI x1: 3840x2160 / 1920x1080 / 1280x1024 · VGA x1: 1920x1080 / 1280x1024 · BNC x1 (CVBS, main or spot)
Multi-screen display	1/4/6/8/9/13/16/25
Audio
Audio input	RCA x8
Audio output	RCA x1 (linear, 600Ω)
Two-way audio	1CH
Audio compression	G.711 (U/A)
Recording & Playback
Recording mode	Manual, timed, motion, sensor, smart event
Playback	16CH simultaneous
Search	Time slice, time, event, tag and smart search
Network
Interface	RJ45, 1000Mbps x1
Protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, NTP, SMTP
Bandwidth	Incoming: 32Mbps (max. 64Mbps) · Outgoing: 96Mbps
Mobile devices	iOS, Android
Client connections	Max. 10 users
Storage & Ports
HDD	SATA x2, up to 10TB per HDD · eSATA x1
Local backup	U disk, USB mobile HDD
USB	USB 3.0 x1 · USB 2.0 x1
RS-485	Yes (half-duplex), for PTZ or keyboard
Physical & Power
Power supply	DC12V / 4A
Power consumption	≤30W (without HDD)
Dimensions (W x D x H)	14.96" x 10.55" x 1.77" (38 x 26.8 x 4.5 cm)
Working environment	14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
Operating system	Embedded Linux
Certifications	CE, FCC · RoHS, WEEE, REACH compliant · NDAA compliant
Warranty	5 years with Epcom

16 channels, 4K output, one recorder.

Hybrid analog + IP input, H.265+ compression and NDAA-compliant hardware — built for sites that need real channel count without giving up resolution.

Request pricing →

*All pictures and specifications are for reference only and are subject to change without prior notice. Dimensions and temperature ranges are converted from the manufacturer's metric datasheet values; consult the official specsheet for exact figures.

In stock · 29 pcs

Receives in 3 days.

e

DVR 8MP Lite / 4 Channels TURBOHD + 2 Channels IP / Support 1 Hard Disk / Smart Sense (Avoid False Alarms) / Video Outpout FULL HD / H.265 / AHD, TVI, CVBS, CVI / 4 Channels Audio / Audio by Coaxitron / Cloud Video Recording

(0)

$134.99 $149.99

-10%

In stock · 279 pcs

Receives in 3 days.

e

DVR 8 MP Lite / 8 Channels TURBOHD + 4 Channels IP / Support 1 Hard Disk / Smart Sense (Avoid False Alarms) / Video Outpout FULL HD / H.265 / AHD, TVI, CVBS, CVI / 8 Channels Audio / Audio by Coaxitron / Cloud Video Recording

(0)

$203.39 $225.99

-10%

8-Channel Hybrid DVR · 8MP Lite · H.265+

8 channels, hybrid by design,
built to grow.

The EV4008-TURBO-GEN3(B) is a hybrid DVR that takes 8 analog TurboHD/AHD/CVI channels plus 4 IP channels, compresses everything with H.265+, and outputs in FULL HD — with NDAA-compliant hardware.

✓ 8 Analog + 4 IP Channels ✓ H.265+ Compression ✓ NDAA Compliant ✓ 5-Year Warranty

Request pricing →

8 Analog + 4 IP Channels Up to 5MP @30fps (IP) HDMI + VGA (1080p) 1 HDD Bay, up to 10TB DC12V / 2A AHD / TVI / CVI / CVBS

⚠ NDAA Compliant

This model is NDAA compliant, making it eligible for U.S. federal, state and local government projects subject to Section 889 restrictions.

H.265+ compression

H.265+ can reduce storage requirements by up to 80% compared to standard compression, so the same hard drive holds far more recorded video.

Compression	H.264 / H.265 / H.265+
IP resolution	Up to 5MP @30fps
Storage	1 bay, up to 10TB

8 analog + 4 IP, one box

A hybrid design covers 8 TurboHD/AHD/CVI channels plus 4 IP channels in the same unit, with the 8 analog inputs switchable to IP for mixed-camera sites.

Analog input	8CH (BNC)
IP input	4CH (up to 12CH)
Total input	Up to 12CH

Video & Recording

8CH analog (TVI/AHD/CVI) + 4CH IP, up to 12CH total
Live view: 4K@15fps, 5MP@20fps, 4MP/1080P/720P@30fps
Recording: up to 8MP Lite (analog), up to 5MP @30fps (IP)
H.264 / H.265 / H.265+ compression
Multi-mode recording: manual, timed, motion, sensor, AI
8CH simultaneous playback

Network & Mobile

RJ45 100Mbps port
Incoming bandwidth: 32Mbps (max. 60Mbps)
Outgoing bandwidth: 60Mbps
Remote access via Web Client or CMS
Mobile surveillance on iOS and Android
Up to 5 simultaneous client connections

Physical & Power

Power supply: DC12V / 2A
Consumption: ≤10W (without HDD)
Dimensions: 11.81" x 9.80" x 1.77" (30 x 24.9 x 4.5 cm)
Working environment: 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
1 SATA bay (up to 10TB) + 1 eSATA
USB 2.0 x2

Where the 8-channel hybrid design earns its place

Full analog and IP coverage and NDAA-eligible hardware, in a single recorder sized for smaller deployments.

Small businesses

Retail stores, restaurants and single-location offices that need up to 8 cameras with room to grow into IP.

Mixed analog/IP upgrades

Keep existing coax runs while adding IP cameras on the same recorder, with all 8 channels switchable between the two.

Government & regulated projects

NDAA-compliant hardware for projects that require it under Section 889.

Pick the right e-series hybrid DVR

All three share H.265+ compression, HDMI/VGA output and hybrid analog+IP input — they differ in channel count and maximum resolution.

Model	Channels	Max. resolution	Typical use
EV4008-TURBO-GEN3(B)	8 analog + 4 IP	8MP Lite / FULL HD output	Small sites on a budget
EV8008TURBOGEN3(B)(T)	8 analog + 8 IP	8MP (4K)	Small to mid sites needing true 4K + AI
EV4016TURBOGEN3(B)(T)	16 analog + 8 IP	5MP Lite	Larger sites needing more channels

Full specifications

Video
Compression	H.264 / H.265 / H.265+
Analog video input	8CH, BNC connectors (1.0Vp-p, 75Ω)
IP video input	4CH by default (up to 12CH)
Total input	Up to 12CH
Live view	TVI/AHD/CVI: 4K@15fps · 5MP@20fps · 4MP/1080P/720P@30fps · supports CVBS
Record resolution	8MP Lite / 5MP Lite / 4MP Lite / 1080P / 1080P Lite / 720P / WD1
Analog frame rate	8MP Lite@8fps · 5MP Lite@12fps · 4MP Lite/1080P@12/15fps · 1080P Lite/720P/WD1/D1@25/30fps
IP frame rate	Up to 5MP @30fps · 25/30fps
Video output	HDMI x1: 1920x1080 / 1280x1024 / 1024x768 · VGA x1: same · BNC x1 (CVBS, main or spot)
Multi-screen display	1/4/6/8/9/13/16
Bit rate	32Kbps ~ 4Mbps
Audio
Audio input	RCA x8
Audio output	RCA x1 (linear, 600Ω)
Two-way audio	1CH (uses one audio input channel)
Audio compression	G.711 (U/A)
Recording, Alarm & Playback
Recording mode	Manual, timed, motion, sensor, smart event
Playback	8CH simultaneous
Search	Time slice, time, event, tag and smart search
Alarm	8CH input, 1CH output · smart motion detection (8CH) · perimeter protection (1CH)
Network
Interface	RJ45, 100Mbps x1
Protocols	TCP/IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, 802.1x, FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP, WebSocket, SNMP, IGMP
Bandwidth	Incoming: 32Mbps (max. 60Mbps) · Outgoing: 60Mbps
Mobile devices	iOS, Android
Client connections	Max. 5 users
Storage & Ports
HDD	SATA x1, up to 10TB · eSATA x1
Local backup	U disk, USB mobile HDD
USB	USB 2.0 x2
RS-485	Yes (half-duplex), for PTZ or keyboard
Physical & Power
Power supply	DC12V / 2A
Power consumption	≤10W (without HDD)
Dimensions (W x D x H)	11.81" x 9.80" x 1.77" (30 x 24.9 x 4.5 cm)
Working environment	14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
Operating system	Embedded Linux
Certifications	CE, FCC · RoHS, WEEE, REACH compliant · NDAA compliant
Warranty	5 years with Epcom

8 channels, hybrid input, room to grow.

Analog + IP support, H.265+ compression and NDAA-compliant hardware — built for smaller sites that still want a real upgrade path.

Request pricing →

In stock · 67 pcs

Receives in 3 days.

e

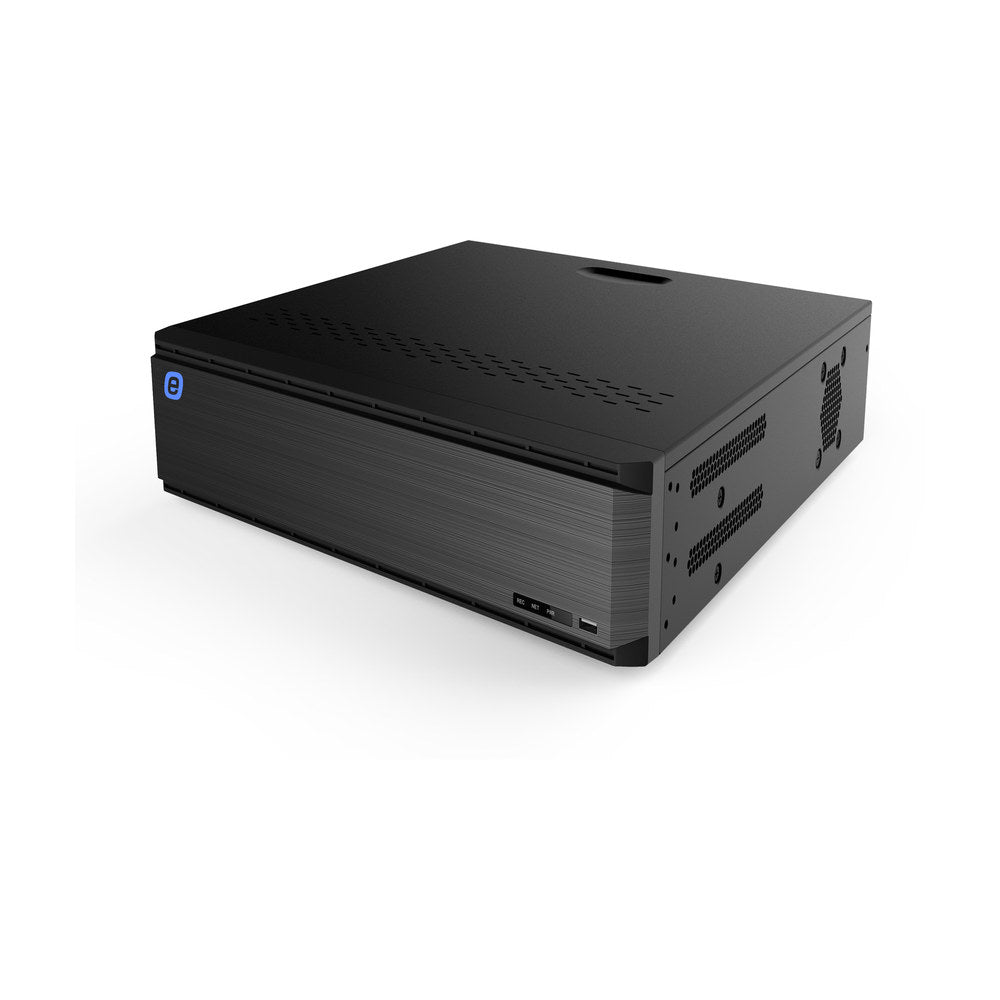

DVR 8MP (4K) / 32 Channels TURBOHD + 8 Channels IP / Support 8 Hard Disk / Smart Sense (Avoid False Alarms) / Video Output 4K / H.265 / Audio by Coaxitron / AHD, TVI, CVBS, CVI / 16 Channels Audio / Cloud Video Recording

(0)

$1,331.99 $1,479.99

-10%

In stock · 10 pcs

Receives in 3 days.

DVR 5MP Lite / 32 Channels TURBOHD + 8 Channels IP / Support 4 Hard Disk / Smart Sense (Avoid False Alarms) / Video Output FULL HD / H.265 / Audio by Coaxitron / AHD, TVI, CVBS, CVI / 16 Channels Audio / Cloud Video Recording

e

DVR 5MP Lite / 32 Channels TURBOHD + 8 Channels IP / Support 4 Hard Disk / Smart Sense (Avoid False Alarms) / Video Output FULL HD / H.265 / Audio by Coaxitron / AHD, TVI, CVBS, CVI / 16 Channels Audio / Cloud Video Recording

(0)

$711.89 $790.99

-10%

Low in stock · 3 pcs

Receives in 3 days.

DVR 1080p / 8 Channels TURBOHD + 2 Channels IP / Support 1 Hard Disk / Video Output FULL HD / H.265 / AHD, TVI, CVBS, CVI / 1 Channel Audio / Cloud Video Recording / Supports audio by coaxitron

e

DVR 1080p / 8 Channels TURBOHD + 2 Channels IP / Support 1 Hard Disk / Video Output FULL HD / H.265 / AHD, TVI, CVBS, CVI / 1 Channel Audio / Cloud Video Recording / Supports audio by coaxitron

(0)

$101.69 $112.99

-10%

10-Channel Hybrid DVR · 1080p · H.265

8 channels, hybrid ready,
crystal clear at 5MP.

The S08TURBOGEN3(B)(T) is a compact hybrid DVR that takes 8 analog TurboHD/AHD/CVI/CVBS channels plus 2 IP channels — 10 channels total — with H.265 compression and FULL HD output.

✓ 8 Analog + 2 IP Channels ✓ Up to 5MP (IP) ✓ Audio by Coaxitron ✓ 5-Year Warranty

Request pricing →

8 Analog + 2 IP (10CH total) Up to 5MP (IP) 1 SATA Bay, up to 8TB DC12V / 1.5A AHD / TVI / CVI / CVBS

⚠ NDAA Compliant

This model is NDAA compliant, making it eligible for U.S. federal, state and local government projects subject to Section 889 restrictions.

8 analog + 2 IP, 10 channels total

A hybrid design covers 8 TurboHD/AHD/CVI/CVBS channels plus 2 IP channels in one compact recorder — five video technologies supported.

Analog input	8CH
IP input	2CH
Total input	10CH

Coaxitron audio, cloud & mobile

Audio transmits over the same coax cable via coaxitron, and the DVR supports cloud recording plus remote monitoring from a mobile app.

Audio	1 input / 1 output (RCA)
Cloud recording	EpcomCloud (licensed)
Mobile app	SuperLive Plus (iOS/Android)

Video & Recording

8CH analog (TVI/AHD/CVI/CVBS) + 2CH IP
10 channels total
Resolutions: 1080p / 1080p Lite / 720p / 720p Lite (analog); WD1 (CVBS); up to 5MP (IP)
Compression: H.265 / H.264
Multi-mode recording: manual, timed, motion, AI

Audio & Software

1 audio input, 1 audio output (RCA)
Audio transmission over coaxial cable
Cloud video recording via EpcomCloud (licensed; requires ADAPTERCLOUD-08)
Remote monitoring with SuperLive Plus (iOS/Android)

Physical & Power

Power supply: DC12V / 1.5A (included)
Consumption: ≤5W (without HDD)
Dimensions: 10.04" x 8.74" x 1.65" (25.5 x 22.2 x 4.2 cm)
Working environment: 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
1 SATA bay, up to 8TB

Where the 8-channel hybrid design earns its place

A compact recorder that steps up from the 4-channel model without giving up the low power draw or NDAA-eligible hardware.

Small businesses & offices

Retail stores, small offices and homes that need up to 8 cameras with room for 2 IP devices.

Mixed analog/IP setups

Keep existing coax cameras and add up to 2 IP cameras (up to 5MP) on the same recorder.

Government & regulated projects

NDAA-compliant hardware for projects that require it under Section 889.

Pick the right e-series hybrid DVR

All three are compact hybrid analog+IP DVRs from the e-series — they differ in channel count.

Model	Channels	Max. resolution	Typical use
S04TURBOGEN3(B)	4 analog + 2 IP	1080p / FULL HD output	Smallest sites, homes, single offices
S08TURBOGEN3(B)(T)	8 analog + 2 IP	Up to 5MP (IP) / FULL HD output	Small to mid sites needing more channels
S16TURBOGEN3(B)(T)	16 analog + 2 IP	FULL HD (1080p)	Larger analog sites

Full specifications

Video
Compression	H.265 / H.264
Analog video input	8CH
IP video input	2CH
Total input	10CH
Resolutions	TVI/AHD/CVI: 1080p / 1080p Lite / 720p / 720p Lite · CVBS: WD1 · IP: up to 5MP
Audio
Audio input	1 (RCA)
Audio output	1 (RCA)
Coaxitron audio	Supported
Recording & Software
Recording mode	Manual, timed, motion, AI recording
Cloud recording	EpcomCloud (license required; needs ADAPTERCLOUD-08)
Mobile app	SuperLive Plus (iOS, Android)
Storage
HDD	1 SATA bay, up to 8TB
Physical & Power
Power supply	DC12V / 1.5A (included)
Power consumption	≤5W (without HDD)
Dimensions (W x D x H)	10.04" x 8.74" x 1.65" (25.5 x 22.2 x 4.2 cm)
Working environment	14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
Certifications	NDAA compliant
Warranty	5 years with Epcom

8 channels, hybrid ready, up to 5MP.

Analog + IP support, coaxitron audio and NDAA-compliant hardware — a step up in channel count without stepping up in complexity.

Request pricing →

In stock · 167 pcs

Receives in 3 days.

DVR 1080p / 4 Channels TURBOHD + 2 Channels IP / Support 1 Hard Disk / Video Output FULL HD / H.265 / AHD, TVI, CVBS, CVI / 1 Channel Audio / Cloud Video Recording / Supports audio by coaxitron

e

DVR 1080p / 4 Channels TURBOHD + 2 Channels IP / Support 1 Hard Disk / Video Output FULL HD / H.265 / AHD, TVI, CVBS, CVI / 1 Channel Audio / Cloud Video Recording / Supports audio by coaxitron

(0)

$61.19 $67.99

-10%

6-Channel Hybrid DVR · 1080p · H.265

4 channels, hybrid ready,
built for the essentials.

The S04TURBOGEN3(B) is a compact hybrid DVR that takes 4 analog TurboHD/AHD/CVI/CVBS channels plus 2 IP channels — 6 channels total — with H.265 compression and FULL HD output.

✓ 4 Analog + 2 IP Channels ✓ H.265 Compression ✓ Two-Way Coaxitron Audio ✓ 5-Year Warranty

Request pricing →

4 Analog + 2 IP (6CH total) Up to 2MP (IP) 1 SATA Bay, up to 8TB DC12V / 1.5A AHD / TVI / CVI / CVBS

⚠ NDAA Compliant

This model is NDAA compliant, making it eligible for U.S. federal, state and local government projects subject to Section 889 restrictions.

4 analog + 2 IP, 6 channels total

A hybrid design covers 4 TurboHD/AHD/CVI/CVBS channels plus 2 IP channels in one compact recorder — five video technologies supported.

Analog input	4CH
IP input	2CH
Total input	6CH

Coaxitron audio, cloud & mobile

Two-way audio rides the same coax cable via coaxitron, and the DVR supports cloud recording plus remote monitoring from a mobile app.

Audio	1 input / 1 output (RCA)
Cloud recording	EpcomCloud (licensed)
Mobile app	SuperLive Plus (iOS/Android)

Video & Recording

4CH analog (TVI/AHD/CVI/CVBS) + 2CH IP
6 channels total
Resolutions: 1080p / 1080p Lite / 720p / 720p Lite (analog); WD1 (CVBS); up to 2MP (IP)
Compression: H.265 / H.264
Multi-mode recording: manual, timed, motion, AI

Audio & Software

1 audio input, 1 audio output (RCA)
Two-way audio by coaxitron
Cloud video recording via EpcomCloud (licensed; requires ADAPTERCLOUD-08)
Remote monitoring with SuperLive Plus (iOS/Android)

Physical & Power

Power supply: DC12V / 1.5A (included)
Consumption: ≤5W (without HDD)
Dimensions: 10.04" x 8.74" x 1.65" (25.5 x 22.2 x 4.2 cm)
Working environment: 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
1 SATA bay, up to 8TB

Where the 4-channel hybrid design earns its place

A compact recorder for the smallest sites that still want hybrid flexibility and remote access.

Homes & single-room offices

Enough coverage for a home, small shop or a single office, with 2 IP channels available if needed.

Small mixed analog/IP setups

Keep existing coax cameras and add up to 2 IP cameras on the same recorder.

Low-power, budget installs

Consumes 5W or less (without HDD), in a compact chassis for sites without a full server rack.

Pick the right e-series hybrid DVR

All three are hybrid analog+IP DVRs from the e-series — they differ in channel count and maximum resolution.

Model	Channels	Max. resolution	Typical use
S04TURBOGEN3(B)	4 analog + 2 IP	1080p / FULL HD output	Smallest sites, homes, single offices
EV4008-TURBO-GEN3(B)	8 analog + 4 IP	8MP Lite / FULL HD output	Small sites needing more channels
S16TURBOGEN3(B)(T)	16 analog + 2 IP	FULL HD (1080p)	Larger analog sites

Full specifications

Video
Compression	H.265 / H.264
Analog video input	4CH
IP video input	2CH
Total input	6CH
Resolutions	TVI/AHD/CVI: 1080p / 1080p Lite / 720p / 720p Lite · CVBS: WD1 · IP: up to 2MP
Audio
Audio input	1 (RCA)
Audio output	1 (RCA)
Coaxitron audio	Supported, two-way
Recording & Software
Recording mode	Manual, timed, motion, AI recording
Cloud recording	EpcomCloud (license required; needs ADAPTERCLOUD-08)
Mobile app	SuperLive Plus (iOS, Android)
Storage
HDD	1 SATA bay, up to 8TB
Physical & Power
Power supply	DC12V / 1.5A (included)
Power consumption	≤5W (without HDD)
Dimensions (W x D x H)	10.04" x 8.74" x 1.65" (25.5 x 22.2 x 4.2 cm)
Working environment	14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
Warranty	5 years with Epcom

4 channels, hybrid ready, low power.

Analog + IP support, coaxitron audio and cloud/mobile access — sized for the smallest sites that still want real flexibility.

Request pricing →

Low in stock · 2 pcs

Receives in 3 days.

Product Comparison

Collection description
