The equipment includes: 1 × HDMI transmitter, 1 × HDMI receiver 1 × IR Blaster Cable (1.5 meters), 1 × Infrared receiver cable (1.5 meters), 1 × 12V/1A DC power adapter, 1 × User manual

Introduction:

EPCOM TITANIUM presents its range of high-tech HDMI extenders and easy interconnection in professional security systems.

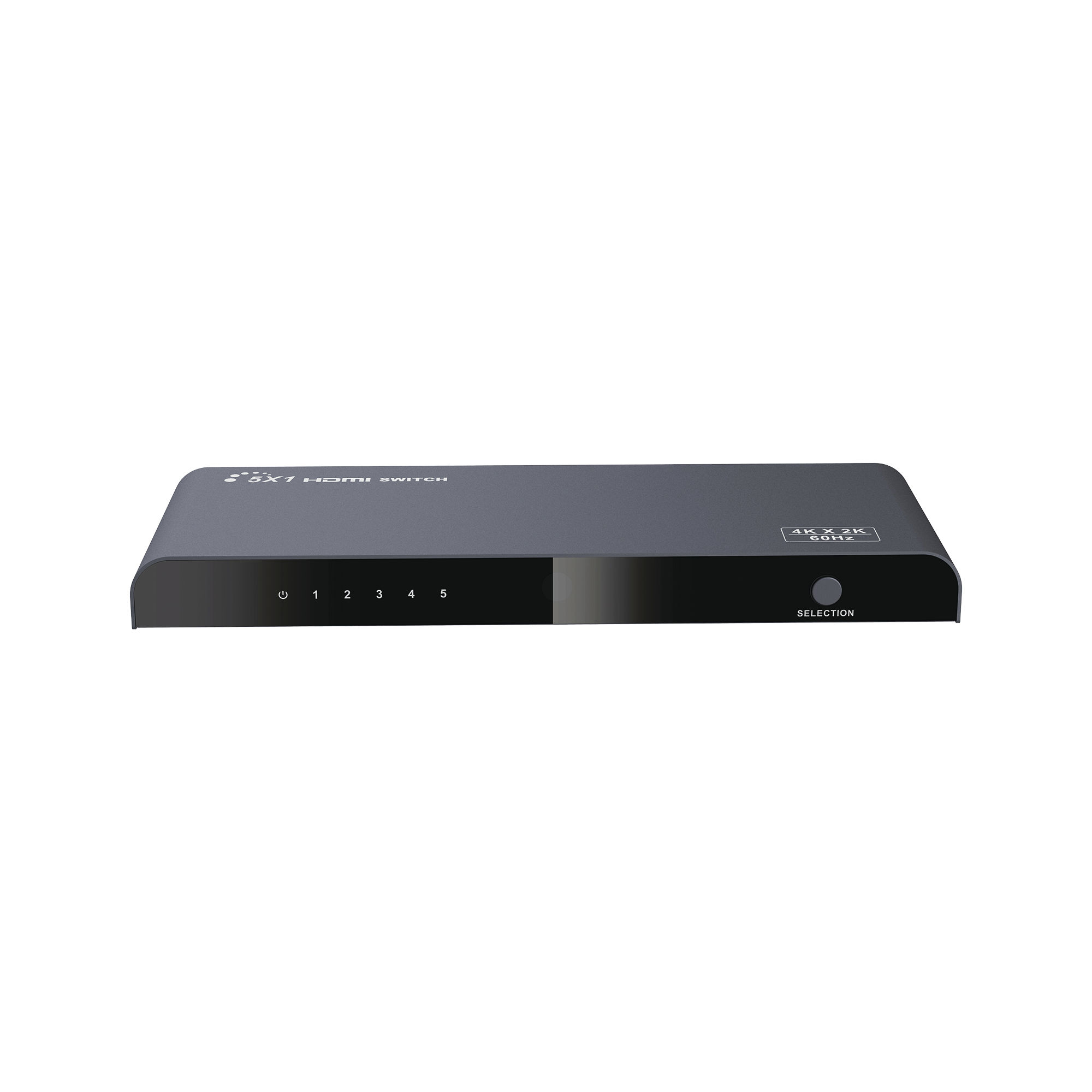

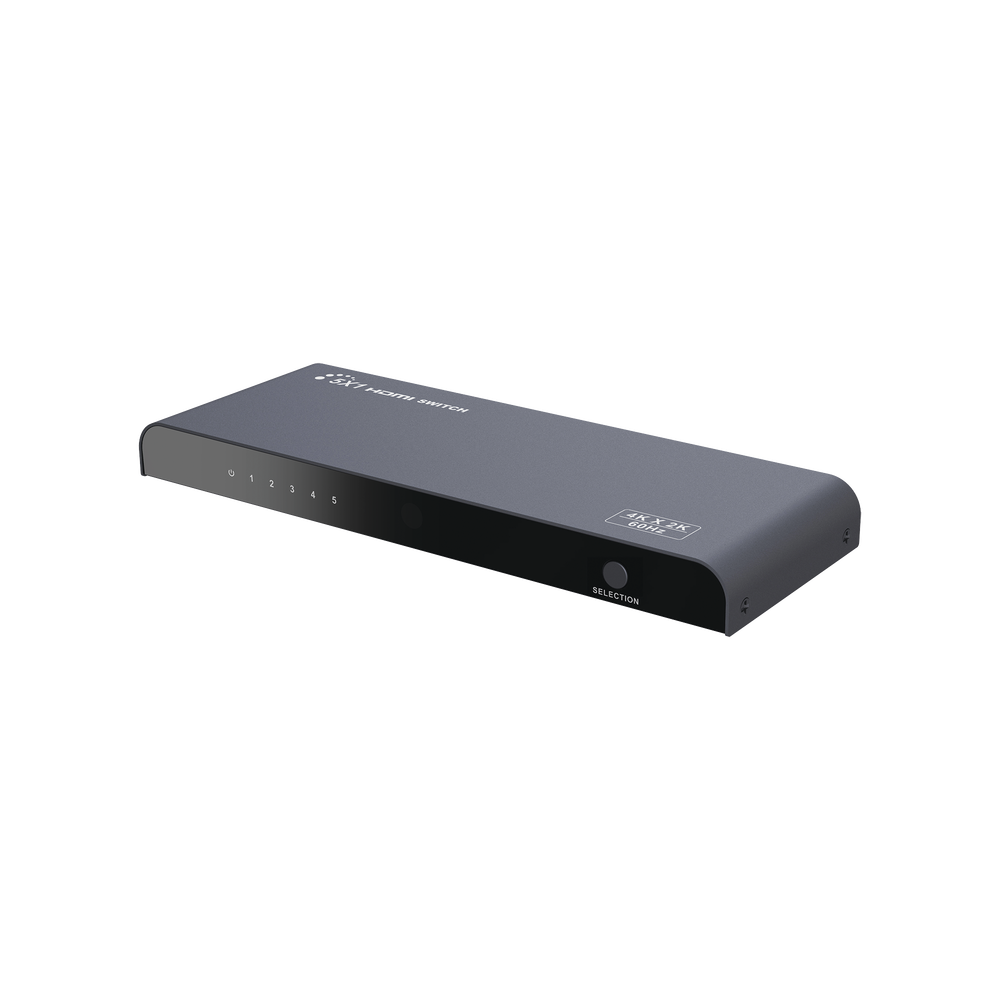

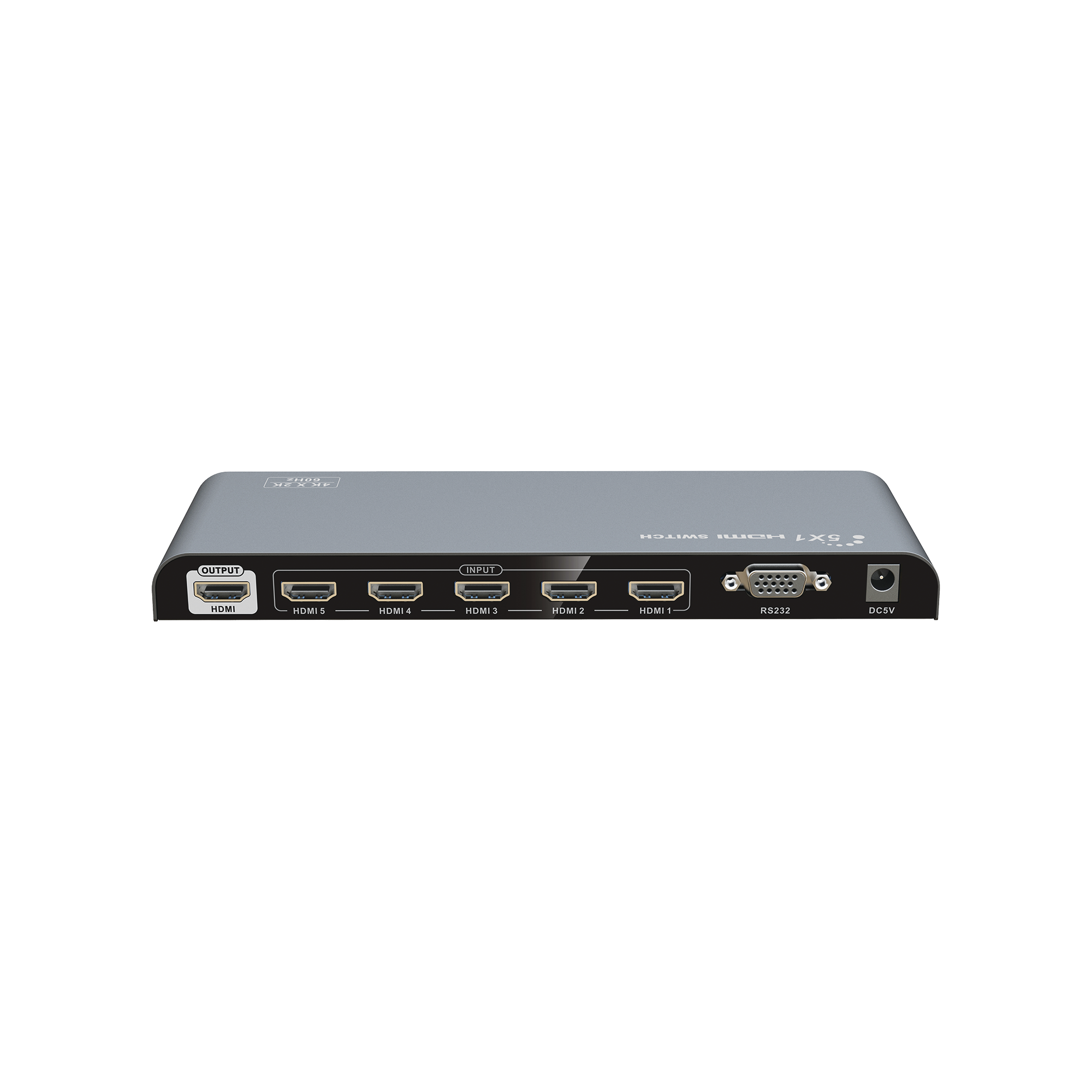

This 5x1 HDMI switch routes 5 different sources at a resolution up to 4Kx2K@60Hz ultra HD to 1 HDMI display. The unit with 5 HDMI inputs, which makes this unit ideal for simultaneous connection of multiple HDMI devices, such as HDTV, set-top box, DVD, etc. In addition, this unit with IR receiving window and RS232 port thus are easy and flexible to control the input signal as you need. It is perfect for security systems, medium entertainment, conference exhibition center and digital monitoring system, etc.

1. Easily switch between any source of  5 HDMI.
2. Admits resolutions up to Ultra HD 4KX2K @ 60Hz
3. Admits the greatest bandwidth up to 18Gpbs
4. Supports HDMI 3D
5. IR support control and RS232 control
6. Plug and play, easy to use
7. Good compatibility
8. Heat dissipator design works in a more stable manner
9. Switch easily between any 5 HDMI source
10. Supports resolutions up to Ultra HD 4KX2K@60Hz
11. Supports the highest bandwidth up to 18Gpbs
12. Support HDMI 3D

Application：

Source device：like PS3, top box, PC, etc. With HDMI/SDI/DVI/VGA output interface
Display device: like TV, project, etc. With HDMI/SDI/DVI/VGA input interface

- 1 Year Warranty

Note.- The remote control does not include the battery, the suggested model is: CR2025

INTRODUCTION

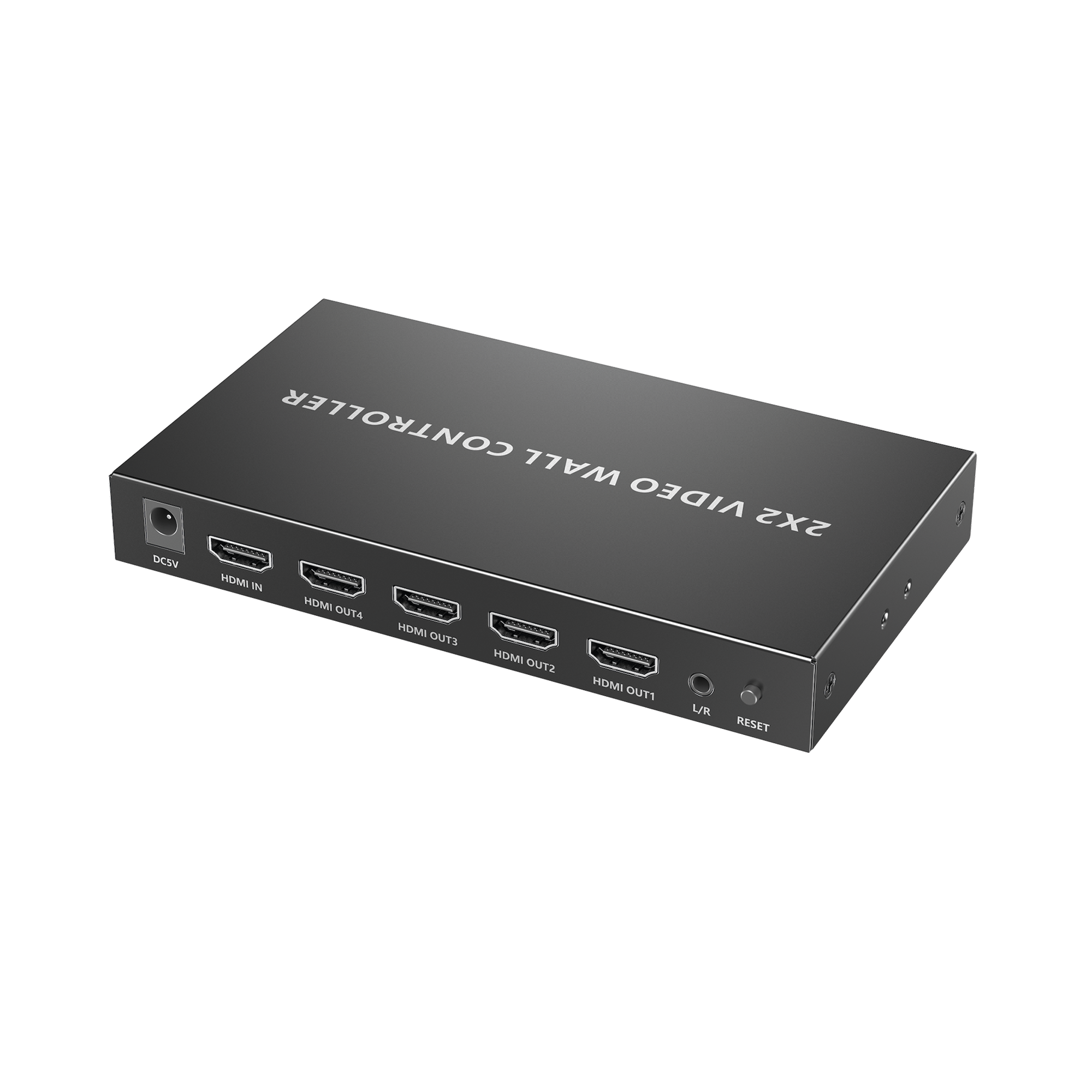

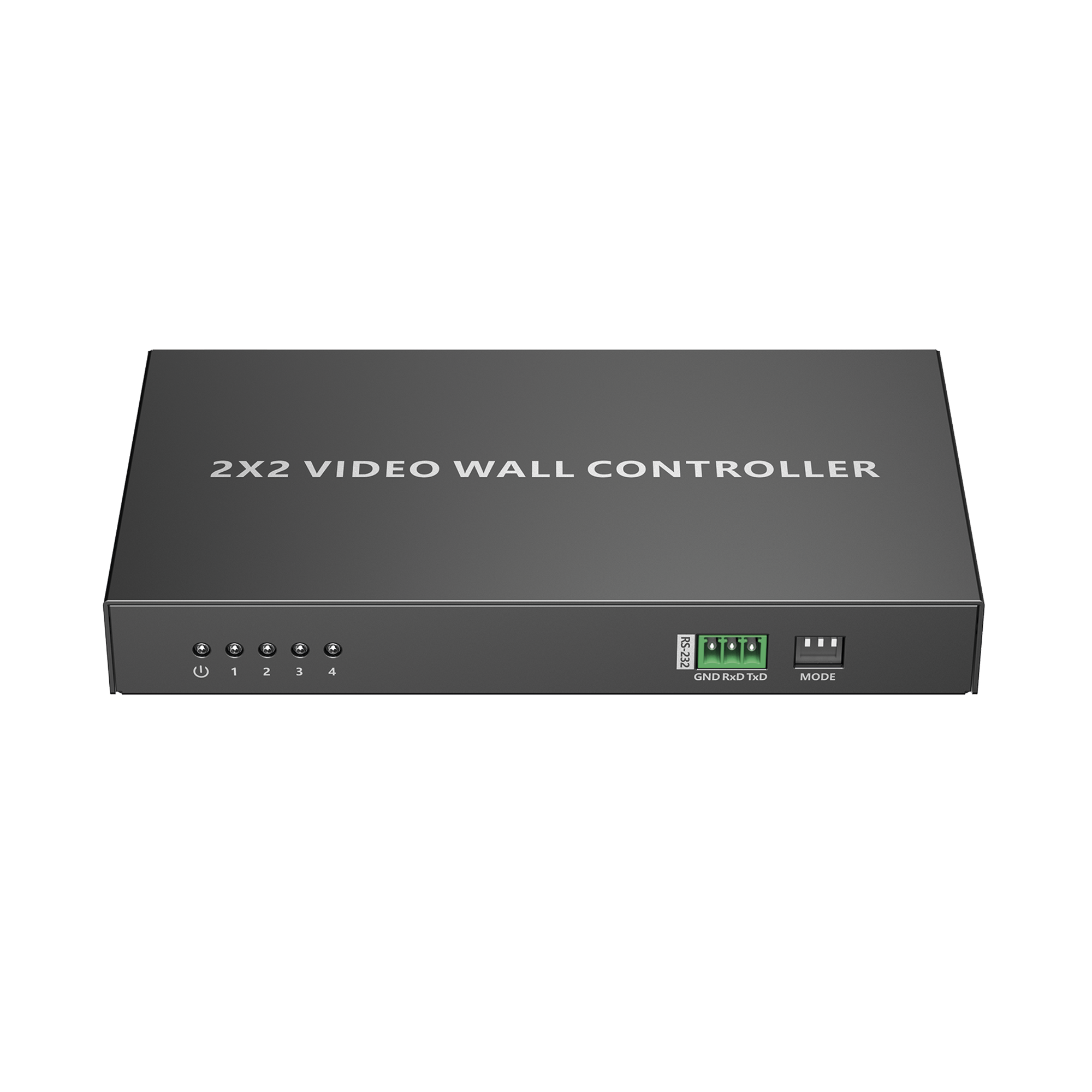

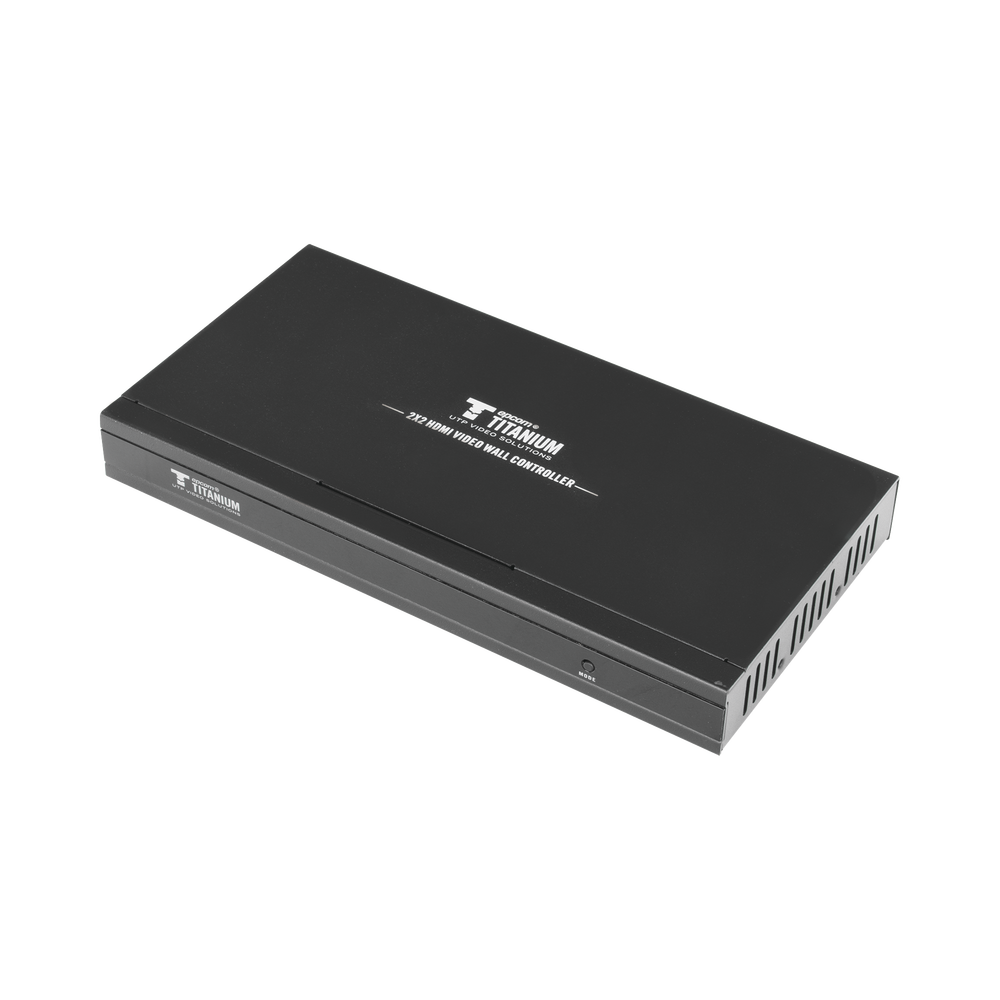

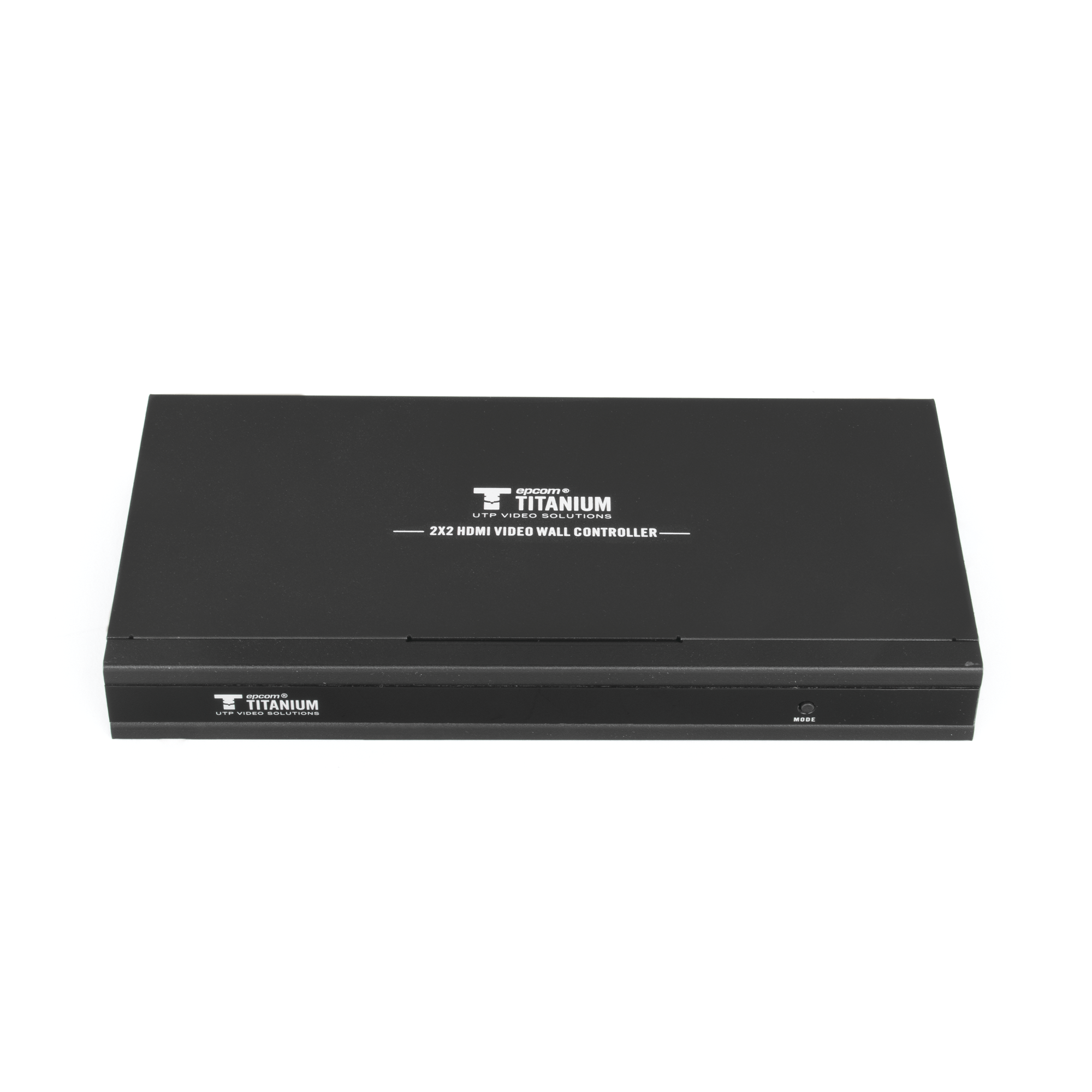

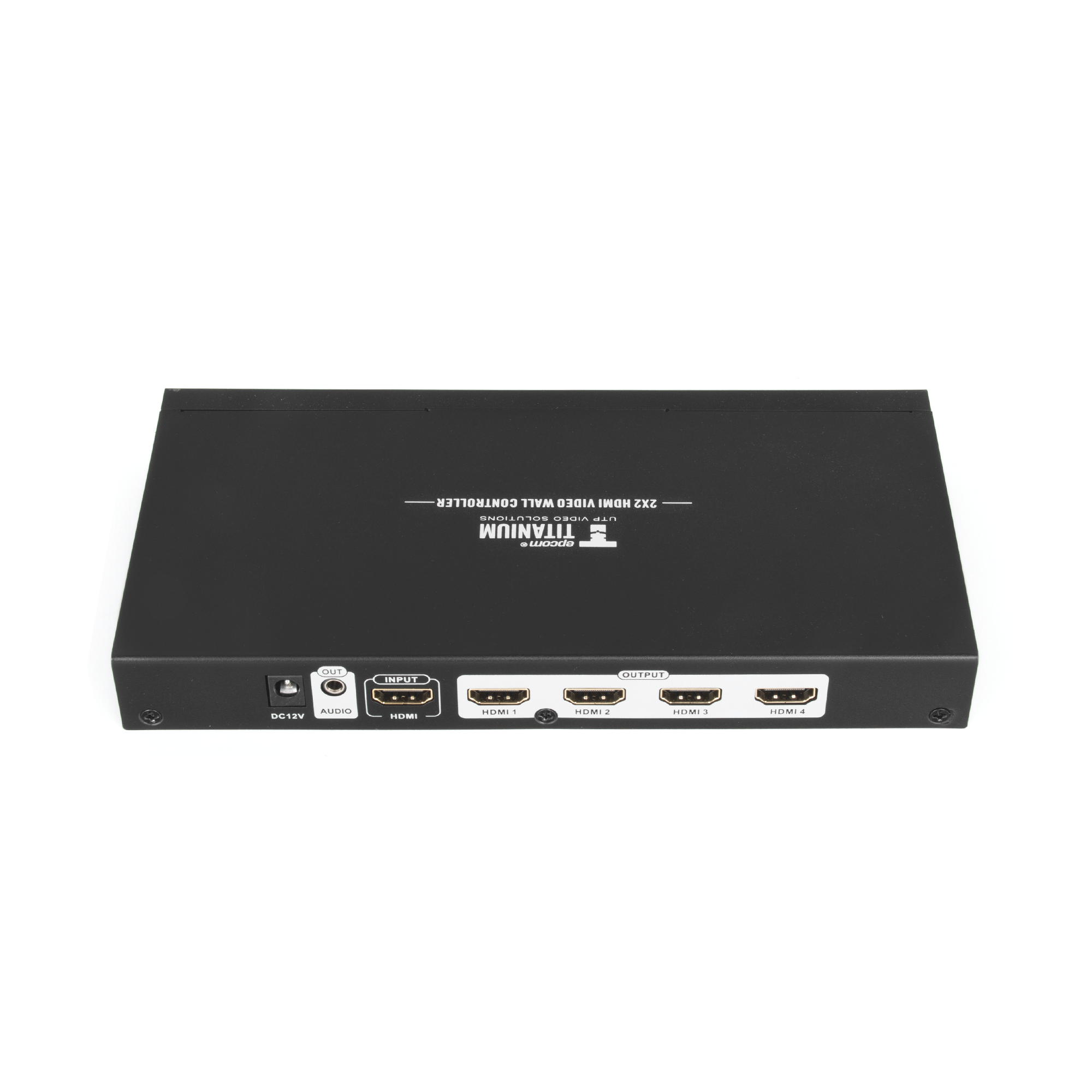

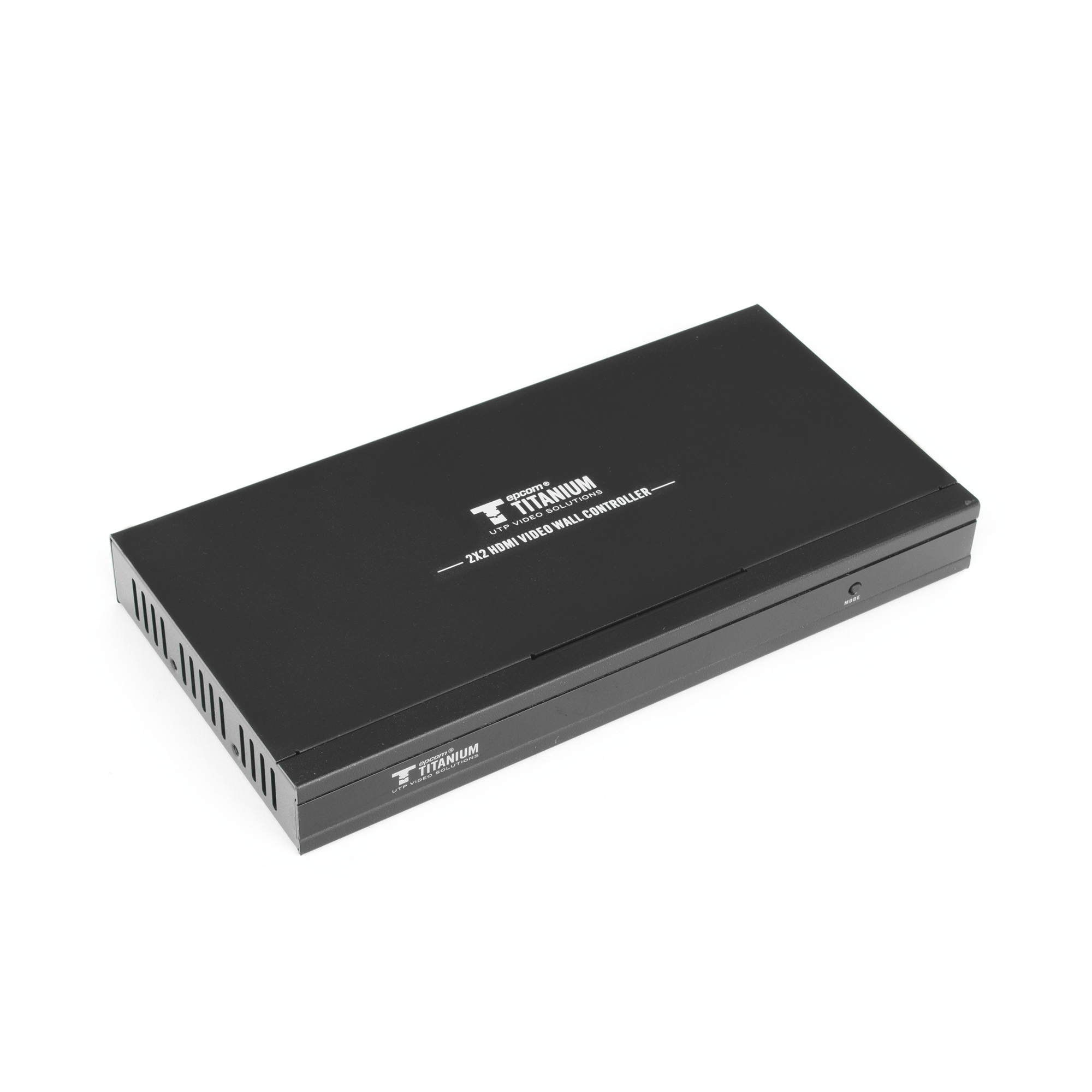

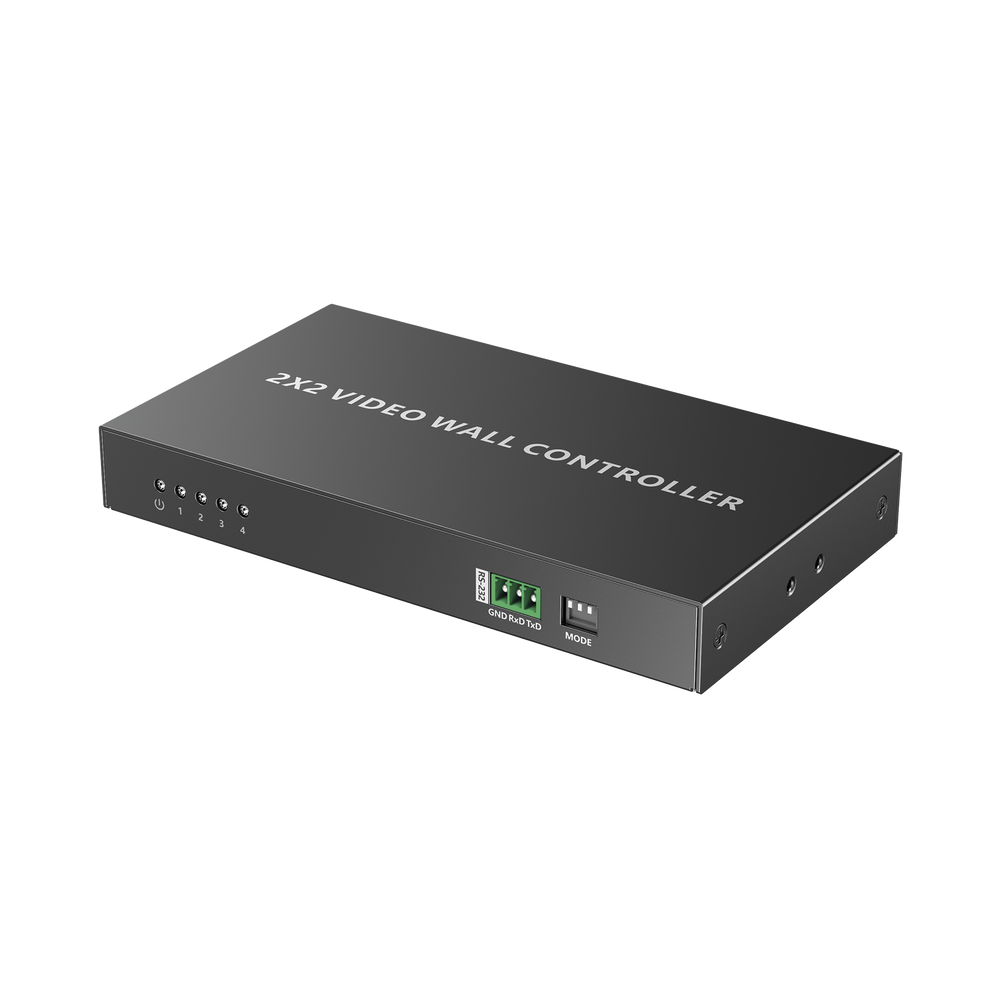

This video wall controller is a perfect solution for a 2x2 large video wall, and supports 1xHDMI source input and 4xHDMI outputs to four monitors. It supports the HDCP-compliant HDMI signal source up to full HD 1080p@60Hz. It's ideal for video wall display applications in clubs, exhibitions, building lobbies, and other similar venues.

FEATURES

1. With 4 HDMI outputs, divide the input video into four parts and extend it to four same-size displays.
2. Resolution supported is up to 1080p@60Hz.
3. Support video wall screen mode and clone screen mode.
4. 0.13" (3.5mm) audio output port, access to audio equipment easily.
5. Wall-mountable design, easy for installation.
6. Switch output modes with the mode button.
7. Plug and play.

- 1 Year Warranty

Includes: 1 × HDMI 1 × 4 Splitter, 4 × CAT Receiver, 1 × IR Blaster Cable (1.5 meters), 4 × Infrared receiver cable (1.5 meters), 2 × mounting brackets, 1 × 12V/2.5A DC locking power adapter, 8 × machine screws (KM3*4), 1 × User manual

Introduction:

EPCOM TITANIUM presents its range of high-tech HDMI extenders and easy interconnection in professional security systems.

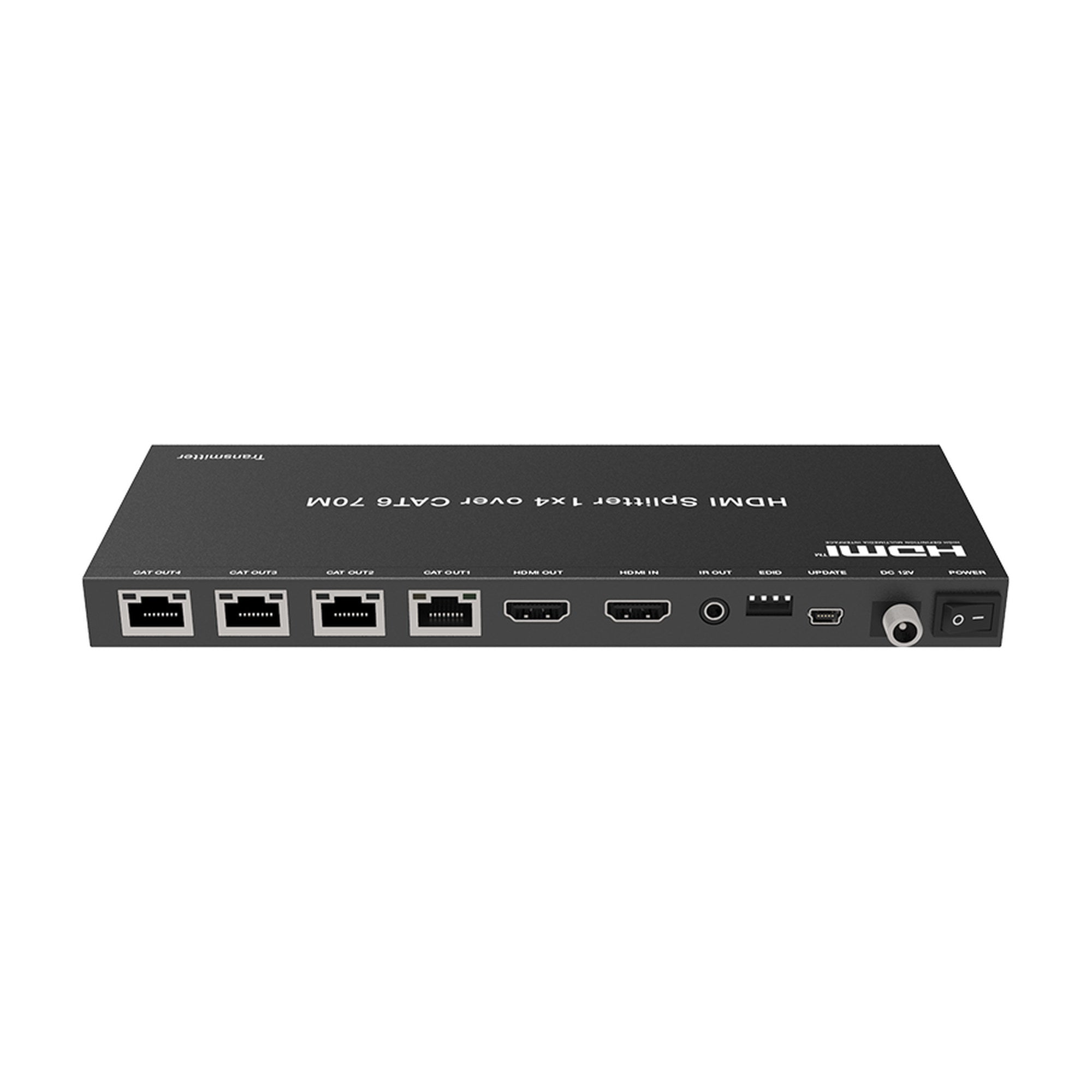

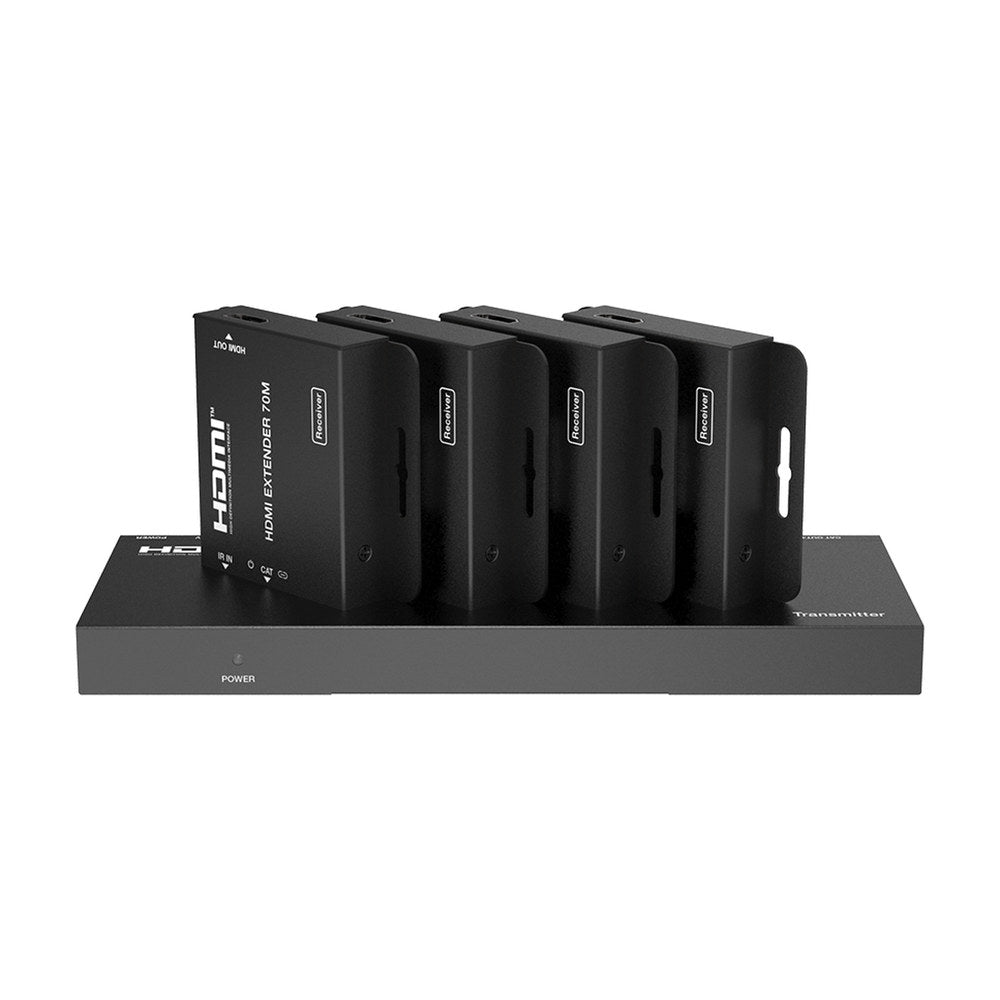

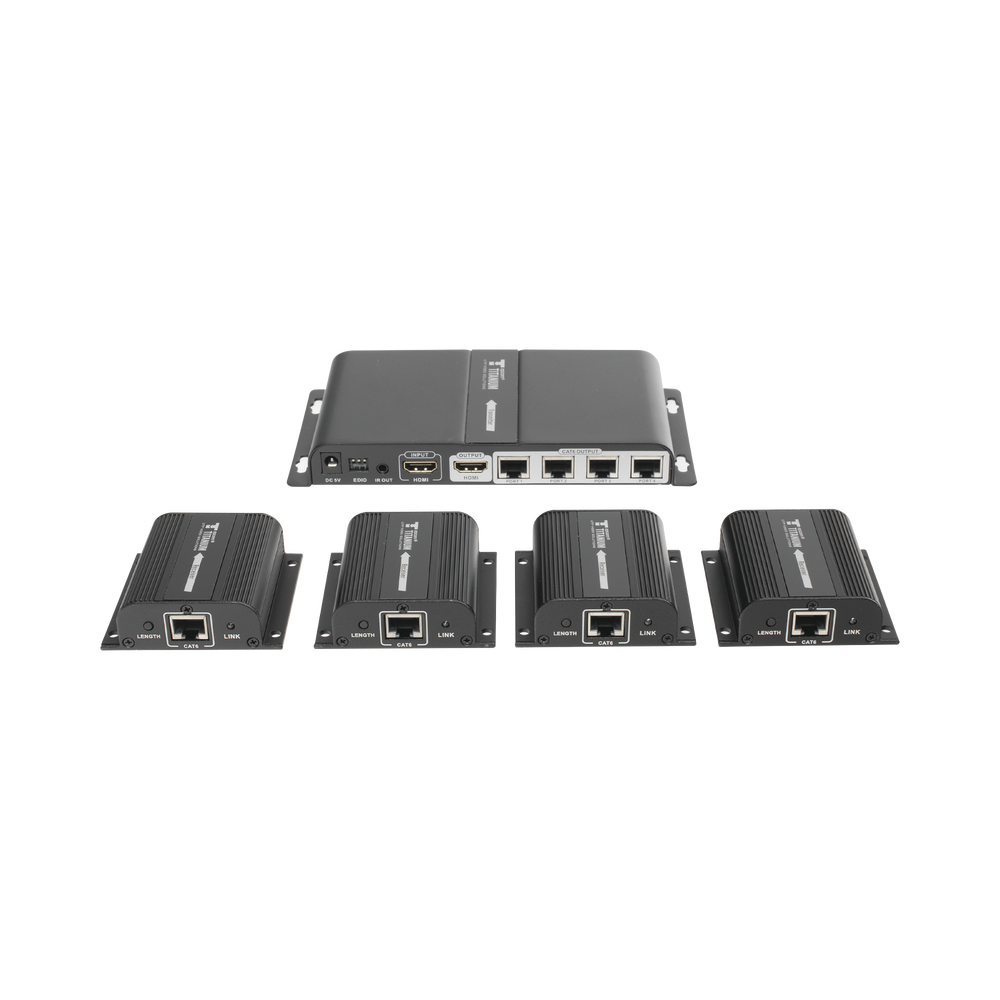

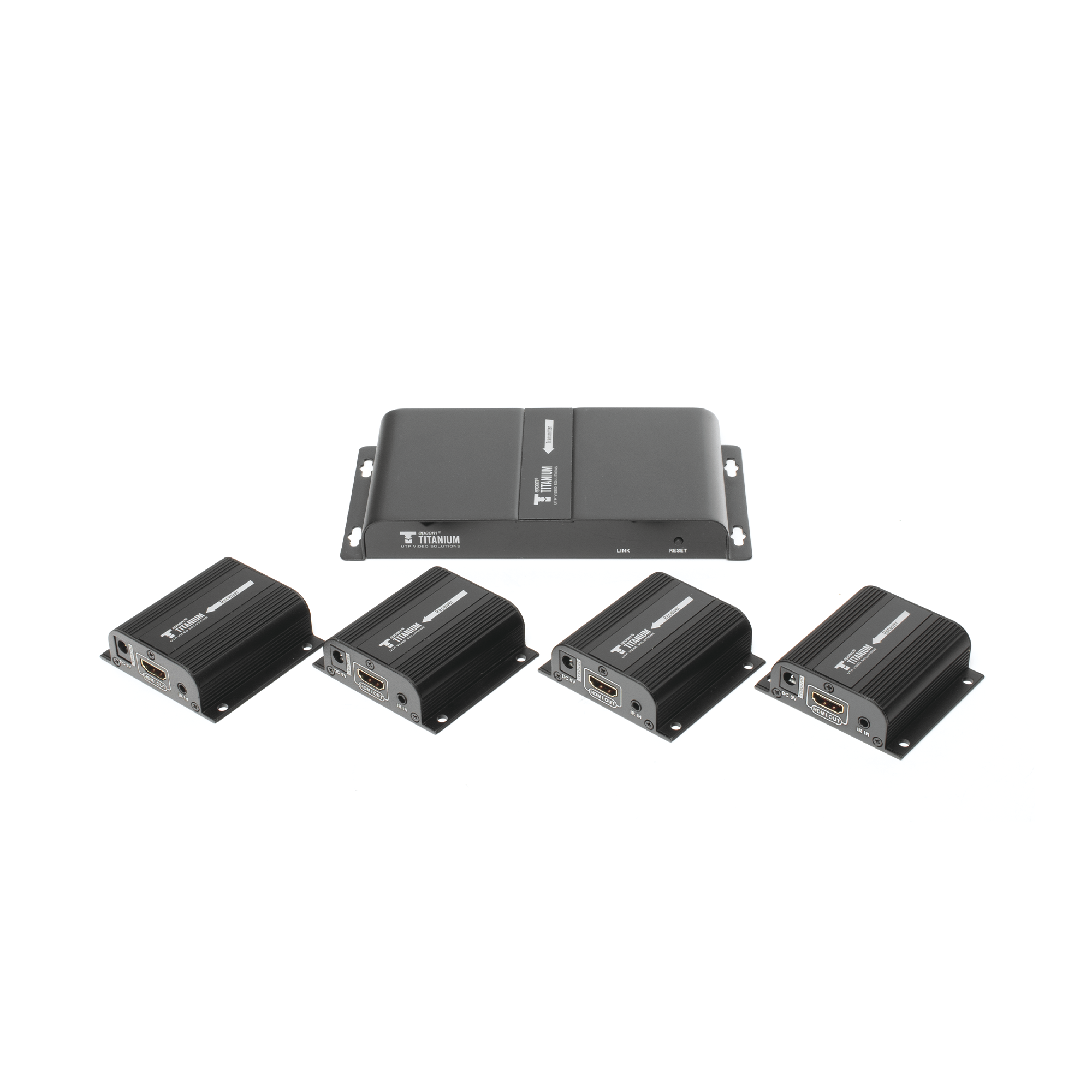

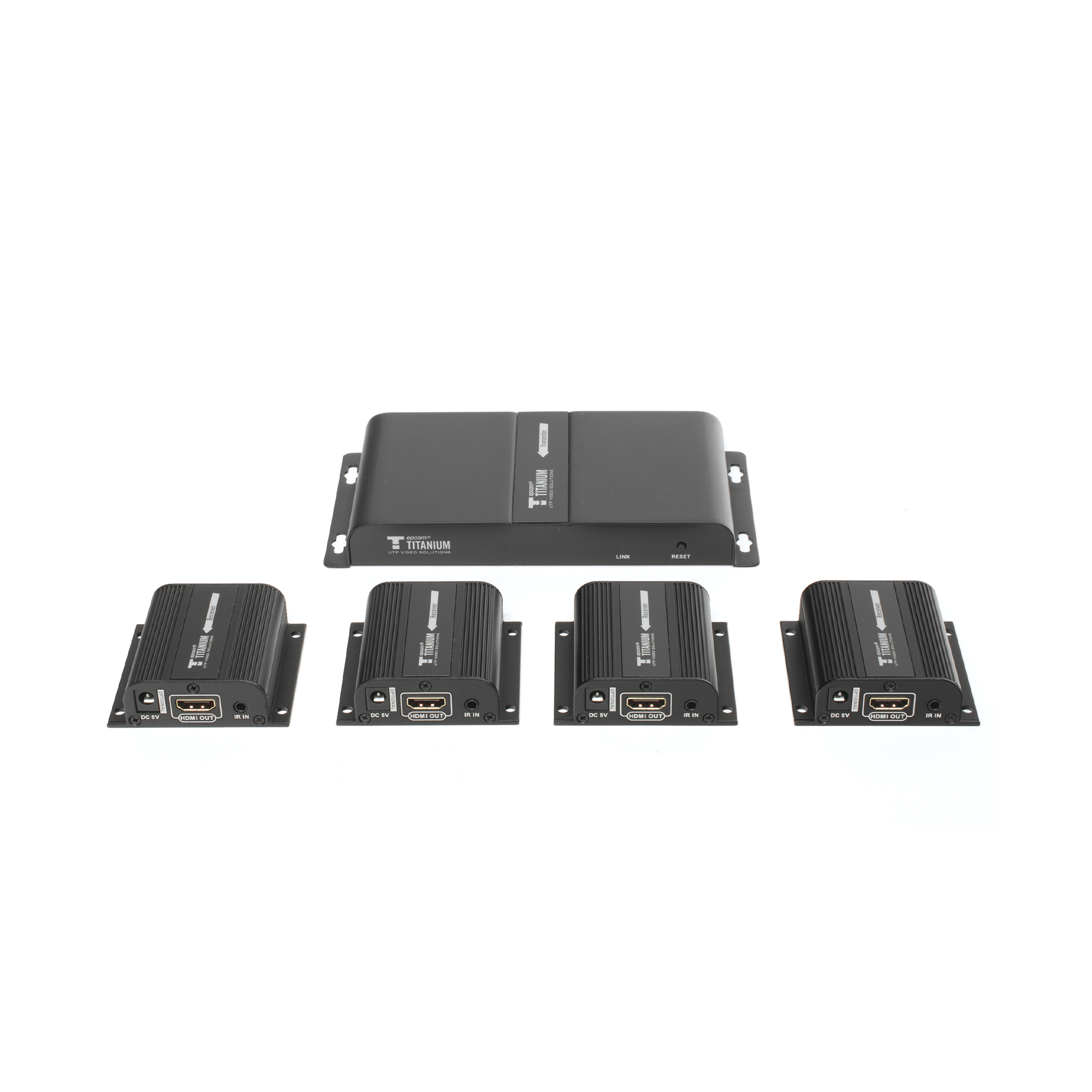

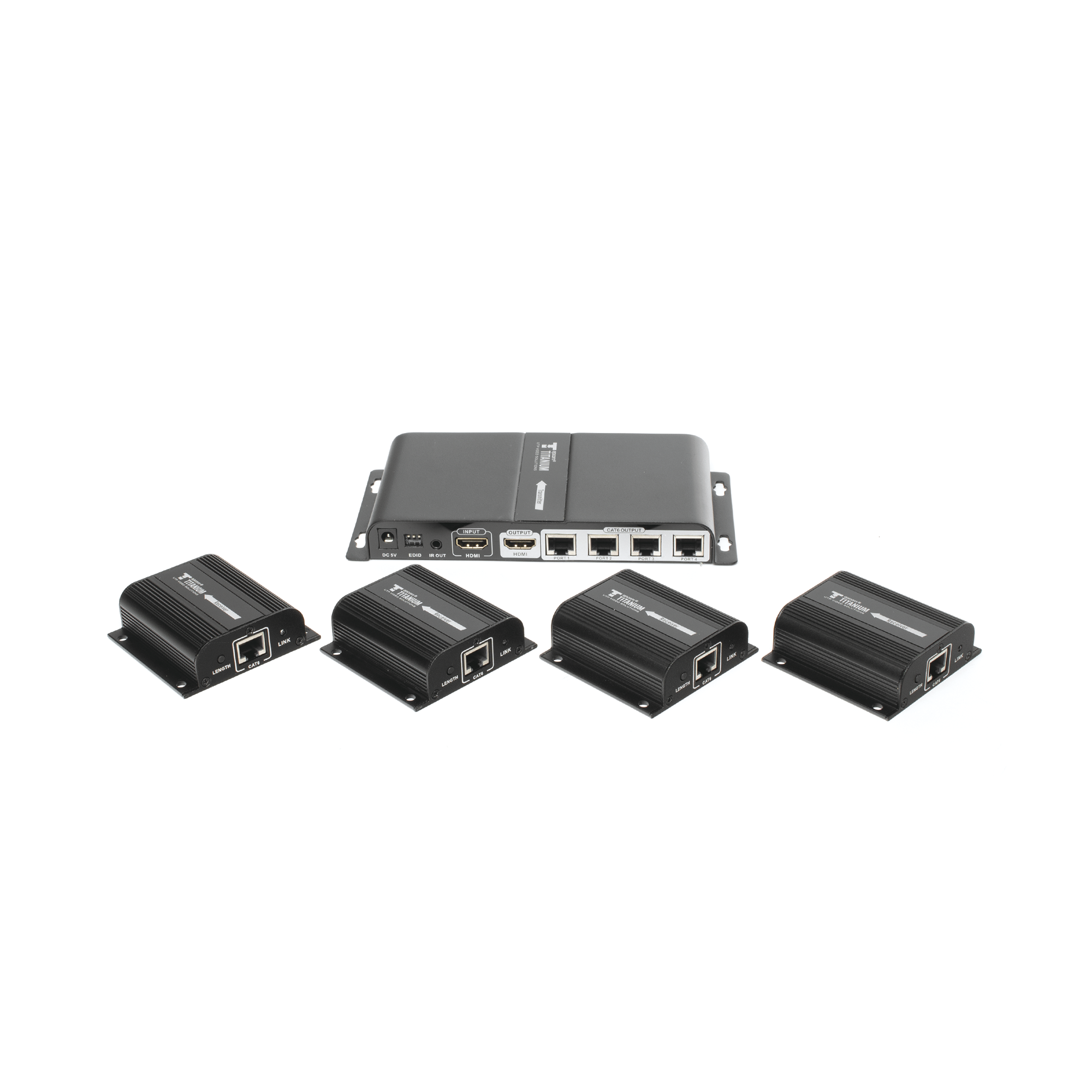

The TT-714-PRO works with 4 HDMI extension receivers using CAT6 cable to split and extend 1 HDMI source to 4 HDMI screens with CAT6 / 6a / 7 cable up to 40m / 131ft. The highest supported resolution is 1920x1080 @ 60Hz and supports IR control, in addition to EDID technology, and only the hub requires power; the receiver works with the transmitter through the CAT6 cable. The ideal solution for HDMI exhibitions, video conferences, and entertainment centers.


Characteristics :

• Distribute 1 HDMI source to 4 HDMI screens through a network cable at the same time.
• With HDMI Loop-out output.
• Compatible with CAT6 / 6a / 7 network cables.
• The transmission distance is up to 40 m / 131 feet.
• The highest resolution admitted is 1920x1080 @ 60Hz.
• Supports 20 ~ 60Hz IR passback.
• It supports the EDID function, Provides power from the transmitter to the receiver.

Application areas :

It is suitable for areas of:

• Source devices such as DVD, PS3, STB, PC, DVR.
• Monitors or displays screens.

Specifications :

• HDMI inputs: 1
• Outputs RJ45: 4
• HDMI version: Compatible with HDM1.3
• HDCP version: Compatible with HDCP 1.2
• HDMI resolution: 1080 p @ 50/60 Hz
• Power consumption: ≤ 15 W
• Dimensions: TX: 7.48 x 3.77 x 0.94" (190 x 95.9 x 23.9 mm) ; RX: 2.81 x 2.62 x 0.88" (71.6 x 66.6 x 22.6 mm)
• Power included: 5 Vcc @ 3 A
• Color: Black
• 1 Year Warranty

Features:

• Cascade connection via unlimited remote switch Infrared remote control
• Plug & Play

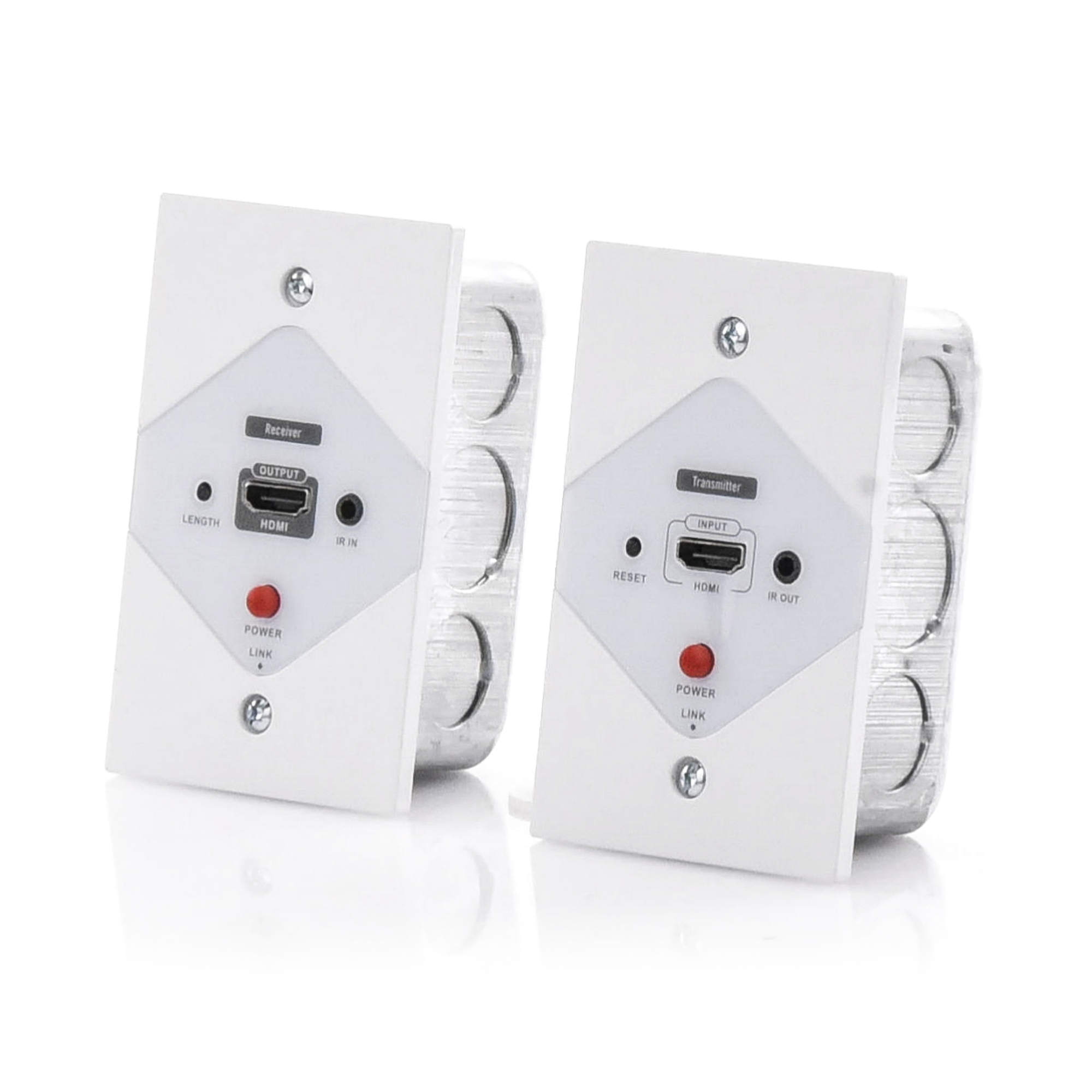

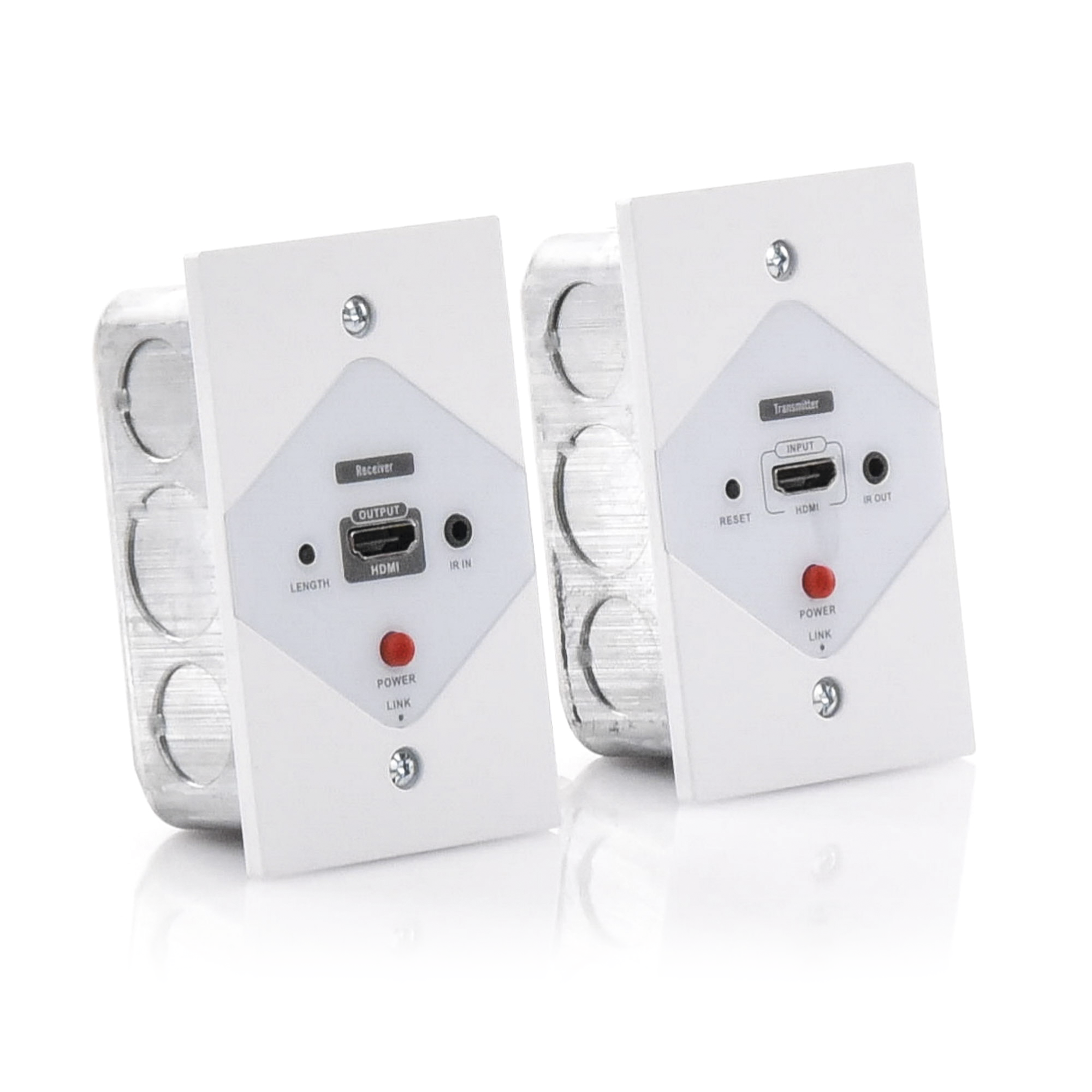

Physical and electrical characteristics:

• Operating temperature: 32°F ~ 140°F (0°C ~ 60°C)
• Power: 5 VDC, 2A (Included)
• Power consumption:TX: 5 W; RX: 4W
• Weight: TX: 0.37 lb (170 g) RX: 0.36 lb (167 g)
• Color: White
• Dimensions: 4.2" x 3.7" x 0.93" (107.3 x 94 x 23.7 mm)
• 1 Year Warranty

Introduction:

EPCOM TITANIUM presents its range of high-tech HDMI extenders and easy interconnection in professional security systems.

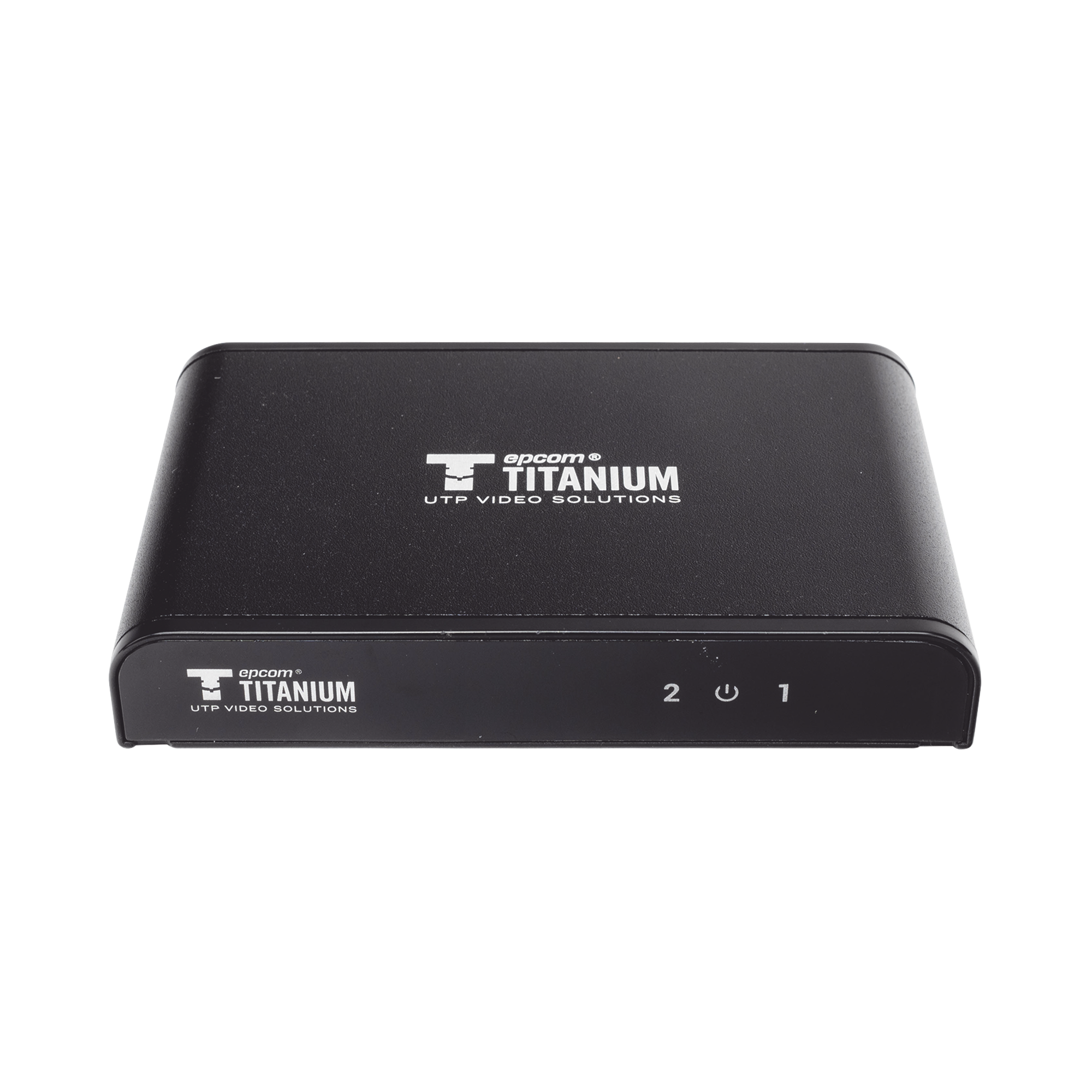

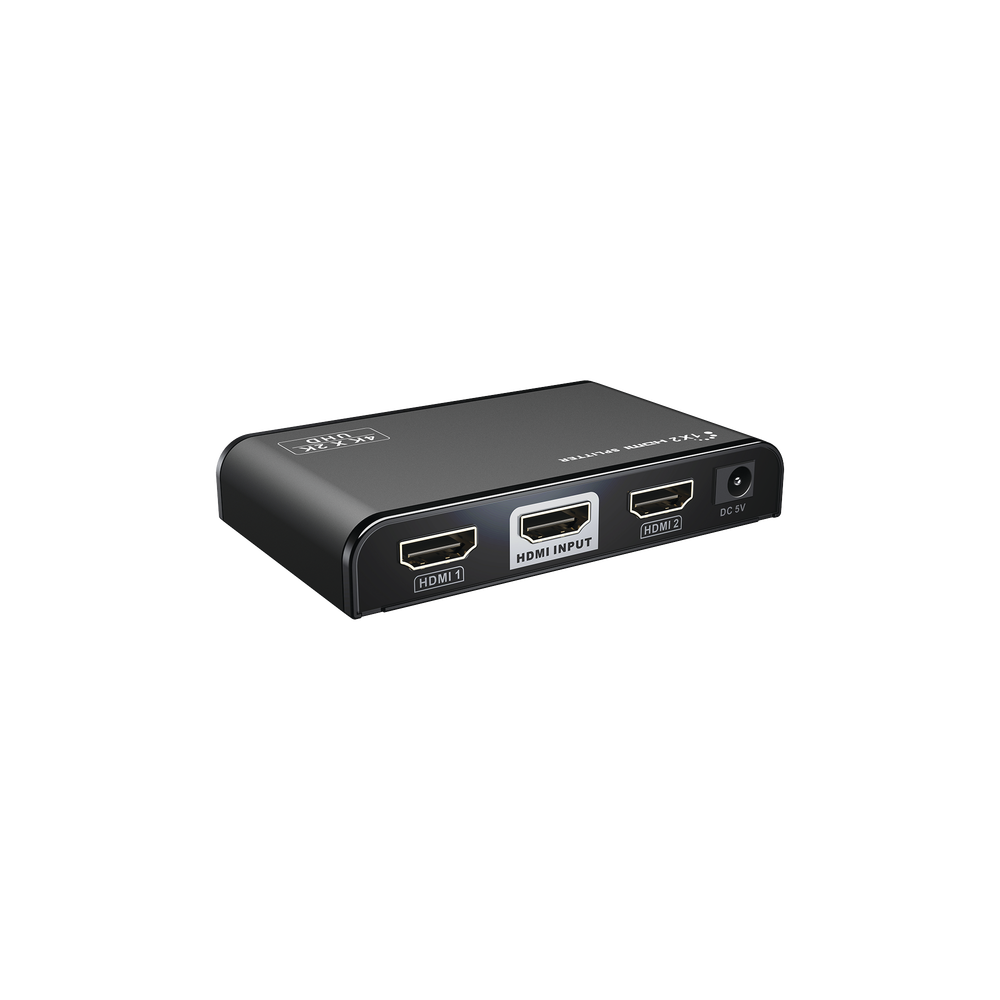

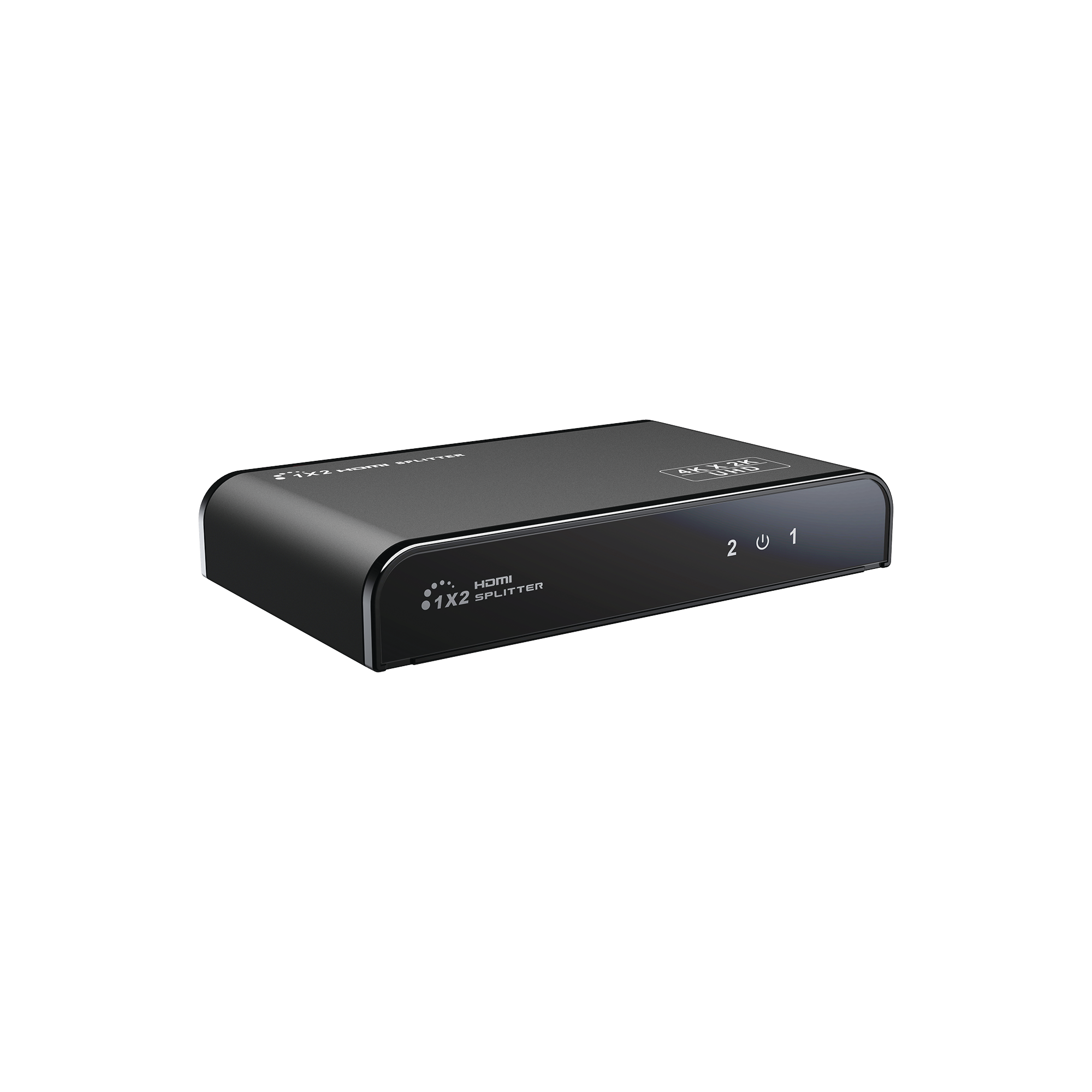

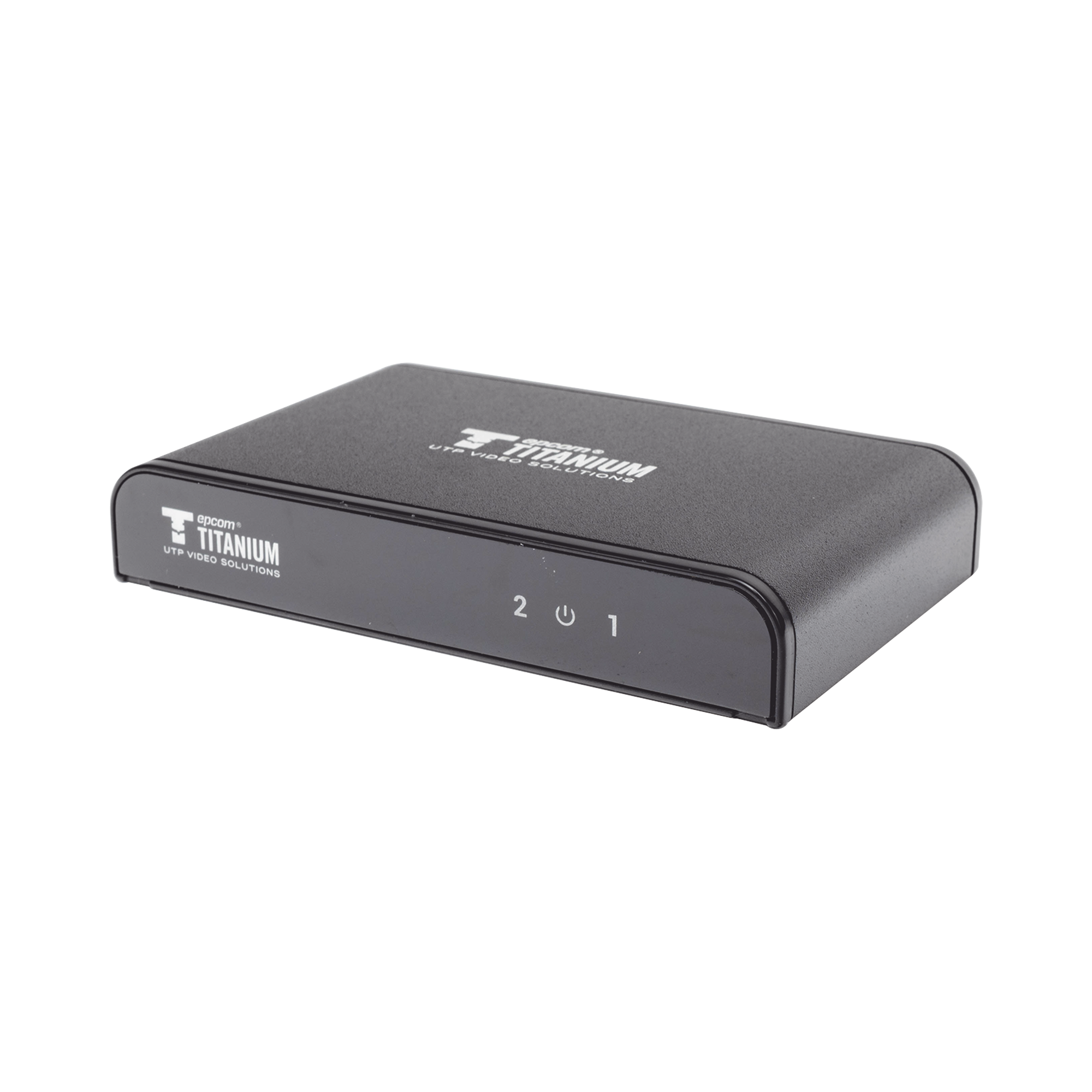

This HDMI splitter distributes 1 HDMI signal path from STB, Blu-ray DVD or PS3, etc. To 2 identical ways HDMI signals to connect to the projector, DLP, LCD or other HD screens simultaneously. Its compatible resolutions identify up to 4K @ 60Hz and HDCP2.2, specifications. It is compatible with HDMI 3D.

The TT312V2.0 fully complies with the latest high-speed HDMI specifications with HDCP 2.2. This HDMI splitter is optimized to distribute HDMI video and integrated multi-channel digital audio to multiple 4K display environments, such as residential or digital signage markets and computer lab applications.

Characteristics :

• Distribute 1 HDMI signal to 2 HDMI monitors
• Supports ultra high-resolution HD 4K × 2K at 60Hz
• Supports the highest bandwidth up to 18 Gbps
• Supports HDMI 3D
• Plug and play, easy to use
• Good compatibility
• The design in its heat dissipation makes it more stable
• Supports HDMI2.0 and HDCP2.0
• Includes external 5 Vdc power supply

Application areas :

It is suitable for areas of:

• Source devices such as DVD, PS3, STB, PC, DVR.
• Monitors or display screens.

Specifications :

• HDMI inputs: 1
• HDMI outputs: 1
• Led power indicator: 1
• Leds signal indicators: 2
• HDMI version: Compatible with DVI 1.0, HDM1.4, HDMI2.0
• HDCP version: Compatible with HDCP 1.4, HDCP 2.2
• Frequency range: 25 Mhz- 600 Mhz
• HDMI resolution: 4K x 2 K @ 24/25/30/60 Hz
• Power consumption: ≤ 5 W
• Dimensions: 3.77 x 2.32 x 0.66" (96 x 59 x 16.8 mm)
• Power included: 5 Vcc @ 1 A
• Weight: 0.21 lb (98 g)
• Color: Black
• 1 Year Warranty

Connection :

Diagram :

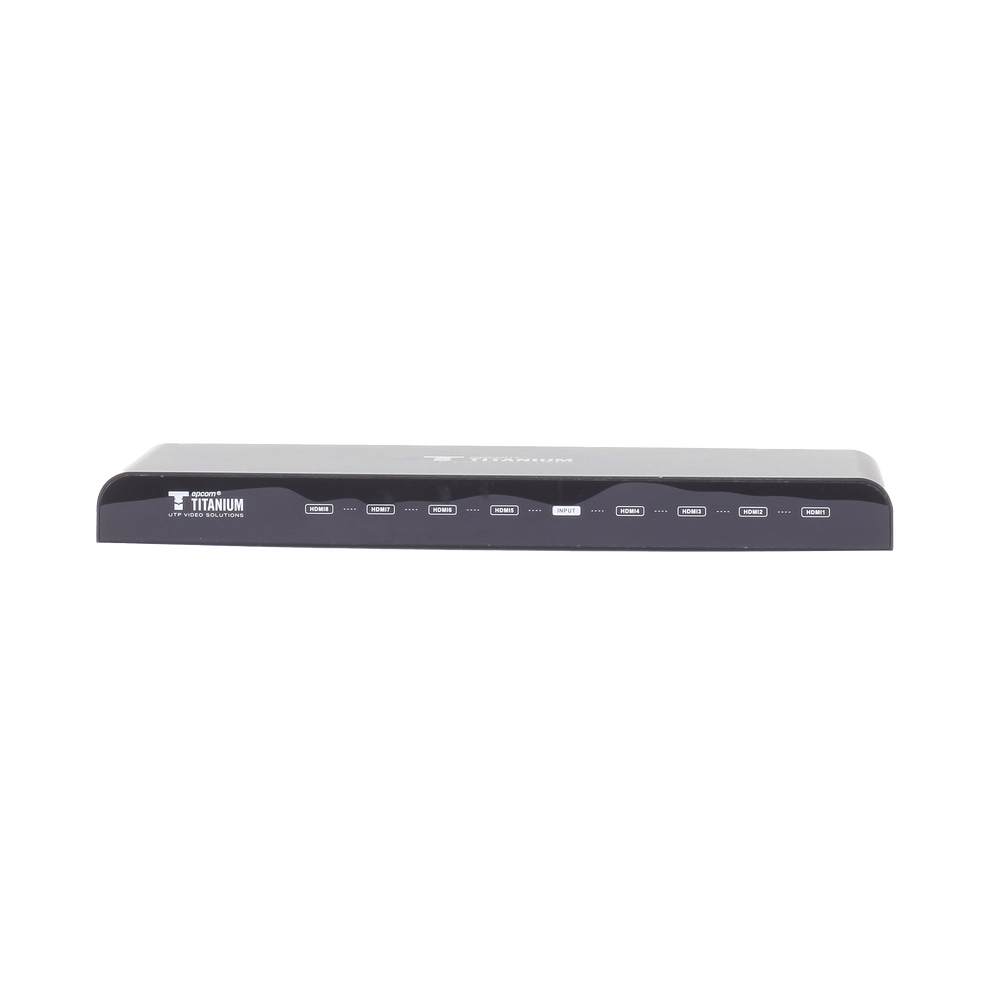

Introduction:

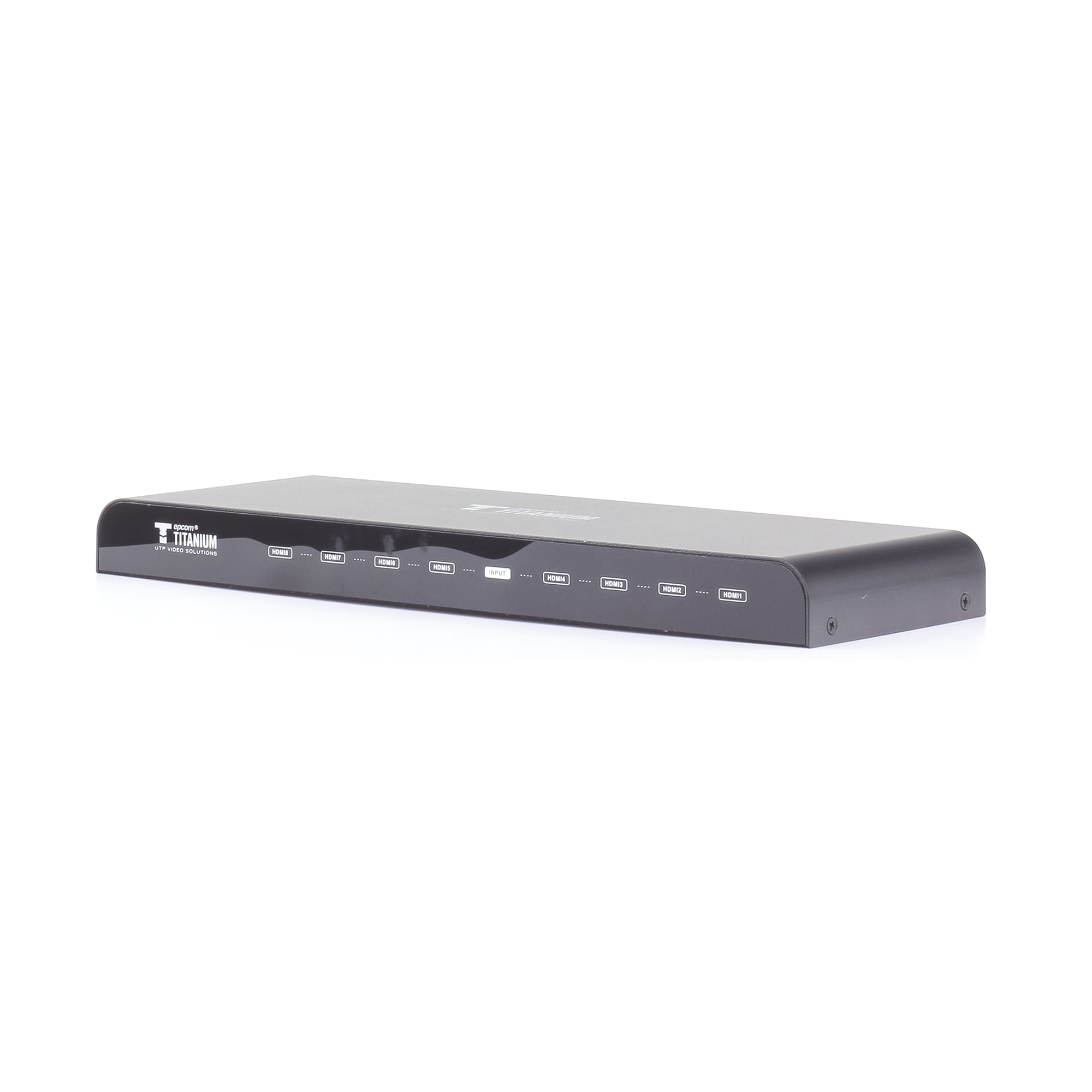

Splitter 1 HDMI input to 8 HDMI outputs, simultaneously outputs, compatible for STB, DVD. Media Player, Laptop, DVR, and devices compatible with HDMI 3D and 4K x 2K.

Characteristics :

• Input: 1 in HDMI
• Outputs: 8 in HDMI
• Distances: 65 ft (20 m). (For longer distances use the TT168 amplifier)
• Led power indicator: 1 in Orange color.
• Led signal indicators: 8 in color Blue
• HDCP: Compatible
• Frequency range: 25 Mhz-340 Mhz
• Transmission range: 10.2 Gbps
• Color: Supports Full HD, 3D, Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD
• Compatible with LPCM 7.1, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
• Power: 5Vcc, 3A
• Power consumption: less than 20 W
• Dimensions: 12.2 x 4.4 x 1.1" (310 x 112 x 28 mm)
• Weight: 0
• 95 lb (435 g)
• Color: Black
• 1 Year Warranty
