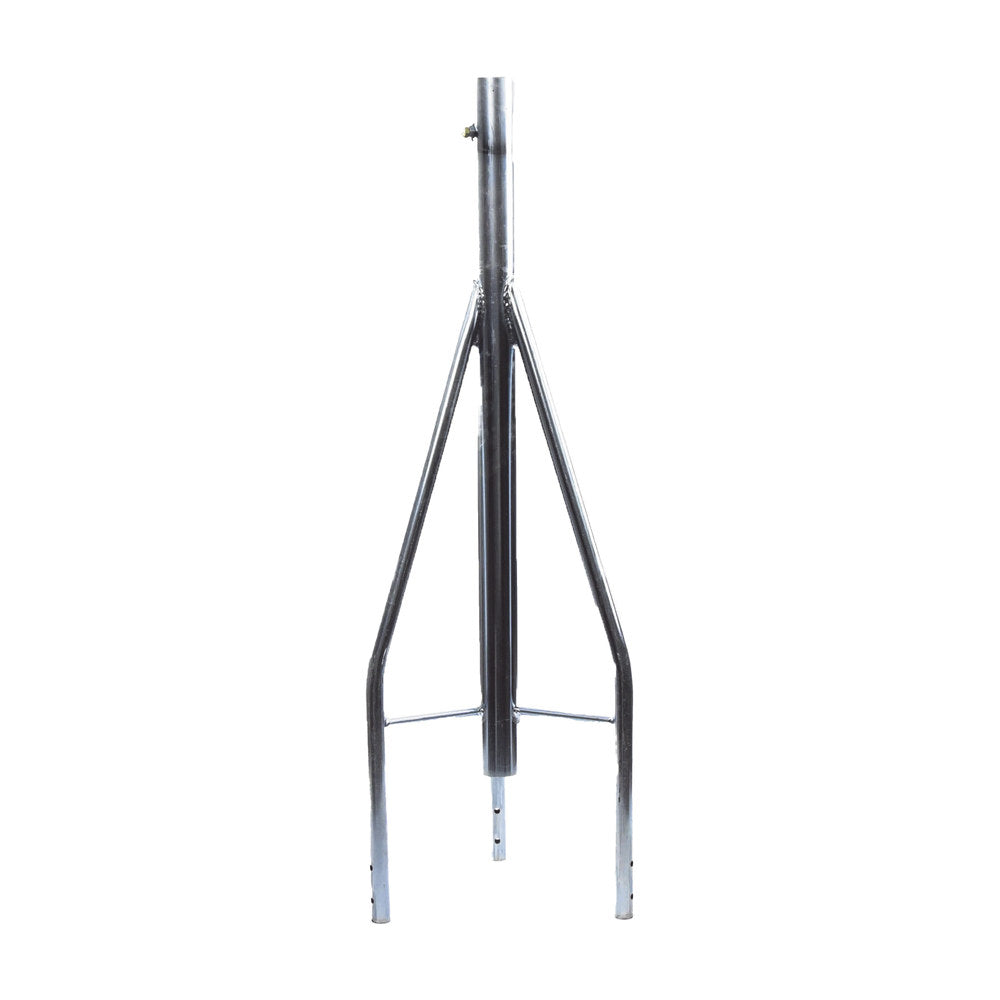

Elaborated Product Under Norms ISO 9000

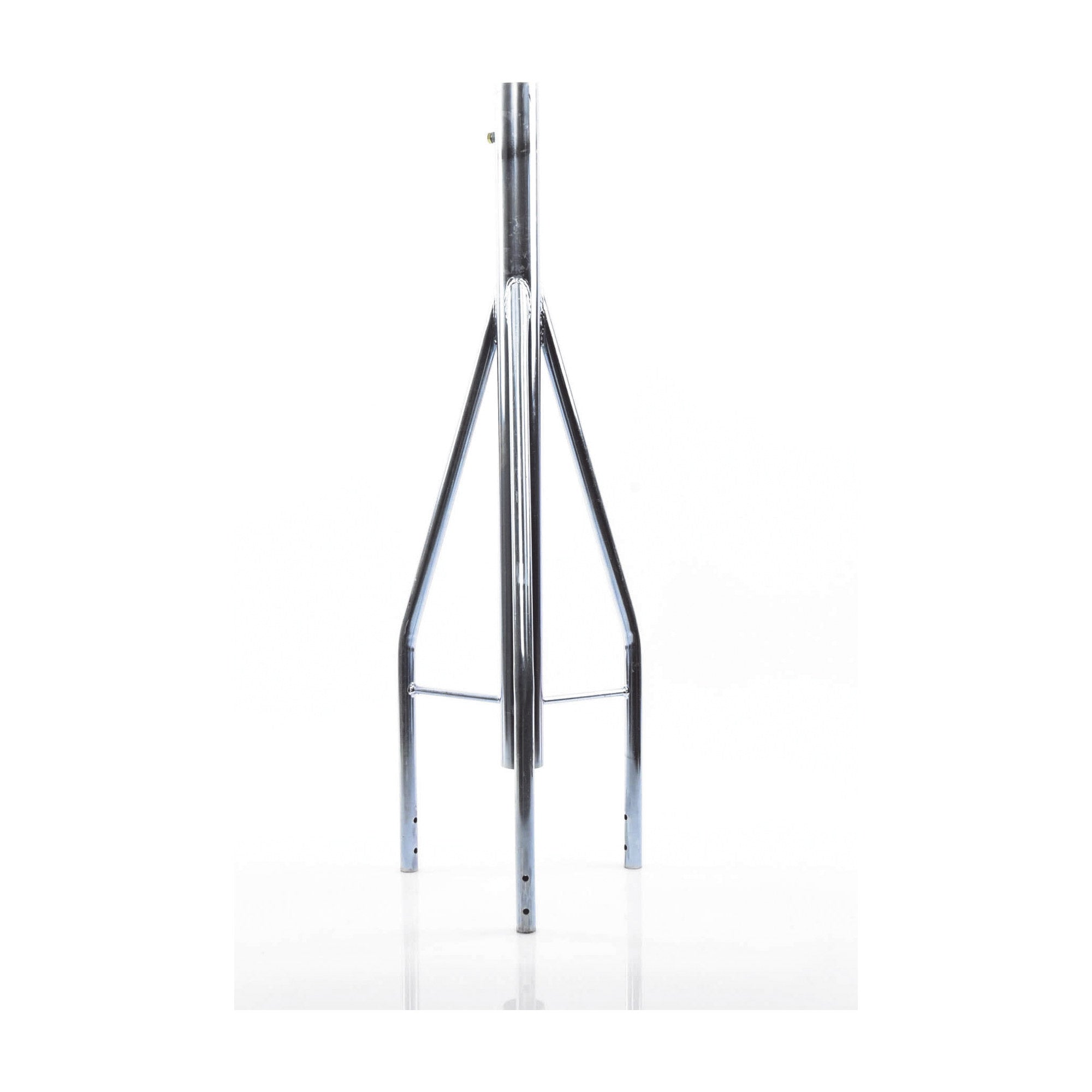

All the sections are made in high precision formers therefore your tower will be perfectly straight and vertical, with no need for adjustments. The use of the top section is recommended to protect the tower from water and rain in the interior.

Top section components

• 7/8" Industrial Tube

• 2" Central Tube

• Hot-dip galvanized

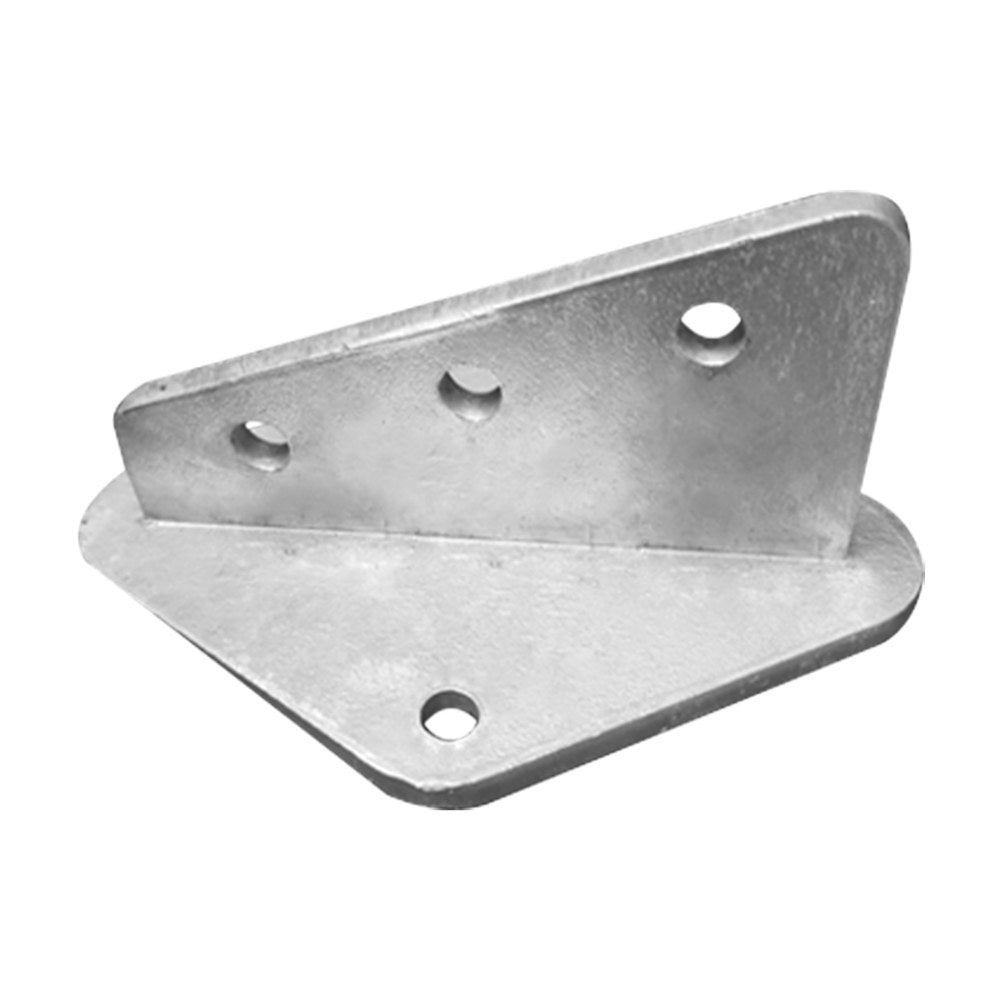

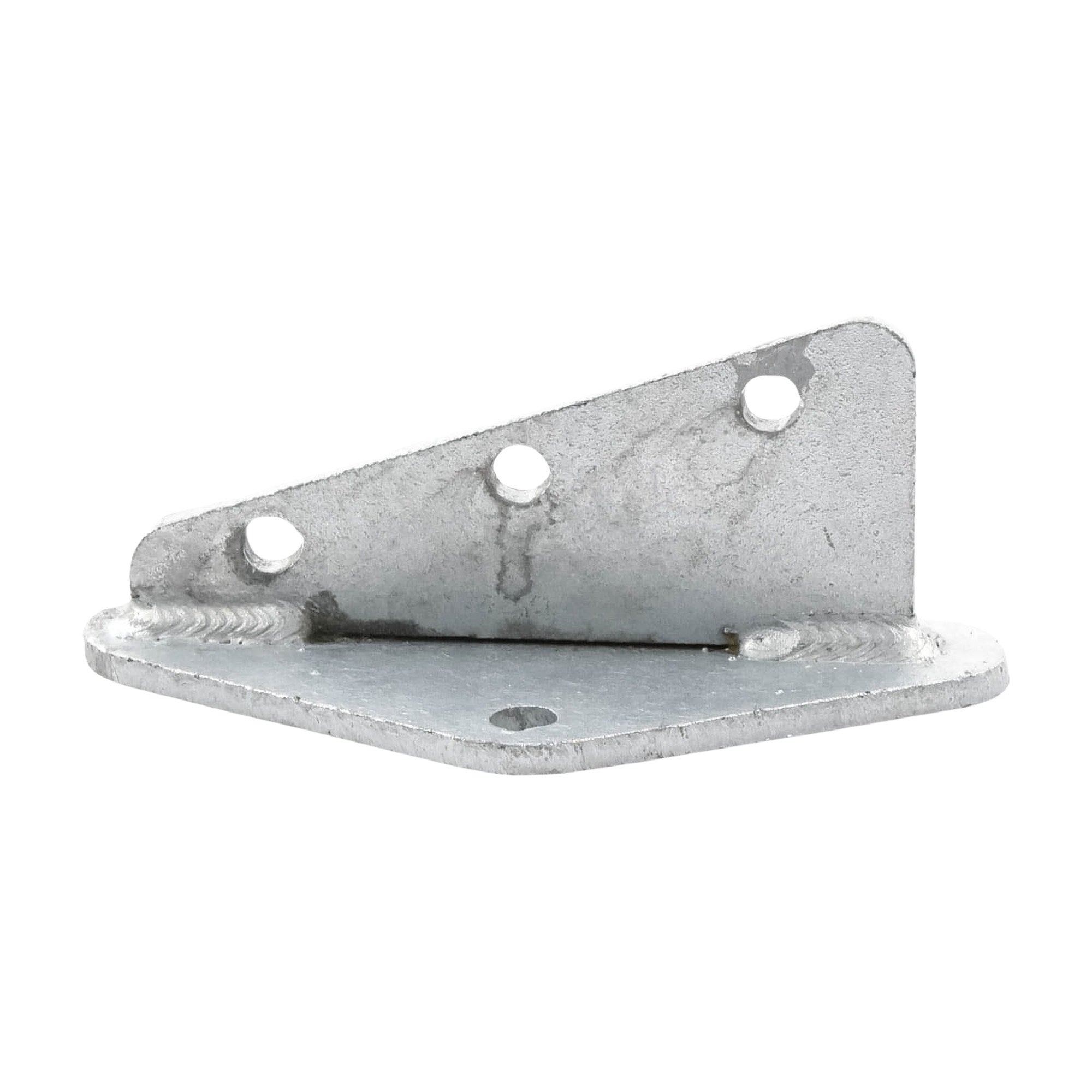

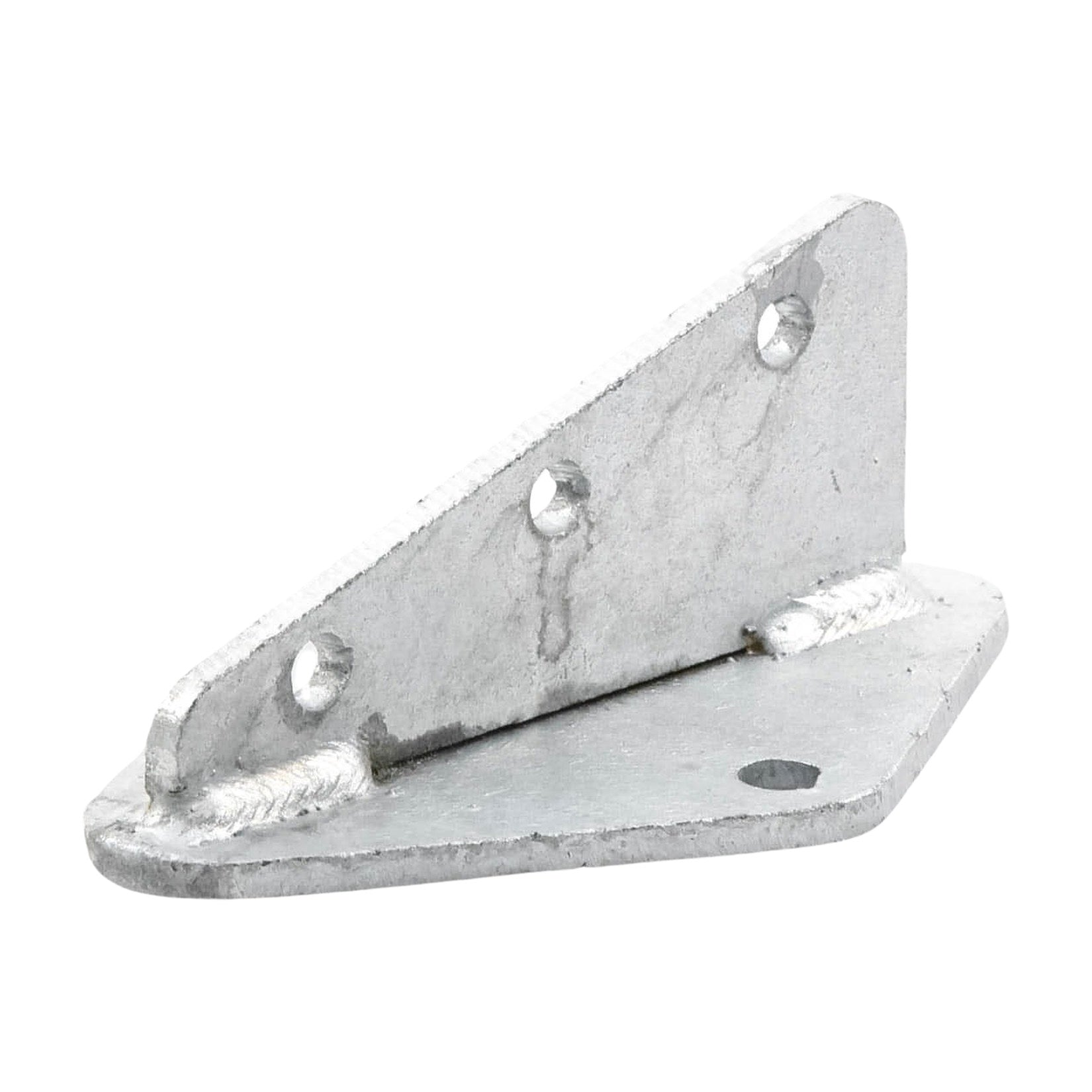

Flat Anchor 3 Hole for Masts, Hot-dip Galvanized, Used in Fixing Masts, Hot-dip Galvanized

Characteristics:
(2) 1/2" holes to fix the flat anchor to the ground.
(3) Holes for 7/16" cable or wire securement.
Manufactured in a plate that is 1/4" thick.
Hot-dip galvanized.

*Recommended for mast securing.

* Price per unit.

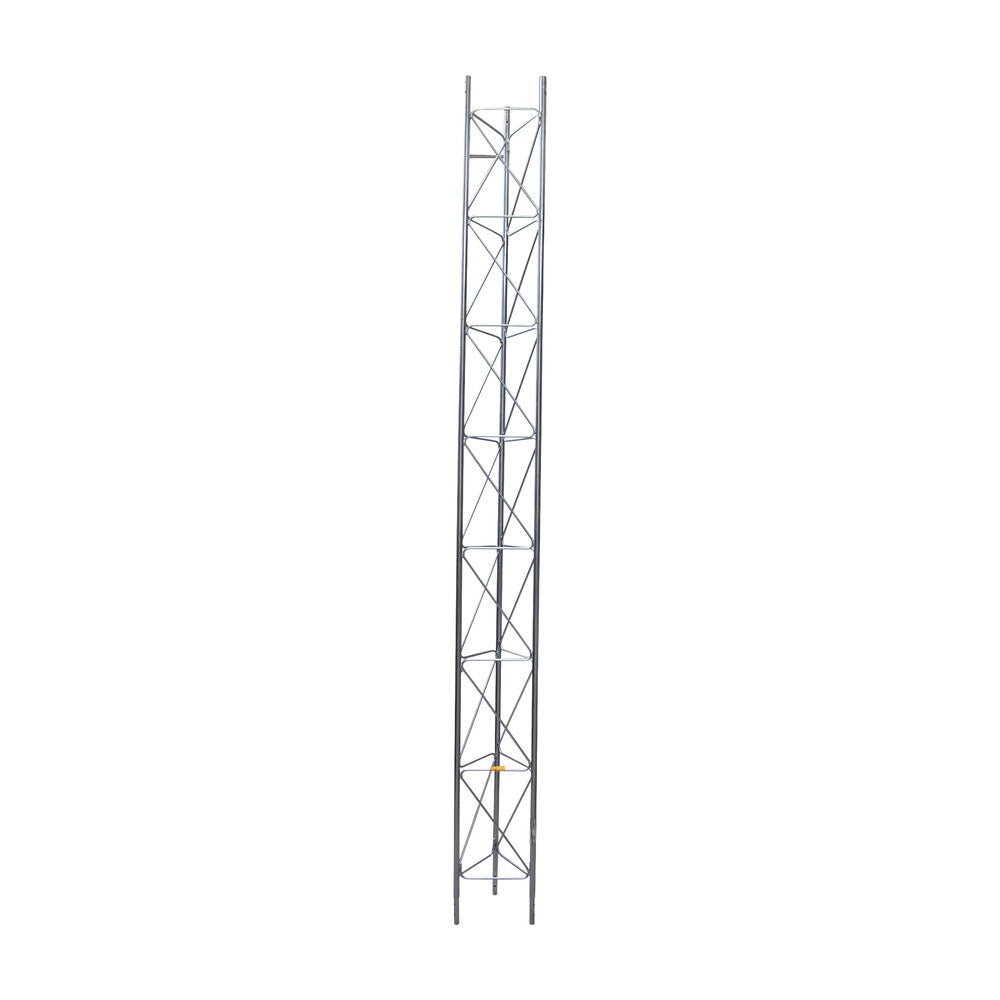

Product Manufactured Under ISO 9000 Standards

•Its lightweight structure enables your desired product to be raised up to 30 ft high.

•The product gets a dimensional revision. This means that each one of our tower sections is pre ensemble to ensure compatibility with its bolt, coupling, nipples, etc.

•Our product is hot-dip galvanized to ensure excellent protection in humid regions, coastal regions, or moderate corrosion environments.

•You don’t have to worry about compatibility problems. A model of the tower section bought with us a year ago will be perfectly compatible with the same model bought today, facilitating the union of sections (consult with an installation expert for older pieces)


Physical Characteristics:

•Maximum Weight: 1102 lb (500 Kg)

•Maximum Height: 30 ft (9.14 m)

•Wind Resistance: 125 mph (200 Km/hr)

•Material: Industrial tube 1, 1/4” (Cal. 14). Zigzag Diameter 3/8"

•Nipple: 4.72" (12 cm).

•Face Width: 17.71" (45 cm)

•Weight: 58.42 lbs (26.5 Kg)

• Proportions: length 10 ft (3 m)

• Anticorrosion Protection: Hot-dip galvanization

•Application: Outdoors (humid areas)

•Material: Steel

• Installation bolts included.

Recommendations:

• Ensure that the installation is performed by a trained professional, consult with a professional when mounting equipment in the tower.
• Set up a maintenance plan for review of tensions retained and adjusting screws.
• Don't install solar panels over 19 ft. Check for compatibility between solar panels and mountings.
• The tower must be painted in orange-red and white, in 7 stripes of equal height starting and ending in orange-red (SYSCOM does not paint the towers).

*The declared weight is only for the product it does not take into consideration accessories or packaging.*

FOR ANY QUESTIONS OR COMMENTS YOU MAY HAVE REGARDING OUR PRODUCT PLEASE CONTACT THE ENGINEERING DEPARTMENT.

•Product Manufactured Under ISO 9000 Norms

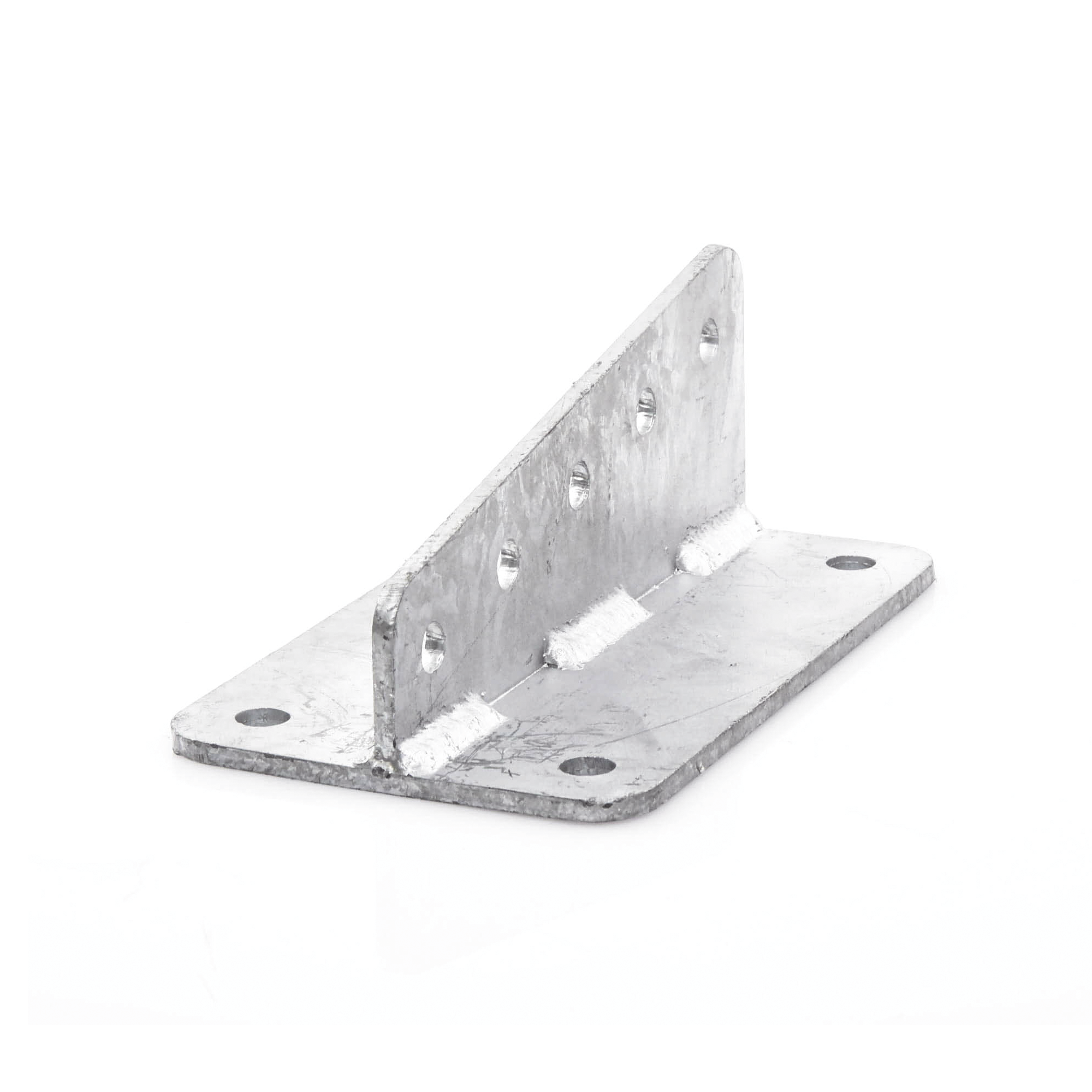

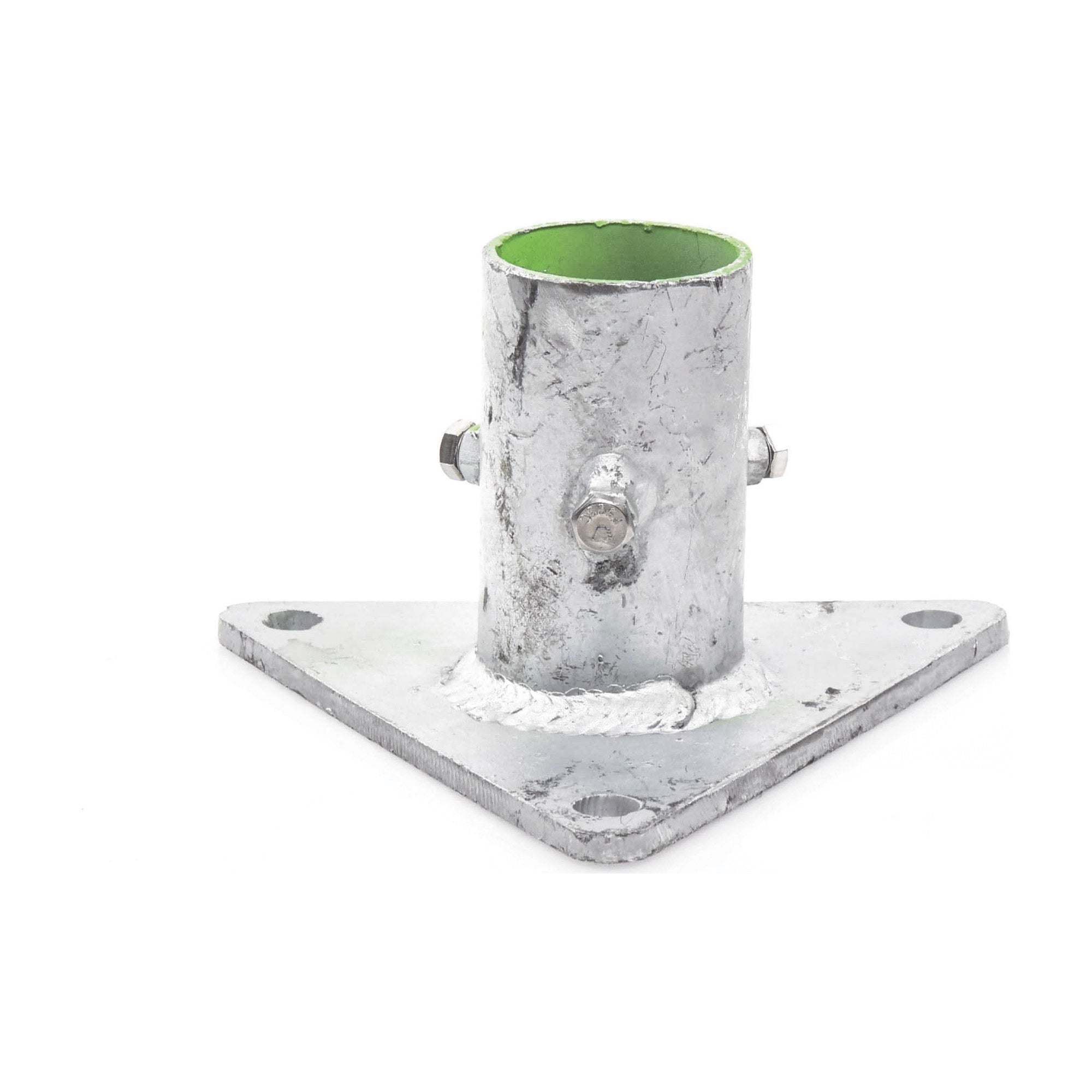

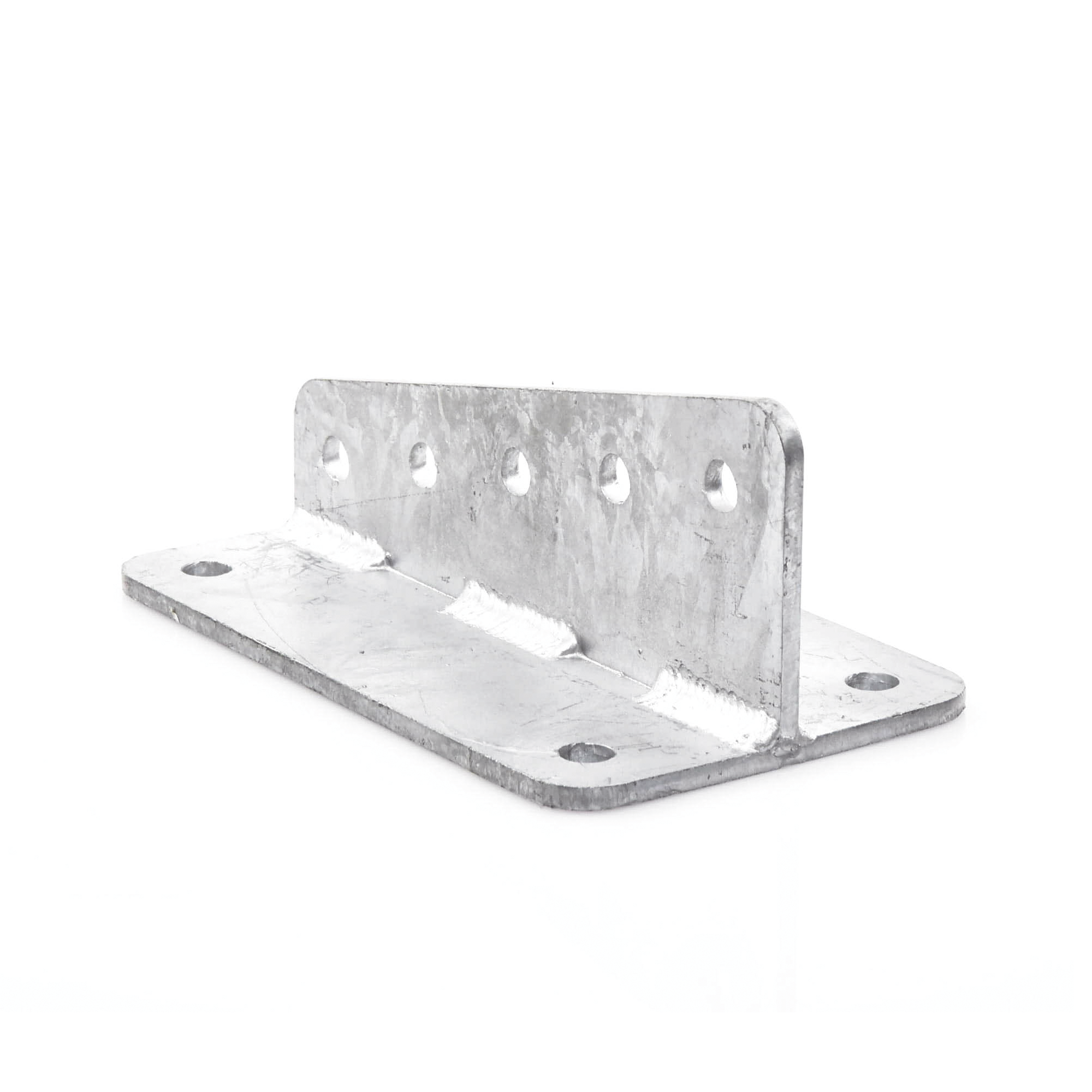

Anchor Plate for Concrete with 4 perforations, intended for anchoring lightweight SLM type masts.

Ideal for equipment installation.

Hot-dip galvanized.

Eliminate risks when performing installations in towers.

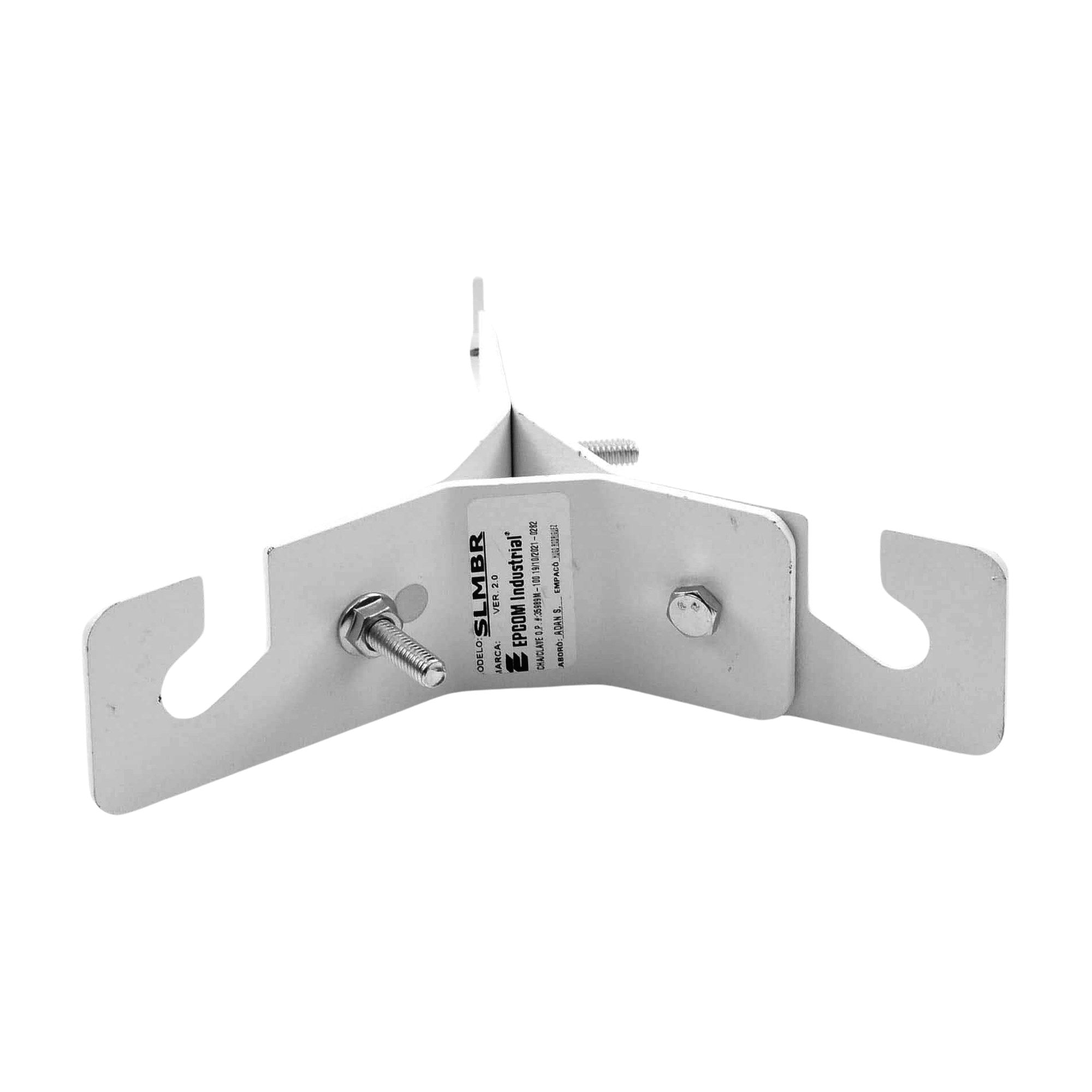

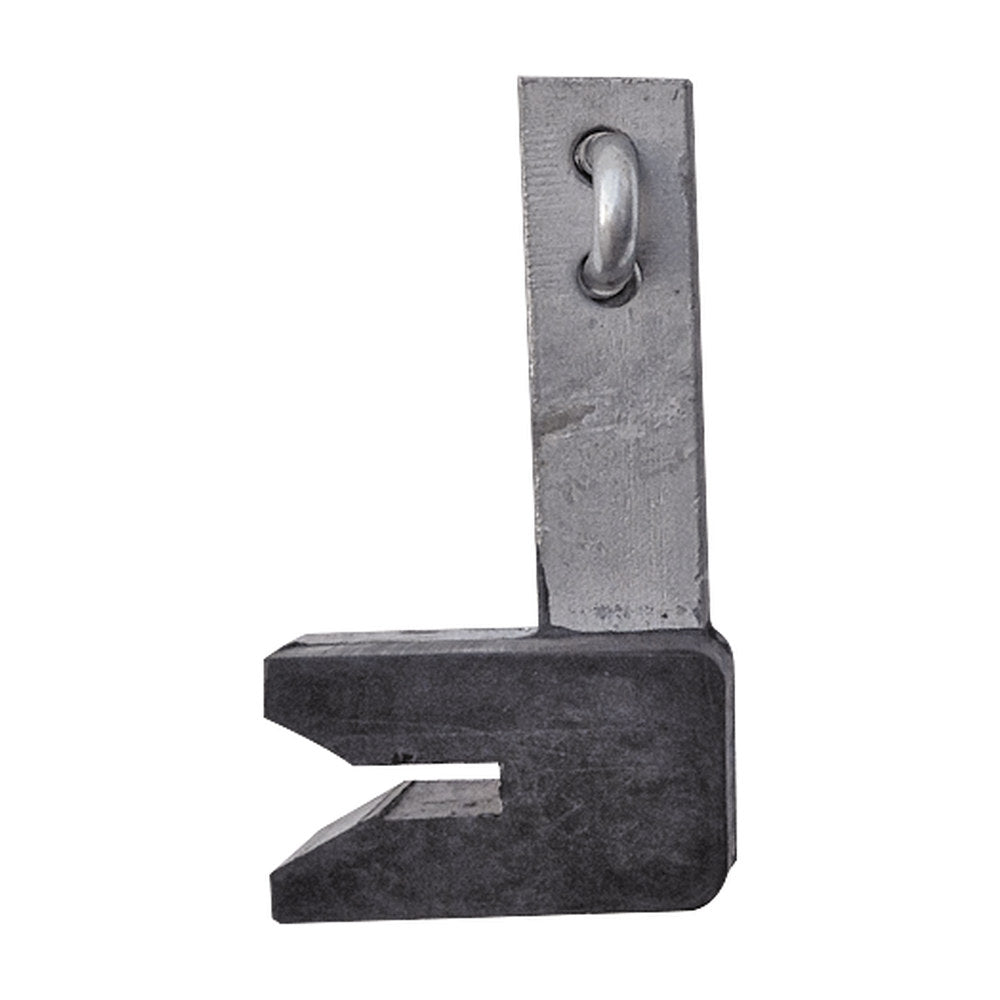

The lifeline system protects the physical integrity of the installer and at the same time delivers security and agility to the installation process.

Functional Characteristics:
•Recommended guide for tower installation in towers with a superior height to 15 meters.
•For example in an 18-meter tower will install a bracket for a lifeline (SHELV) on the inferior and the superior part. The guide will be installed on the middle, 9 meters high.
•Built-in rubber covering to absorb guy wire cable movement.

Physical Characteristics:
•Application: Exterior.
•Material: Steel.
•Weight: 0.40 Kg. Approx.

Recommendations:
•Make sure the installation is made by a trained professional.
•Predictably check that hardware is properly adjusted.
•Program a maintenance plant to eliminate excess dust and debris from the equipment.

*Color of the product may vary for technical improvement. Declared weight represents the product without accessories and packing.

FOR QUESTIONS OR COMMENTS CONTACT OUR ENGINEERING DEPARTMENT.

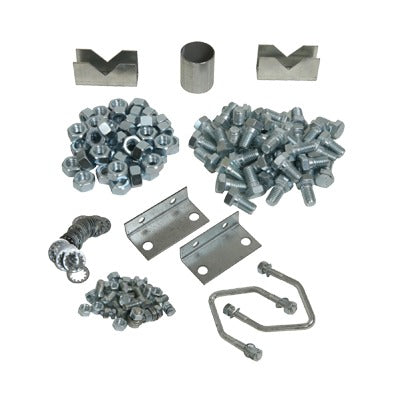

Screw hardware for tower assembly BX32 (TBX32).

With the purchase of a BX32 or TBX32 tower you receive a screw kit like this.

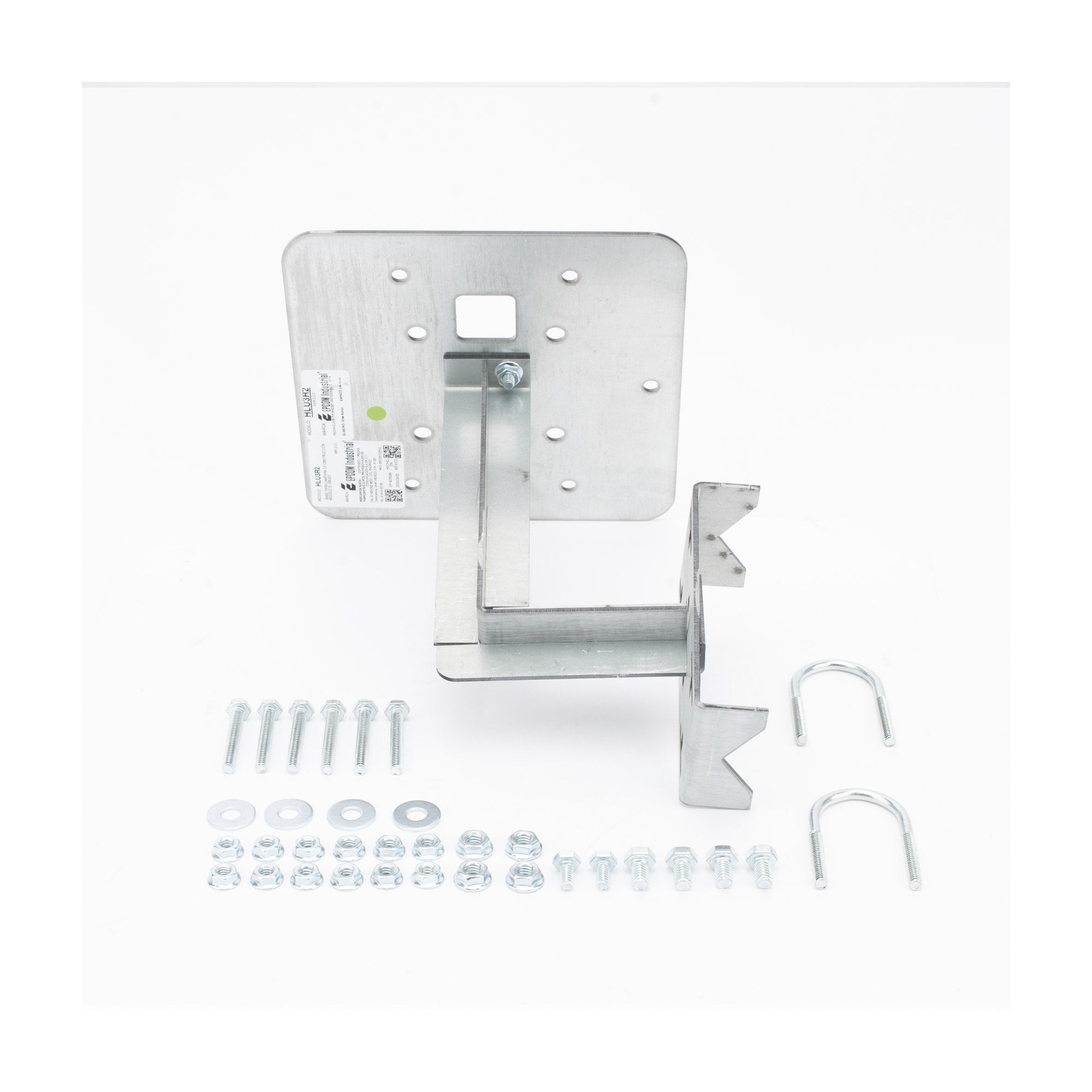

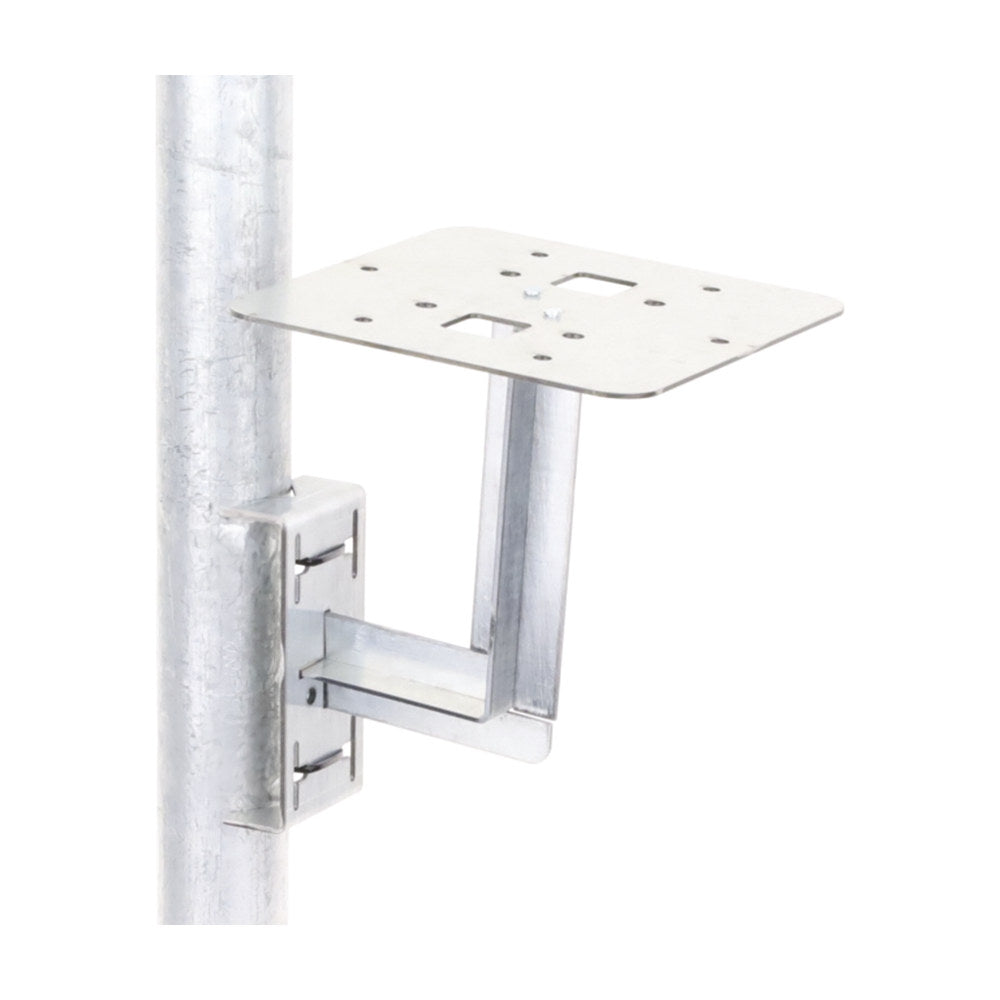

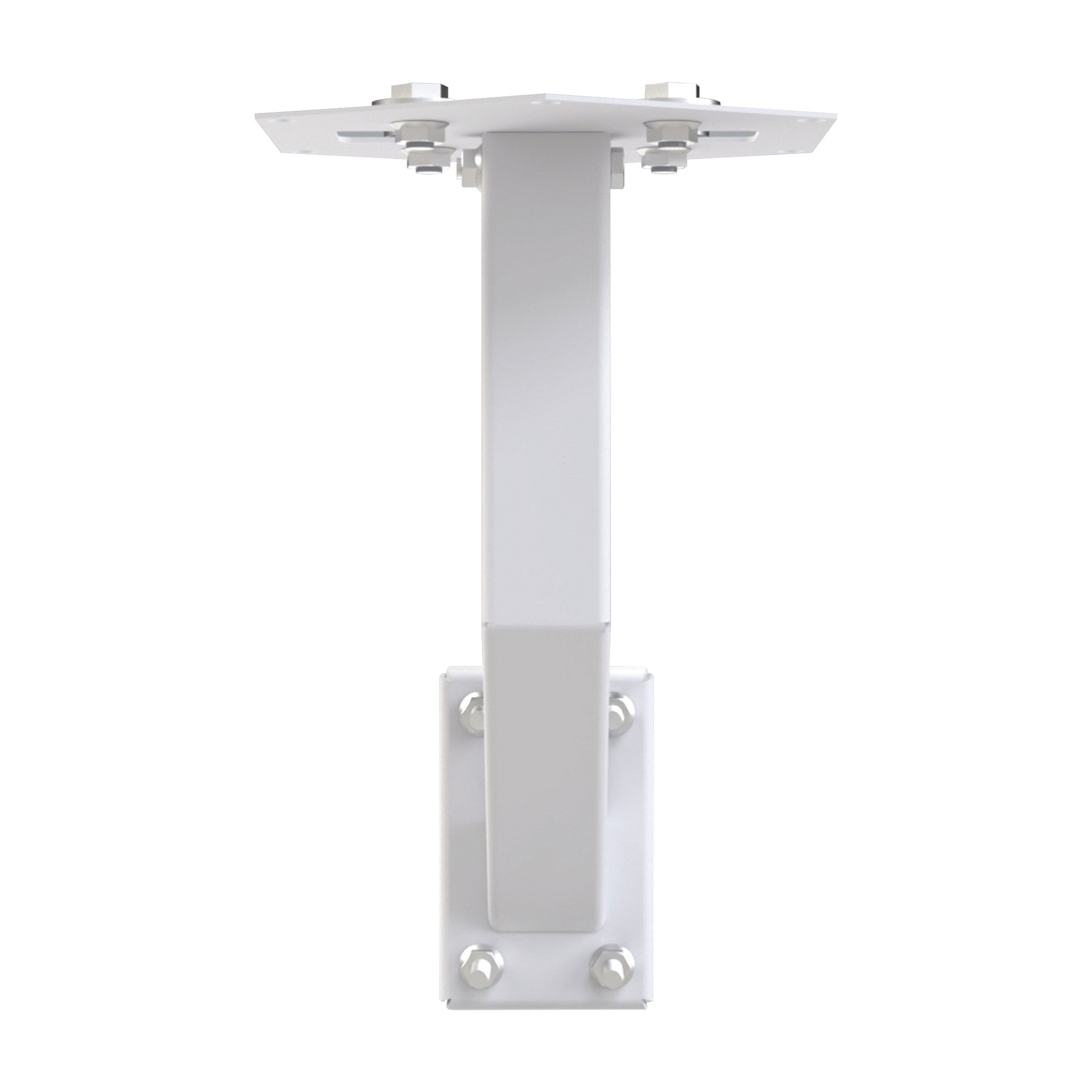

Base Mounting for LED Obstruction Lamp

This mounting base is designed for LED obstruction lamp models EI-LBIB and EI-GSL-SE / GSLID. Constructed from 16 gauge steel sheet with electrostatic paint finish in beige, it provides structural support for strobe mounting applications on towers. The base includes U-bolts with nuts for tube diameters from 7/8 inch to 1-1/4 inch, and features provisions for additional clamp or strap installation on larger diameters. Hardware is included for immediate field installation.

Main Features

• 16 gauge galvanized steel sheet construction
• Compatible with EI-LBIB, EI-GSL-SE and GSLID lamps
• U-bolts with nuts for 7/8" to 1-1/4" tube diameters
• Pre-drilled for additional clamp or strap (not included)
• Beige electrostatic paint finish
• Shipped in cardboard box with mounting hardware

Typical applications: Tower strobe mounting for aviation obstruction lighting, telecommunications infrastructure, and broadcast tower installations.

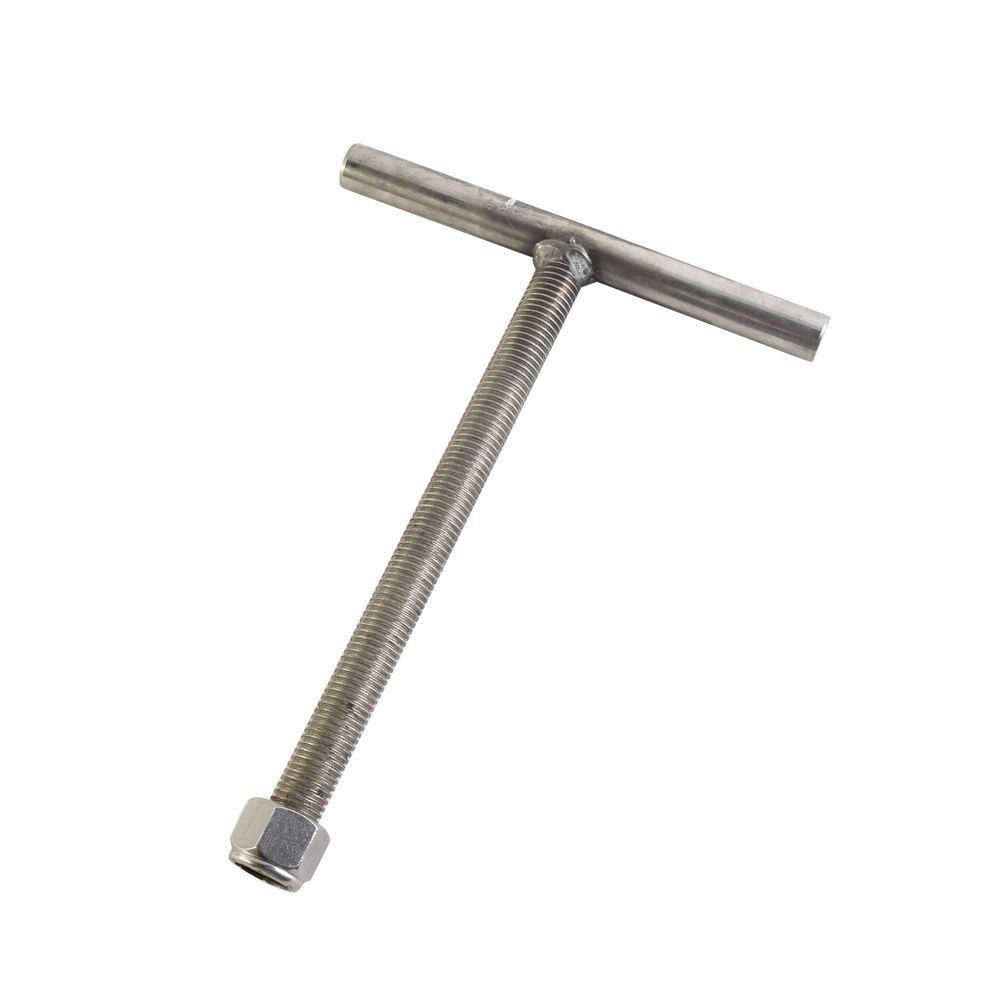

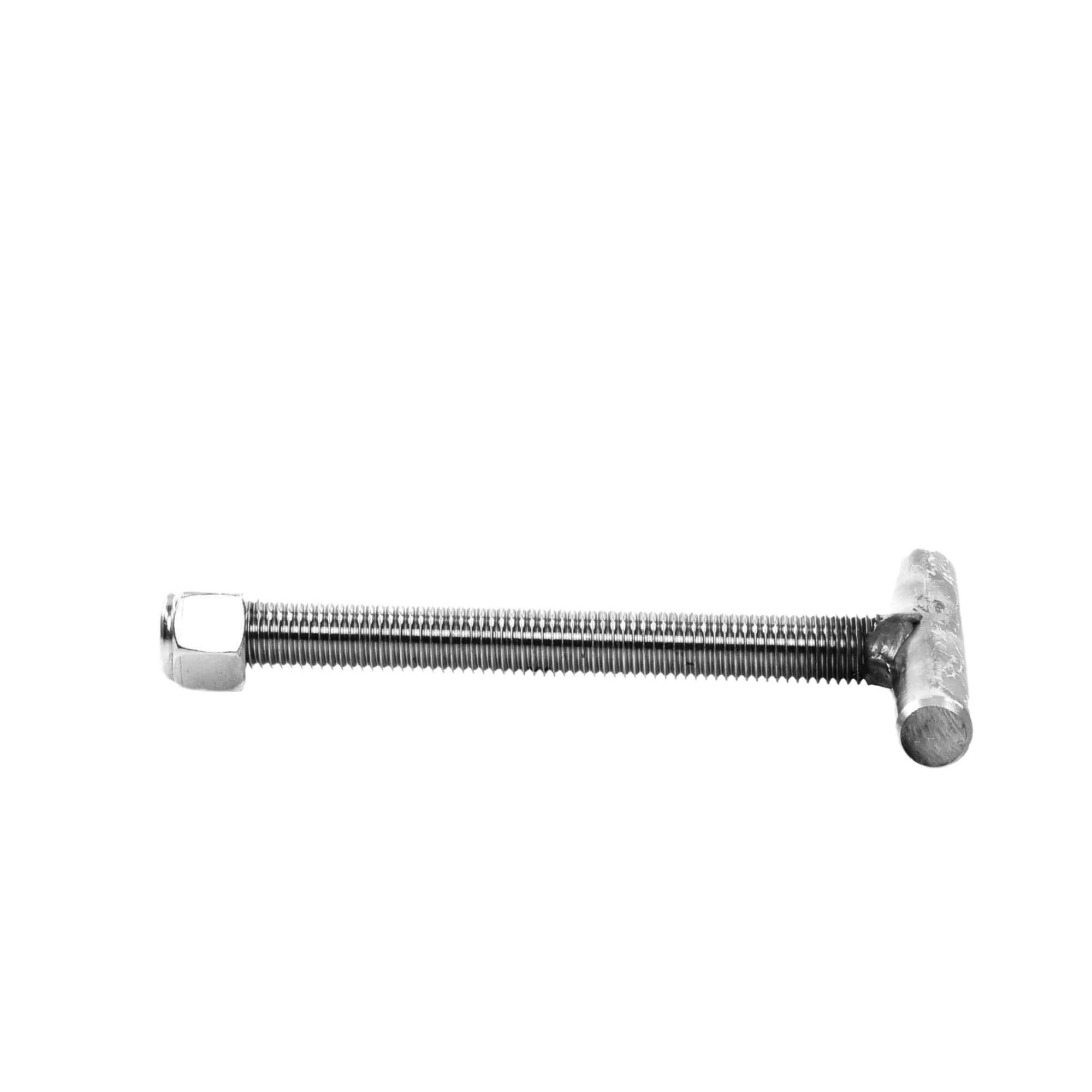

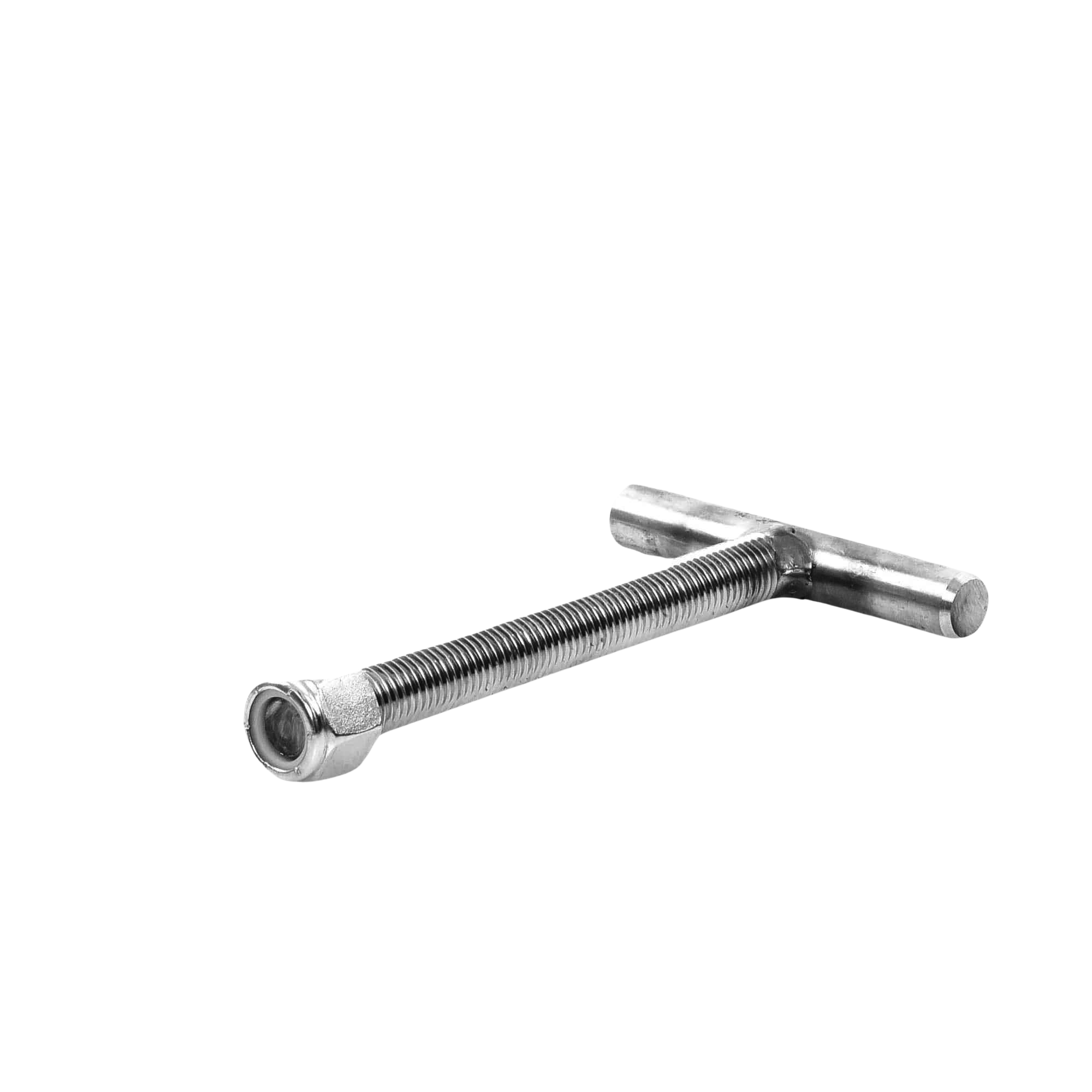

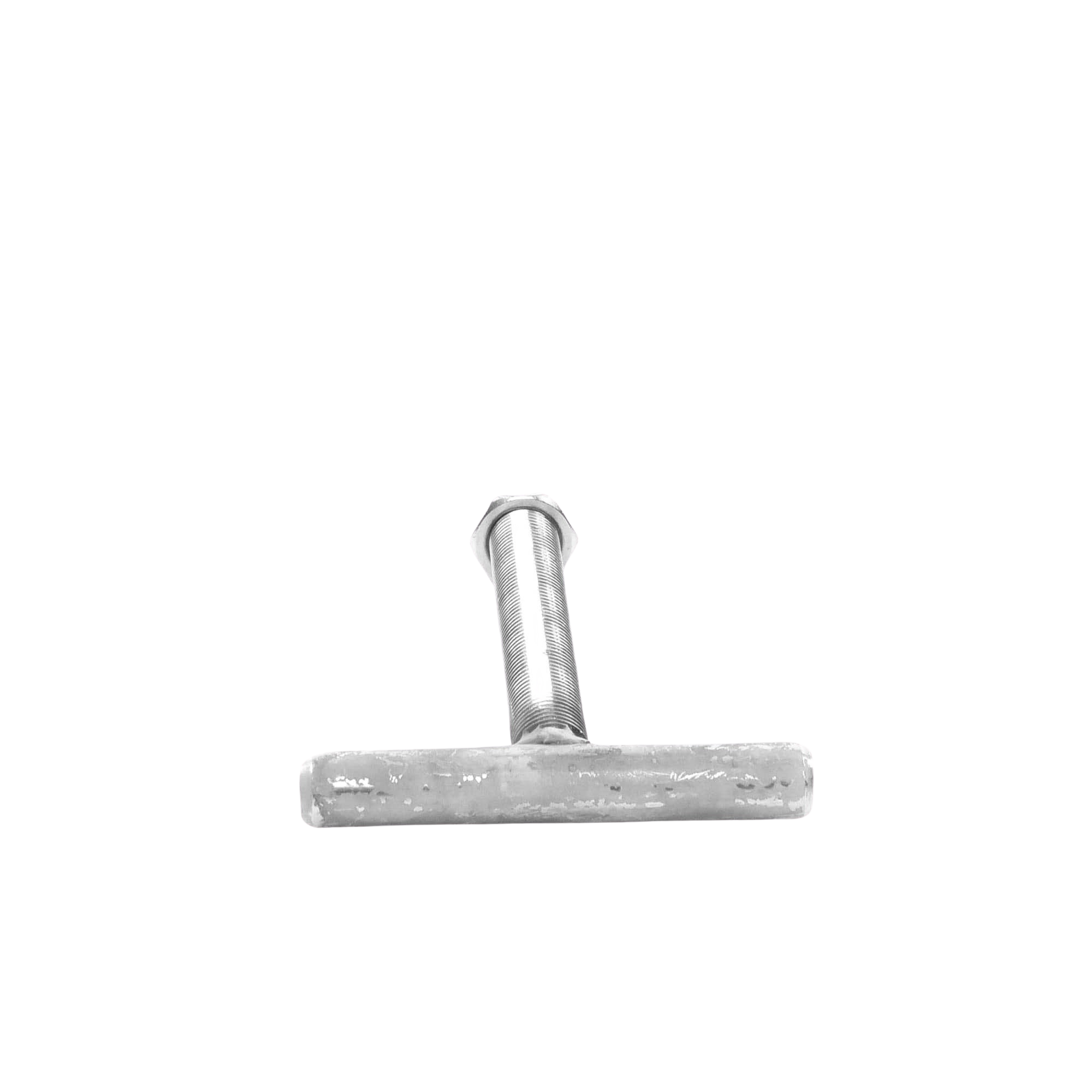

Stainless Steel Anchor for Tower Base.

Special Characteristics:

• Threaded rod anchor 3/4" x 8"
• Hot-Dip Galvanized
• ​Application: Outdoor

*For base SBA30G / SBZ35G

The colors of the products can change for technical upgrades.

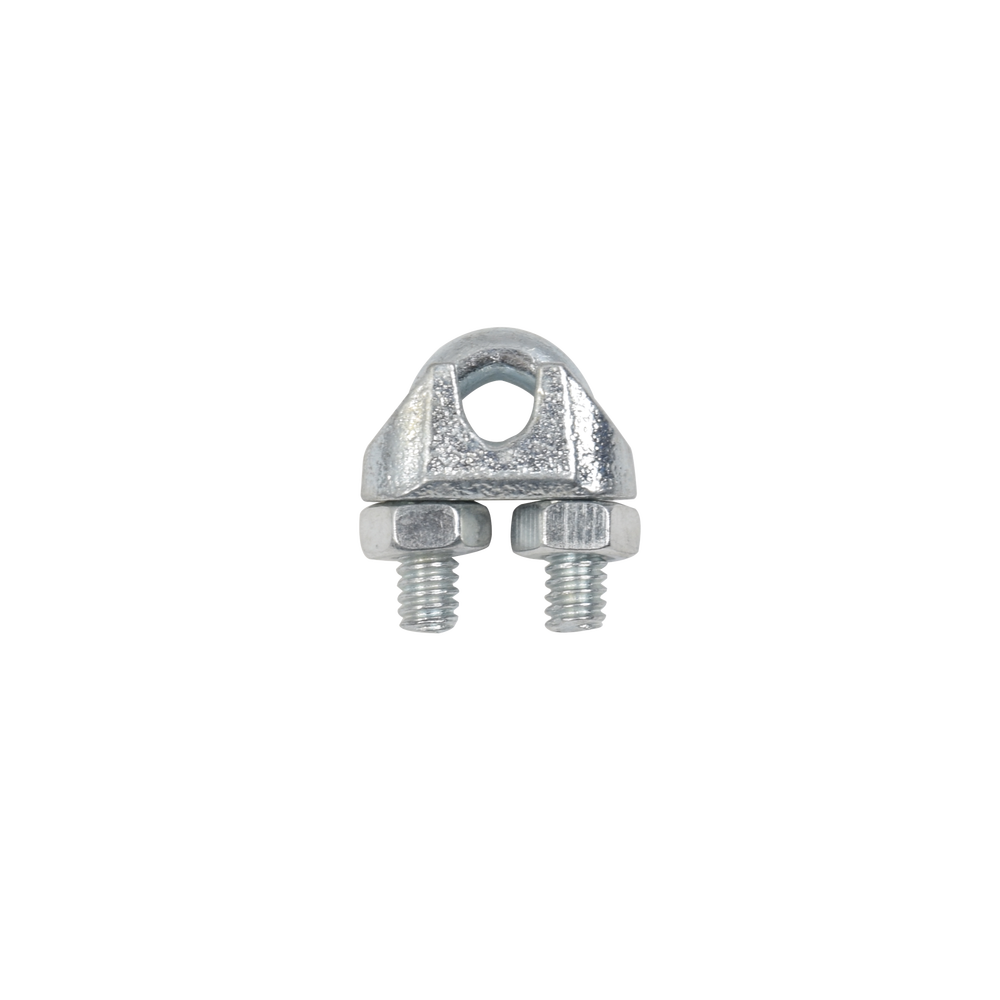

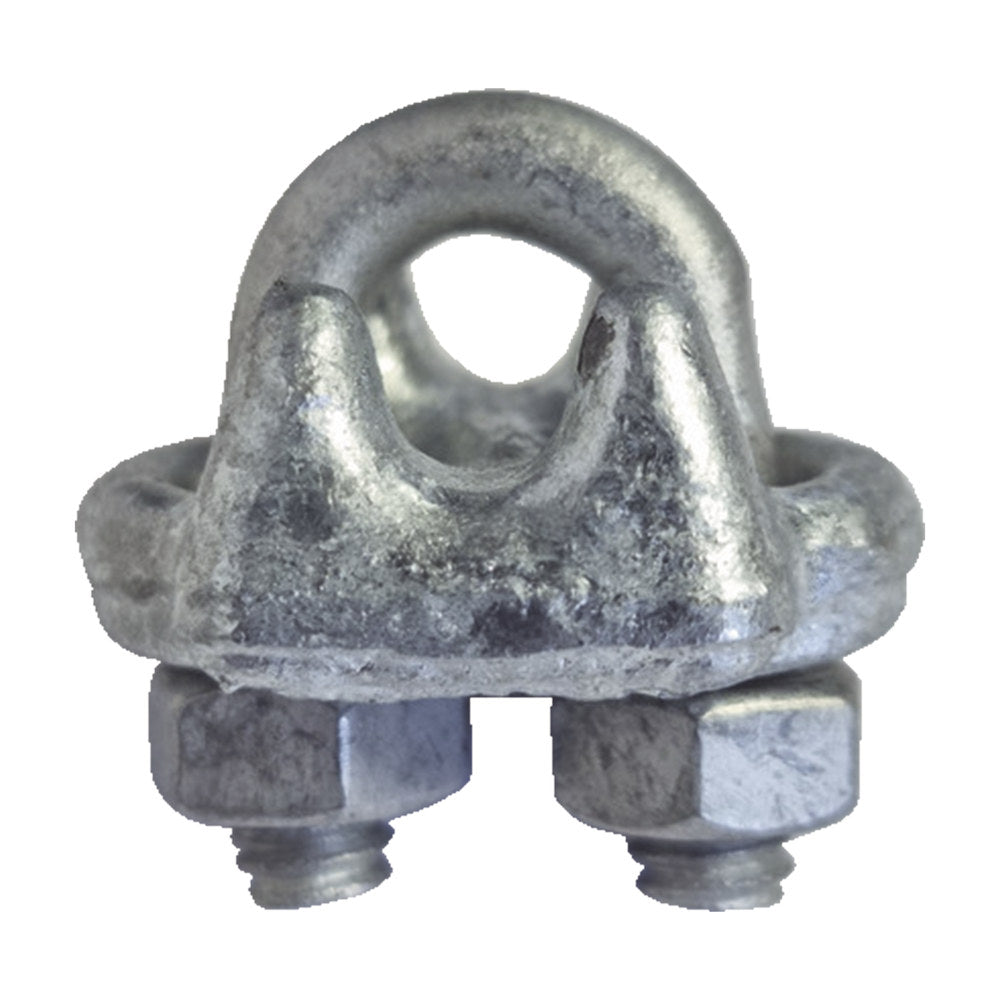

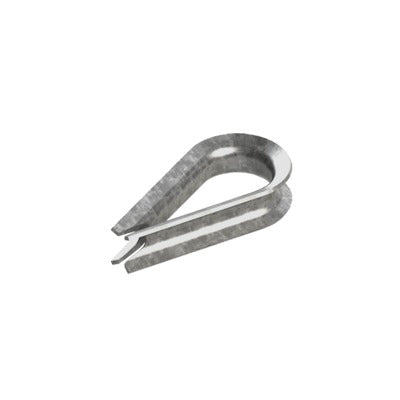

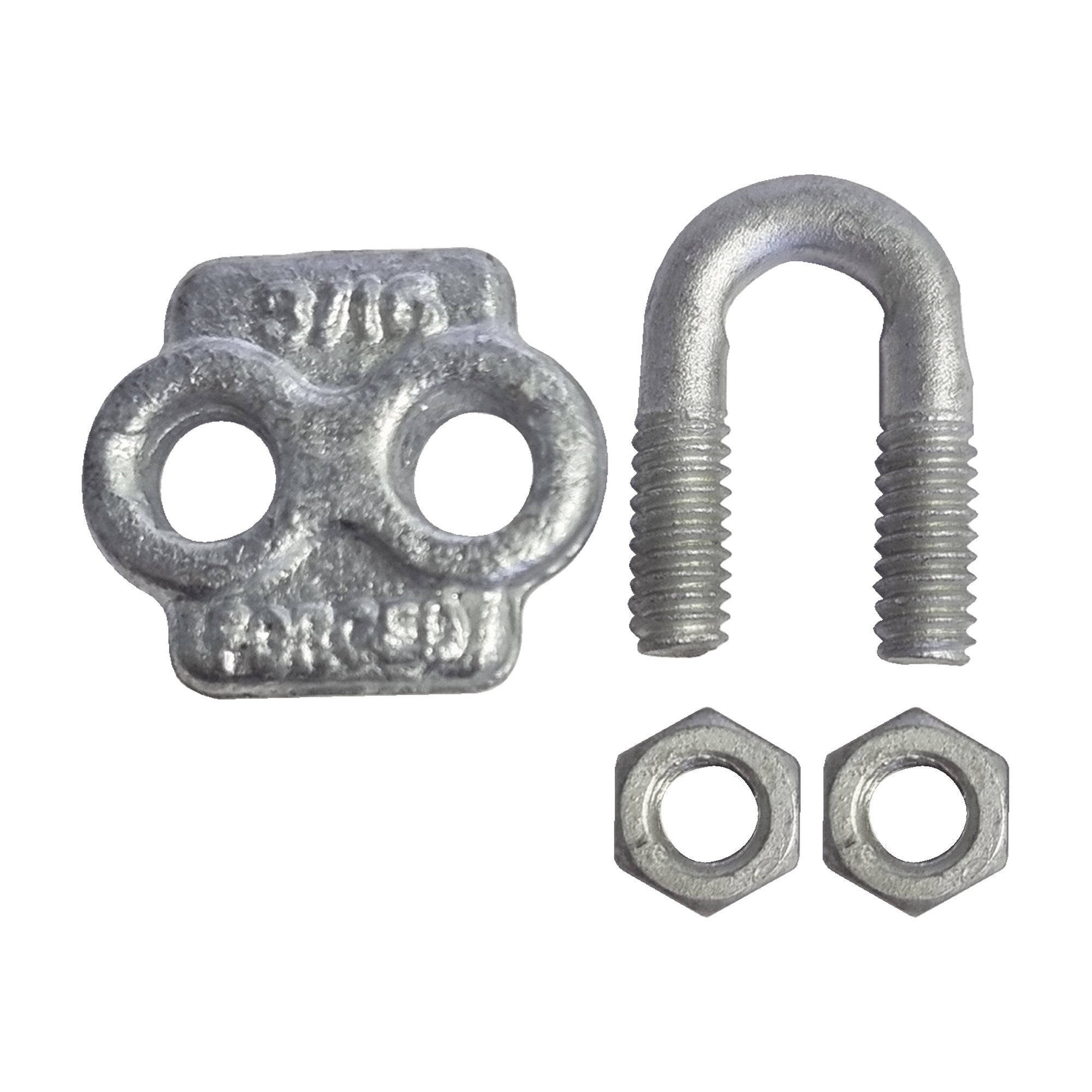

When a wire cable ends in a knot, there's a risk that it will be bent and tied too tight. A cable hook and loop clamp can be installed to preserve its normal shape, preventing any damage, and will strengthen the cable.

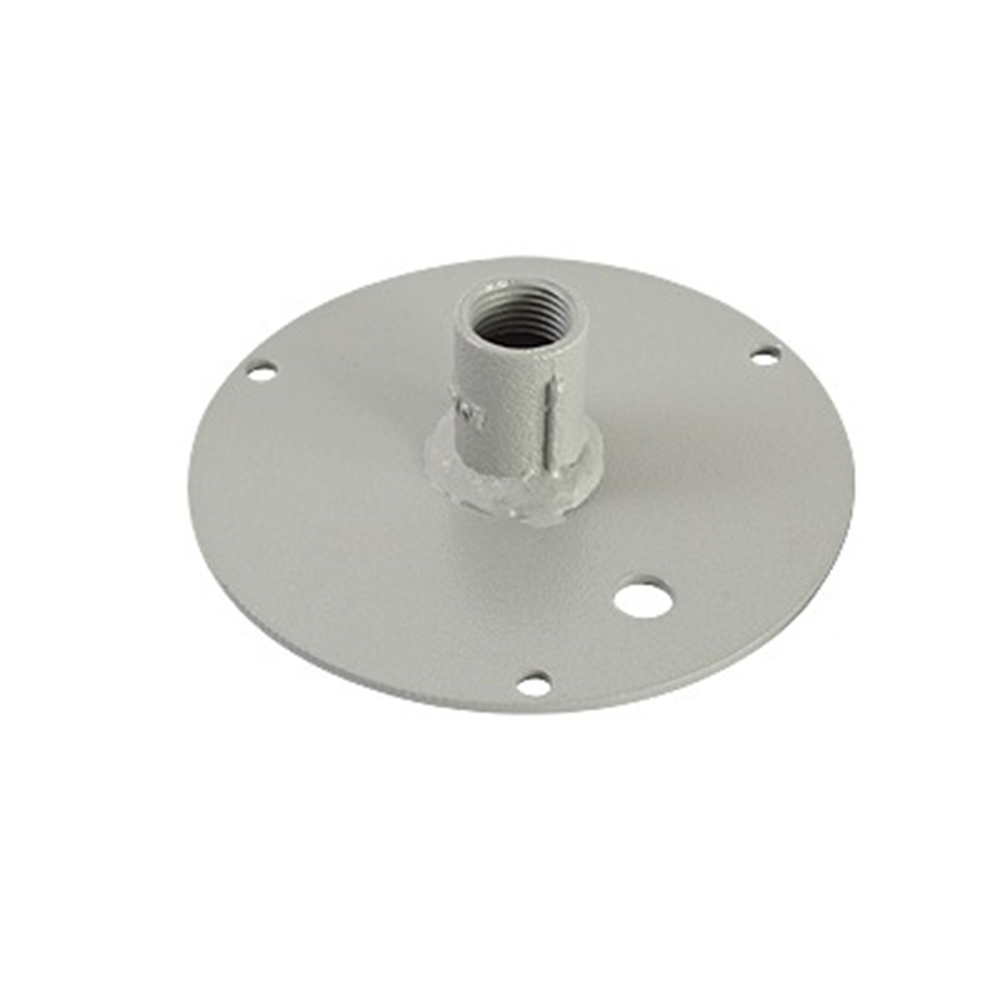

- HLU base mount with 129 mm diameter mounting pipe.
- Three 5.95 mm obstruction lamp mounting holes.
- One 11.11 mm fiding cable hole.
- One 1/2" diameter coupler soldered to the obstruction beacon mounting base.
- 11-gap metal plate.
- Steel sheet gauge: 14.

The color product may change upon the improver technics to achieve better performance.

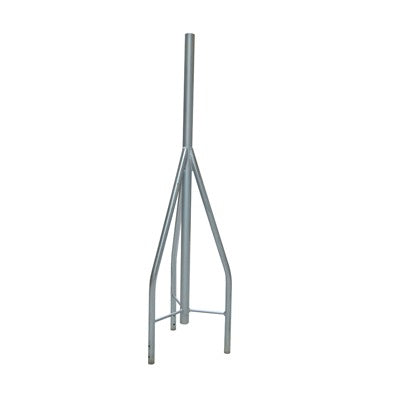

Elaborated Product Under Rules ISO 9000

All sections are made in makers of high precision, therefore your tower will end perfectly straight and vertical without making any adjustments. It is recommended to use the auction to protect the tower against water and the rain in the interior.

- Industrial tube: 1 1/4".

- Center tube 1 7/8".

- Hot-dip galvanized.

Nuts and Bolts Kit for Tower BX48 (TBX48).

In the purchase of on the following Towers, you will also receive this kit.
- BX48
- TBX48

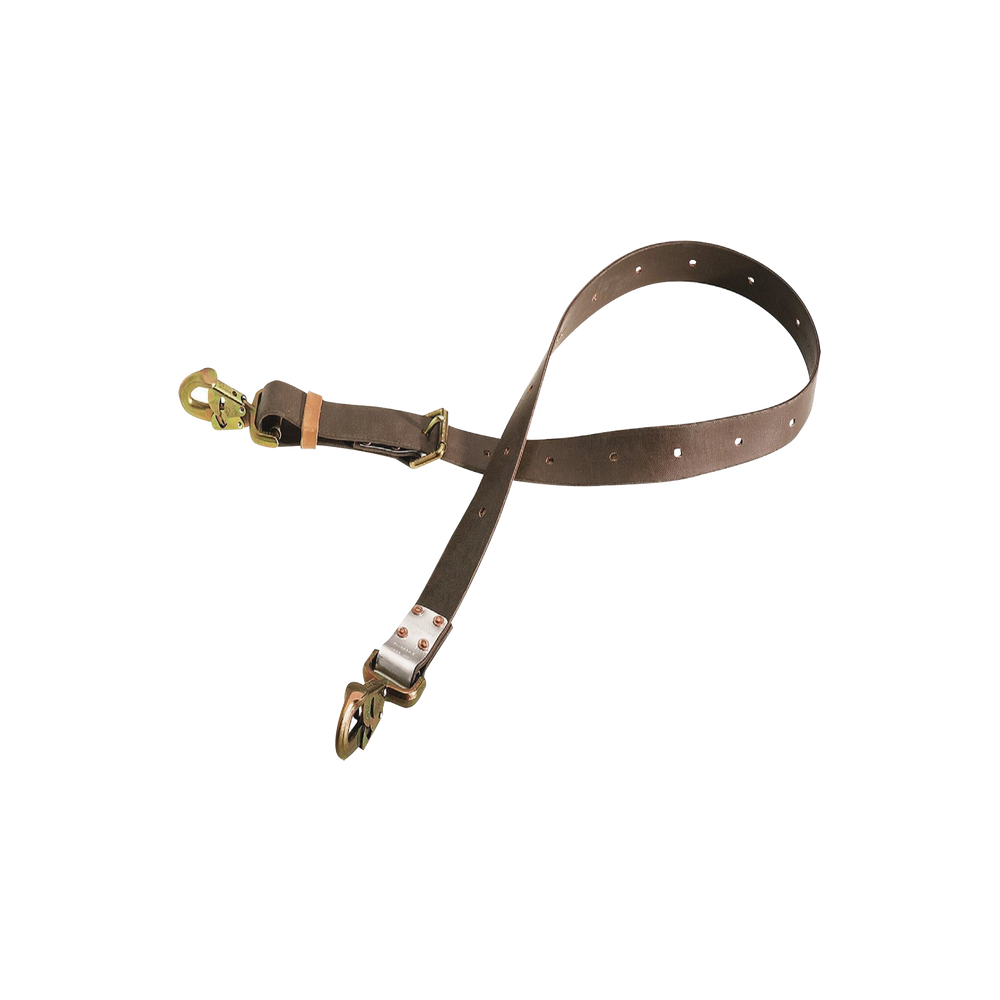

1.9 meter Double Safety Hook

Manufactured in a 45 mm wide band and 6 layers of natural rubber nylon fabric and an intermediate layer of red rubber.

Number of holes: 14
Length: 190 cm / 74.8 in

MAIN FEATURES.-

• ·         Tempered body with hot-dip galvanized treatment.
• Manufactured to withstand high tension levels for prolonged periods of time.

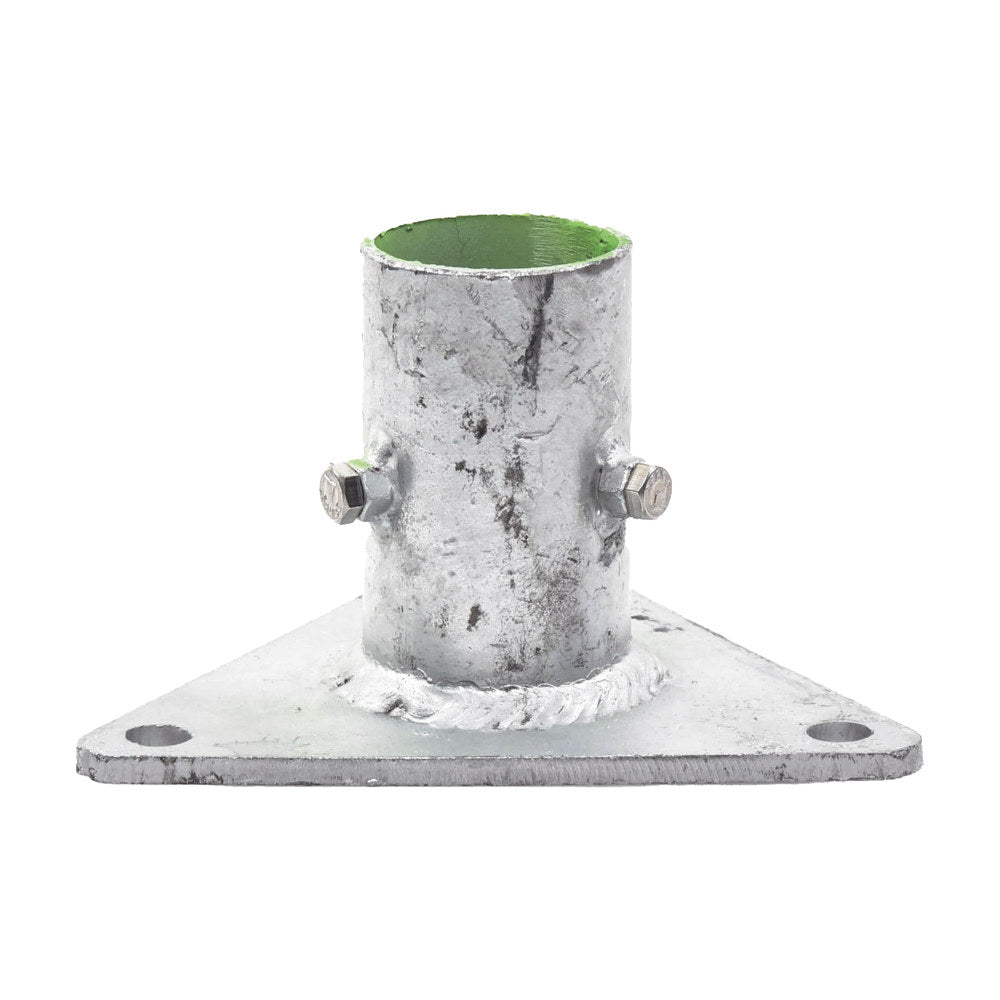

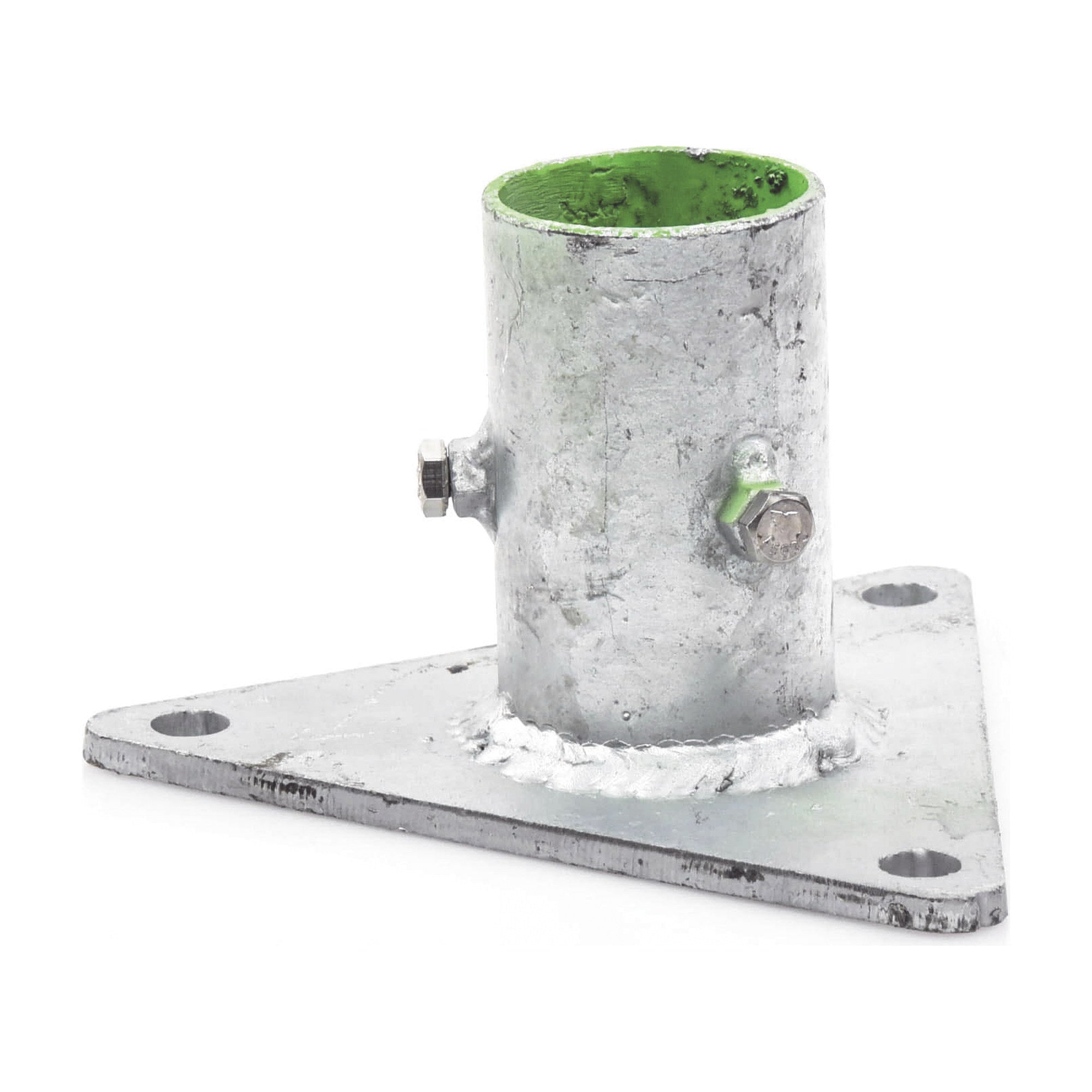

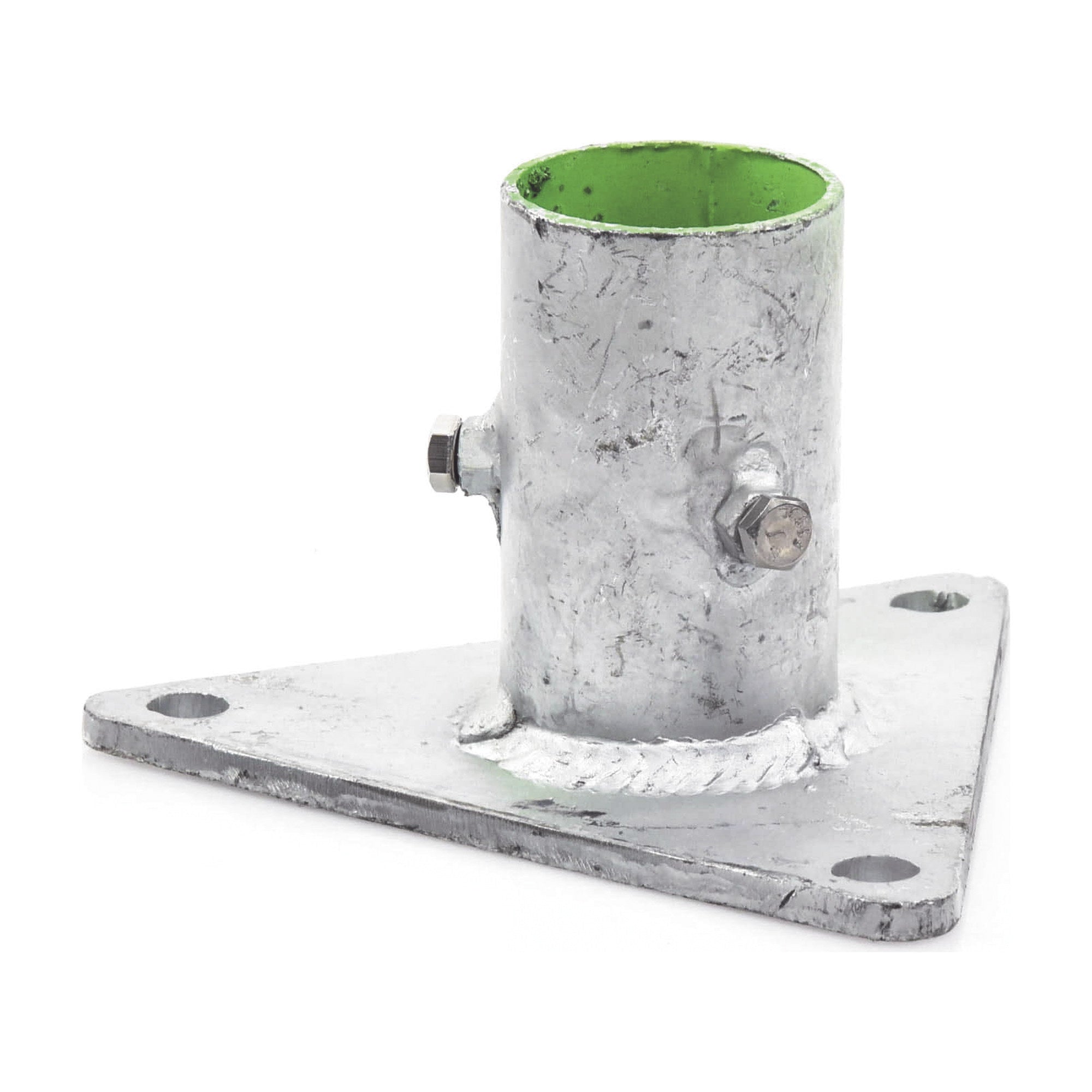

Ceiling base for cable-stayed masts, installation over concrete.

Features:

(3) 9/16" fixing holes.
(1) 9/16" drain hole.
Made of 1/4" thick plate and  2" tube gauge 30.
Hot-dip galvanized.
It has 3 oppressive screws of 5/16" for easy fixing.

Weight: 1.77 kg
Dimensions: 205 x 106 x 180 mm (width x height x depth).

*Recommended for fixing masts from 1" to 2" in a concrete slab.

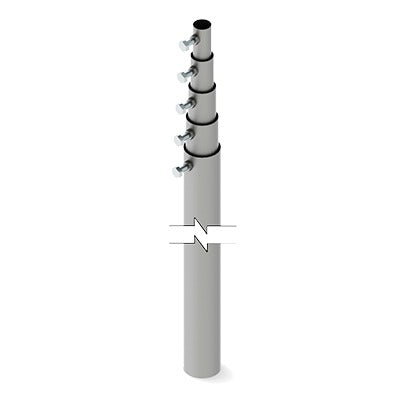

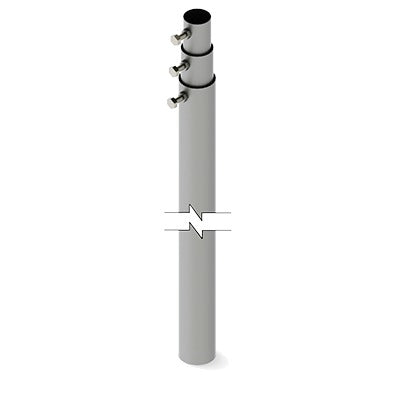

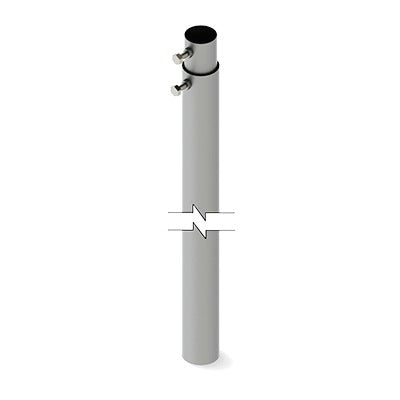

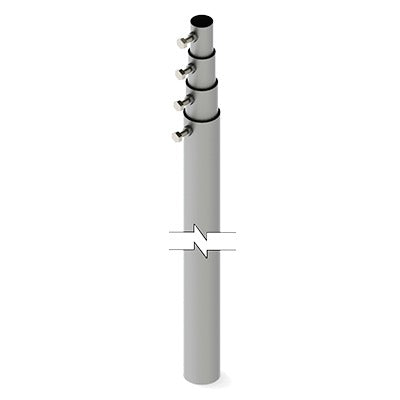

Product Manufactured Under ISO 9000 Standards

*Assembled with industrial tubular pipe # 20 gap
*Screws included
*Each section of Mast measures 3 meters.
*Attached sections 1,2,3,4, and 5

* It is recommended for equipment smaller than 6 Kg. And dish antennas less than 25 cm. diameter.

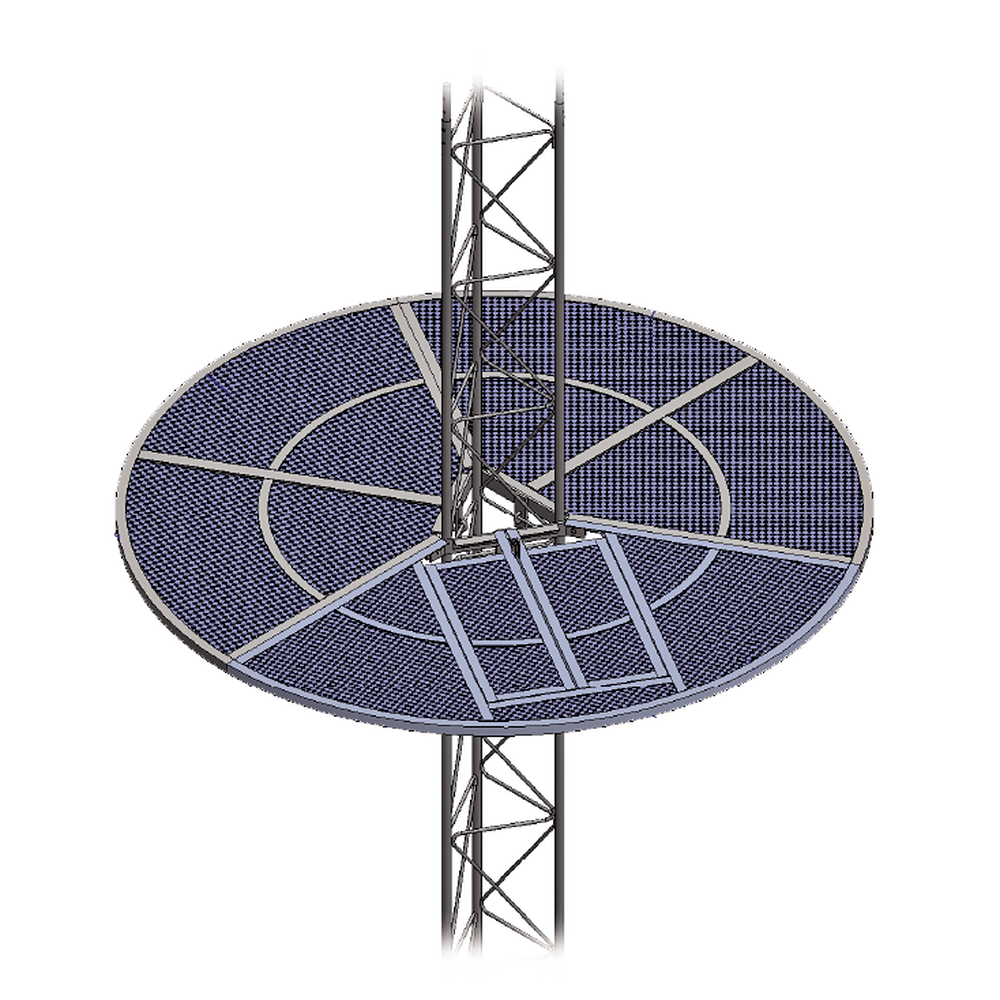

Anti-climbing systems prevent unknown individuals from manipulating or stealing the equipment installed in the tower.

Functional Characteristics:

•  Metallic structure.
•  Features a door with lock placement.
•  The Anti-Climbing Systema is NOT A WORK PLATFORM, it is not designed to support a product or worker's weight.

Physical Characteristics:

• Application: outdoors.
• Material: Steel.
• Weight: 40 Kg. Approx.

Recommendations:

• Make sure the installation is done by a trained professional.
• Periodically check that the screws are correctly adjusted.
• Program a maintenance plan to eliminate excess debris and dirt from the equipment.

*The color of the product may vary for technical improvements. The declared weight is from the equipment without accessories or packing.

FOR ANY QUESTION OR COMMENT CONTACT OUR ENGINEERING DEPT.

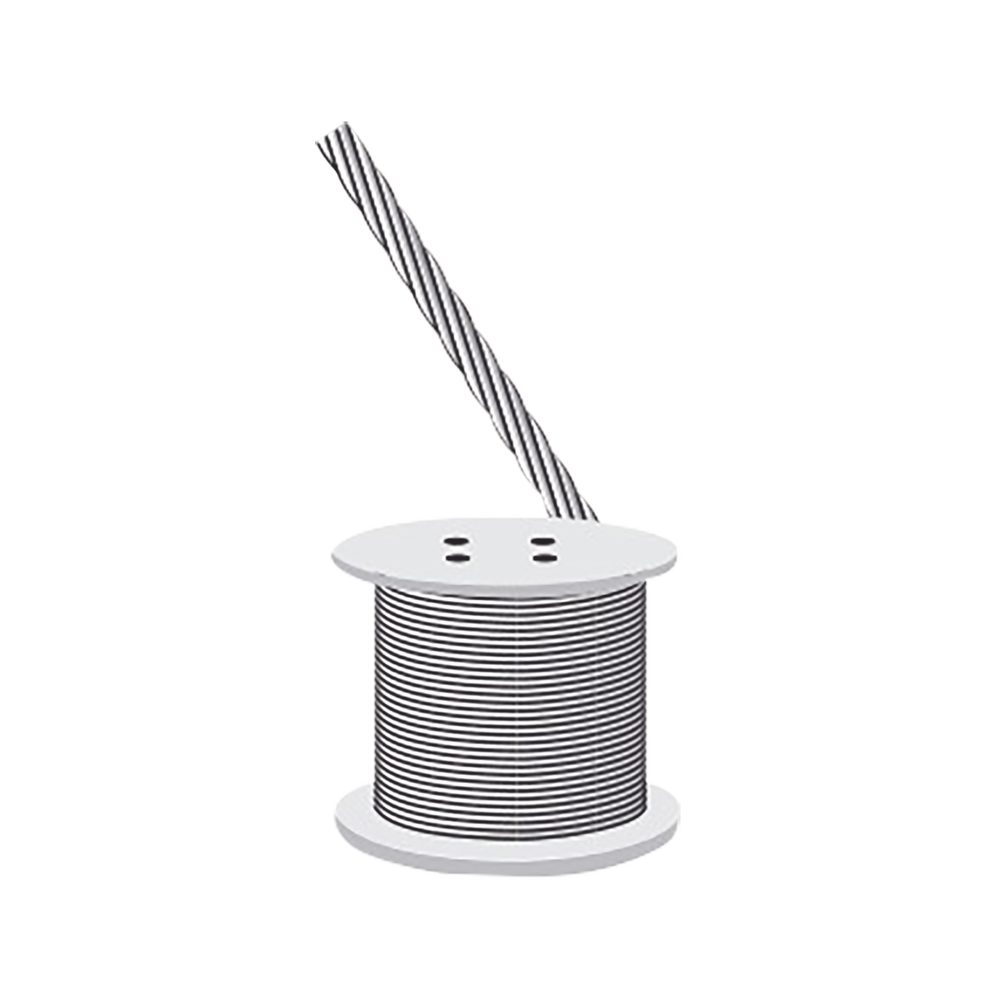

Features:

•  7 braided wires
• Diameter: 1/8”
• Tensile strength: 1402.14 lbs
• Approximate weight : 0.1 lb/m
• Immediate availability
• Galvanized for high resistance against corrosion (Class A)

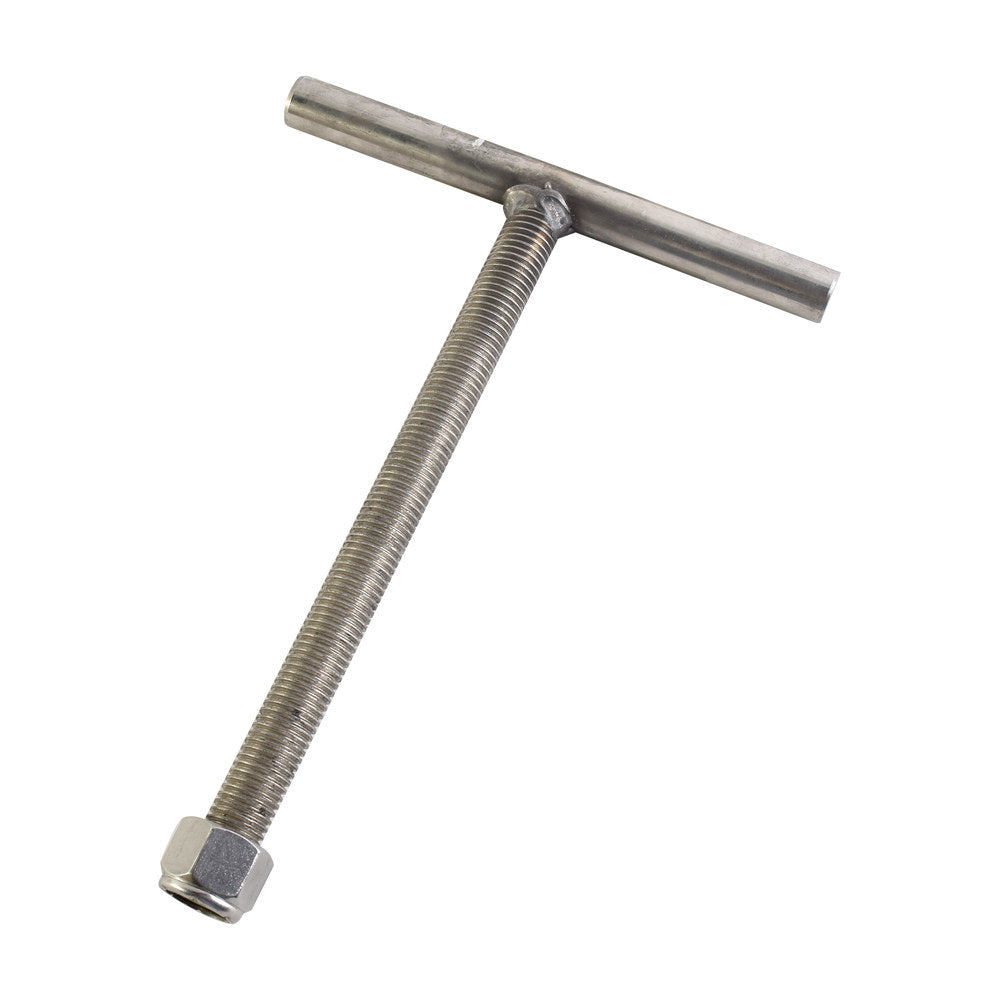

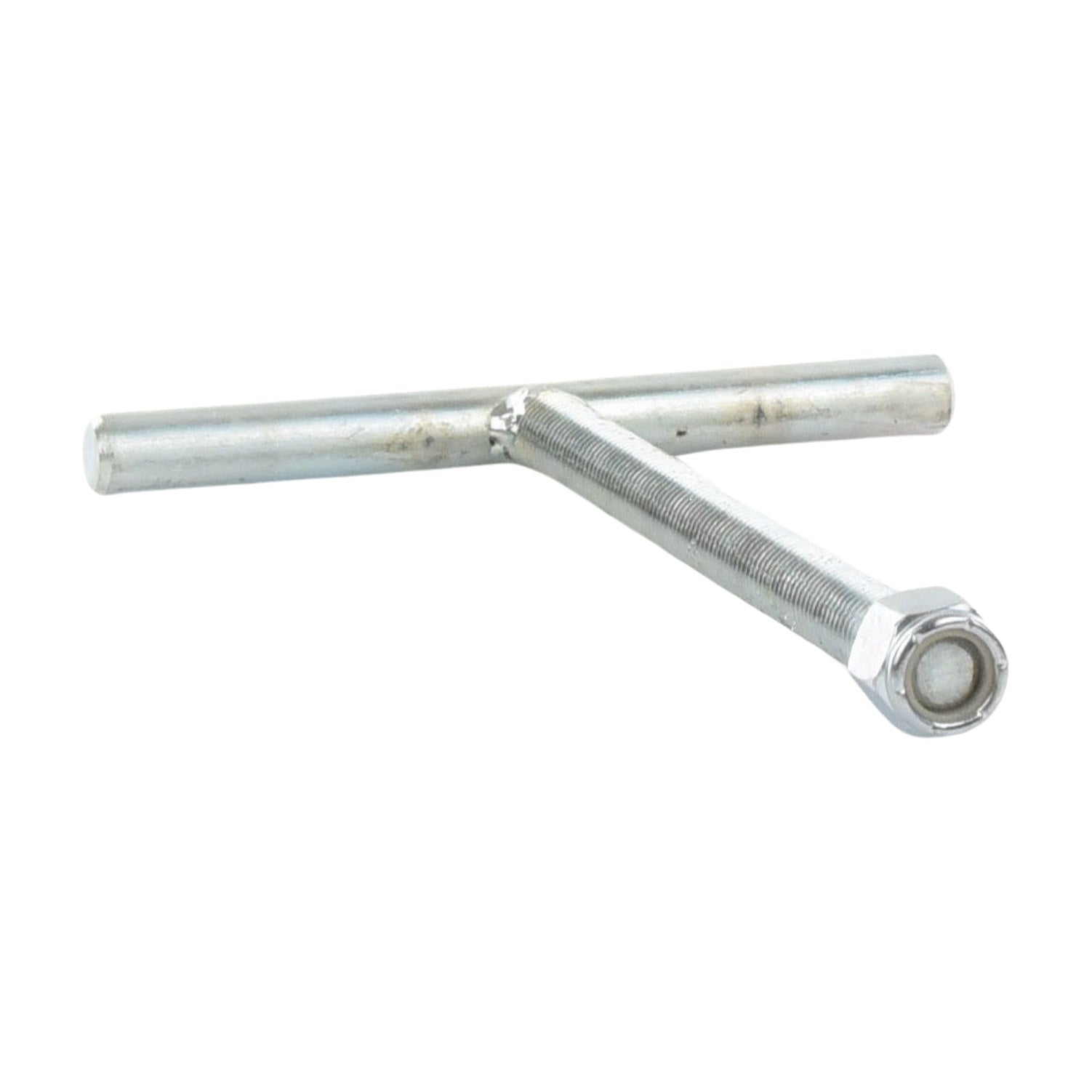

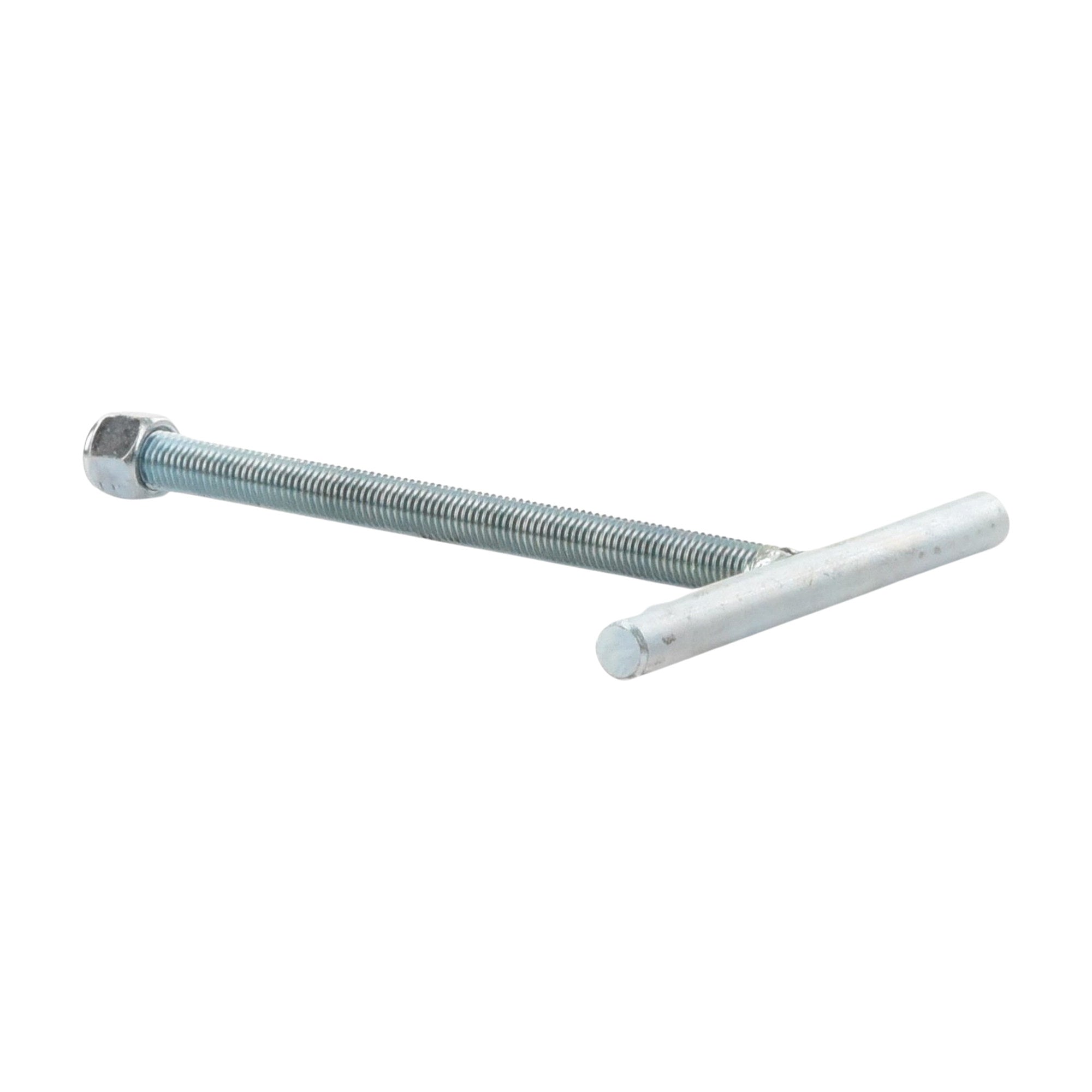

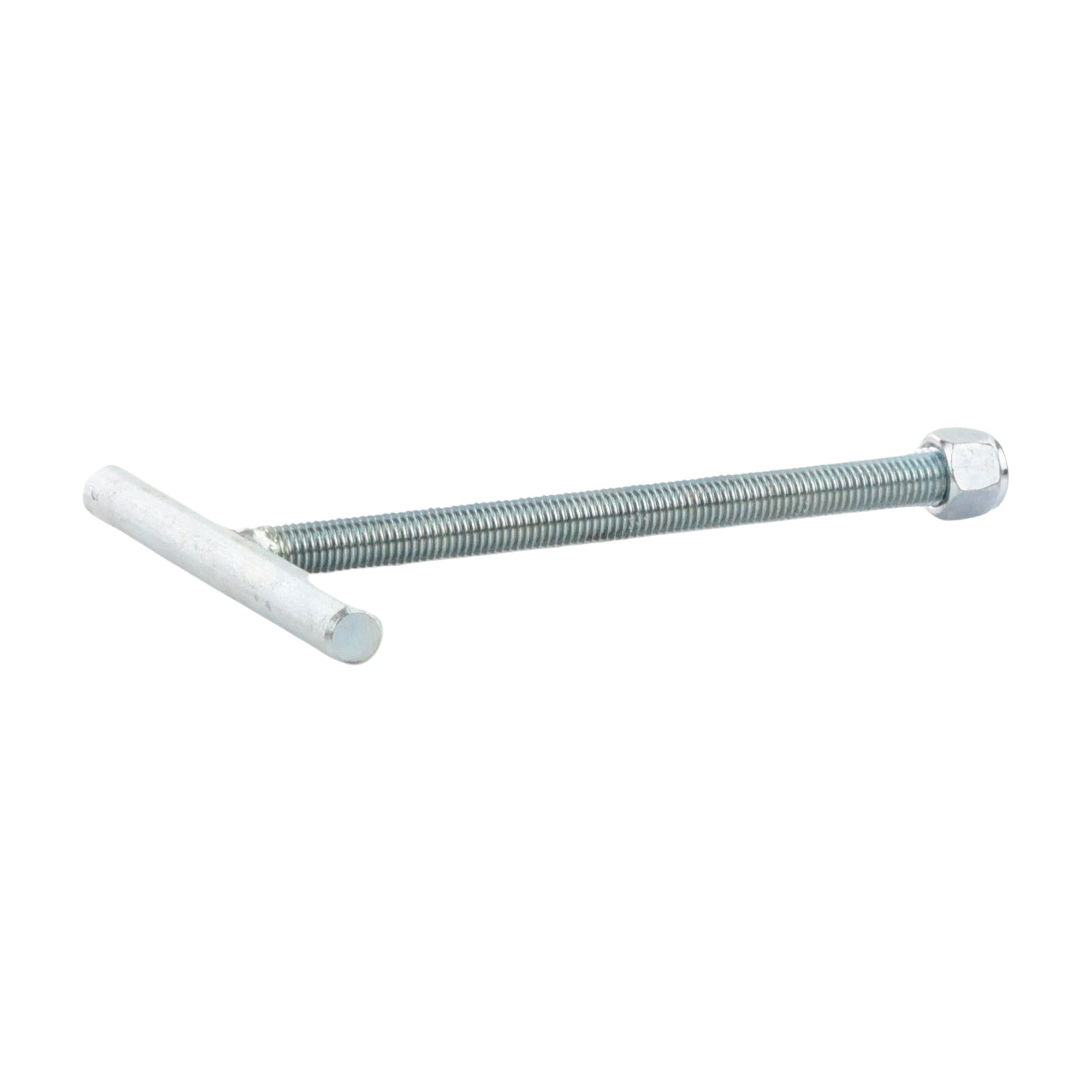

3/4" x 10" Stainless Steel Rod Stake

 Characteristics:

•  3/4" x 10" Stainless Steel Rod Stake
• Weight: 2.204 lb (1 kg)
• Galvanized: Hot - Dip
• Outdoor use

* For  base: SBZ45G

Product color may vary due to technical improvement.
Stated weight does not include accessories or shipping carton.
