The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.

Specifications

• Dimensions (mm): 293 x 219 x 84
• Includes 1 splitter 1x8 with SC/APC output connectors
• Includes 8 SC/APC adaptors
• 2 cable entrance Ø 6 - 12 mm
• Supports output for 16 drop cables
• IP65
• Cover Material: PC + ABS
• Working temperature: -40°C ~ +85°C
• Wall-mounted or Pole-mounted
• Indoor or Outdoor Installation

Description:

The equipment is used as a termination point for the drop cable to connect with ONU internal of apartment in FTTx communication network system.

The fiber splicing can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building

• Suitable for multi type module installation, application in the work area routing subsyste
• The embedded surface box, installation, convenient disassembly with protective door, dust according to customer requirements can be printed LOG
• Made up of ABS+PC/ ABS high quality engineering plastic material with excellent intensity.
• Application of optical fiber with SC, LC, DLC different environment bright dress, flush plate. A combination of all the modules can be according to customer selection and configuration
• Can be opened and closed easily.

Mechanical Specs:

• External dimension(in): 3.4 x 3.4 x 1
• External dimension(mm): 86 x 86 x 27
• Color: RAL 9010
• Number of inlet ports: 1
• Number of outlet ports: 2
• Fiber cable diameter of the input port(mm): 2*3
• Capacity(Max): 2 cores
• IP protection level: IP IP20
• Flammability: UL94-V0
• Neutral salt spray test (NSS): 48h

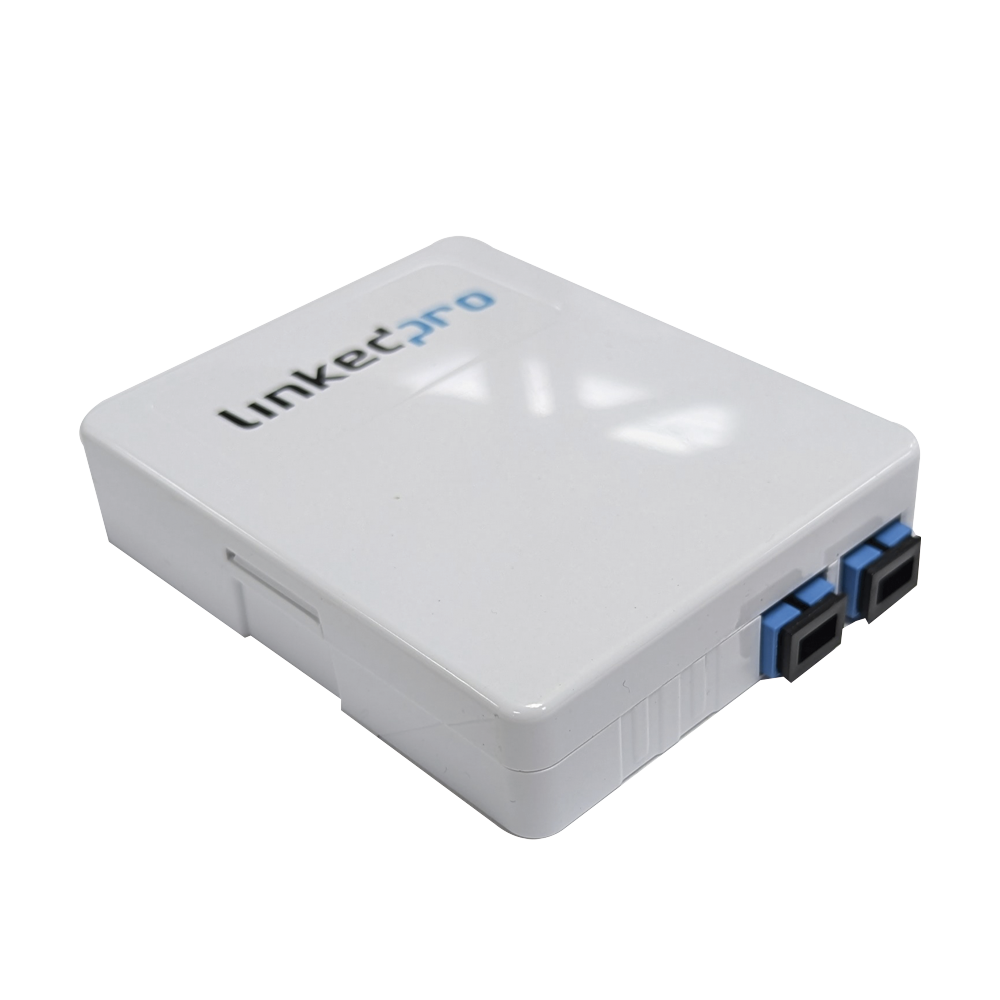

LinkedPro Fiber Termination Box is a wiring line device of user distributions in FTTH system. It provides protection and management for fiber cable, and be used for terminating, cable branching, cross connection. It is mainly used for user access point in FTTH-ODN network.

This box can be divided into indoor and outdoor type according to the installation scenario and can be divided into distribution type and optic-split type according to the function.

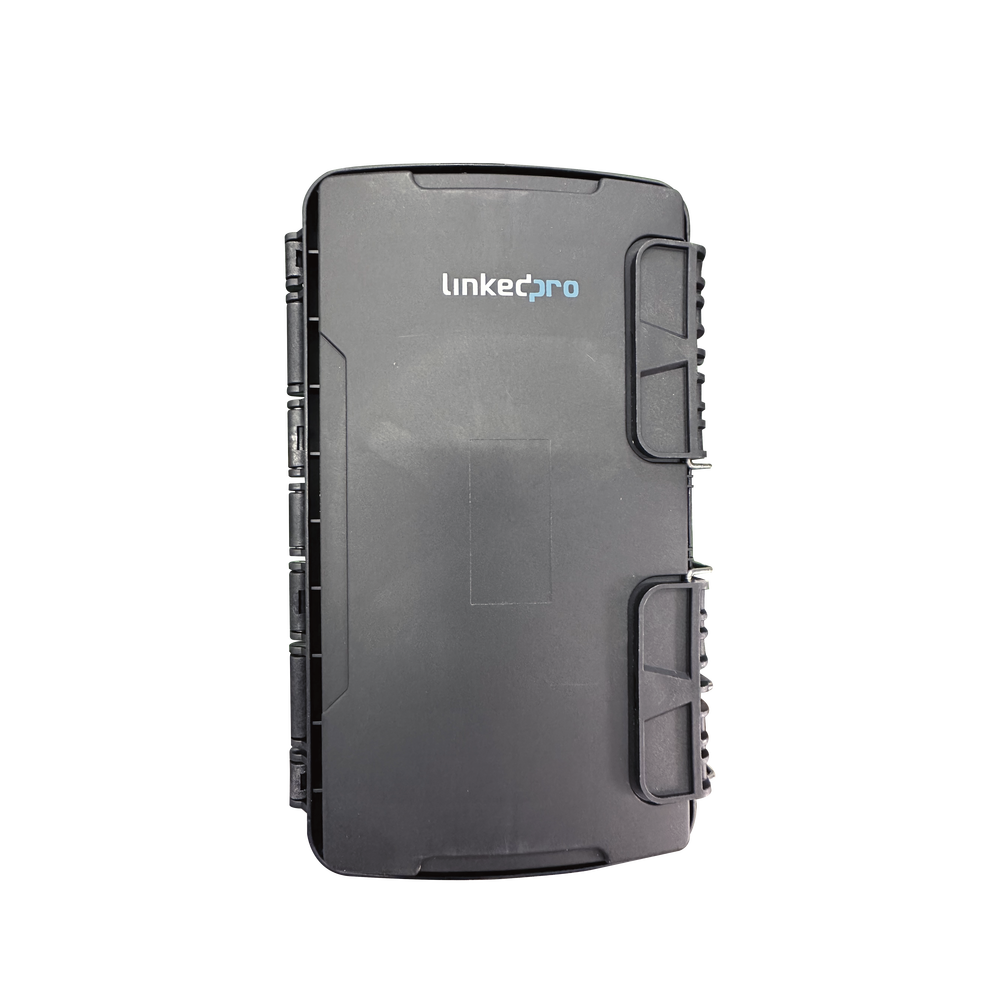

It is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for FTTx network building.

• Made of high-quality engineer plastic material (PP), Good mechanical strength, elegant appearance, sturdiness, and durability.
• IP68 Protection.
• Suitable for indoor or outdoor, wall-mounted, pole installation.
• Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
• Fiber routing is reasonable.
• 1*8 and 1*16 micro type Splitter can be installed
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one

Caracteristicas fisicas:

• Dimensions: 12 x 8 x 4 in (300 x 210 x105 mm)
• Max Capacity: 16 SC/APC
• Input cable diameter: 4*12mm
• Output cable diameter: 16* 2x3mm
• Packing Information
  • GW: 43 lb (19.50kg)
  • QTY:12pcs/carton
  • 24 x 18 x 15 in (615 x 445 x 370 mm)

Fiber Distribution Box is is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

• Anti-UV (Ultraviolet)
• Economic design with plastic adaptor panel
• Uncut cable port for feeder cables.
• Cable, pigtails, and patch cords are running through their own paths without disturbing each other, easy maintenance.
• Box can be installed by the way of wall-mounted.

Applications:

• FTTH access network
• Telecommunication network
• CATV networks
• Data communications network
• Local area networks

Configuration Table:

• Installation Method: Wall-mounted
• Color: White / Gray
• Material: PC+ABS
• Cable Ports: 2 Ports (For main cable) + 8 Ports (For drop cable)
• Capacity Of Splice: Tray 2 Pcs  (12 Cores / Tray)
• Adapter Ports (SC): 8 Pcs ( Pre-installed Reinforced)
• Dimensions H×W×D (in): 8.7 x 4.9 x 1.9
• Dimensions: H×W×D (mm): 222 × 126 × 50

LinkedPro Fiber Splitter Box provides a high-density wall-mounted, pole-mounted, and aerial-mounted solution for next-generation networks, which aims to provide and manage fiber splitters in a limited space.

• The product is made of high-quality impact-resistant plastic and has a standard user interface that can be re-opened.
• Can accommodate two 1×8 PLC splitter LGX modules or steel tube type; include 1x8 splitter
• Anti-ultraviolet, anti-impact and waterproof function;
• Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable crossing;
• Fiber optic cable can go in and out of the box without cut the cable.

 Specification:

• Dimension (in):  11.2 x 6.9 x 4.3.
• Dimension (mm): 285 * 175 * 110
• Cable diameter (mm): Φ7-φ18
• Dimension: 2 x 0.4 x 0.3 in / 52 x 9 x 8.1mm
• Inlet Ports:
  • Port 1:    6 ~ 9mm
  • Port 2: 9 ~ 12mm
  • Port 3: 12 ~ 15mm
  • 6 ports in total (3 ports on each side of the box)
• Max. Split ratio: 2pcs 1×8 steel tube splitter
• Max. Adapter number: 16pcsr
• Max. Splice tray: 1pc
• Max. Fusion splice: 24 cores
• Outlet Ports
  • 16 ports in total drop cable 2x3mm
  • (8 ports on each side of the box)

LinkedPro Fiber Splitter Box provides a high density wall mounted, pole mounted and aerial mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space.

• Integrated with splice cassette and cable management system
• Manage fibers in a reasonable fiber radius condition
• Fiber bend radius control more than 40mm
• 2pcs 1*8 micro type Splitter can be installed
• All splicing trays can be extended up to a self-locking position of 120 degrees
• The adapter can be rotated at an angle
• 16 ports cable entrance for distribution cables for option, 2*3mm FTTH Drop Cable

Configuration:

• Material: PC+ABS
• Size: A*B*C(mm) 200*130*55
• Max Output : 16*2~5mm
• Max Input: 2*Φ16
• Max Capacity Splicing: 16
• PLC Splitter: 2* 1×8
• IP Level: IP65

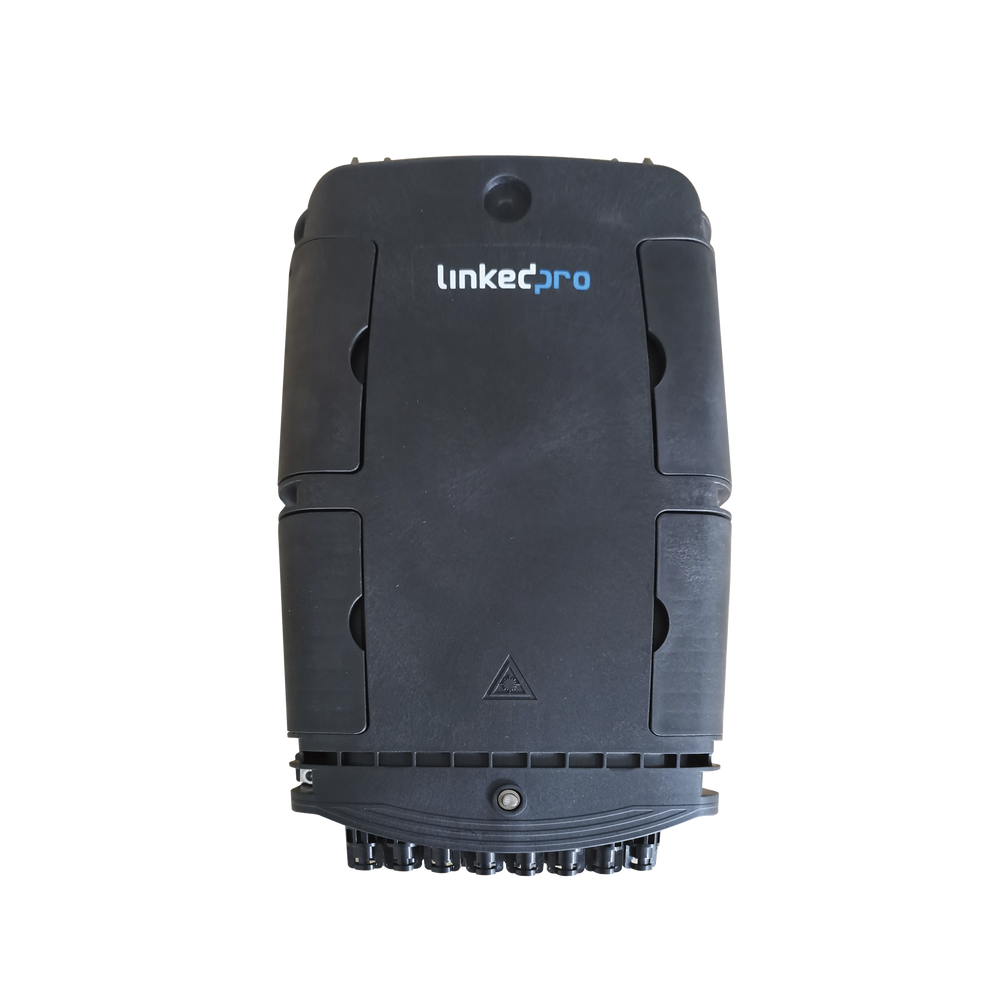

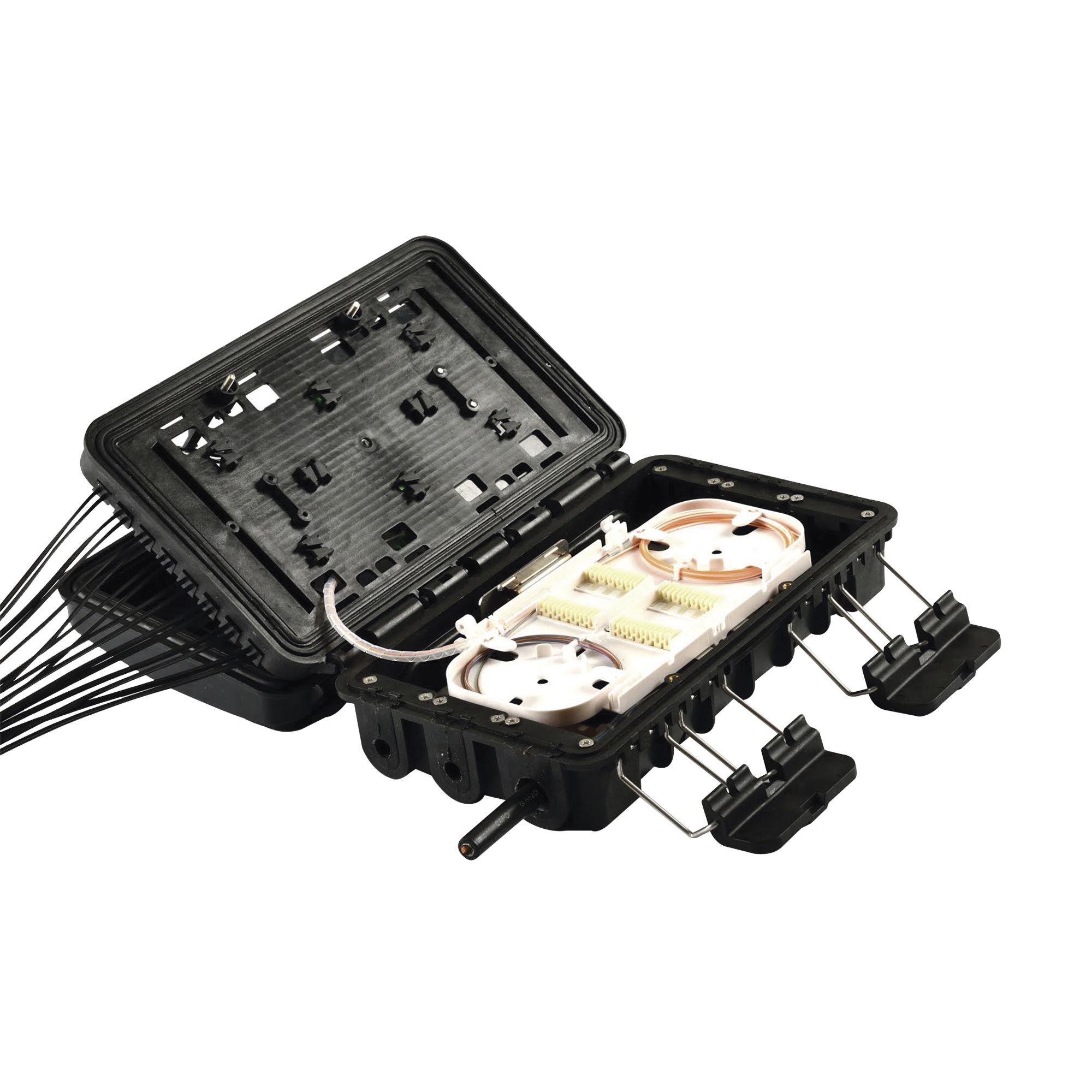

Key Features

• Dome-base housing with mechanical sealing for quick re-entry.
• High-strength modified polypropylene for outdoor durability.
• Supports mid-span operation without cutting the main cable.
• Flexible grommets compatible with most standard cable sizes.
• Splice trays support all common fiber cable constructions.
• Allows installation of non-connectorized splitters (not included).
• Easy to open, maintain, and expand as the network grows.
• Optimized internal routing for clean fiber management.
• Environmental protection rating: IP68.

Applications

• Outdoor fiber access networks (FTTx / ODN).
• Duct, aerial, buried, and man-hole installation.
• Feeder, distribution, and drop cable splice points.
• Includes aerial mounting accessories.

Specifications

• Dimensions: 8.66 in × 14.17 in (Ø 220 × 360 mm)
• Operating temperature: -40°F to +149°F (-40°C to +65°C)
• Splice capacity: 48 fibers (4 trays × 12 fibers each).

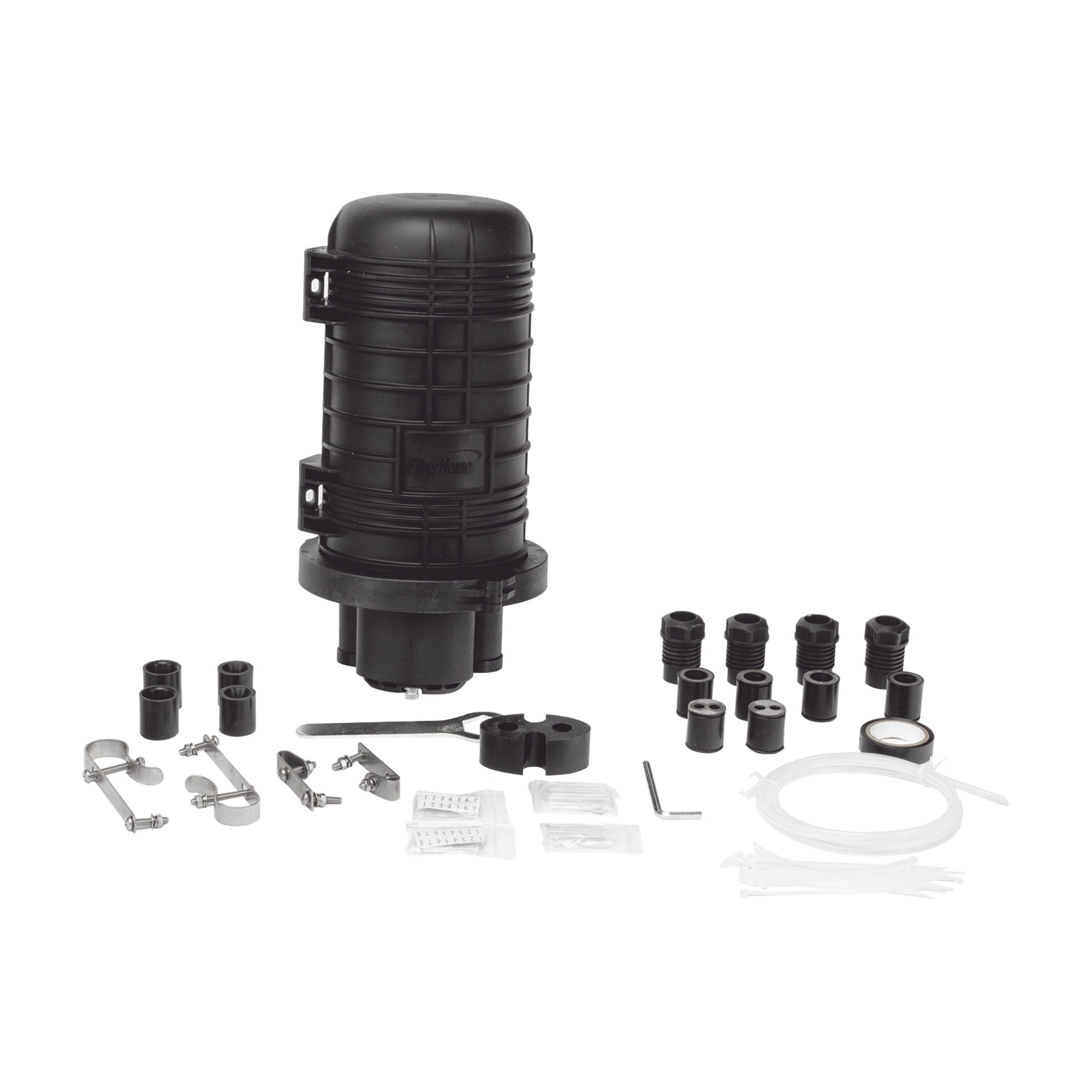

Included Accessories

• 48 × splice heat-shrink sleeves (1.57 in / 40 mm).
• 20 × nylon ties (0.12 × 4.72 in / 3 × 120 mm).
• 1 × bare fiber protective sleeve (6.56 ft / 2 m).
• 4 × branch clamp nuts.
• 1 × branch nut wrench.
• 1 × Allen wrench.
• 1 × oval seal ring-A (Ø 0.39–0.55 in / 10–14 mm).
• 4 × round seal rings-A (Ø 0.39–0.55 in / 10–14 mm).
• 2 × round seal rings-D (Ø 0.19–0.27 in / 5–7 mm).
• 1 × insulation tape (9.84 ft / 3 m).
• 1 × line-mounting accessory set.
• 1 × cable-mounting accessory set.

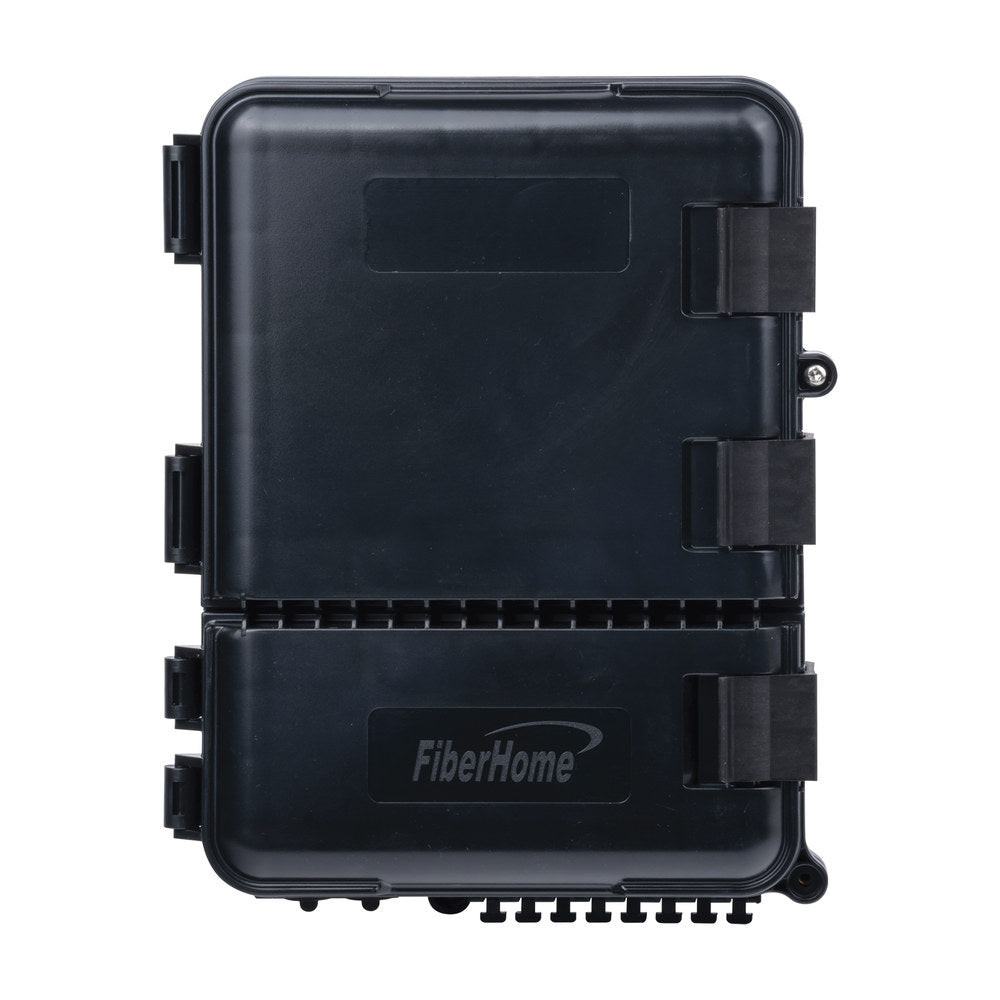

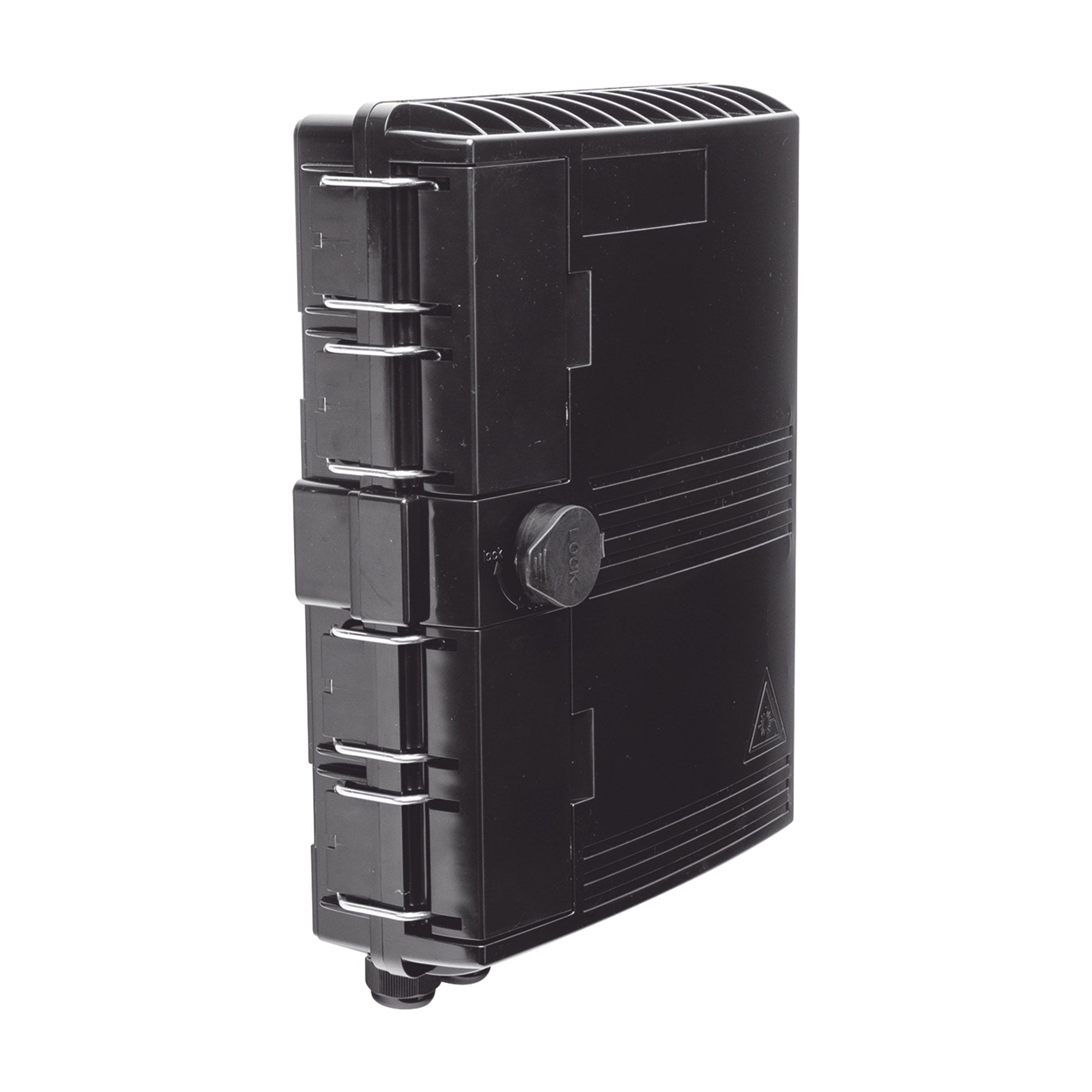

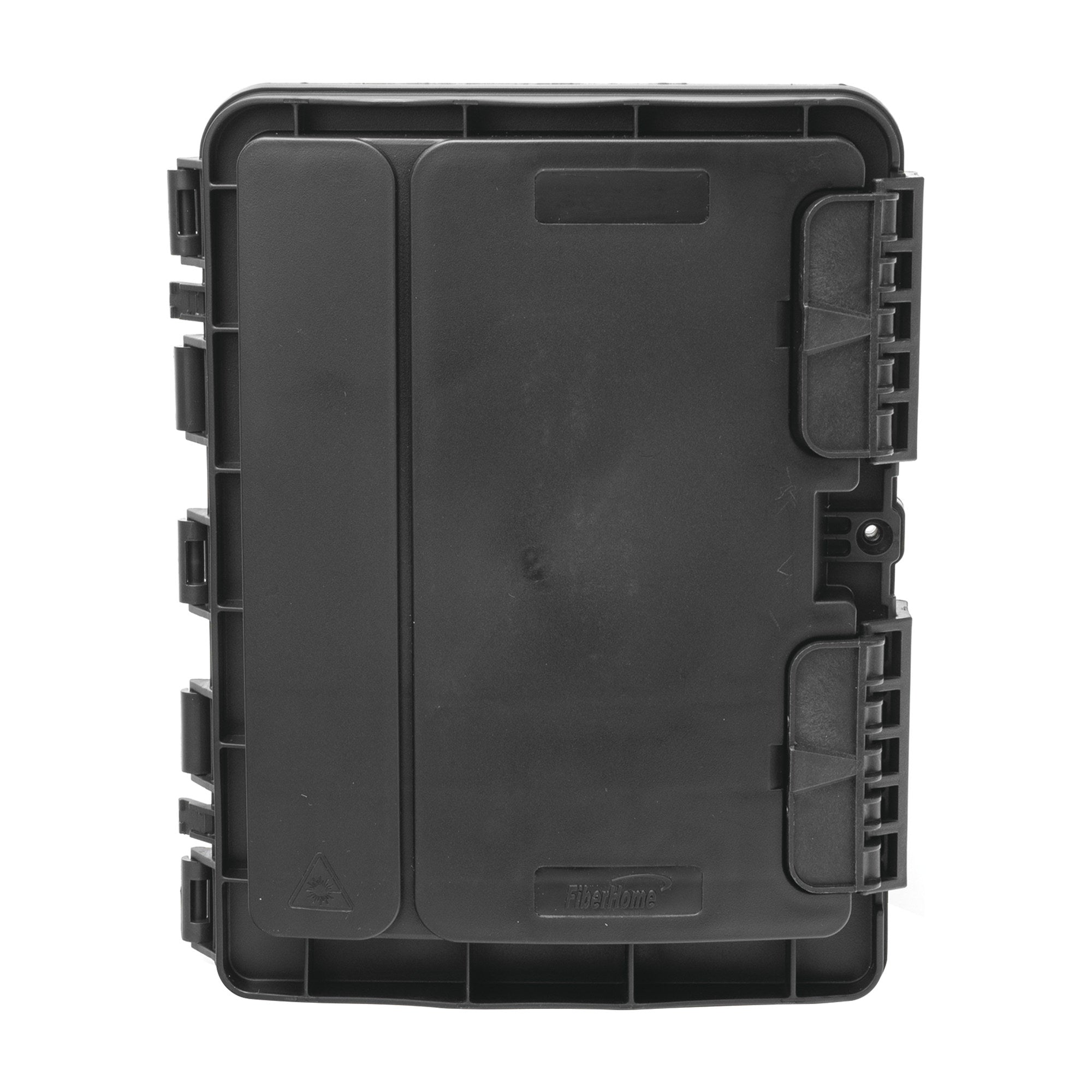

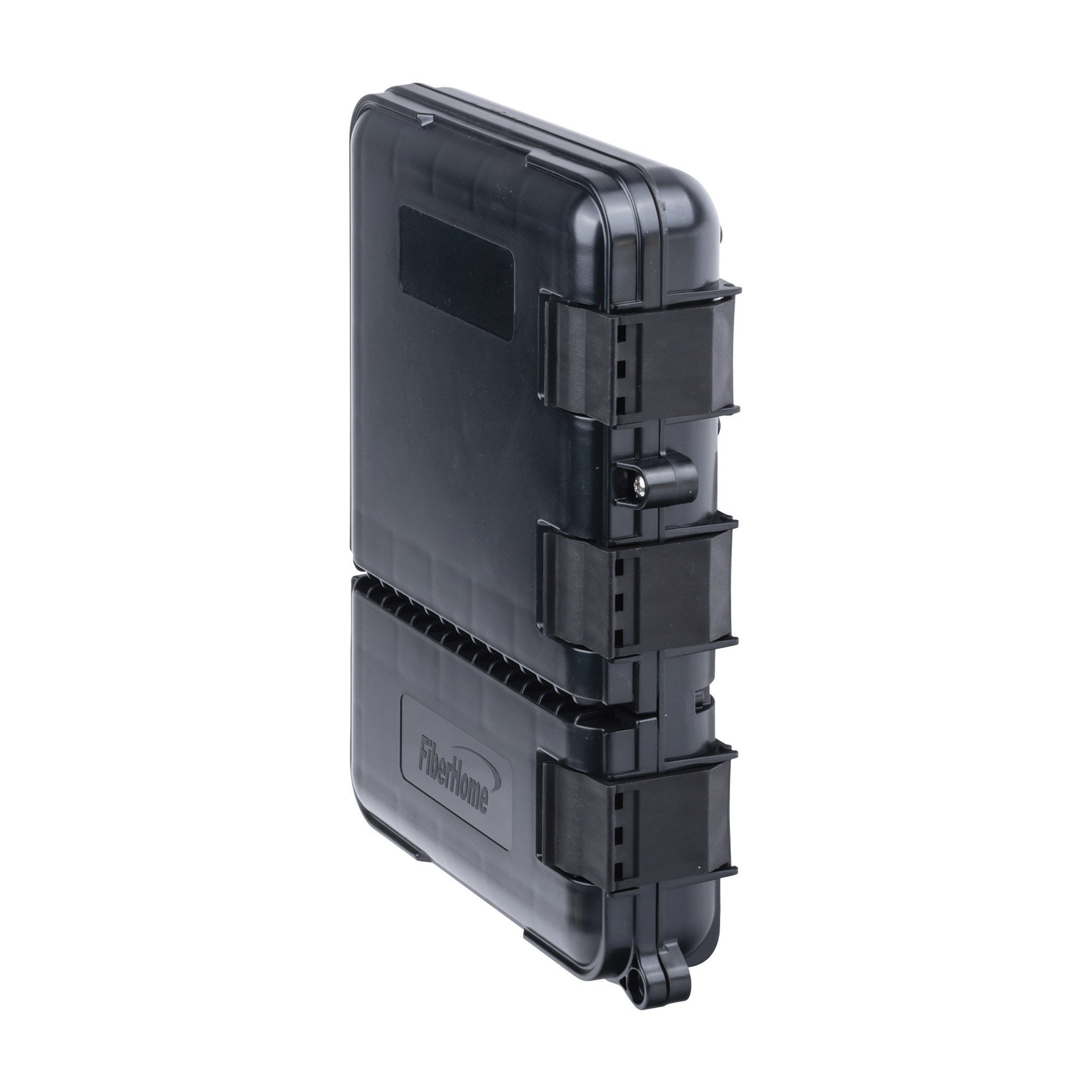

FiberHome FDP series fiber distribution boxes provide fiber connectivity between the distribution cable and drop cable

Features:

• High strength material with good weather-fastness
• In-line installation
• Easy open and close without tools
• Fiber cable mid-span and branching functionality
• 16 SC/APC adaptors included
• Supports the output of 16 drop cables
• Size(mm, HxWxD): 175x285x127
• IP65
• 2 Big cable entrance ports (Ø8mm～Ø20mm)
• 2 Small cable entrance ports (Ø5mm～Ø16mm)
• Compatible with ADSS, Mini ADSS, and Mini Figure 8* fiber

*It is recommended to add more sealing mud in the cable entrance port when used with Mini Figure 8 fiber (OC-FIG8-06C, OC-FIG8-12C)

Includes:

• 1 Protection tube for naked fiber (2 m)
• 1 PVC tape
• 1 Spiral hose (1 m)
• 16 Cable tie (3*120 mm)
• 12 Heat-shrinkable protection sleeve (60 mm)
• 1 Cleaning paper towels
• 1 Instruction Manual
• 2 Small Hose clamps (Ø10 - Ø16 mm)
• 2 Big Hose clamps (Ø16 - Ø25 mm)
• 1 Set of Hanging pendant
• 4 Waterproof mortar

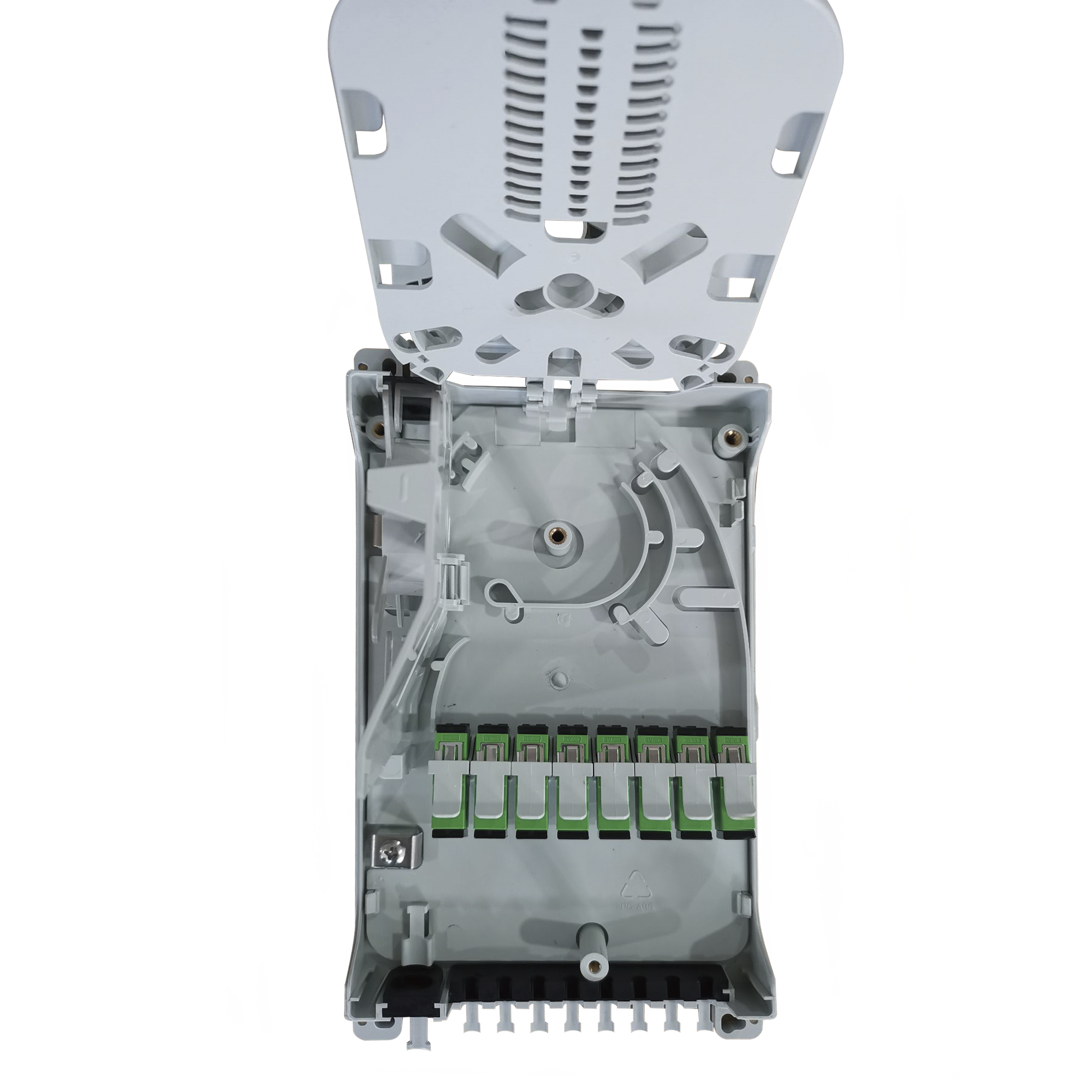

The Fiber Termination Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.

• Waterproof design with IP65 Protection level
• Integrated with splice cassette and cable management system
• Manage fibers in a reasonable fiber radius condition
• Easy to maintain and extend the capacity
• Fiber bend radius control more than 40mm
• Suitable for the fusion splice or mechanical splice
• 12 ports cable entrance for FTTH drop cable

Configuracion:

• Model: PC+ABS
• Size: 250*190*39
• Max Capacity: 12 (SC ) / 24(LC)
• Empty Weight: 1.2.kg
• Color: White

Product Overview

This outdoor splitter enclosure is built to simplify drop fiber management, splicing and splitting in FTTx and FTTH applications. It supports wall, pole and aerial mounting, providing flexible options for deployment in access networks, MDU buildings, residential areas and small distribution nodes.

The internal layout clearly separates the splicing area and distribution area, reducing cable crossings and making maintenance, expansion and troubleshooting easier for field technicians.

Key Features

• High-quality, impact-resistant plastic enclosure with a re-openable user interface for easy access.
• Accepts up to two 1×8 PLC splitter LGX modules or steel-tube type splitters (includes one 1×16 splitter).
• UV-resistant, impact-resistant and weatherproof housing for outdoor environments.
• Unique flip-board design with opening angle ≥ 180°: clear separation between splicing and distribution areas, reducing cable crossings.
• Fiber optic cable can enter and exit the box without cutting the main cable, enabling mid-span access.

Technical Specifications

• Enclosure dimensions (in): 11.2 × 6.9 × 4.3
• Enclosure dimensions (mm): 285 × 175 × 110
• Main cable diameter range: Ø 7 – Ø 18 mm
• Typical PLC splitter module size: 2.0 × 0.4 × 0.3 in / 52 × 9 × 8.1 mm
• Inlet ports (main cable):
  • Port 1: 6 – 9 mm
  • Port 2: 9 – 12 mm
  • Port 3: 12 – 15 mm
  • Total: 6 inlet ports (3 per side)
• Maximum split ratio: 2 × 1×8 steel-tube splitters
• Maximum adapter capacity: 16 adapters
• Maximum splice tray: 1 tray
• Maximum fusion splices: 24 cores
• Outlet ports (drop cables):
  • 16 drop cable ports 2 × 3 mm
  • 8 ports on each side of the box
