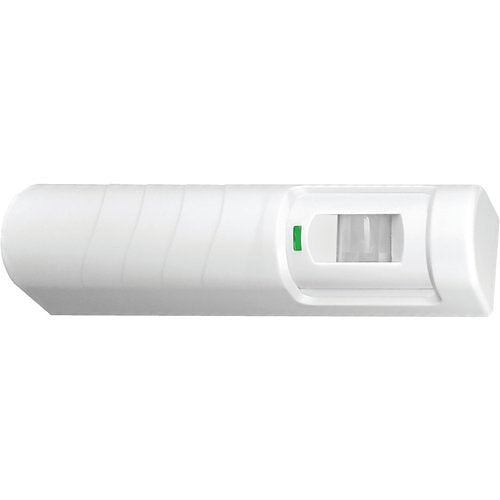

The 0E-RXD is a Request-to-Exit (REX) motion detector that detects motion within its adjustable coverage area via passive infrared (PIR) detector to provide door control via a door control device (such as magnetic lock or door strike) or access control system. A variety of programable options allows customization to suit the application. Durable ABS plastic housing.
Optional trim plate (0E-TP) facilitates neat installation, especially with use of single gang box.
Main Features
Suitable for single or double doors
Selectable relay trigger mode
Adjustable 0-60 second relay latch time
Timer programable for reset or non-reset
2 Form C Relay Contacts
Wall or Ceiling Mount up to 15' with vertically aimable lens (coverage pattern)
Operating temp: -20°F to 120°F
Humidity: 0 TO 95%
RFI Immunity: 26MHz to 1000MHz at 50 V/m
General Information
Name: ADI PRO 0E-RXD Request-to-Exit PIR Detector
Category: ADI PRO, Access Control, Access Control, Egress Devices & Alarms, Request to Exit Devices, Touchless Access Control, ADI Exclusive
UPC Code: 811914027812
Country of Origin: . Country of origin is subject to change.
