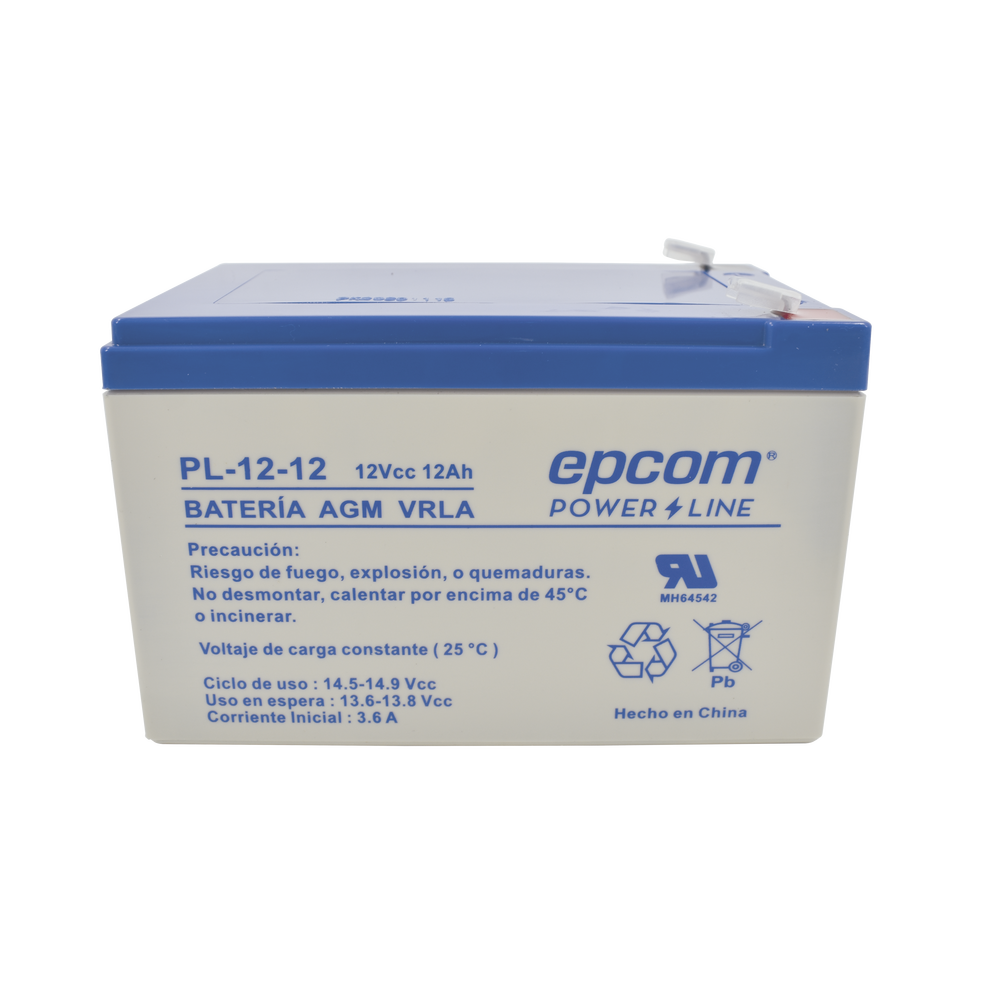

Batteries with Technology AGM / VRLA

SYSCOM has released its recommendations for batteries in electronic equipment, especially those back-ups, ceasing to be considered an unimportant accessory to become frontline actors in availability to 100% in systems electronic security.

You should demand the best quality in their batteries since, in normal operation, they will be exposed on one side to the action of the local physical environment (temperature and humidity, mainly); on the other, you may be embedded in a non-friendly environment. These are some of the reasons that the batteries must be reliable in terms of their operation, and maintenance requirements should be minimal and simple.

SYSCOM strongly recommends using AGM / VRLA brand EPCOM POWER LINE batteries with a variety of them, from 1.2 Ah to 110 Ah at 12 Vdc.

 Applications

• Access control systems.
• Intrusion alarm systems.
• CCTV systems.

Characteristics

• High-performance batteries.
• Designed for high-reliability applications.
• Manufactured under the highest quality standards.
• Tested for 24/7 performance.
• 12 Ah capacity.
• Voltage (Vdc): 12.
• Terminal type : F2
• Type: AGM / VRLA.
• Width: 3.85" (98 mm).
• Height: 3.74" (95 mm).
• Depth: 5.94" (151 mm).
• Weight: 8.15 lb (3.7 kg).

* 1-year warranty.

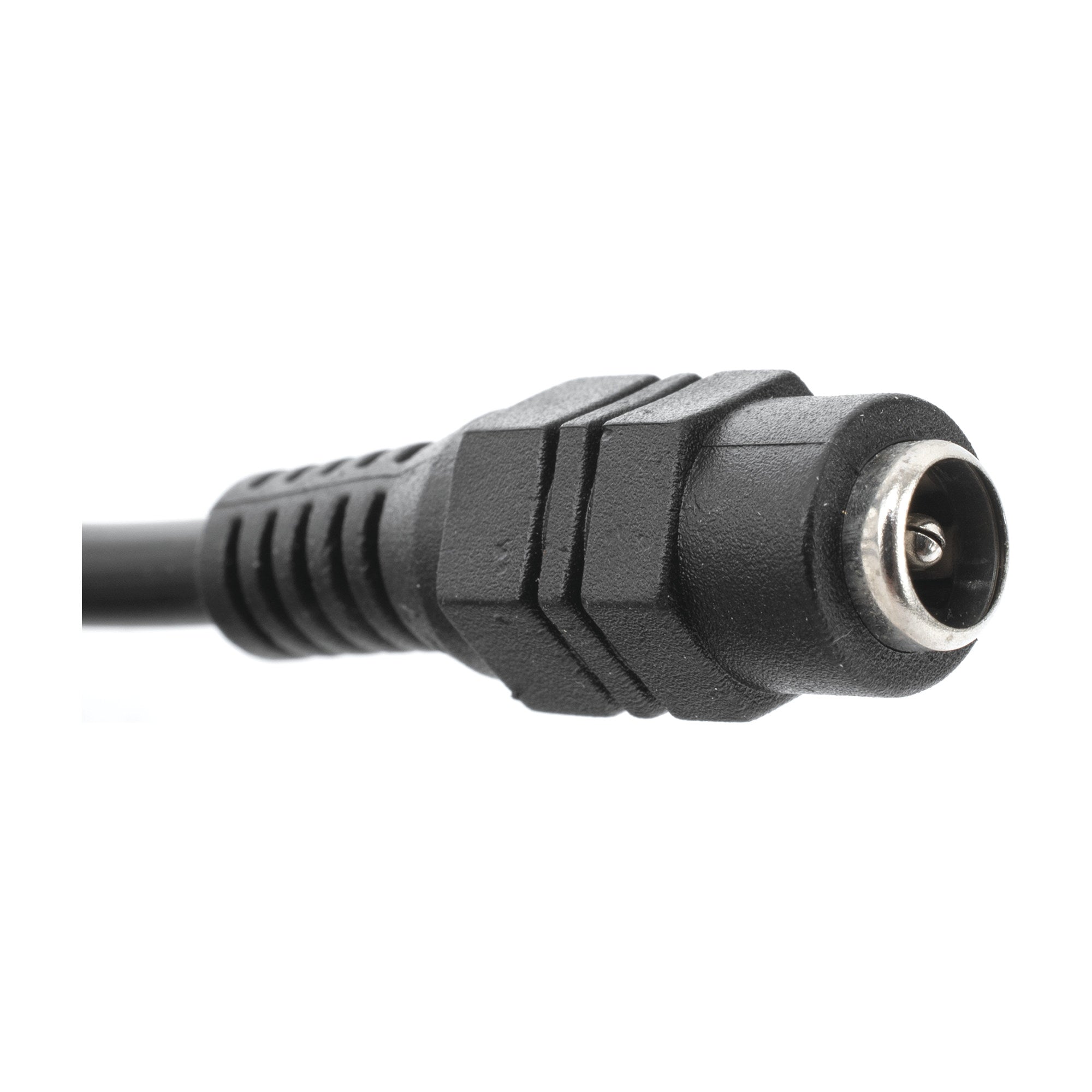

EPCOM POWER LINE type jack 3.5 mm female polarized 12 Vdc is widely recommended to power CCTV cameras or to made extensions in the wiring.

Applications:

• Systems of power supply of CCTV cameras

Dimensions :

• Diameter: 2.1 mm
• Length: 5.5 mm

Cable compatibility:

• Suggested cable: 18 AWG

Assembly mode:

• Positive terminals - Negative Push and drop

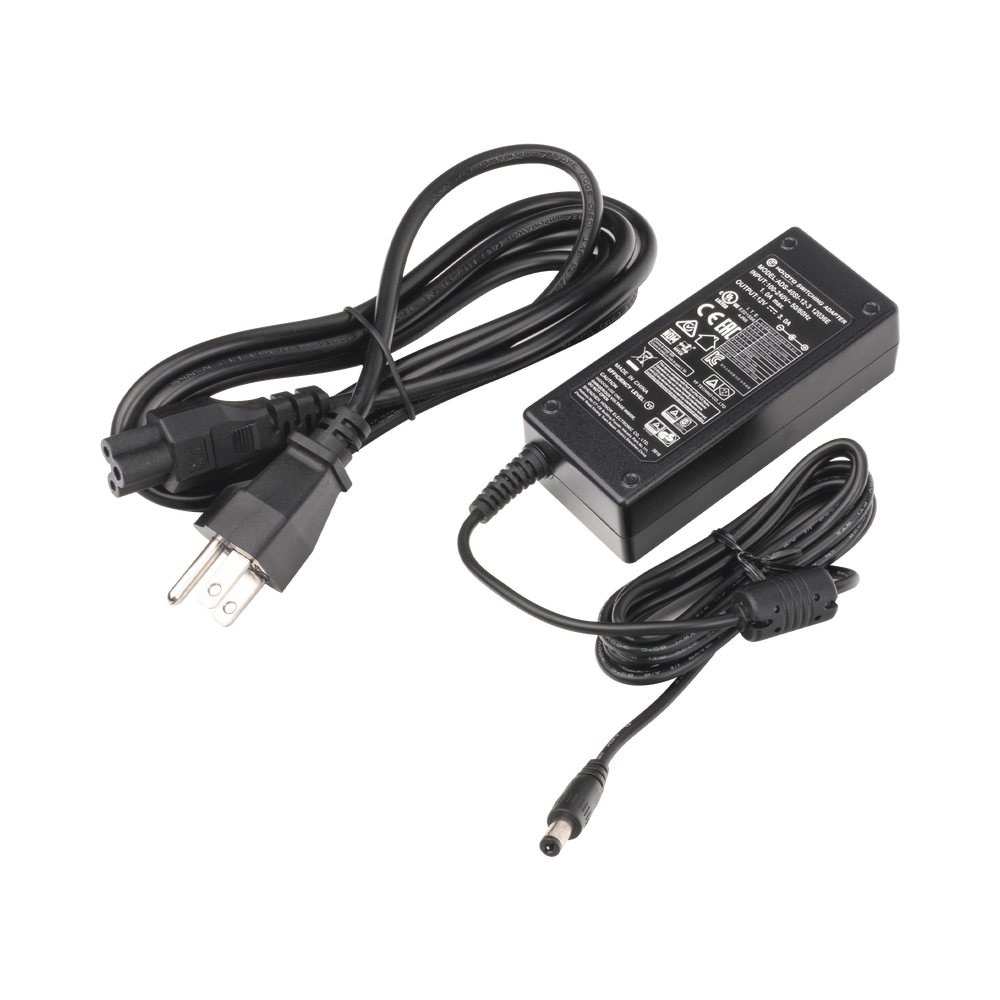

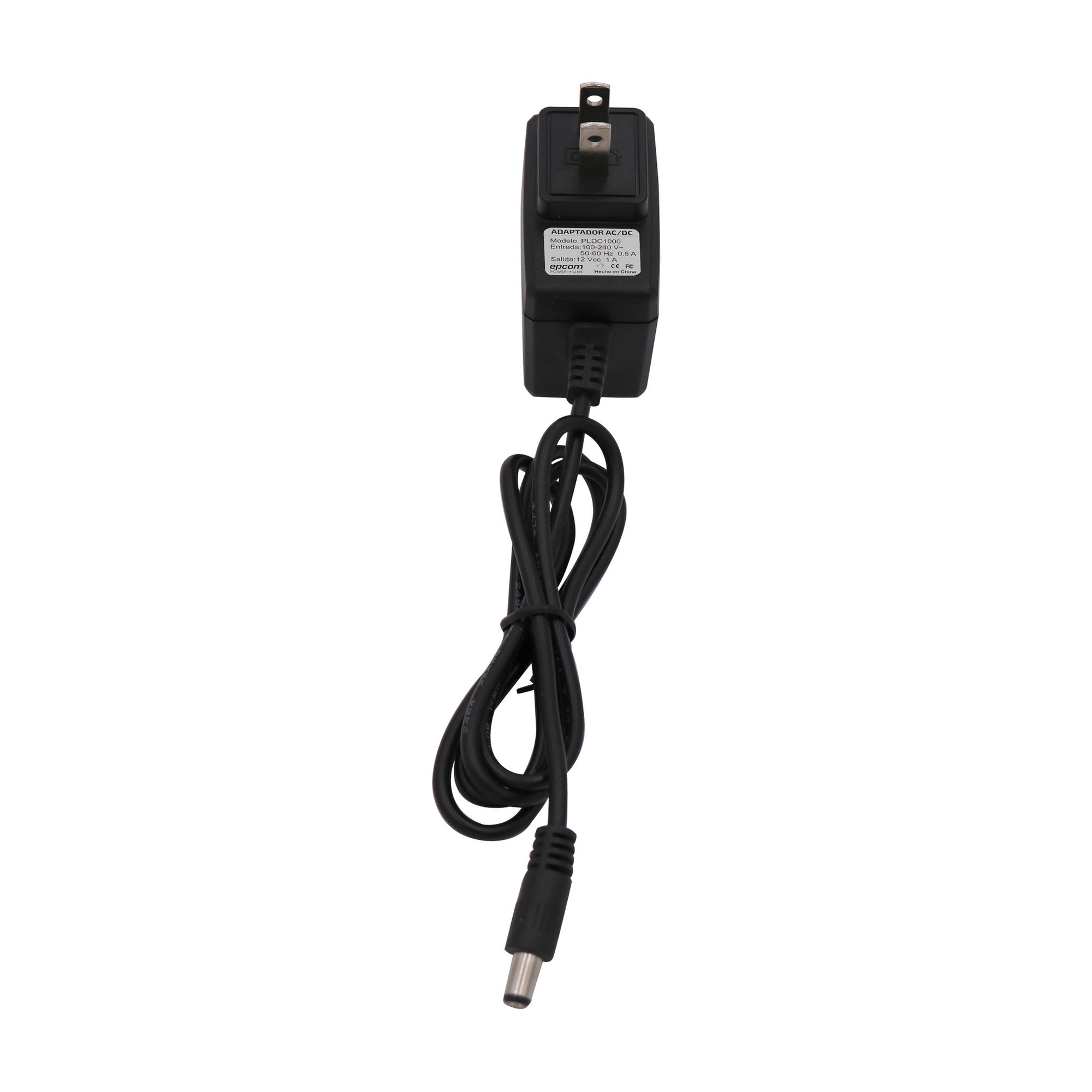

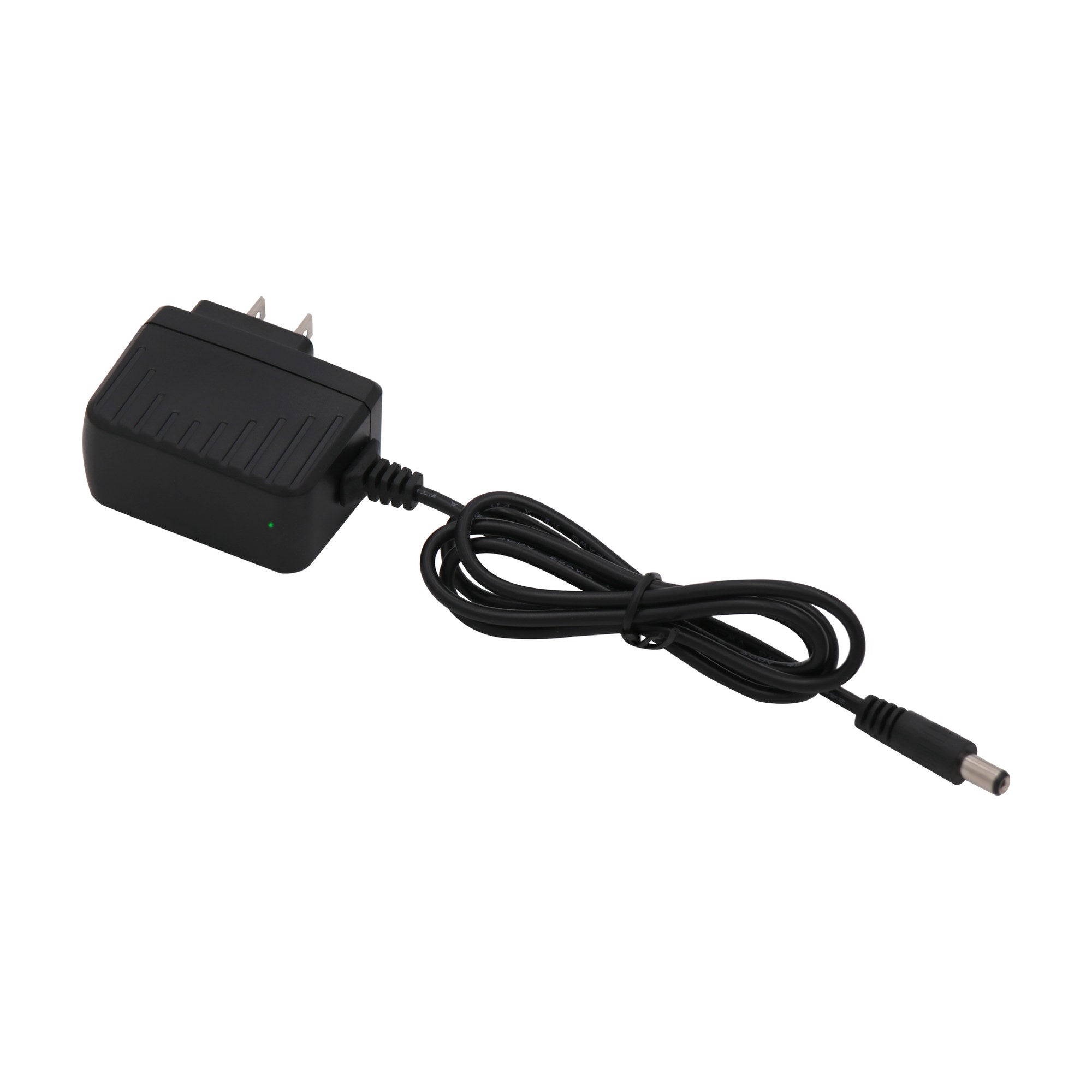

12V 3A AC Power Adapter Charger

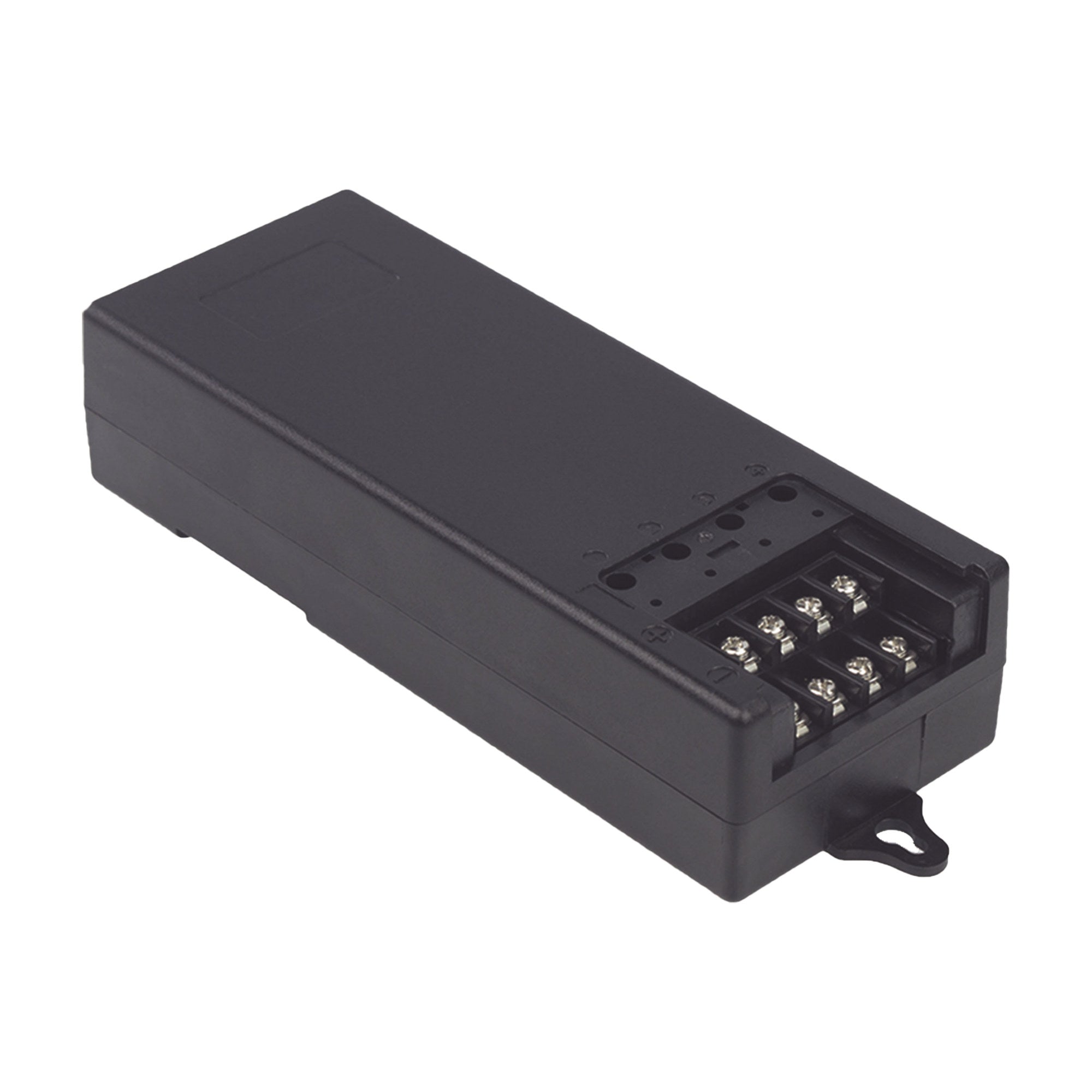

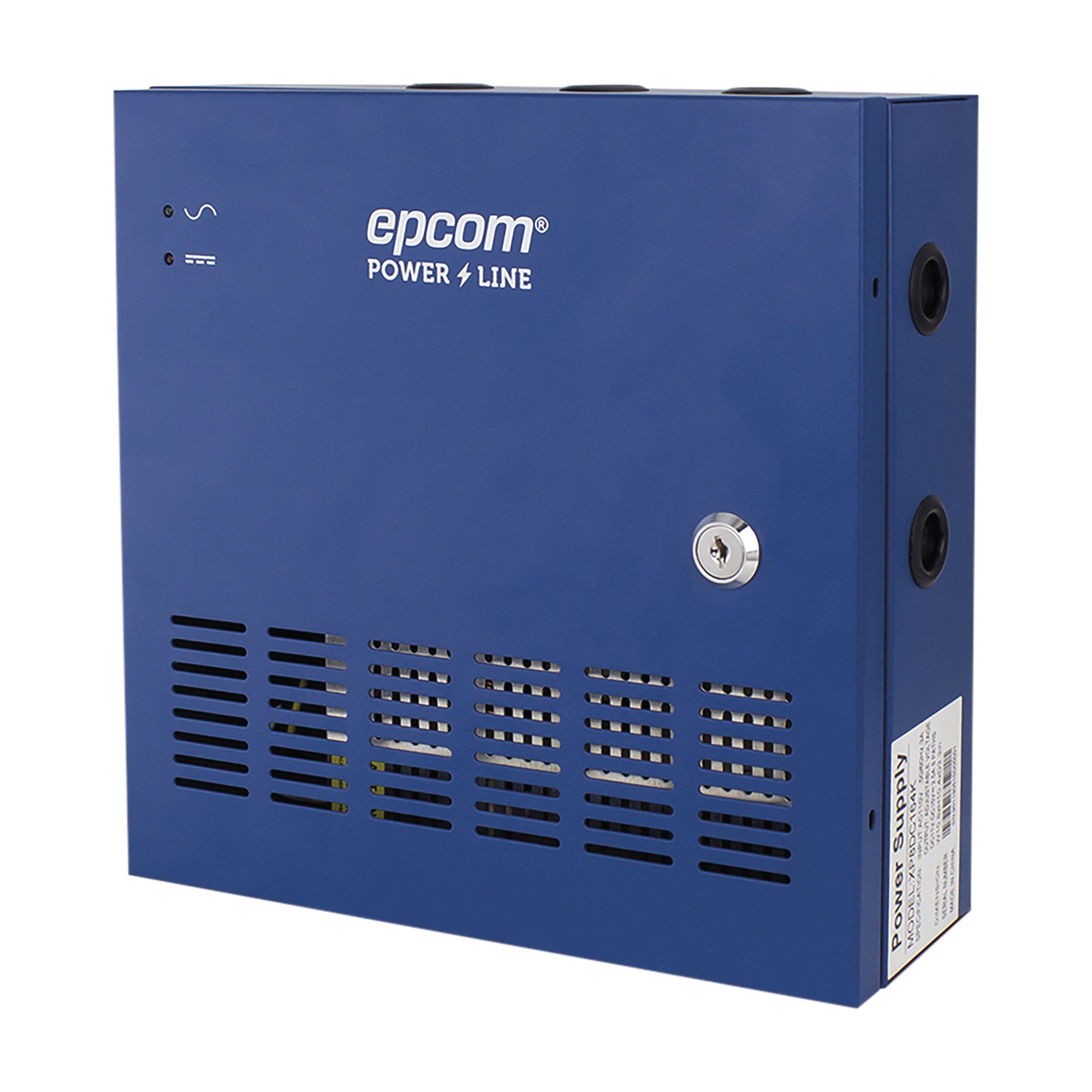

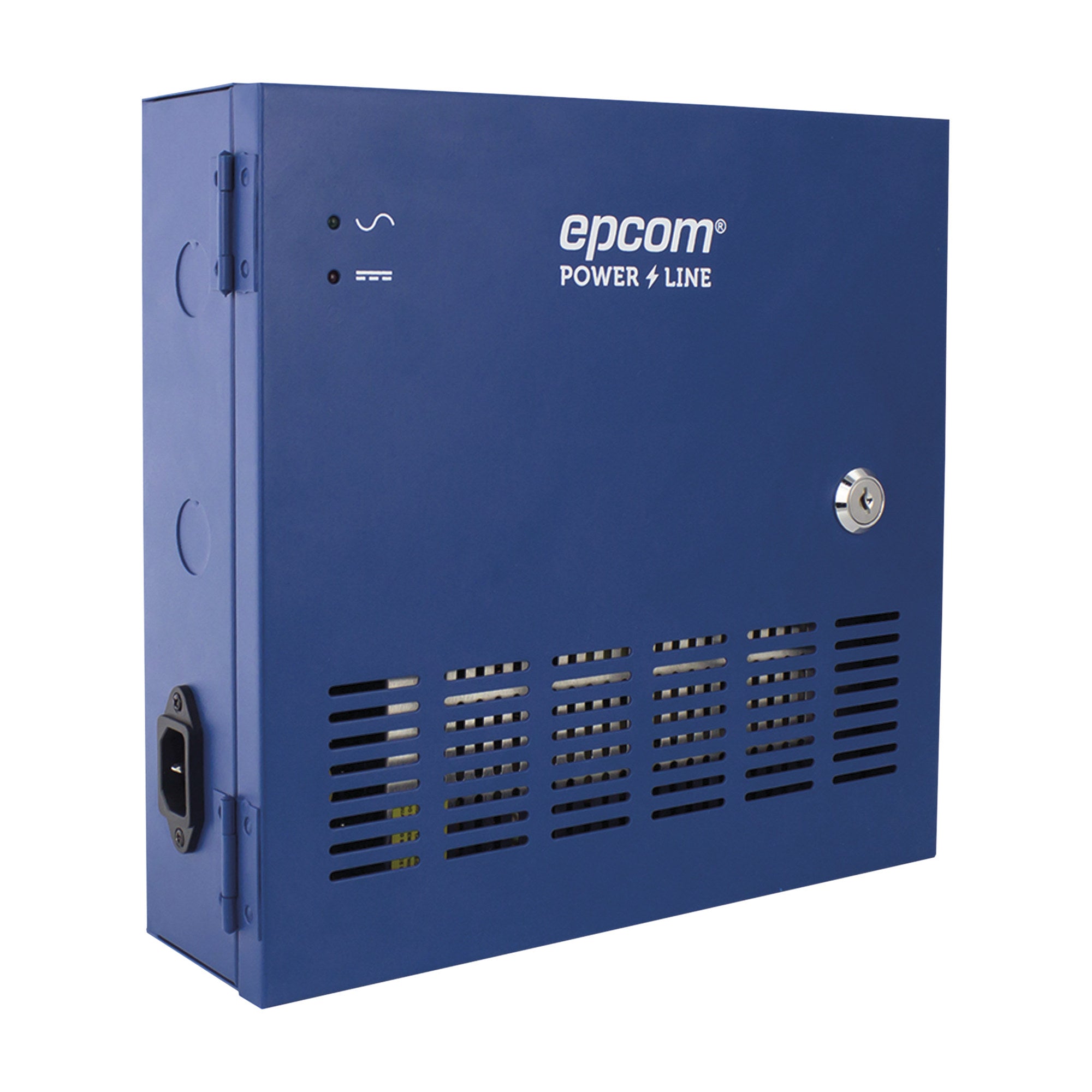

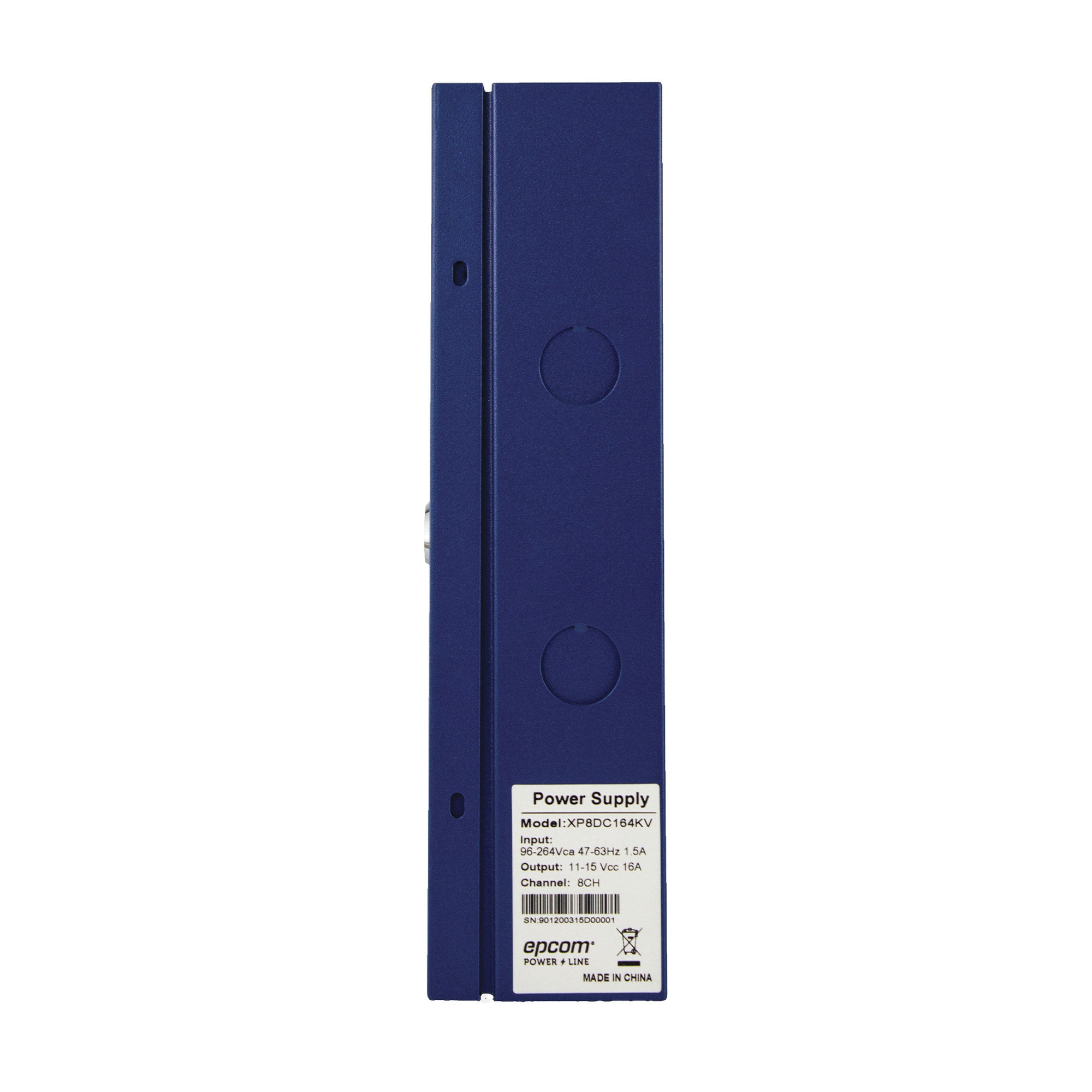

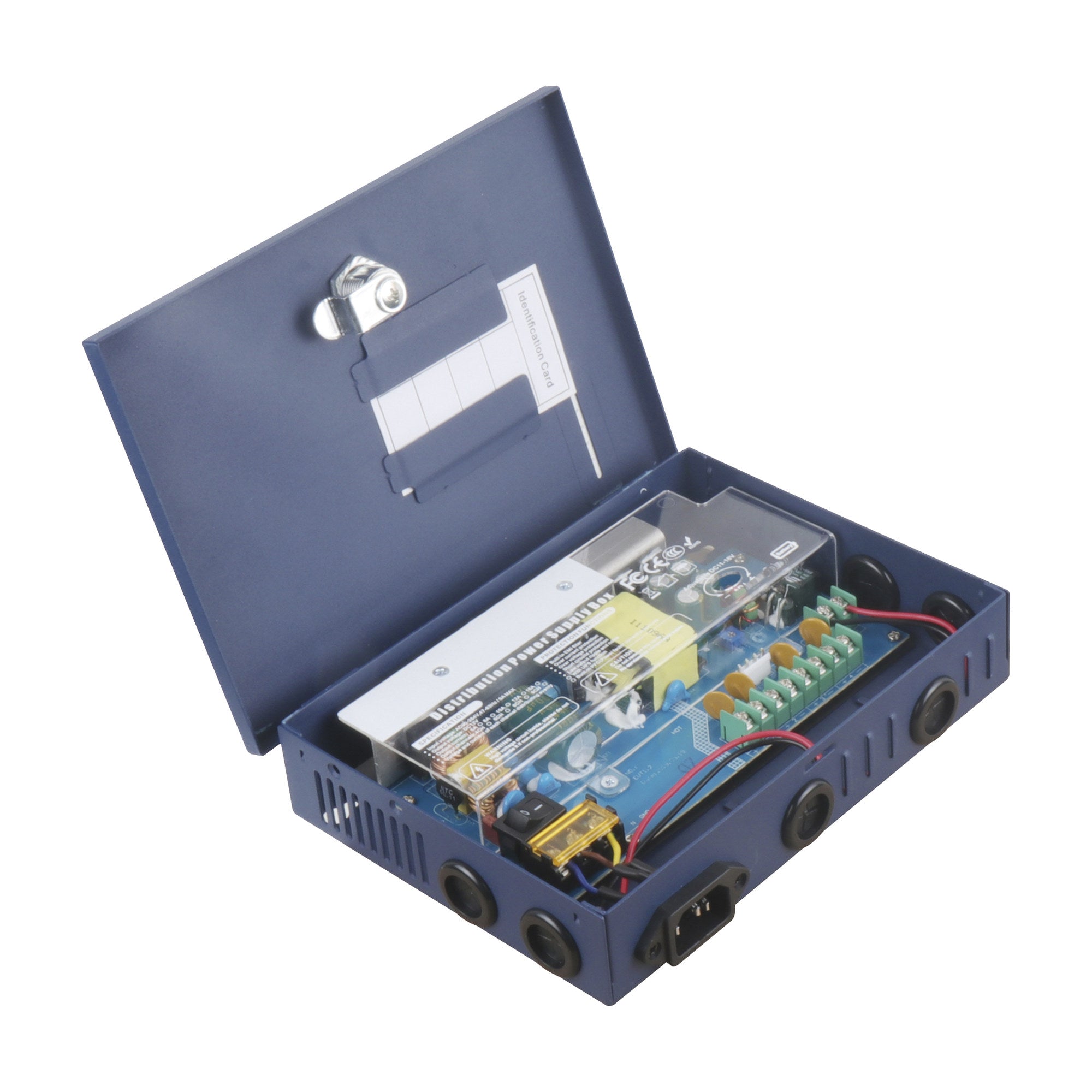

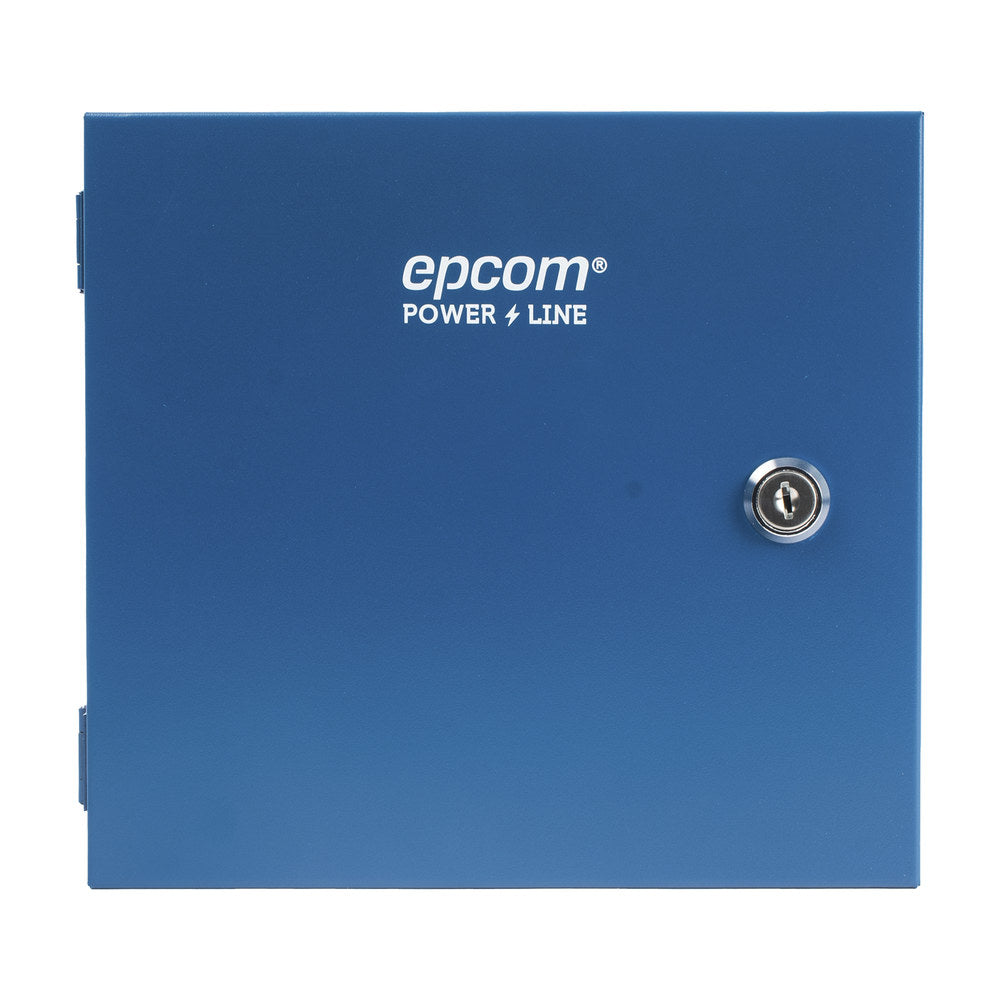

HIGH-PERFORMANCE Power Supply 11-15 VDC @ 6A, 4 outputs channels, with an input voltage of 85-264 VAC

Power output filtered to prevent noise and protected against overvoltage.

Filtered power output to avoid noise and protected against overvoltages.

For 4K Cameras

Features:

• Easy installation source.
• Protection against short circuit, overcurrent, and overvoltage.
• Cooling system by air convention.
• External indicator LEDs for each channel output.
• Inter-built filter against electromagnetic interference EMI.

Protection:

• OCP Over Current Protection
• OVP Over Voltage Protection
• SCP Short Circuit  Protection

         ( More information in datasheet )

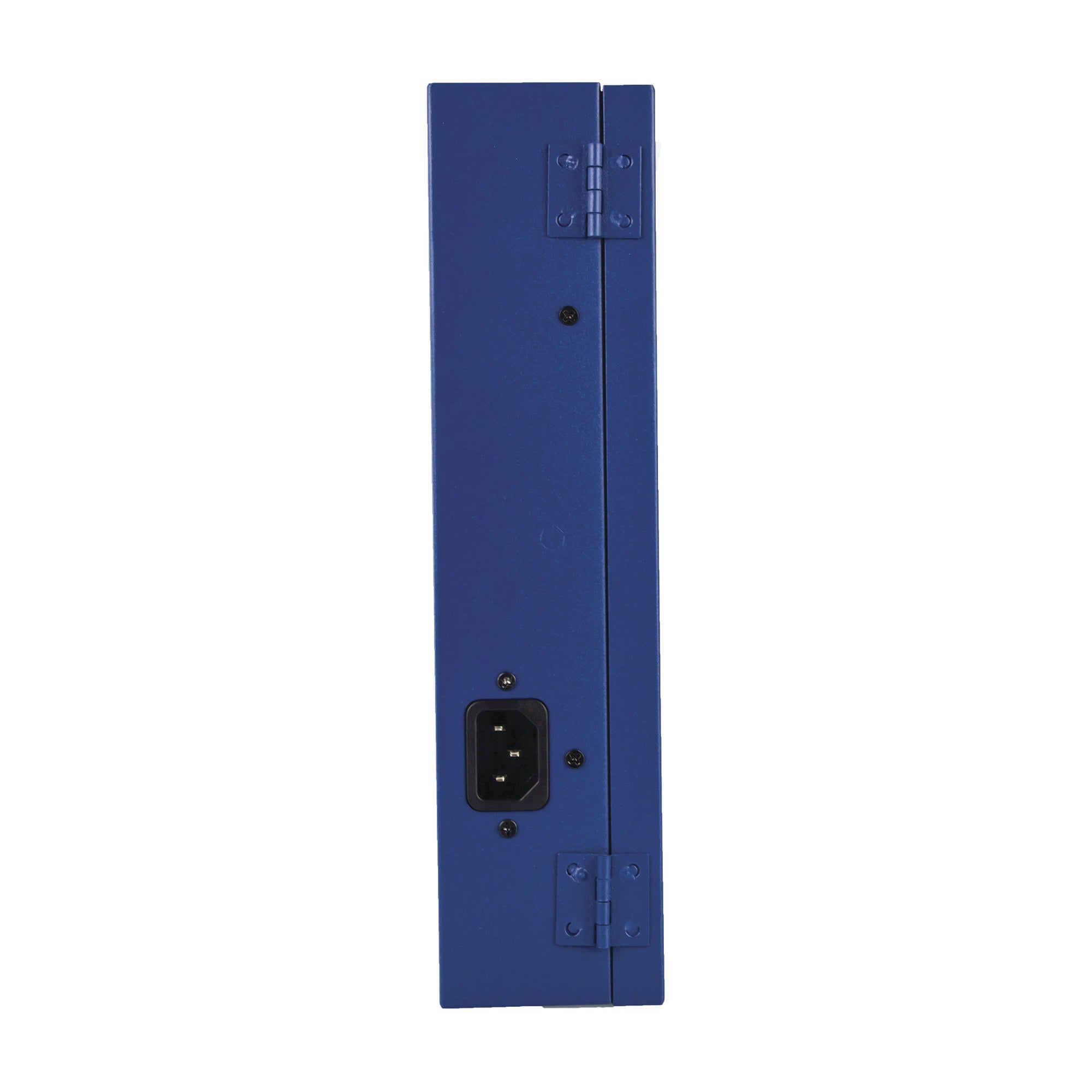

Physical and electrical specifications:

• Approvals: IEC / EN / UL / CSA, 60950 GB4943
• Voltage input: 110 ~ 220 Vac
• Voltage output: 11.5 ~ 15Vdc. (adjustable) by output
• Current output: 16 A
• Distribution board: 8 outputs
• Operating Temperature: 14º -- 122º F
• Operating Humidity: 10% -- 60%
• Storage Temperature & Humidity: -40º -- 176º F
• UL Certified

* Warranty: 1 year.

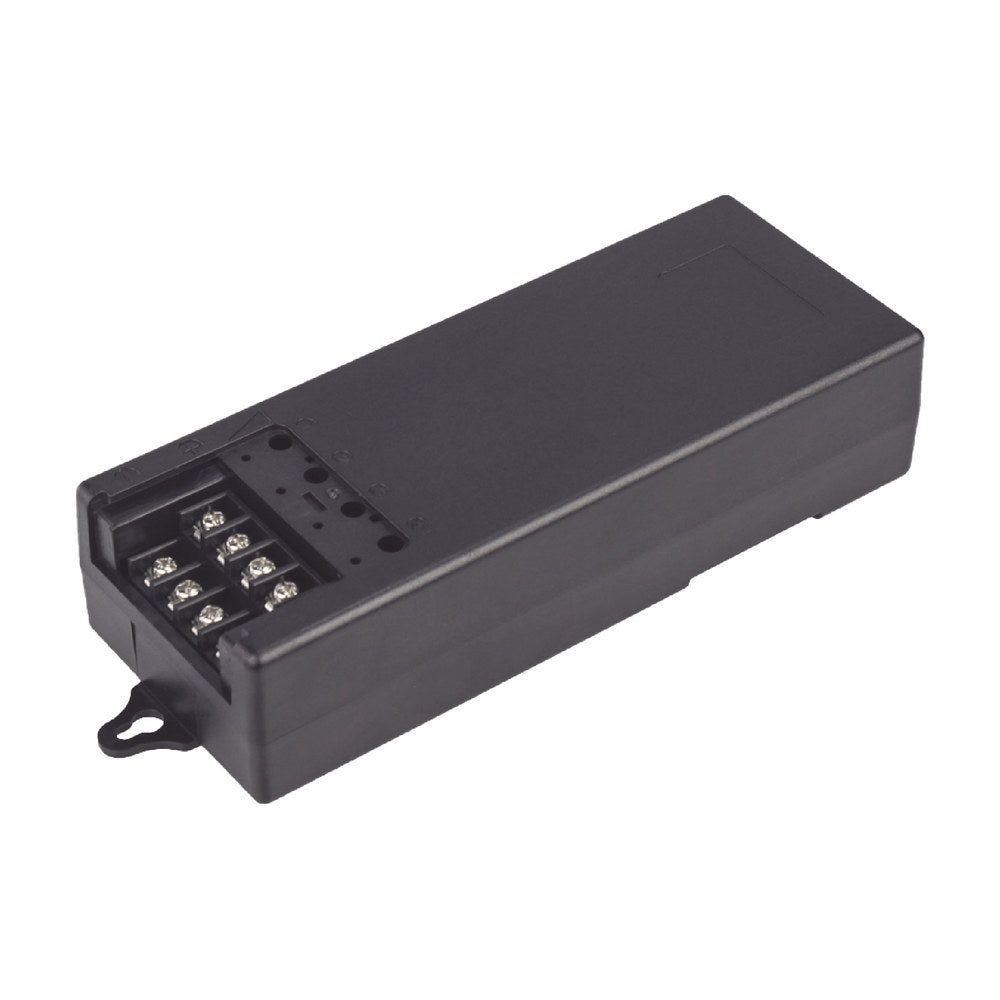

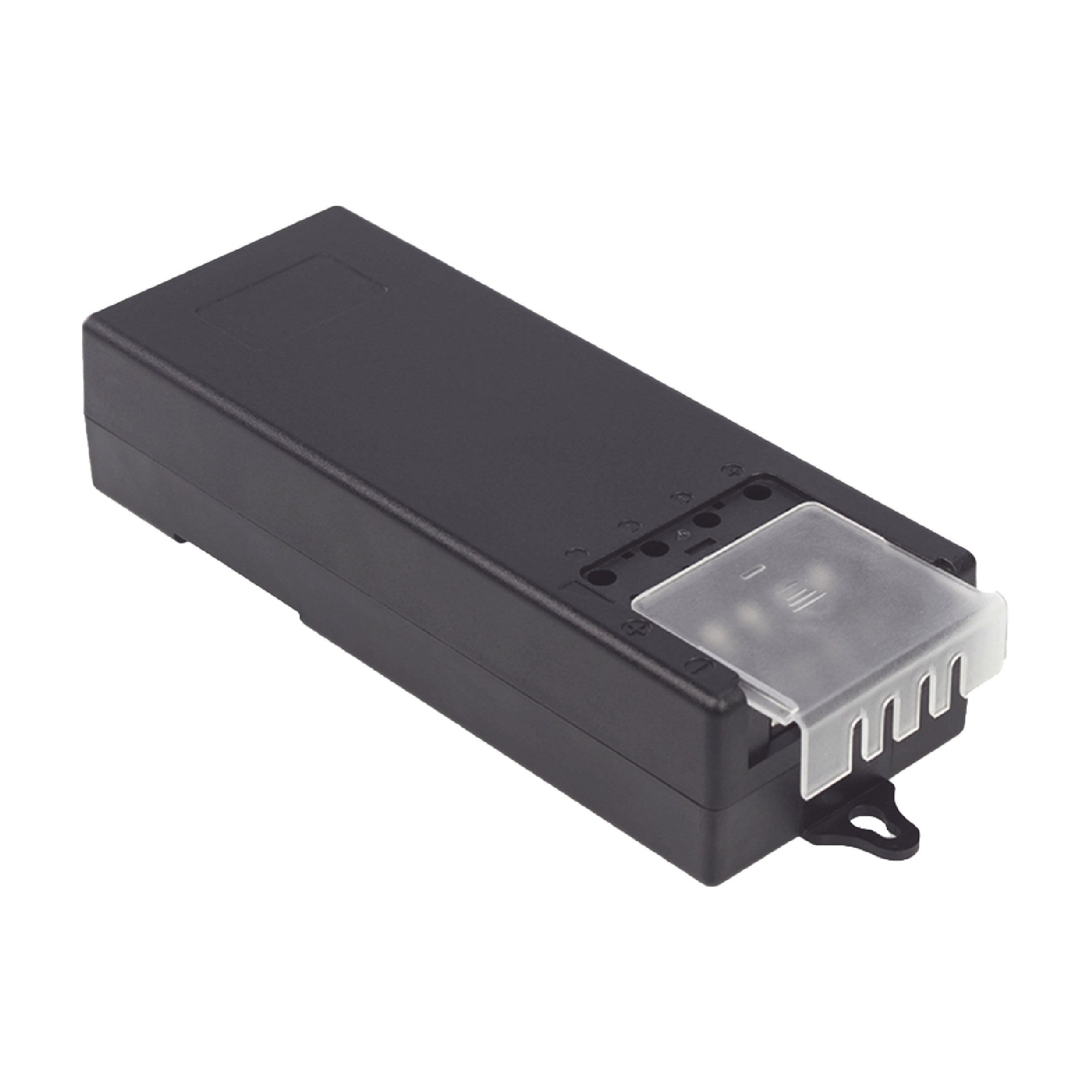

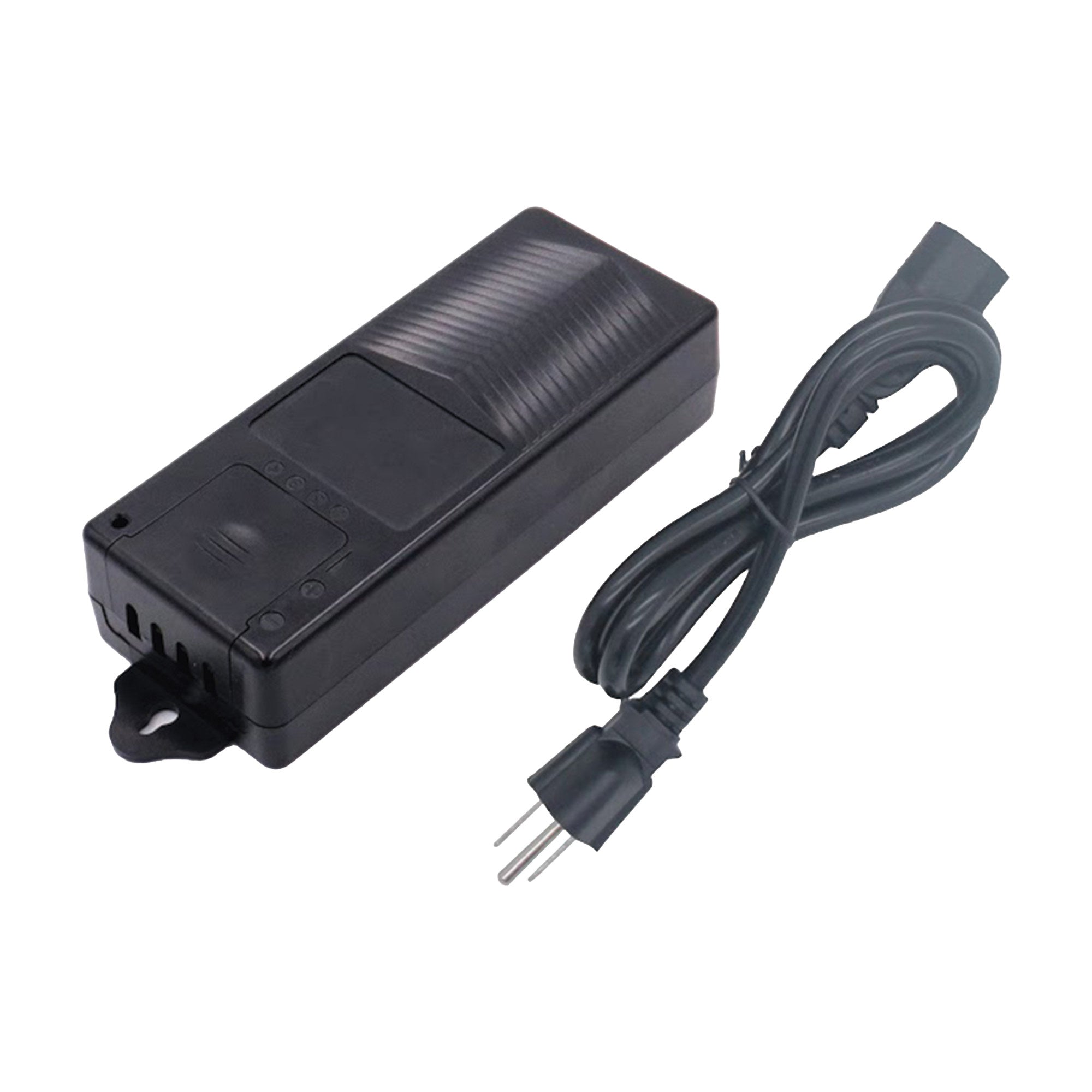

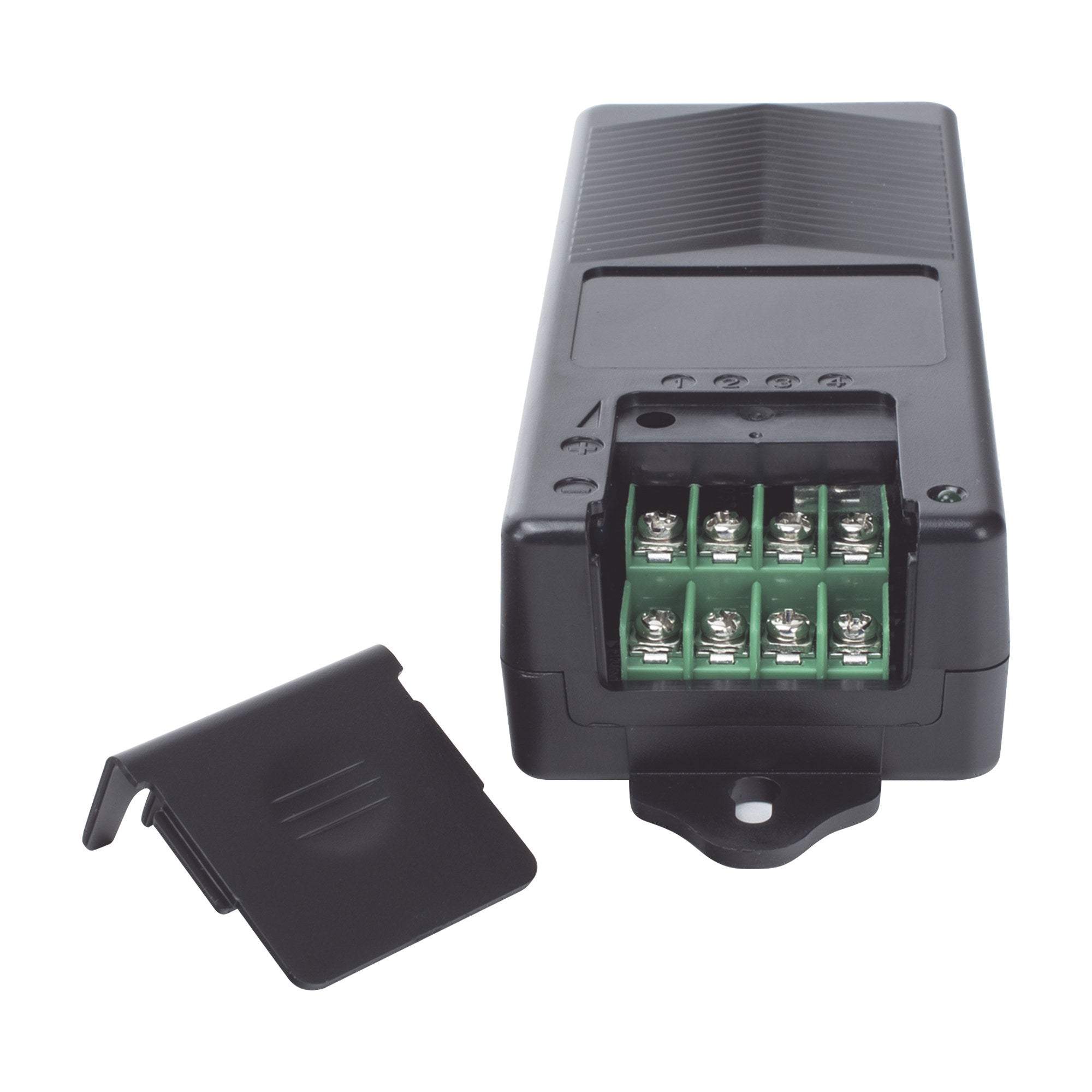

Simple and practical solution for CCTV cameras applications

Features:

• Voltage input: 110 to 240 VAC.
• Voltage output: 12 VDC.
• 5A smart system (distributed in 4 outputs).
• Built-in PTC thermal fuse, 6A.
• Power cord.
• LED power indicator.
• Certifications: CE
• Weight: 0.90 lb
• Dimensions: 5.11 x 1.96 x 1.18"

* For 4K Cameras

UL CERTIFIED

- 1 Year Warranty

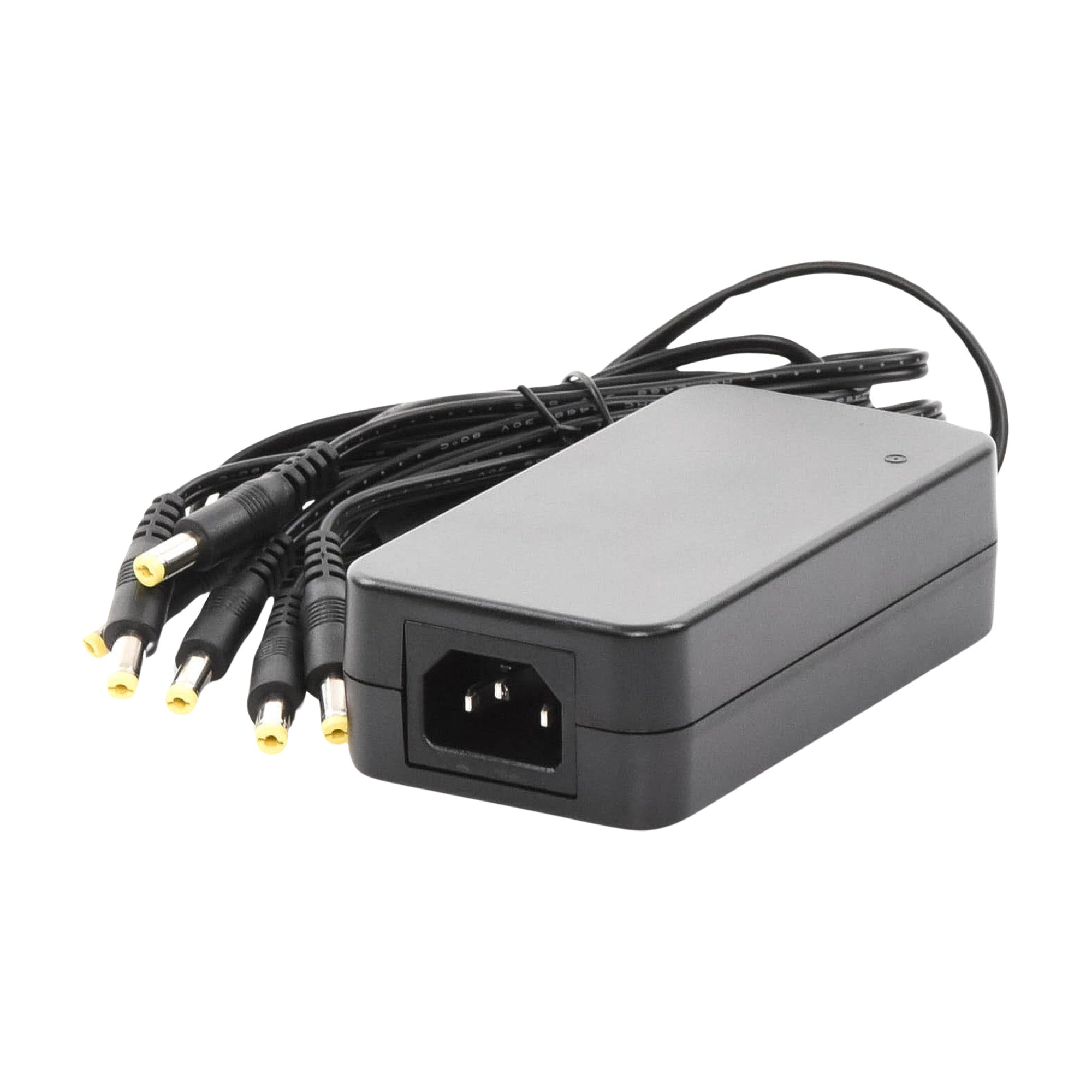

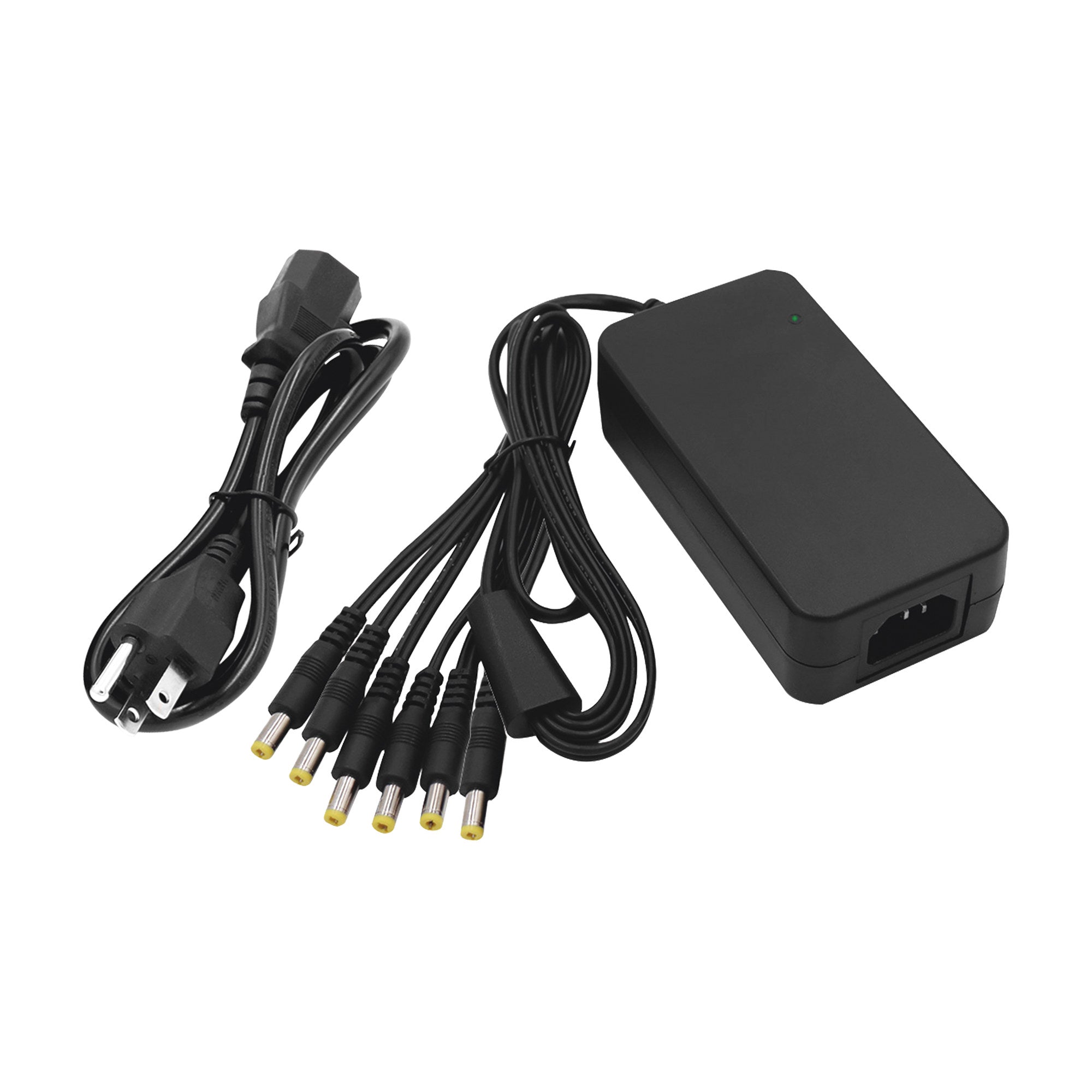

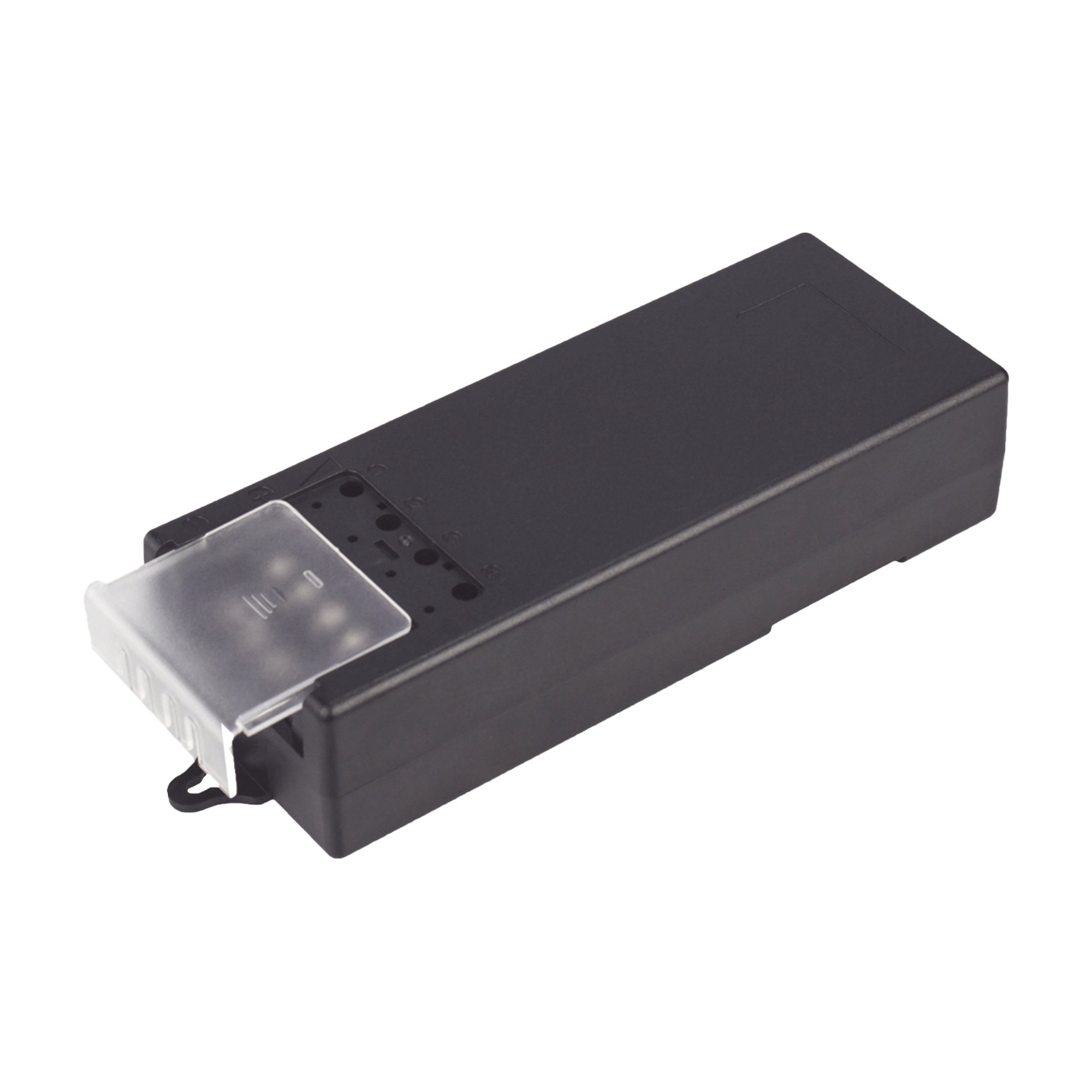

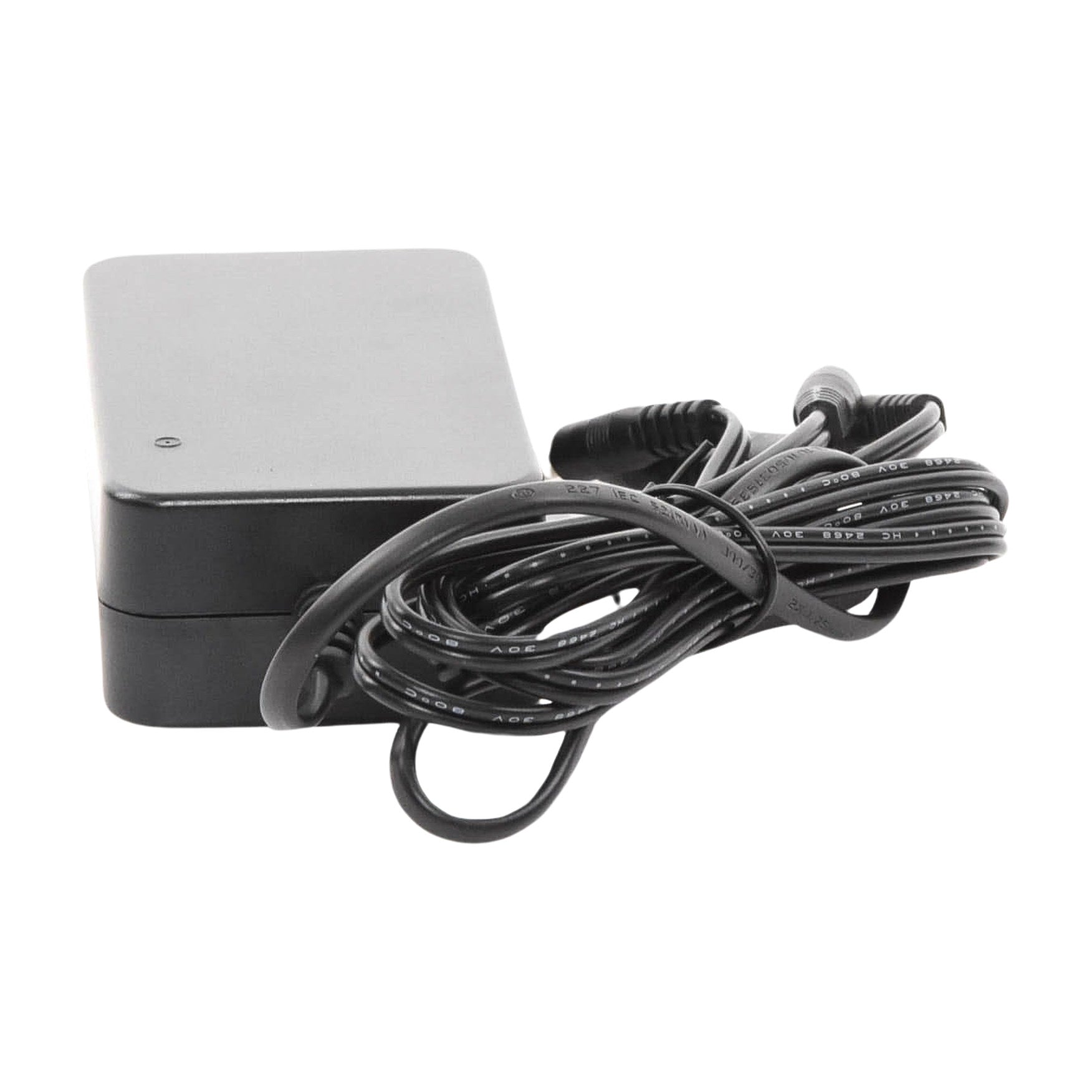

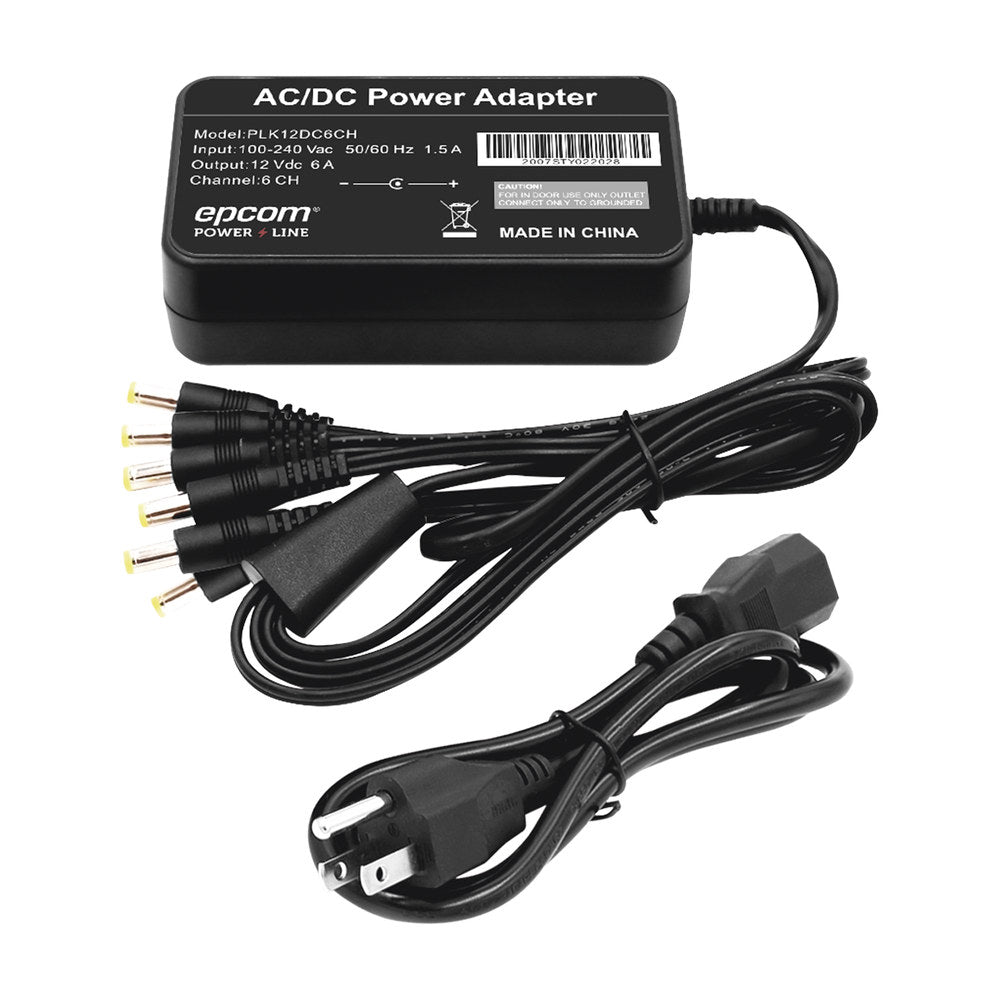

Characteristics :

• Input Voltage: 100-240 VAC
• High efficiency
• Build-in wave filter against interference
• Tested at full load
• Protected against surges and discharges

Product description :

• Output voltage: 12 Vdc
• 6 outputs male power jack
• Output Current: 6 A
• Power: 72 W

  Dimensions :

• 117 x 62 x 34.2 mm

Note : 120 Vac wire is included.

- 1 Year Warranty

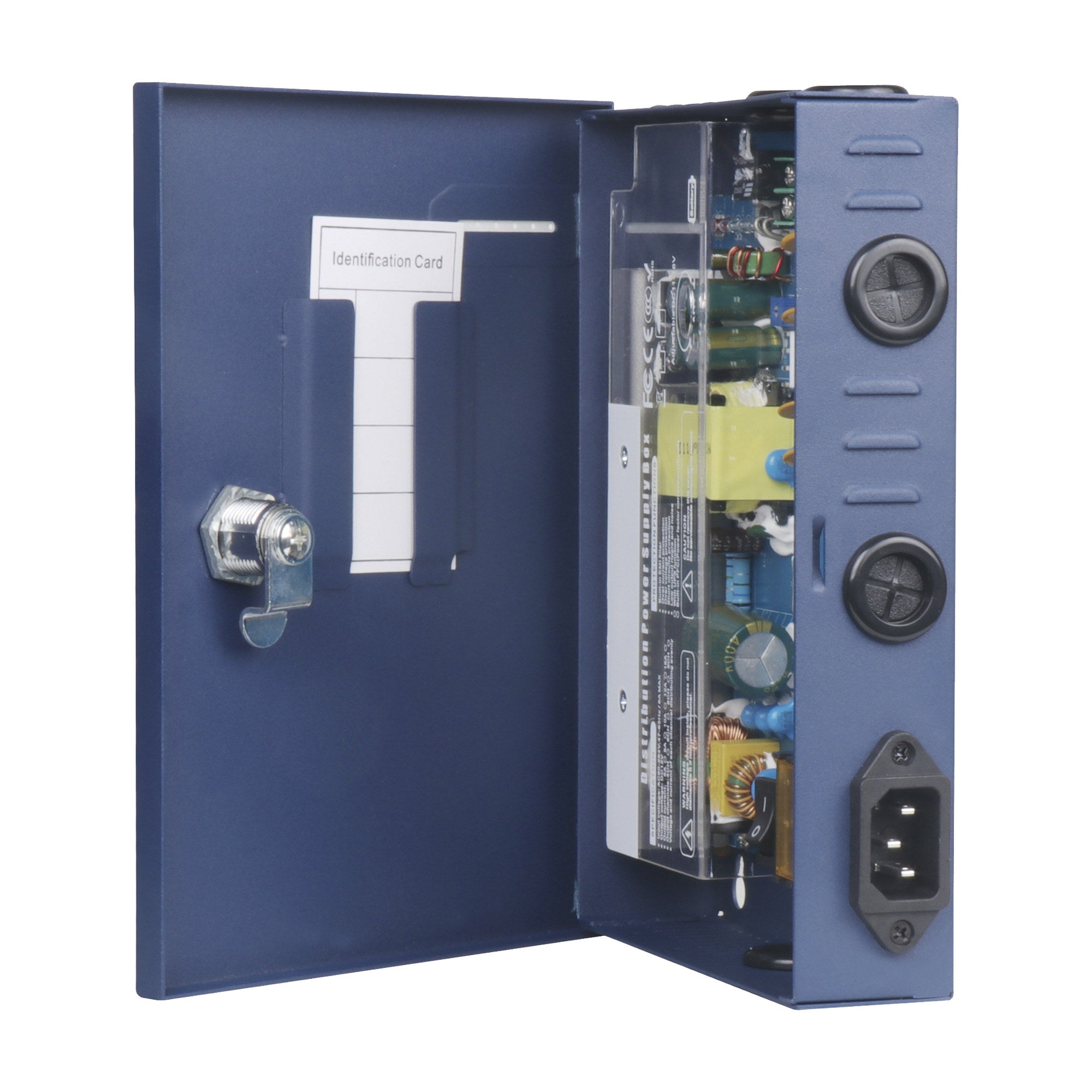

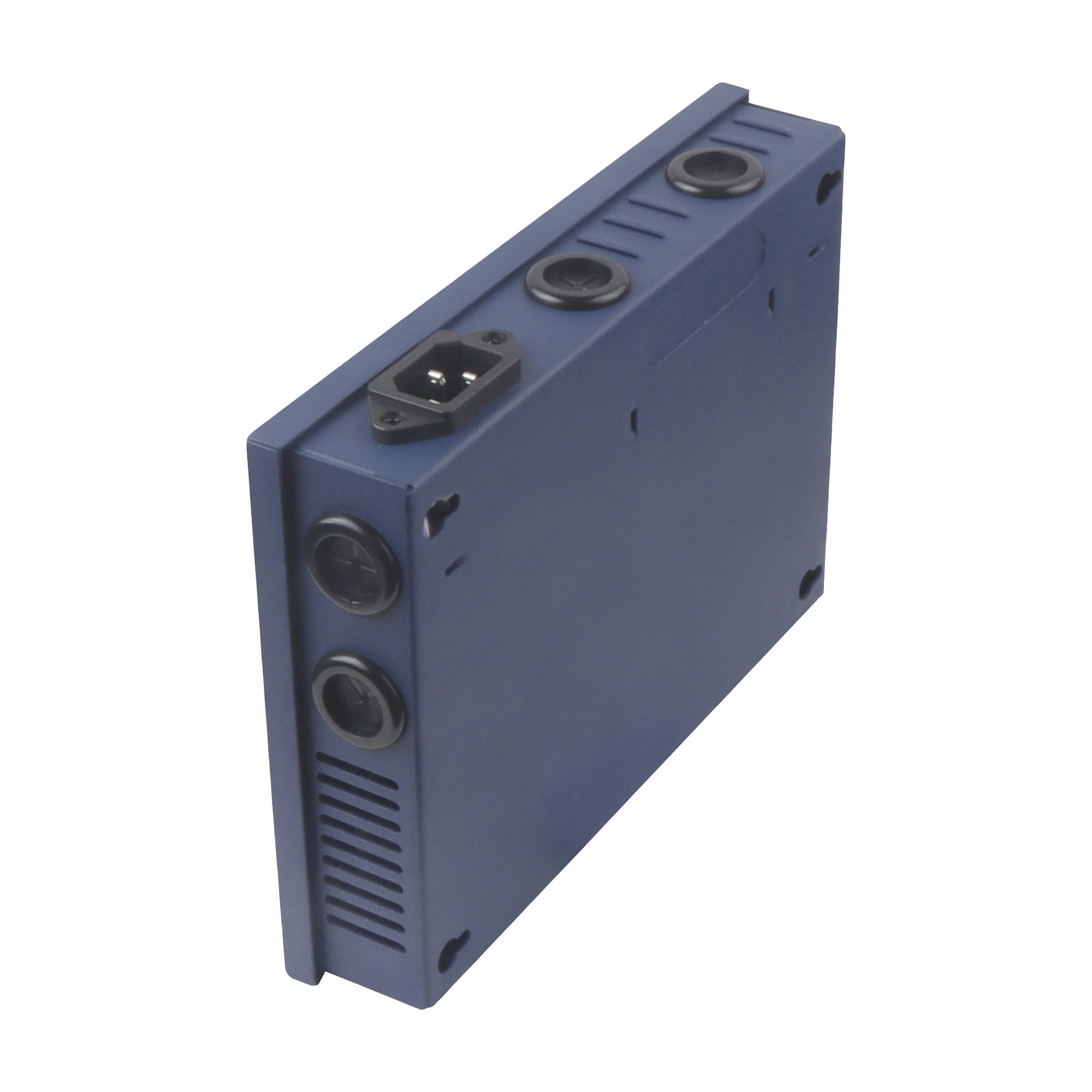

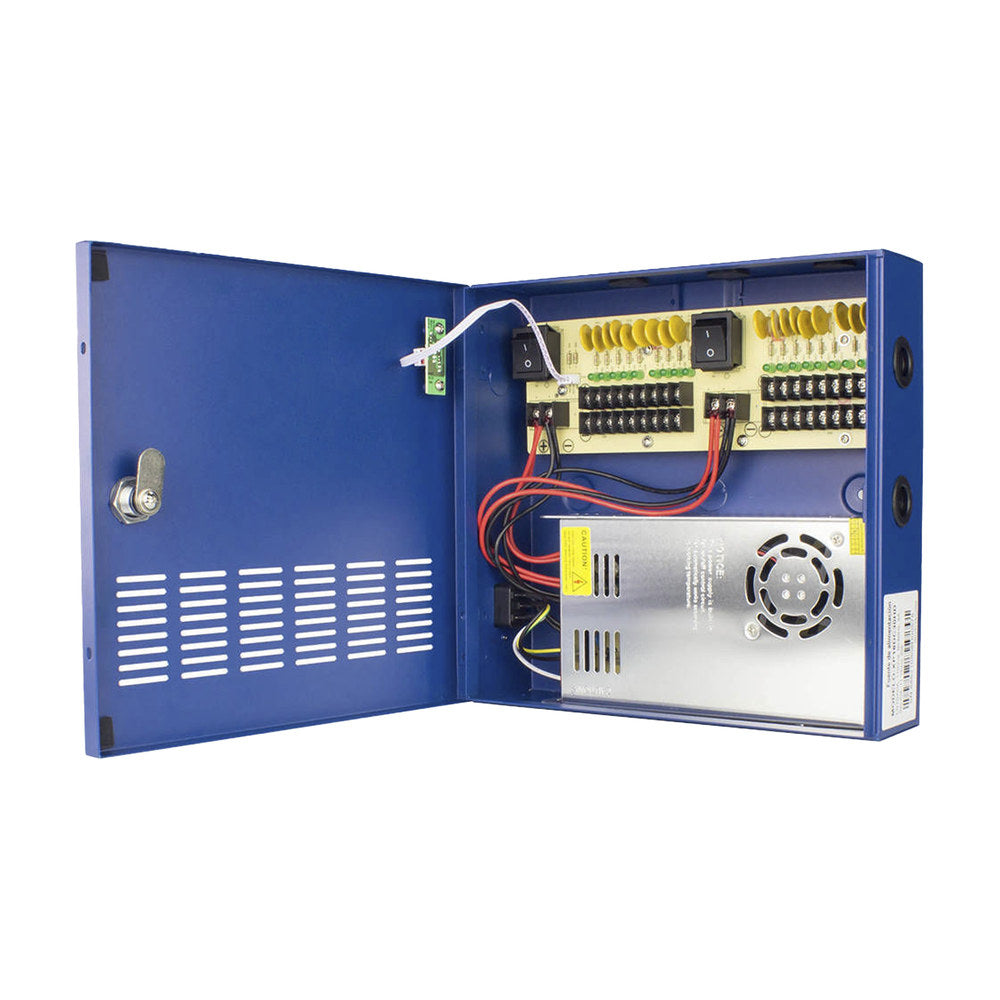

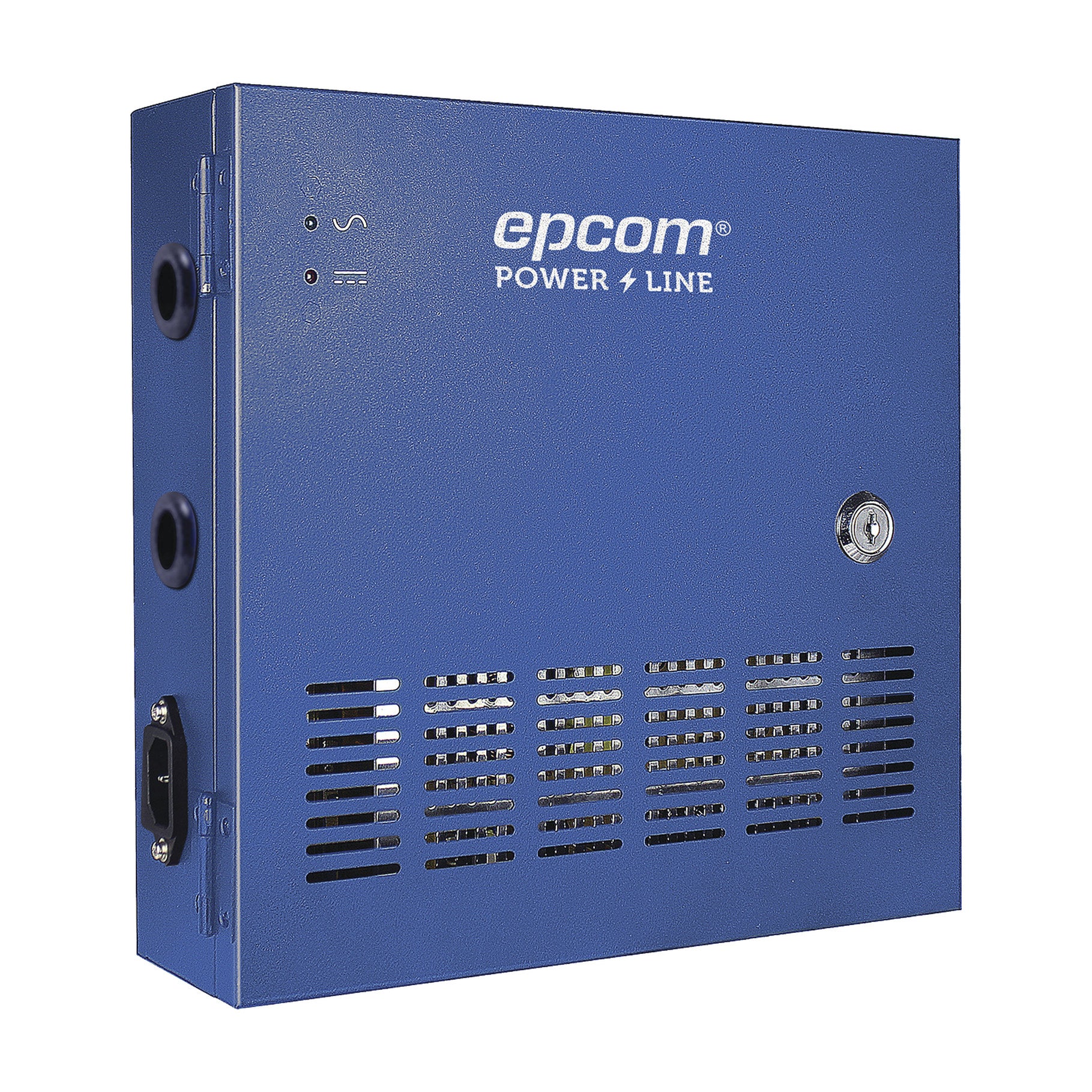

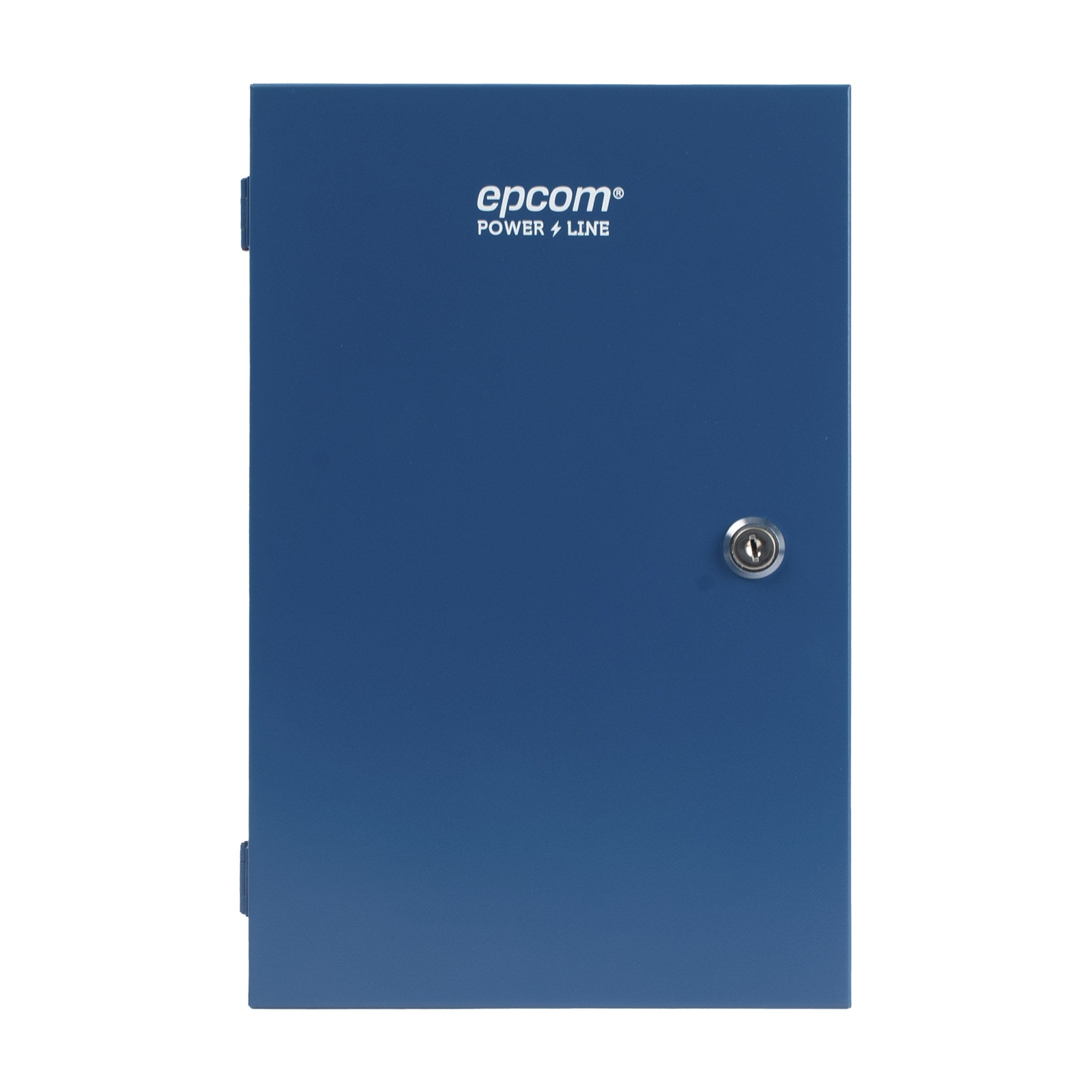

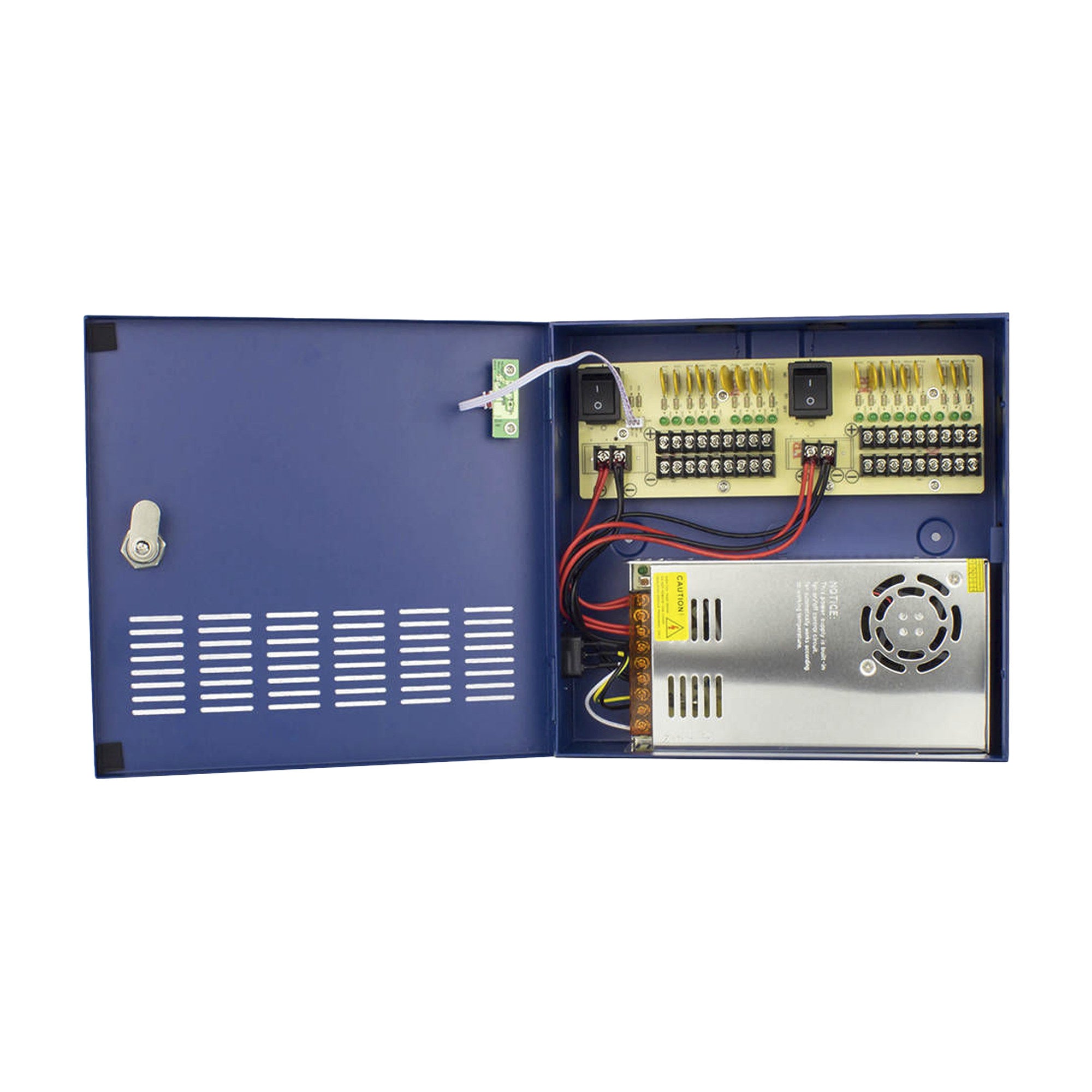

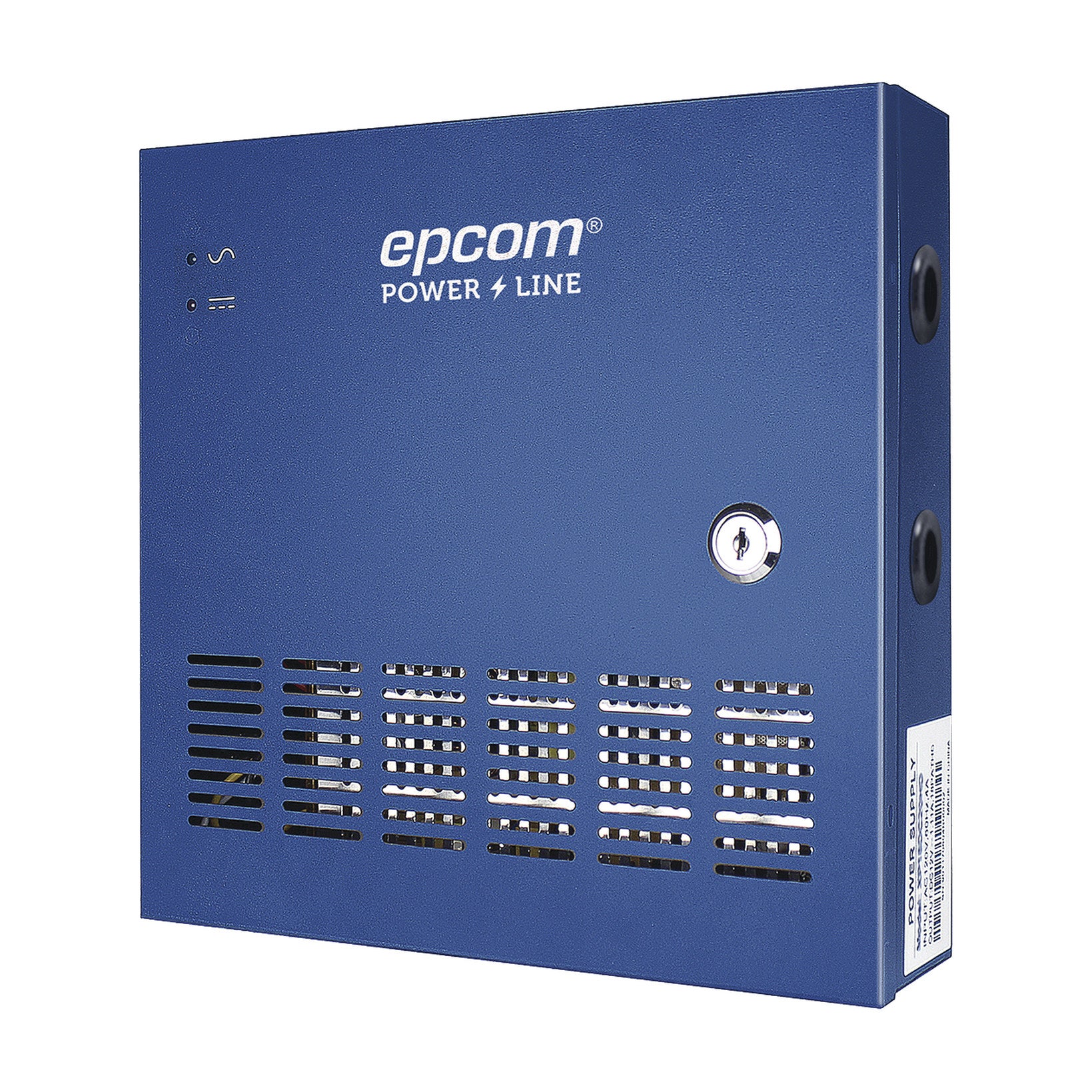

P18DC20HD is the only POWER SUPPLY in the industry with variable output voltage up to 15VDC ensures voltage sending in long distances.

Compatible with full line of analog and EPCOM TURBO HD cameras.

 Power output filtered to prevent noise and protected against overvoltage.

HEAVY-DUTY.




• Easy installation
• Short circuit and over-voltage protection.
• Conventionally cooling system air.
• External LED indicators for each channel output.
• Built against electromagnetic interference filter EMI.

Protection:
• Overcurrent protection: 105 ~ 150% (rated output voltage)
• Overvoltage Protection: 1.5 times of the rated voltage
• Short circuit protection: short the output voltage, with automatic reset.

Physical and Electrical Specifications:

• Approved by: IEC / EN / CSA, 60950 GB4943
• Input voltage: 100 o 240 Vac
• Output voltage: 11.5 ~ 15 VDC. (adjustable)
 • Output Current: 30 A

• Output Current by channel : 2.5 A
  • Board distribution: 1 for connection of 18 cameras.
  • Dimensions: 10.43 x 10.03 x 3.14"
  • Operating temperature: -14 ~ 122 °F
  • Weight: 5.5 lb
• UL Certified

  *1 Year Warranty

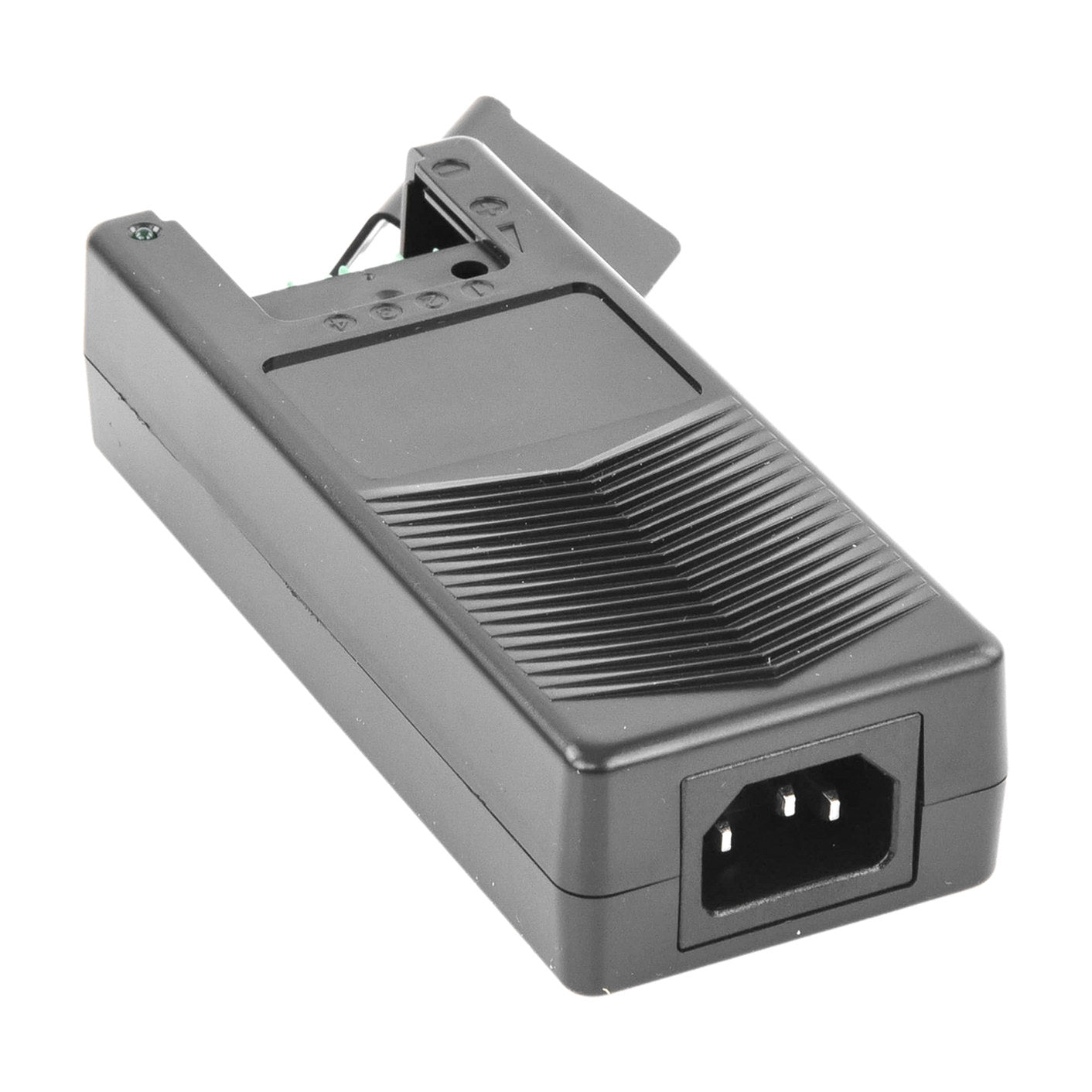

Characteristics :

• Input Voltage: 100-240 VAC  50/60 Hz
• High efficiency
• Interconstructed wave filter against interference
• Tested at full load
• Protected against surges and discharges

Product description :

• Output voltage: 12 Vdc
• Output Current: 5 A
•  4 outputs male power jack
• Power: 60 W

Dimensions :

• 117 x 62 x 34.2 mm

Note : 120 Vac wire is included

- 1 Year Warranty

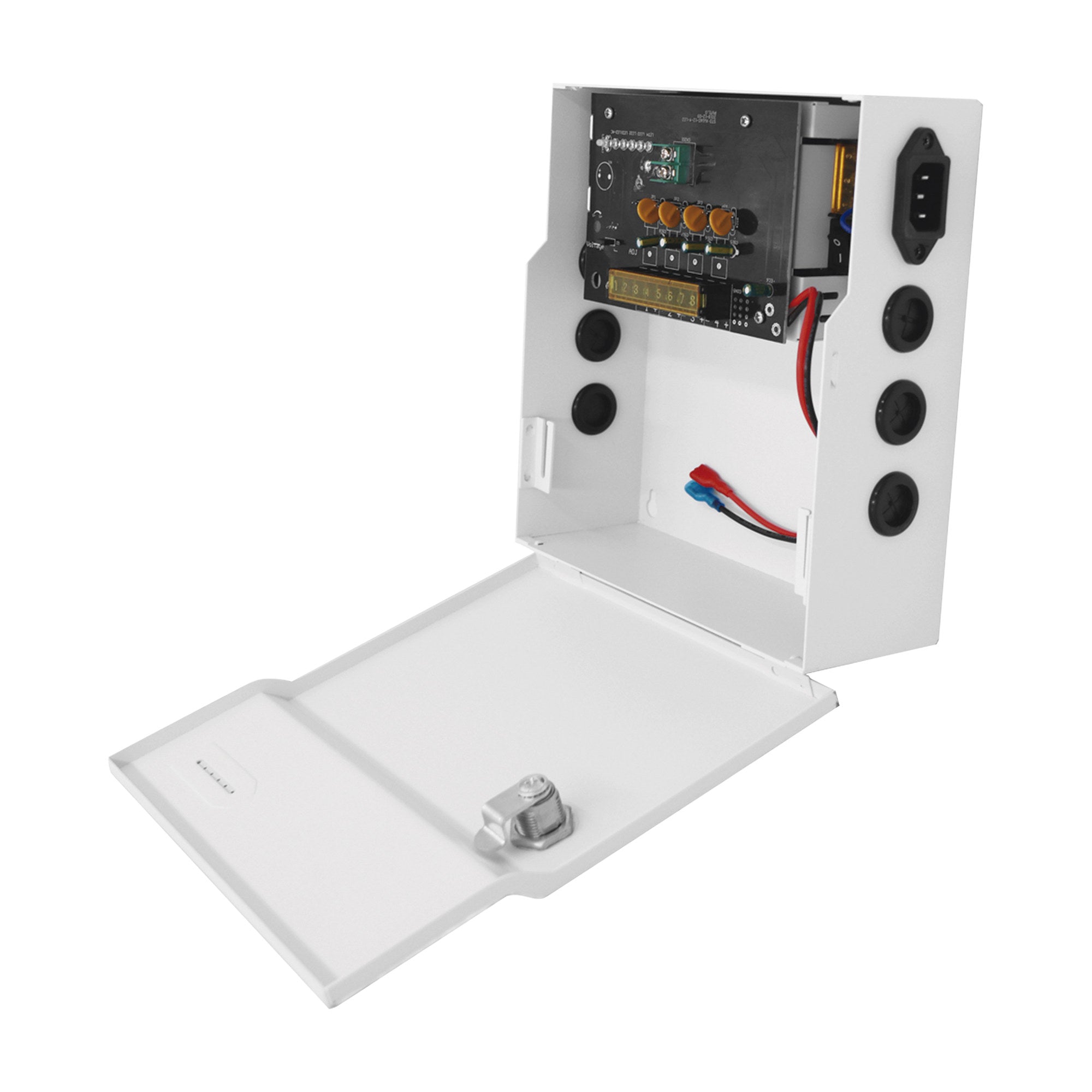

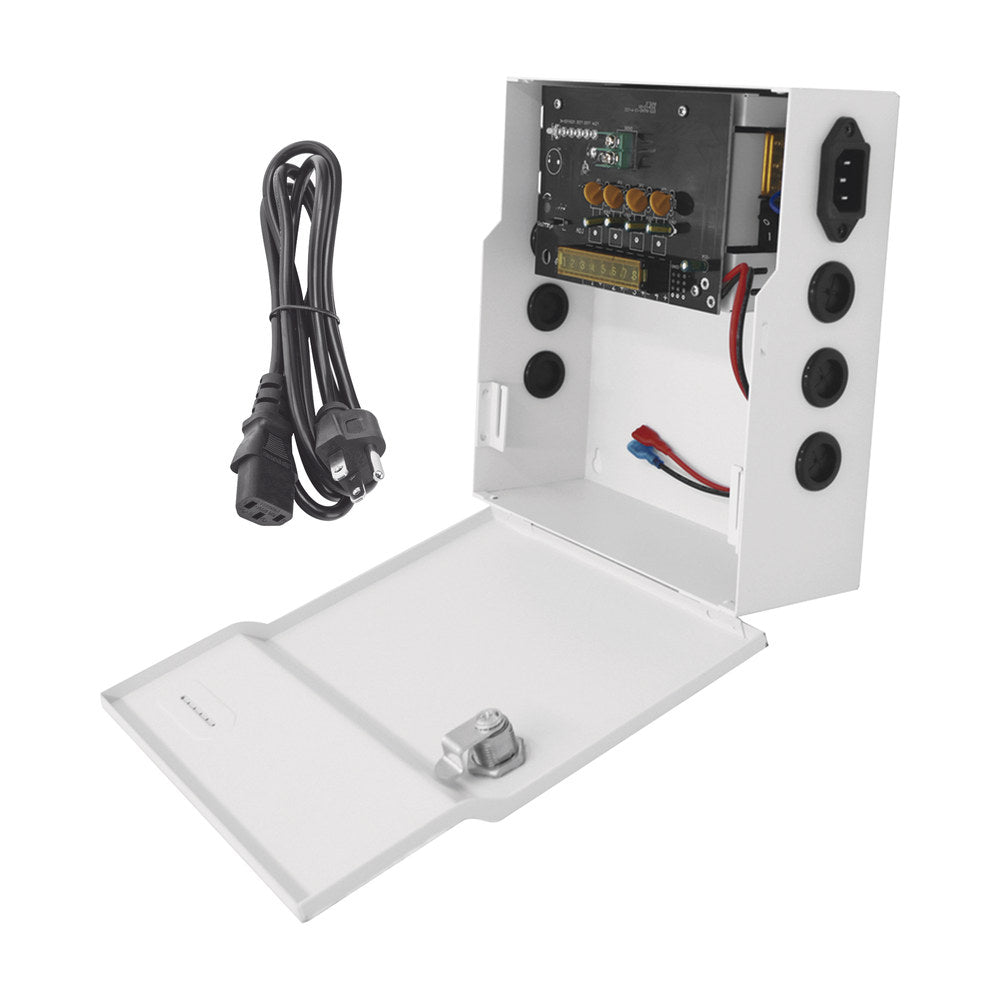

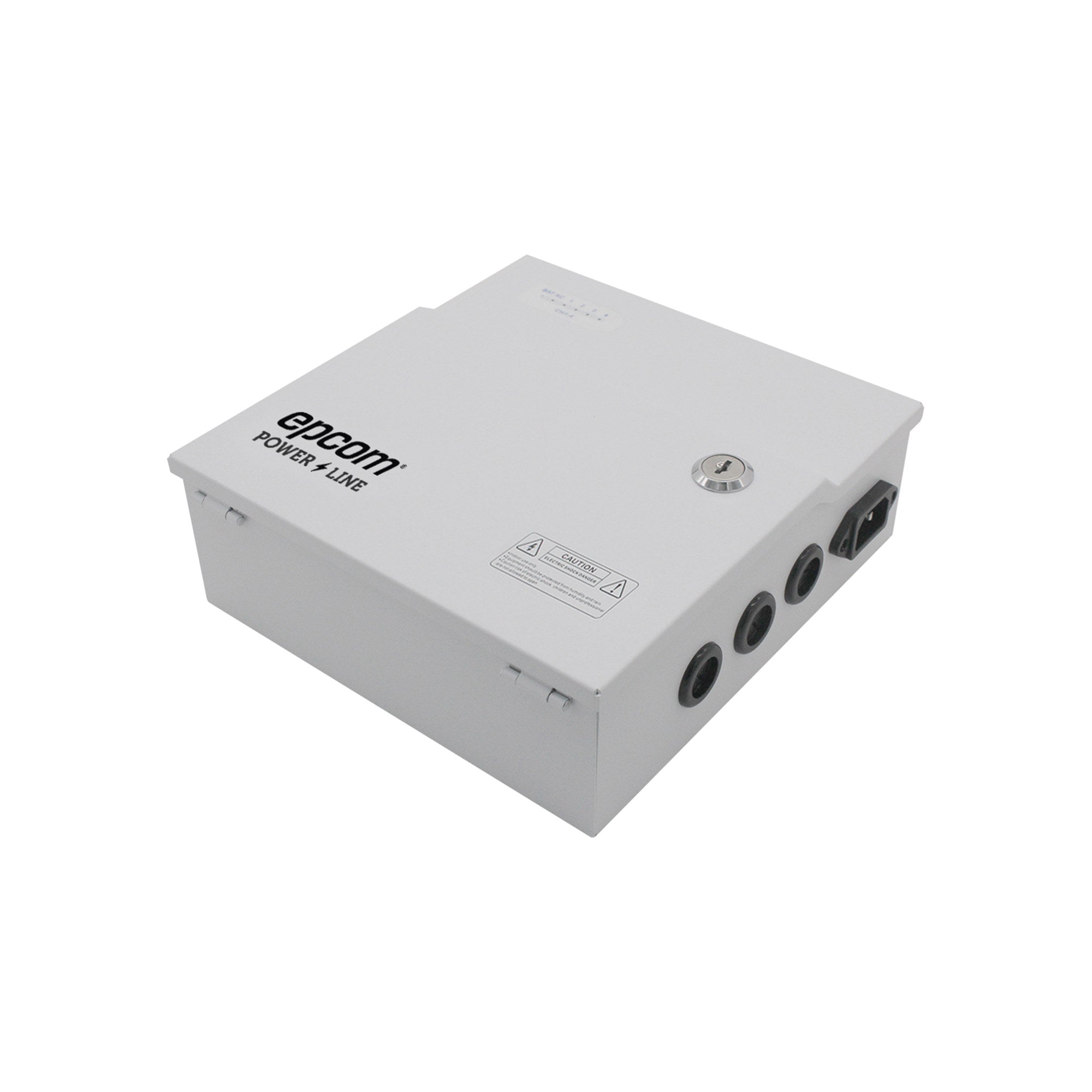

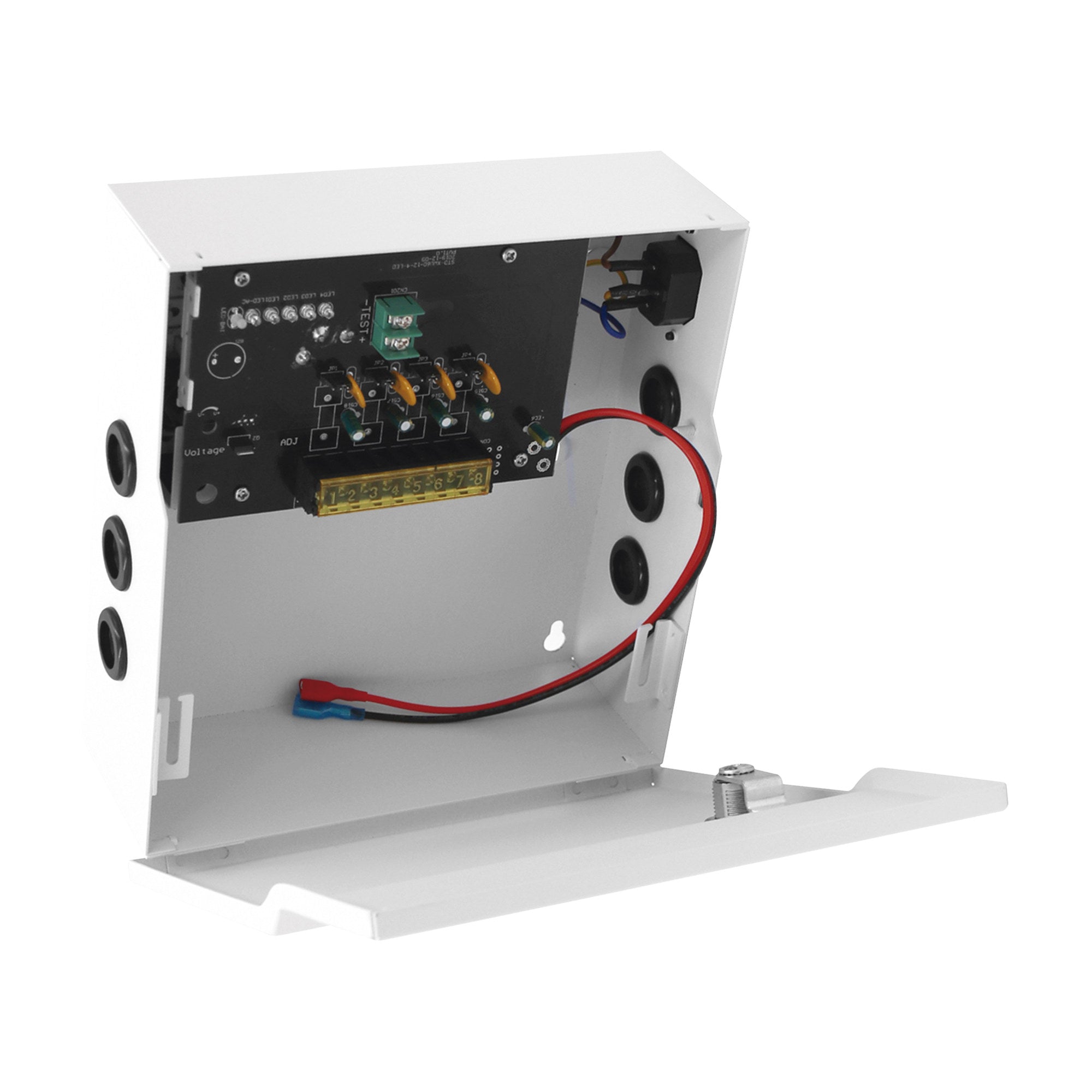

The new generation of specialized power supplies in providing efficient energy, providing a better solution in security systems, unique in using chips "Fairchild" in any power source.
They are widely applied in security systems such as CCTV, alarms, access control.
These sources are certified to international standards such as CE, ROHS, FCC.

Features:
-  Easy installation source
-  Short circuit, over-current and overvoltage
-  Cooling system air convention
-  External LED indicators for each channel output
-  Built-in against electromagnetic interference filter EMI
-  With Backup Battery Capacity
-  Battery is not included
-  The  battery can be: PL4.512 / PL712 / PL912

Protection:
• Overcurrent protection: 120-150%
• Surge protection: 20-150% (in nominal output voltage)
• Short circuit protection: short the output voltage, with automatic reset

Safety Standards:
• IEC / EN / CSA, 60950 GB4943

Physical and Electrical Features:
• Input voltage: 96 ~ 264 Vac
• Output voltage: 12 ~ 14.8 Vdc
• Output current: 5 A
• Output Power: 60 W
• Output channels: 4
• Operating temperature: -4 to 158 ºF
• Dimensions: 7.95 x 8.52 x 2.87” in.

*Requires backup battery requires 12 Vdc

- 1 Year Warranty

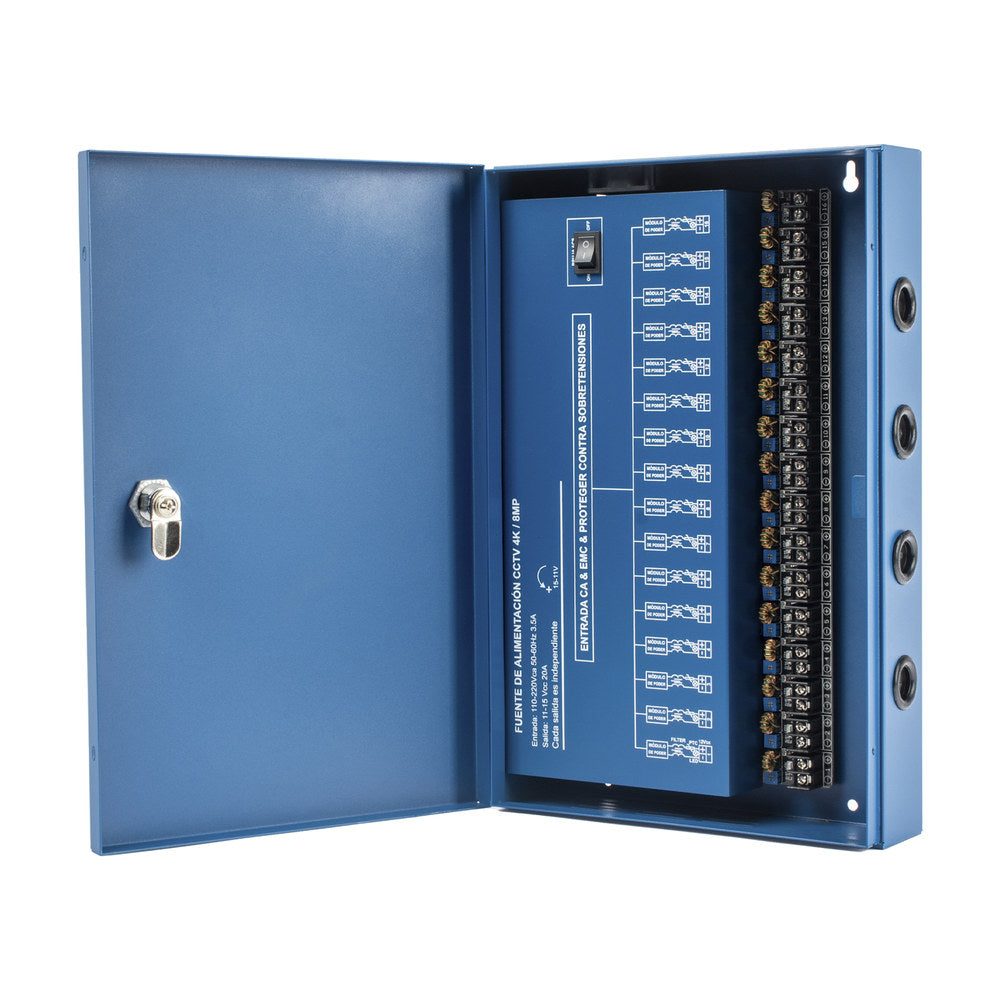

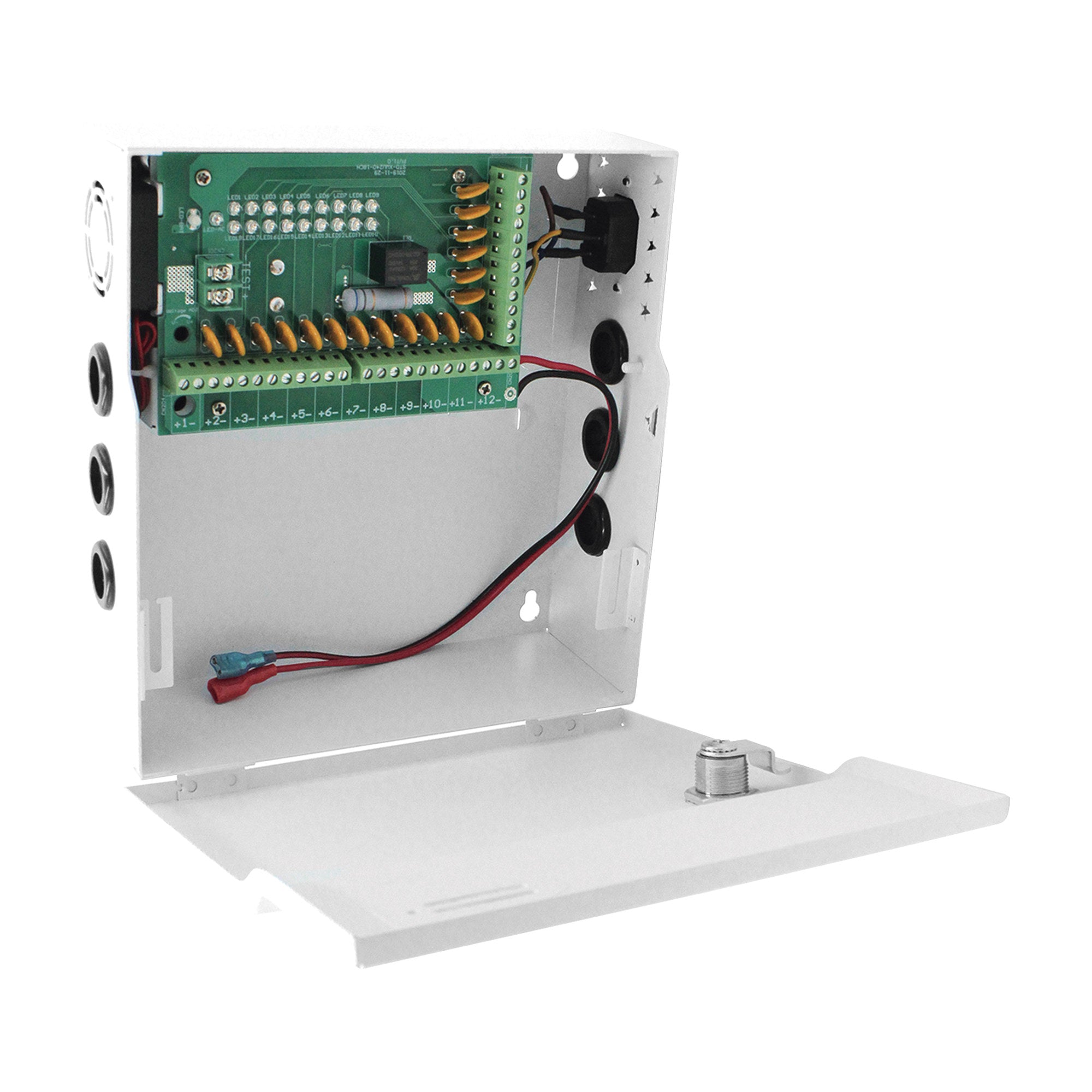

The new generation of power supplies specializes in providing efficient energy, providing a better solution in security systems, unique in using chips "Fairchild" in any power source.
They are widely applied in security systems such as CCTV, alarms, access control.
These sources are certified to international standards such as CE, ROHS, FCC.

Features:

• Easy installation source.
• Short circuit, over-current and overvoltage.
• 5KA surge protection.
• With Backup Battery capacity
• Battery is not inclouded
• The Battery can be: PL4.512 / PL712 / PL912
• Cooling system air convention.
• External LED indicators for each channel output.
• Built-in filter against EMI electromagnetic interference.

Specifications:

• Input voltage: 96- 264 Vac.
• Output voltage: 12 -14.8 Vdc.
• Output current: 20 Amper.
• Output channels: 18.

Protection:

• Overcurrent protection: 120-150%
• Surge protection: 20-150% (in nominal output voltage)
• Short circuit protection: output voltage short, with automatic reset.

Safety standards:

• IEC / EN / UL / CSA, 60950 GB4943

Operating temperature :

• -4  to 158°F

Dimensions:

• 7.95 x 8.52 x 2.87"

Suggested backup battery not included:

• PL712

- 1 Year Warranty.

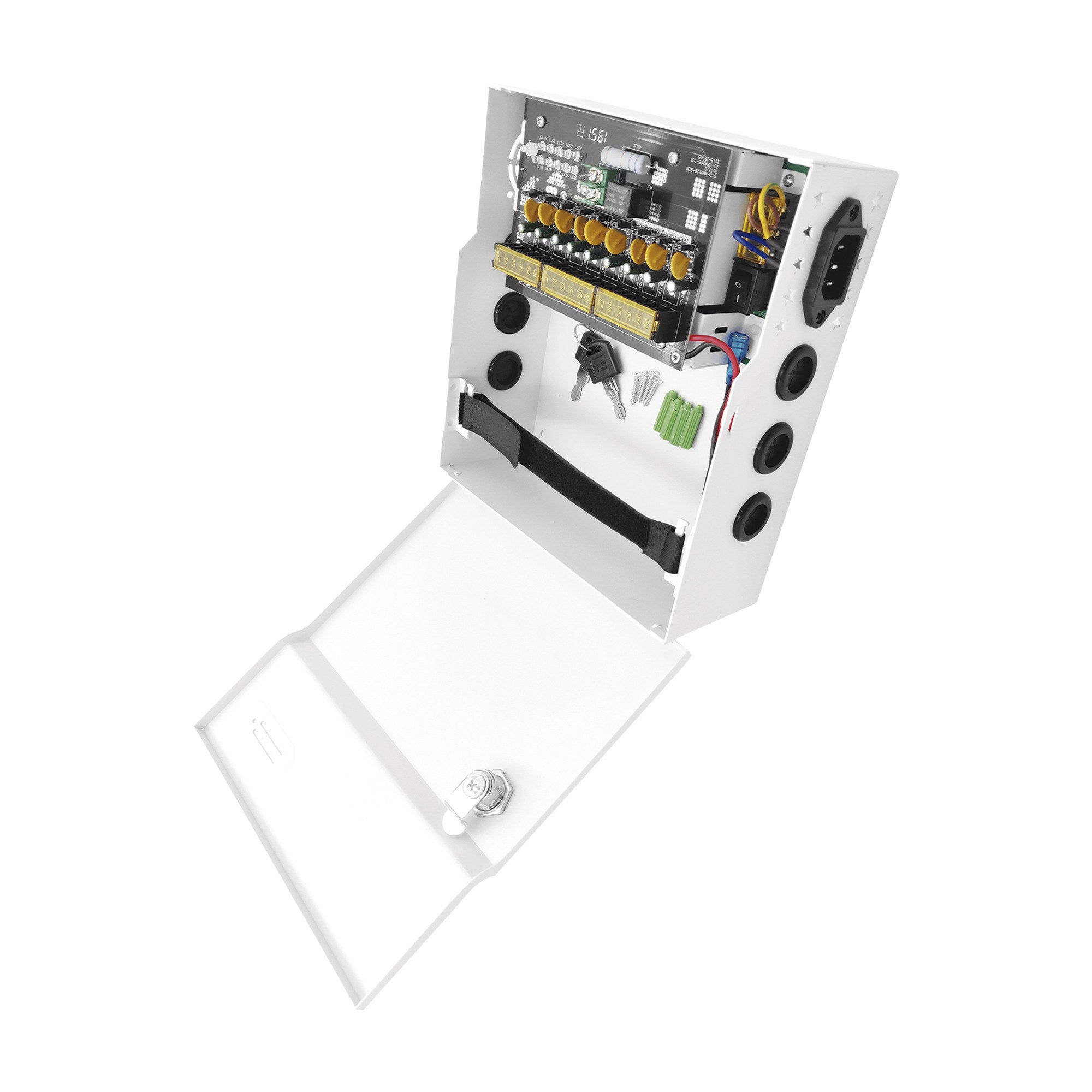

The new generation of specialized power supplies in providing efficient energy, providing a better solution in security systems, unique in using chips "Fairchild" in any power source.

They are widely applied in security systems such as CCTV, alarms, access control.

These sources are certified to international standards such as CE, ROHS, FCC.

Features:

-  Easy installation source

-  Short circuit, overcurrent, and overvoltage

-  Cooling system air convention

-  With Backup Battery capacity

-  Battery is not included

-  The battery can be: PL4.512 / PL712 / PL912

-  External LED indicators for each channel output

-  Built-in against electromagnetic interference filter EMI

Protection:

• Overcurrent protection: 120 - 150%

• Surge protection: 20 - 150% (in nominal output voltage)

• Short circuit protection: short the output voltage, with automatic reset

Physical and Electrical Features:

• Safety standards: IEC / EN / CSA, 60950 GB4943

• Input voltage: 96 ~ 264 Vac

• Output voltage: 12 ~ 15 Vdc

• Output current: 10 A

• Output power: 120 W

• Output channels: 9

• Operating temperature: -4 to 158 ºF

• Dimensions: 7.95 x 8.5 x 3.07” in.

*Suggested backup battery not included: PL712

- 1 Year Warranty.

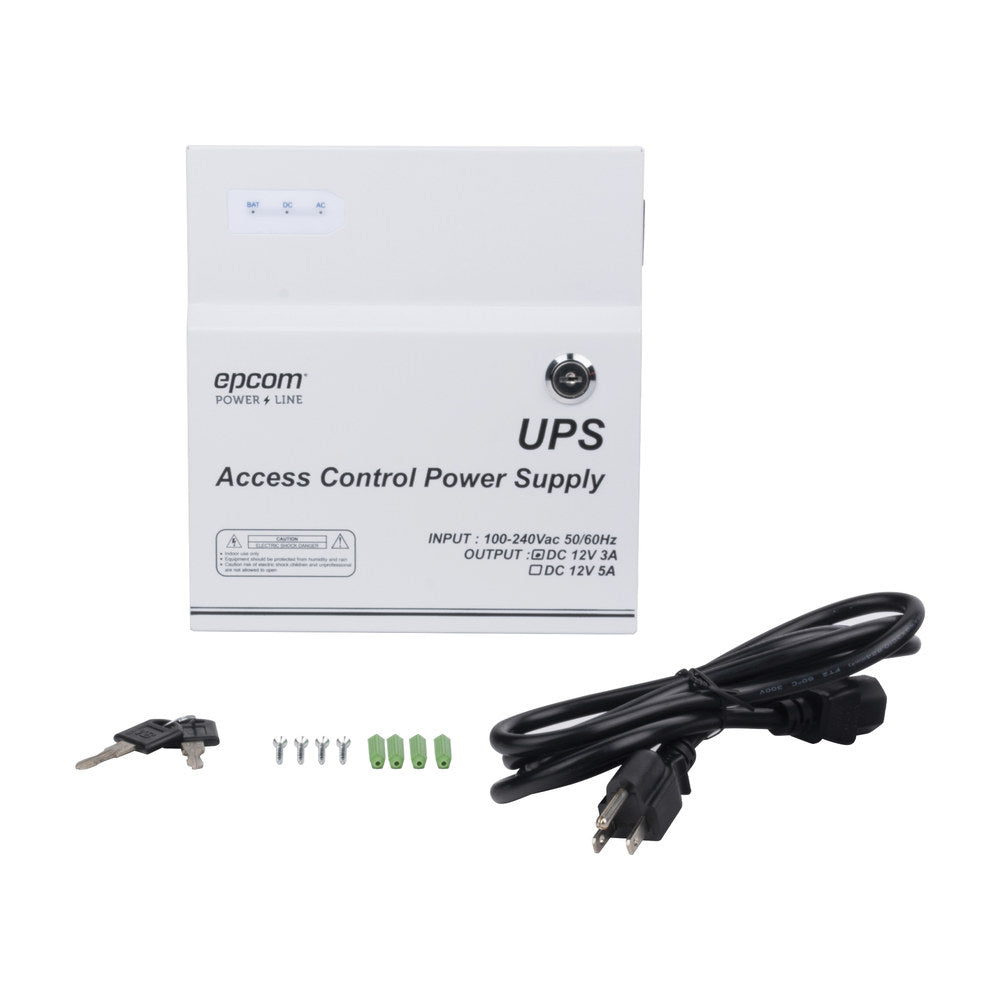

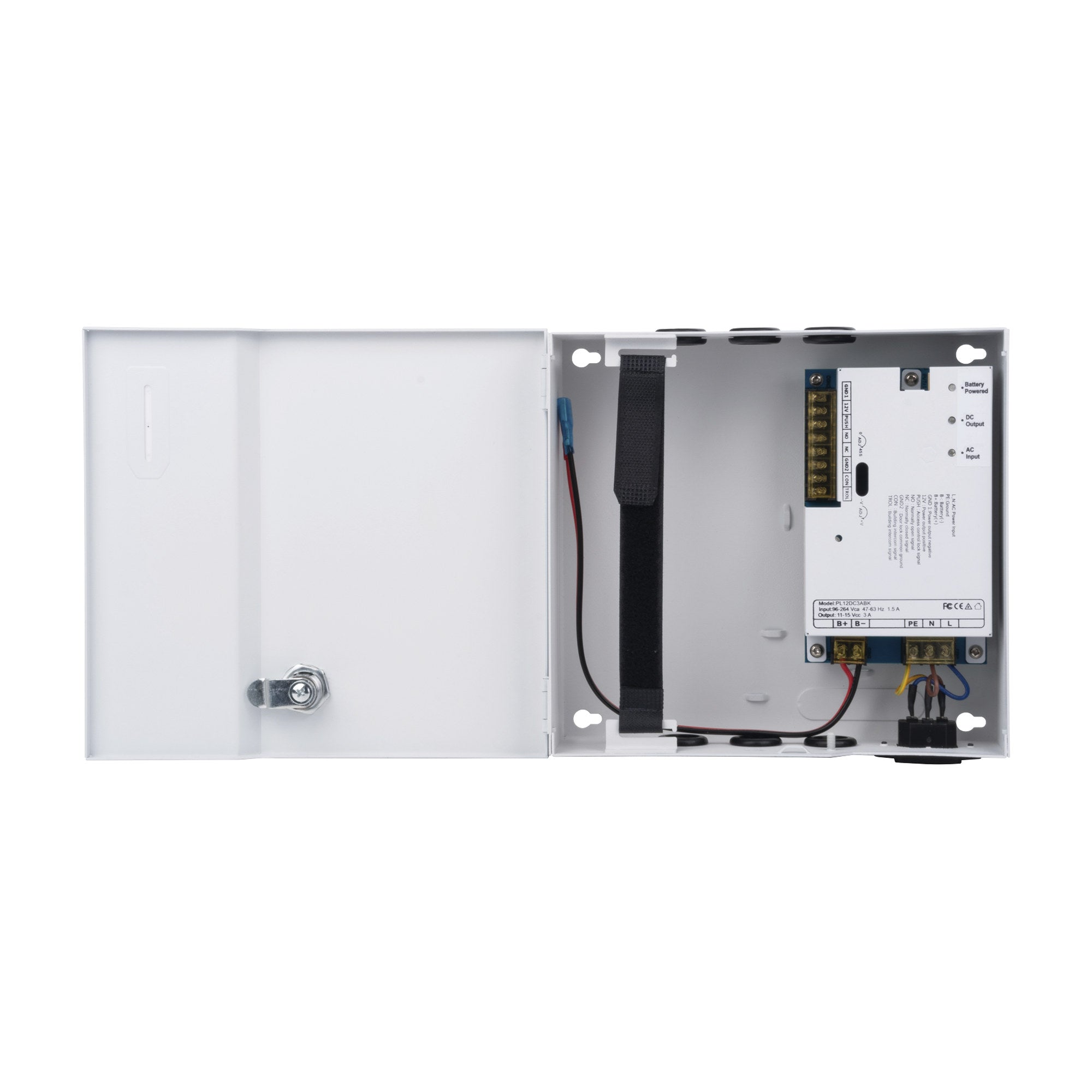

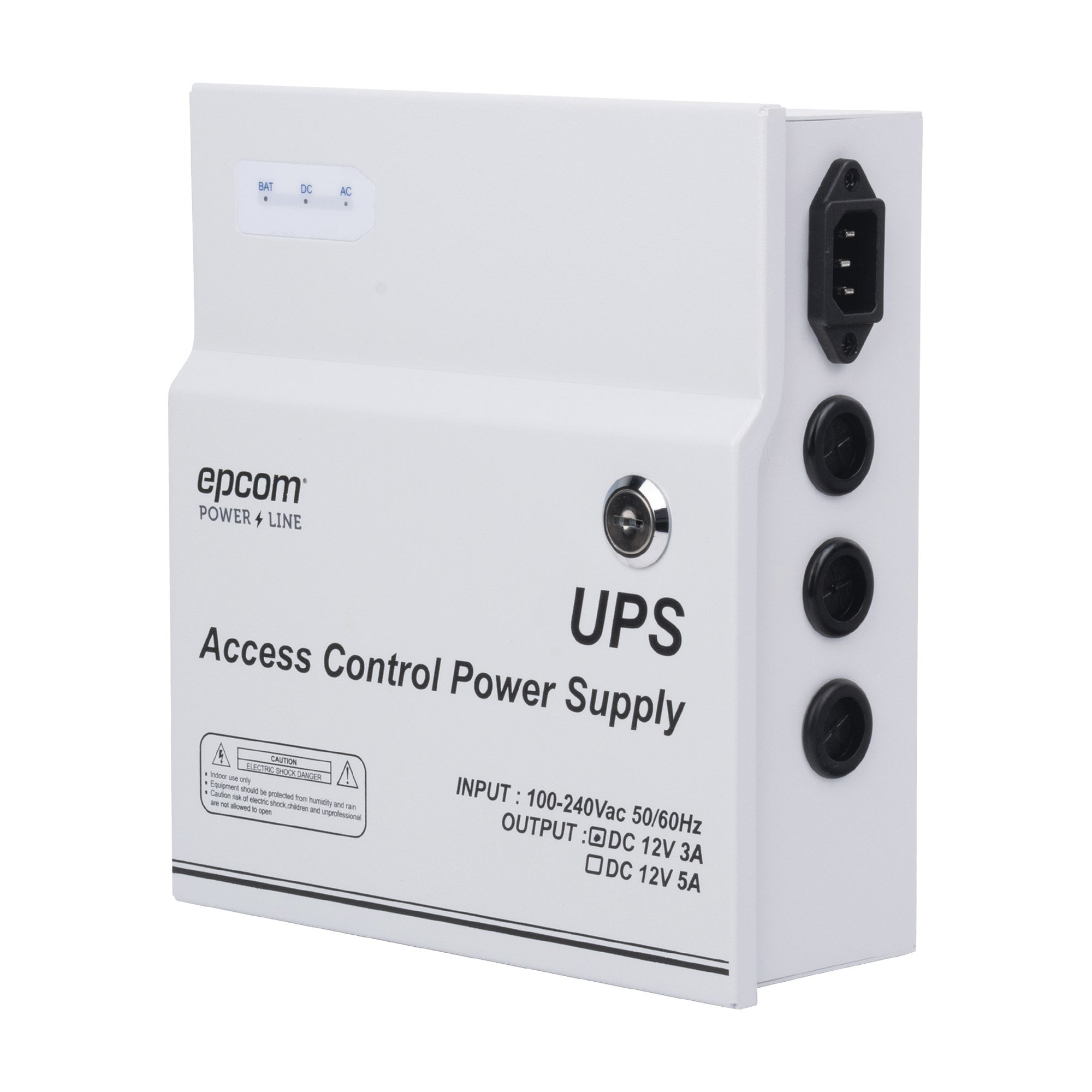

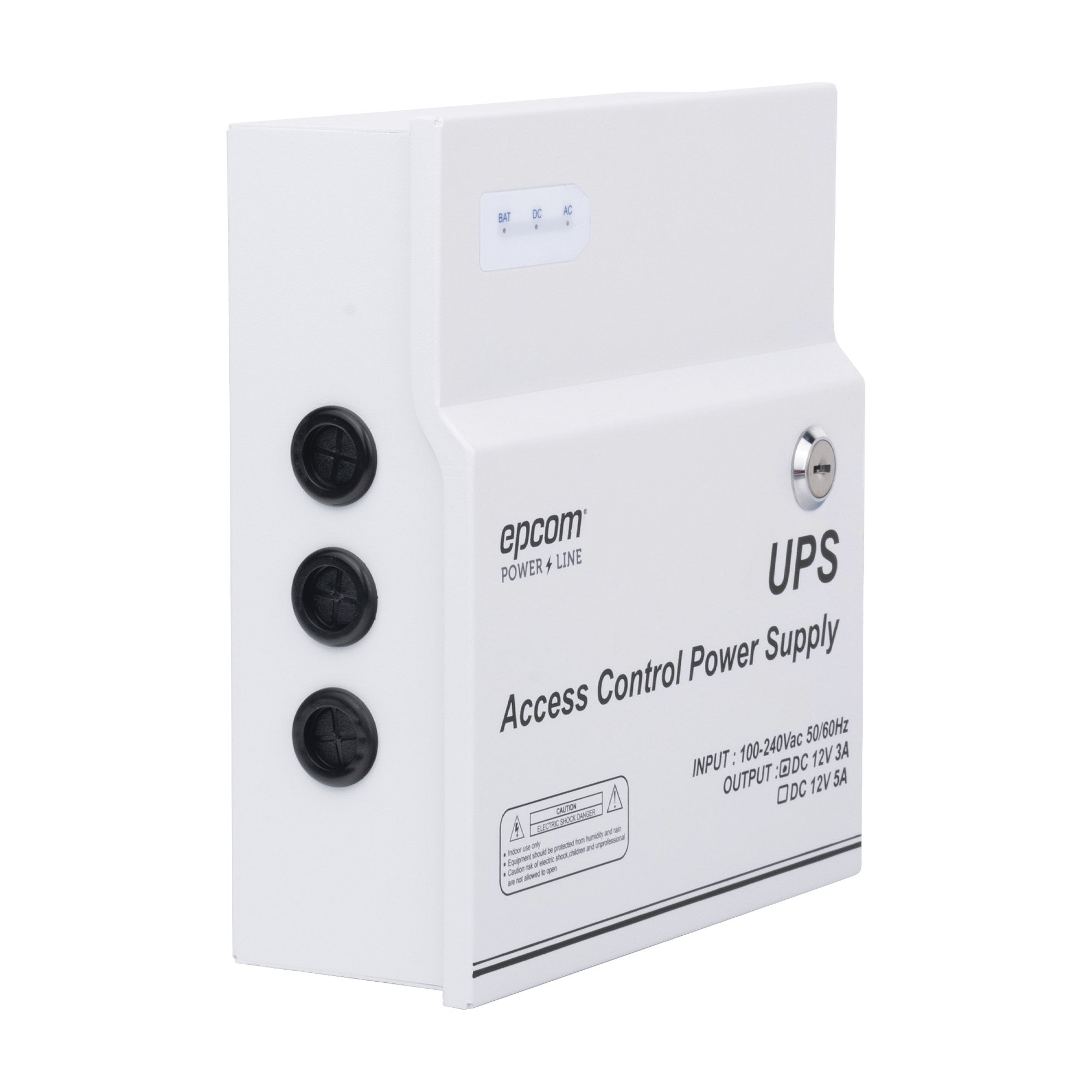

12 V DC, 3 A Power supply with backup and integrated timer, 1 output

Note: Battery is not included
Set the power supply to a voltage of 12.90 VDC for optimal operation.

- 1 Year Warranty.

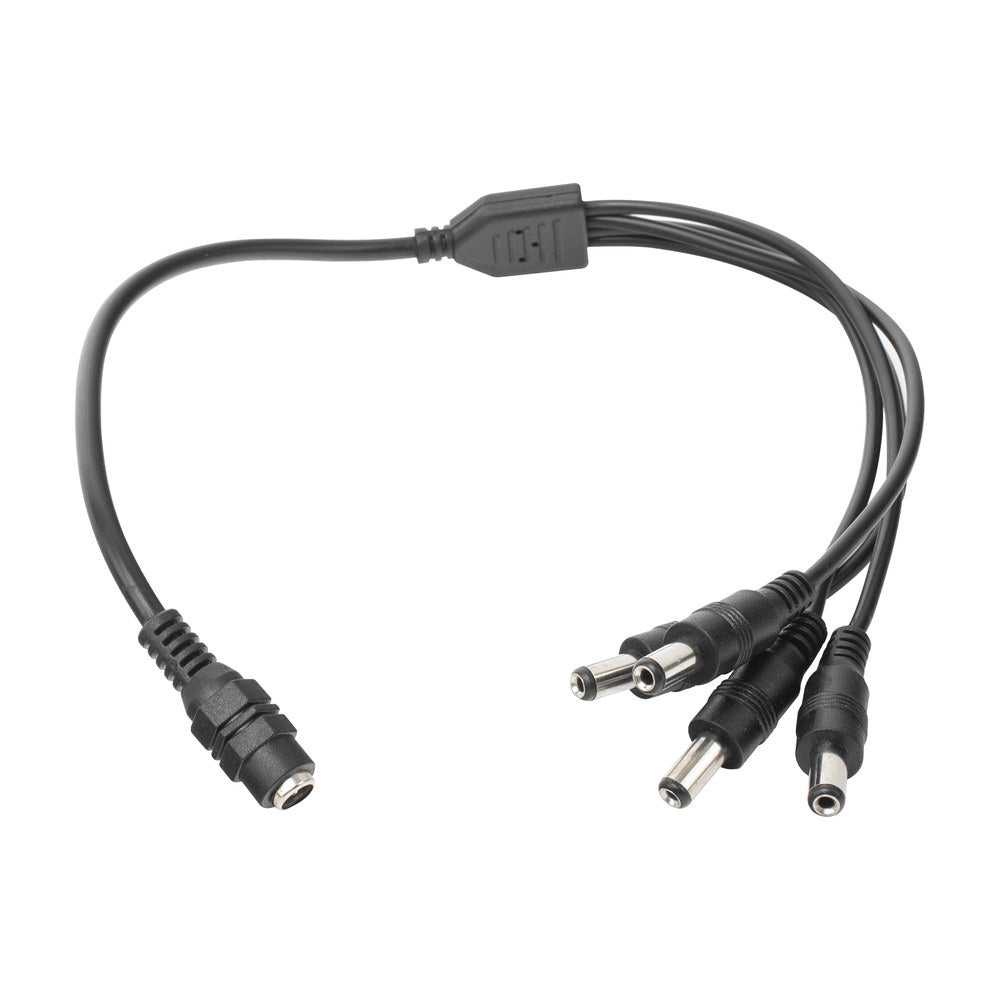

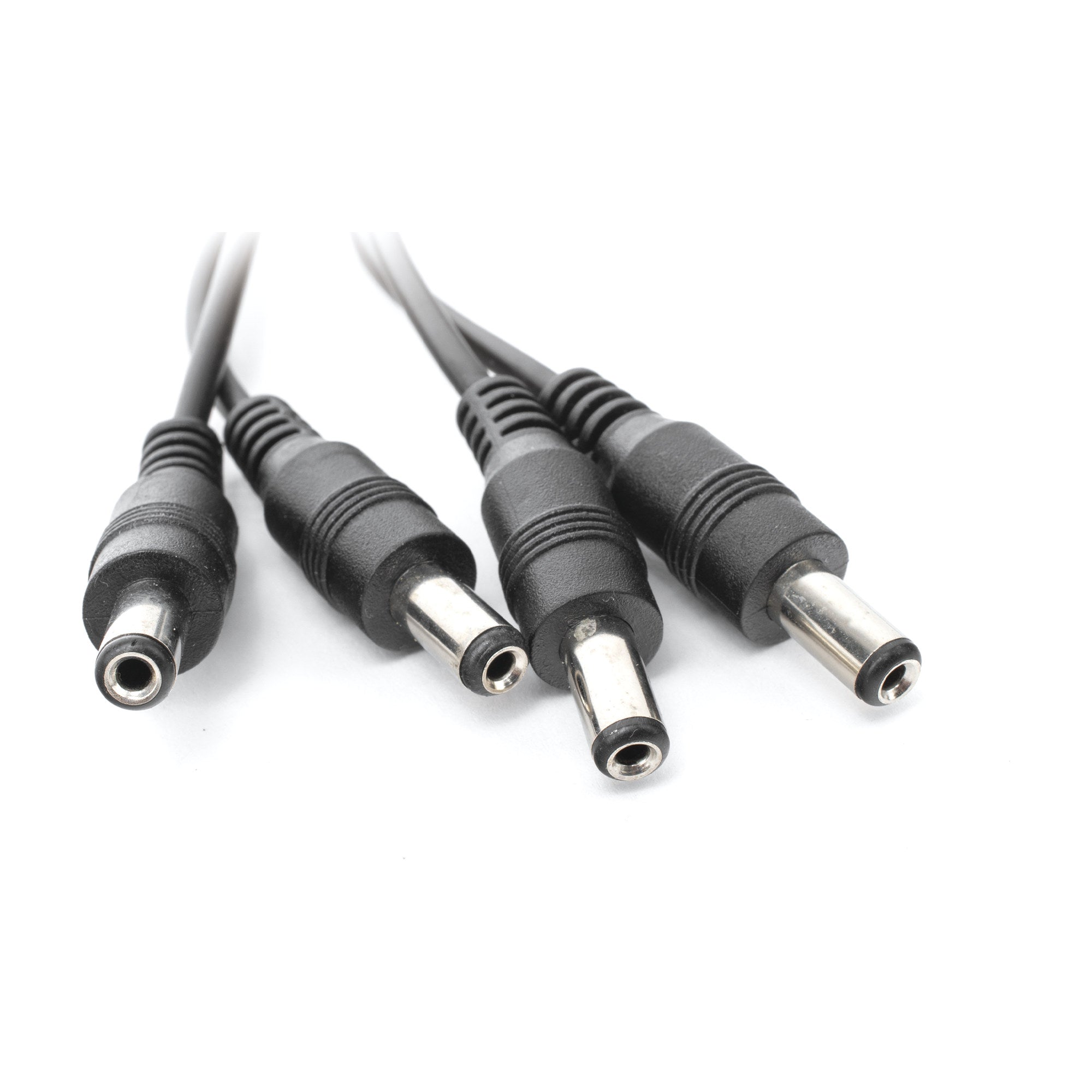

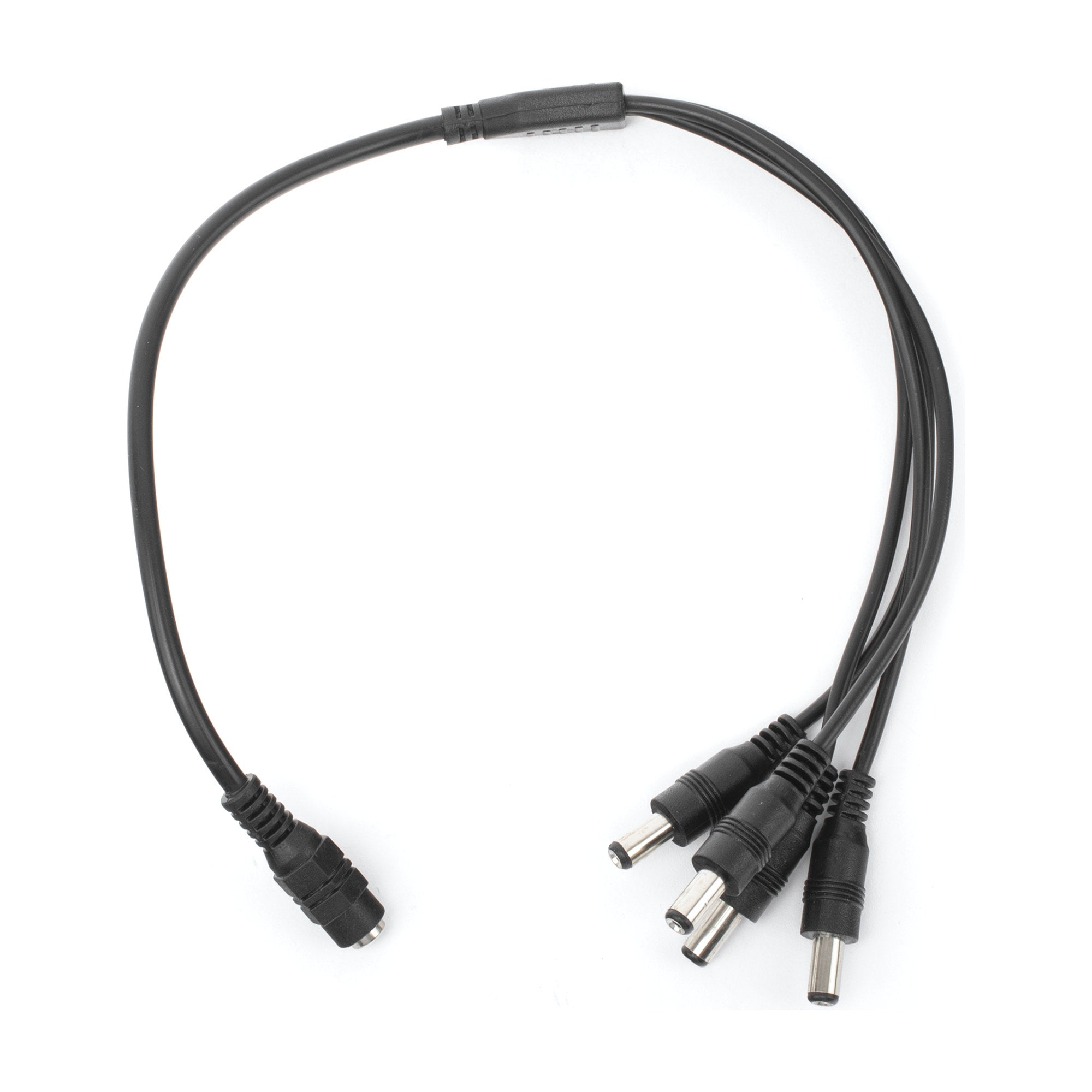

Jack female connector cable 0.13" (3.5 mm)  jack plug with 4 outputs

Features:

• High quality
• A convenient and cost-effective way to power up 4 cameras with 1 power adapter
• Plug Diameter: Outer: 0.22" (5.5mm), Inner: 0.08" (2.1mm)
• DC Female Power Splitter Cable
• Length : 13.78" (35 cm)
• Included: 1 x DC Power 1 Female to 4 Male Splitter Cable
