What additional components should you quote to arm a complete system?

Step 1 Select a mast and installation kit

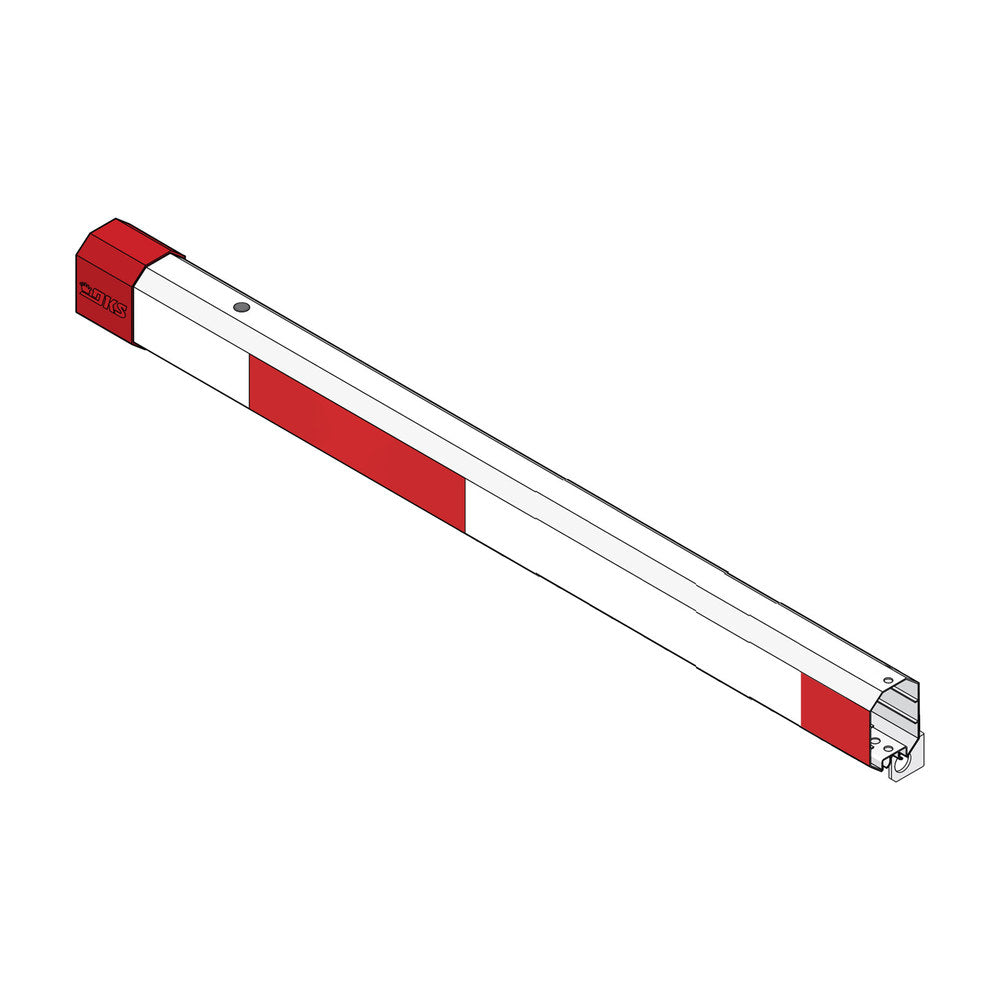

Octagonal arm without accessories 1601-555, requires an installation kit 1601-242.

Octagonal arm with reverse edge sensor 1601-555, requires an installation kit 1601-235 and a reverse edge sensor 8080-080.

Octagonal lighted arm with reverse edge sensor RED / GREEN 1601-555, requires installation kit 1601-235 and a lighted reverse edge sensor 8080-096

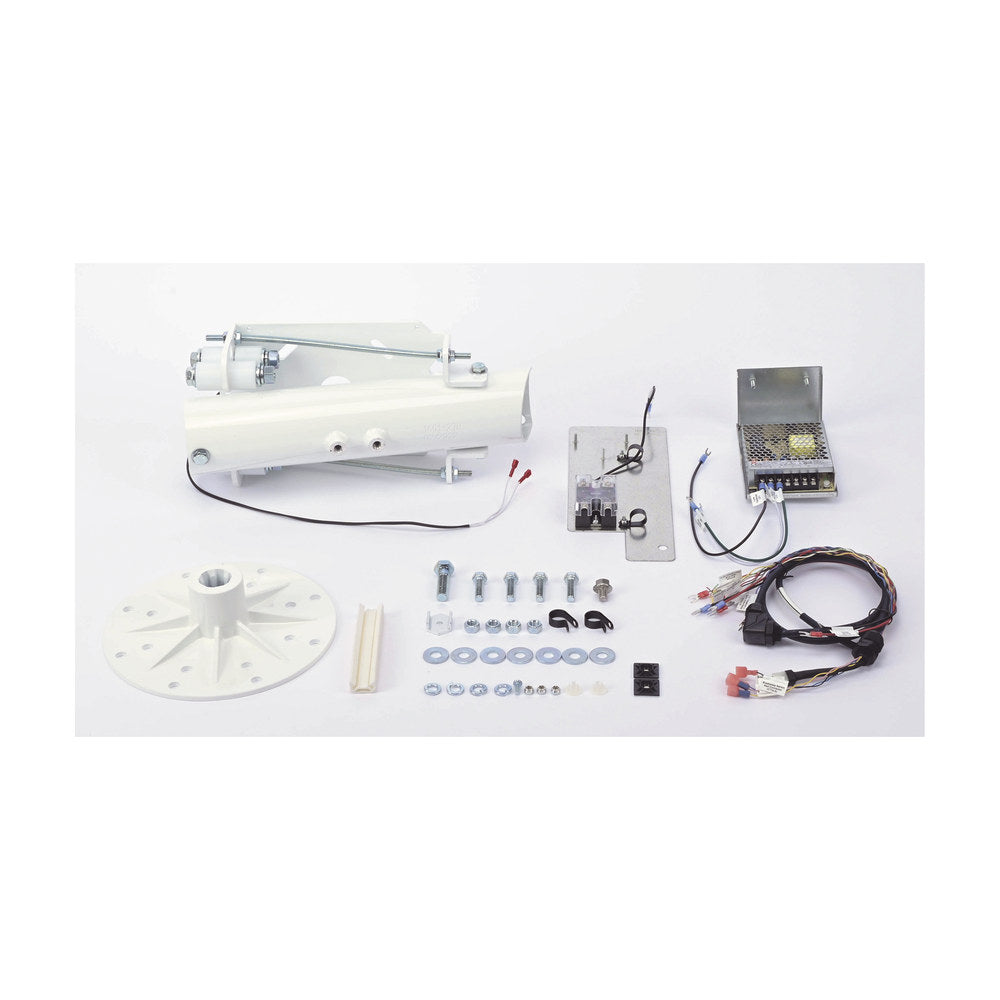

Octagonal arm with reverse edge sensor and breakaway system 1601-555, requires installation kit with breakaway system 1601-295 and a reverse edge sensor 8080-080

Octagonal lighted arm with reverse edge sensor RED / GREEN  and breakaway system 1601-555, requires installation kit with breakaway system 1601-295 and a lighted reverse edge sensor 8080-096

Step 2 Choose optional accessories.

Mass sensor DKS original 9410-010, requires magnetic loop SYSLM6

3-push button control for vehicle access applications XBSSW01

Photoelectric detector with 22 ft (7 m) range XBSRR7

Security laser for vehicle access applications 10LZR-H100-KIT19327

Traffic light for Doorking barriers 1603-222

Additional Notes and Recommendations

• All components and accessories are sold separately.
• Vehicle access devices require installation by certified personnel.
• The 5-year warranty applies to models 1601-080.
• The warranty specifically covers damage and/or malfunction resulting from a manufacturing defect in the product.
• Any damage caused by improper operation or installation invalidates the product warranty policy.
• Compliance with the UL325 standard requires the use of additional safety devices. For more information, you can consult the following link UL 325, Safety Standard.
• In order to ensure better protection against electric shock, it is necessary to connect an Earth line to the designated terminals on the vehicle barrier and add a line protection device against electric shock.

NOTE: Consider using XB-POST armrests for arms of 4 meters or more to prevent premature mechanism damage.

ADDITIONAL NOTES

The barrier is prepared to work with an arm with a distance of 5 to 6 meters. Having an arm with a different distance requires changing springs.

To know what type of spring should be used, we can refer to the following TABLE

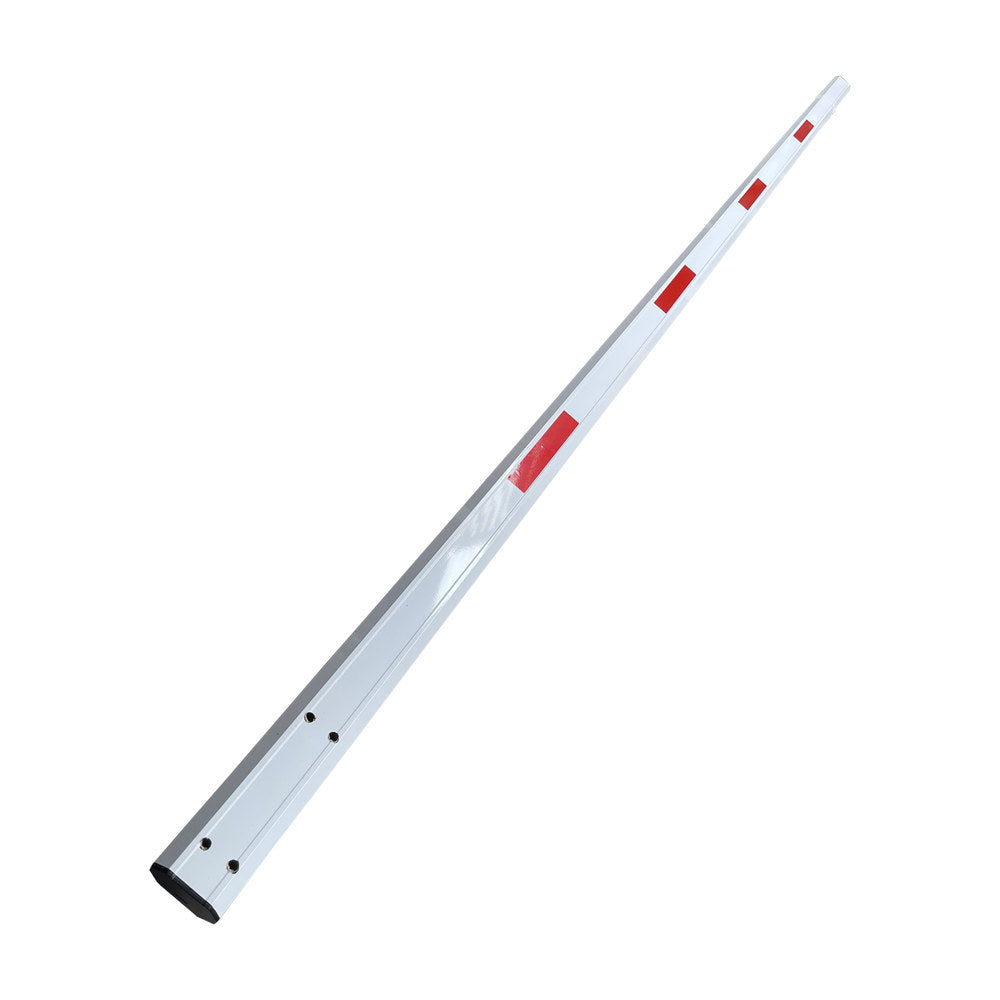

Barrier only compatible with XB-TEL-ARMB1 arm.

In a correct adjustment of the opening and closing limits, our mechanism should not reach the physical limits.

If your mechanism is reaching the physical limits, please review the following VIDEO.

NOT compatible with illuminated arms.

NOTE: Consider using XB-POST armrests for arms of 4 meters or more to prevent premature mechanism damage.

ADDITIONAL NOTES

The barrier is prepared to work with an arm with a distance of 5 to 6 meters. Having an arm with a different distance requires changing springs.

To know what type of spring should be used, we can refer to the following TABLE

Barrier only compatible with XB-TEL-ARMB1 arm.

In a correct adjustment of the opening and closing limits, our mechanism should not reach the physical limits.

If your mechanism is reaching the physical limits, please review the following VIDEO.

NOT compatible with illuminated arms.

Main features:

Main features:

NOTE: Consider arm-rest XB-POST in arms of 14 ft (4 m) or more to avoid damaging the mechanism.

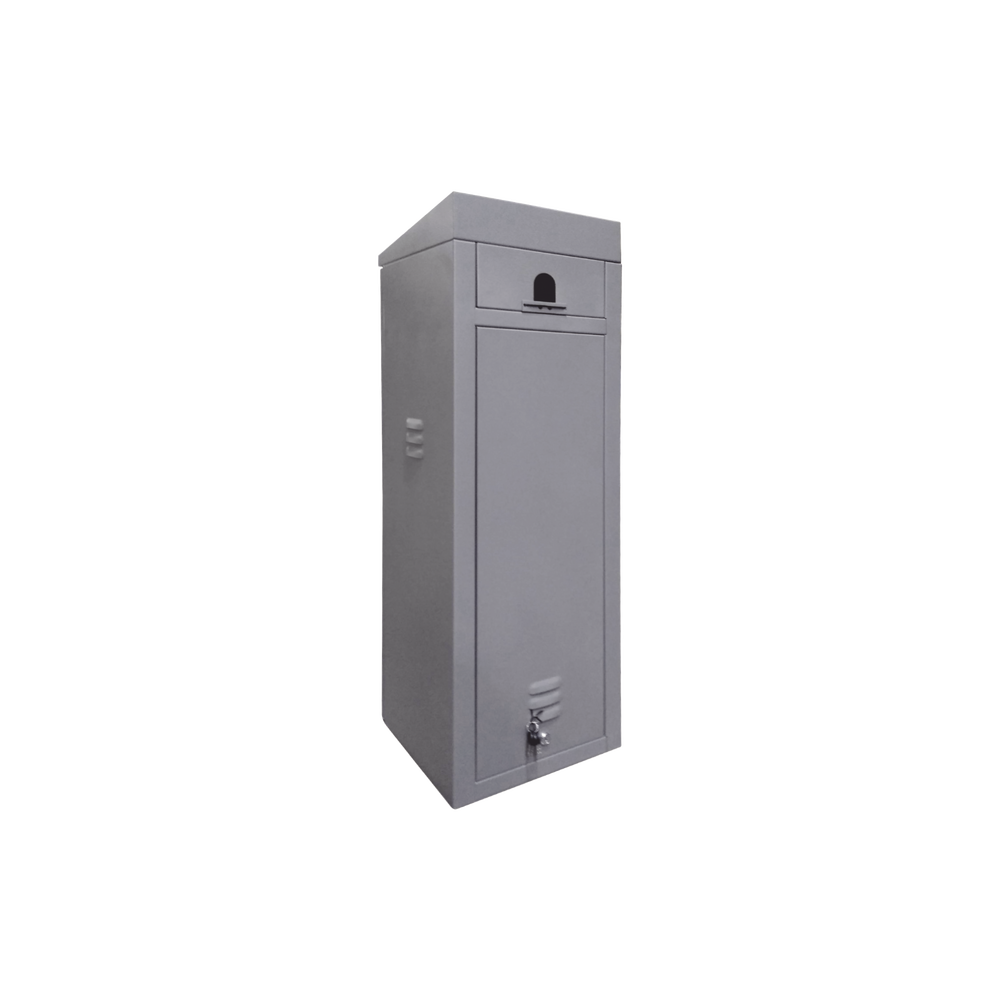

Enclosure for Vehicle Barriers models XBF and XBS

Features:

Cabinet weight: 26 Kgs

Total packing weight: 45 Kgs

Dimensions:

Width: 42 cm

Height: 127 cm

Depth: 42 cm

Illuminated straight boom barrier (16 ft) compatible with Industrial By AccessPRO barriers gate

Working voltage: 12 Vdc
Working consumption: 2 A
Compatible power supply: PS-12-DC-4C (Not included)

Compatibility:

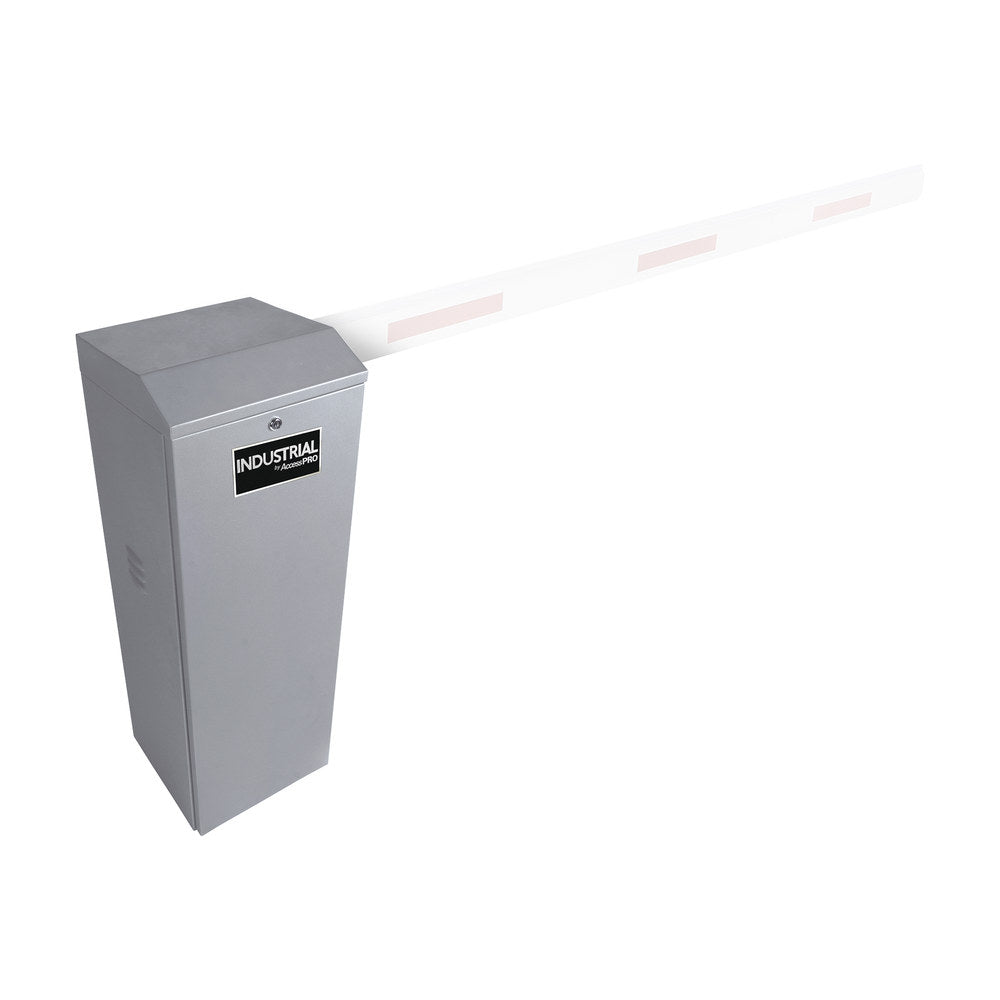

• XBS5000R

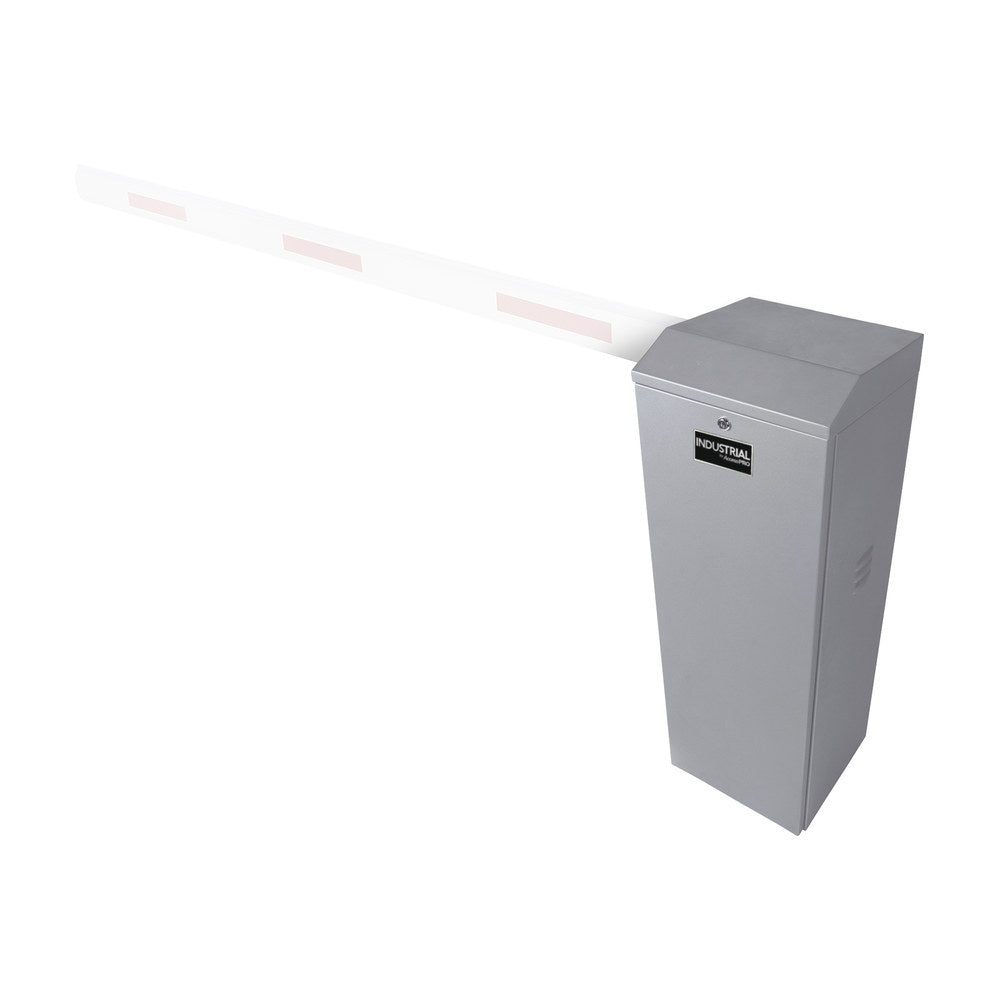

• XBS5000L

NOTE: Consider an armrest XB-POST for 13 ft arms or longer to avoid early damage to the mechanism.

What accessories do I need for the installation?

Step one: Select your lane arm according to the application.

XB-TELESC-ARM Telescopic arm, non-illuminated, adjustable arm length from 13 to 18 feet, compatible with break away system XBA-DROP-ARM

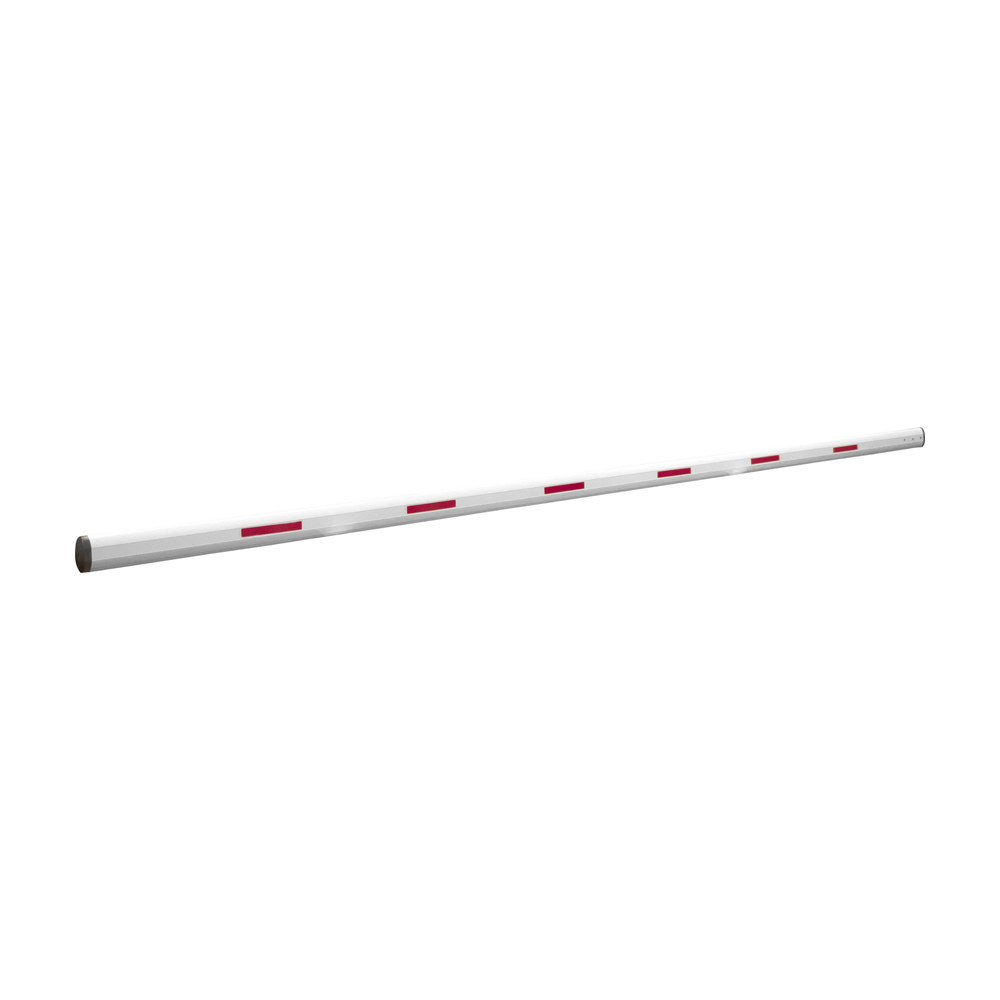

XBS-ARM 18 feet illuminated arm RED/GREEN, requires additional power source PS-12-DC-4C

Step two: Safety and installation accessories.

XB-ANCLA Fixing anchor for AccessPRO barriers

XB-POST Lane arm-rest post, necessary for arms longer than 13 feet.

XBS-SW-01 3-push button control station for barriers and motors.

XBS-IR33 Security infrared photocell with up to a 10 meter range

XB-DLP-1101 Mass sensor in a channel, requires power source PL-DC-1000 and a magnetic loop SYS-LM8

XBS-RDA06 Radar for AccessPRO barriers with a 6-meter range.

XB-REC2 Wireless receiver for 400 controls (adding a button per channel), compatible with transmitters XBT-23 keyfob control, XBT-18-BC control with visor cllip, and XB-WT-01 wall type control.

10LZR-H100KIT-19327 Laser sensor for security with a range of  9.6 x 9.6 meters, replace magnetic loops

PRO-LIGHT-LED Green/Red traffic light, requires mounting XB-ML.

The new vehicle barriers Industrial By AccessPRO now include a new mechanism equipped with a digital encoder that allows the controller card to adjust electronically, achieving a fluid and precise movement.

Specifications:

• Maximum arm length: 18.04 ft (5.5 m) (not included)
• Aperture speed: 6 seconds
• Consumption: 250W
• Semi-intensive use.
• Operating temperature: -40 ~ 158°F (-40 ~ 70 °C)
• Relative humidity: < 90%
• Operating voltage: 110 Vac

Compatible masts:

• XBTELESCARM .- allow the installer to change the length of the arm between 13 to 18 ft without cutting the arm (no light).
• XBSARM .- Illuminated straight boom barrier (16 ft).

Arms sold separately and the application should be considered.
