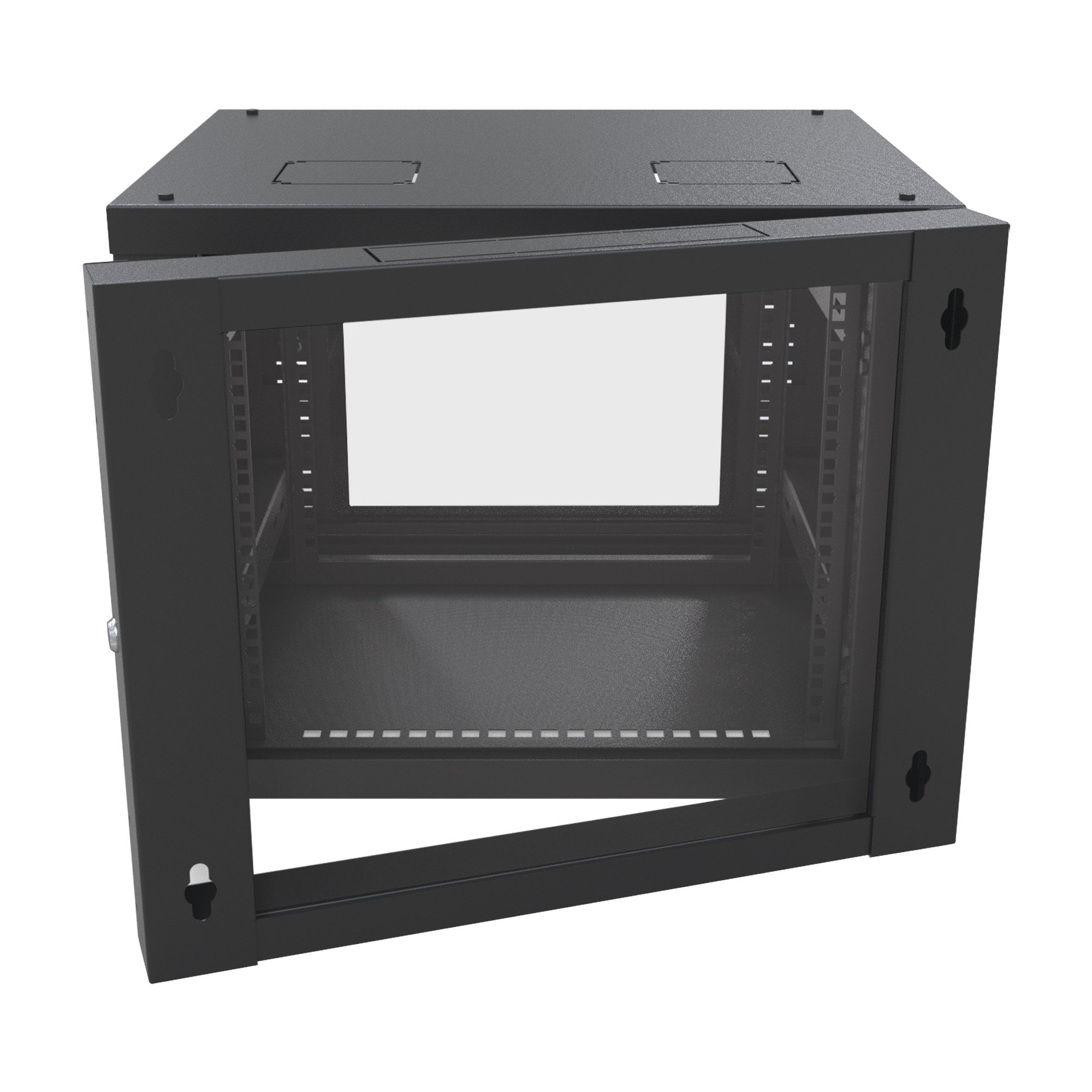

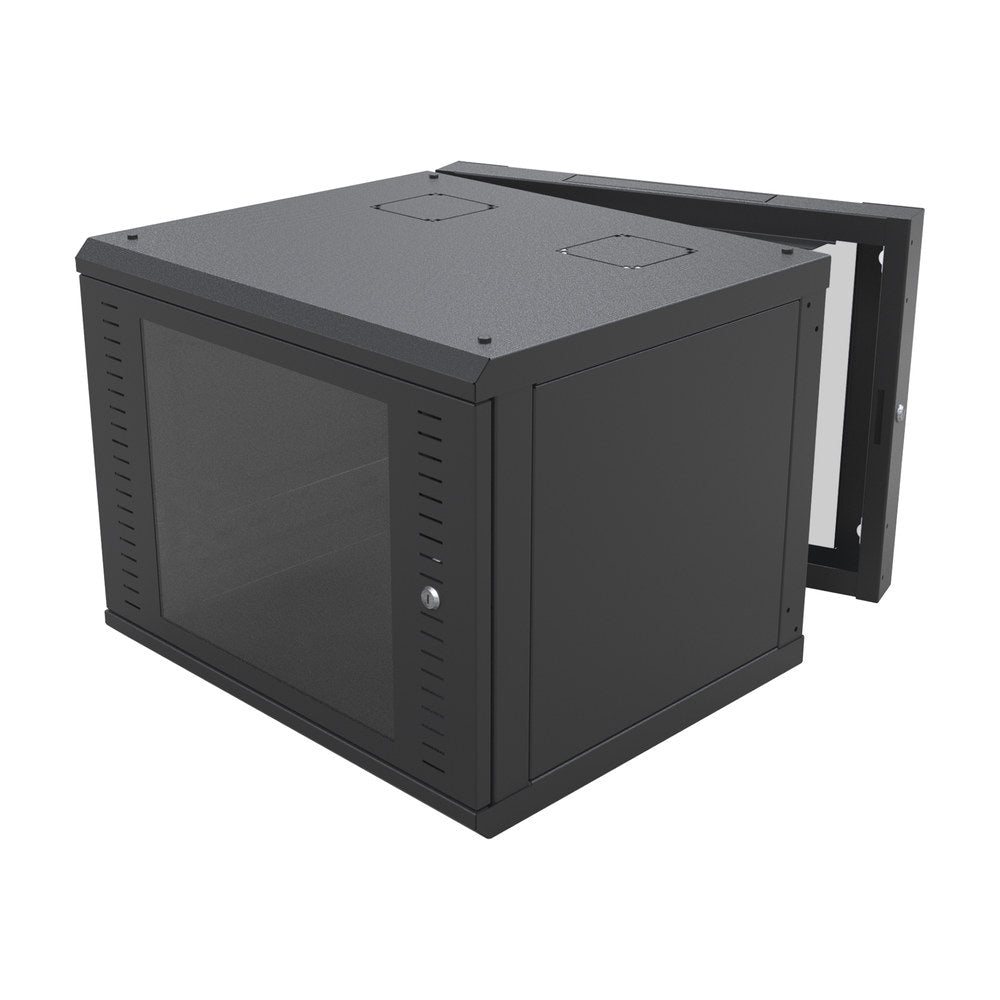

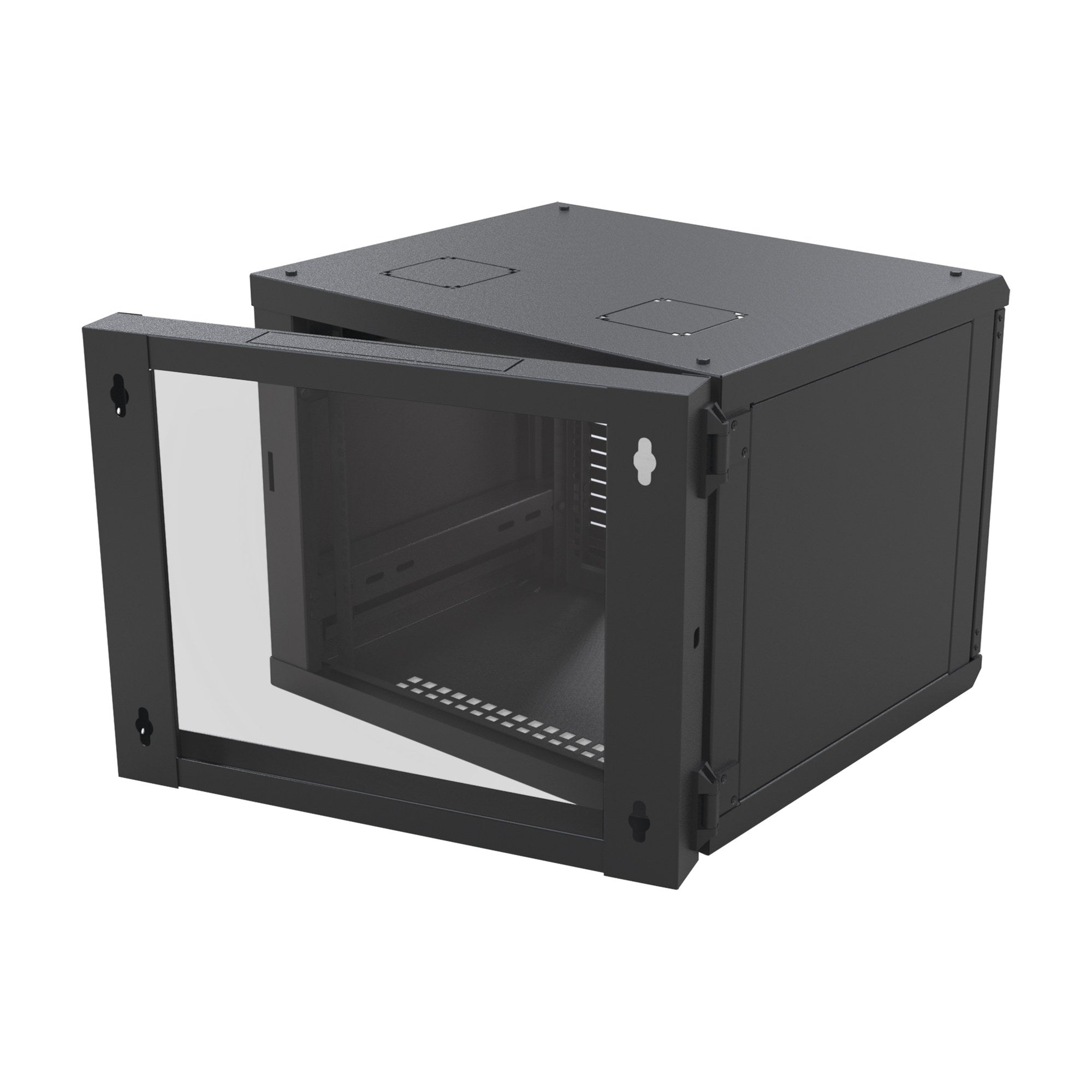

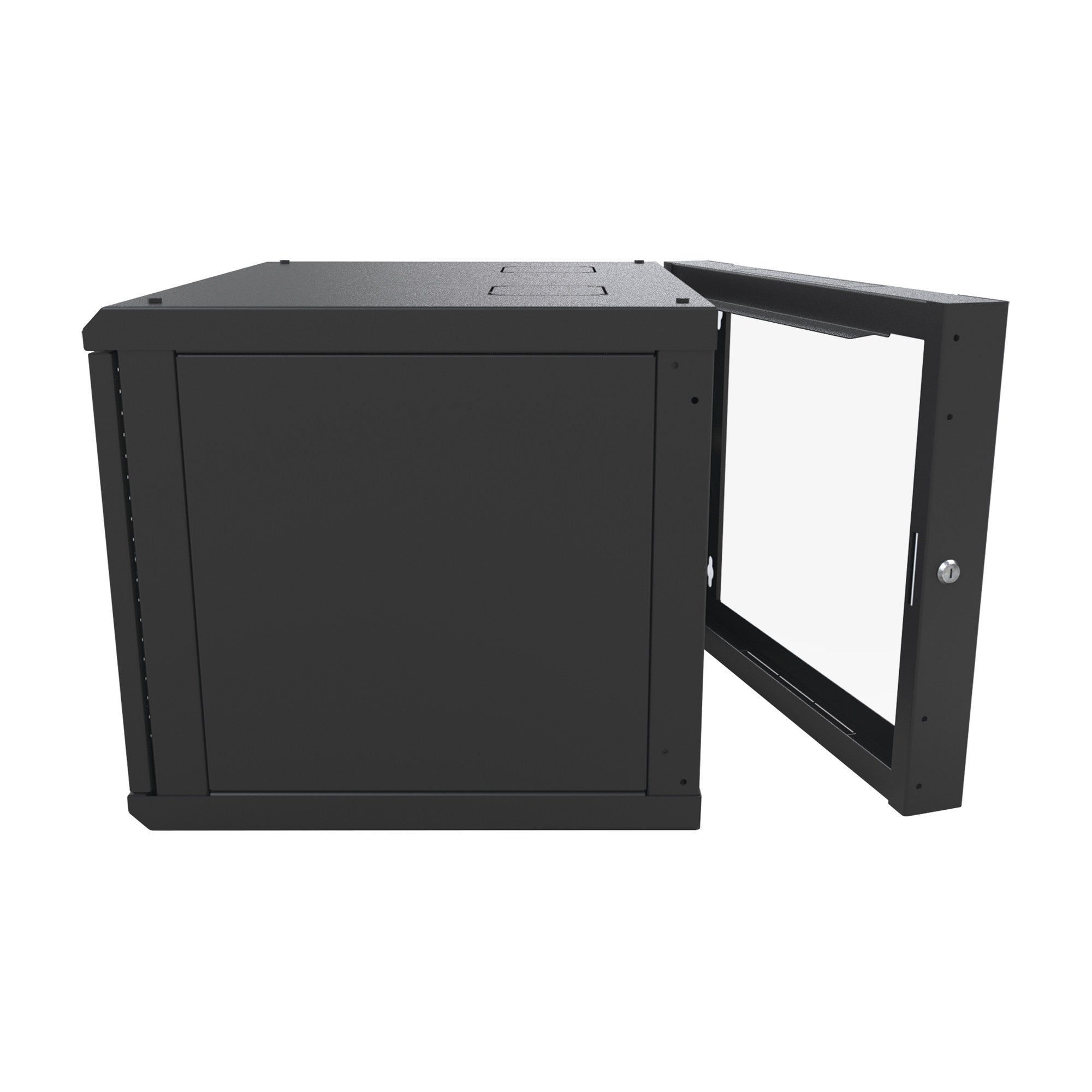

Highlighted Features:

• Wall-Mount Installation
• Tempered Glass Front Door
• Removable Side Panels
• Adjustable Rack Rails for Flexible Equipment Installation
• Security Lock on Front Door SW-10516
• Exterior Dimensions: 23.86 x 19.21 x 25.16 inches (606 x 488 x 639 mm) (Width x Height x Depth)
• Rack Units: 12
• Maximum Working Depth: 22 inches (556 mm) (front rack to rear rack)
• Fan Compatibility: 2 Single Fans (LP-VENT-BASIC) or 1 Dual Fan (LP-VENT-02V2) (Not Included)
• Application: Indoor
• Color: Semi-Matte Black
• Weight: 63.77 lbs (28.91 kg)
• Load Capacity: 220 lbs (100 kg)
• High-Quality Steel Construction
• Built to ANSI/TIA RS-310-D Standards
• Ships Unassembled in a Cardboard Box

Applications:

• Data Networking Systems
• IP Telephony Systems
• Data Servers
• Cable and Fiber Optic Management
• Remote Monitoring and Management Systems
• Security Systems
• Power Distribution

Includes:

• Assembly Parts (Refer to User Manual, Page 1)
• Black Screws for Cabinet Assembly (Refer to Screws, Page 1)
• Rack Mounting Kits for 12 Units

Additional Value:

• Easy Installation
• Efficient Cable Management
• Compatibility with Various Equipment
• Robust Design
• Model Flexibility

Highlighted features:

• Installation Type: Wall mount.
• Multiperforated metal door (62%).
• Removable side panels.
• The 4 rack posts can be moved closer or further apart for better equipment installation (8"-18").
• Door with security lock.
• Removable door and option to change opening direction.
• Shipped fully ASSEMBLED.

Application:

• Copper and fiber cabling management.
• Backup units.
• Internet service distribution.
• Video surveillance systems.
• Equipment includes:
• Metal body (side panels, rack posts).
• Black assembly screws.
• Screws for installing 6 equipment on rack posts.
• User manual + warranty.

Physical characteristics:

• Application: Indoor.
• High quality steel.
• Manufactured according to ANSI/TIA RS-310-D.
• Cabinet weight: 26.2 lbs.
• Maximum load capacity: 132.3 lbs.
• Dimensions: 22.44" x 24.48" x 17.71" (Width x Height x Depth).
• Dimensions (mm): 570 x 621 x 450.
• Rack units: 12
• Max. working depth (full stop): 13.15 in (334 mm)
• Color: White.
• Polyester base baked paint process.

• Installation Type: Wall-Mounted.
• Multi-perforated metal door (62%).
• Removable sides.
• The 4 rack posts can be adjusted for better equipment installation (203-452mm).
• Door security lock.
• Removable door with reversible opening option.
• SHIPPED ASSEMBLED.

• Copper and fiber cabling management.
• Backup units.
• Internet service distribution.
• Video surveillance systems.
• Equipment Includes:
• Metallic body (side panels, rack posts).
• Black screws for assembly.
• Screws for installing 6 equipment on rack posts.
• User manual + warranty.

• Application: Indoor.
• High-quality steel.
• Manufactured according to ANSI/TIA RS-310-D.
• Cabinet weight: 26.23 lbs (11.9 kg).
• Maximum load capacity: 132.28 lbs (60 kg).
• Dimensions: 22.44 x 19.21 x 17.71 inches (Width x Height x Depth) (570 x 488  x 450 mm).
• Rack Units: 9.
• Maximum working depth (fully extended): 14.96 inches (380 mm).
• Color: White.
• Polyester-based baked paint.

Outstanding Features:

• Installation Type: Wall.
• Multi-perforated metal door (62%).
• Detachable sides.
• The 4 Rack Posts can be moved in or out for better equipment installation (203-452mm).
• Security sheet on the door.
• Detachable door and option to change the opening direction.
• Shipped ASSEMBLED.

Application:

• Management of copper and fiber cabling.
• backup units.
• Distribution of internet services.
• Video surveillance systems.

The Equipment includes:

• Metal body (side covers, rack posts)
• Black screws for assembly.
• Screws for installation of 6 units in rack posts.
• User manual + warranty.
• Packing.

Physical Characteristics:

• Application: Indoor.
• Top quality steel.
• Manufactured in accordance with ANSI/TIA RS-310-D.
• Cabinet weight: 26.23 lb (11.9 kg.)
• Maximum load capacity: 132.28 lb (60 kg)
• Dimensions: 22.44 x 24.44 x 17.71 in  (Width x Height x Depth).
• Dimensions (mm): 570 x 621  x 450
• Rack Units: 12
• Max. working depth (full stop): 13.15 in (334 mm)
• Color: Black.
• Paint by polyester-based baking process.

• Paint: Electrostatic Black.
• Application: Interior.
• Material: Steel.
• Weight: 5.55 lb (2.52 kg)
• External dimensions:  518 x 420 x 500 mm (width x height x depth).
• Working depth: (500 mm).
• Rack Units: 8.

Functional Features:

• Two small removable mounts for wall mounting.
• Version 2 of this enclosure includes two assemblies for pole mounting.
• Locking plate (with key).
• Quick assembly panel using 4 insertion screws.
• Two round openings at the bottom protected by caps for cable passing.
• Elegant black hinges giving an excellent presentation to the enclosure.

Physical Characteristics:

• Paint: electrostatic beige.
• Application: Outdoor.
• Material: 22-gauge steel.
• Rack units: N / A.
• Weight: 12.12 lb (5.5 Kg).
• Dimensions: 13.97 x 15.98 x 6.69"  (355 X 406 X 170 mm) (W x H x D).

Compatible equipment:

• Monitoring of radio communication equipment.

Recommendations:

• Ensure that the installation is performed by a trained professional.
• Check if the hardware is properly adjusted periodically.
• Set up a maintenance plan to clean the hardware.

*Color may vary. Weight without accessories and packaging. We manufacture cabinets to suit your needs. If you have any questions, please contact us

• Cover to secure wiring
• Solid steel structure
• Supports different gauges of wires
• 2 pieces: Base and cover

• Paint: Electrostatic Black
• Application: Indoor
• Material: Steel
• Rack Units: 2
• External dimensions: 20.15 x 3.50 x 2.95" (512 x 89 x 75 mm)

• Ensure that the installation is performed by a trained professional
• Check if the hardware is properly adjusted periodically
• Set up a maintenance plan to clean the hardware

• Brand: LinkedPro
• Code: LPCM04
• Description: Horizontal cable organizer, 1 Unit

• Material: Cold Rolled Steel Sheet
• AWG: 18 and 22
• Color: Black
• Application: Interior

• Width: 20.16" (512 mm)
• Height: 1.89" (48 mm)
• Depth: 3.03" (77 mm)

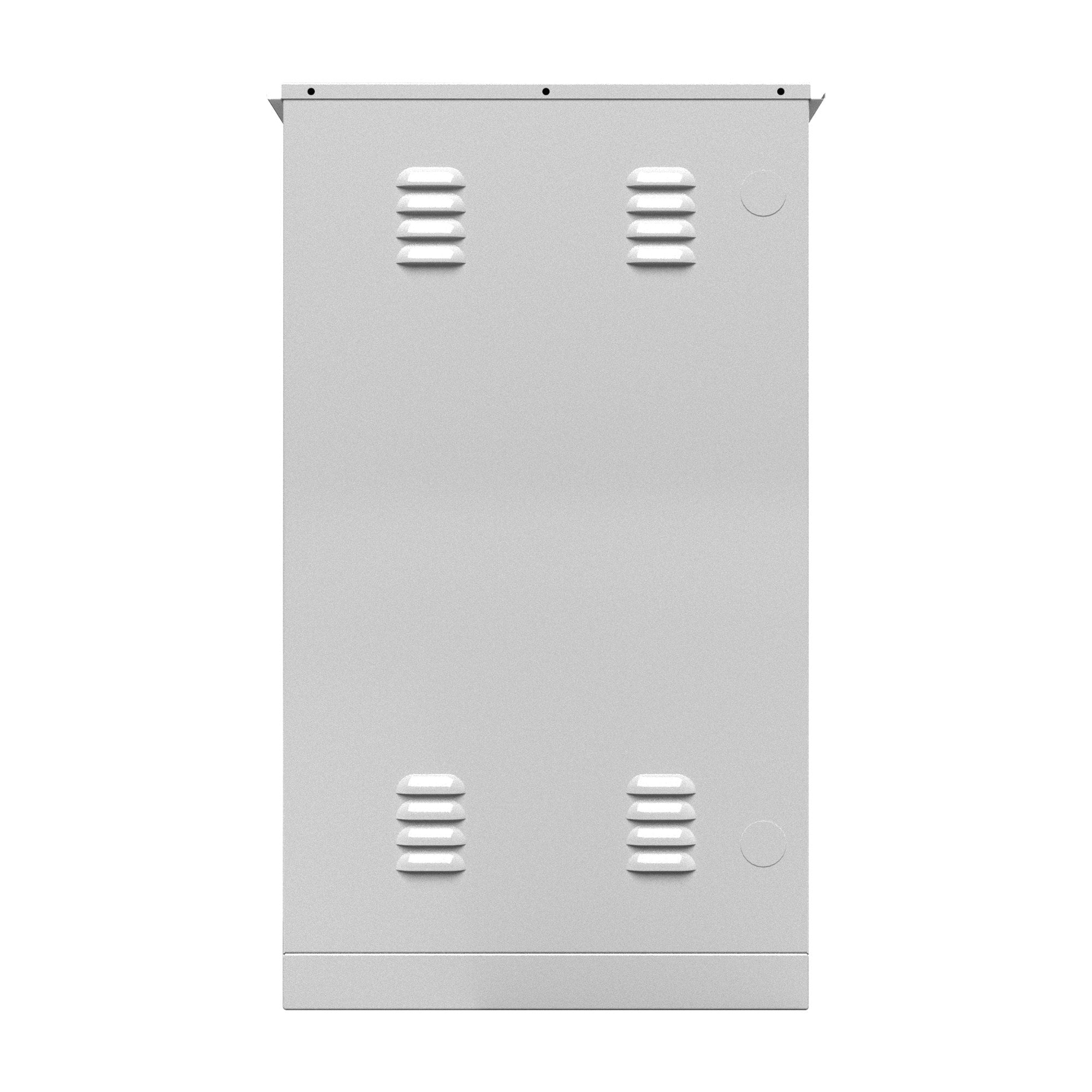

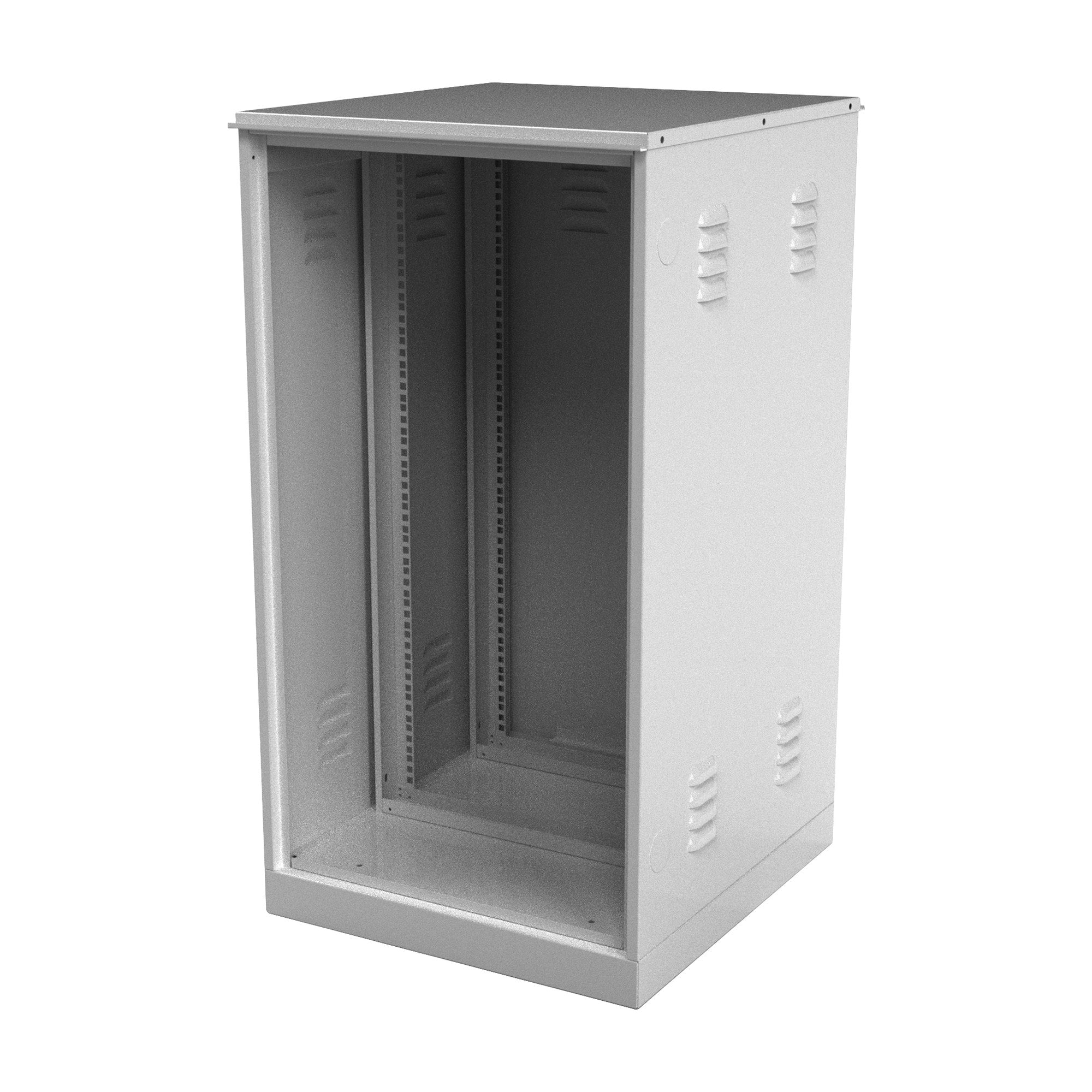

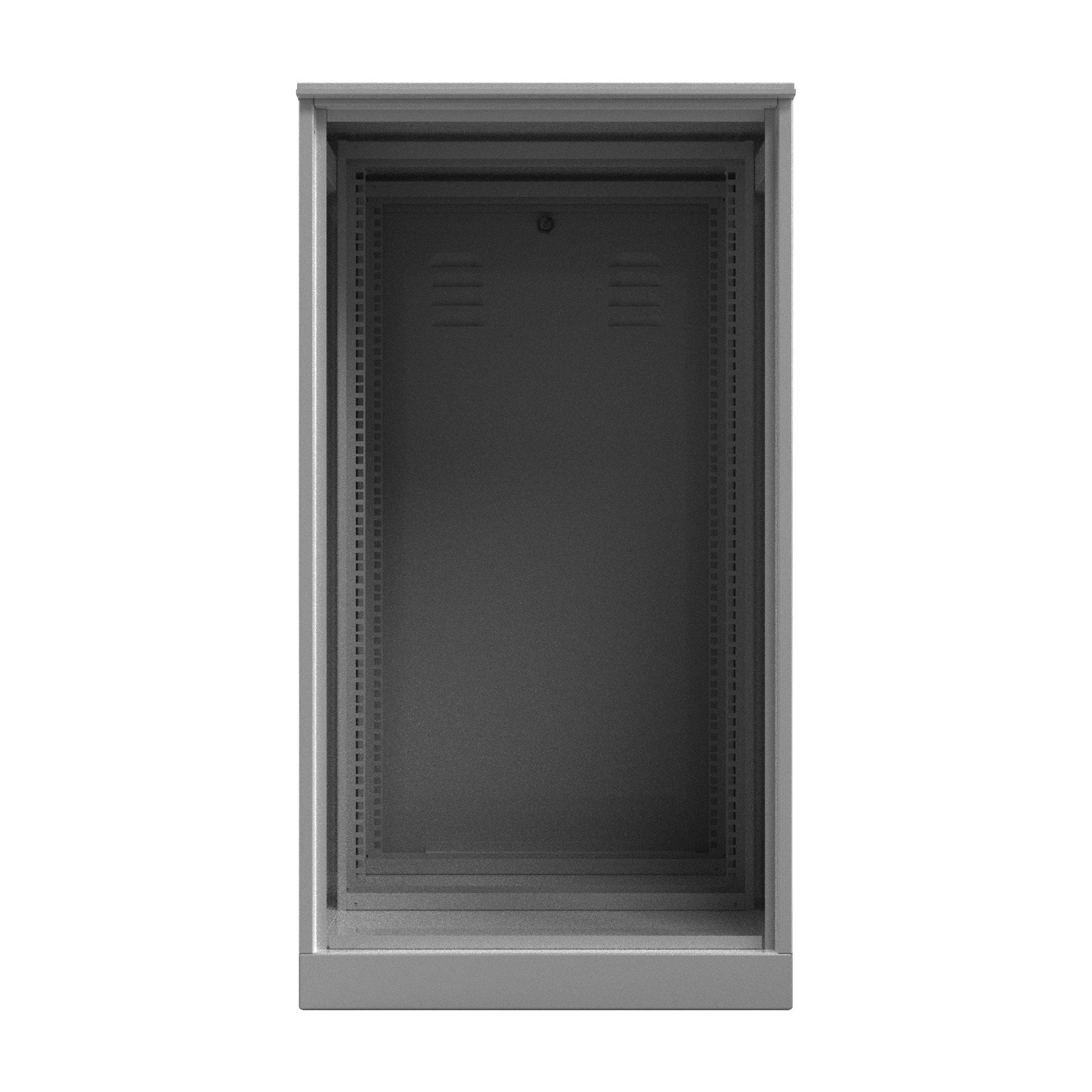

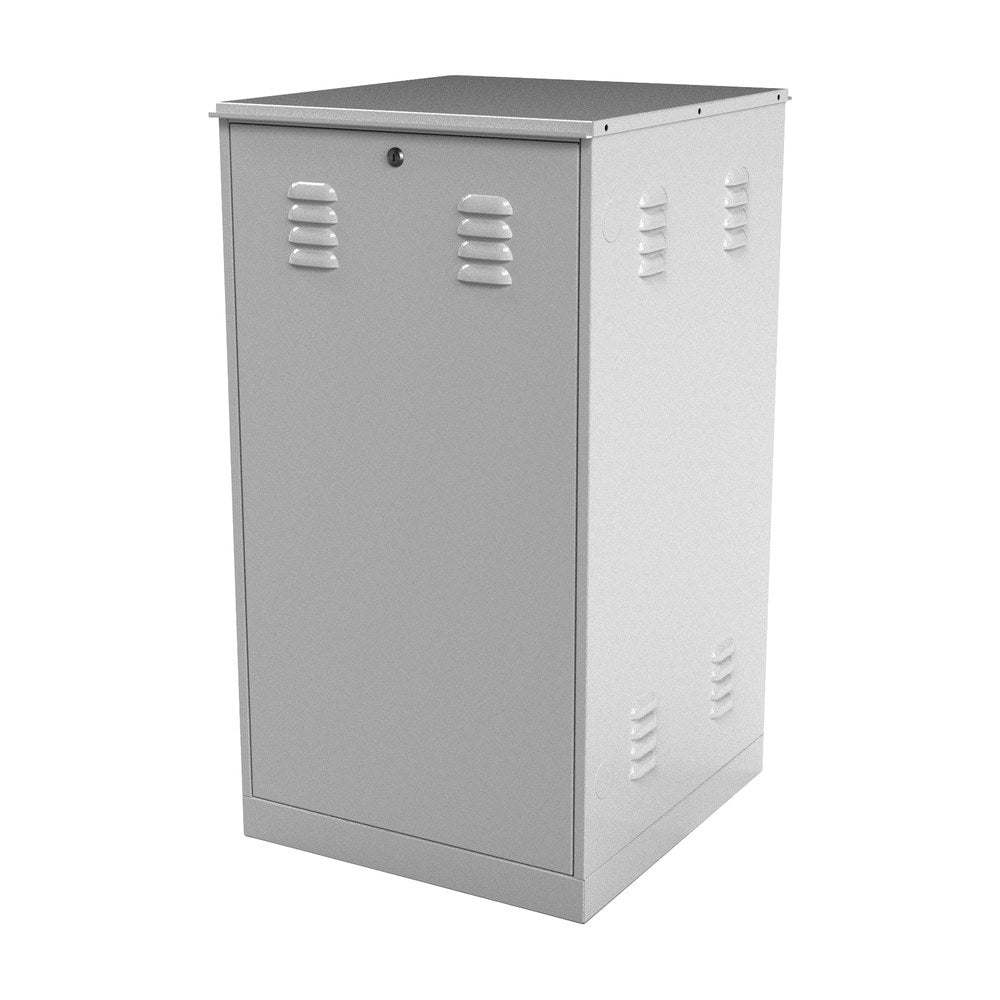

• Double swing door with lock.
• 2 openings on each side for cable passthrough, protected by plastic caps when not in use.
• ANSI / TIA RS-310-D.

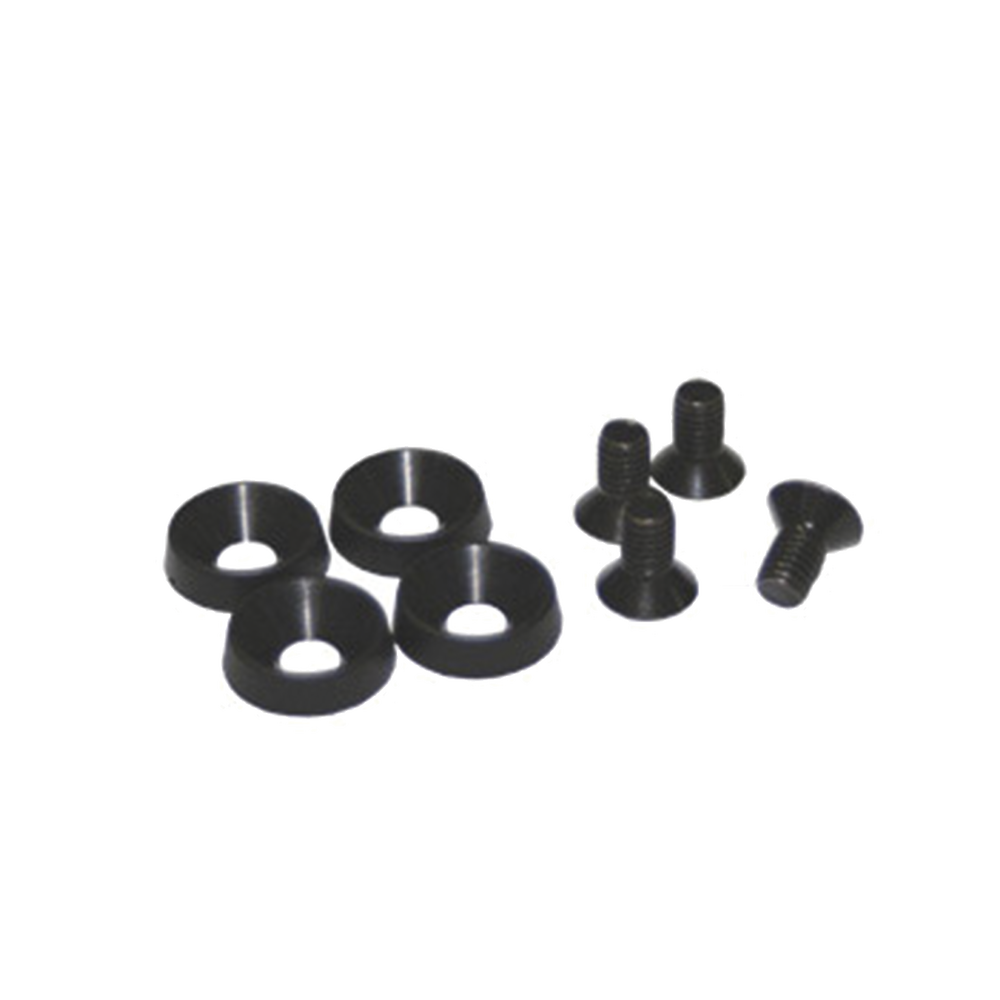

• Includes 3 hardware kits (TUERACK and TORRACK).
• Includes floor levelers.
• Compatible wheels ROD4-2.5".

• Paint: electrostatic beige.
• Application: indoor/outdoor
• Material: 14-gauge steel rack, 16-gauge base and 22-gauge walls and doors.
• Rack units: 20.
• Ingress Protection: IP22.
• Weight: 79.36 (36 kg).
• Dimensions: 23.07 x 38.30 x 22.99" (586 x 973 x 584 mm) (W x H x D).
• Working depth: 18.11" (460 mm)

Compatible equipment:

• Radio communication and surveillance equipment prepared to be installed at 19" rack.
• ROD4-2.5''. Wheel kit for the enclosure.

Recommendations:

• Ensure that the installation is performed by a trained professional.
• Check if the hardware is properly adjusted periodically.
• Set up a maintenance plan to clean the hardware.
• *Color may vary. Weight without accessories and packaging. We manufacture cabinets to suit your needs. If you have any questions, please contact us.
