Illuminated straight boom barrier (16 ft) compatible with Industrial By AccessPRO barriers gate

Working voltage: 12 Vdc
Working consumption: 2 A
Compatible power supply: PS-12-DC-4C (Not included)

Compatibility:

• XBS5000R
• XBS5000L

S-FIRE is part of an alliance of the world's leading teams for intrusion manufacturers. Unique of its kind, it complies with UL and CE standards.

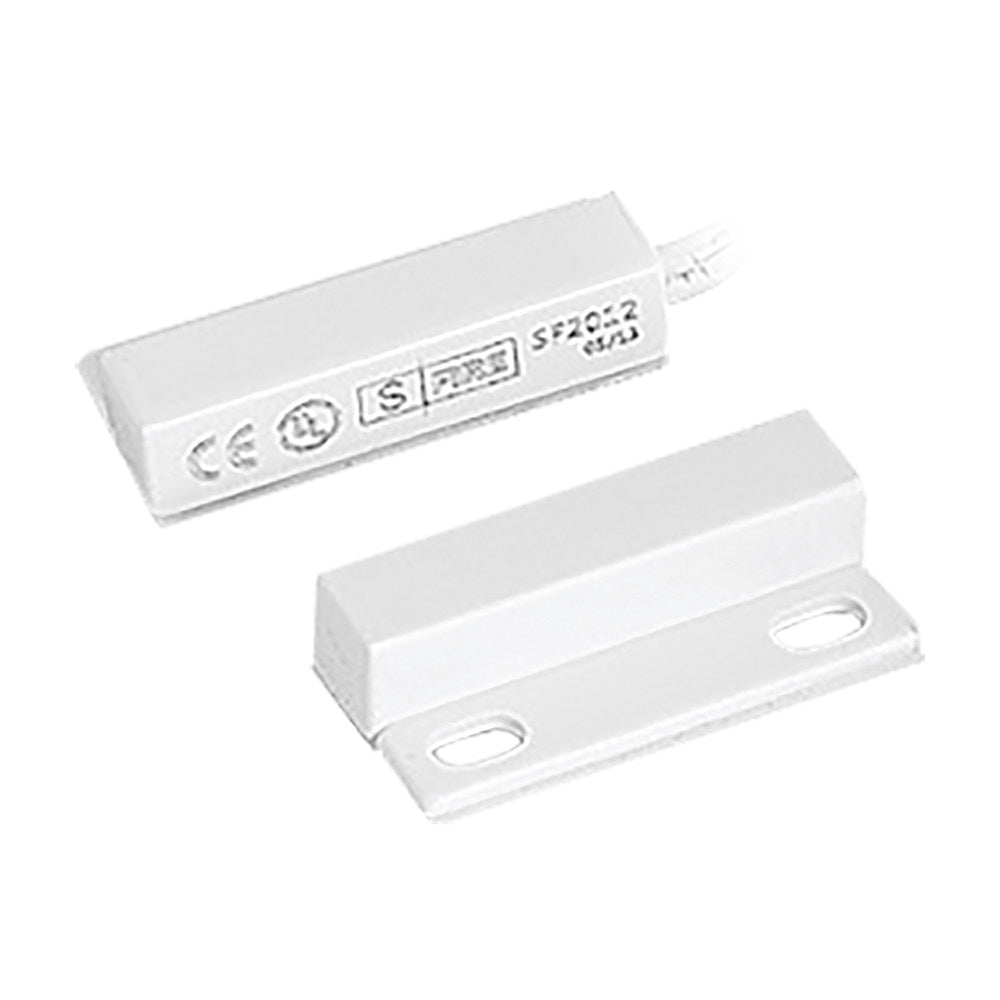

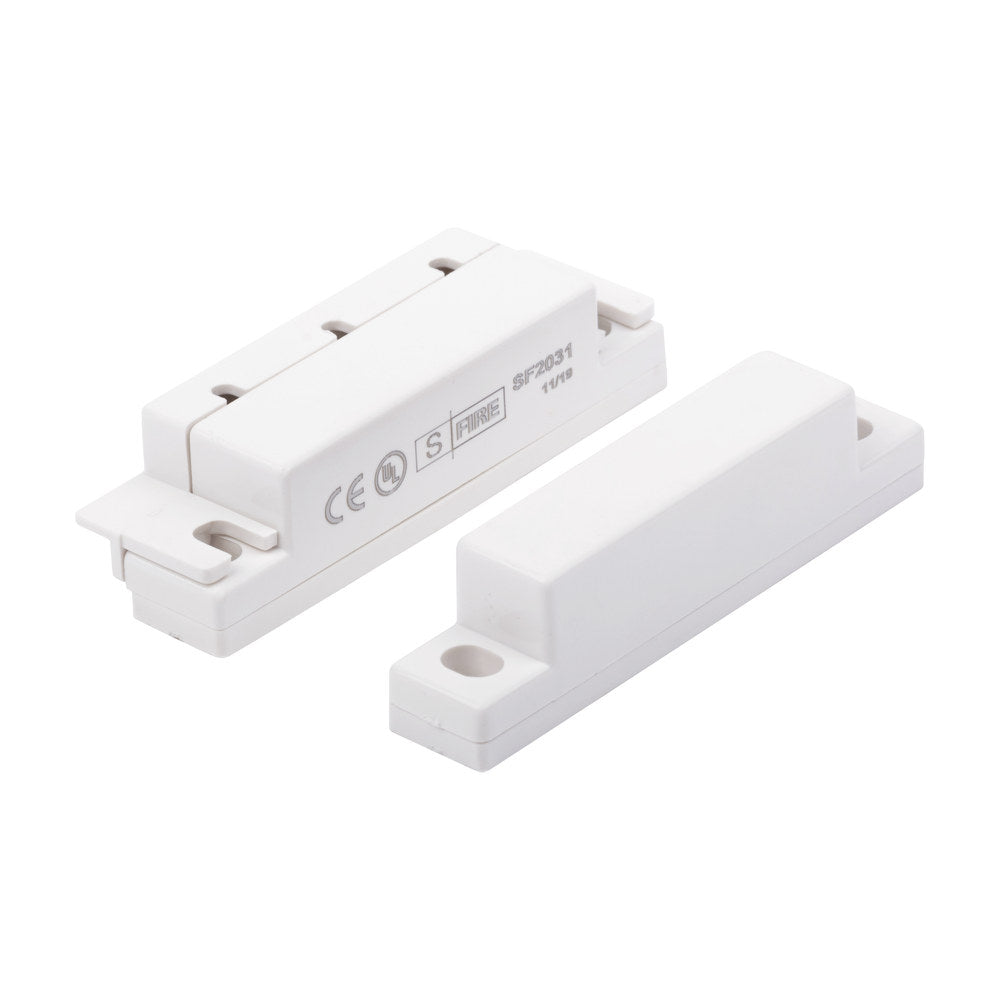

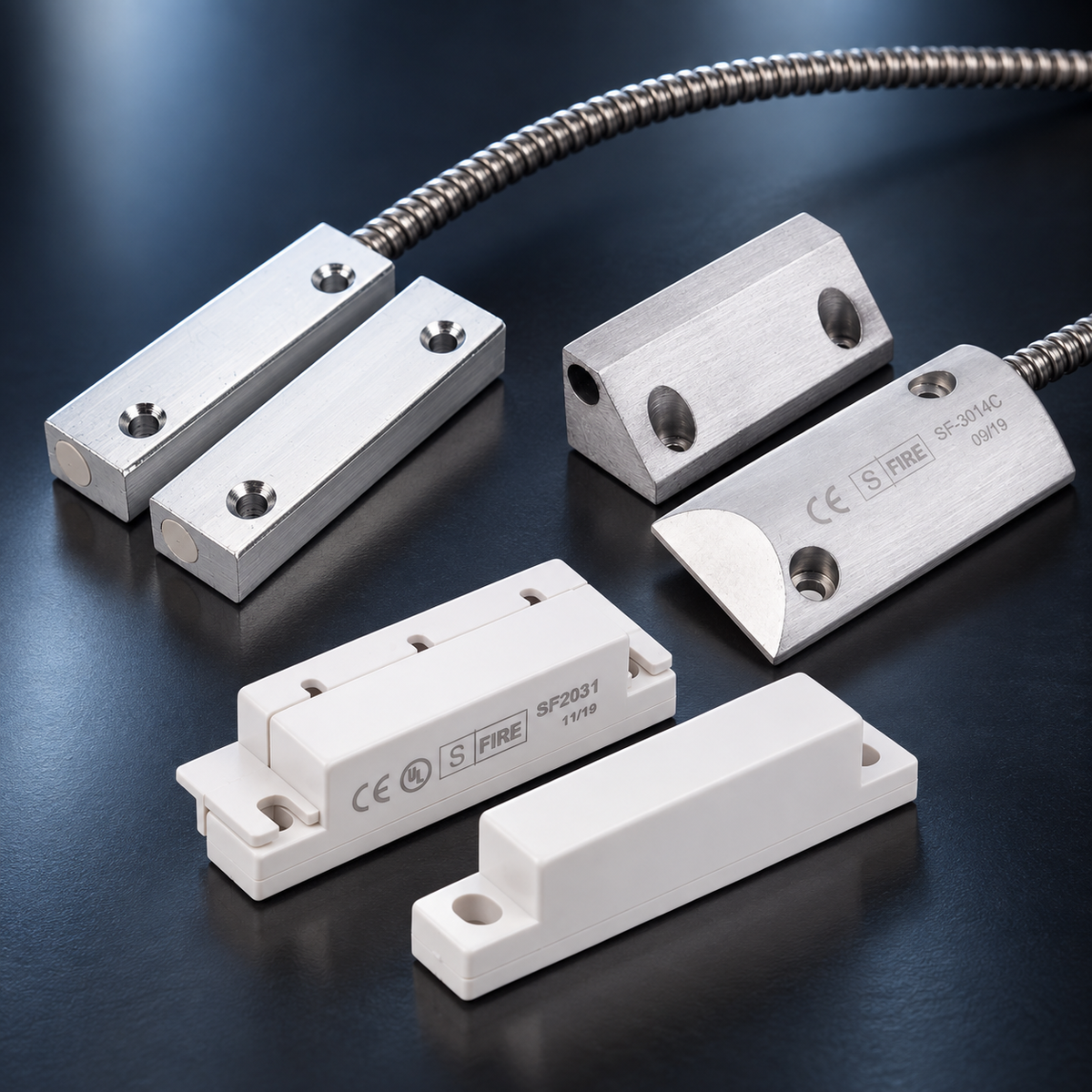

The Magnetic Window and Door Sensor consists of a magnet and a reed switch. This sensor operates as a normally closed switch (while there is a magnetic field). When the door or window is opened, the electrical circuit also opens, and it is possible to detect the opening.

• Screw Mounting
• Cover to hide the screws
• Switch dimensions: 50 x 14 x 12.3mm
• Magnet dimensions: 50 x 14 x 12.3mm
• 1 year warranty
• 12 VDC, 0.5 A

• For Indoors.
• Wiegand: 26 bits.
• Audible Sound.
• ABS Plastic.
• Compatible with ACCESS-PROX-CARD, ACCES-ISO-CARD & ATR261B0 cards.
• Operating Frequency: 125 kHz.
• Dimensions: 4.56 x 2.95 x 0.62" (116 x 75 x 16 mm).








Accessories

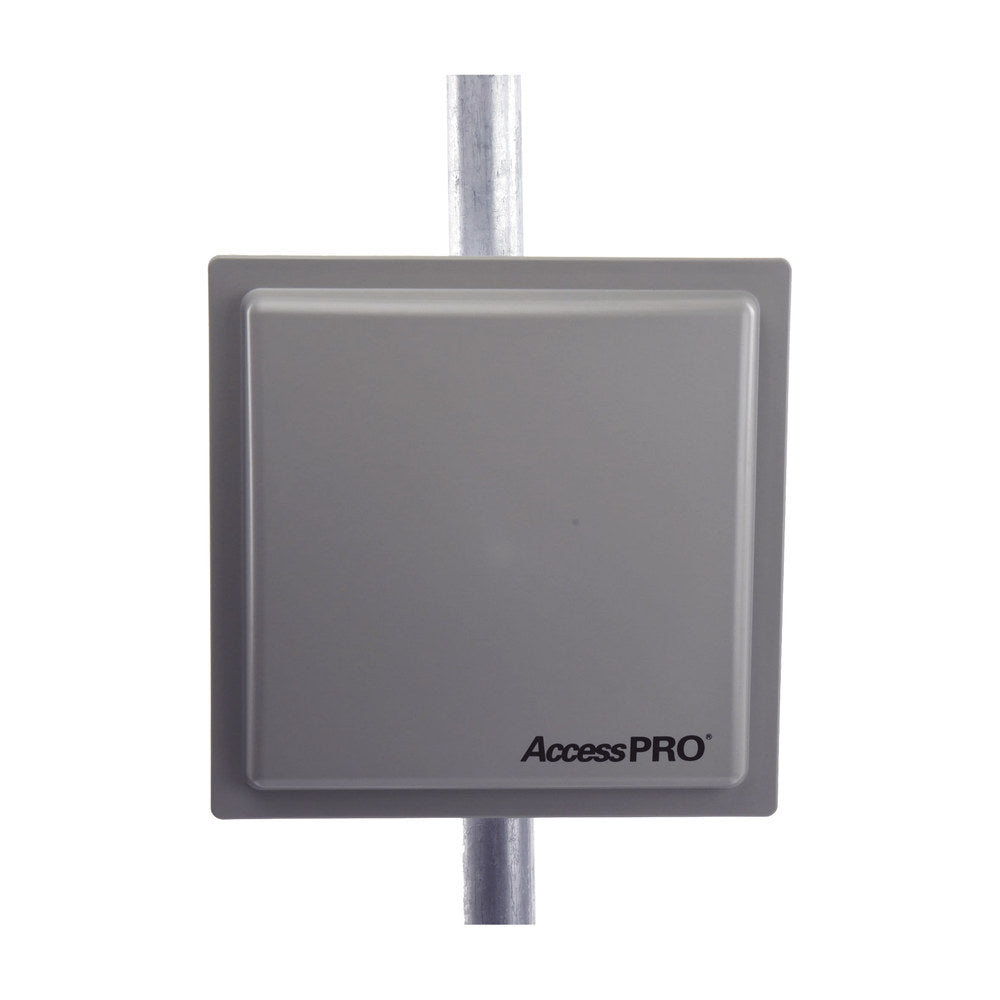

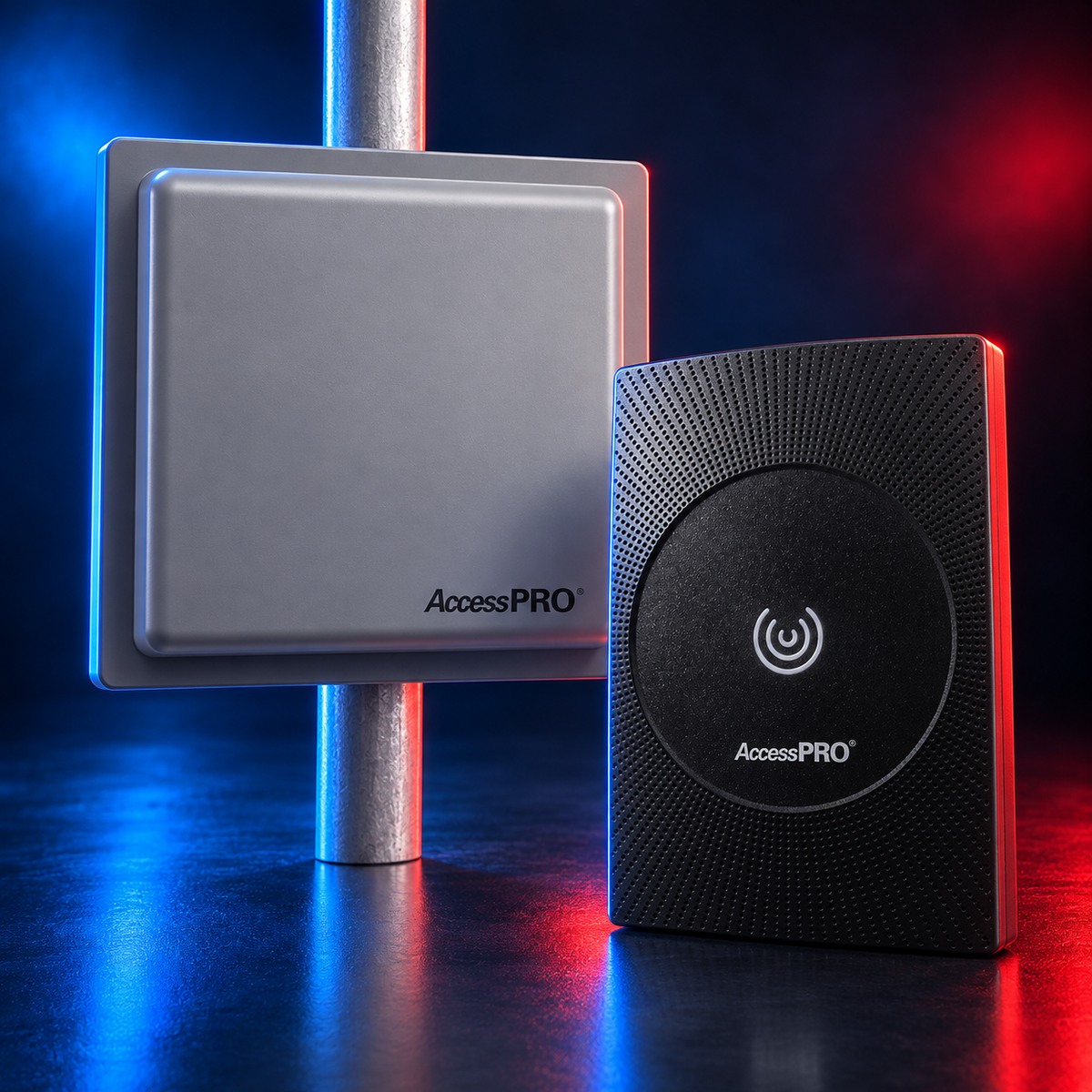

Long Range proximity reader RFID (UHF)
Ideal for parking lots, residential complexes, corporations and any area with vehicular traffic

Specifications:

• Operating frequency: 902 - 928 MHz
• Operation mode: FHSS
• Protocol EPC C1 GEN2
• Up to 40 ft lineal range*
• Only compatible with ACCESS-CARD-EPC and ACCESS-TAG cards
• 26 bits Wiegand interface
• Programmable power: 0 - 30Dbm
• Integrated antenna: 12 dBi
• Operating temperature: -20 to 80 ºC
• Power supply: 12Vcc, 2.5 A (included)
• Dimensions: 17.32 x 17.32 x 1.97” in (44 x 44 x 5 cm)
• Weight: 4.41lb (2 kg)

Requires Access controller. Compatible with ROSSLARE, HIVISION, SUPREMA and SYSCOM AcessPRO Series or any other system that supports Wiegand 26 bits interface.

Notes:

*Distance can vary according to site conditions.
*It’s important to calibrate before installation, other installed Tags on the vehicle can interfere with the reading (Take this into consideration).

- 1 Year Warranty

More specifications and drawings, please see the downloadable resources.

• 17.71" (45 cm) of 2 conductor Jacket 22 AWG gauge wire
• Space between mounting holes: 1.37" (35 mm)
• Switch dimensions: 1.96 x 0.66 x 0.38"  (50 x 17 x 9.8 mm)
• Magnet dimensions: 1.96 x 0.66 x 0.38"  (50 x 17 x 9.8 mm)

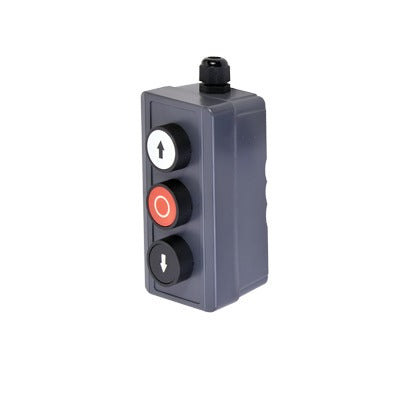

3 Button Control Box for Vehicle Barriers

Ideal for vehicular barriers, sliding motors, and swing motors.

Features:

• Operating temperature: -4 ~ 122 °F(-20 ~ 50 °C)
• Protection grade: IP40
• Dimensions: 2.6" x 5.1" x 2.0" (68x131x51 mm)
• Button stop COM, NC/NO.
• Open and close buttons COM, NO.
• Screw-type terminals.
• 1-year warranty.

Card Holder Imitation Leather

Practical for printed cards that cant be perforated

Fits thin cards (PVC or ISO).

Brown color

Note.- does not include a lanyard.

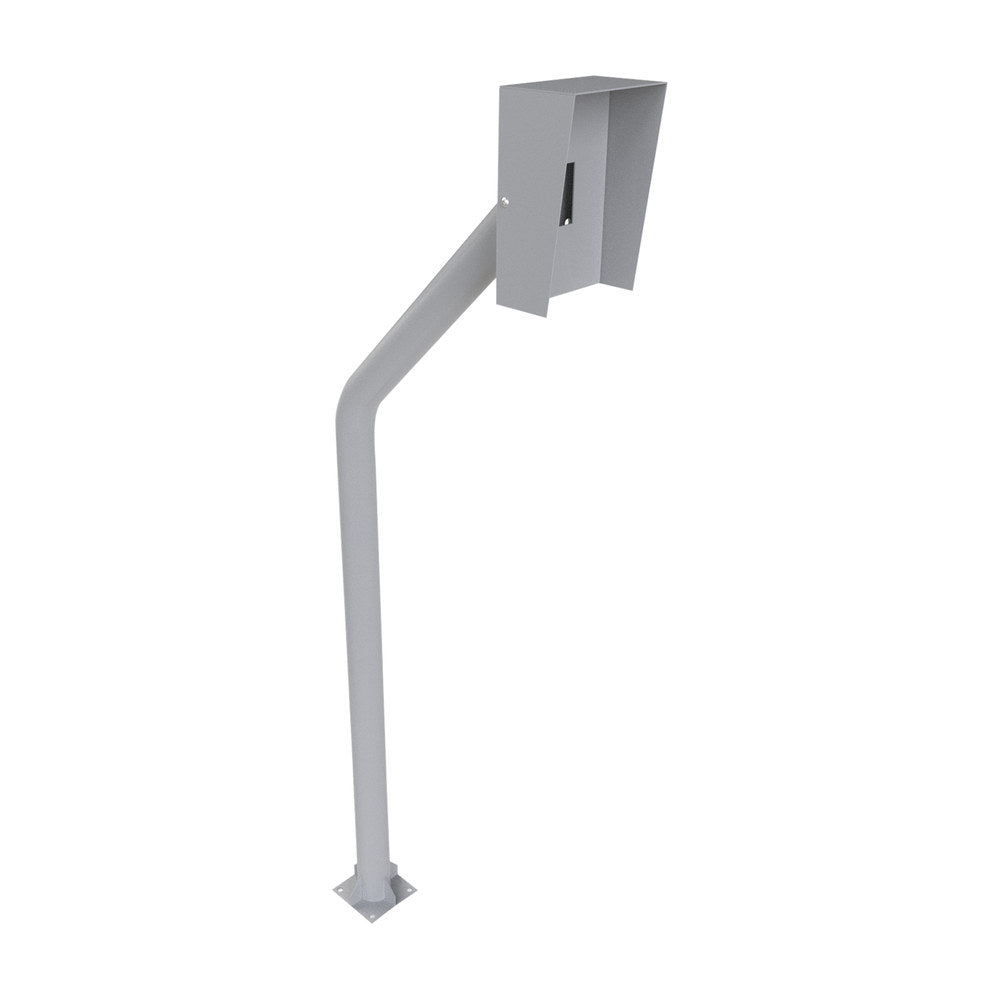

Tube Base for RFID Reader Installation.

Features:

Manufactured in steel sheet gauge 14 and 16 and 18 gauge tube.

Gray electrostatic paint.

Approximate weight: 3.3 kg.

Approximate dimensions: 133 x 1206 x 439 mm (width x height x weight)

Compatibility with readers BioEntry W2, XT5, AYK12, AC-F44.

Includes anchor: BARRENANCLA.

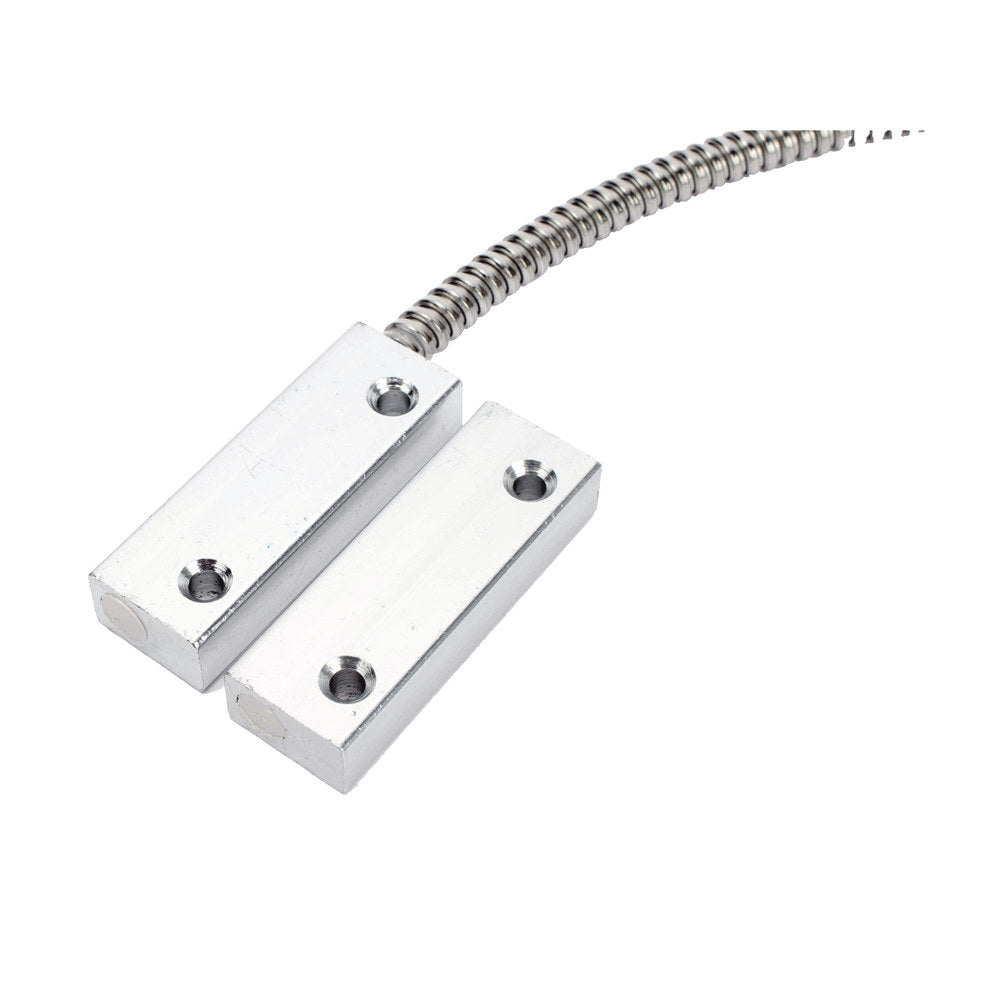

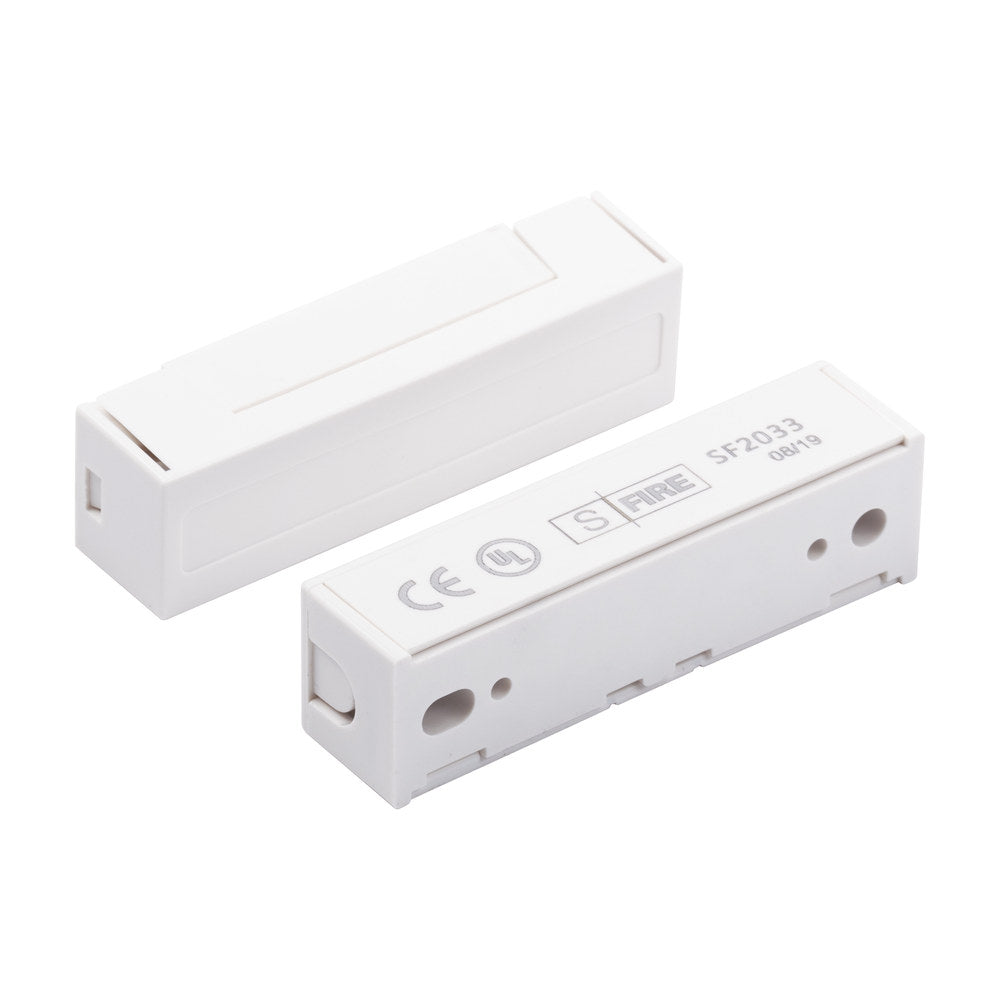

S-FIRE is part of an alliance of the world's leading equipment for intrusion manufacturers. Only one of its kind that meets UL and CE standards.

• Contact NC
• Screw assembly
• Insulation plate
• Cover to hide the screws
• Switch dimensions: 2.48 x 0.74 x 0.59" , 2.04" (63 x 19 x 15 mm, 52 mm)
• Magnet dimensions: 2.48 x 0.47 x 0.62" , 2.04" (63 x 12 x 16 mm, 52 mm)

Enclosure for Vehicle Barriers models XBF and XBS

Features:

Cabinet weight: 26 Kgs

Total packing weight: 45 Kgs

Dimensions:

Width: 42 cm

Height: 127 cm

Depth: 42 cm

NOTE: Consider using XB-POST armrests for arms of 4 meters or more to prevent premature mechanism damage.

ADDITIONAL NOTES

The barrier is prepared to work with an arm with a distance of 5 to 6 meters. Having an arm with a different distance requires changing springs.

To know what type of spring should be used, we can refer to the following TABLE

Barrier only compatible with XB-TEL-ARMB1 arm.

In a correct adjustment of the opening and closing limits, our mechanism should not reach the physical limits.

If your mechanism is reaching the physical limits, please review the following VIDEO.

NOT compatible with illuminated arms.

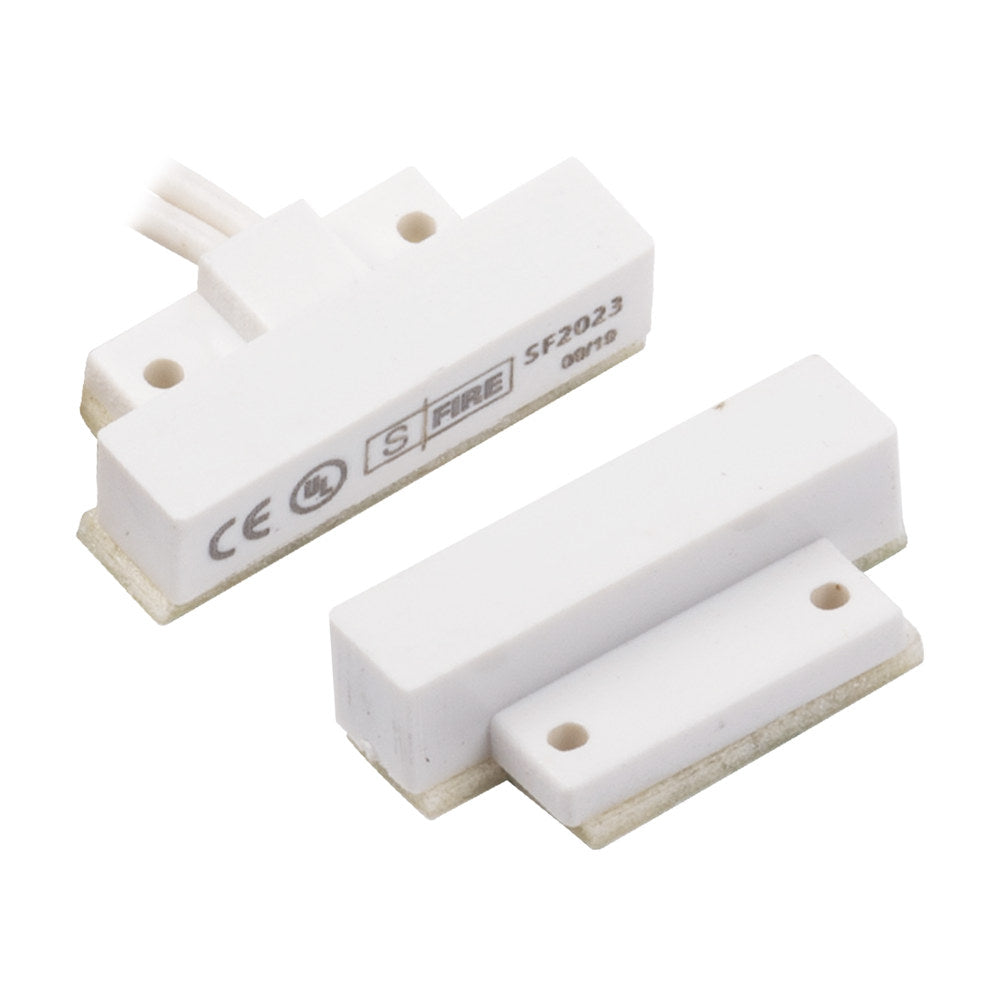

S-FIRE is part of an alliance of the world's leading equipment for intrusion manufacturers. Only one of its kind that meets UL and CE standards.

17.71" of 22 AWG wire.
Space between mounting holes: 19 mm.
Switch dimensions: 1.10 x 0.47 x 0.27" (28 x 12 x 7mm).
Magnet dimensions: 1.10 x 0.47 x 0.27" (28 x 12 x 7mm).

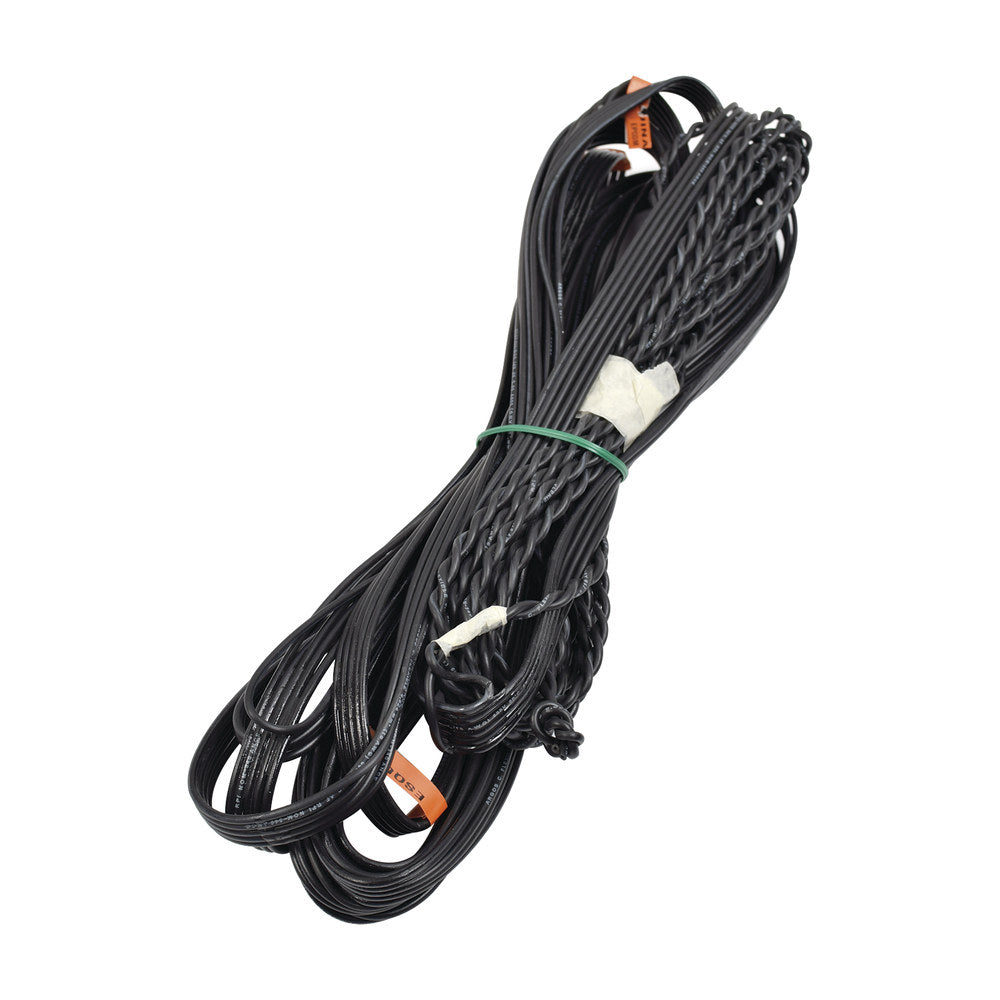

The SYSLM6 magnetic loop together with metal mass detector model FJCD621 is a security device that prevents the barrier arm to go down if a vehicle is beneath it. It also sends the order to close the barrier once the vehicle has passed.

Note: The SYSLM6, SYSLM4 loops and the FJCD621 detector are designed for applications with standard vehicles and vans. For applications with trailers, trucks, and similar, please contact our Engineering Department.

What additional components should you quote to arm a complete system?

Step 1 Select a mast and installation kit

Octagonal arm without accessories 1601-555, requires an installation kit 1601-242.

Octagonal arm with reverse edge sensor 1601-555, requires an installation kit 1601-235 and a reverse edge sensor 8080-080.

Octagonal lighted arm with reverse edge sensor RED / GREEN 1601-555, requires installation kit 1601-235 and a lighted reverse edge sensor 8080-096

Octagonal arm with reverse edge sensor and breakaway system 1601-555, requires installation kit with breakaway system 1601-295 and a reverse edge sensor 8080-080

Octagonal lighted arm with reverse edge sensor RED / GREEN  and breakaway system 1601-555, requires installation kit with breakaway system 1601-295 and a lighted reverse edge sensor 8080-096

Step 2 Choose optional accessories.

Mass sensor DKS original 9410-010, requires magnetic loop SYSLM6

3-push button control for vehicle access applications XBSSW01

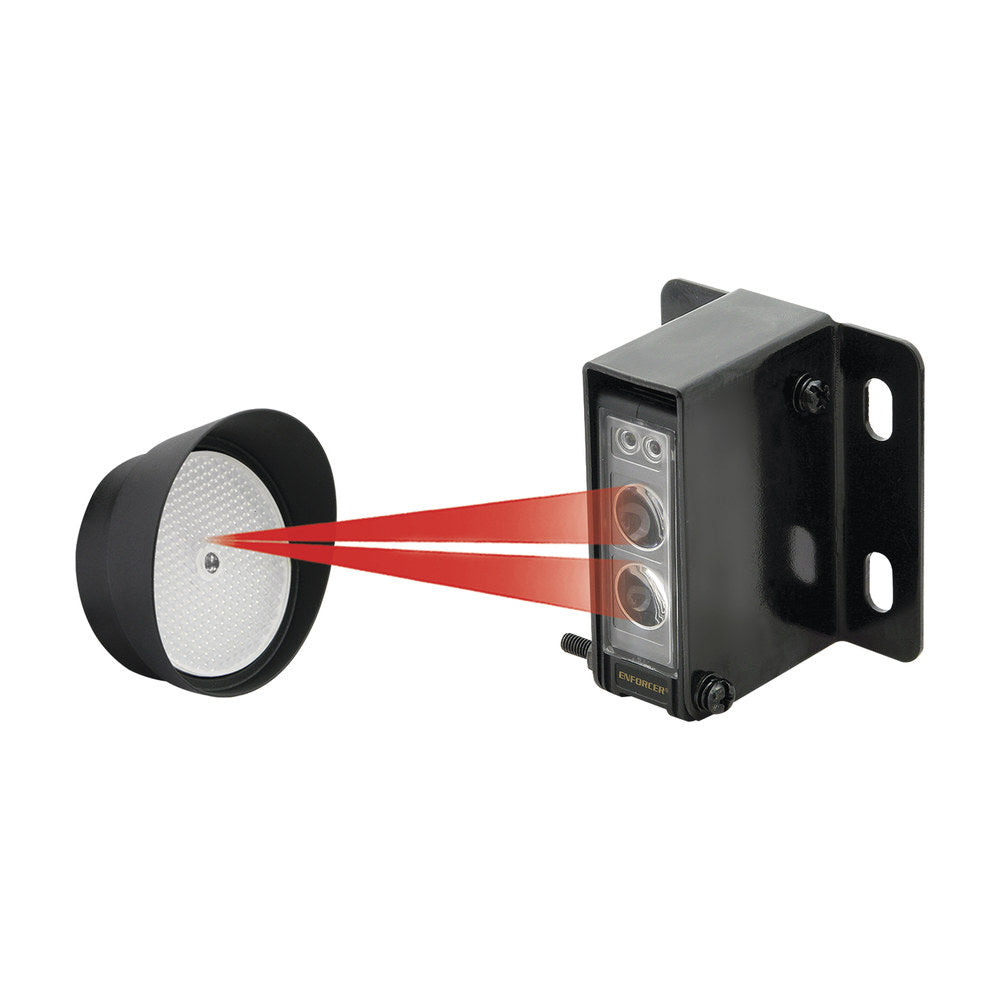

Photoelectric detector with 22 ft (7 m) range XBSRR7

Security laser for vehicle access applications 10LZR-H100-KIT19327

Traffic light for Doorking barriers 1603-222

Additional Notes and Recommendations

• All components and accessories are sold separately.
• Vehicle access devices require installation by certified personnel.
• The 5-year warranty applies to models 1601-080.
• The warranty specifically covers damage and/or malfunction resulting from a manufacturing defect in the product.
• Any damage caused by improper operation or installation invalidates the product warranty policy.
• Compliance with the UL325 standard requires the use of additional safety devices. For more information, you can consult the following link UL 325, Safety Standard.
• In order to ensure better protection against electric shock, it is necessary to connect an Earth line to the designated terminals on the vehicle barrier and add a line protection device against electric shock.

This is a credit-card-sized credential with RFID electronics built inside the card, including an integrated circuit and an antenna inside that can be printed for human-readable information using standard ISO card printers, which can be machine-read using very low-power wireless communications.

Having no power of its own, it can be read by card readers when it passes through the electromagnetic field produced in the proximity of the reader. The range depends on the antenna and field generated by the reader so the card will have different read ranges.

• Reliable and Interference-free – subjects carrying the card will not feel any interference when passing other electromagnetic objects
• Clamshell shape
• Strong, Flexible, and resistant to breaking –sturdy and robust, the card can even get wet and continue to function
• Photo ID Compatible – print directly, adding an image or thermal transfer print
• Read-Only – the printed number on the face of the card enables contactless reading by readers
• Pocket Size – enables users to carry it around with them comfortably
• Security – is known for its infinite number of reads
• Easily Identifiable –when the external card number is provided to the system administration

Print Availability:
• Printed Wiegand format ID and site code
• Printed Wiegand and Clock & Data

Specifications

Made of PVC for increased durability in everyday use.

• 26-bit format.

• Works in extreme temperatures from -35 to 65 ºC.

• Compatible with ROSSLARE readers and ACF44 and ACQ44 keyboards.

• Dimensions: 86 x 54 x 1 mm.

*Perforated Card

Note: This card cannot be printed due to its thickness. However, you can print a DIC-100091 adhesive and stick it onto the card.

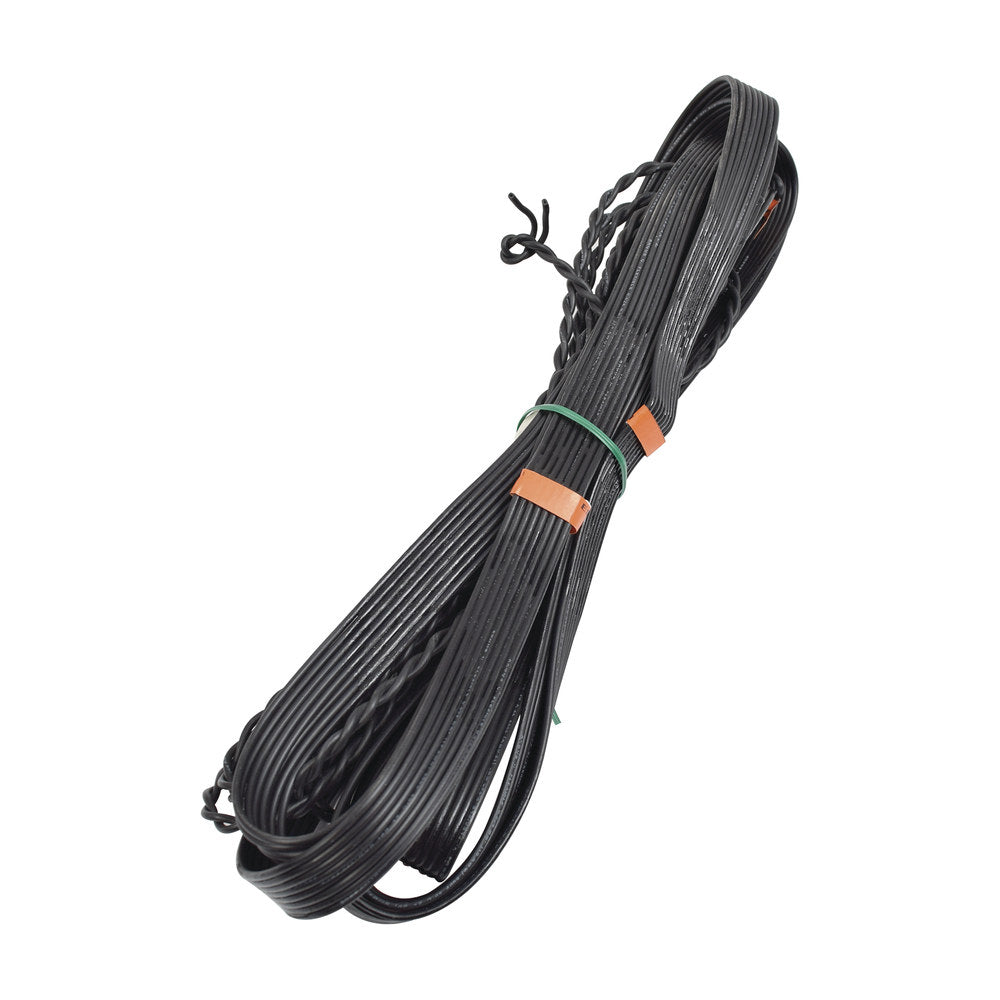

The SYSLM4 magnetic loop, together with metal mass detector model FJCD621, is a security device that prevents the barrier arm from going down if a vehicle is beneath it. It also sends the order to close the barrier once the vehicle has passed.

Note: The SYSLM6, SYSLM4 loops, and the FJCD621 detector are designed for applications with standard vehicles and vans. For applications with trailers, trucks, and similar, please contact our  Engineering Department.

Doorking Operation Videos

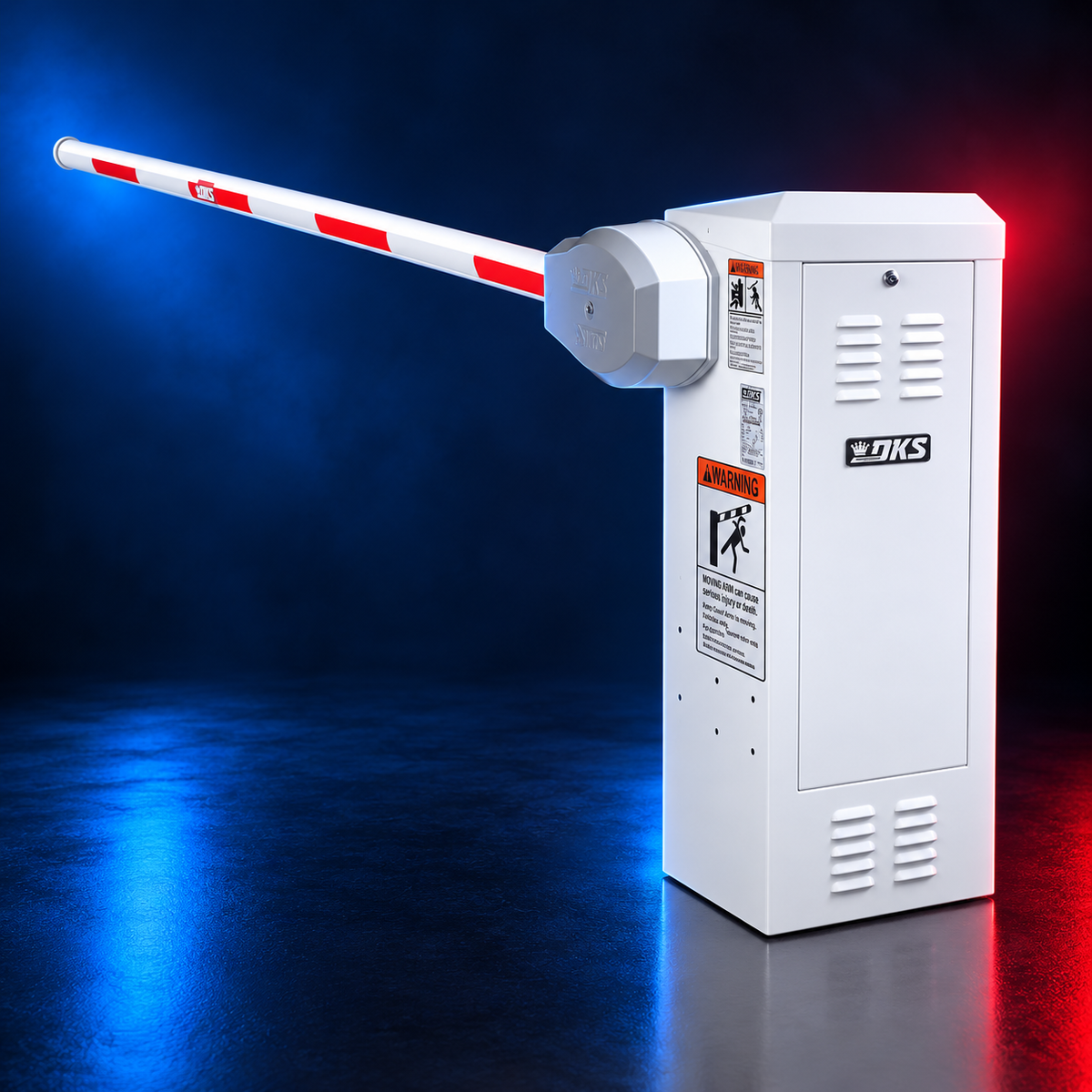

The new vehicle barriers Industrial By AccessPRO now include a new mechanism equipped with a digital encoder that allows the controller card to adjust electronically, achieving a fluid and precise movement.

Specifications:

• Maximum arm length: 18.04 ft (5.5 m) (not included)
• Aperture speed: 6 seconds
• Consumption: 250W
• Semi-intensive use.
• Operating temperature: -40 ~ 158°F (-40 ~ 70 °C)
• Relative humidity: < 90%
• Operating voltage: 110 Vac

Compatible masts:

• XBTELESCARM .- allow the installer to change the length of the arm between 13 to 18 ft without cutting the arm (no light).
• XBSARM .- Illuminated straight boom barrier (16 ft).

Arms sold separately and the application should be considered.

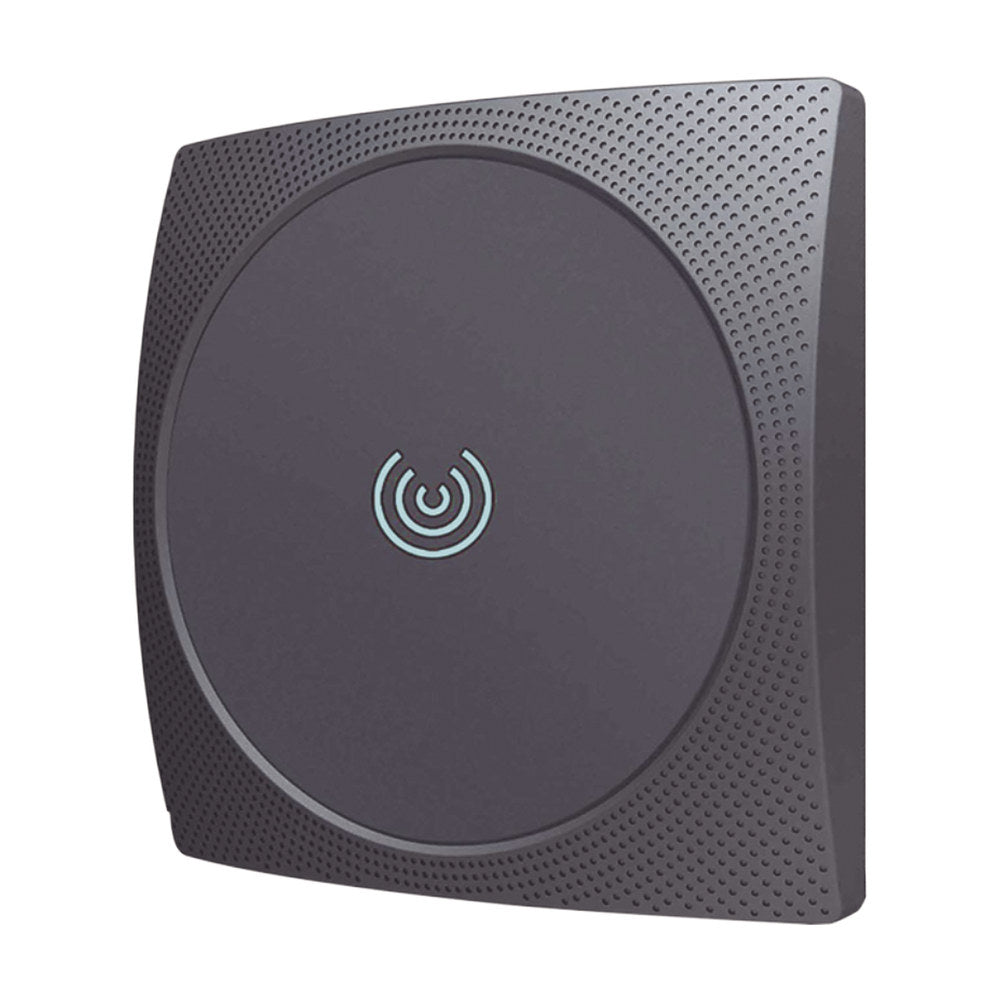

• For Outdoors.
• Output Wiegand 26 bits.
• Audible Sound.
• ABS Plastic.
• Compatible with ACCESS-PROX-CARD, ACCES-ISO-CARD & ATR261B0 cards.
• Requires 5 cables 22 gauge (120 m max).
• Operating Frequency 125 kHz.
• Dimensions: 3.38" x 3.38" x 0.62" (86 x 86 x 16 mm).


Card Holder for Vehicle Windshield

The ACCESS-HOLDERA is a card holder designed for vehicle access control applications. Manufactured in transparent ABS plastic, it enables visual identification of the enclosed card while providing secure retention. The unit includes suction cups for attachment to vehicle windshields, facilitating hands-free proximity reading at entry points. Its compact form factor accommodates standard card formats commonly used in parking and fleet management systems.

Main Features

• Compatible with ACCESSCARDEPC and PROCARDX card formats
• Transparent ABS plastic construction for visual card identification
• Includes suction cups for windshield mounting
• Compact dimensions: 90 x 57 x 5 mm
• Secure card retention for vehicular environments

*Card not included. Image shown is for illustrative purposes only.

NOTE: Consider an armrest XB-POST for 13 ft arms or longer to avoid early damage to the mechanism.

What accessories do I need for the installation?

Step one: Select your lane arm according to the application.

XB-TELESC-ARM Telescopic arm, non-illuminated, adjustable arm length from 13 to 18 feet, compatible with break away system XBA-DROP-ARM

XBS-ARM 18 feet illuminated arm RED/GREEN, requires additional power source PS-12-DC-4C

Step two: Safety and installation accessories.

XB-ANCLA Fixing anchor for AccessPRO barriers

XB-POST Lane arm-rest post, necessary for arms longer than 13 feet.

XBS-SW-01 3-push button control station for barriers and motors.

XBS-IR33 Security infrared photocell with up to a 10 meter range

XB-DLP-1101 Mass sensor in a channel, requires power source PL-DC-1000 and a magnetic loop SYS-LM8

XBS-RDA06 Radar for AccessPRO barriers with a 6-meter range.

XB-REC2 Wireless receiver for 400 controls (adding a button per channel), compatible with transmitters XBT-23 keyfob control, XBT-18-BC control with visor cllip, and XB-WT-01 wall type control.

10LZR-H100KIT-19327 Laser sensor for security with a range of  9.6 x 9.6 meters, replace magnetic loops

PRO-LIGHT-LED Green/Red traffic light, requires mounting XB-ML.

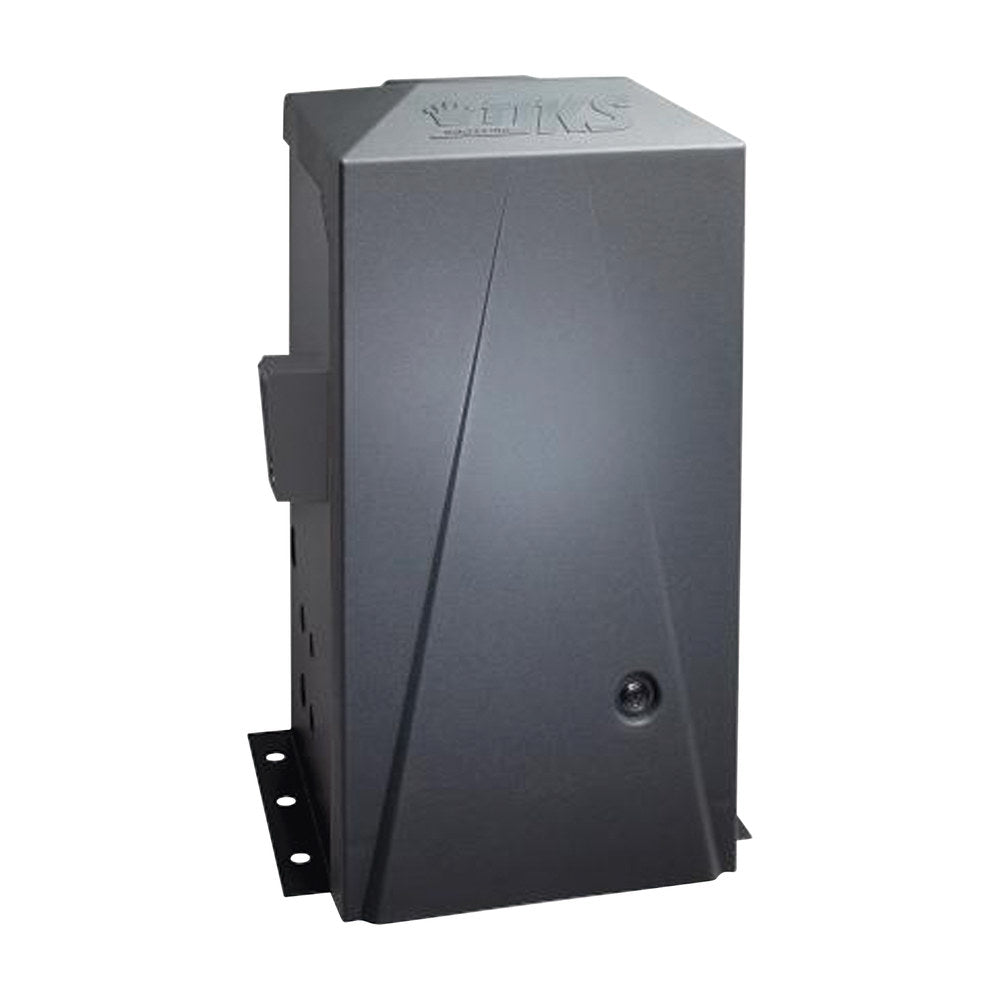

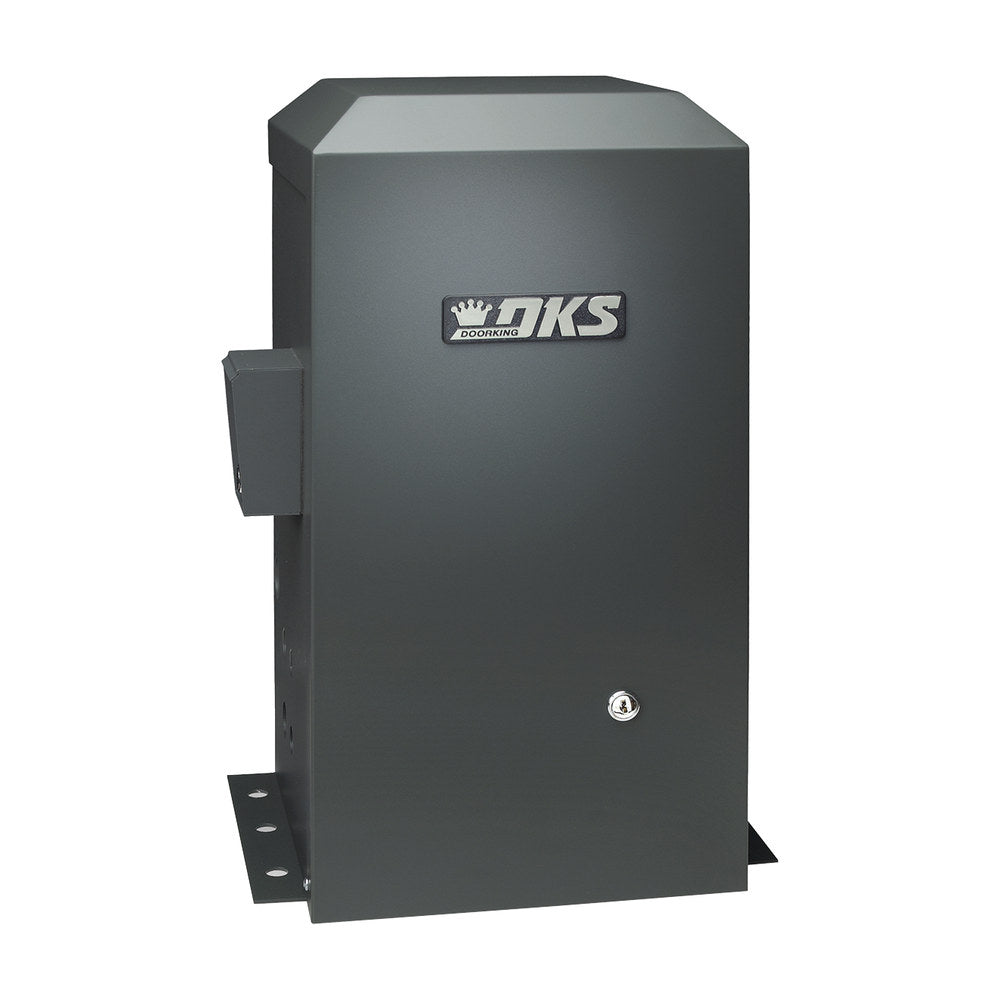

DKS 9050 Slide Gate Operator provides durability through high-cycle usage, all in a solid design. The innovative fail-safe design of these operators significantly reduces the chance of injury or entrapment and makes these operators the safest residential Slide Gate Operator in the market today.

Features:

• Self-adjusting, no maintenance magnetic limits.
• Ports for plug-in loop detectors.
• Two convenience outlets.
• Fail-safe release (fail-secure optional).
• Programming switches.
• Built-in reset switch.
• Built-in power On/Off switch.

Specifications:

• Maximum gate length 16-feet.
• Maximum gate weight 500 pounds*. (*Assumes gate is on level ground, in good condition, with properly adjusted hardware.   Other external factors may affect the performance of the gate operator.)
• 1/2 HP limited-duty motor.
• 115 VAC, 4.3 Amps.
• Class I applications.
• Compliant with UL 325 and 991.  ETL Listed.  (Note: To comply with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices must be installed with this gate operator.  Your professional DKS system installer can provide you with more details on these devices and current industry safety standards.)
• 12"W x 24"H x 11.5"D

Compatible with: PR233, PR234, AYK12, AYH12, AYK25, AYF64, SYSKR600E, SYSKR601E, SYSKR600M, SYSKR602EKB; and standalone readers ACF43, ACF44, ACQ44, 9325I, 9325E.

• Allows free passage of 0-gauge wire.

• Color: black.

• Sheet gauge: 14 and 18.

• Cover mounting with screws.

• The cable outlet at the bottom (floor).

• Dimensions: 4.56 X 43 X 8.74" (116 x 1092 x 222 mm)

• Weight: 8.37 lb (3.8 kg)
