The SYSLM6 magnetic loop together with metal mass detector model FJCD621 is a security device that prevents the barrier arm to go down if a vehicle is beneath it. It also sends the order to close the barrier once the vehicle has passed.

Note: The SYSLM6, SYSLM4 loops and the FJCD621 detector are designed for applications with standard vehicles and vans. For applications with trailers, trucks, and similar, please contact our Engineering Department.

The SYSLM4 magnetic loop, together with metal mass detector model FJCD621, is a security device that prevents the barrier arm from going down if a vehicle is beneath it. It also sends the order to close the barrier once the vehicle has passed.

Note: The SYSLM6, SYSLM4 loops, and the FJCD621 detector are designed for applications with standard vehicles and vans. For applications with trailers, trucks, and similar, please contact our  Engineering Department.

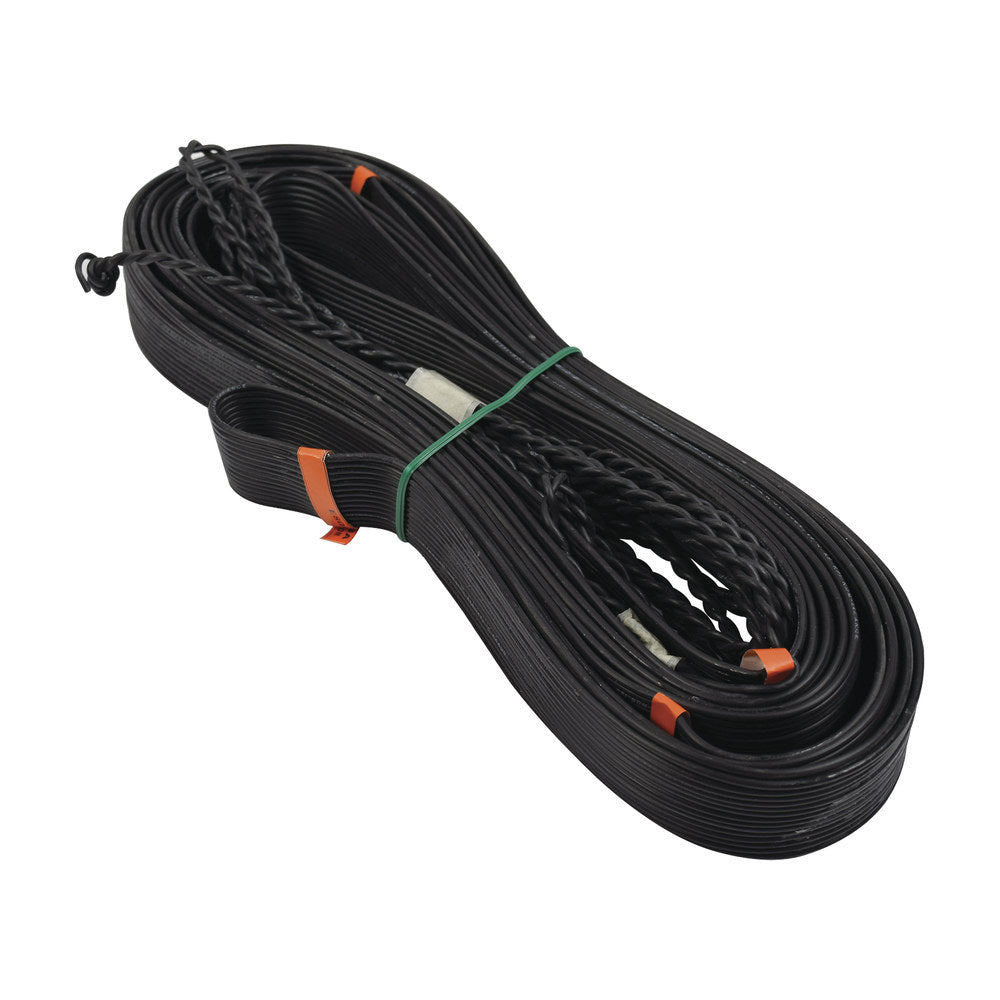

The SYSLM8 magnetic loop, in conjunction with the 10MATRIXD1224 Metal Mass Detector, is a safety device that prevents the barrier arm from going down if a vehicle is found underneath it. It is also responsible for sending the closing order to the barrier once the vehicle has passed.

*Requires mass sensor model 10MATRIXD1224
Dimensions: 4.92 x 4.92 x 1.64 ft (1.5 x 1.5 x 0.5 m)

3 Button Control Box for Vehicle Barriers

Ideal for vehicular barriers, sliding motors, and swing motors.

Features:

• Operating temperature: -4 ~ 122 °F(-20 ~ 50 °C)
• Protection grade: IP40
• Dimensions: 2.6" x 5.1" x 2.0" (68x131x51 mm)
• Button stop COM, NC/NO.
• Open and close buttons COM, NO.
• Screw-type terminals.
• 1-year warranty.

Doorking Operation Videos

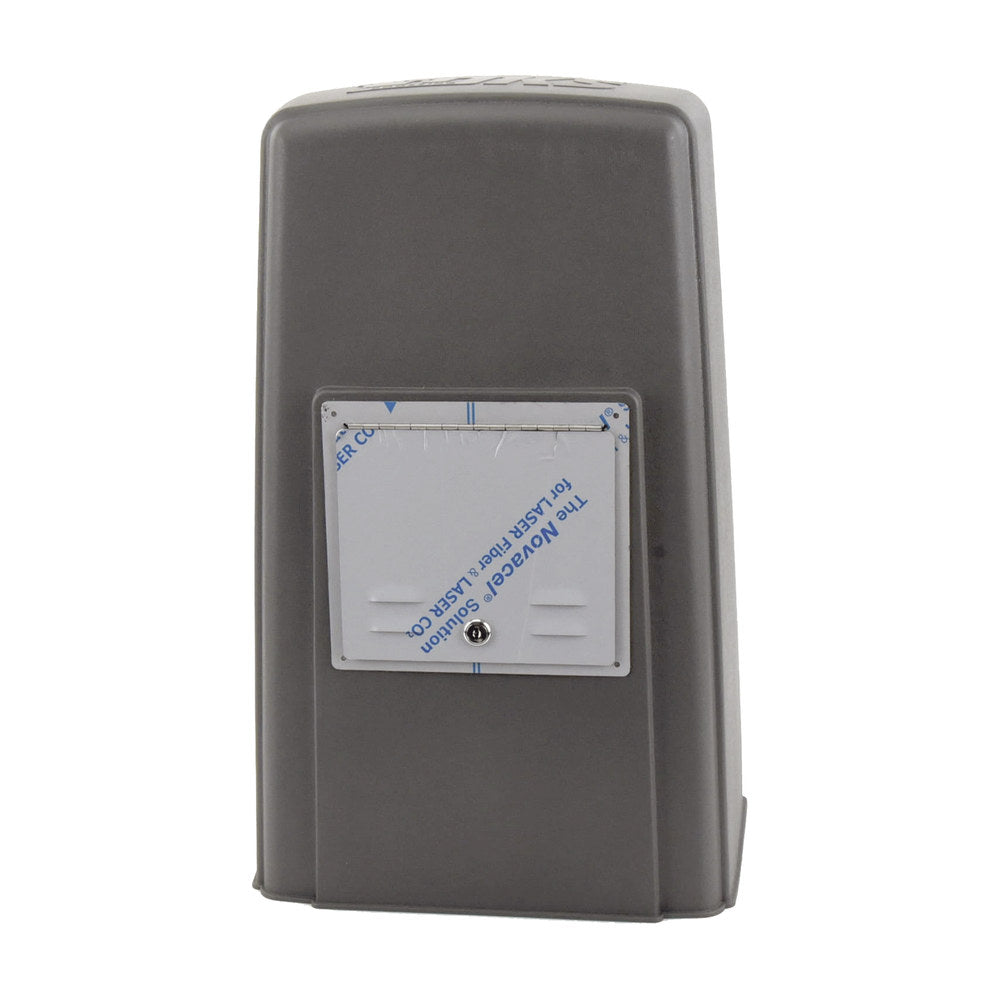

DKS 9050 Slide Gate Operator provides durability through high-cycle usage, all in a solid design. The innovative fail-safe design of these operators significantly reduces the chance of injury or entrapment and makes these operators the safest residential Slide Gate Operator in the market today.

Features:

• Self-adjusting, no maintenance magnetic limits.
• Ports for plug-in loop detectors.
• Two convenience outlets.
• Fail-safe release (fail-secure optional).
• Programming switches.
• Built-in reset switch.
• Built-in power On/Off switch.

Specifications:

• Maximum gate length 16-feet.
• Maximum gate weight 500 pounds*. (*Assumes gate is on level ground, in good condition, with properly adjusted hardware.   Other external factors may affect the performance of the gate operator.)
• 1/2 HP limited-duty motor.
• 115 VAC, 4.3 Amps.
• Class I applications.
• Compliant with UL 325 and 991.  ETL Listed.  (Note: To comply with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices must be installed with this gate operator.  Your professional DKS system installer can provide you with more details on these devices and current industry safety standards.)
• 12"W x 24"H x 11.5"D

What do I require for a Door installation?

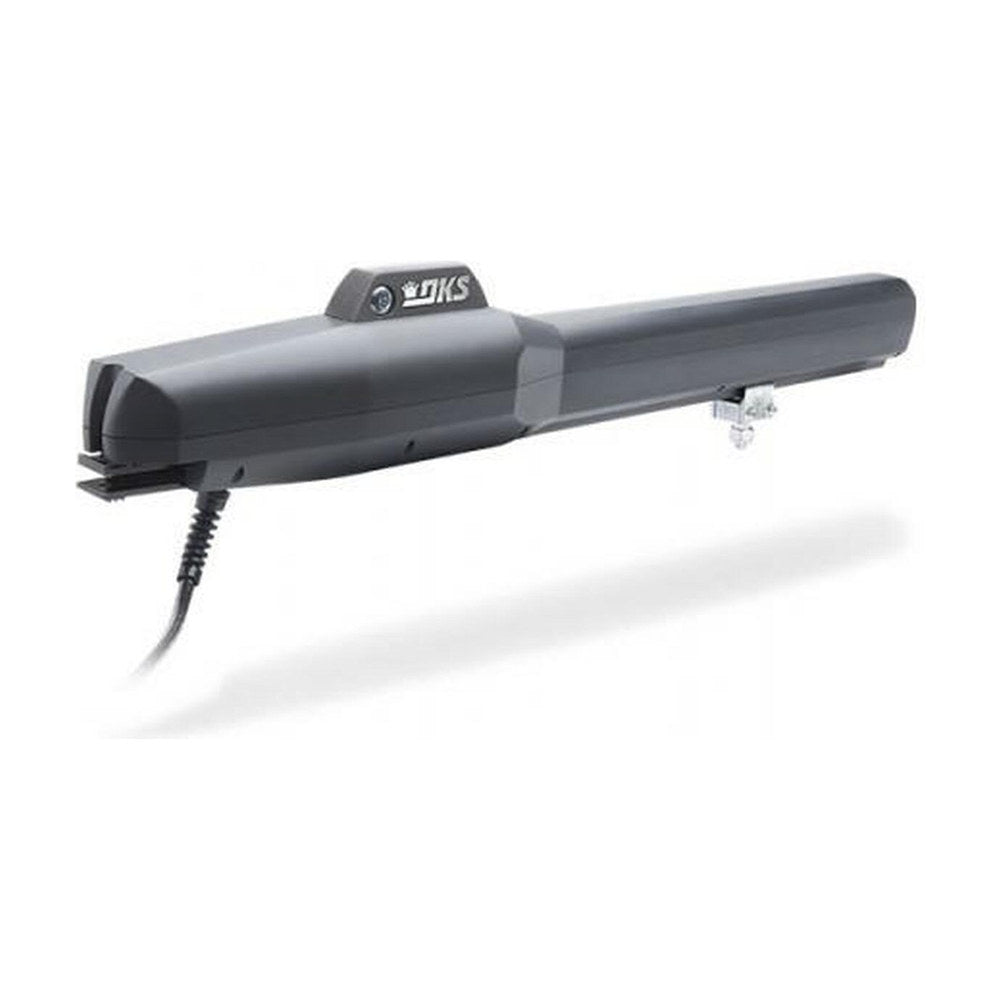

6006-380 Doorking operator for swing doors

4302-311 Control panel for operators 6006

Optional Accessories:

XBS-SW-01 3-push button heavy-duty control station
