AccessPRO Industrial
Chain-Sliding gate motor / 1700 Lbs (800 Kg) / Brushless motor / Automatic closing / Self-learning limit switches
$612.99
370W Motor 230V/110V 50/60Hz 1400 RPM 3,000 Hr Service Life Up to 10 Cycles/Hr
Motor + Chain Drive
A sealed AC motor pulls the gate along a steel roller chain for smooth, repeatable motion, cycle after cycle.
| Power of motor | 370W |
| Motor rotational speed | 1,400 rpm |
| Current draw | 5A / 8A |
Auto-Closing & Safety Inputs
Set an adjustable close delay and wire in a push button, photocell, and flash lamp straight to the built-in control board — no extra controller to buy.
| Auto-close delay | Adjustable timer |
| Safety terminals | Push button / Photocell / Flash lamp |
| Thermal protection | 248°F cutoff |
Main Features
- Maximum door weight: 1,764 lb (800 kg)
- Built-in control board included
- Adjustable automatic close
- Auto-learning limit switches
Electric Features
- Power supply: 230V/110V 50/60Hz
- Power consumption: 5A / 8A
- Power of motor: 370W
- Thermal winding protection: 248°F
Additional Features
- Motor service life: 3,000 hrs
- Roller chain sold separately (XBSC01)
- CE Certified · ISO-certified manufacturing
XBS-CAN-AC-800(C)
A chain-drive sliding gate operator built for homes, small private parking lots, and commercial or light-industrial entrances that need daily, reliable cycling.
- Weight: 33 lb
- Operating temperature: -4°F to 131°F, thermal protection included
- Service life of the motor: 3,000 hrs
- Maximum cycles per hour: 10 (based on a 2-minute full cycle)
- Supports up to 5 wireless transmitters — 2 remotes included
/XBSCANAC800(C)-frente-h.png)
Where does it fit?
Rated for gates up to 1,764 lb (800 kg), the XBS-CAN-AC-800(C) covers everyday residential use and steps up to light-commercial and industrial entrances.
Residential Driveway
Daily, quiet cycling for a home or small private property gate.
Private Parking Lot
Built-in control board handles frequent open/close cycles.
Gated Community
Add a photocell and flash lamp input for safer shared access.
Industrial / Commercial Yard
Up to 1,764 lb capacity for heavier commercial-grade gates.

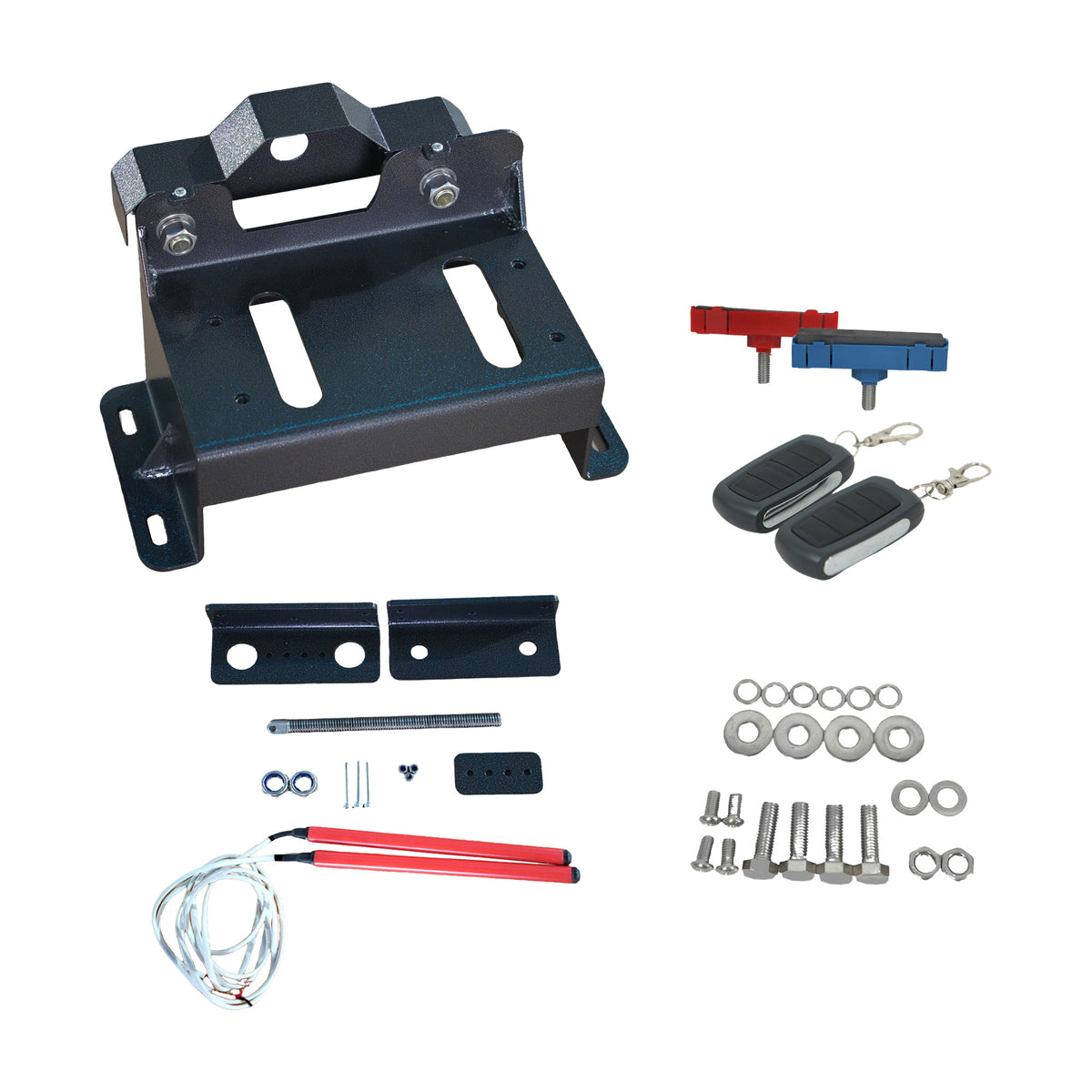

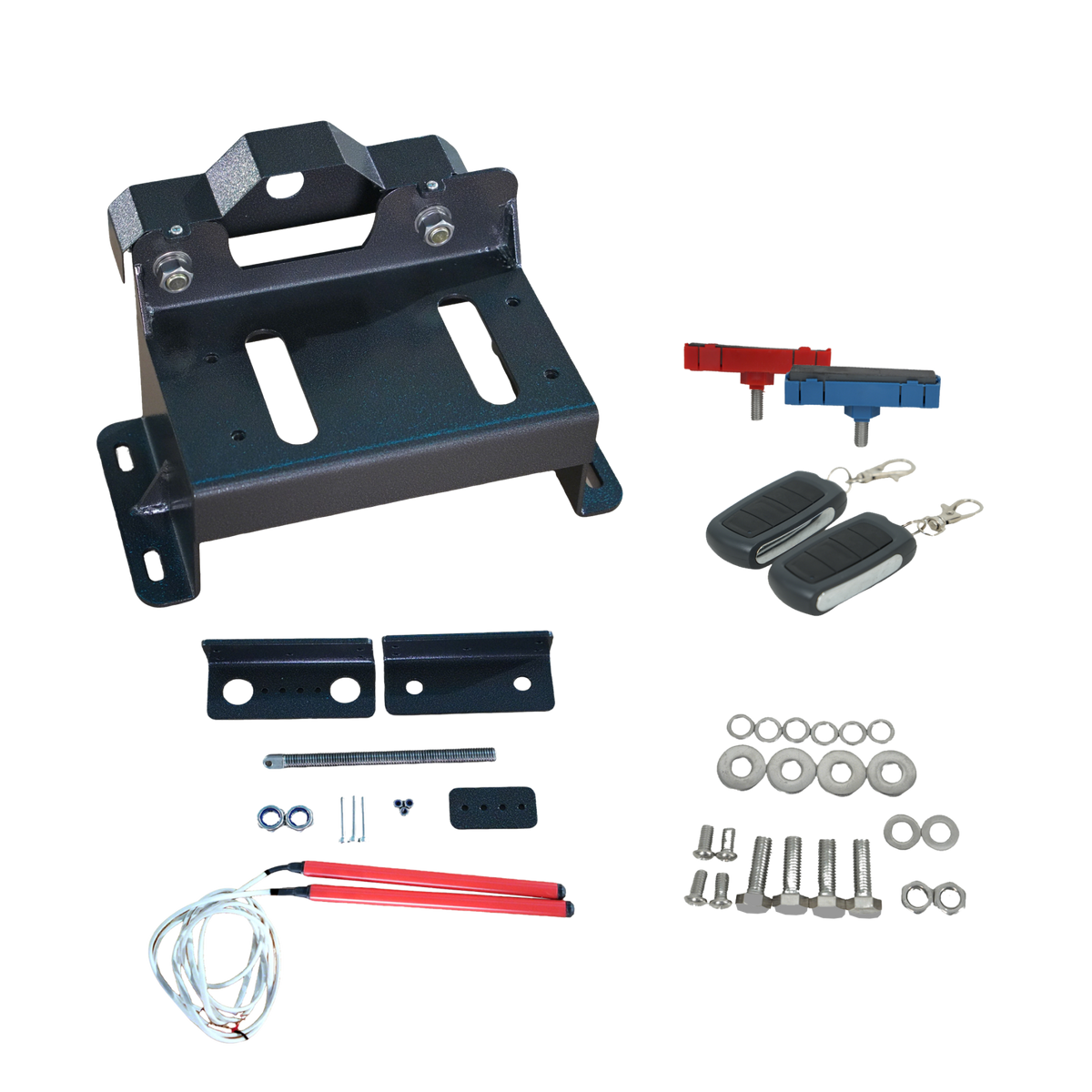

Requires & optional accessories
The steel roller chain is sold separately — quantity depends on your gate length. Add these AccessPRO accessories to round out the installation.
*The estimated gate weight includes the gate leaf plus its hardware. The system supports a maximum of 5 wireless remotes (one button per remote). For more remotes, add an XB-REC2 wireless receiver (400 remotes per receiver maximum).
Dimensions
Overall footprint approx. 16.8 in L × 7.6 in W × 12.7 in H. Weight: 33 lb.

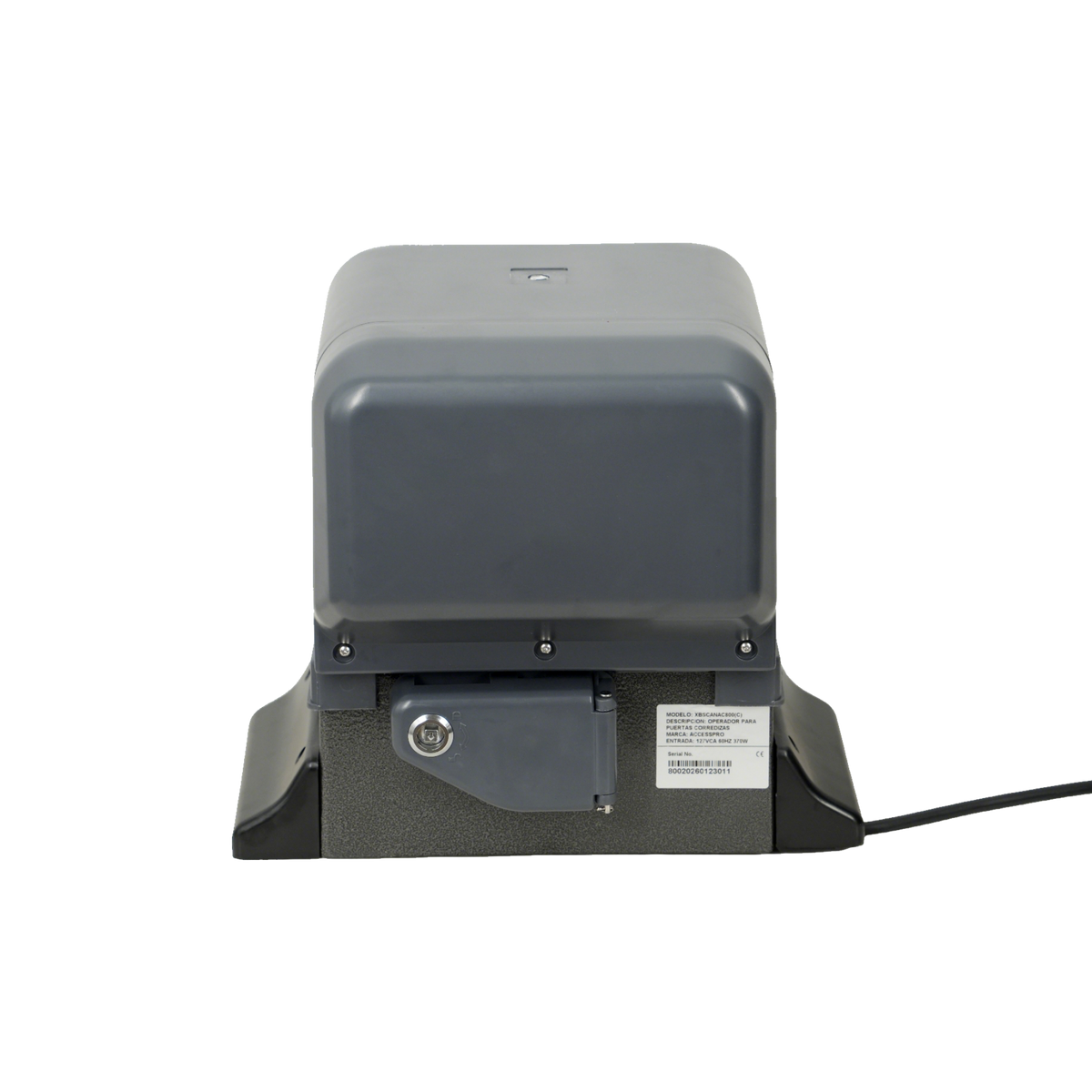

| Front view | |
| Overall height | 12.7 in |
| Height to mounting bracket | 8.2 in |
| Height to center mounting hole | 5 in |
| Top view | |
| Overall length | 16.8 in |
| Motor body length | 15.2 in |
| Overall width (incl. mounting flanges) | 7.6 in |
| Motor body width | 4.9 in |
Full specifications
| Motor & Power | |
| Description | AC Motor |
| Power supply | 230V/110V 50/60Hz |
| Power of motor | 370W |
| Current | 5A / 8A |
| Motor rotational speed | 1,400 rpm |
| Thermal protection (motor winding) | 248°F cutoff |
| Gate & Performance | |
| Max. weight of gate | ≤ 1,764 lb (800 kg) |
| Motor service life | 3,000 hrs |
| Max. cycles per hour | 10 (approx. 2 min per full cycle) |
| Auto-closing | Yes, adjustable time delay |
| Limit switches | Auto-learning |
| Control & Wireless | |
| Control board | Built-in |
| Safety terminals | Push button, photocell, flash lamp |
| Wireless transmitters | Supports up to 5 · 2 included |
| Physical | |
| Weight | 33 lb |
| Overall dimensions (approx.) | 16.8 in L × 7.6 in W × 12.7 in H |
| Working environment | -4°F ~ 131°F |
| Certifications | CE · ISO-certified manufacturing |
Specifications sourced from the manufacturer's official datasheet. The working-environment range shown here corrects an evident misprint in that document (originally listed as -184°F). Subject to change without notice — please refer to the actual product received.
See it in action
Ready to move this gate operator off the shelf?
Request your XBS-CAN-AC-800(C) quote — on its own or bundled with the roller chain and safety accessories — backed by 1 year of warranty with Epcom.
