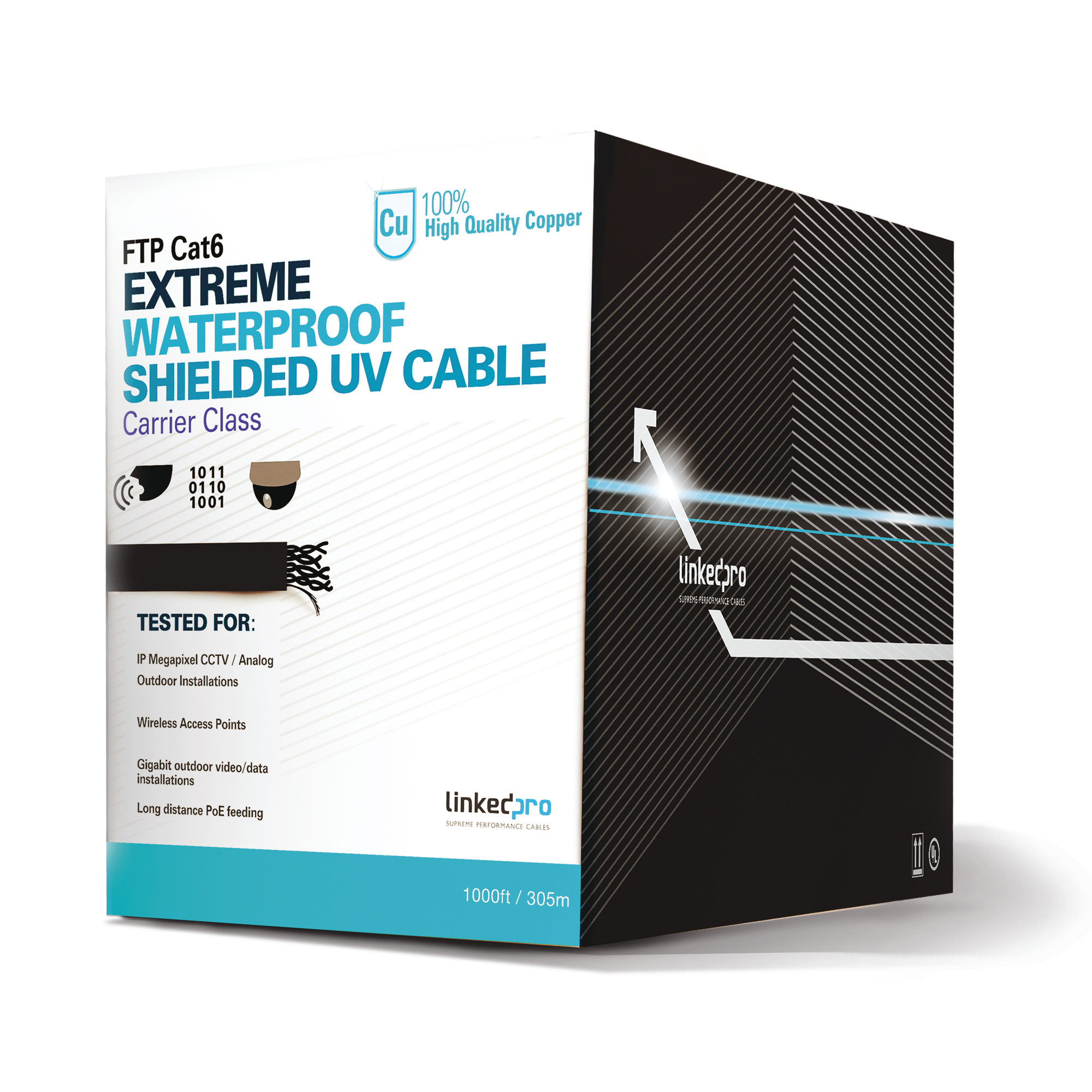

Key Features

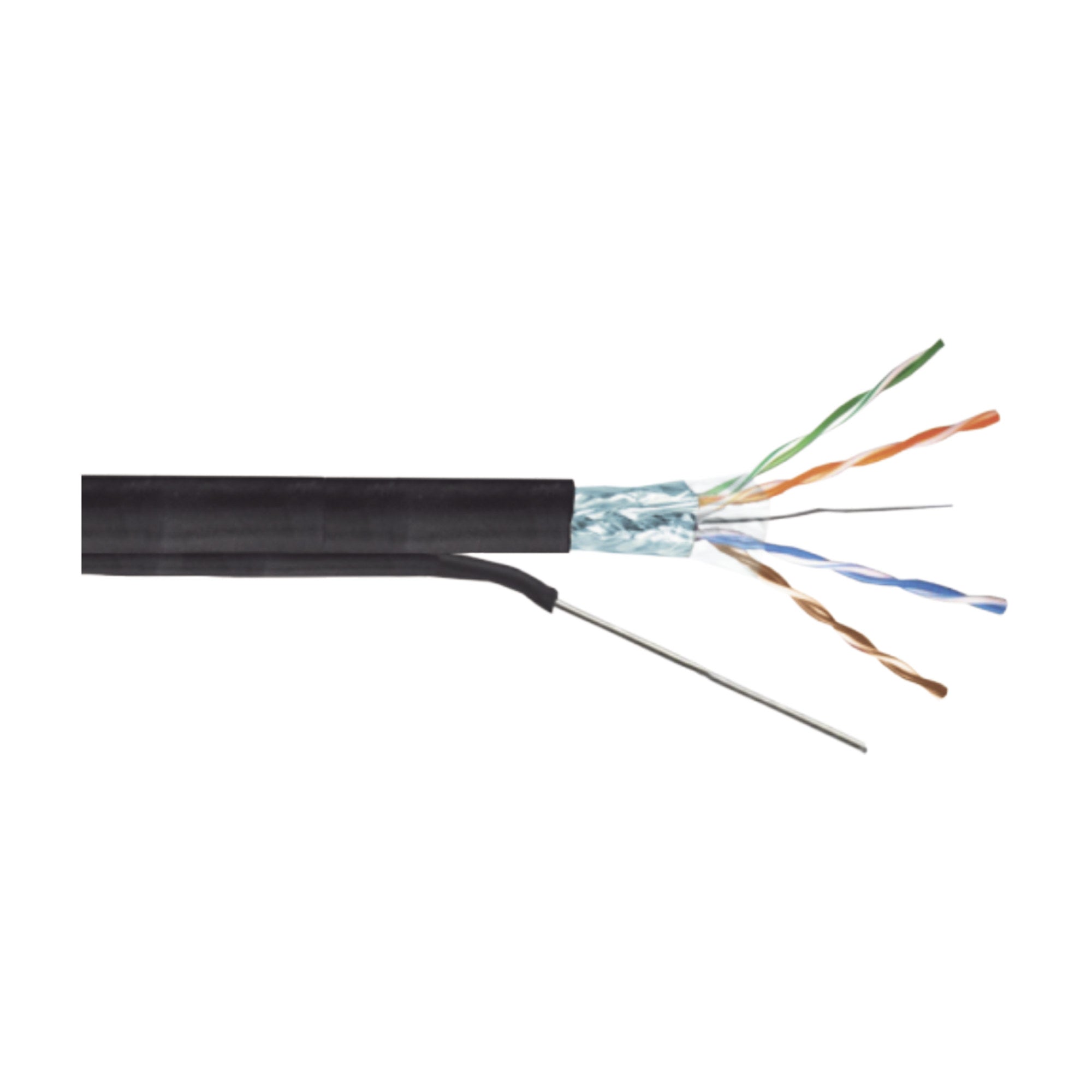

• Shielded: (Aluminized Polyester) High Power Protection against interference
• Gigabit voice and data installations
• Capable of sending PoE over long distances
• Length: 1000 ft (305 m)
• High-quality PVC insulation
• Ideal for Fast Ethernet and Gigabit data

Technical Specs

• Conductor: 100% Solid Pure Copper
• Outdoor Use: CMX and UV Rated jacket
• Color: Industrial Black
• Outer Diameter: 0.29" (7.5 mm)
• Test Frequency: 250 MHz

Compliance

• UL Listed: E488955
• ANSI/TIA 560-2 Standards
• ISO/IEC 11801-2Ed
• CENELEC EN compliant
• RoHS Compliant

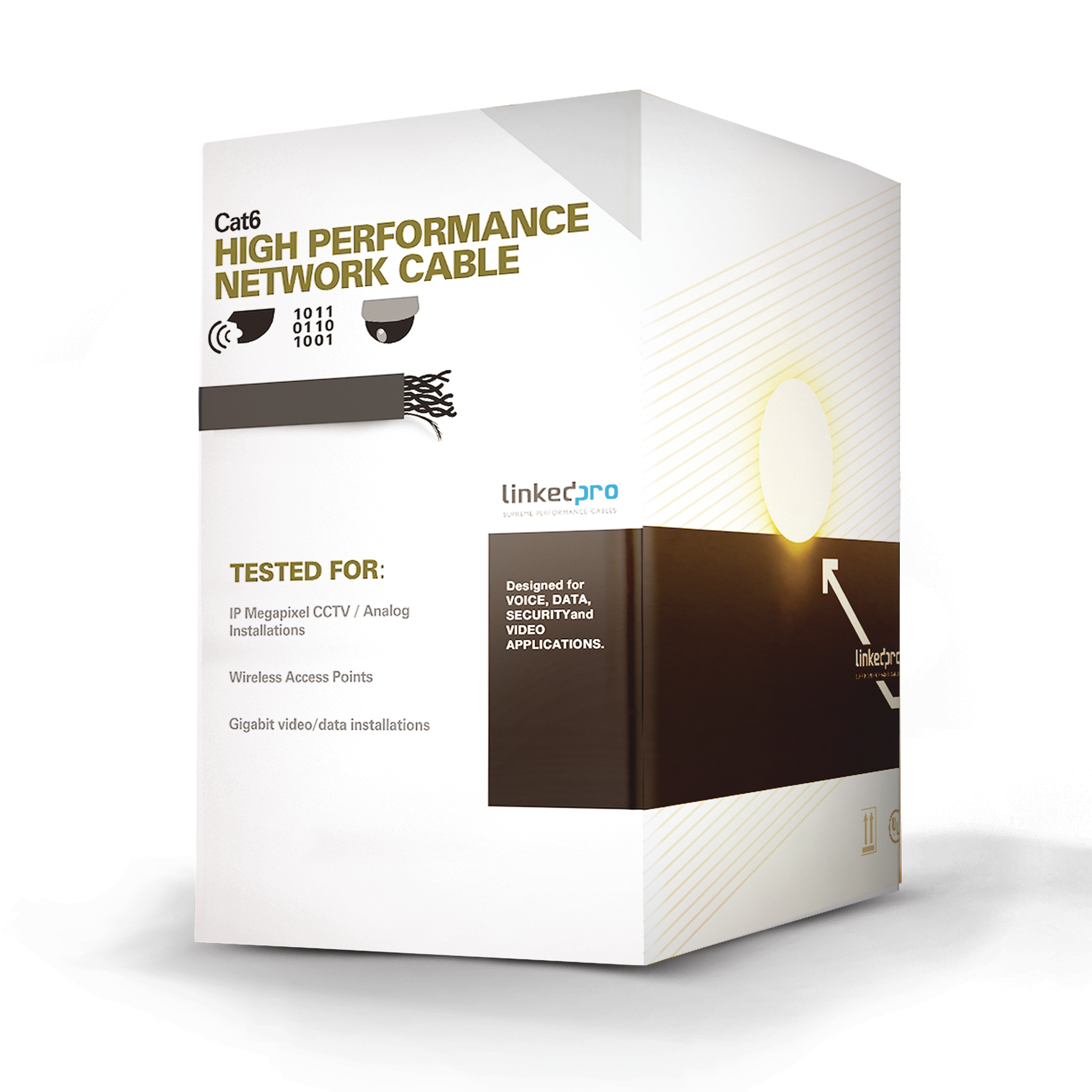

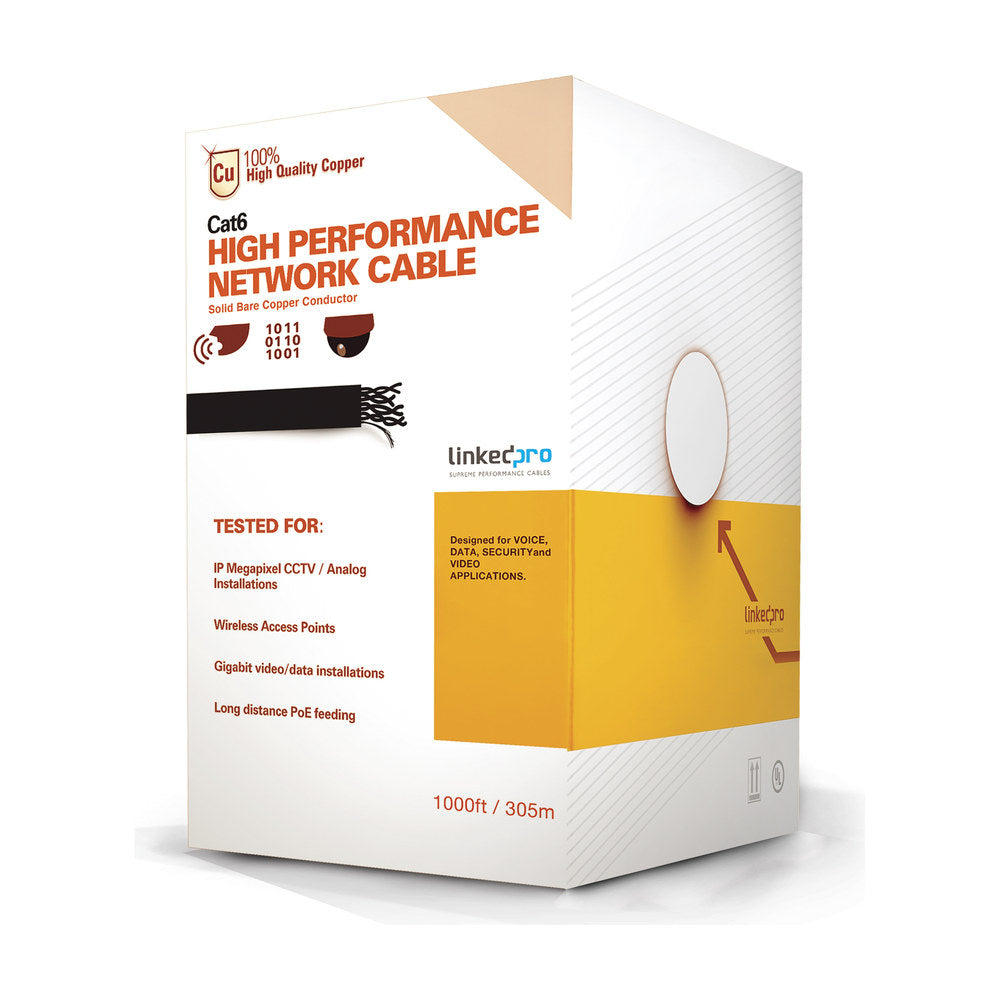

Why Choose PRO-CAT-6B?

• CCTV Optimization: Specifically designed for IP Megapixel and high-resolution Analog installations.
• Reliable Data Flow: Supports Gigabit video and data applications for modern business networks.
• High-Speed Infrastructure: Optimized for Wireless Access Points and high-speed Local Area Networks.
• Superior Engineering: Features 4-pair cable lay up with high-density Polyethylene insulation.

Construction Details

Electrical & Compliance

• Standards: ANSI EIA/TIA 568 B.2, ISO/IEC 11801.
• Flame Resistance: IEC 60332-1 rated for safety.
• Propagation Speed: Approximately 67% nominal velocity.
• Voltage Rating: 1000 V DC test voltage.
• Operating Range: -4°F to +140°F (-20°C to +60°C).

Fluke Networks Certified - PASS

Verified performance with a 9.0 dB NEXT Headroom margin. Compliant with TIA Cat 6 Channel standards.

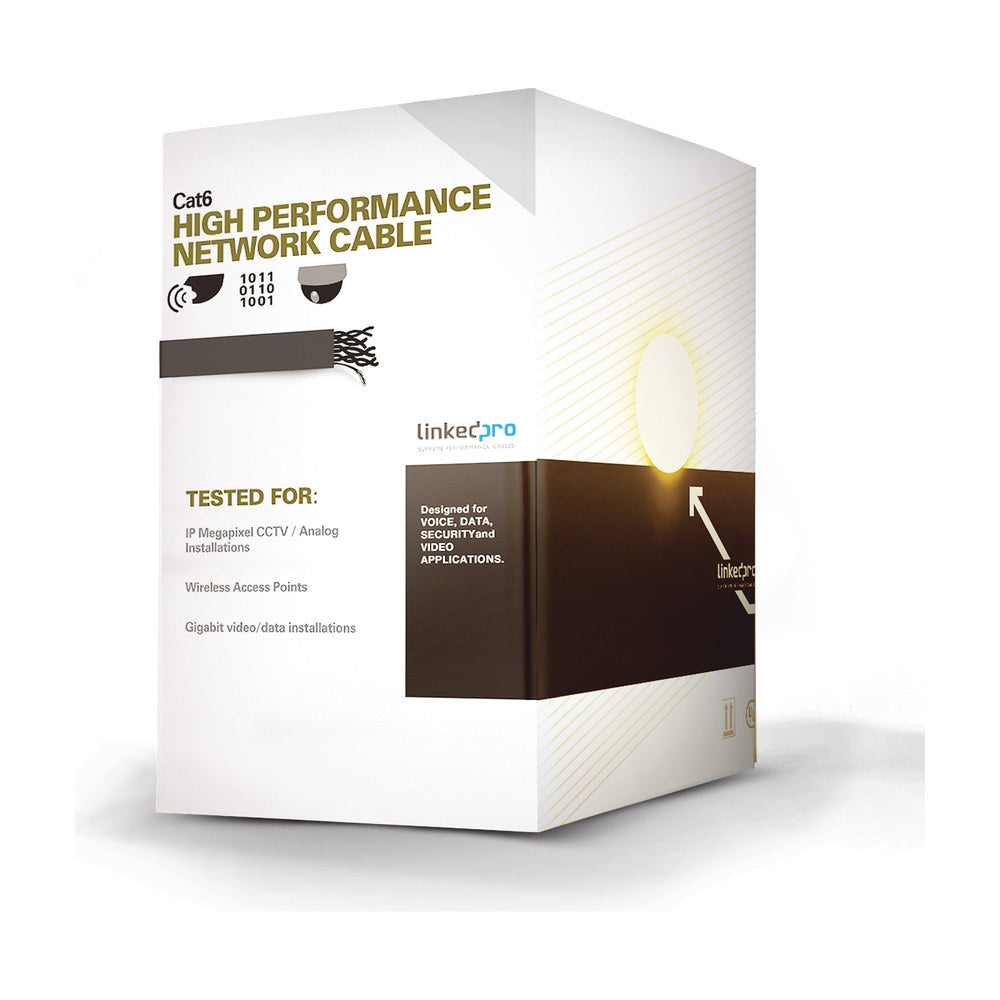

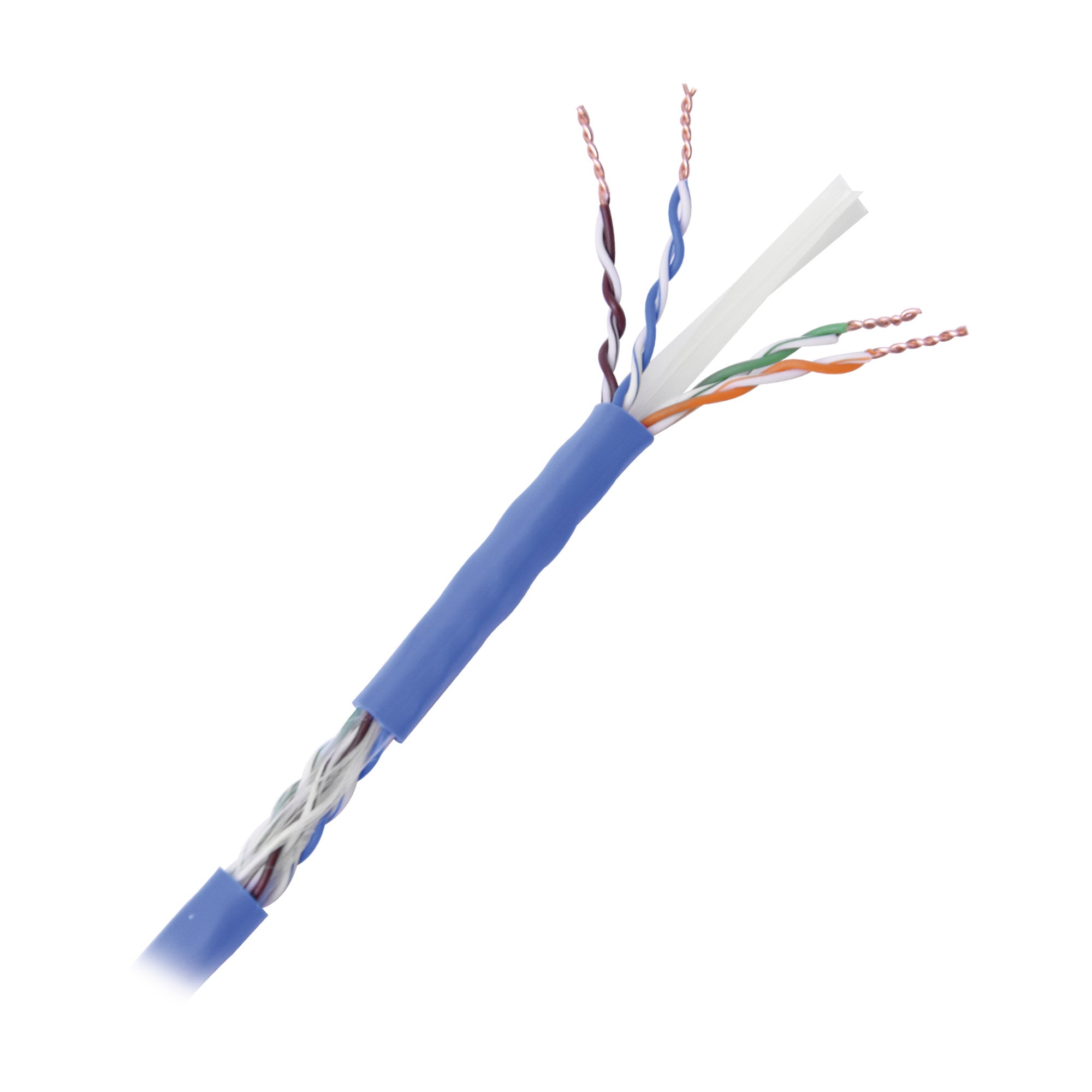

Key Features

• Gigabit voice and data installations
• Designed for high-speed Fast Ethernet and Gigabit data applications
• Megapixel IP video surveillance deployment
• Analog video infrastructure facilities
• High-speed Local Area Networks (LAN)
• Wireless network integration backhauls

Technical Specs

• Conductor: 100% Pure Solid Copper
• Environment: Indoor installations (CM rated)

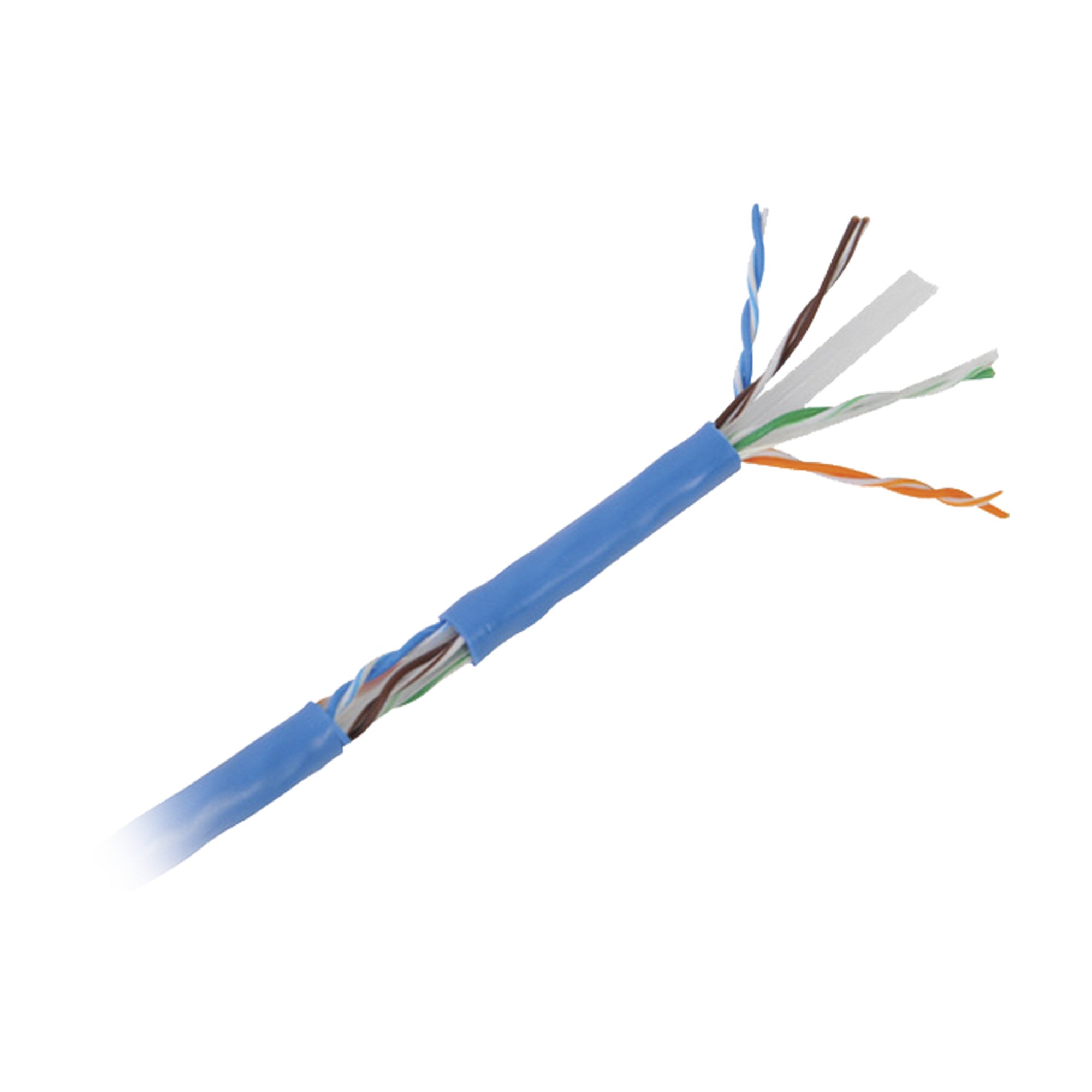

• Jacket Color: Professional Blue
• Wire Gauge: 23 AWG
• Outer Diameter: 0.24" (6.1 mm)
• Test Frequency: 250 MHz

Compliance

• UL Listed: E488955
• ANSI / TIA-568-C.2 Standards
• ISO / IEC international standards
• CENELEC EN compliant
• RoHS Compliant

Key Features

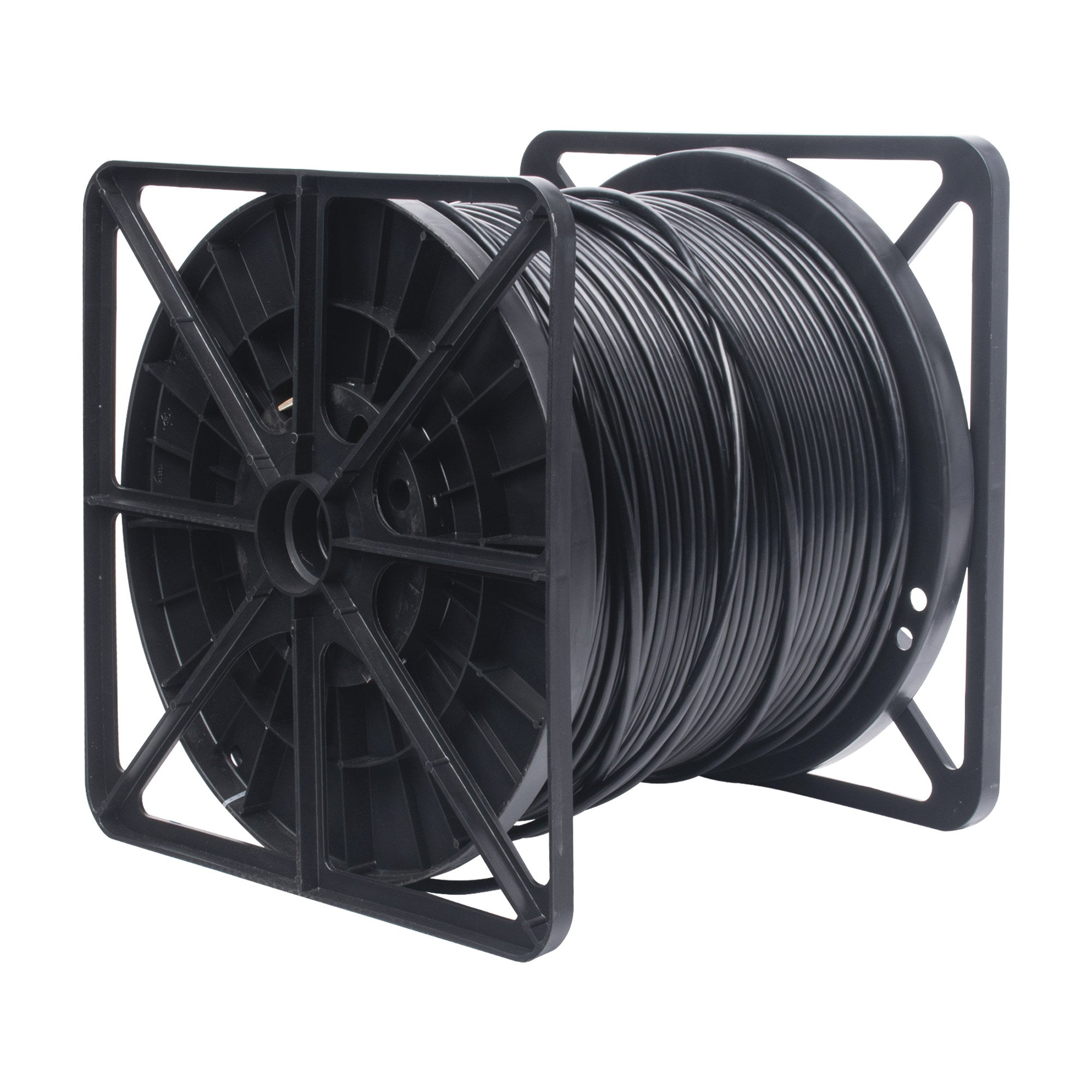

• Easy-Pull Deployment: Features an "Internal plastic spin reel" for effortless installation and smooth deployment.

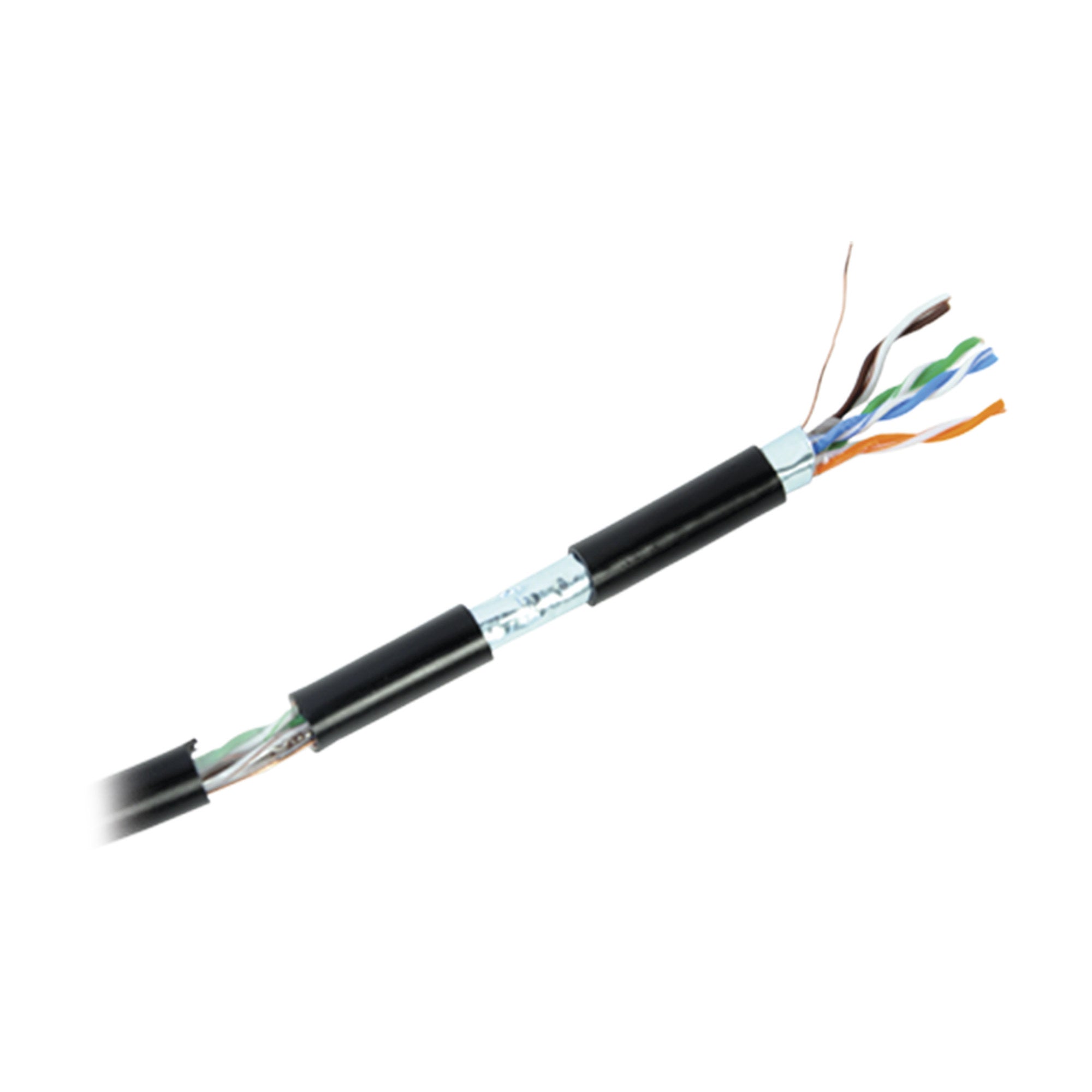

• Shielded (Aluminized Polyester) jacket provides high-power protection against interference.
• Optimized for high-speed Gigabit voice and data applications.
• Capable of extending PoE (Power over Ethernet) over long distances.
• Length: 1000 ft (305 m) box.
• Ideal for standard Fast Ethernet and Gigabit networks.

Technical Specs

• Conductor: 100% Solid Pure Copper
• Environment: Outdoor use (CMX and UV Rated)
• Insulation: Premium durable PVC
• Jacket Color: Black
• Outer Diameter: 0.29" (7.5 mm)
• Test Frequency: 250 MHz

Compliance

• UL Listed: E488955
• ANSI/TIA 560-2 Standards
• ISO/IEC international standards
• CENELEC EN compliant
• RoHS Compliant

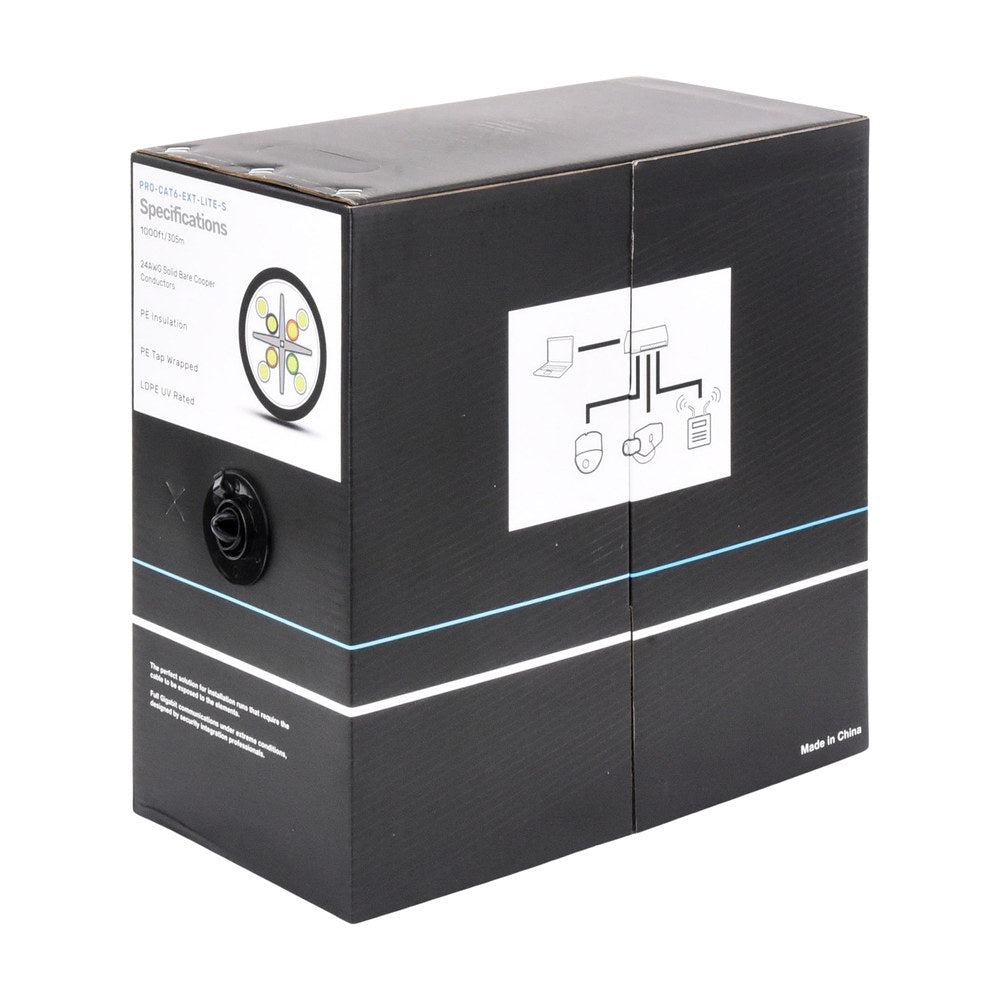

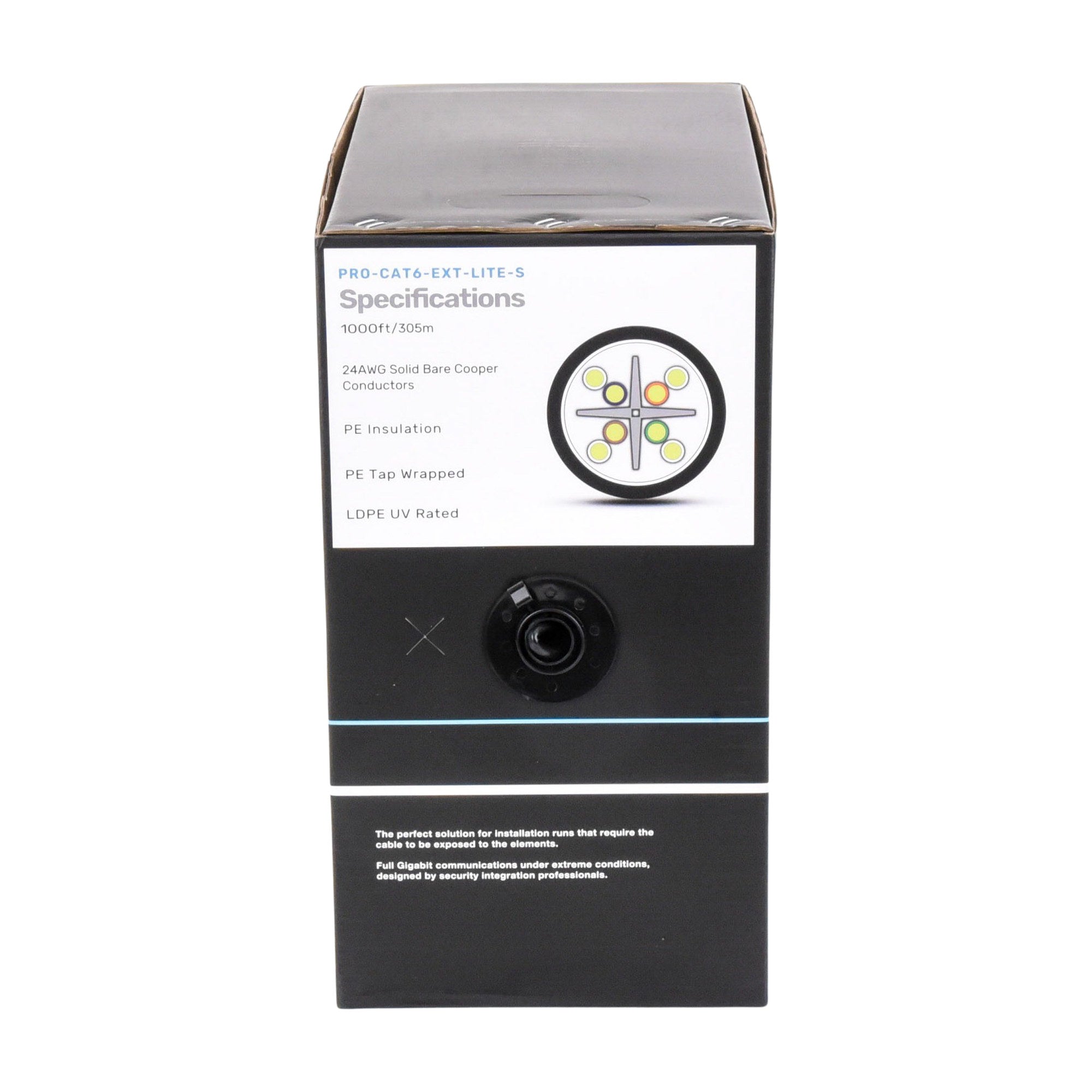

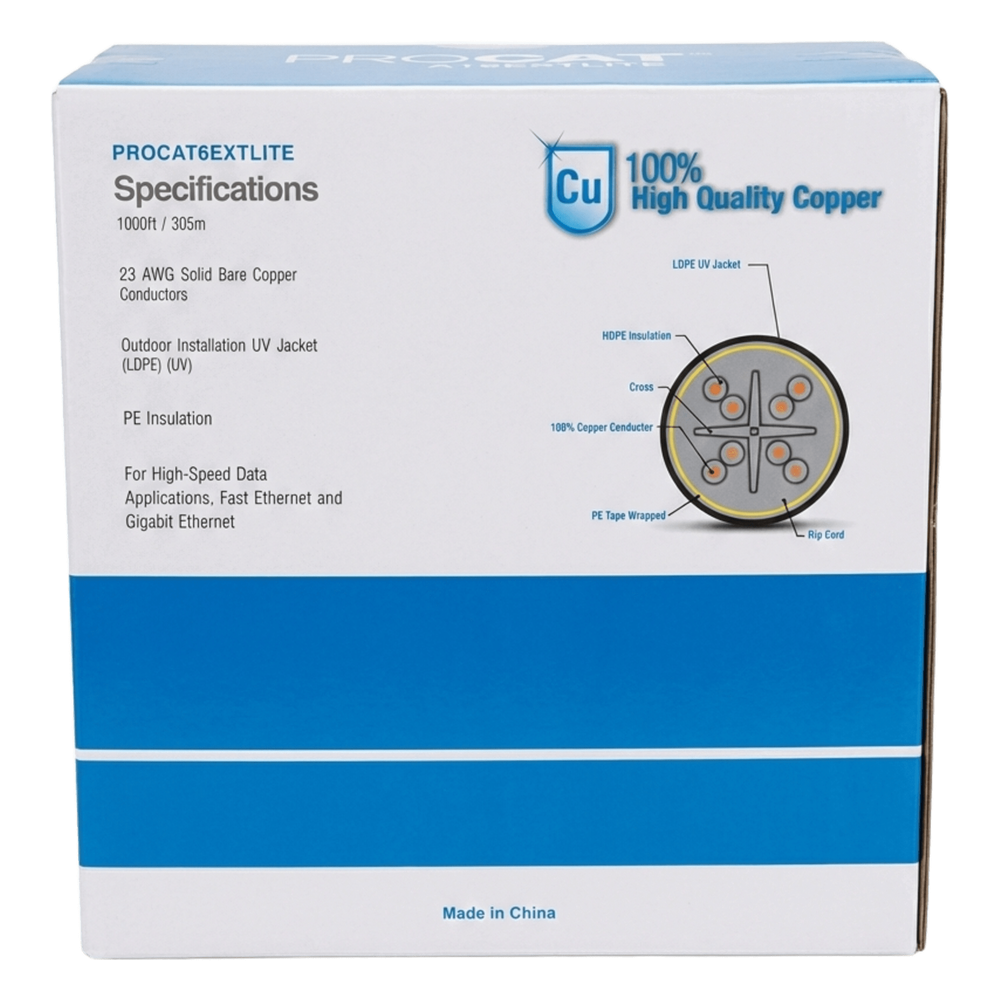

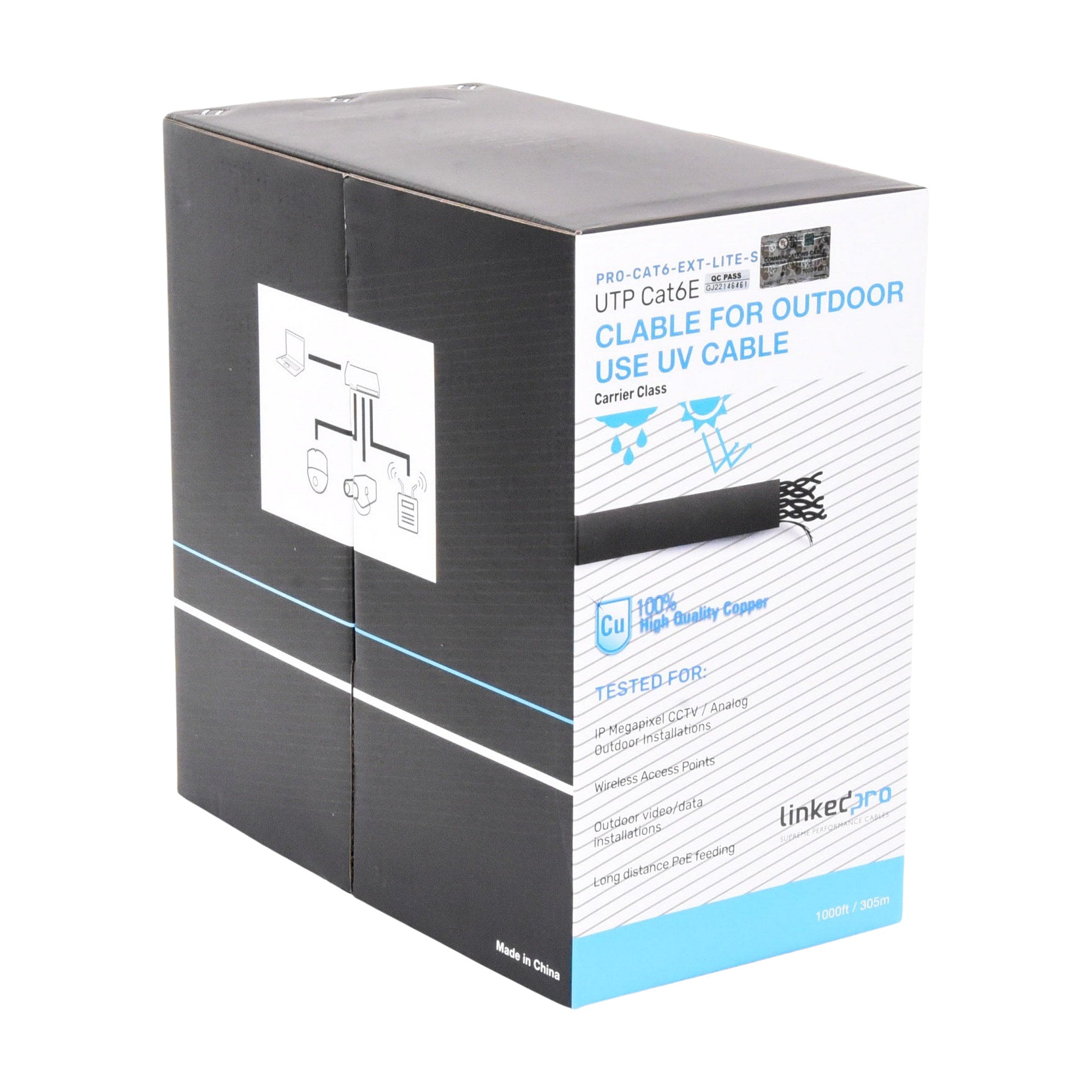

Key Features

• Designed for continuous outdoor open-weather exposure
• Full Gigabit transfer capability under extreme environments
• Supports robust long-distance PoE deployment
• Ideal for Megapixel IP surveillance and analog systems
• High-speed local networking and wireless backhauls

Technical Specs

• Conductor: 100% Solid Pure Copper
• Wire Gauge: 23 AWG
• Structure: Unshielded Twisted Pair (UTP)
• Environment: CMX Rated with UV protection jacket
• Outer Diameter: 0.24" (6.2 mm)
• Insulation: Premium PVC
• Jacket Color: Weatherproof Black
• Ground Cable: Bare Copper (BC)

Compliance

• UL Listed: E488955
• ANSI EIA/TIA 568 C.2
• ISO/IEC 11801 2nd Edition
• IEEE 802.3at (PoE+) Standards
• EN 50173 & EN 50288-3-1
• RoHS Compliant

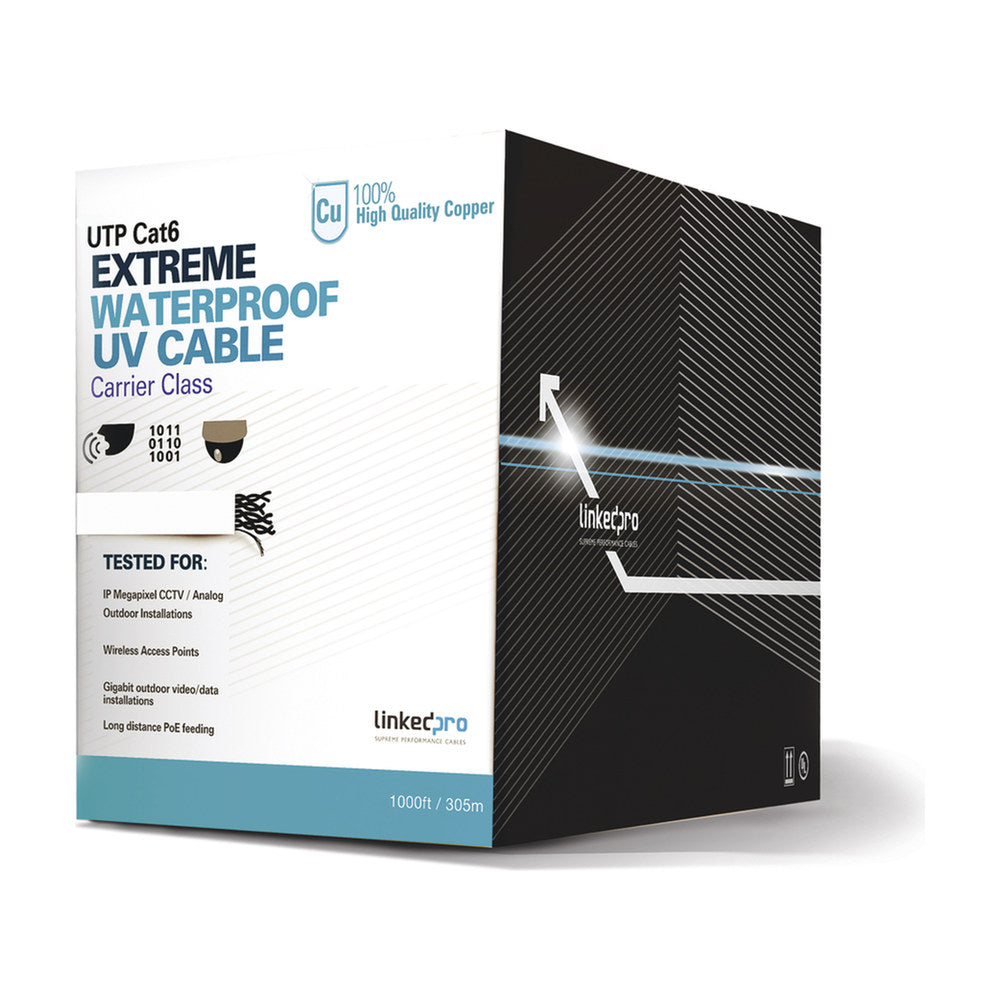

Key Features & Applications

• The perfect solution for cable runs exposed to the weather
• Gigabit voice / data installations
• Sending PoE over long distances
• Megapixel IP video surveillance & analog video
• High-speed local & wireless networks (10BASE-T to 1000BASE-T)

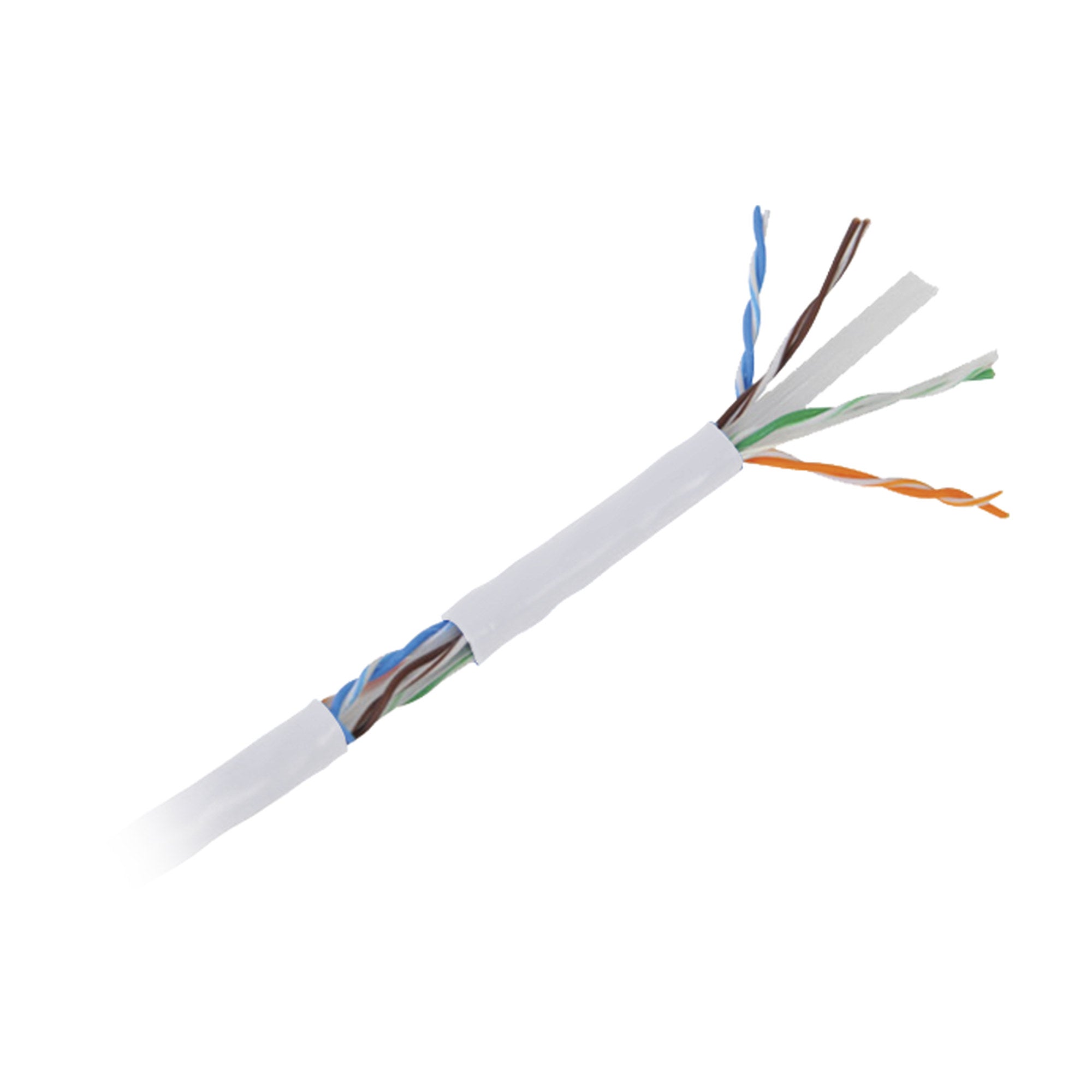

Technical Specs

• Conductor: 100% Solid Pure Copper
• Wire Gauge: 23 AWG
• Structure: UTP
• Environment: Outdoor (CMX) with UV protection
• Diameter: 6.2 mm
• Insulation: PVC

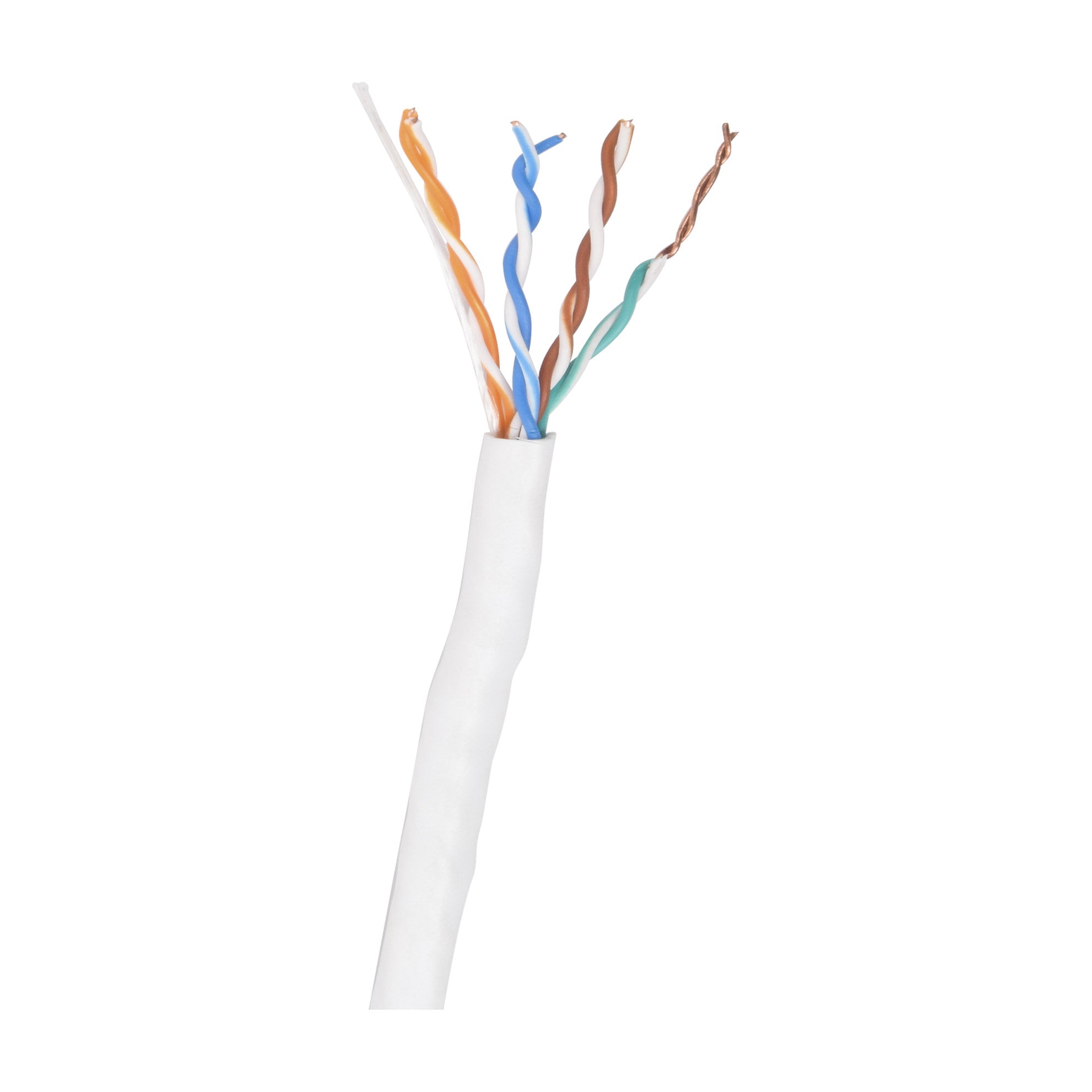

• Jacket Color: White
• Ground Cable: Bare Copper (BC)

Compliance & Approvals

• UL Listed: ( E472815 )
• ANSI EIA/TIA 568 C.2
• ISO/IEC 11801 2nd Edition
• IEC 61156-5
• EN 50173 ; EN 50288-3-1
• IEEE 802.3at
• ETL
