SURVEILLANCE HARD DRIVES

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

Western Digital (WD)

12TB Purple Pro Hard Drive / 7200 RPM / Optimized for Video Surveillance Solutions with Analytics (Meta Data) / 24/7 Operation / 5-Year Warranty

(0)

$1,151.09 $1,278.99

-10%

Western Digital model: WD122PURP

The WD Purple Pro is an enterprise-class surveillance hard drive designed for demanding video recording and AI analytics environments. This 12TB capacity drive delivers ultimate reliability and performance for high-end video recorders and analytics servers, supporting up to 64 HD cameras and 32 simultaneous AI streams. Built with helium drive technology and featuring 7200 RPM spindle speed, it offers maximum internal transfer rates of 287 MB/s with 512MB cache. The drive incorporates innovative AllFrame technology to reduce dropped video frames and includes Western Digital Device Analytics for proactive health monitoring. With enterprise-class reliability rated at 2.5 million hours MTBF and a 550TB/year workload rating, this drive is backed by a 5-year limited warranty for professional surveillance applications.

General Characteristics

Capacity: Up to 24TB (formatted)
Form Factor: 3.5-inch
Interface: SATA 6Gb/s
Recording Technology: CMR (Conventional Magnetic Recording)
Drive Technology: Helium-filled
Advanced Format: Yes
RV Sensors: Yes
RoHS Compliant: Yes
Maximum Drive Bays Supported: No Limit
Camera Support: Up to 64 HD cameras
AI Streams: 32 simultaneous streams
Firmware Features: AllFrame technology, Tarnish resistant components

Performance Specifications

Interface Transfer Rate: 6 Gb/s (max)
Internal Transfer Rate: 287 MB/s (max)
Cache Size: 512 MB
Spindle Speed: 7200 RPM
Load/Unload Cycles: 600,000
Non-recoverable Read Errors: <1 in 10^15 bits

*Based on read speed, performance may vary depending on host device and usage conditions

Physical & Electrical

Power Consumption: 6.5W (Read/Write), 5.9W (Idle), 1.2W (Standby/Sleep)
Operating Temperature: 32°F to 149°F
Non-operating Temperature: -40°F to 158°F
Operating Shock: 40Gs (2ms, read/write)
Non-operating Shock: 200Gs (2ms)
Acoustics: 20 dBA (Idle), 32 dBA (Seek average)
Height: 1.028 in / 26.1 mm
Length: 5.787 in / 147 mm
Width: 4 in / 101.6 mm
Weight: 1.48 lb / 0.67 kg

Reliability & Warranty

Annualized Workload Rate: Up to 550 TB/year
MTBF: 2,500,000 hours
Warranty: 5-year limited warranty
Workload Rating: Designed for 24/7 surveillance operation
Health Monitoring: WDDA (Western Digital Device Analytics)

Warranty: 5-year warranty against manufacturing defects. If the warranty applies, a credit memo will be issued for the invoice amount.

In stock · 26 pcs

Receives in 3 days.

Western Digital (WD)

10TB Purple Pro Hard Drive / 7200 RPM / Optimized for Video Surveillance Solutions with Analytics (Meta Data) / 24-7 Use / 5-Year Warranty

(0)

$1,037.69 $1,152.99

-10%

Western Digital model: WD102PURP

The WD Purple Pro is an enterprise-class surveillance hard drive designed for demanding video recording and AI analytics environments. This 10TB capacity drive delivers ultimate reliability and performance for high-end video recorders and analytics servers, supporting up to 64 HD cameras and 32 simultaneous AI streams. Built with helium drive technology and featuring 7200 RPM spindle speed, it offers maximum internal transfer rates of 287 MB/s with 512MB cache. The drive incorporates innovative AllFrame technology to reduce dropped video frames and includes Western Digital Device Analytics for proactive health monitoring. With enterprise-class reliability rated at 2.5 million hours MTBF and a 550TB/year workload rating, this drive is backed by a 5-year limited warranty for professional surveillance applications.

General Characteristics

Capacity: Up to 24TB (formatted)
Form Factor: 3.5-inch
Interface: SATA 6Gb/s
Recording Technology: CMR (Conventional Magnetic Recording)
Drive Technology: Helium-filled
Advanced Format: Yes
RV Sensors: Yes
RoHS Compliant: Yes
Maximum Drive Bays Supported: No Limit
Camera Support: Up to 64 HD cameras
AI Streams: 32 simultaneous streams
Firmware Features: AllFrame technology, Tarnish resistant components

Performance Specifications

Interface Transfer Rate: 6 Gb/s (max)
Internal Transfer Rate: 287 MB/s (max)
Cache Size: 512 MB
Spindle Speed: 7200 RPM
Load/Unload Cycles: 600,000
Non-recoverable Read Errors: <1 in 10^15 bits

*Based on read speed, performance may vary depending on host device and usage conditions

Physical & Electrical

Power Consumption: 6.5W (Read/Write), 5.9W (Idle), 1.2W (Standby/Sleep)
Operating Temperature: 32°F to 149°F
Non-operating Temperature: -40°F to 158°F
Operating Shock: 40Gs (2ms, read/write)
Non-operating Shock: 200Gs (2ms)
Acoustics: 20 dBA (Idle), 32 dBA (Seek average)
Height: 1.028 in / 26.1 mm
Length: 5.787 in / 147 mm
Width: 4 in / 101.6 mm
Weight: 1.48 lb / 0.67 kg

Reliability & Warranty

Annualized Workload Rate: Up to 550 TB/year
MTBF: 2,500,000 hours
Warranty: 5-year limited warranty
Workload Rating: Designed for 24/7 surveillance operation
Health Monitoring: WDDA (Western Digital Device Analytics)

Warranty: 5-year warranty against manufacturing defects. If the warranty applies, a credit memo will be issued for the invoice amount.

In stock · 326 pcs

Receives in 3 days.

Western Digital (WD)

8TB WD Hard Drive / 5640RPM / Optimized for Video-surveillance

(0)

$470.69 $522.99

-10%

WD Purple Surveillance Hard Drive

The WD Purple Surveillance Hard Drive is specifically designed for mainstream surveillance systems operating 24/7. Optimized for write-intensive workloads with multiple video streams, this hard drive offers reliable, high-performance storage for professional security applications. With WD AllFrame technology that reduces frame loss and improves video playback, it is the ideal solution for modern DVRs and NVRs. The 8TB capacity supports extended video retention periods, while the 5640 RPM rotational speed balances performance and power efficiency for continuous operation environments.

Main Features

WD AllFrame technology reduces video frame loss and improves recording and playback
8TB capacity for extended video surveillance storage
Workload rating of 180TB per year, up to three times desktop drive ratings
Supports up to 64 HD cameras with single stream at 3.2Mbps (1080p, H.265, 25 fps)
Corrosion-resistant components for enhanced durability in demanding environments
Compatible with systems up to 16 drive bays
CMR (Conventional Magnetic Recording) technology for standard recording
RV (Rotational Vibration) sensors to mitigate vibrations in multi-drive enclosures
Advanced Format (AF) for improved storage efficiency

Performance Specifications

Interface: SATA 6 Gb/s
Rotational speed: 5640 RPM
Max transfer rate: 215 MB/s (host to/from drive)
Cache: 256 MB
Load/unload cycles: 300,000
MTBF: 1,000,000 hours
Non-recoverable errors: <1 in 10^14 bits read
Workload rating: 180 TB/year

Physical and Electrical

Form factor: 3.5 inches
Dimensions: 147 x 101.6 x 26.1 mm (5.79 x 4.00 x 1.03 in)
Weight: 0.72 kg (1.59 lb)
Operating temperature: 0 to 65 degrees C (32 to 149 degrees F)
Non-operating temperature: -40 to 70 degrees C (-40 to 158 degrees F)
Operating shock: 70 Gs (read/write), 70 Gs (read)
Non-operating shock: 250 Gs
Acoustics: 24 dBA (idle), 28 dBA (seek average)

System Compatibility

SATA 6Gb/s interface compatible with industry standards
Compatible with leading chipsets and enclosures
Seamless integration with existing DVR and NVR systems
Support for multiple video streams per camera
RAID error recovery control to reduce failures
RoHS compliant (EU Directive 2011/65/EU)
Standard connectivity for easy installation and expansion
Compatible with systems from 1 to 8 bays
Supports 1 to 64 HD resolution cameras

Typical applications include commercial surveillance systems for retail, office and commercial establishments requiring continuous 24/7 recording; residential NVR systems with multiple surveillance cameras and remote monitoring; and critical infrastructure surveillance for banks, hospitals and government buildings demanding maximum reliability.

In stock · 439 pcs

Receives in 3 days.

Western Digital (WD)

WD HDD 1TB Optimized for Video Surveillance

(0)

$215.09 $238.99

-10%

WD Purple Surveillance Hard Drive

The WD Purple Surveillance Hard Drive is specifically designed for mainstream surveillance systems operating 24/7. Optimized for write-intensive workloads with multiple video streams, this hard drive offers reliable, high-performance storage for professional security applications. With WD AllFrame technology that reduces frame loss and improves video playback, it is the ideal solution for modern DVRs and NVRs. The 1 TB capacity supports configurations with up to 64 cameras, making it suitable for small to medium-scale surveillance deployments.

Main Features

WD AllFrame technology reduces video frame loss and improves recording and playback
1 TB capacity for extended video surveillance storage
Workload rating of 180 TB/year, up to three times desktop drive ratings
Supports up to 64 HD cameras with single stream at 3.2 Mbps (1080p, H.265, 25 fps)
Corrosion-resistant components for durability in demanding environments
Compatible with systems up to 8 drive bays
CMR (Conventional Magnetic Recording) for conventional recording
RV (Rotational Vibration) sensors to mitigate vibrations in multi-drive environments
Advanced Format (AF) for greater storage efficiency

Performance

Interface: SATA 6 Gb/s
Rotational speed: 5400 RPM
Transfer rate (buffer to host): 6 Gb/s
Transfer rate (host to/from drive, sustained): 110 MB/s
Cache: 64 MB
Load/unload cycles: 300,000
MTBF: 1,000,000 hours
Non-recoverable errors: less than 1 in 10^14 bits read

Physical and Electrical

Form factor: 3.5 inches
Dimensions: 25.4 x 147 x 101.6 mm (1.0 x 5.8 x 4.0 in)
Weight: 450 g (0.99 lb)
Operating temperature: 0 to 65 degrees C (32 to 149 degrees F)
Non-operating temperature: -40 to 70 degrees C (-40 to 158 degrees F)
Operating shock: 70 Gs (read/write), 70 Gs (read)
Non-operating shock: 250 Gs
Power consumption (read/write): 3.3 W
Power consumption (idle): 2.9 W
Power consumption (standby/sleep): 0.4 W
Acoustics: 24 dBA (idle), 28 dBA (seek average)

Package Contents and Application

Application: Optimized for video surveillance applications
Drive bays supported: 1 to 8
Cameras supported: 1 to 64
RoHS compliant (EU Directive 2011/65/EU)

Typical Applications

Commercial surveillance systems for retail, offices, and commercial establishments requiring continuous 24/7 recording. Residential NVR systems with multiple surveillance cameras and remote monitoring. Compatible with leading surveillance and security system manufacturers.

In stock · 3311 pcs

Receives in 3 days.

Western Digital (WD)

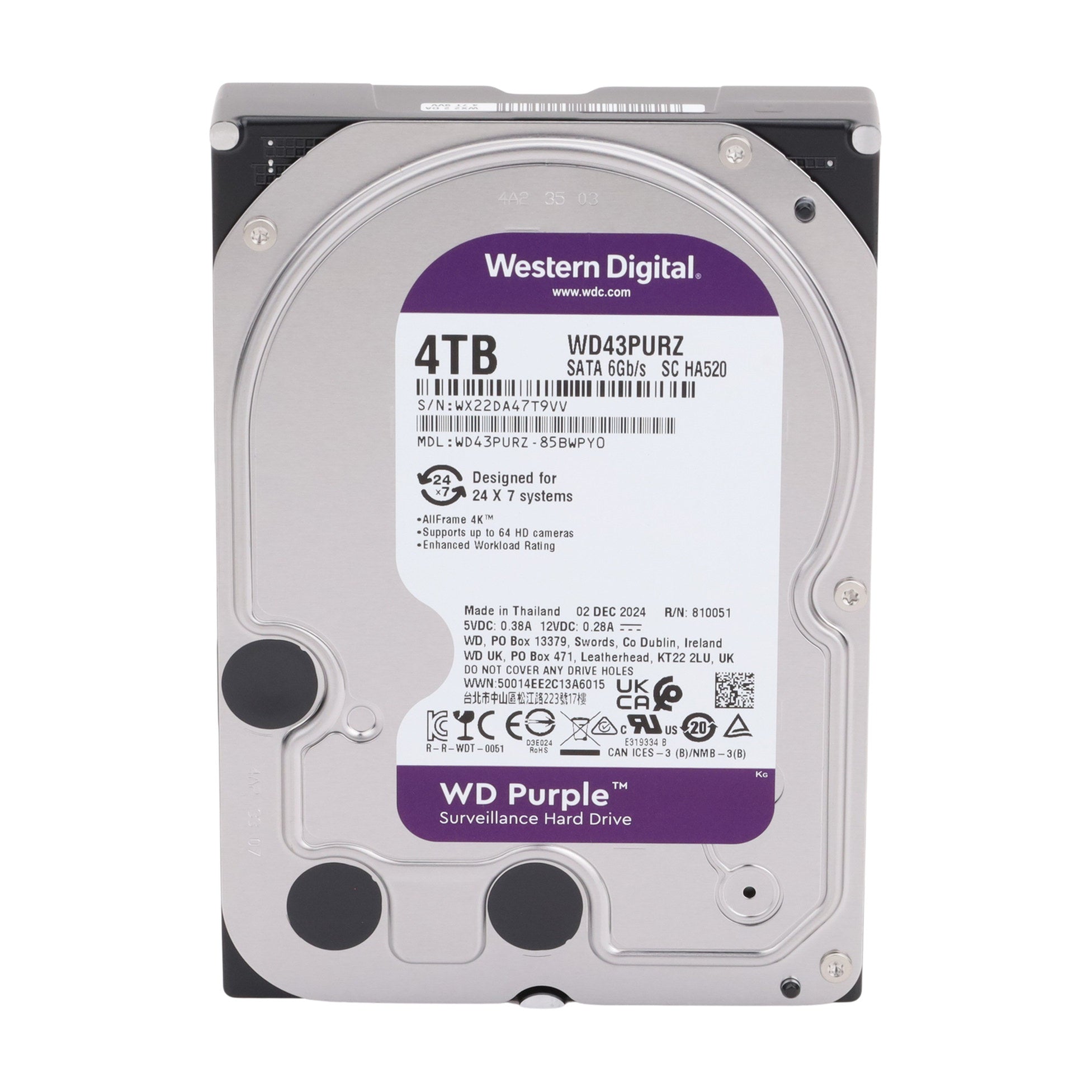

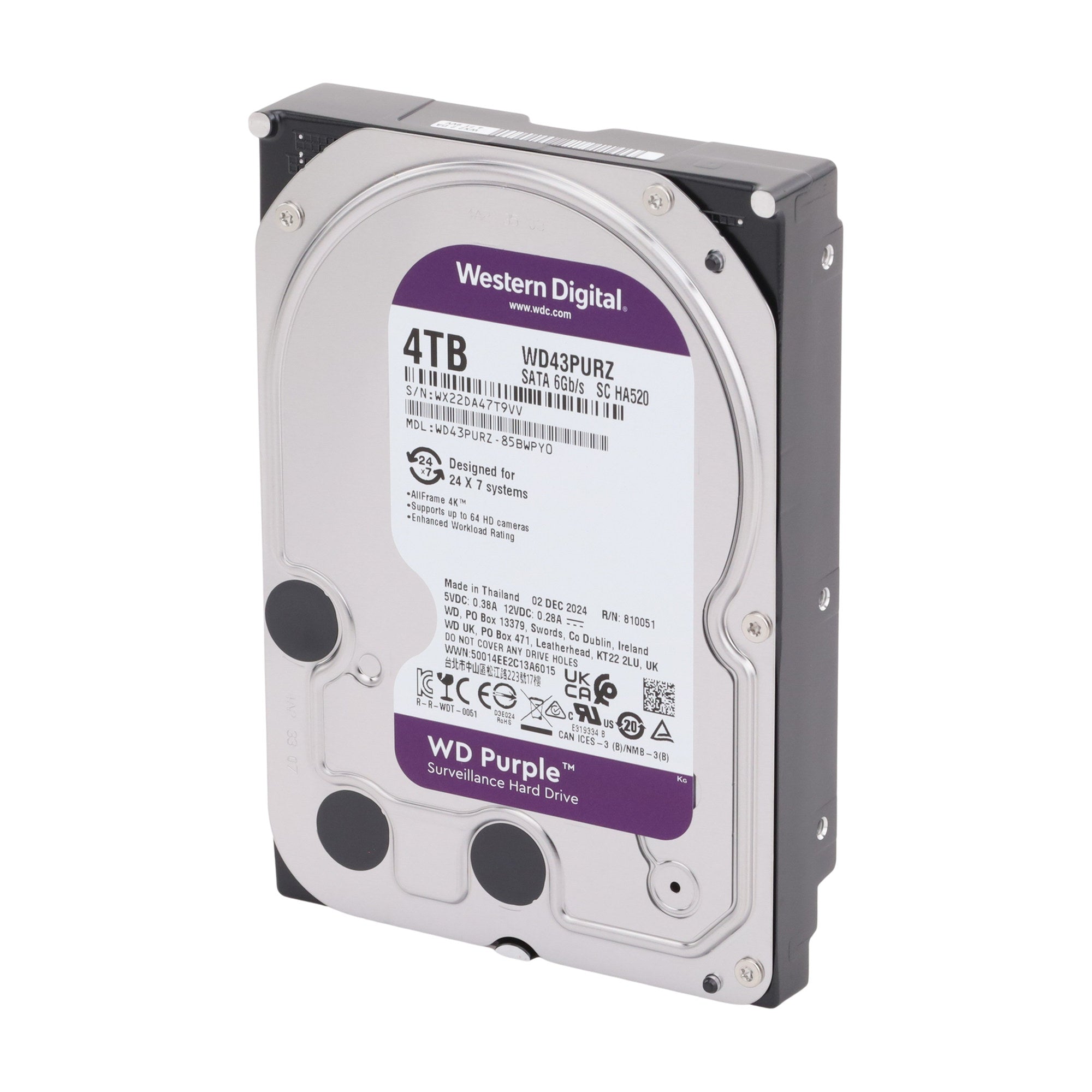

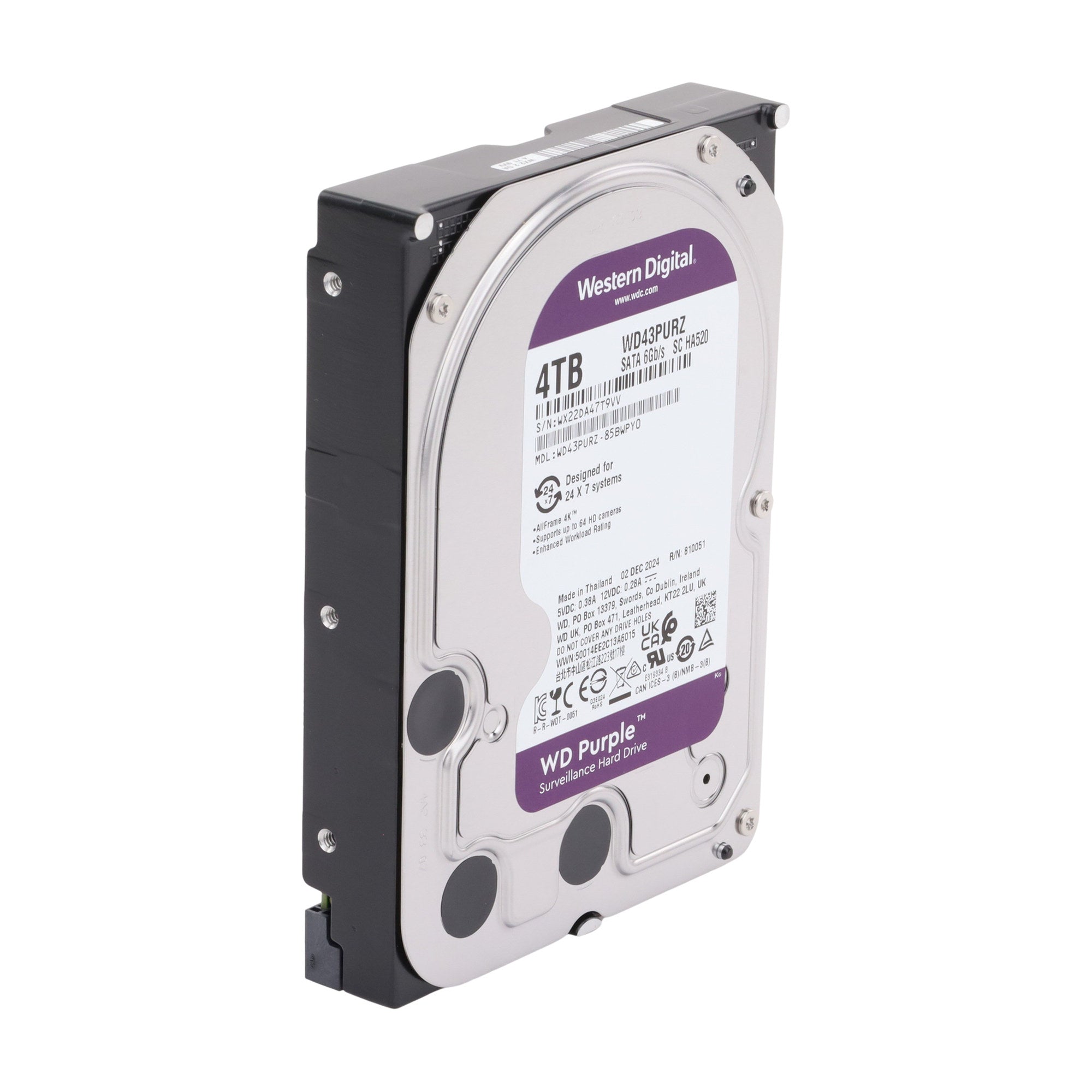

4TB 5400RPM HDD for video surveillance

(0)

$260.99 $289.99

-10%

In stock · 189 pcs

Receives in 3 days.

Western Digital (WD)

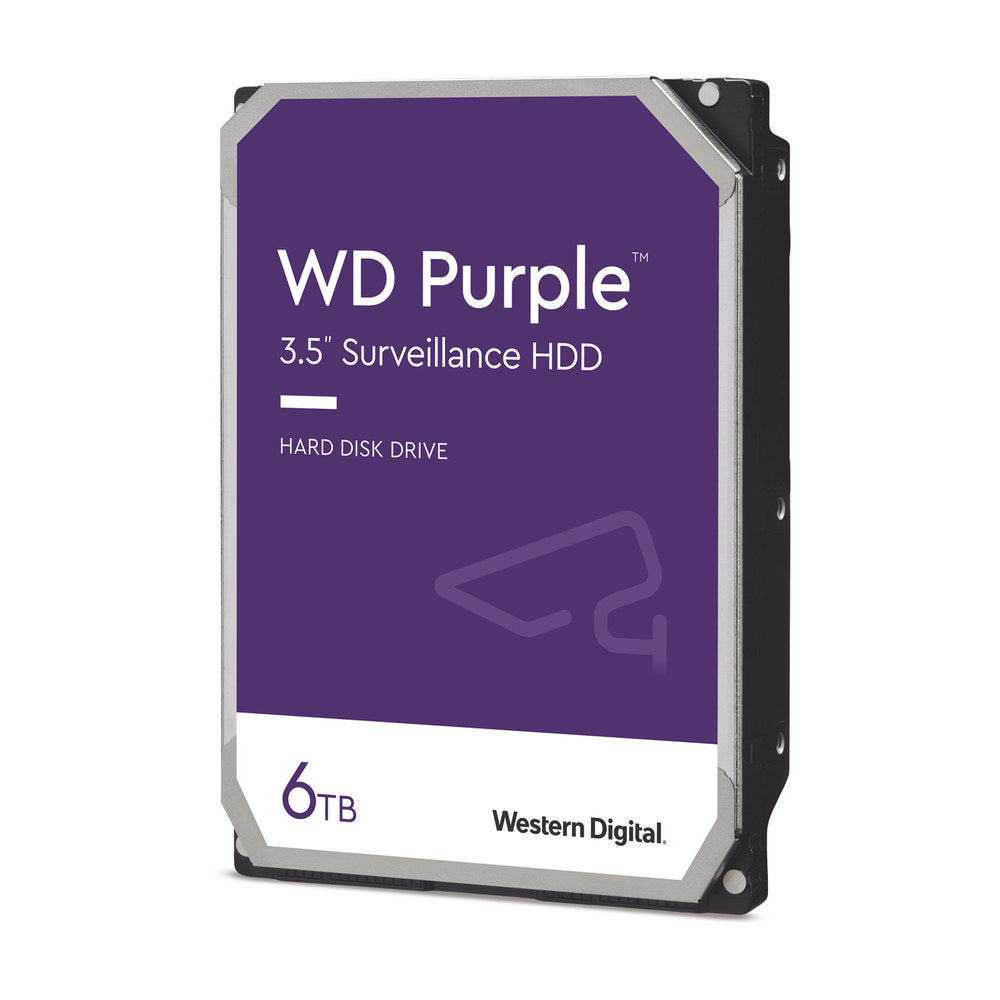

WD HDD 6TB Optimized for Video Surveillance / 3-year Warranty / for Video Surveillance

(0)

$430.19 $477.99

-10%

WD Purple Surveillance Hard Drive

The WD Purple Surveillance Hard Drive is specifically designed for mainstream surveillance systems operating 24/7. Optimized for write-intensive workloads with multiple video streams, this hard drive offers reliable, high-performance storage for professional security applications. With WD AllFrame technology that reduces frame loss and improves video playback, it is the ideal solution for modern DVRs and NVRs. The 6TB capacity supports up to 64 HD cameras, making it suitable for small to medium-scale surveillance deployments requiring continuous recording capabilities.

Main Features

6TB capacity for massive video storage
SATA III interface at 6.0 Gb/s
Optimized for surveillance with support for up to 64 cameras
5640 RPM rotation speed for efficient operation
128 MB cache for fast transfers
3.5-inch form factor with optimized power consumption
WD AllFrame technology reduces video frame loss
180TB/year workload rating
CMR (Conventional Magnetic Recording) technology
RV sensors to mitigate rotational vibration in multi-drive environments
Advanced Format (AF) for improved storage efficiency
Corrosion-resistant components for demanding environments

Performance

Capacity: 6 TB
Interface: SATA III, 6.0 Gb/s
Buffer to host: 6 Gb/s
Host to/from drive (sustained): 185 MB/s
Cache: 128 MB
Rotation speed: 5640 RPM
Workload rating: 180 TB/year
Maximum transfer rate: 215 MB/s (host to/from drive)
Load/unload cycles: 300,000
MTBF: 1,000,000 hours
Non-recoverable errors: <1 in 10^14 bits read
Supported cameras: Up to 64 HD cameras

Physical and Electrical

Form factor: 3.5 inches
Dimensions: 25.4 x 147 x 101.6 mm (1.0 x 5.8 x 4.0 in)
Weight: 720 g (1.59 lb)
Operating temperature: 0 to 65 degrees C (32 to 149 degrees F)
Non-operating temperature: -40 to 70 degrees C (-40 to 158 degrees F)
Operating shock: 70 Gs (read/write), 70 Gs (read)
Non-operating shock: 250 Gs
Acoustics: 24 dBA (idle), 28 dBA (seek average)
Read/write power: 6.2 W
Idle power: 5.5 W
Standby/sleep power: 0.4 W

Compatibility and Applications

Application: Optimized for video surveillance
Bay support: 1 to 8 bays
Camera support: 1 to 64 HD resolution cameras
System compatibility: DVR and NVR systems
Chipset compatibility: Wide range of industry-leading chipsets
Enclosure compatibility: Industry-leading enclosures
RAID error recovery control: Reduces failures
RoHS compliance: EU Directive 2011/65/EU
Recording technology: CMR (Conventional Magnetic Recording)

Typical Applications

Commercial surveillance systems for retail, office, and commercial establishments requiring continuous 24/7 recording. Residential security NVRs with multiple surveillance cameras and remote monitoring. Infrastructure monitoring for banks, hospitals, and government buildings demanding maximum reliability.

In stock · 314 pcs

Receives in 3 days.

Western Digital (WD)

WD HDD 2TB Optimized for Video Surveillance / 3-year Warranty / for Video Surveillance

(0)

$276.29 $306.99

-10%

WD Purple Surveillance Hard Drive

The WD Purple Surveillance Hard Drive is specifically designed for mainstream surveillance systems operating 24/7. Optimized for write-intensive workloads with multiple video streams, this hard drive offers reliable, high-performance storage for professional security applications. With WD AllFrame technology that reduces frame loss and improves video playback, it is the ideal solution for modern DVRs and NVRs. The 2TB capacity supports configurations with up to 64 HD cameras, delivering sustained transfer rates of 175 MB/s for continuous recording environments.

Main Features

WD AllFrame technology reduces video frame loss and improves recording and playback
2TB capacity for extended video surveillance storage
Workload rating of 180TB/year - up to three times desktop drive ratings
Supports up to 64 HD cameras with single stream at 3.2Mbps (1080p, H.265, 25 fps)
Corrosion-resistant components for enhanced durability in demanding environments
Compatible with systems up to 16 drive bays
CMR (Conventional Magnetic Recording) technology for standard recording
RV (Rotational Vibration) sensors to mitigate vibration in multi-drive enclosures
Advanced Format (AF) for improved storage efficiency

Performance

Interface: SATA 6 Gb/s
Host to/from drive (sustained): 175 MB/s
Cache: 256 MB
Rotation speed: 5400 RPM
Load/unload cycles: 300,000
MTBF: 1,000,000 hours
Non-recoverable errors: <1 in 10^14 bits read

Physical and Electrical

Form factor: 3.5 inches
Dimensions: 25.4 x 147 x 101.6 mm (1.0 x 5.79 x 4.0 in)
Weight: 640 g (1.41 lb)
Operating temperature: 0 to 65 deg C
Non-operating temperature: -40 to 70 deg C
Operating shock: 70Gs (read/write), 70Gs (read)
Non-operating shock: 250Gs
Acoustics: 24 dBA (idle), 28 dBA (seek average)
Read/write power: 3.3W
Idle power: 2.9W
Standby/sleep power: 0.4W

System Requirements

Application: Optimized for video surveillance
Bay support: 1 to 8 bays
Camera support: 1 to 64 HD resolution cameras
SATA III 6.0 Gb/s interface compatibility
Integration with leading DVR/NVR systems
RAID error recovery control to reduce failures
RoHS compliant (EU Directive 2011/65/EU)

Typical applications: Commercial surveillance systems for retail, office and commercial facilities requiring continuous 24/7 recording; residential NVR installations with multiple surveillance cameras and remote monitoring; critical infrastructure including banks, hospitals and government buildings demanding maximum reliability.

Note: Product specifications are subject to change without notice. Verify compatibility with your specific DVR/NVR system before installation.

In stock · 716 pcs

Receives in 3 days.

Product Comparison

Collection description
