CABLE TRAY

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

Home > CABLE TRAY

5 products

{"id":51462597247143,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ML-54-50EZ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Zinc Electro-plated Mesh Tray, 9.86ft (3 m) length, Section 9.84ft (3m), 2.15\"\/1.96\"(54\/50 mm) Width","public_title":null,"options":["Default Title"],"price":2499,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

CHAROFIL

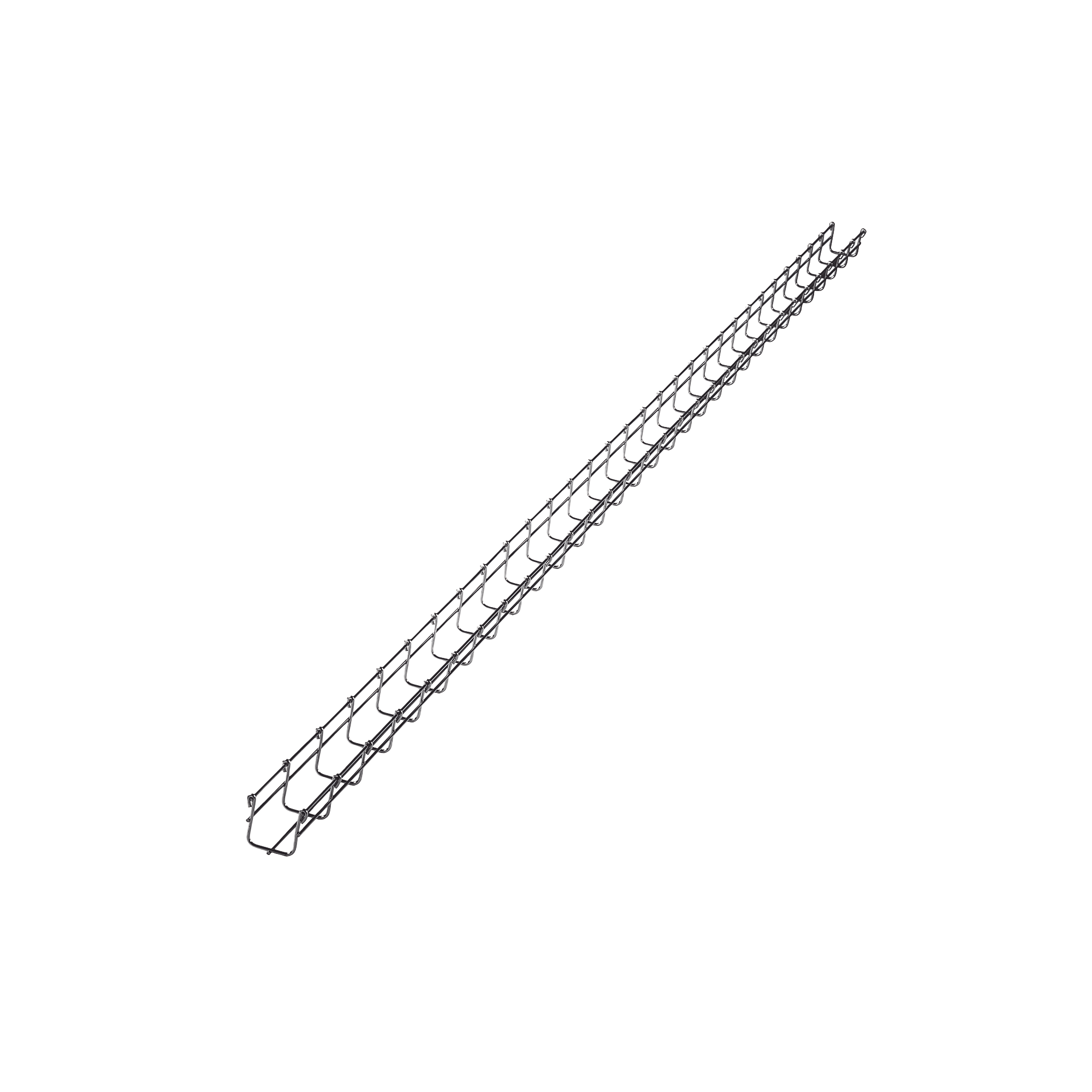

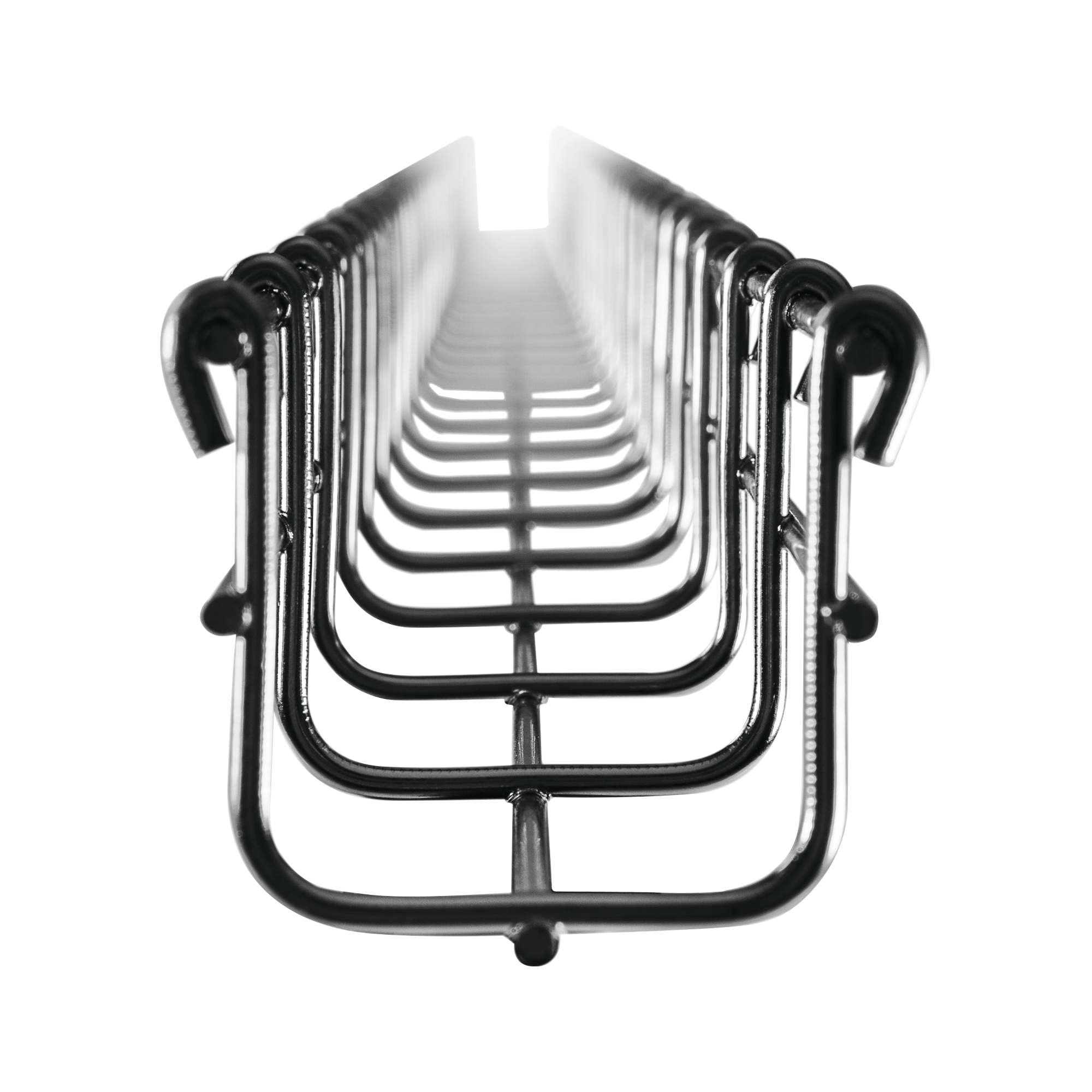

Zinc Electro-plated Mesh Tray, 9.86ft (3 m) length, Section 9.84ft (3m), 2.15"/1.96"(54/50 mm) Width

(0)

$24.99

Unit price

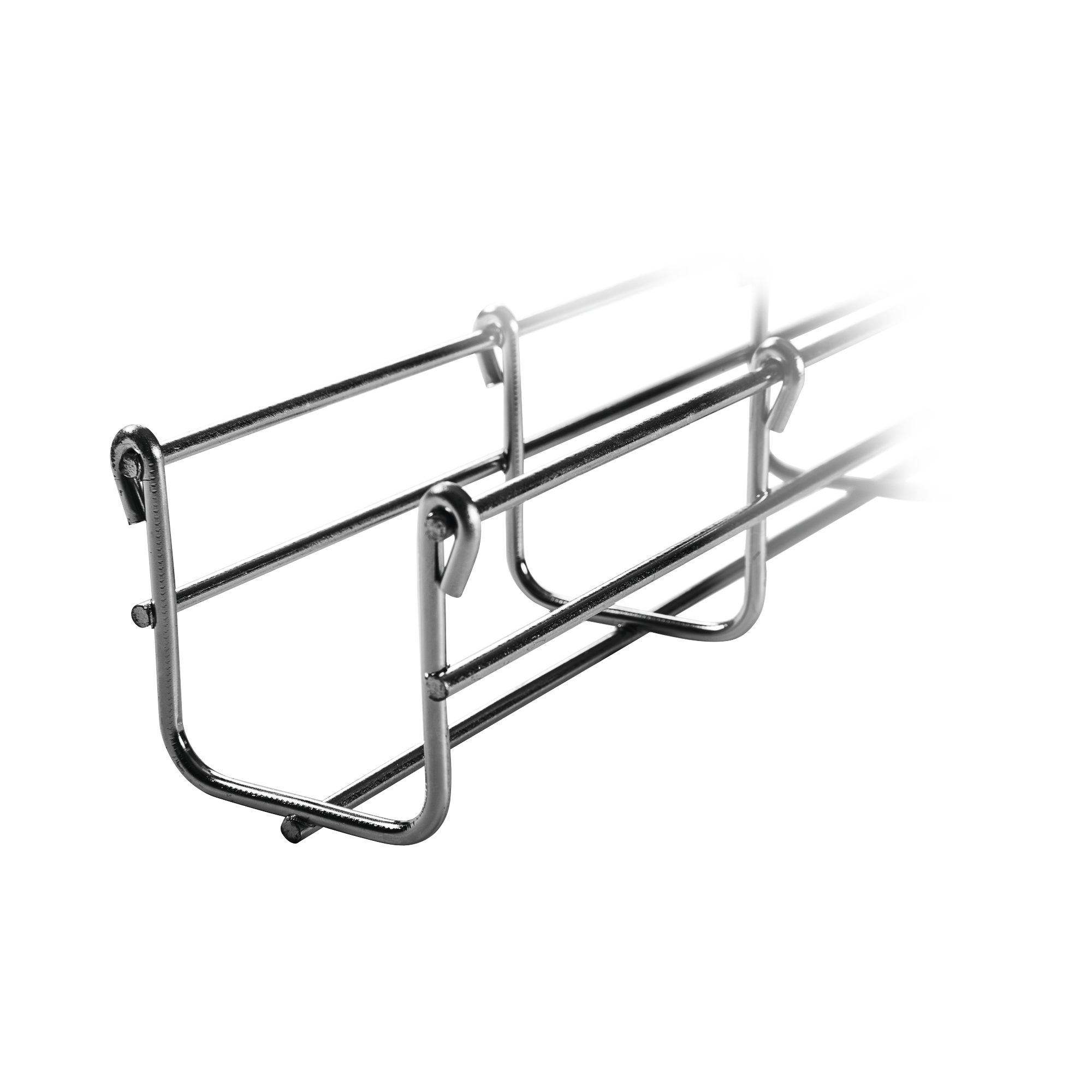

Light Wire Mesh Cable Tray / Zinc Electro-plated / 2.13"x1.97" (54/50 mm) / 9.84 ft (3 m) Section

Light-profile steel wire mesh cable tray for structured cabling installations and cable distribution in data centers, offices, and industrial environments. Manufactured with zinc electroplated (EZ) finish of 15 to 20 microns providing basic corrosion protection for controlled indoor environments. The open mesh design facilitates cable ventilation, circuit identification, and allows field cutting and adaptation without specialized tools. Hook-type edges enable mechanical joining between sections and installation accessories. The 2.13 in (54 mm) depth by 1.97 in (50 mm) width section provides capacity for approximately 38 Category 6 cables in a standard 9.84 ft (3 m) section.

Main Features

Light-profile steel mesh, easy to cut and adapt in the field
Zinc electroplated EZ finish: 15 to 20 microns corrosion protection
Hook-edge mechanical joining, no complex tools required
Capacity: approximately 38 Cat6 cables per 9.84 ft (3 m) section
Open design for ventilation and visual cable management

Specifications

Performance and Dimensions

Width: 1.97 in (50 mm)

Height: 2.13 in (54 mm)

Section Length: 9.84 ft (3 m)

Capacity: 38 Cat6 cables in 9.84 ft (3 m)

Type: Light / Wire Mesh

Materials and Finish

Material: Steel

Finish: Zinc Electroplated (EZ)

Coating Thickness: 15 to 20 microns

Installation

Section Joining: Hook-type edges

Method: Mechanical, no complex tools required

Typical applications: structured cabling in data centers, telecommunications rooms, network and electrical cable distribution in commercial and industrial buildings with controlled indoor environments.

Low in stock · 3 pcs

Receives in 3 days.

Available for pickup at

Out of stock at

{"id":51462587416743,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"CH-54-200EZ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Wire Mesh Cable Tray, Electro Galvanized, up to 172 Cat6 Cables, Section 9.84 ft (3m), 2.13\/7.87 in (54\/200 mm) Width","public_title":null,"options":["Default Title"],"price":6117,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

CHAROFIL

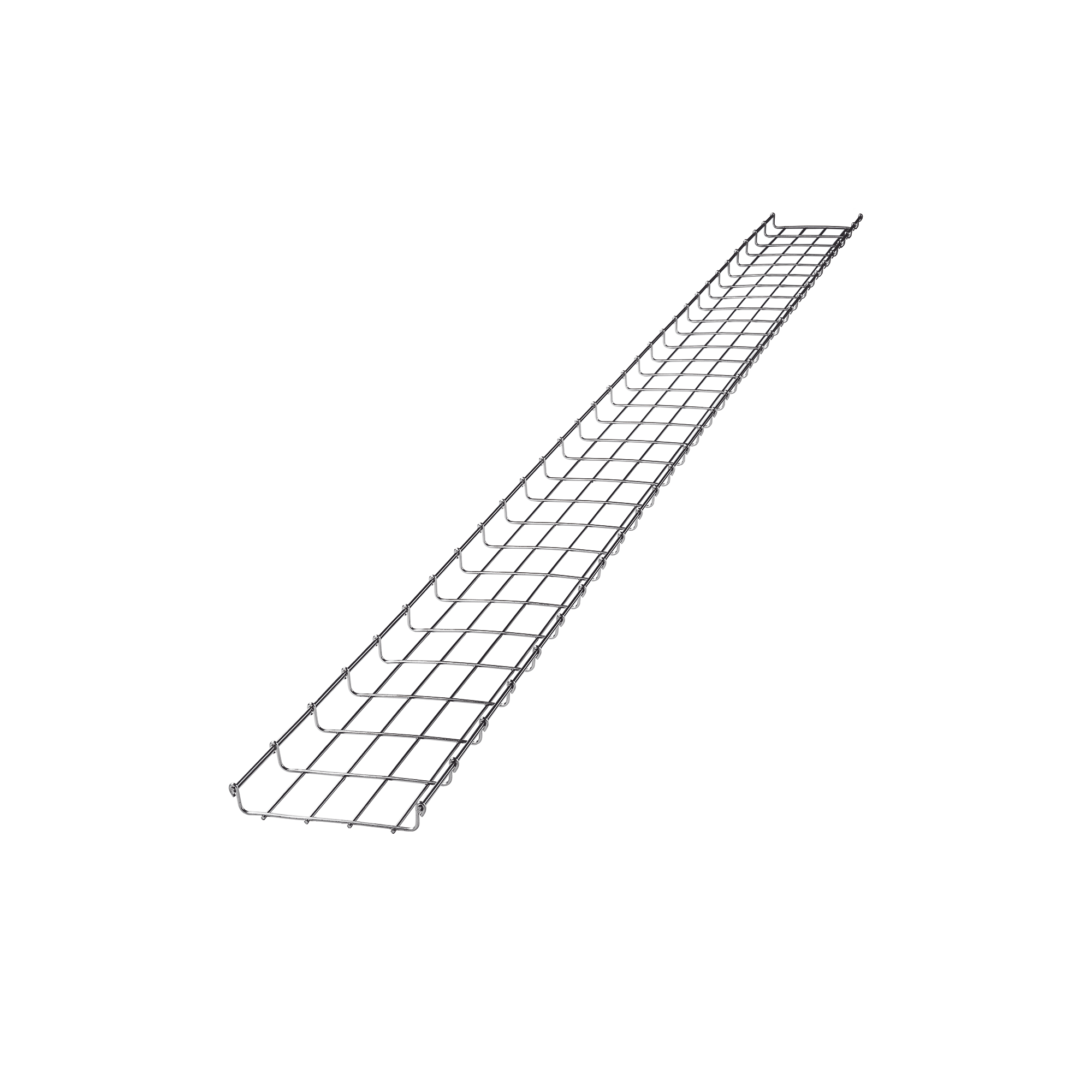

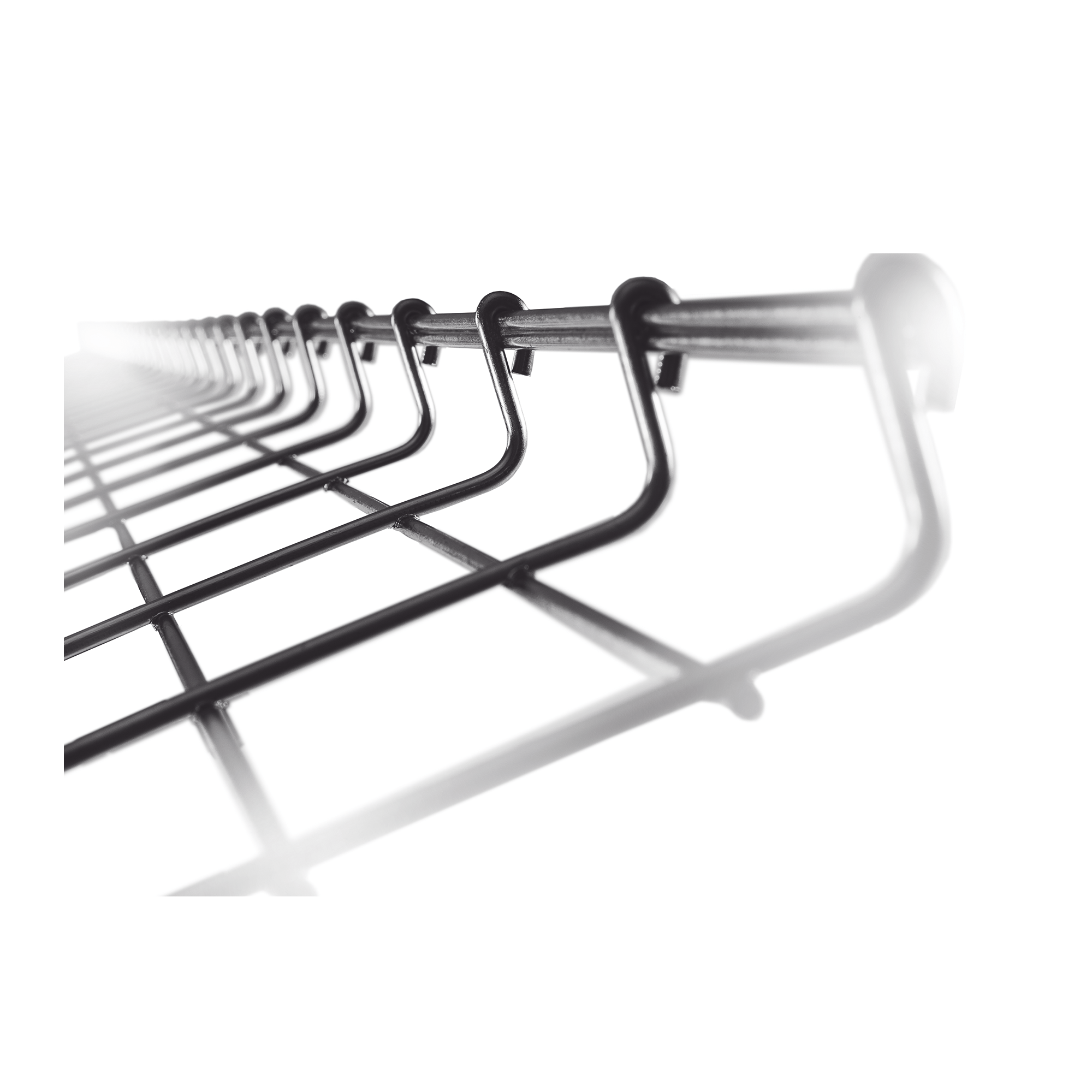

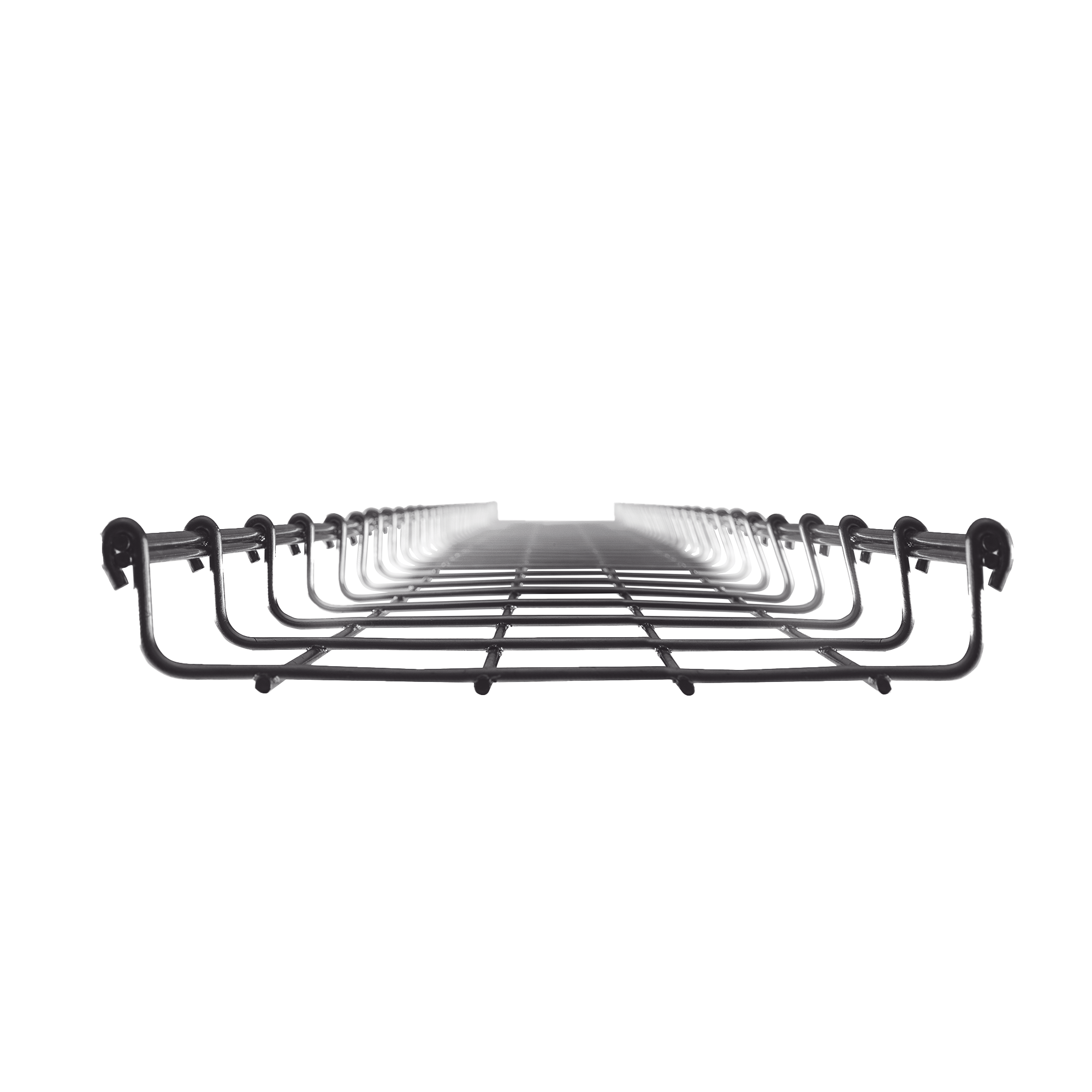

Wire Mesh Cable Tray, Electro Galvanized, up to 172 Cat6 Cables, Section 9.84 ft (3m), 2.13/7.87 in (54/200 mm) Width

(0)

$61.17

Unit price

General Characteristics:

Width: 7.87 in (200 mm).
Camber: 2.13 in (54 mm).
Length: 9.84 ft (3 m).

Electro Zinc (EZ) finish of 15 to 20 microns.

Electro Zinc is a process by which a layer of zinc is deposited on metal parts through continuous electric current. Recommended for indoor use.

Coating: "EZ" Galvanized Electro-Zinc.
*Recommended for indoors.

Number of cable loads, with camber 54 mm.

In stock · 5 pcs

Receives in 3 days.

Available for pickup at

Out of stock at

{"id":51462587449511,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"MG-50-432EZ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Wire Mesh Cable Tray, Electro Galvanized, up to 157 Cat6 Cables, Section 9.84' ( 3m) , 2.59\" \/ 5.9\" (66\/150 mm )Width","public_title":null,"options":["Default Title"],"price":4699,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

CHAROFIL

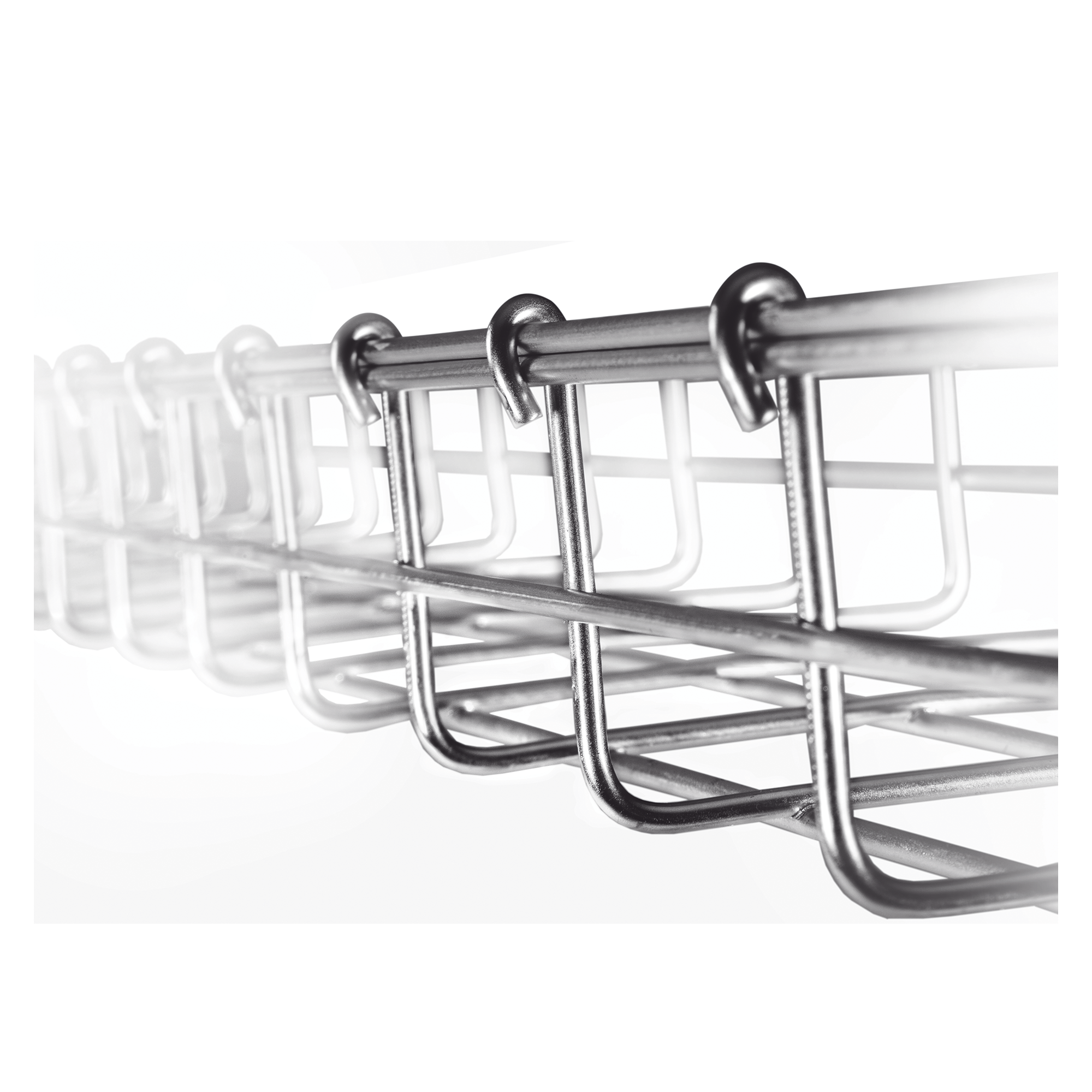

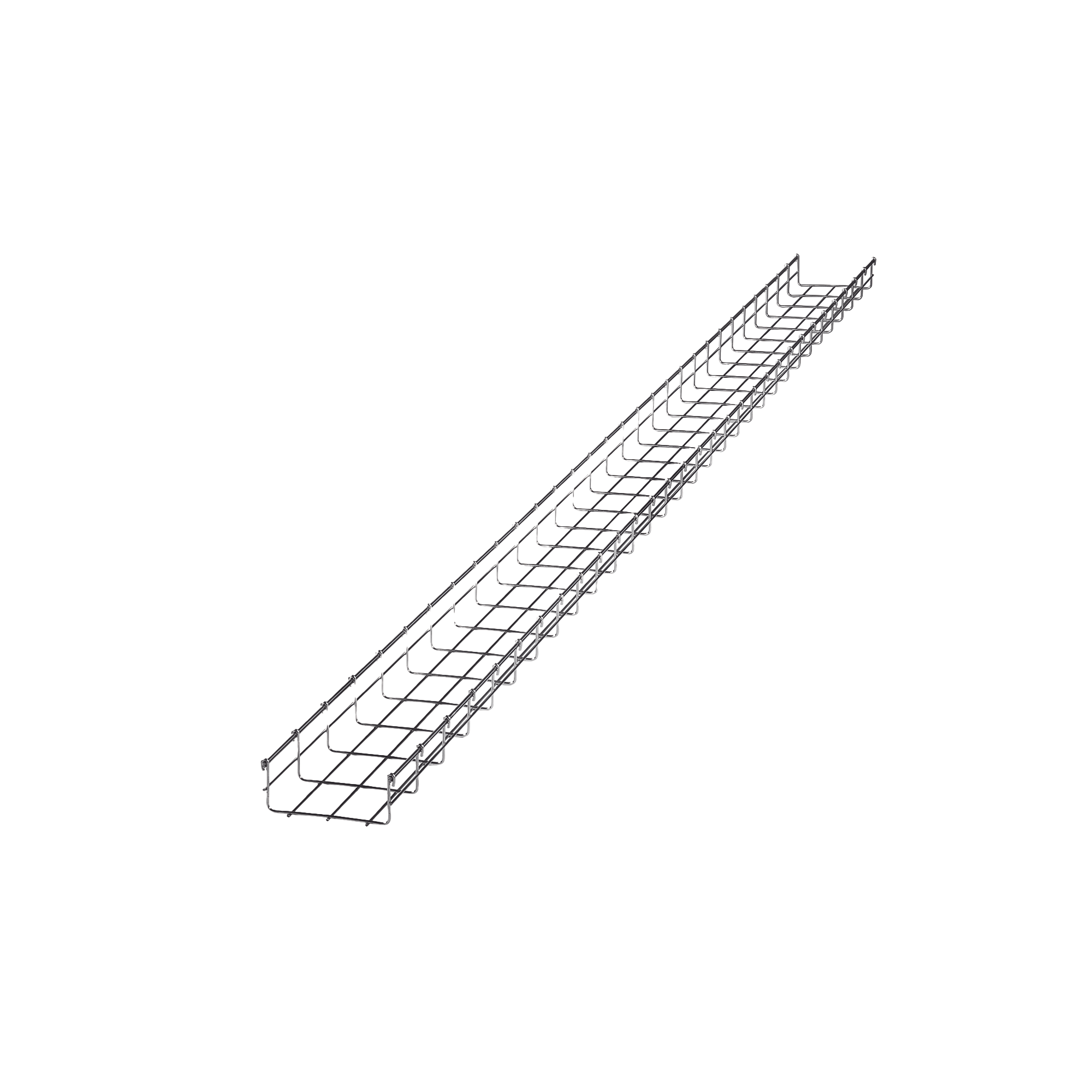

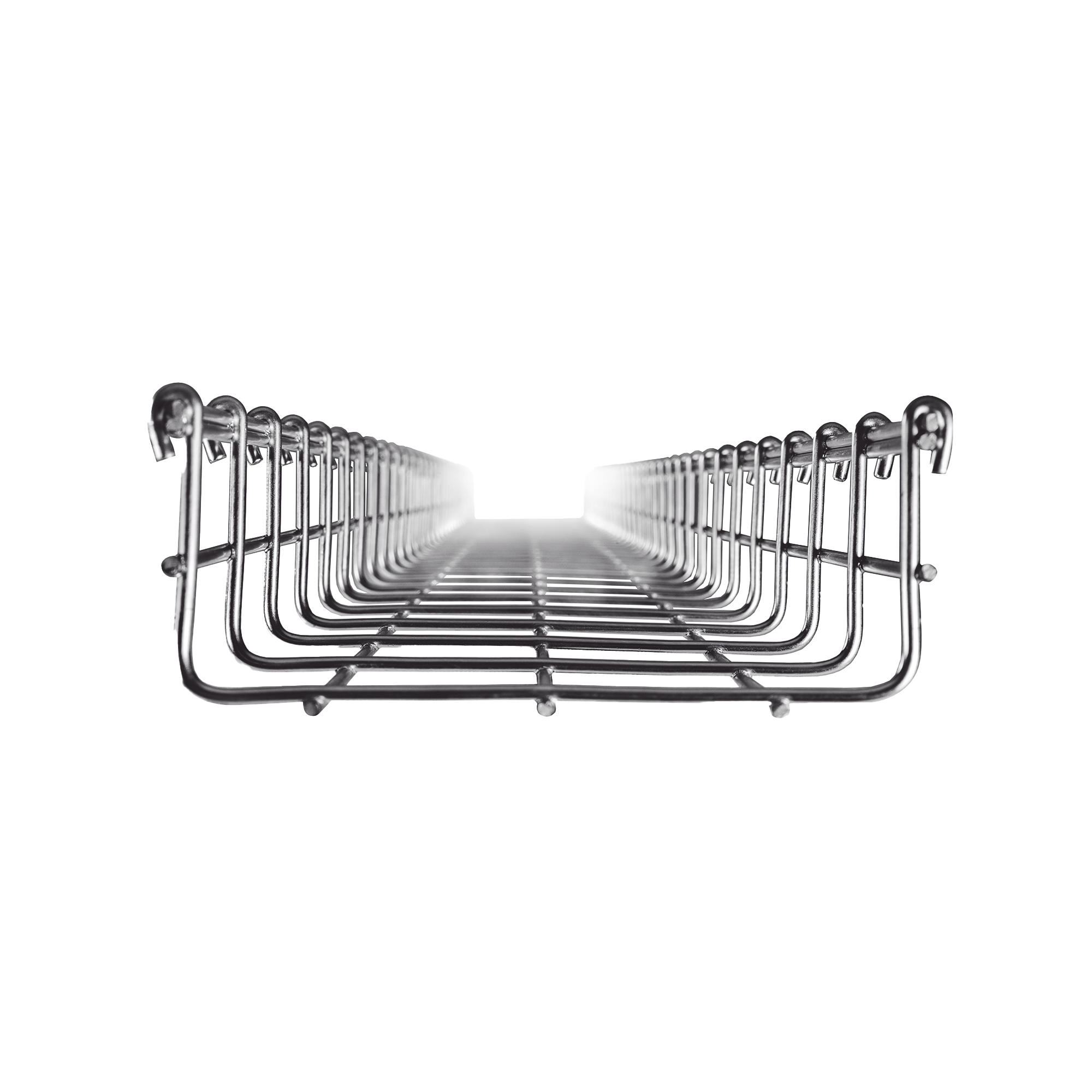

Wire Mesh Cable Tray, Electro Galvanized, up to 157 Cat6 Cables, Section 9.84' ( 3m) , 2.59" / 5.9" (66/150 mm )Width

(0)

$46.99

Unit price

General Characteristics:

Width: 0.49 in (150 mm).
Camber: 2.6 in (66 mm).
Length: 9.84 ft (3 m).
Load capacity: 45 kg/m.

Cable Capacity

106 - 157 Cables UTP CAT6
66-98 Cables UTP CAT6A

Electro Zinc (EZ) finish of 15 to 20 microns.

Electro Zinc is a process by which a layer of zinc is deposited on metal parts through continuous electric current. Recommended for indoor use.

Coating: "EZ" Galvanizad Electro-Zinc.

*Recommended for indoors.

Number of cable loads, with camber 66 mm.

Low in stock · 1 pcs

Receives in 3 days.

Available for pickup at

Out of stock at

{"id":51462586925223,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"MG-50-433EZ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Wire Mesh Cable Tray, Electro Galvanized, up to 210 UTP Cat6 Cables, Section 9.84ft (3m), 2.6\"\/3.94\" (66\/200mm) Width","public_title":null,"options":["Default Title"],"price":6099,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

CHAROFIL

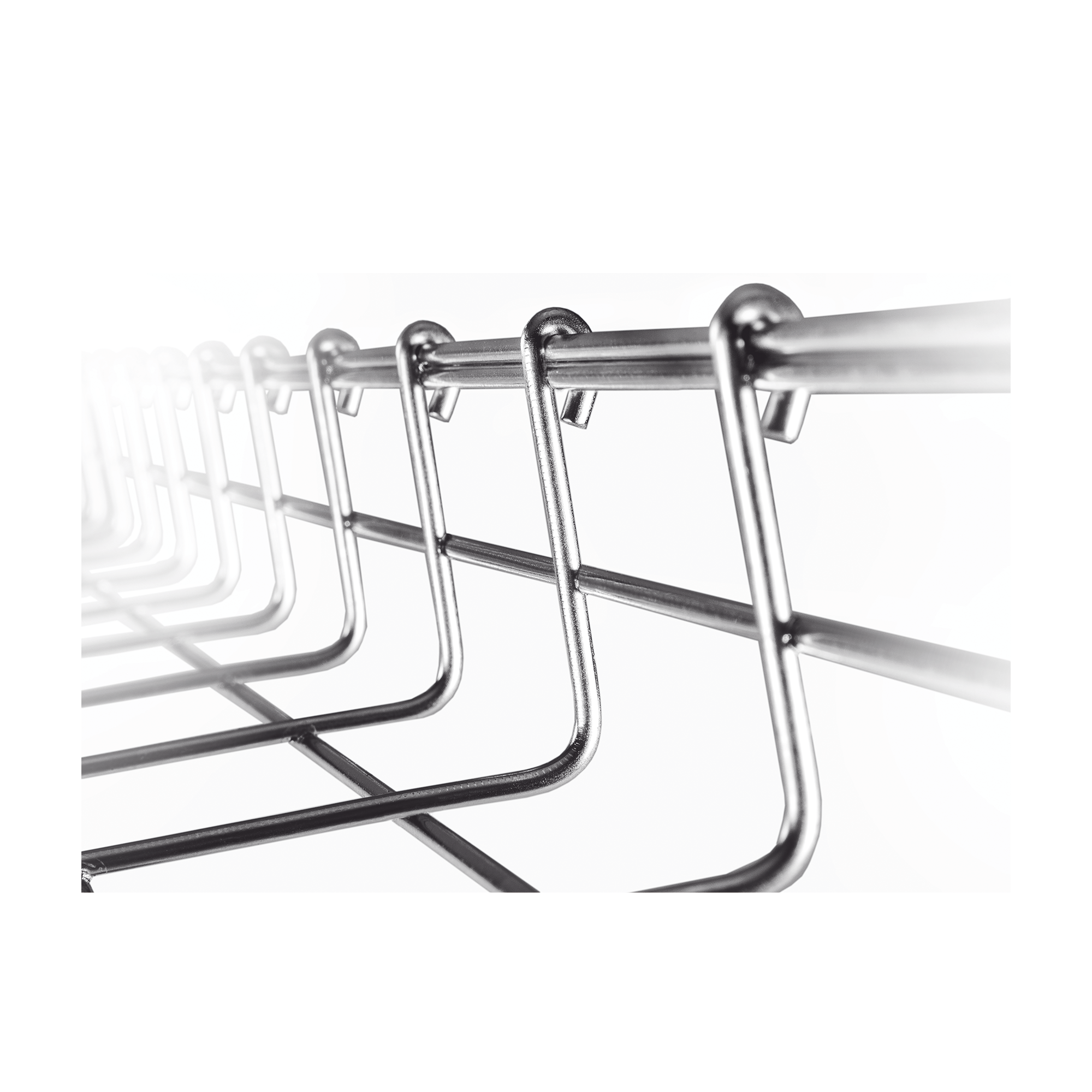

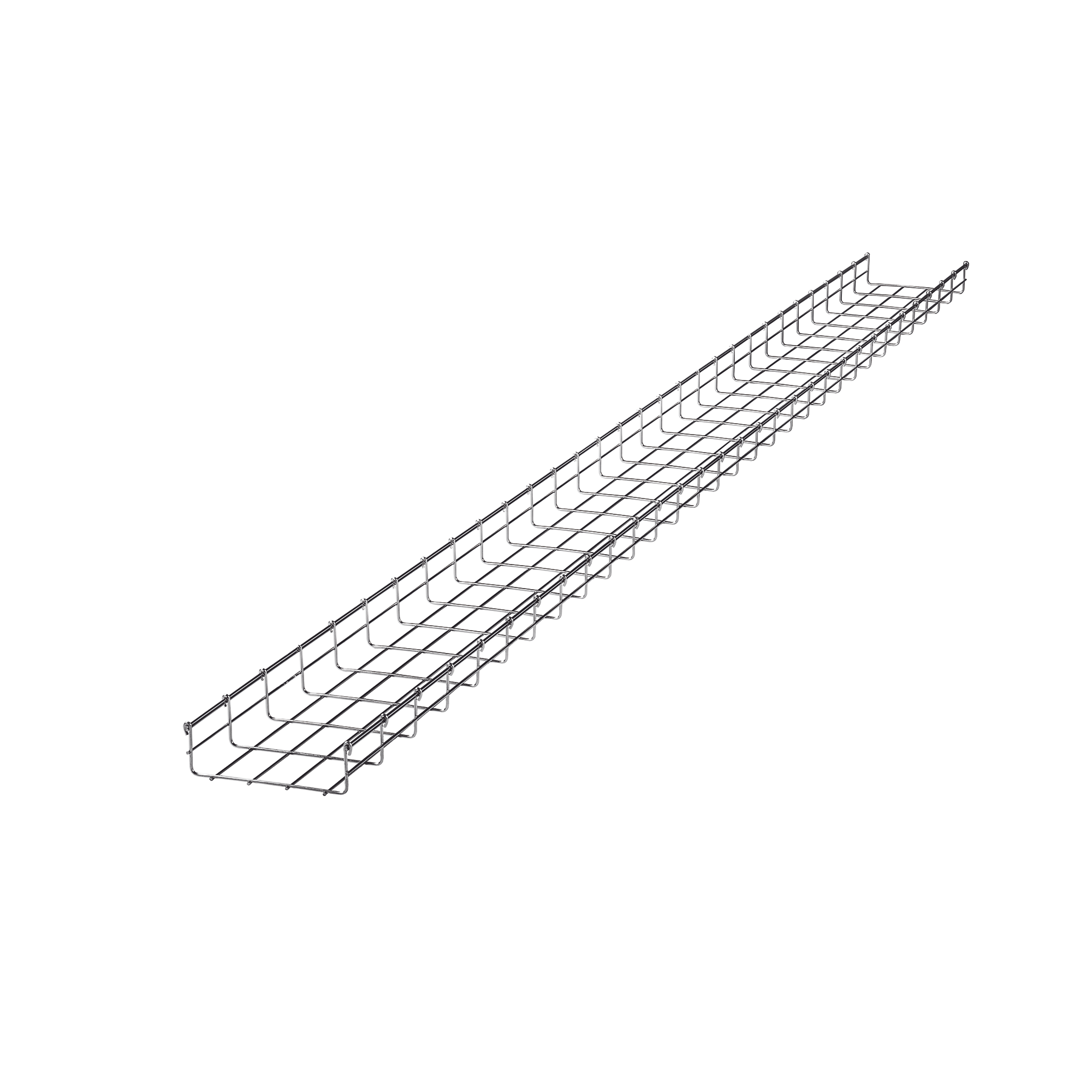

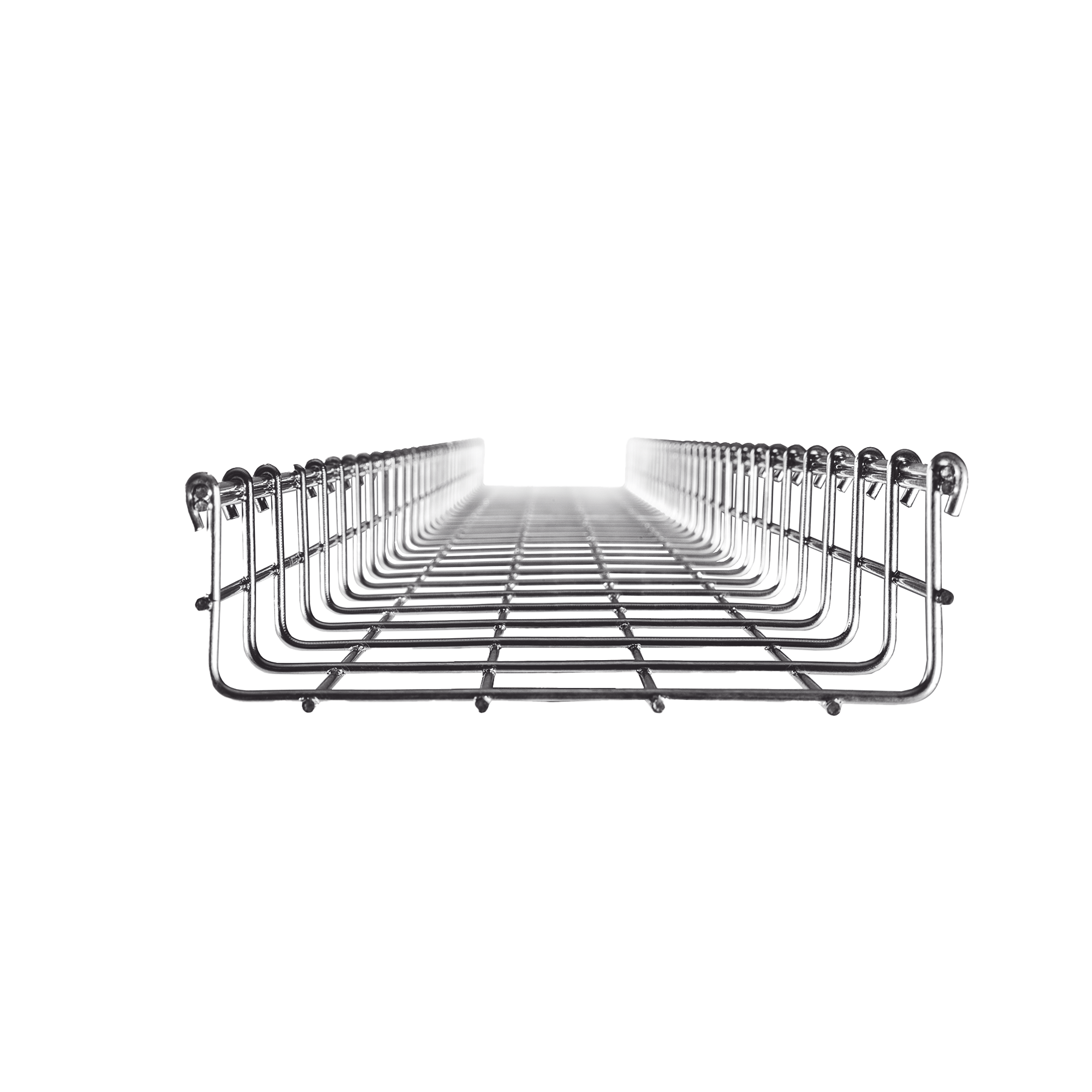

Wire Mesh Cable Tray, Electro Galvanized, up to 210 UTP Cat6 Cables, Section 9.84ft (3m), 2.6"/3.94" (66/200mm) Width

(0)

$60.99

Unit price

General Characteristics:

Width: 7.87 in (200 mm).
Camber: 2.6 in (66 mm).
Length: 9.84 ft (3 m).
Load capacity: 361 lb/ft (50 kg/m) between 5 ft support spans (1.50 m), 282 lb/ft (39 kg/m) between 6 ft (1.80 m) support spans.
Volumetric weight: 9.83 lb/ft (1.36 kg/m)

Electro Zinc (EZ) finish of 15 to 20 microns.

Electro Zinc is a process by which a layer of zinc is deposited on metal parts through continuous electric current. Recommended for indoor use.

Coating: "EZ" Galvanizad Electro-Zinc.

*Recommended for indoors.

Number of cable loads, with camber 66 mm.

In stock · 10 pcs

Receives in 3 days.

Available for pickup at

Out of stock at

{"id":51462586990759,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"MG-50-435EZ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Wire Mesh Cable Tray, Electro-galvanized, up to 315 Cat6 Cables, Section 9.84ft (3m), 2.6\"\/11.81\" (66\/300mm) Width","public_title":null,"options":["Default Title"],"price":4000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

CHAROFIL

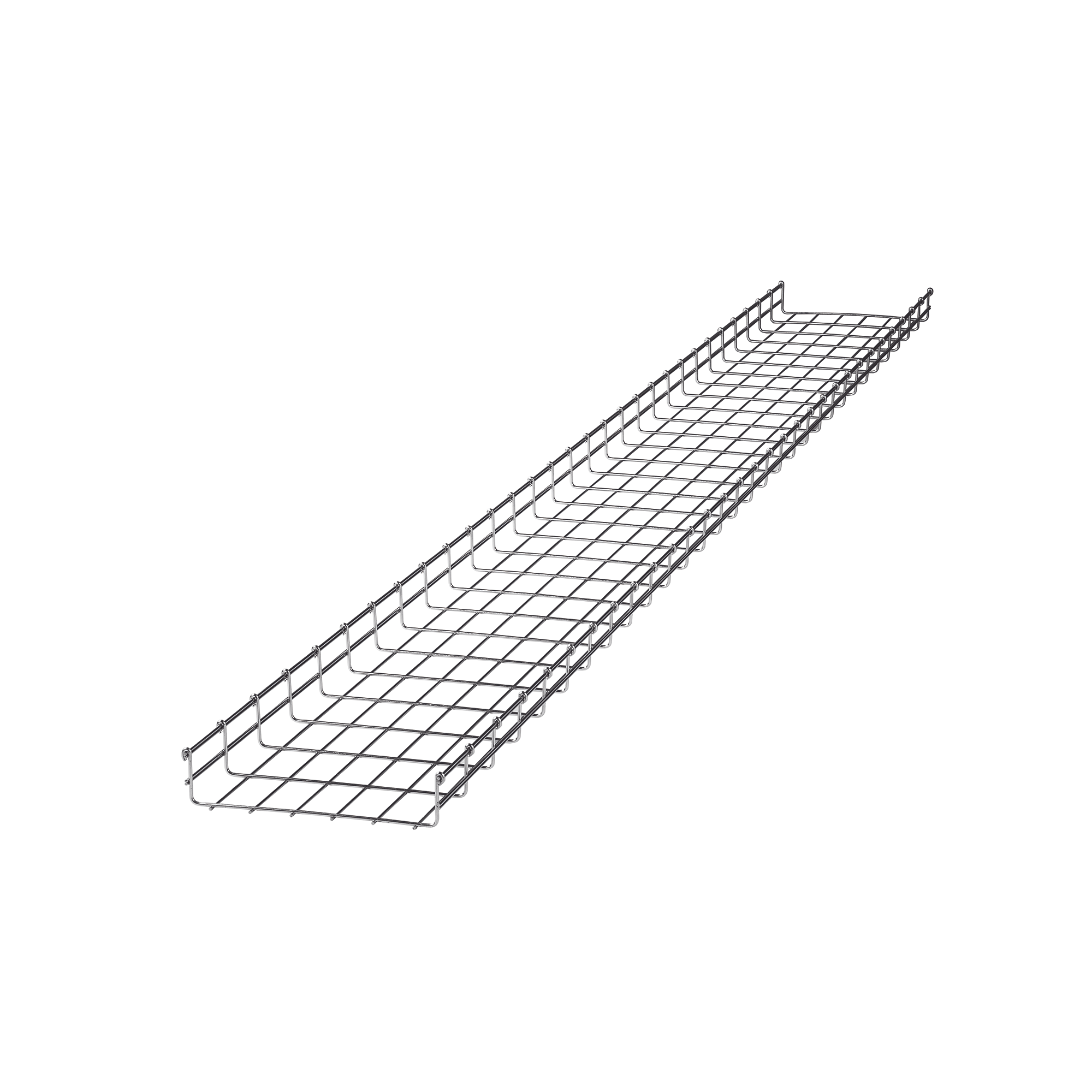

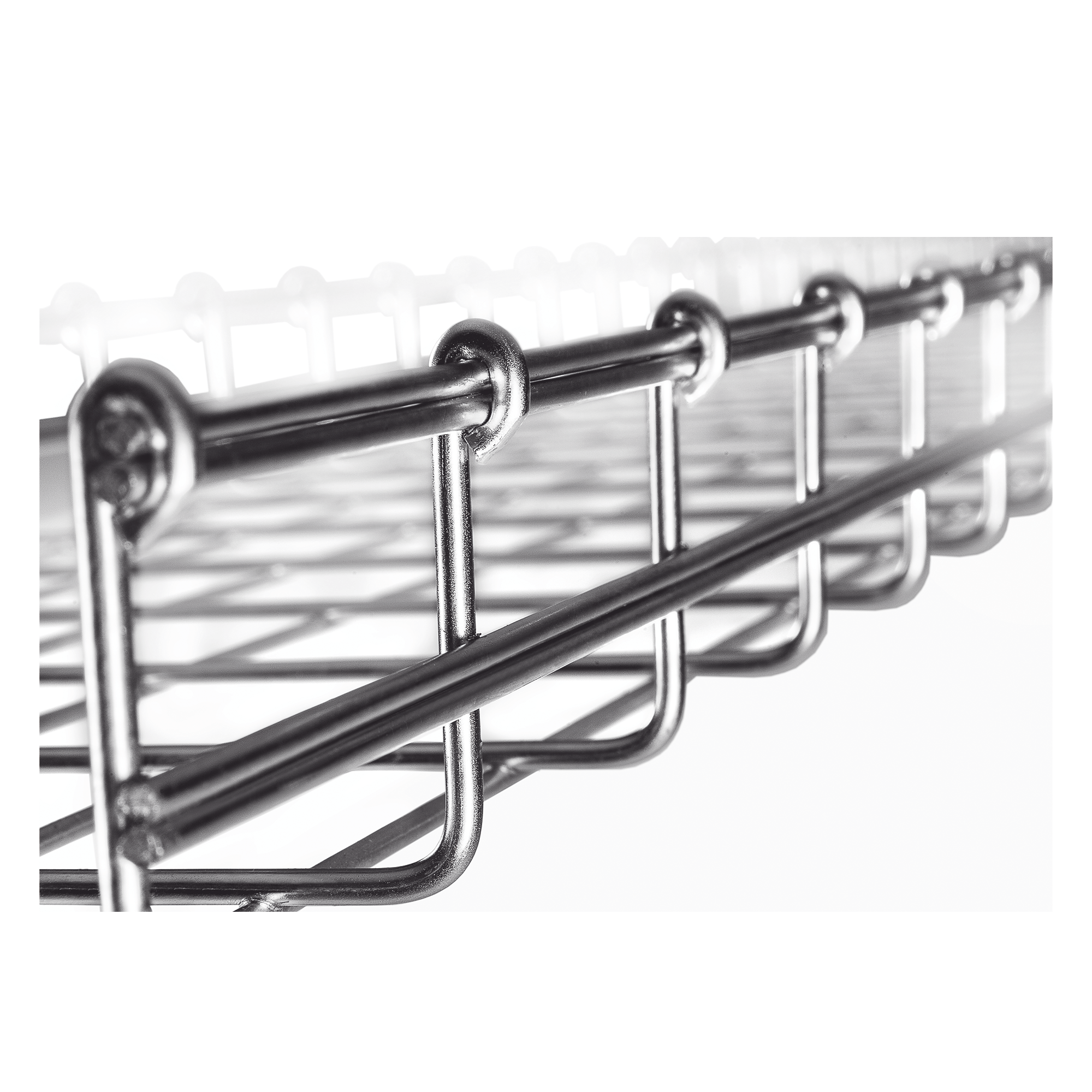

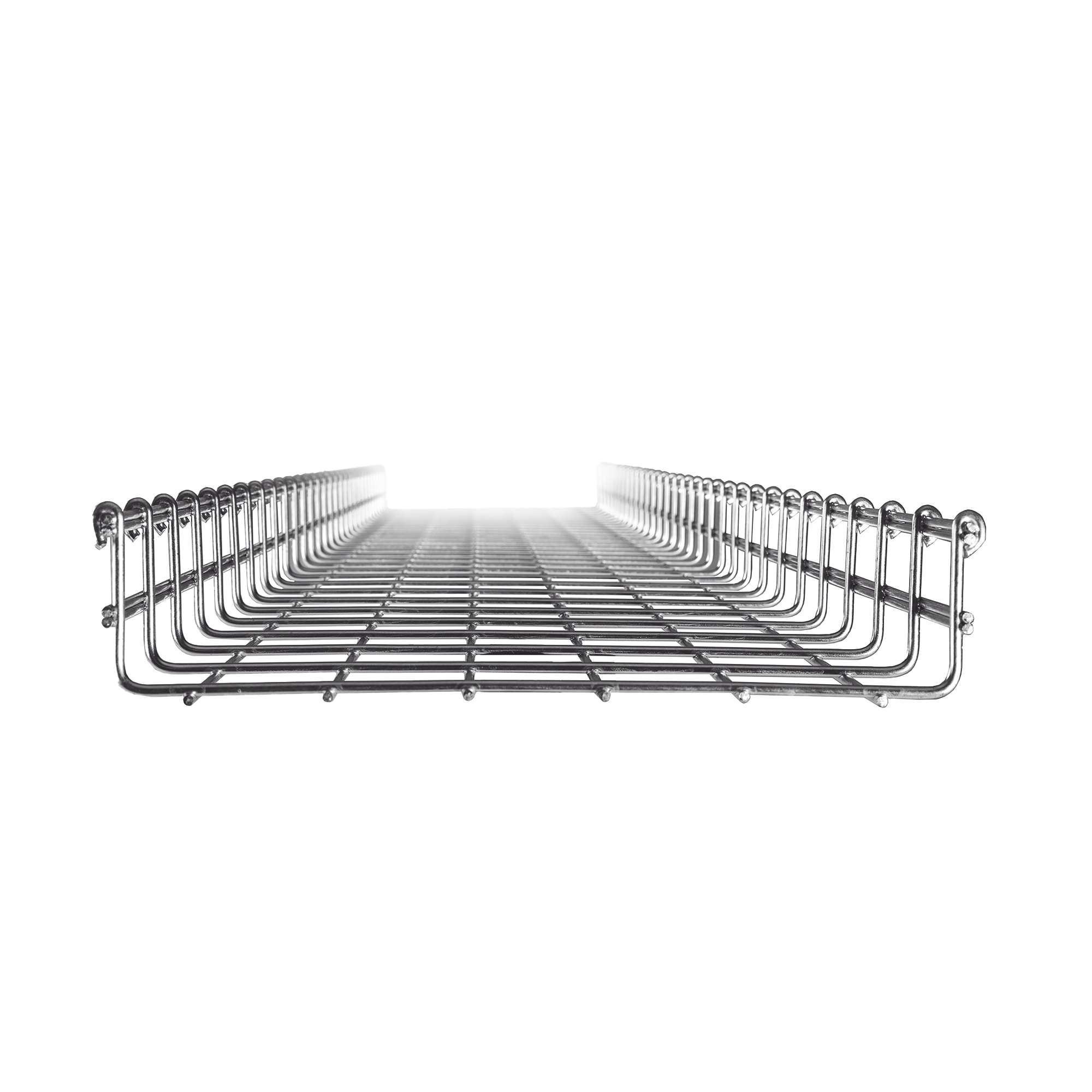

Wire Mesh Cable Tray, Electro-galvanized, up to 315 Cat6 Cables, Section 9.84ft (3m), 2.6"/11.81" (66/300mm) Width

(0)

$40.00

Unit price

General Characteristics:

Width: 11.81 in (300 mm).
Camber: 2.59 in (66 mm).
Length: 9.84 ft (3 m).
Load capacity: 58 lb/ft (87 kg/m) between 1.50 m support spans, 52 lb/ft (78 kg/m) between 5.9 ft (1.80 m) support spans.
Volumetric weight: 1.49 lb/ft (2.227 kg/m)

Electro Zinc (EZ) finish of 15 to 20 microns.

Electro Zinc is a process by which a layer of zinc is deposited on metal parts through continuous electric current. Recommended for indoor use.

Coating: "EZ" Galvanizad Electro-Zinc.

*Recommended for indoors.

Number of cable loads, with camber 66 mm.

In stock · 259 pcs

Receives in 3 days.

Available for pickup at

Out of stock at
