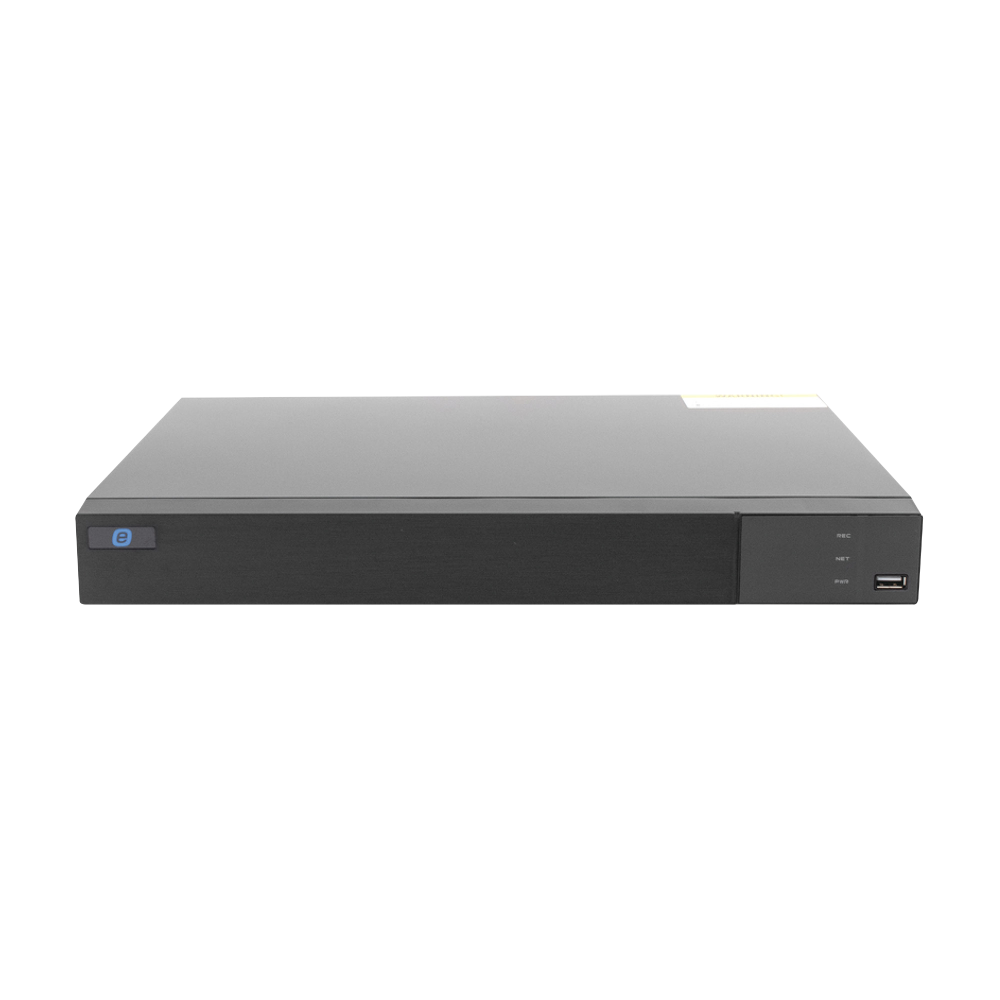

DVR 8MP (4K) / 4 Channels TURBOHD + 2 Channels IP / Support 1 Hard Disk / Smart Motion Detection (Avoid False Alarms) / Video Output 4K / H.265 / AHD, TVI, CVBS, CVI / 4 Channels Audio / Audio by Coaxitron / Cloud Video Recording
$201.59
$223.99
-10%
4 Analog + 2 IP Channels Up to 8MP @20fps HDMI 4K + VGA 1 HDD Bay, up to 10TB DC12V / 1.5A AHD / TVI / CVI / CVBS
⚠ NDAA Compliant
This model is NDAA compliant, making it eligible for U.S. federal, state and local government projects subject to Section 889 restrictions.
H.265+ compression
Standard H.265 high profile compression, paired with an advanced SOC, keeps every channel recording in real time while getting high-quality video at a much lower bit rate.
| Compression | H.264 / H.265 / H.265+ |
| Max. resolution | 8MP @20fps (IP) |
| Bit rate | 32Kbps ~ 4Mbps |
4 analog + 2 IP, one box
A hybrid design covers 4 TurboHD/AHD/CVI channels plus 2 IP channels in the same unit, with all 4 analog inputs switchable to IP for mixed-camera sites.
| Analog input | 4CH (BNC) |
| IP input | 2CH (up to 6CH) |
| Total input | Up to 6CH |
Video & Recording
- 4CH analog (TVI/AHD/CVI) + 2CH IP, up to 6CH total
- Analog channels: up to 8MP @15fps
- IP channels: up to 8MP @20fps
- H.264 / H.265 / H.265+ compression
- Multi-mode recording: manual, timed, motion, sensor, AI
- 4CH simultaneous playback
Network & Mobile
- RJ45 100Mbps port
- Incoming bandwidth: 16Mbps (max. 40Mbps)
- Outgoing bandwidth: 40Mbps
- Remote access via Web Client or CMS
- Mobile surveillance on iOS and Android
- Up to 10 simultaneous client connections
Physical & Power
- Power supply: DC12V / 1.5A
- Consumption: ≤10W (without HDD)
- Dimensions: 11.81" x 9.80" x 1.77" (30 x 24.9 x 4.5 cm)
- Working environment: 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
- 1 SATA bay (up to 10TB) + 1 eSATA
- USB 2.0 x2
Where the compact 4-channel design earns its place
Full analog and IP coverage and 4K output in a footprint sized for a single small site.
Homes & small offices
Enough coverage for a house, a small retail counter or a single-office site with room to add a couple of IP cameras.
Mixed analog/IP starter systems
Keep existing coax runs while adding 1-2 IP cameras on the same recorder, with all 4 channels switchable between the two.
Budget-conscious 4K upgrades
A low power draw (≤10W) and compact chassis for sites that want 4K output without a large recorder.
Pick the right e-series hybrid DVR
All three share H.265+ compression, HDMI/VGA output and hybrid analog+IP input — they differ in channel count.
| Model | Channels | Max. resolution | Typical use |
| EV8004TURBOGEN3(B)(T) | 4 analog + 2 IP | 8MP (4K) | Homes and small sites needing 4K |
| EV8008TURBOGEN3(B)(T) | 8 analog + 8 IP | 8MP (4K) | Small to mid sites needing more channels |
| EV8016TURBOGEN3(B)(T) | 16 analog + 8 IP | 8MP (4K) | Mid to large sites needing full 4K |
Full specifications
| Video | |
| Compression | H.264 / H.265 / H.265+ |
| Analog video input | 4CH, BNC connectors (1.0Vp-p, 75Ω) |
| IP video input | 2CH by default (up to 6CH) |
| Total input | Up to 6CH |
| Analog resolution / frame rate | 4K@8fps · 4K Lite@12/15fps · 5MP@12fps · 5MP Lite@20fps · 4MP/3MP@12/15fps · 4MP Lite/1080P/720P/WD1@25/30fps |
| IP resolution / frame rate | 8MP@20fps · lower resolutions @25/30fps |
| Live view | TVI/AHD/CVI: 4K@15fps · 5MP@20fps · 4MP/3MP/1080P/720P/WD1@30fps |
| Video output | HDMI x1: 3840x2160 / 1920x1080 / 1280x1024 · VGA x1: 1920x1080 / 1280x1024 · BNC x1 (CVBS, main or spot) |
| Multi-screen display | 1/4/6/9 |
| Bit rate | 32Kbps ~ 4Mbps |
| Audio | |
| Audio input | RCA x4 |
| Audio output | RCA x1 (linear, 600Ω) |
| Two-way audio | 1CH (uses one audio input channel) |
| Audio compression | G.711 (U/A) |
| Recording & Playback | |
| Recording mode | Manual, timed, motion, sensor, smart event |
| Playback | 4CH simultaneous |
| Search | Time slice, time, event, tag and smart search |
| Alarm | 4CH input, 1CH output · smart motion detection (4CH) · perimeter protection (1CH) |
| Network | |
| Interface | RJ45, 100Mbps x1 |
| Protocols | TCP/IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, 802.1x, FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP, WebSocket, SNMP, IGMP |
| Bandwidth | Incoming: 16Mbps (max. 40Mbps) · Outgoing: 40Mbps |
| Mobile devices | iOS, Android |
| Client connections | Max. 10 users |
| Storage & Ports | |
| HDD | SATA x1, up to 10TB · eSATA x1 |
| Local backup | U disk, USB mobile HDD |
| USB | USB 2.0 x2 |
| RS-485 | Yes (half-duplex), for PTZ or keyboard |
| Physical & Power | |
| Power supply | DC12V / 1.5A |
| Power consumption | ≤10W (without HDD) |
| Dimensions (W x D x H) | 11.81" x 9.80" x 1.77" (30 x 24.9 x 4.5 cm) |
| Working environment | 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity |
| Operating system | Embedded Linux |
| Certifications | CE, FCC · RoHS, WEEE, REACH compliant |
4 channels, 4K output, small footprint.
Hybrid analog + IP input and H.265+ compression — built for sites that want real 4K without a large recorder.
e
DVR 8MP (4K) / 4 Channels TURBOHD + 2 Channels IP / Support 1 Hard Disk / Smart Motion Detection (Avoid False Alarms) / Video Output 4K / H.265 / AHD, TVI, CVBS, CVI / 4 Channels Audio / Audio by Coaxitron / Cloud Video Recording
SKU: EV8004TURBOGEN3(B)(T)(LA)
$201.59
$223.99
-10%
Shipping
calculated at checkout.
The 5W power is great for use in the home whether you want to listen to music after a long day at work or watch a film on your laptop. With its practical integrated strap, you can attach the speaker to a backpack and take it to the park on a sunny spring day.
In stock · 49 pcs
Estimated delivery: 3–7 business days.
DVR 8MP (4K) / 4 Channels TURBOHD + 2 Channels IP / Support 1 Hard Disk / Smart Motion Detection (Avoid False Alarms) / Video Output 4K / H.265 / AHD, TVI, CVBS, CVI / 4 Channels Audio / Audio by Coaxitron / Cloud Video Recording
$201.59
$223.99
$201.59
$223.99
Secure Shipping
We package your products securely.
Warranty
All our products are guaranteed.
4 Analog + 2 IP Channels Up to 8MP @20fps HDMI 4K + VGA 1 HDD Bay, up to 10TB DC12V / 1.5A AHD / TVI / CVI / CVBS
⚠ NDAA Compliant
This model is NDAA compliant, making it eligible for U.S. federal, state and local government projects subject to Section 889 restrictions.
H.265+ compression
Standard H.265 high profile compression, paired with an advanced SOC, keeps every channel recording in real time while getting high-quality video at a much lower bit rate.
| Compression | H.264 / H.265 / H.265+ |
| Max. resolution | 8MP @20fps (IP) |
| Bit rate | 32Kbps ~ 4Mbps |
4 analog + 2 IP, one box
A hybrid design covers 4 TurboHD/AHD/CVI channels plus 2 IP channels in the same unit, with all 4 analog inputs switchable to IP for mixed-camera sites.
| Analog input | 4CH (BNC) |
| IP input | 2CH (up to 6CH) |
| Total input | Up to 6CH |
Video & Recording
- 4CH analog (TVI/AHD/CVI) + 2CH IP, up to 6CH total
- Analog channels: up to 8MP @15fps
- IP channels: up to 8MP @20fps
- H.264 / H.265 / H.265+ compression
- Multi-mode recording: manual, timed, motion, sensor, AI
- 4CH simultaneous playback
Network & Mobile
- RJ45 100Mbps port
- Incoming bandwidth: 16Mbps (max. 40Mbps)
- Outgoing bandwidth: 40Mbps
- Remote access via Web Client or CMS
- Mobile surveillance on iOS and Android
- Up to 10 simultaneous client connections
Physical & Power
- Power supply: DC12V / 1.5A
- Consumption: ≤10W (without HDD)
- Dimensions: 11.81" x 9.80" x 1.77" (30 x 24.9 x 4.5 cm)
- Working environment: 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
- 1 SATA bay (up to 10TB) + 1 eSATA
- USB 2.0 x2
Where the compact 4-channel design earns its place
Full analog and IP coverage and 4K output in a footprint sized for a single small site.
Homes & small offices
Enough coverage for a house, a small retail counter or a single-office site with room to add a couple of IP cameras.
Mixed analog/IP starter systems
Keep existing coax runs while adding 1-2 IP cameras on the same recorder, with all 4 channels switchable between the two.
Budget-conscious 4K upgrades
A low power draw (≤10W) and compact chassis for sites that want 4K output without a large recorder.
Pick the right e-series hybrid DVR
All three share H.265+ compression, HDMI/VGA output and hybrid analog+IP input — they differ in channel count.
| Model | Channels | Max. resolution | Typical use |
| EV8004TURBOGEN3(B)(T) | 4 analog + 2 IP | 8MP (4K) | Homes and small sites needing 4K |
| EV8008TURBOGEN3(B)(T) | 8 analog + 8 IP | 8MP (4K) | Small to mid sites needing more channels |
| EV8016TURBOGEN3(B)(T) | 16 analog + 8 IP | 8MP (4K) | Mid to large sites needing full 4K |
Full specifications
| Video | |
| Compression | H.264 / H.265 / H.265+ |
| Analog video input | 4CH, BNC connectors (1.0Vp-p, 75Ω) |
| IP video input | 2CH by default (up to 6CH) |
| Total input | Up to 6CH |
| Analog resolution / frame rate | 4K@8fps · 4K Lite@12/15fps · 5MP@12fps · 5MP Lite@20fps · 4MP/3MP@12/15fps · 4MP Lite/1080P/720P/WD1@25/30fps |
| IP resolution / frame rate | 8MP@20fps · lower resolutions @25/30fps |
| Live view | TVI/AHD/CVI: 4K@15fps · 5MP@20fps · 4MP/3MP/1080P/720P/WD1@30fps |
| Video output | HDMI x1: 3840x2160 / 1920x1080 / 1280x1024 · VGA x1: 1920x1080 / 1280x1024 · BNC x1 (CVBS, main or spot) |
| Multi-screen display | 1/4/6/9 |
| Bit rate | 32Kbps ~ 4Mbps |
| Audio | |
| Audio input | RCA x4 |
| Audio output | RCA x1 (linear, 600Ω) |
| Two-way audio | 1CH (uses one audio input channel) |
| Audio compression | G.711 (U/A) |
| Recording & Playback | |
| Recording mode | Manual, timed, motion, sensor, smart event |
| Playback | 4CH simultaneous |
| Search | Time slice, time, event, tag and smart search |
| Alarm | 4CH input, 1CH output · smart motion detection (4CH) · perimeter protection (1CH) |
| Network | |
| Interface | RJ45, 100Mbps x1 |
| Protocols | TCP/IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, 802.1x, FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP, WebSocket, SNMP, IGMP |
| Bandwidth | Incoming: 16Mbps (max. 40Mbps) · Outgoing: 40Mbps |
| Mobile devices | iOS, Android |
| Client connections | Max. 10 users |
| Storage & Ports | |
| HDD | SATA x1, up to 10TB · eSATA x1 |
| Local backup | U disk, USB mobile HDD |
| USB | USB 2.0 x2 |
| RS-485 | Yes (half-duplex), for PTZ or keyboard |
| Physical & Power | |
| Power supply | DC12V / 1.5A |
| Power consumption | ≤10W (without HDD) |
| Dimensions (W x D x H) | 11.81" x 9.80" x 1.77" (30 x 24.9 x 4.5 cm) |
| Working environment | 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity |
| Operating system | Embedded Linux |
| Certifications | CE, FCC · RoHS, WEEE, REACH compliant |
4 channels, 4K output, small footprint.
Hybrid analog + IP input and H.265+ compression — built for sites that want real 4K without a large recorder.
