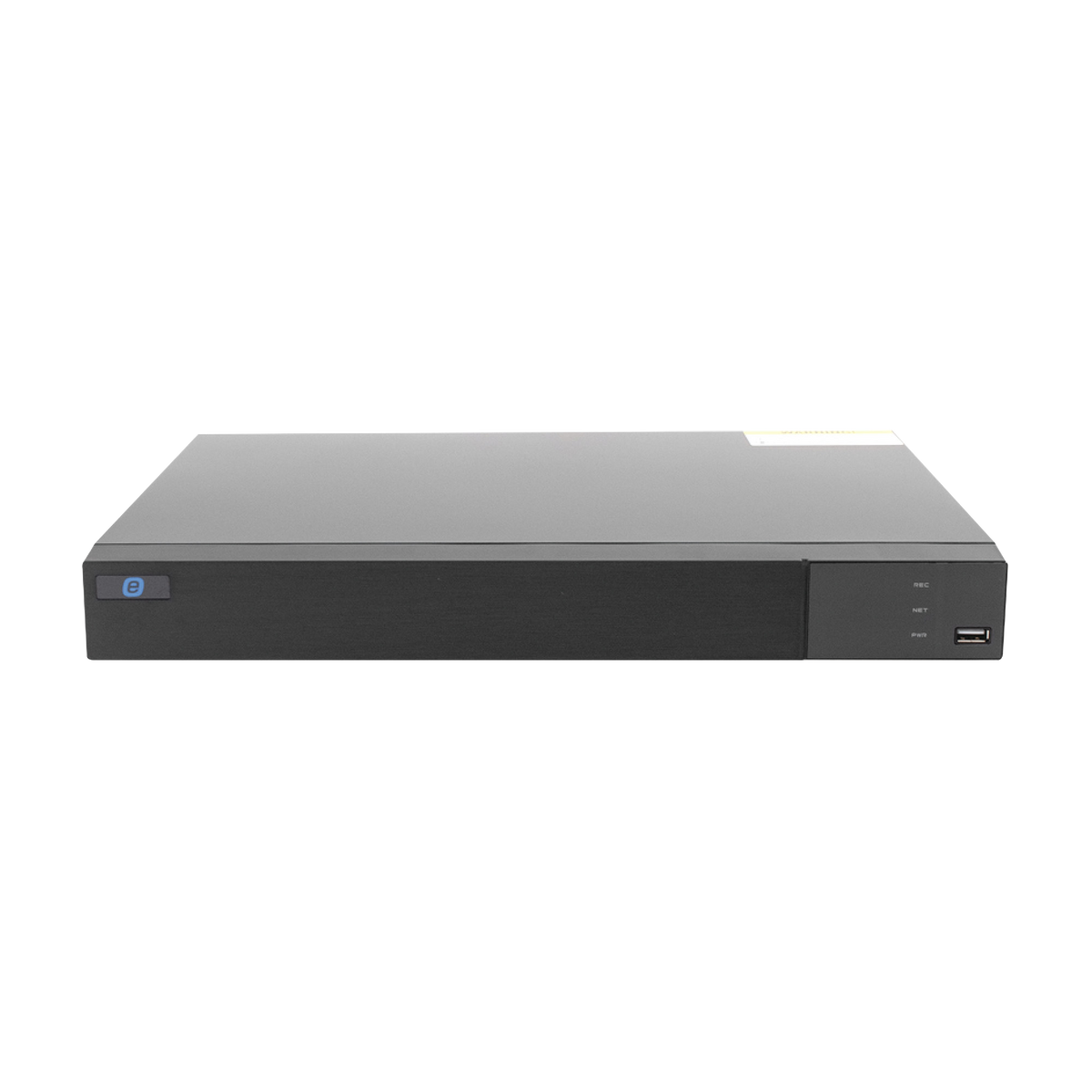

DVR 8MP (4K) / 8 Channels TURBOHD + 8 Channels IP / Smart Sense (Avoid False Alarms) / Support 2 Hard Disk / Video Output 4K / H.265 / AHD, TVI, CVBS, CVI / 8 Channels Audio / Audio by Coaxitron / Cloud Video Recording
$369.89
$410.99
-10%
8 Analog + 8 IP Channels Up to 8MP @30fps HDMI 4K + VGA 2 HDD Bays, up to 10TB each DC12V / 4A AHD / TVI / CVI / CVBS
⚠ NDAA Compliant
This model is NDAA compliant, making it eligible for U.S. federal, state and local government projects subject to Section 889 restrictions.
AI analytics built in
Advanced AI analytics can tell people and vehicles apart from other movement, so alerts focus on what actually matters instead of every branch or shadow that crosses the frame.
| AI function | Human & vehicle detection |
| Also included | Smart motion detection |
| Also included | Perimeter protection |
8 analog + 8 IP, one box
A hybrid design covers 8 TurboHD/AHD/CVI channels plus 8 IP channels in the same unit, with all 8 analog inputs switchable to IP for mixed-camera sites.
| Analog input | 8CH (BNC) |
| IP input | 8CH (up to 16CH) |
| Total input | Up to 16CH |
Video & Recording
- 8CH analog (TVI/AHD/CVI) + 8CH IP, up to 16CH total
- Analog channels: up to 8MP @15fps
- IP channels: up to 8MP @25/30fps
- H.264 / H.265 / H.265+ compression
- Multi-mode recording: manual, timed, motion, sensor, AI
- 8CH simultaneous playback
Network & Mobile
- RJ45 1000Mbps port
- Incoming bandwidth: 32Mbps (max. 64Mbps)
- Outgoing bandwidth: 96Mbps
- Remote access via Web Client or CMS
- Mobile surveillance on iOS and Android
- Up to 10 simultaneous client connections
Physical & Power
- Power supply: DC12V / 4A
- Consumption: ≤15W (without HDD)
- Dimensions: 14.96" x 10.55" x 1.77" (38 x 26.8 x 4.5 cm)
- Working environment: 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
- 2 SATA bays (up to 10TB each) + 1 eSATA
- USB 3.0 x1, USB 2.0 x1
Where the 8-channel hybrid design earns its place
Full analog and IP coverage, AI-assisted alerts and NDAA-eligible hardware, in a single recorder.
Small to mid sites
Retail stores, small offices and homes that need up to 8 cameras with room to add IP devices.
Perimeters and entry points
AI-based human and vehicle detection cuts down false alerts from wind, animals or lighting changes.
Government & regulated projects
NDAA-compliant hardware for projects that require it under Section 889.
Pick the right e-series hybrid DVR
All three share H.265+ compression, HDMI/VGA output and hybrid analog+IP input — they differ in channel count and maximum resolution.
| Model | Channels | Max. resolution | Typical use |
| EV8008TURBOGEN3(B)(T) | 8 analog + 8 IP | 8MP (4K) | Small to mid sites needing 4K + AI analytics |
| EV8016TURBOGEN3(B)(T) | 16 analog + 8 IP | 8MP (4K) | Mid to large sites needing full 4K |
| EV4008-TURBO-GEN3(B) | 8 analog + 4 IP | 5MP Lite | Budget-friendly 8-channel coverage |
Full specifications
| Video | |
| Compression | H.264 / H.265 / H.265+ |
| Analog video input | 8CH, BNC connectors |
| IP video input | 8CH by default (up to 16CH) |
| Total input | Up to 16CH |
| Analog resolution / frame rate | 4K@8fps · 4K Lite@12/15fps · 5MP@12fps · 5MP Lite@20fps · 4MP/3MP@12/15fps · 4MP Lite/1080P/720P/WD1/D1@25/30fps |
| IP resolution / frame rate | 8MP @25/30fps |
| Live view | TVI/AHD/CVI: 4K@15fps · 5MP@20fps · 4MP/3MP/1080P/720P/WD1@30fps |
| Video output | HDMI x1: 3840x2160 / 1920x1080 / 1280x1024 · VGA x1: 1920x1080 / 1280x1024 · BNC x1 (CVBS, main or spot) |
| Multi-screen display | 1/4/6/8/9/13/16 |
| Audio | |
| Audio input | RCA x8 |
| Audio output | RCA x1 (linear, 600Ω) |
| Two-way audio | 1CH |
| Audio compression | G.711 (U/A) |
| Recording & Playback | |
| Recording mode | Manual, timed, motion, sensor, smart event |
| Playback | 8CH simultaneous |
| Search | Time slice, time, event, tag and smart search |
| Network | |
| Interface | RJ45, 1000Mbps x1 |
| Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, NTP, SMTP |
| Bandwidth | Incoming: 32Mbps (max. 64Mbps) · Outgoing: 96Mbps |
| Mobile devices | iOS, Android |
| Client connections | Max. 10 users |
| Storage & Ports | |
| HDD | SATA x2, up to 10TB per HDD · eSATA x1 |
| Local backup | U disk, USB mobile HDD |
| USB | USB 3.0 x1 · USB 2.0 x1 |
| RS-485 | Yes (half-duplex), for PTZ or keyboard |
| Physical & Power | |
| Power supply | DC12V / 4A |
| Power consumption | ≤15W (without HDD) |
| Dimensions (W x D x H) | 14.96" x 10.55" x 1.77" (38 x 26.8 x 4.5 cm) |
| Working environment | 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity |
| Operating system | Embedded Linux |
| Certifications | CE, FCC · RoHS, WEEE, REACH compliant · NDAA compliant |
| Warranty | 5 years with Epcom |
8 channels, 4K output, AI on board.
Hybrid analog + IP input, H.265+ compression and NDAA-compliant hardware — built for sites that want smarter alerts without giving up resolution.
