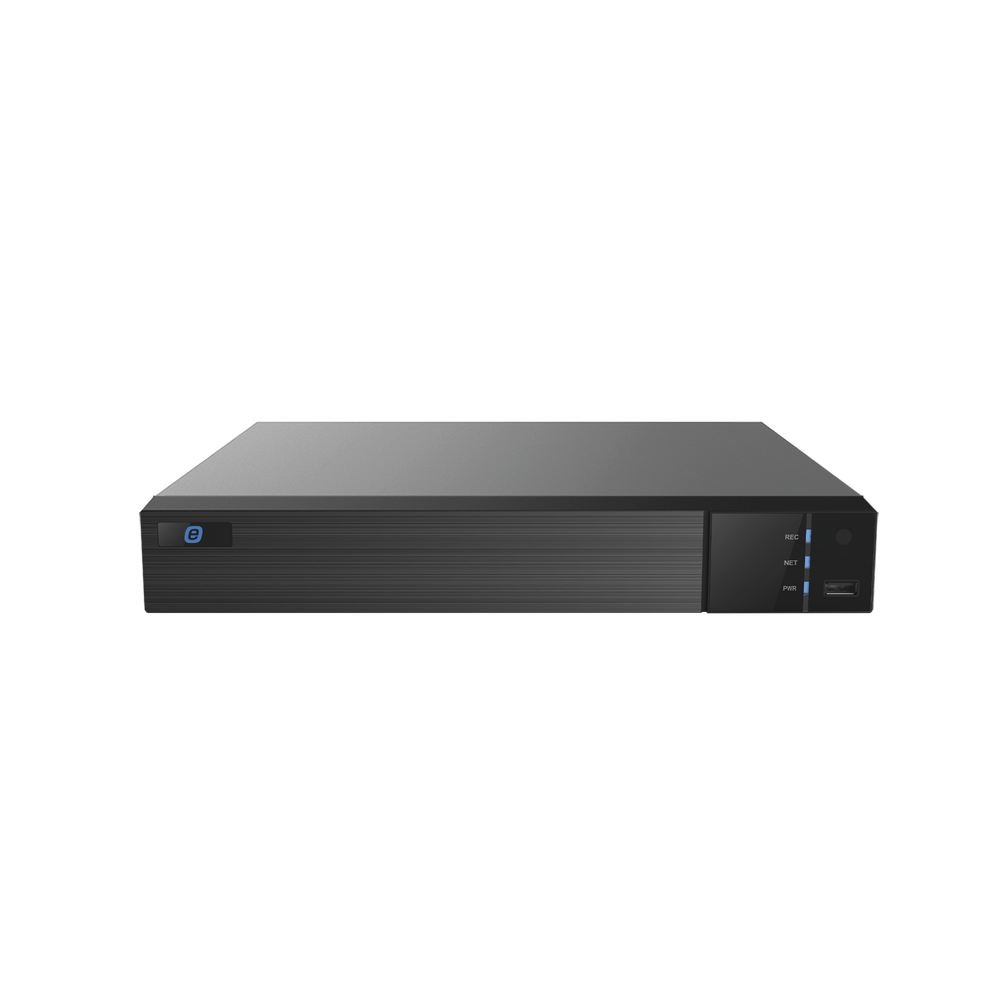

DVR 8 MP Lite / 8 Channels TURBOHD + 4 Channels IP / Support 1 Hard Disk / Smart Sense (Avoid False Alarms) / Video Outpout FULL HD / H.265 / AHD, TVI, CVBS, CVI / 8 Channels Audio / Audio by Coaxitron / Cloud Video Recording
$203.39
$225.99
-10%
8 Analog + 4 IP Channels Up to 5MP @30fps (IP) HDMI + VGA (1080p) 1 HDD Bay, up to 10TB DC12V / 2A AHD / TVI / CVI / CVBS
⚠ NDAA Compliant
This model is NDAA compliant, making it eligible for U.S. federal, state and local government projects subject to Section 889 restrictions.
H.265+ compression
H.265+ can reduce storage requirements by up to 80% compared to standard compression, so the same hard drive holds far more recorded video.
| Compression | H.264 / H.265 / H.265+ |
| IP resolution | Up to 5MP @30fps |
| Storage | 1 bay, up to 10TB |
8 analog + 4 IP, one box
A hybrid design covers 8 TurboHD/AHD/CVI channels plus 4 IP channels in the same unit, with the 8 analog inputs switchable to IP for mixed-camera sites.
| Analog input | 8CH (BNC) |
| IP input | 4CH (up to 12CH) |
| Total input | Up to 12CH |
Video & Recording
- 8CH analog (TVI/AHD/CVI) + 4CH IP, up to 12CH total
- Live view: 4K@15fps, 5MP@20fps, 4MP/1080P/720P@30fps
- Recording: up to 8MP Lite (analog), up to 5MP @30fps (IP)
- H.264 / H.265 / H.265+ compression
- Multi-mode recording: manual, timed, motion, sensor, AI
- 8CH simultaneous playback
Network & Mobile
- RJ45 100Mbps port
- Incoming bandwidth: 32Mbps (max. 60Mbps)
- Outgoing bandwidth: 60Mbps
- Remote access via Web Client or CMS
- Mobile surveillance on iOS and Android
- Up to 5 simultaneous client connections
Physical & Power
- Power supply: DC12V / 2A
- Consumption: ≤10W (without HDD)
- Dimensions: 11.81" x 9.80" x 1.77" (30 x 24.9 x 4.5 cm)
- Working environment: 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
- 1 SATA bay (up to 10TB) + 1 eSATA
- USB 2.0 x2
Where the 8-channel hybrid design earns its place
Full analog and IP coverage and NDAA-eligible hardware, in a single recorder sized for smaller deployments.
Small businesses
Retail stores, restaurants and single-location offices that need up to 8 cameras with room to grow into IP.
Mixed analog/IP upgrades
Keep existing coax runs while adding IP cameras on the same recorder, with all 8 channels switchable between the two.
Government & regulated projects
NDAA-compliant hardware for projects that require it under Section 889.
Pick the right e-series hybrid DVR
All three share H.265+ compression, HDMI/VGA output and hybrid analog+IP input — they differ in channel count and maximum resolution.
| Model | Channels | Max. resolution | Typical use |
| EV4008-TURBO-GEN3(B) | 8 analog + 4 IP | 8MP Lite / FULL HD output | Small sites on a budget |
| EV8008TURBOGEN3(B)(T) | 8 analog + 8 IP | 8MP (4K) | Small to mid sites needing true 4K + AI |
| EV4016TURBOGEN3(B)(T) | 16 analog + 8 IP | 5MP Lite | Larger sites needing more channels |
Full specifications
| Video | |
| Compression | H.264 / H.265 / H.265+ |
| Analog video input | 8CH, BNC connectors (1.0Vp-p, 75Ω) |
| IP video input | 4CH by default (up to 12CH) |
| Total input | Up to 12CH |
| Live view | TVI/AHD/CVI: 4K@15fps · 5MP@20fps · 4MP/1080P/720P@30fps · supports CVBS |
| Record resolution | 8MP Lite / 5MP Lite / 4MP Lite / 1080P / 1080P Lite / 720P / WD1 |
| Analog frame rate | 8MP Lite@8fps · 5MP Lite@12fps · 4MP Lite/1080P@12/15fps · 1080P Lite/720P/WD1/D1@25/30fps |
| IP frame rate | Up to 5MP @30fps · 25/30fps |
| Video output | HDMI x1: 1920x1080 / 1280x1024 / 1024x768 · VGA x1: same · BNC x1 (CVBS, main or spot) |
| Multi-screen display | 1/4/6/8/9/13/16 |
| Bit rate | 32Kbps ~ 4Mbps |
| Audio | |
| Audio input | RCA x8 |
| Audio output | RCA x1 (linear, 600Ω) |
| Two-way audio | 1CH (uses one audio input channel) |
| Audio compression | G.711 (U/A) |
| Recording, Alarm & Playback | |
| Recording mode | Manual, timed, motion, sensor, smart event |
| Playback | 8CH simultaneous |
| Search | Time slice, time, event, tag and smart search |
| Alarm | 8CH input, 1CH output · smart motion detection (8CH) · perimeter protection (1CH) |
| Network | |
| Interface | RJ45, 100Mbps x1 |
| Protocols | TCP/IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, 802.1x, FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP, WebSocket, SNMP, IGMP |
| Bandwidth | Incoming: 32Mbps (max. 60Mbps) · Outgoing: 60Mbps |
| Mobile devices | iOS, Android |
| Client connections | Max. 5 users |
| Storage & Ports | |
| HDD | SATA x1, up to 10TB · eSATA x1 |
| Local backup | U disk, USB mobile HDD |
| USB | USB 2.0 x2 |
| RS-485 | Yes (half-duplex), for PTZ or keyboard |
| Physical & Power | |
| Power supply | DC12V / 2A |
| Power consumption | ≤10W (without HDD) |
| Dimensions (W x D x H) | 11.81" x 9.80" x 1.77" (30 x 24.9 x 4.5 cm) |
| Working environment | 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity |
| Operating system | Embedded Linux |
| Certifications | CE, FCC · RoHS, WEEE, REACH compliant · NDAA compliant |
| Warranty | 5 years with Epcom |
8 channels, hybrid input, room to grow.
Analog + IP support, H.265+ compression and NDAA-compliant hardware — built for smaller sites that still want a real upgrade path.
e
DVR 8 MP Lite / 8 Channels TURBOHD + 4 Channels IP / Support 1 Hard Disk / Smart Sense (Avoid False Alarms) / Video Outpout FULL HD / H.265 / AHD, TVI, CVBS, CVI / 8 Channels Audio / Audio by Coaxitron / Cloud Video Recording
SKU: EV4008-TURBO-GEN3(B)
$203.39
$225.99
-10%
Shipping
calculated at checkout.
The 5W power is great for use in the home whether you want to listen to music after a long day at work or watch a film on your laptop. With its practical integrated strap, you can attach the speaker to a backpack and take it to the park on a sunny spring day.
In stock · 67 pcs
Estimated delivery: 3–7 business days.
DVR 8 MP Lite / 8 Channels TURBOHD + 4 Channels IP / Support 1 Hard Disk / Smart Sense (Avoid False Alarms) / Video Outpout FULL HD / H.265 / AHD, TVI, CVBS, CVI / 8 Channels Audio / Audio by Coaxitron / Cloud Video Recording
$203.39
$225.99
$203.39
$225.99
Secure Shipping
We package your products securely.
Warranty
All our products are guaranteed.
8 Analog + 4 IP Channels Up to 5MP @30fps (IP) HDMI + VGA (1080p) 1 HDD Bay, up to 10TB DC12V / 2A AHD / TVI / CVI / CVBS
⚠ NDAA Compliant
This model is NDAA compliant, making it eligible for U.S. federal, state and local government projects subject to Section 889 restrictions.
H.265+ compression
H.265+ can reduce storage requirements by up to 80% compared to standard compression, so the same hard drive holds far more recorded video.
| Compression | H.264 / H.265 / H.265+ |
| IP resolution | Up to 5MP @30fps |
| Storage | 1 bay, up to 10TB |
8 analog + 4 IP, one box
A hybrid design covers 8 TurboHD/AHD/CVI channels plus 4 IP channels in the same unit, with the 8 analog inputs switchable to IP for mixed-camera sites.
| Analog input | 8CH (BNC) |
| IP input | 4CH (up to 12CH) |
| Total input | Up to 12CH |
Video & Recording
- 8CH analog (TVI/AHD/CVI) + 4CH IP, up to 12CH total
- Live view: 4K@15fps, 5MP@20fps, 4MP/1080P/720P@30fps
- Recording: up to 8MP Lite (analog), up to 5MP @30fps (IP)
- H.264 / H.265 / H.265+ compression
- Multi-mode recording: manual, timed, motion, sensor, AI
- 8CH simultaneous playback
Network & Mobile
- RJ45 100Mbps port
- Incoming bandwidth: 32Mbps (max. 60Mbps)
- Outgoing bandwidth: 60Mbps
- Remote access via Web Client or CMS
- Mobile surveillance on iOS and Android
- Up to 5 simultaneous client connections
Physical & Power
- Power supply: DC12V / 2A
- Consumption: ≤10W (without HDD)
- Dimensions: 11.81" x 9.80" x 1.77" (30 x 24.9 x 4.5 cm)
- Working environment: 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity
- 1 SATA bay (up to 10TB) + 1 eSATA
- USB 2.0 x2
Where the 8-channel hybrid design earns its place
Full analog and IP coverage and NDAA-eligible hardware, in a single recorder sized for smaller deployments.
Small businesses
Retail stores, restaurants and single-location offices that need up to 8 cameras with room to grow into IP.
Mixed analog/IP upgrades
Keep existing coax runs while adding IP cameras on the same recorder, with all 8 channels switchable between the two.
Government & regulated projects
NDAA-compliant hardware for projects that require it under Section 889.
Pick the right e-series hybrid DVR
All three share H.265+ compression, HDMI/VGA output and hybrid analog+IP input — they differ in channel count and maximum resolution.
| Model | Channels | Max. resolution | Typical use |
| EV4008-TURBO-GEN3(B) | 8 analog + 4 IP | 8MP Lite / FULL HD output | Small sites on a budget |
| EV8008TURBOGEN3(B)(T) | 8 analog + 8 IP | 8MP (4K) | Small to mid sites needing true 4K + AI |
| EV4016TURBOGEN3(B)(T) | 16 analog + 8 IP | 5MP Lite | Larger sites needing more channels |
Full specifications
| Video | |
| Compression | H.264 / H.265 / H.265+ |
| Analog video input | 8CH, BNC connectors (1.0Vp-p, 75Ω) |
| IP video input | 4CH by default (up to 12CH) |
| Total input | Up to 12CH |
| Live view | TVI/AHD/CVI: 4K@15fps · 5MP@20fps · 4MP/1080P/720P@30fps · supports CVBS |
| Record resolution | 8MP Lite / 5MP Lite / 4MP Lite / 1080P / 1080P Lite / 720P / WD1 |
| Analog frame rate | 8MP Lite@8fps · 5MP Lite@12fps · 4MP Lite/1080P@12/15fps · 1080P Lite/720P/WD1/D1@25/30fps |
| IP frame rate | Up to 5MP @30fps · 25/30fps |
| Video output | HDMI x1: 1920x1080 / 1280x1024 / 1024x768 · VGA x1: same · BNC x1 (CVBS, main or spot) |
| Multi-screen display | 1/4/6/8/9/13/16 |
| Bit rate | 32Kbps ~ 4Mbps |
| Audio | |
| Audio input | RCA x8 |
| Audio output | RCA x1 (linear, 600Ω) |
| Two-way audio | 1CH (uses one audio input channel) |
| Audio compression | G.711 (U/A) |
| Recording, Alarm & Playback | |
| Recording mode | Manual, timed, motion, sensor, smart event |
| Playback | 8CH simultaneous |
| Search | Time slice, time, event, tag and smart search |
| Alarm | 8CH input, 1CH output · smart motion detection (8CH) · perimeter protection (1CH) |
| Network | |
| Interface | RJ45, 100Mbps x1 |
| Protocols | TCP/IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, 802.1x, FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP, WebSocket, SNMP, IGMP |
| Bandwidth | Incoming: 32Mbps (max. 60Mbps) · Outgoing: 60Mbps |
| Mobile devices | iOS, Android |
| Client connections | Max. 5 users |
| Storage & Ports | |
| HDD | SATA x1, up to 10TB · eSATA x1 |
| Local backup | U disk, USB mobile HDD |
| USB | USB 2.0 x2 |
| RS-485 | Yes (half-duplex), for PTZ or keyboard |
| Physical & Power | |
| Power supply | DC12V / 2A |
| Power consumption | ≤10W (without HDD) |
| Dimensions (W x D x H) | 11.81" x 9.80" x 1.77" (30 x 24.9 x 4.5 cm) |
| Working environment | 14°F ~ 122°F (-10°C ~ 50°C), 10~90% humidity |
| Operating system | Embedded Linux |
| Certifications | CE, FCC · RoHS, WEEE, REACH compliant · NDAA compliant |
| Warranty | 5 years with Epcom |
8 channels, hybrid input, room to grow.
Analog + IP support, H.265+ compression and NDAA-compliant hardware — built for smaller sites that still want a real upgrade path.
