WISP/FTTX Switch with 7-Port 24V Passive Reverse PoE (PoE In), 1-Port

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

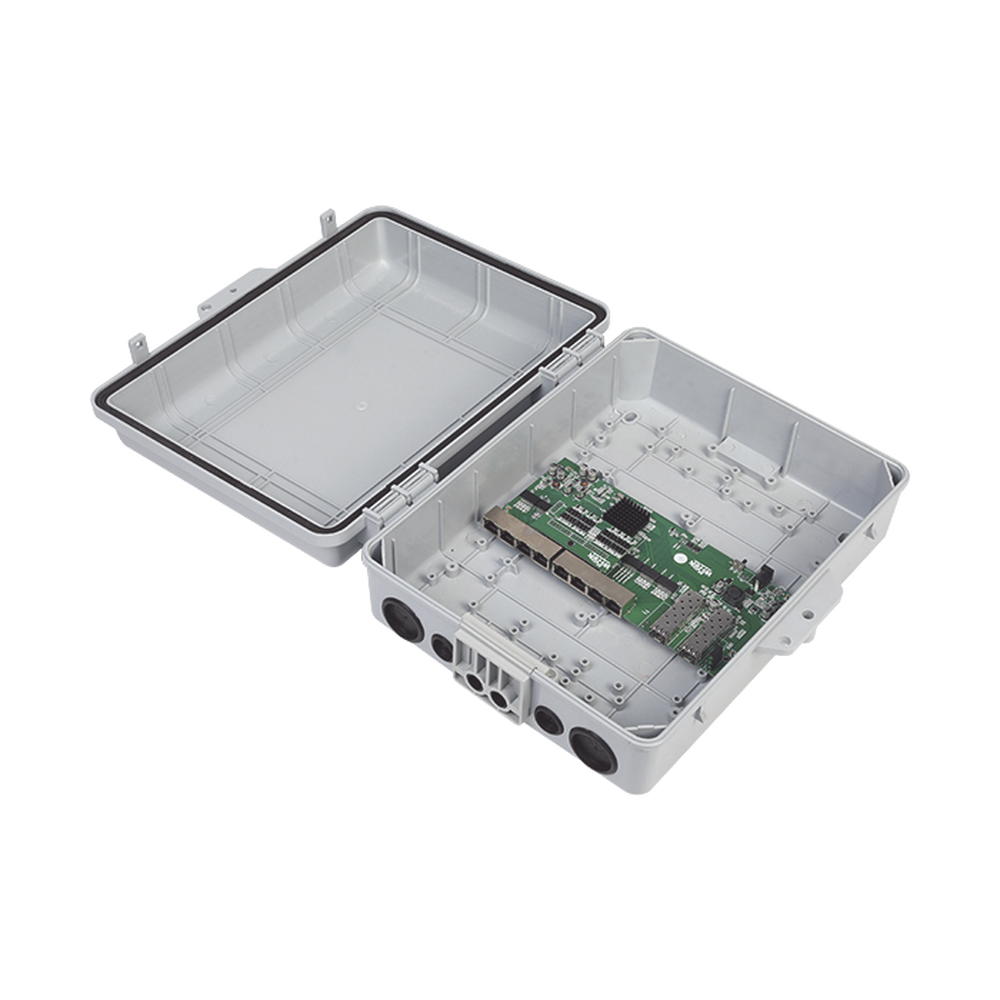

WISP/FTTX Switch with 7-Port 24V Passive Reverse PoE (PoE In), 1-Port 24V PoE Out + 2 SFP Ports, Integrated NEMA IP67 Enclosure, Ideal for Outdoor Installations.

$135.99

Secure Shipping

We package your products securely.

Warranty

All our products are guaranteed.

Wi-Tek · Outdoor Gigabit Switch

WI-PS310GF-RO
Reverse PoE Outdoor Switch

IP67 weatherproof outdoor switch with Wi-Tek's Reverse PoE technology — 7 Gigabit PoE-In ports, 1 Gigabit PoE-Out port, and 2 SFP uplinks. Purpose-built for FTTx ISP and WISP projects requiring centralized, uninterrupted outdoor PoE power management.

REVERSE PoE · 7× PoE IN + 1× PoE OUT · 2× SFP · IP67 · 20 Gbps

7+1

PoE Ports

2× SFP

Uplink Ports

20 Gbps

Bandwidth

IP67

Protection Rating

14°F

Min. Temp (-10°C)

What is Reverse PoE?

Traditional PoE pushes power downstream from a switch to devices. Reverse PoE flips this — outdoor nodes receive power upstream through the same cable that carries data, eliminating the need for a local power outlet at the installation site.

IN	Ports 1–7: PoE In

Receive 24 VDC power from outdoor nodes (APs, cameras) via standard Ethernet cable

OUT	Port 8: PoE Out

Delivers 24 VDC at 1A downstream to power an additional device in the chain

SFP	Ports 9–10: Uplink

2× Gigabit SFP fiber uplinks for backbone connectivity to your core network

Deployment Diagram

Key Features

Reverse PoE Technology 7× Gigabit PoE In (24V) 1× Gigabit PoE Out (24V 1A) 2× Gigabit SFP Uplink 20 Gbps Bandwidth IP67 Weatherproof VLAN / Port Isolation Unmanaged — Plug & Play Pole Mount Included CE / FCC / RoHS

Technical Specifications

Network
PoE In Ports	7× Gigabit RJ45 (24 VDC in)
PoE Out Port	1× Gigabit RJ45 (24 VDC / 1A)
Uplink Ports	2× Gigabit SFP
Bandwidth	20 Gbps
Packet Forwarding Rate	14.9 Mpps
Packet Buffer Memory	1.5 Mb
Management	Unmanaged

Physical & Power
Dimensions	13.0 × 11.4 × 5.1 in (330×290×130 mm)
Power Supply	12 VDC
IP Rating	IP67 (dust-tight, waterproof)
Operating Temp.	14°F to 131°F (-10°C to 55°C)
VLAN	Port isolation supported
Certifications	CE, FCC, RoHS

Package Contents

✓ Switch Board	✓ Pole Mount
✓ IP67 Enclosure	✓ Warranty Sheet
✓ Quick Start Guide

✓	1-Year Warranty with Epcom Covered against defects in materials and workmanship under normal use conditions.
