WD HDD 1TB Optimized for Video Surveillance

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

$215.09 $238.99

Secure Shipping

We package your products securely.

Warranty

All our products are guaranteed.

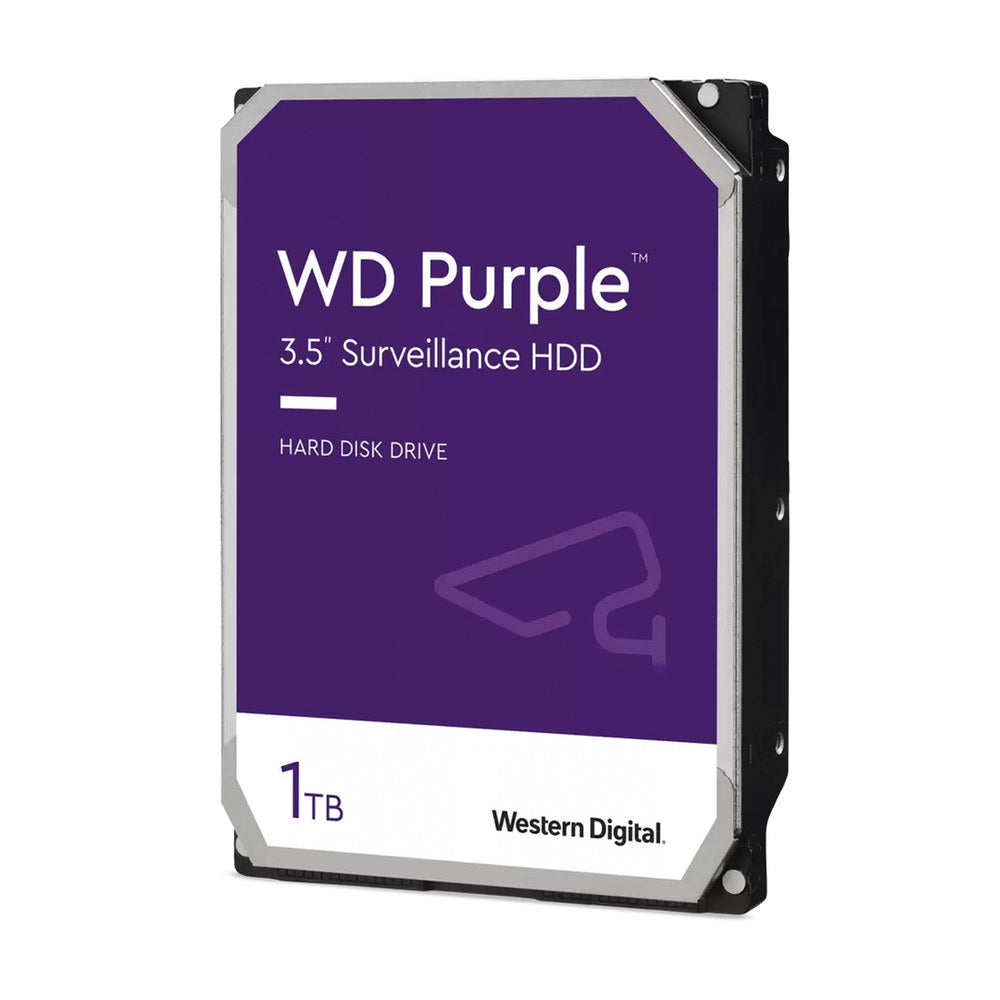

WD Purple Surveillance Hard Drive

The WD Purple Surveillance Hard Drive is specifically designed for mainstream surveillance systems operating 24/7. Optimized for write-intensive workloads with multiple video streams, this hard drive offers reliable, high-performance storage for professional security applications. With WD AllFrame technology that reduces frame loss and improves video playback, it is the ideal solution for modern DVRs and NVRs. The 1 TB capacity supports configurations with up to 64 cameras, making it suitable for small to medium-scale surveillance deployments.

Main Features

WD AllFrame technology reduces video frame loss and improves recording and playback
1 TB capacity for extended video surveillance storage
Workload rating of 180 TB/year, up to three times desktop drive ratings
Supports up to 64 HD cameras with single stream at 3.2 Mbps (1080p, H.265, 25 fps)
Corrosion-resistant components for durability in demanding environments
Compatible with systems up to 8 drive bays
CMR (Conventional Magnetic Recording) for conventional recording
RV (Rotational Vibration) sensors to mitigate vibrations in multi-drive environments
Advanced Format (AF) for greater storage efficiency

Performance

Interface: SATA 6 Gb/s
Rotational speed: 5400 RPM
Transfer rate (buffer to host): 6 Gb/s
Transfer rate (host to/from drive, sustained): 110 MB/s
Cache: 64 MB
Load/unload cycles: 300,000
MTBF: 1,000,000 hours
Non-recoverable errors: less than 1 in 10^14 bits read

Physical and Electrical

Form factor: 3.5 inches
Dimensions: 25.4 x 147 x 101.6 mm (1.0 x 5.8 x 4.0 in)
Weight: 450 g (0.99 lb)
Operating temperature: 0 to 65 degrees C (32 to 149 degrees F)
Non-operating temperature: -40 to 70 degrees C (-40 to 158 degrees F)
Operating shock: 70 Gs (read/write), 70 Gs (read)
Non-operating shock: 250 Gs
Power consumption (read/write): 3.3 W
Power consumption (idle): 2.9 W
Power consumption (standby/sleep): 0.4 W
Acoustics: 24 dBA (idle), 28 dBA (seek average)

Package Contents and Application

Application: Optimized for video surveillance applications
Drive bays supported: 1 to 8
Cameras supported: 1 to 64
RoHS compliant (EU Directive 2011/65/EU)

Typical Applications

Commercial surveillance systems for retail, offices, and commercial establishments requiring continuous 24/7 recording. Residential NVR systems with multiple surveillance cameras and remote monitoring. Compatible with leading surveillance and security system manufacturers.

Key Features

Bring home the QE65S90FATXXU and experience cinema-quality visuals, immersive sound, and next-gen AI enhancements – all in an elegant, slim design built for the future of home entertainment.

NQ4 AI Gen3 Processor with 128 neural networks
4K AI Upscaling Pro for sharper detail
OLED HDR+ for breathtaking brightness and depth
AI Motion Enhancer Pro for smooth, clear action
Dolby Atmos® immersive surround sound
Ultra-slim LaserSlim design with minimal bezels
Object Tracking Sound for realistic sound placement
Motion Xcelerator 144Hz with VRR/4K@120Hz support
Pantone® Validated colour accuracy

Features

custom.type
Speakers

2.1CH
Type of Antenna

Terrestrial & Satellite
USB Recording

Yes

Design Elements
Colour

Graphite Black
Colour Group

Black

Connectivity
Bluetooth

Yes
HDMI

Yes
Number of HDMI Ports

4
Number of USB Ports

2
Smart Connect

Yes
Smart TV

Yes
USB

Yes
Wi-Fi

Yes

Dimensions & Weight
Depth

3.99 cm
Depth with Stand

26.52 cm
Height

83.17 cm
Height with Stand

89.67 cm
Shipping Depth

16 cm
Shipping Height

95 cm
Shipping Weight

29.9 kg
Shipping Width

151.7 cm
Weight

21.2 kg
Width

144.43 cm
Width with Stand

144.43 cm

Authencity Guaranteed

We only sell authentic products from verified brand partners and retail partners globally.
