WI-TEK
High‑Power Solar PoE Switch with 90 W, 30 W, and 24 V Passive PoE Ports, 120 W Total PoE Budget, SFP Uplink, Cloud Management, and Solar UPS Support
$361.99
IMPORTANT
- Do not damage the equipment. Do not connect the Solar Panel and the Power Supply simultaneously (S+S- and V+V-). Only one voltage input must be installed and operated.
- Does not operate without battery. The equipment requires at least one battery connected to function, in addition to the power source.

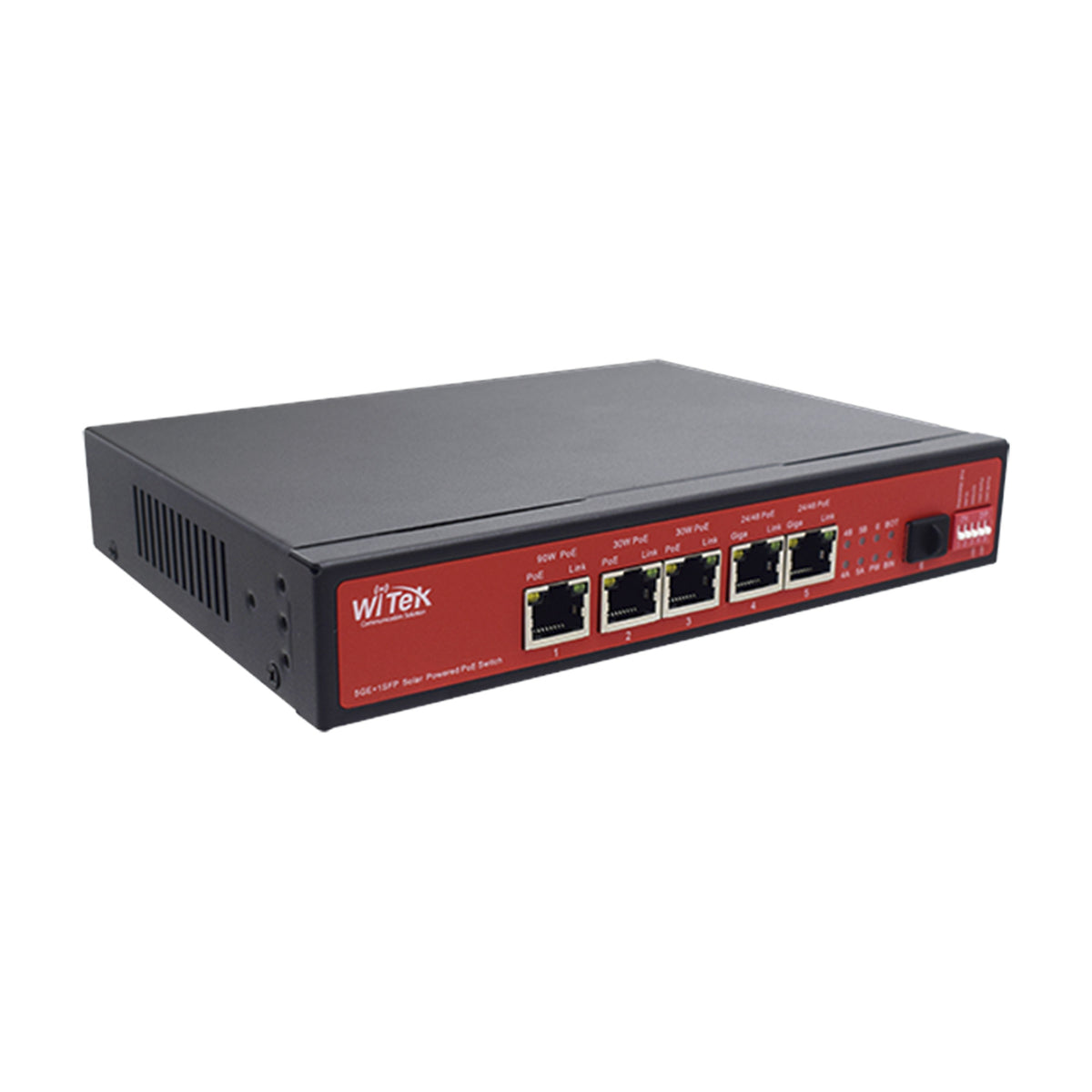

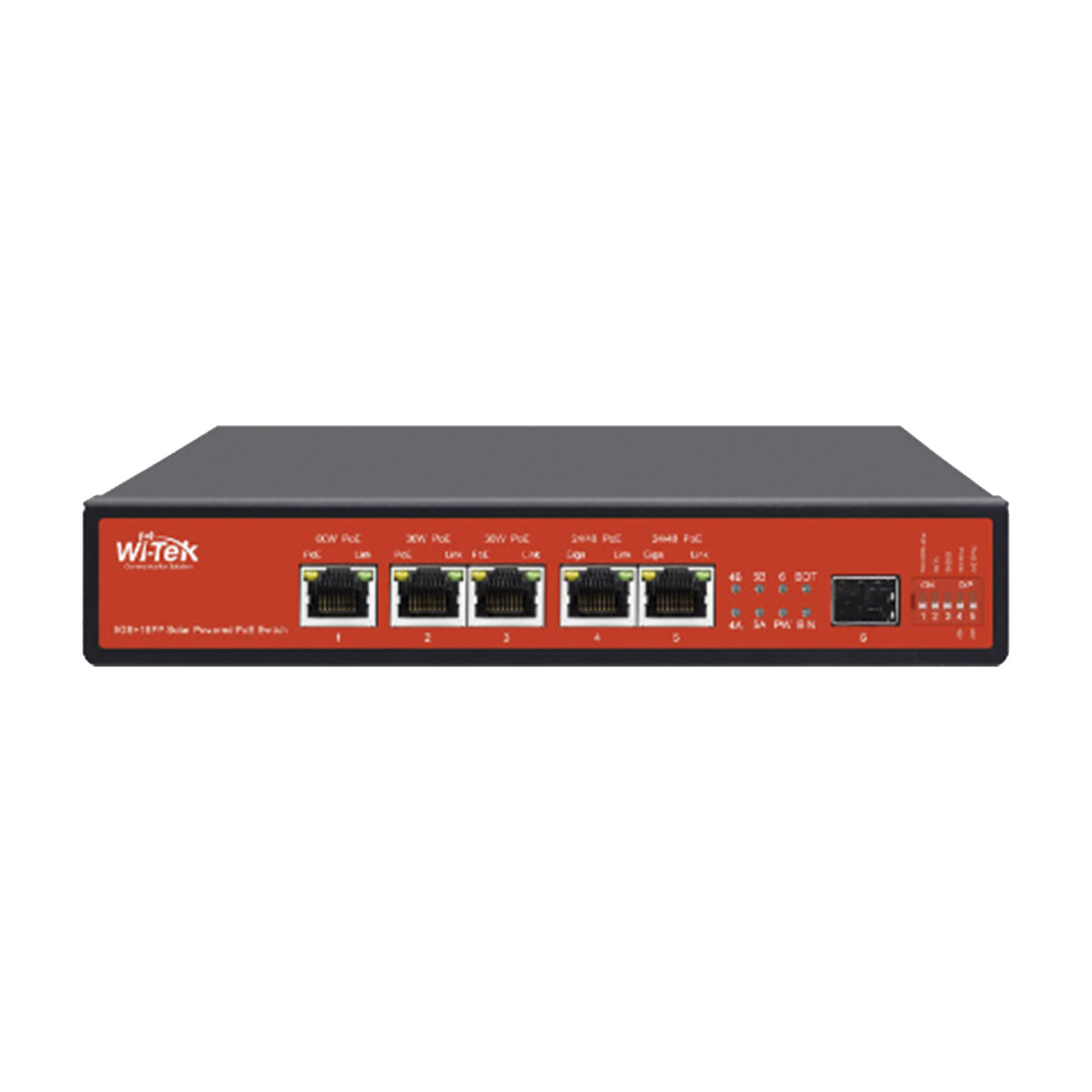

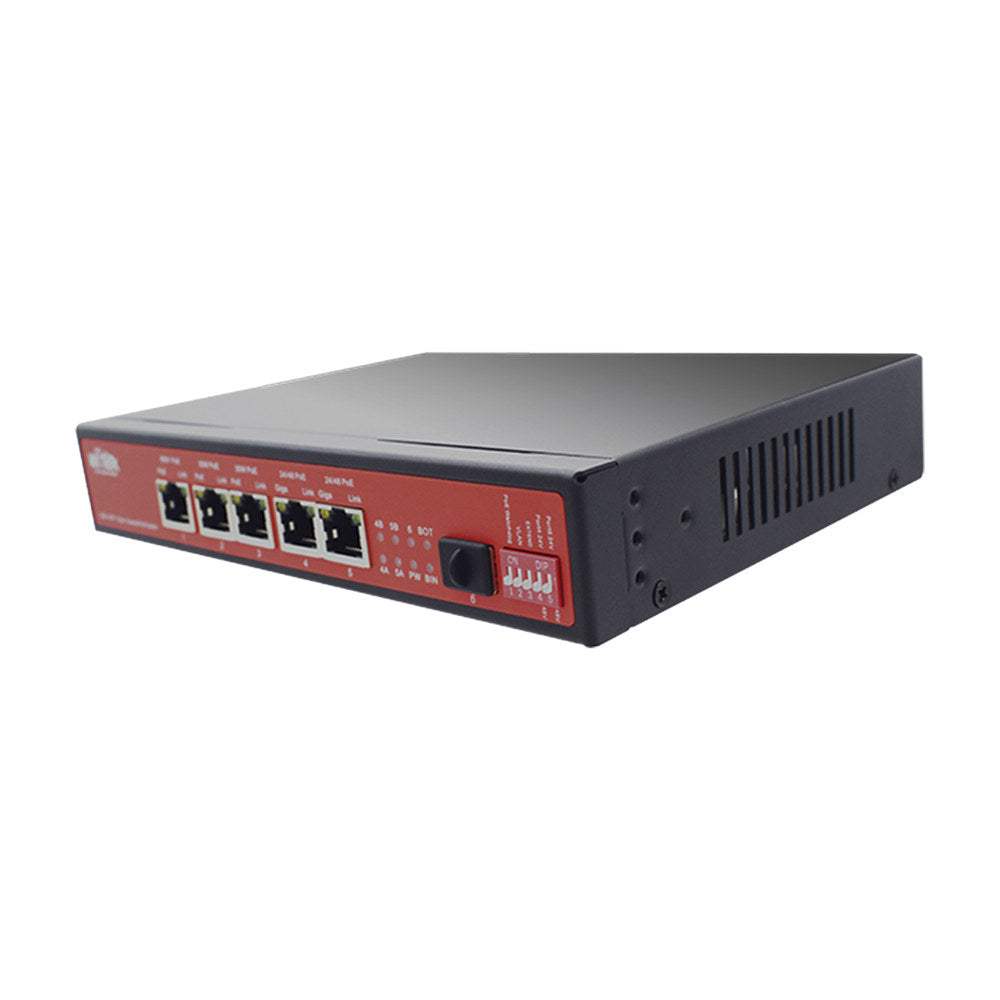

The WI-PS306GF-UPS-15A-V2 is an industrial solar PoE switch with integrated 15A solar charge controller, designed for off-grid and remote network deployments. It combines a 5-port Gigabit PoE switch with one 802.3bt 90W port, two 802.3af/at 30W ports, two passive 24V/48V PoE ports, and one SFP uplink port. The unit supports solar panel input up to 45VDC with battery backup integration, providing continuous operation in locations without grid power. Built-in Smart PoE Watchdog functionality enables automatic detection and reboot of unresponsive IP cameras or access points, reducing service calls for integrators.
The switch features an industrial-grade design with wall-mount and DIN rail mounting options, redundant power input capability, and operation in harsh environmental conditions. The integrated solar controller manages battery charging and power distribution between solar input, battery storage, and PoE output loads. Cloud management capability allows remote monitoring and configuration of the device through Wi-Tek's cloud platform.
Main Features
- Port 1: Gigabit 802.3bt PoE++ with 90W output
- Ports 2-3: Gigabit 802.3af/at PoE with 30W each
- Ports 4-5: Passive 24V/48V PoE with 24W output
- Port 6: Gigabit SFP fiber uplink
- 15A solar charge controller with input up to 45VDC
- 120W total PoE power budget
- Smart PoE Watchdog for automatic device reboot
- Industrial design with wall/DIN rail mounting
- Cloud management platform support
- Battery required for operation
Performance & PoE
- Switching capacity: 12 Gbps
- Packet forwarding rate: 8.928 Mpps
- MAC address table: 4K
- Port 1: 10/100/1000Mbps, 802.3bt (90W)
- Ports 2-3: 10/100/1000Mbps, 802.3af/at (30W)
- Ports 4-5: 10/100/1000Mbps, passive 24V/48V (24W)
- Port 6: 1000Mbps SFP uplink
- Total PoE budget: 120W
- Smart PoE Watchdog function
Solar & Power
- Solar charge controller: 15A
- Solar input voltage: up to 45VDC
- Battery voltage: 12V/24V auto-detect

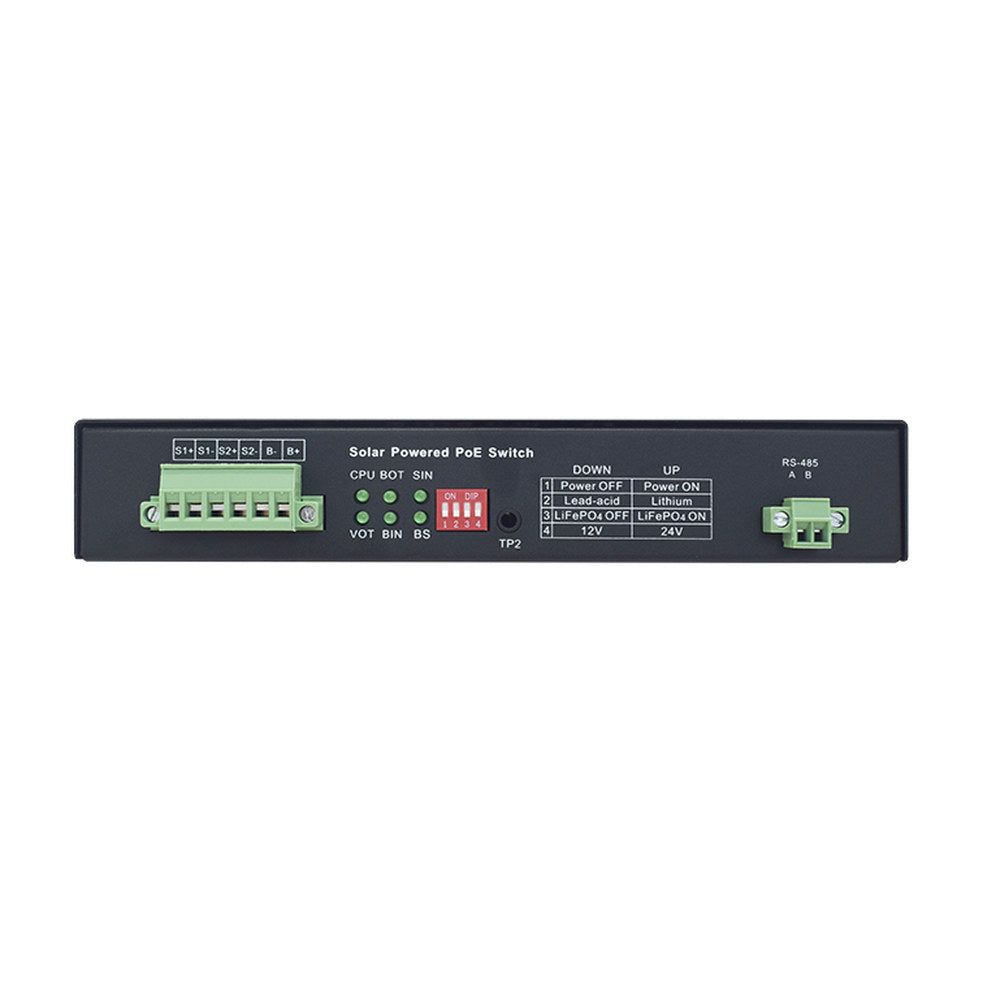

- Power input terminals: S+/S- (solar), V+/V- (DC power)
- DC power input: 48-57V (optional adapter)
- Redundant power support
Physical & Environmental
- Dimensions: 150 x 115 x 40 mm (5.9 x 4.5 x 1.6 in)
- Weight: 0.5 kg (1.1 lb)
- Mounting: wall or DIN rail
- Operating temperature: -20 to 55 C (-4 to 131 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Operating humidity: 5% to 95% non-condensing
- Protection level: IP30
Typical applications: Remote surveillance systems, wireless ISP (WISP) deployments, off-grid security installations, solar-powered access control systems, and industrial IoT networks in locations without reliable AC power infrastructure.
NOTE: Do not connect S+S- and V+V- simultaneously to avoid device damage. Only one power input source is accepted at a time. Battery connection is mandatory for operation.
WI-TEK
High‑Power Solar PoE Switch with 90 W, 30 W, and 24 V Passive PoE Ports, 120 W Total PoE Budget, SFP Uplink, Cloud Management, and Solar UPS Support
SKU: WI-PS306GF-UPS-15A-V2
$361.99
Shipping
calculated at checkout.
The 5W power is great for use in the home whether you want to listen to music after a long day at work or watch a film on your laptop. With its practical integrated strap, you can attach the speaker to a backpack and take it to the park on a sunny spring day.
In stock · 44 pcs
Estimated delivery: 3–7 business days.
High‑Power Solar PoE Switch with 90 W, 30 W, and 24 V Passive PoE Ports, 120 W Total PoE Budget, SFP Uplink, Cloud Management, and Solar UPS Support
$361.99
$361.99
Secure Shipping
We package your products securely.
Warranty
All our products are guaranteed.
IMPORTANT
- Do not damage the equipment. Do not connect the Solar Panel and the Power Supply simultaneously (S+S- and V+V-). Only one voltage input must be installed and operated.
- Does not operate without battery. The equipment requires at least one battery connected to function, in addition to the power source.
The WI-PS306GF-UPS-15A-V2 is an industrial solar PoE switch with integrated 15A solar charge controller, designed for off-grid and remote network deployments. It combines a 5-port Gigabit PoE switch with one 802.3bt 90W port, two 802.3af/at 30W ports, two passive 24V/48V PoE ports, and one SFP uplink port. The unit supports solar panel input up to 45VDC with battery backup integration, providing continuous operation in locations without grid power. Built-in Smart PoE Watchdog functionality enables automatic detection and reboot of unresponsive IP cameras or access points, reducing service calls for integrators.
The switch features an industrial-grade design with wall-mount and DIN rail mounting options, redundant power input capability, and operation in harsh environmental conditions. The integrated solar controller manages battery charging and power distribution between solar input, battery storage, and PoE output loads. Cloud management capability allows remote monitoring and configuration of the device through Wi-Tek's cloud platform.
Main Features
- Port 1: Gigabit 802.3bt PoE++ with 90W output
- Ports 2-3: Gigabit 802.3af/at PoE with 30W each
- Ports 4-5: Passive 24V/48V PoE with 24W output
- Port 6: Gigabit SFP fiber uplink
- 15A solar charge controller with input up to 45VDC
- 120W total PoE power budget
- Smart PoE Watchdog for automatic device reboot
- Industrial design with wall/DIN rail mounting
- Cloud management platform support
- Battery required for operation
Performance & PoE
- Switching capacity: 12 Gbps
- Packet forwarding rate: 8.928 Mpps
- MAC address table: 4K
- Port 1: 10/100/1000Mbps, 802.3bt (90W)
- Ports 2-3: 10/100/1000Mbps, 802.3af/at (30W)
- Ports 4-5: 10/100/1000Mbps, passive 24V/48V (24W)
- Port 6: 1000Mbps SFP uplink
- Total PoE budget: 120W
- Smart PoE Watchdog function
Solar & Power
- Solar charge controller: 15A
- Solar input voltage: up to 45VDC
- Battery voltage: 12V/24V auto-detect
- Power input terminals: S+/S- (solar), V+/V- (DC power)
- DC power input: 48-57V (optional adapter)
- Redundant power support
Physical & Environmental
- Dimensions: 150 x 115 x 40 mm (5.9 x 4.5 x 1.6 in)
- Weight: 0.5 kg (1.1 lb)
- Mounting: wall or DIN rail
- Operating temperature: -20 to 55 C (-4 to 131 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Operating humidity: 5% to 95% non-condensing
- Protection level: IP30
Typical applications: Remote surveillance systems, wireless ISP (WISP) deployments, off-grid security installations, solar-powered access control systems, and industrial IoT networks in locations without reliable AC power infrastructure.
NOTE: Do not connect S+S- and V+V- simultaneously to avoid device damage. Only one power input source is accepted at a time. Battery connection is mandatory for operation.
