WI-TEK

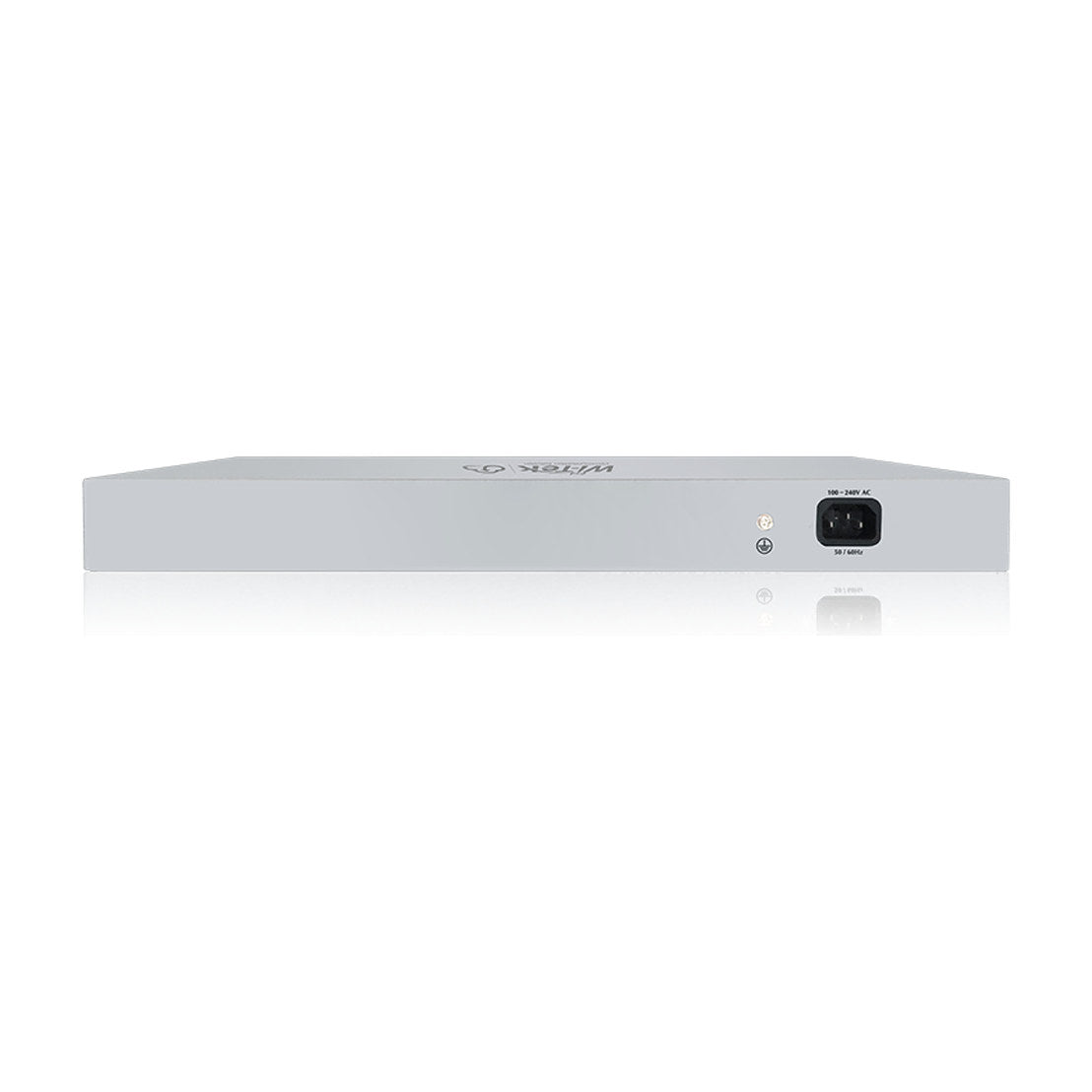

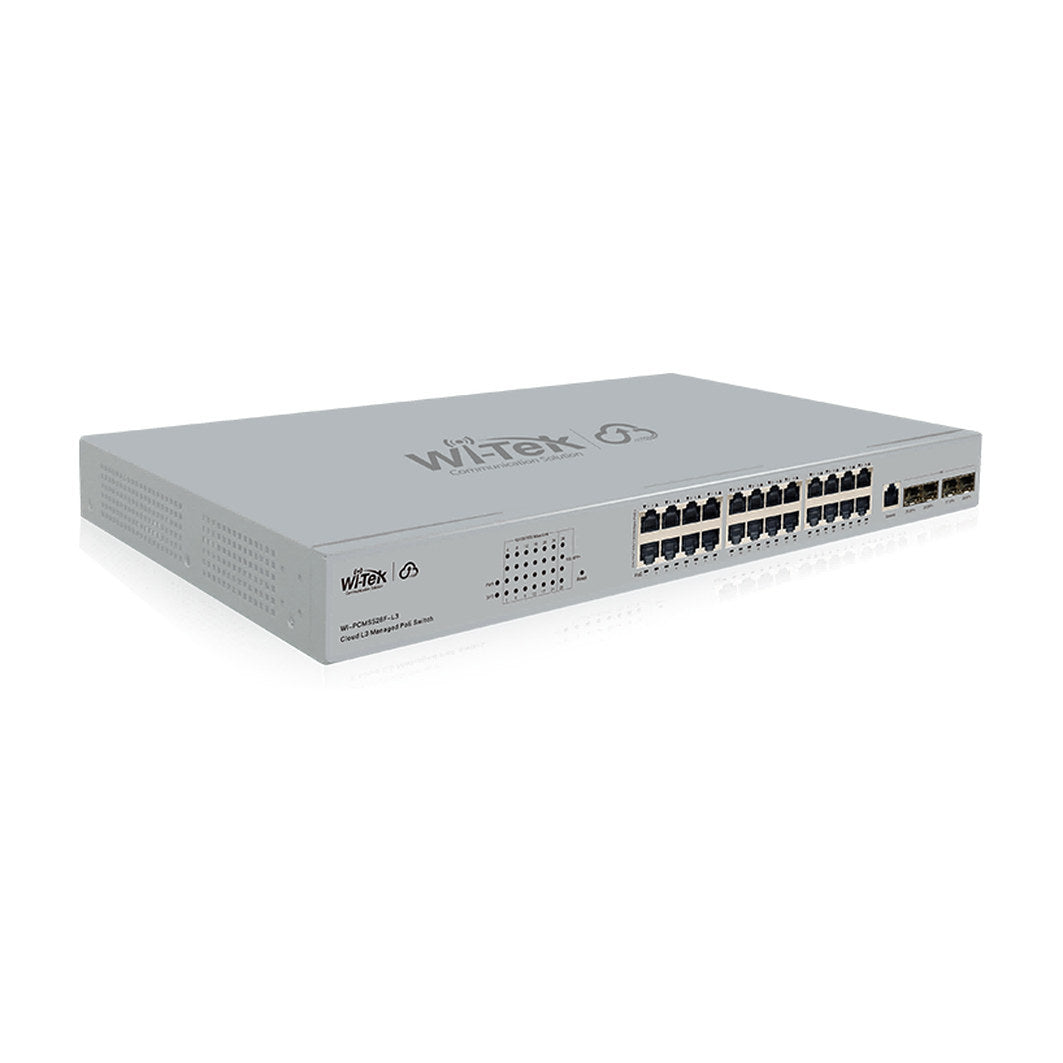

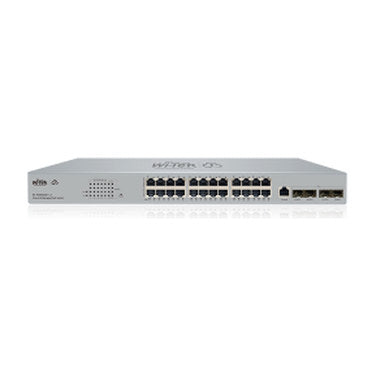

24-Port Gigabit PoE+ L3 Managed Switch with 4x 10G SFP+ Slots, 370W PoE Budget, Advanced Routing & Cloud Management
$1,002.99
L3 Managed Switch / 24 Gigabit PoE+ Ports / 4x 10G SFP+ / 370W PoE / Cloud Management
The WI-PCMS528F-L3 V2 is a Layer 3 managed switch featuring 24 Gigabit Ethernet PoE+ ports and 4 10 Gbps SFP+ slots for fiber optic uplinks. It integrates static routing capabilities, VLAN support, advanced QoS, and network redundancy protocols. Cloud management enables remote device administration, while the 370 W PoE budget powers network devices, IP cameras, access points, and VoIP endpoints. The 1U rack-mount design with intelligent fans and automatic thermal control optimizes operation in data centers and telecommunications closets.
Main Features
- 24 Gigabit PoE+ ports with 370 W total power budget
- 4 10 Gbps SFP+ slots for fiber optic uplinks
- L3 switching with static routing, VLANs, and advanced QoS
- Cloud management for centralized remote administration
- Intelligent fans with automatic thermal control
- STP, RSTP, and MSTP support with loop protection
- 1U rack-mount chassis for cabinet installation
Performance
- 24 10/100/1000 Mbps PoE+ ports
- 4 10 Gbps SFP+ slots
- Switching capacity: 128 Gbps
- Packet forwarding rate: 95.23 Mpps
- Total PoE budget: 370 W
- PoE per port: up to 30 W (802.3at)
- MAC table: 16K addresses
- Packet buffer: 4 Mbit
- Jumbo frame: up to 9 KB
Physical & Electrical
- Dimensions: 440 x 280 x 44.5 mm (17.3 x 11.0 x 1.75 in)
- Weight: 3.8 kg (8.4 lb)
- Mounting: 19" rack 1U
- Fans: 2 intelligent fans with thermal control
- AC input: 100-240 VAC, 50/60 Hz
- Maximum power consumption: 450 W
- Power consumption without PoE load: 35 W
- Operating temperature range: 0 to 45 C (32 to 113 F)
- Operating humidity: 10% to 90% non-condensing
Management & Protocols
- Web, CLI, SNMP v1/v2c/v3, SSH, Telnet management
- Cloud management
- L3 static routing
- VLAN: 802.1Q, port/MAC/protocol-based VLAN
- QoS: 8 priority queues, 802.1p/DSCP classification
- Link aggregation: up to 8 groups, 8 ports per group
- Spanning Tree: STP, RSTP, MSTP
- Loopback detection, BPDU guard, root guard
- IGMP snooping v1/v2/v3, MLD snooping
- DHCP snooping, IP source guard, DAI
- Port security, storm control, L2/L3/L4 ACLs
- Port mirroring, RSPAN
- LLDP, NTP, syslog
Typical applications: IP surveillance network infrastructure, WiFi access point deployment in enterprise campuses, VoIP connectivity in office environments, and network segmentation in commercial and industrial settings requiring L3 switching with centralized management.
WI-TEK
24-Port Gigabit PoE+ L3 Managed Switch with 4x 10G SFP+ Slots, 370W PoE Budget, Advanced Routing & Cloud Management
SKU: WI-PCMS528F-L3 V2
$1,002.99
Shipping
calculated at checkout.
The 5W power is great for use in the home whether you want to listen to music after a long day at work or watch a film on your laptop. With its practical integrated strap, you can attach the speaker to a backpack and take it to the park on a sunny spring day.
In stock · 17 pcs
Estimated delivery: 3–7 business days.
24-Port Gigabit PoE+ L3 Managed Switch with 4x 10G SFP+ Slots, 370W PoE Budget, Advanced Routing & Cloud Management
$1,002.99
$1,002.99
Secure Shipping
We package your products securely.
Warranty
All our products are guaranteed.
L3 Managed Switch / 24 Gigabit PoE+ Ports / 4x 10G SFP+ / 370W PoE / Cloud Management
The WI-PCMS528F-L3 V2 is a Layer 3 managed switch featuring 24 Gigabit Ethernet PoE+ ports and 4 10 Gbps SFP+ slots for fiber optic uplinks. It integrates static routing capabilities, VLAN support, advanced QoS, and network redundancy protocols. Cloud management enables remote device administration, while the 370 W PoE budget powers network devices, IP cameras, access points, and VoIP endpoints. The 1U rack-mount design with intelligent fans and automatic thermal control optimizes operation in data centers and telecommunications closets.
Main Features
- 24 Gigabit PoE+ ports with 370 W total power budget
- 4 10 Gbps SFP+ slots for fiber optic uplinks
- L3 switching with static routing, VLANs, and advanced QoS
- Cloud management for centralized remote administration
- Intelligent fans with automatic thermal control
- STP, RSTP, and MSTP support with loop protection
- 1U rack-mount chassis for cabinet installation
Performance
- 24 10/100/1000 Mbps PoE+ ports
- 4 10 Gbps SFP+ slots
- Switching capacity: 128 Gbps
- Packet forwarding rate: 95.23 Mpps
- Total PoE budget: 370 W
- PoE per port: up to 30 W (802.3at)
- MAC table: 16K addresses
- Packet buffer: 4 Mbit
- Jumbo frame: up to 9 KB
Physical & Electrical
- Dimensions: 440 x 280 x 44.5 mm (17.3 x 11.0 x 1.75 in)
- Weight: 3.8 kg (8.4 lb)
- Mounting: 19" rack 1U
- Fans: 2 intelligent fans with thermal control
- AC input: 100-240 VAC, 50/60 Hz
- Maximum power consumption: 450 W
- Power consumption without PoE load: 35 W
- Operating temperature range: 0 to 45 C (32 to 113 F)
- Operating humidity: 10% to 90% non-condensing
Management & Protocols
- Web, CLI, SNMP v1/v2c/v3, SSH, Telnet management
- Cloud management
- L3 static routing
- VLAN: 802.1Q, port/MAC/protocol-based VLAN
- QoS: 8 priority queues, 802.1p/DSCP classification
- Link aggregation: up to 8 groups, 8 ports per group
- Spanning Tree: STP, RSTP, MSTP
- Loopback detection, BPDU guard, root guard
- IGMP snooping v1/v2/v3, MLD snooping
- DHCP snooping, IP source guard, DAI
- Port security, storm control, L2/L3/L4 ACLs
- Port mirroring, RSPAN
- LLDP, NTP, syslog
Typical applications: IP surveillance network infrastructure, WiFi access point deployment in enterprise campuses, VoIP connectivity in office environments, and network segmentation in commercial and industrial settings requiring L3 switching with centralized management.
