EPCOM TITANIUM

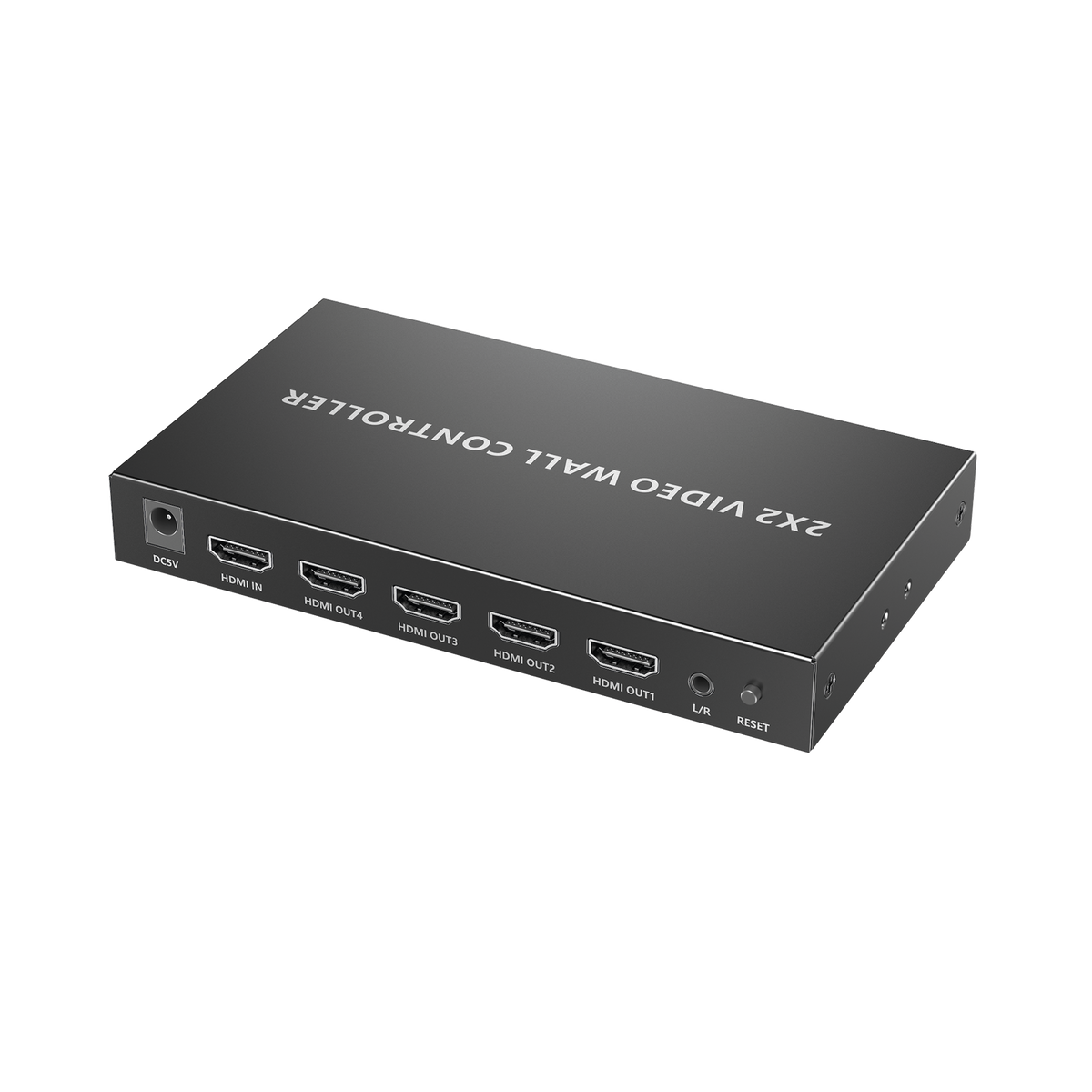

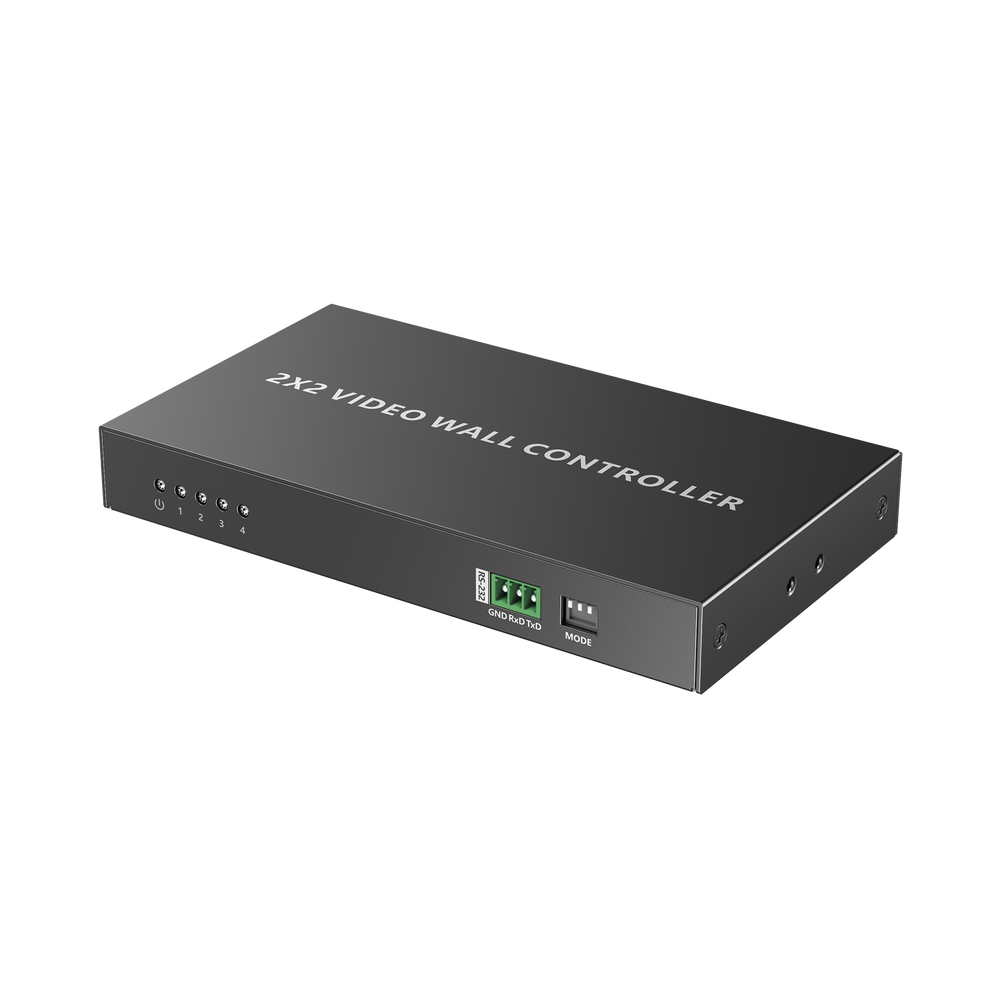

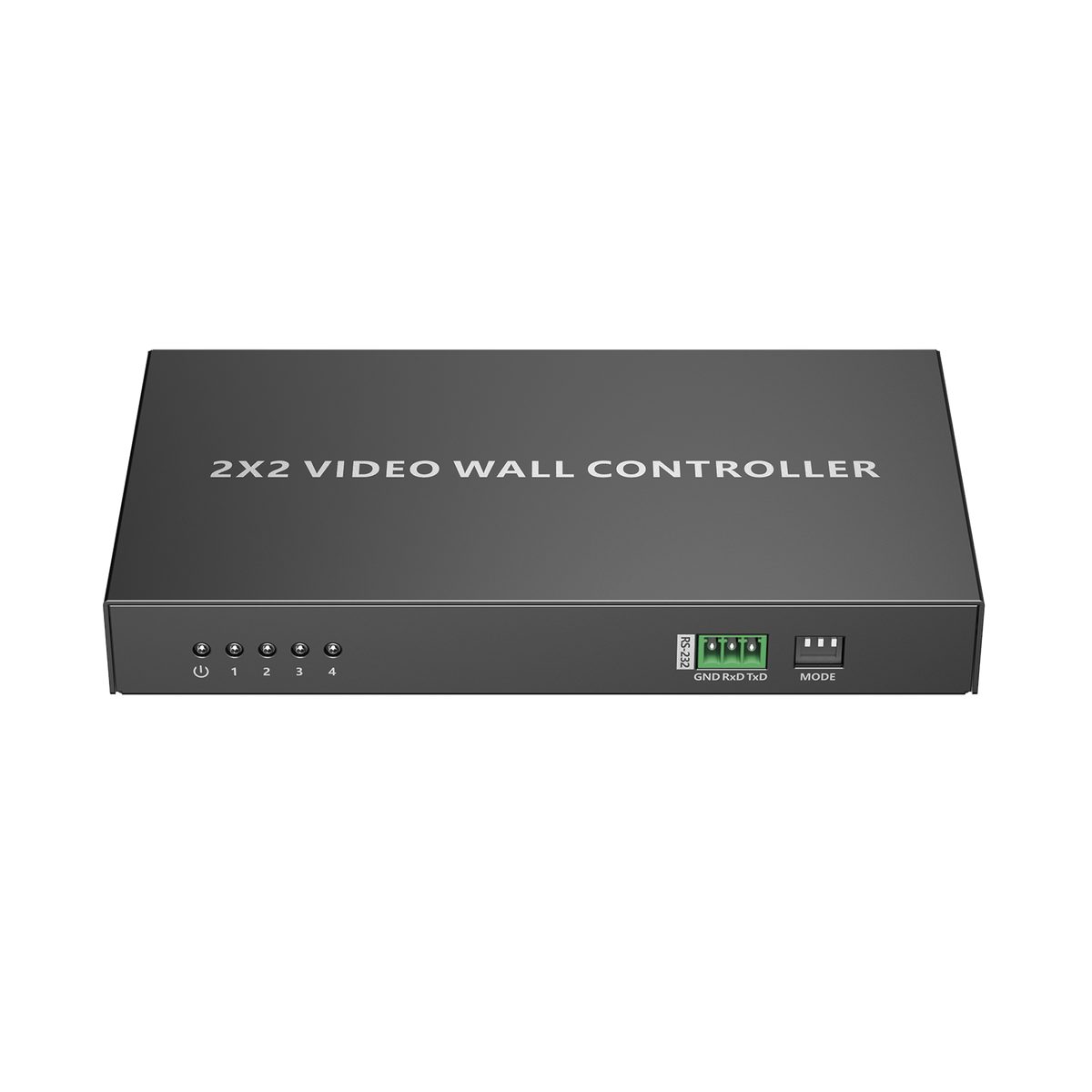

2 x 2 VIDEOWALL controller / Distributes video from 1 HDMI input to 4 screens / 1080p resolution at 60 Hz. / 3.5mm audio output / Full screen mode or clone mode / Very Easy to create a Video Wall
$156.99
TT-104-VW
This product is a splicing processor with one HDMI source input and four HDMI outputs to connect with four monitors. It has five splicing modes (1 x 1, 1 x 2, 1 x 3, 1 x 4, 2 x 2), which can be configured via RS-232 or Dipswitch. This allows flexible adaptation to different installation requirements. The product is widely used in areas such as security monitoring, rail transit, broadcasting, smart cities, home theater, training and other fields.
Caracteristicas
- HDMI: 1.4
- HDCP: 1.4
- Bandwidth: 18Mbps
- Resolutions: 1080p@50/60Hz, 720p@50/60Hz, 576p@50Hz, 480p@60Hz, 1920x1200, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
- PCM audio format
- Input: HDMIx1 (Type A, 19 pin female)
- Output: HDMIx4 (Type A, 19 pin female)
- Input cable length: ≤5m (AWG26 HDMI2.0 cable standards), ≤10m (AWG23 HDMI2.0 cable standards)
- Output cable length: ≤5m (AWG26 HDMI2.0 cable standards), ≤10m (AWG23 HDMI2.0 cable standards)
- Mode: 1x1 / 2x1 / 1x2 / 2x2 / 3x1 / 1x3 / 4x1 / 1x4
- Dimensions: 151.5(L)*86.5(W)*20.0(H)mm
- Net weight: 140g
- Power supply: 5V/1A
- Consumption: 4W
- Operating temperature: 0-60º
- Includes:
- 1x Videowall Control
- 1x 5V/1A power supply
- 1x Terminal block
- 1x User Manual
EPCOM TITANIUM
2 x 2 VIDEOWALL controller / Distributes video from 1 HDMI input to 4 screens / 1080p resolution at 60 Hz. / 3.5mm audio output / Full screen mode or clone mode / Very Easy to create a Video Wall
SKU: TT104VW
$156.99
Shipping
calculated at checkout.
The 5W power is great for use in the home whether you want to listen to music after a long day at work or watch a film on your laptop. With its practical integrated strap, you can attach the speaker to a backpack and take it to the park on a sunny spring day.
In stock · 24 pcs
Estimated delivery: 3–7 business days.
2 x 2 VIDEOWALL controller / Distributes video from 1 HDMI input to 4 screens / 1080p resolution at 60 Hz. / 3.5mm audio output / Full screen mode or clone mode / Very Easy to create a Video Wall
$156.99
$156.99
Secure Shipping
We package your products securely.
Warranty
All our products are guaranteed.
TT-104-VW
This product is a splicing processor with one HDMI source input and four HDMI outputs to connect with four monitors. It has five splicing modes (1 x 1, 1 x 2, 1 x 3, 1 x 4, 2 x 2), which can be configured via RS-232 or Dipswitch. This allows flexible adaptation to different installation requirements. The product is widely used in areas such as security monitoring, rail transit, broadcasting, smart cities, home theater, training and other fields.
Caracteristicas
- HDMI: 1.4
- HDCP: 1.4
- Bandwidth: 18Mbps
- Resolutions: 1080p@50/60Hz, 720p@50/60Hz, 576p@50Hz, 480p@60Hz, 1920x1200, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
- PCM audio format
- Input: HDMIx1 (Type A, 19 pin female)
- Output: HDMIx4 (Type A, 19 pin female)
- Input cable length: ≤5m (AWG26 HDMI2.0 cable standards), ≤10m (AWG23 HDMI2.0 cable standards)
- Output cable length: ≤5m (AWG26 HDMI2.0 cable standards), ≤10m (AWG23 HDMI2.0 cable standards)
- Mode: 1x1 / 2x1 / 1x2 / 2x2 / 3x1 / 1x3 / 4x1 / 1x4
- Dimensions: 151.5(L)*86.5(W)*20.0(H)mm
- Net weight: 140g
- Power supply: 5V/1A
- Consumption: 4W
- Operating temperature: 0-60º
- Includes:
- 1x Videowall Control
- 1x 5V/1A power supply
- 1x Terminal block
- 1x User Manual
