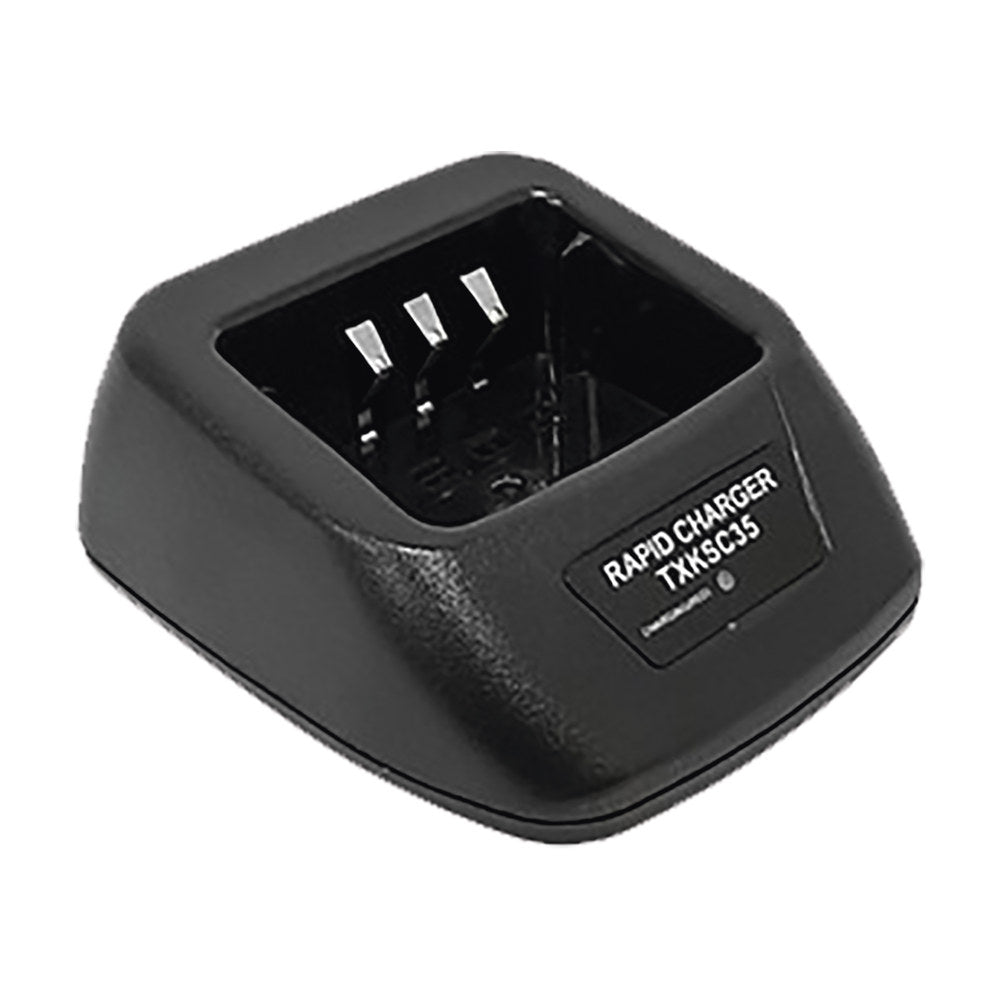

Desktop fast charger for KNB45L, KNB63L and KNB-65L batteries for NX240/ NX340/ TKD240/ TKD340 Radios

Rapid desktop charger for Kenwood radios:

• NX240
• NX340
• TKD240
• TKD340
• TK2402
• TK3402
• TK2202L
• TK2212L
• TK3202L
• TK3212L
• TK2312
• TK3312
• TK2302
• TK3302
• TK2000
• TK3000

-Charges the following batteries:

          Model       /       Capacity      /   Time of charge

-KNB45L            /     2000 mAh      /       2.8 hr
-TX-KNB45L      /     1800 mAh      /       2.5 hr
-KNB63L            /     1130 mAh      /       1.6 hr
-KNB65L            /     1520 mAh      /        2.1 hr
-TX-KNB65        /     1800 mAh      /        2.5 hr


This charger is of high quality, with which you can count to properly charge your 2-way radio battery whenever necessary.

TXPRO chargers are smart because they prevent overcharging while providing an automatic recharge when a radio stays on.

They are versatile because they charge the original and generic batteries of any brand.

The TXPRO chargers are reliable as evidenced by their strong acceptance and popularity among communication professionals.

Product features:

Charges batteries with or without radio

LED battery charge status indicator:

For each position confirms charging in progress, battery failure, and fully charged.

A robust, versatile design that takes up little space,

Includes power supply from 120 VAC to 12 VDC

The accessories available for installation in the vehicle are sold separately.

Ask your sales executive or the engineering department.

Characteristics of the smart charger:

It cuts the current as soon as it detects heating and overvoltage.

The moment you put the battery in the charger:

The LED lights green because it detects it.

Immediately change the LED and turn on red because it is charging.

When it finishes charging, the LED turns green because it is ready.

If the battery is open, the LED flashes red.

-Compatible with an adapter with the cigarette lighter to connect it in the vehicle

-Load current: 800 mA

Operating temperature -20 ° C ~ 45 ° C

Storage temperature -20 ° C ~ 70 ° C

-Features: Interrupts the load when detecting: temperature increase, maximum voltage, maximum temperature and maximum charging time.
