AccessPRO

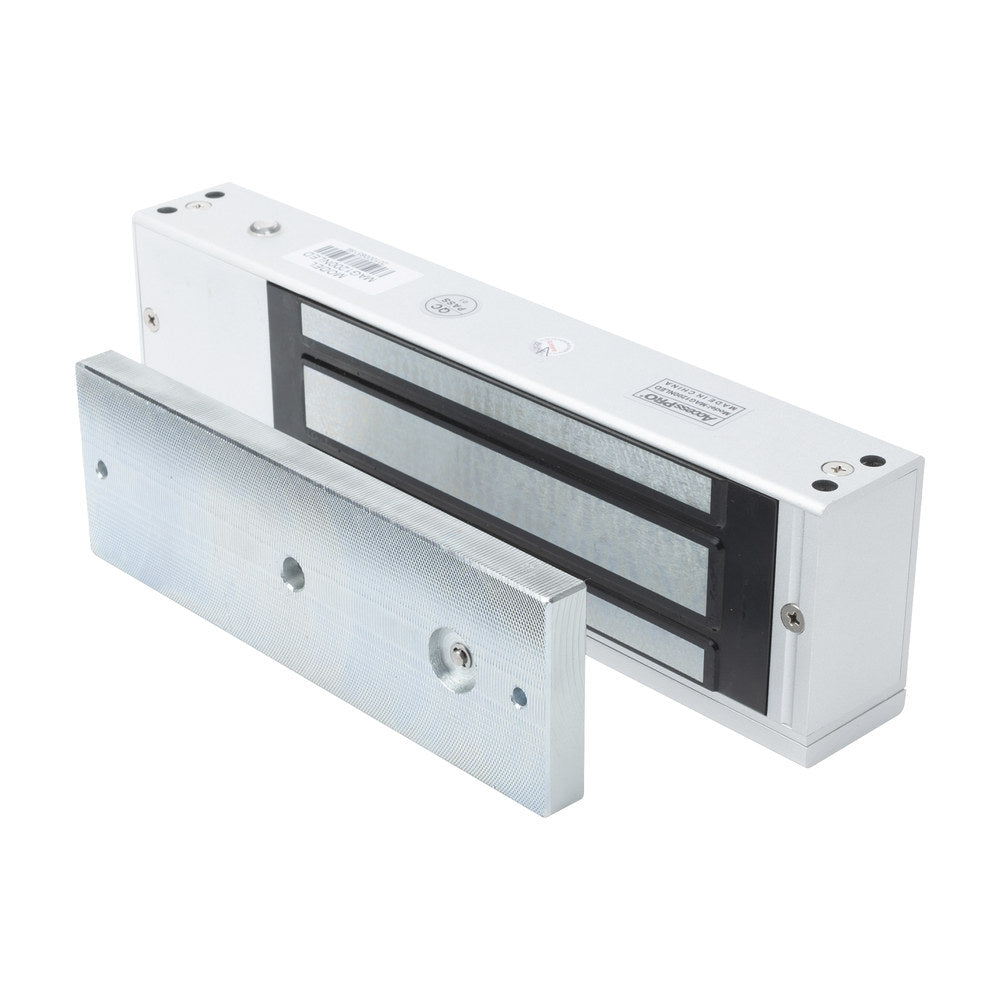

Magnetic Door Lock, 1200 lb. Holding Force
$143.99
1200 lb Holding Force 12V / 24V DC 500mA @ 12V 10.4" x 2.9" x 1.6" 14°F to 131°F NO / NC / COM Output
Maximum-security holding force
Twice the pull of a standard 600 lb lock, for heavy commercial doors, high-traffic entries and openings where a forced-entry attempt is a real risk.
| Holding force | 1200 lb |
| Door types | Security, iron, aluminum |
| Footprint | 10.4" x 2.9" x 1.6" |
LED status & lock sensor
An ultra-bright LED confirms lock state on sight, and the integrated sensor with activation plate reports door position back to your access control panel.
| Status output | NO / NC / COM dry contact |
| Indicator | Ultra-bright LED |
| Voltage selection | JP1 jumper, 12V or 24V |
Main Features
- Holding force: 1200 lb
- Single door magnetic lock
- Ultra-bright LED status indicator
- Integrated lock sensor with activation plate
- Door status output: NO / NC / COM
- Dual voltage 12V / 24V DC, low power draw
- For security, iron and aluminum doors
- Washer-adjustable plate alignment
Physical & Electrical
- Input voltage: 12V DC or 24V DC
- Current draw: 500mA @ 12V · 250mA @ 24V
- Terminals: NO, COM, NC, V-, V+
- Voltage selector: JP1 jumper
- Dimensions: 10.4" x 2.9" x 1.6"
- Weight: 9.9 lb
- Operating temperature: 14°F ~ 131°F
Installation
- Includes fold-out drilling template
- Lock body mounts to the door frame
- Armature plate mounts to the door leaf
- Direct "I" mount, or Z/L with BZL1200N
- Set pins secure the armature plate
- Rubber ring between plate and door
- Allen-key oppressor adjustment
When to choose 1200 lb over 600 lb
Holding force should match the door and the risk. Here's where the 1200 lb version earns its place.
Heavy commercial doors
Solid-core, steel and oversized doors whose own weight and swing momentum put real strain on a lighter lock.
High-traffic entrances
Doors that cycle hundreds of times a day, where a stronger hold reduces wear and nuisance releases.
Restricted / high-value areas
Server rooms, cash handling, inventory cages and record storage where forced entry is a genuine concern.
Pick the right holding force
All three share the same 12/24 VDC wiring, LED indicator and NO/NC/COM status output — they differ in pull strength and footprint.
| Model | Holding force | Typical use | Bracket kit |
| MAG350NLED | 350 lb | Interior offices, light doors | BZL350N |
| MAG600NLEDV2 | 600 lb | Standard commercial single doors | BZL600N / BU600LED |
| MAG1200NLED | 1200 lb | Heavy doors, high security | BZL1200N |
Compatible mounting bracket
The lock ships ready for direct "I" surface mounting. For inswing doors you'll need the matching Z/L kit — and it has to be the 1200-series bracket, not the 600.
Product views
Full specifications
| Performance | |
| Holding force | 1200 lb |
| Configuration | Single door |
| Application | Security door, iron door, aluminum door |
| Electrical | |
| Input voltage | 12V DC or 24V DC (JP1 jumper-selectable) |
| Current draw | 500mA @ 12V DC · 250mA @ 24V DC |
| Connection terminals | NO, COM, NC, V-, V+ |
| Status output | Lock signal: NO / NC / COM dry contact |
| Indicator | Ultra-bright LED lock status |
| Physical | |
| Dimensions | 10.4" x 2.9" x 1.6" (L x W x H) |
| Weight | 9.9 lb |
| Operating temperature | 14°F ~ 131°F |
| Mounting options | Direct "I" mount · Z/L with BZL1200N (sold separately) |
| Warranty | 3 years with Epcom |
Installation sequence
Layout & drilling
- Fold the included template.
- Close the door and position the template against the frame and leaf.
- Drill the holes using the template as your guide.
- Place the set pins into the armature plate.
- Fit the rubber ring between the plate and the door.
Wiring & final adjustment
- Dismount the "I" mounting bar to access the body.
- Route the wire through the mounting hole.
- Set the JP1 jumper to match your supply (12V or 24V).
- Wire V+ / V- and the NO/COM/NC status contact.
- Adjust the oppressors with the allen key.
- Close the door and test the hold — fine-tune the plate-to-magnet angle by adding or removing washers.
Installer notes
- At 9.9 lb, confirm the frame and fasteners can carry the lock body — this is roughly double the weight of a 600 lb unit.
- Leave the plate slightly free so it can self-align against the magnet face; a rigidly bolted plate loses holding force.
- Any surface damage or debris on the armature plate reduces the magnetic hold.
- Verify the JP1 jumper position before powering up.
- Need two exit buttons on one lock? See the connection diagram on the EPCOM blog.
Twice the hold. Same simple wiring.
12/24 VDC, NO/NC/COM status output and LED indicator — drop-in familiar for any installer who has wired a 600 lb lock.
*All pictures and specifications are for reference only and are subject to change without prior notice.
