LINKEDPRO BY EPCOM

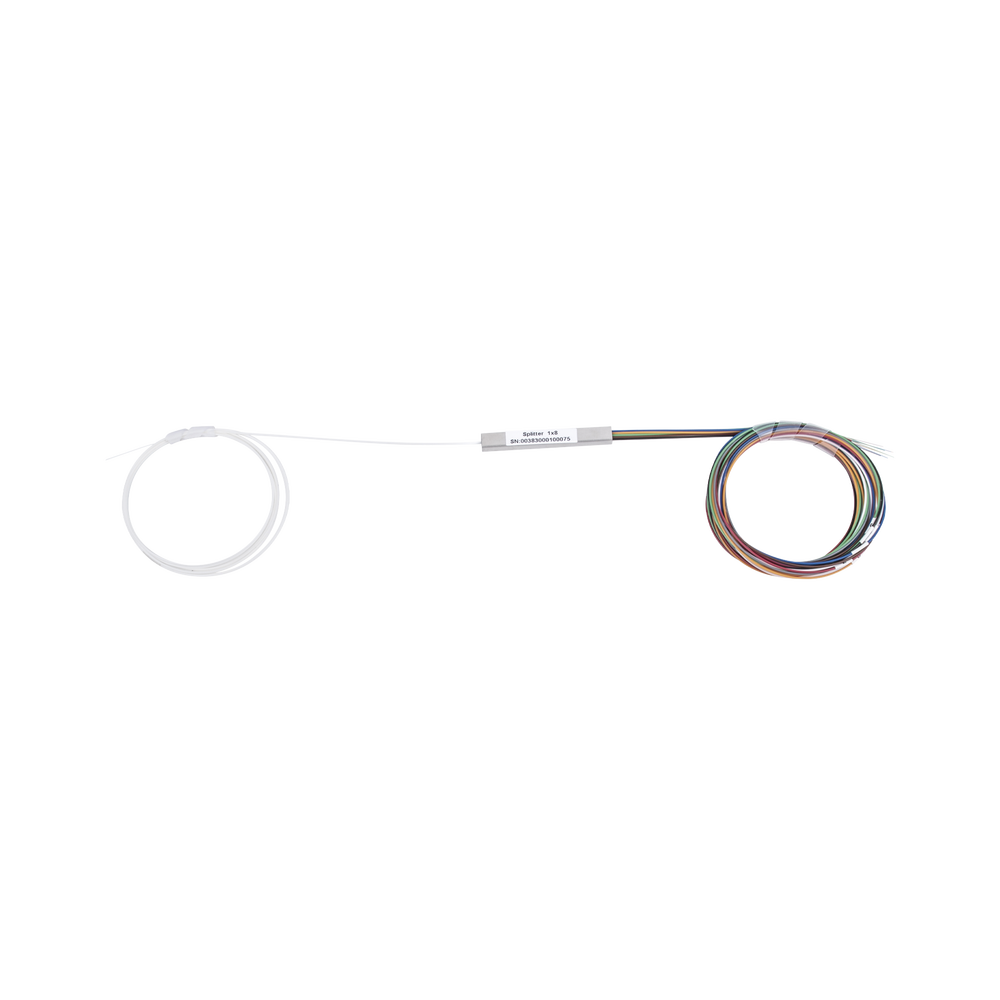

Bare fiber splitter 1x8 without connectors, g657a, 250um, in transparent, out international colors. individual packing.
$8.99
CHA21FO/215049-linkedpro_banner_fftx.png)
The PLC optical splitter is an important component in an FTTx network. It is based on planar wave technology, providing a cost-effective and space-saving solution in the network. The PLC splitter evenly divides an optical signal from one or two input ports to multiple output ports. It can work on wavelengths from 1260 to 1650nm. It has a compact size and can be installed in underground, aerial, poles, pedestals, and rack systems.
The LinkedPro PLC splitter adopts patented low-loss technology. It has low insertion loss, low polarization loss, and high port uniformity. All products fully comply with Telcordia GR-1209 and GR-1221 standards, and all materials used comply with RoHS directives. PLC splitters are available in a wide range of configurations, pre-terminated and boxed for harsh environments, in compact square boxes or flat tubes.
Technical Specifications:
- Input: Pigtail Loose tube without connector
- Outputs: Pigtail Loose tube without connector
- Complies with G.657A optical fiber standard
- 1X8 splitter
- Operating temperature: -40 to 85ºC
- Relative humidity: 20~95 (%RH)
Optical properties:
- Operating wavelength: 1260 ~1650nm Maximum
- input power: >300mW
- Directivity: >55dB WDL: <0.5dB PDL: <0.3dB
- Uniformity: <0.8dB
- Insertion loss: ≤7.2dB
- Return loss: > 55dB
Applications:
- FTTx
- LAN, WAN
- CATV
- Testing and measurement
LINKEDPRO BY EPCOM
Bare fiber splitter 1x8 without connectors, g657a, 250um, in transparent, out international colors. individual packing.
SKU: LP-FAB-PLC1X8WC-A1-250U
$8.99
Shipping
calculated at checkout.
The 5W power is great for use in the home whether you want to listen to music after a long day at work or watch a film on your laptop. With its practical integrated strap, you can attach the speaker to a backpack and take it to the park on a sunny spring day.
In stock · 300 pcs
Estimated delivery: 3–7 business days.
Bare fiber splitter 1x8 without connectors, g657a, 250um, in transparent, out international colors. individual packing.
$8.99
$8.99
Secure Shipping
We package your products securely.
Warranty
All our products are guaranteed.
The PLC optical splitter is an important component in an FTTx network. It is based on planar wave technology, providing a cost-effective and space-saving solution in the network. The PLC splitter evenly divides an optical signal from one or two input ports to multiple output ports. It can work on wavelengths from 1260 to 1650nm. It has a compact size and can be installed in underground, aerial, poles, pedestals, and rack systems.
The LinkedPro PLC splitter adopts patented low-loss technology. It has low insertion loss, low polarization loss, and high port uniformity. All products fully comply with Telcordia GR-1209 and GR-1221 standards, and all materials used comply with RoHS directives. PLC splitters are available in a wide range of configurations, pre-terminated and boxed for harsh environments, in compact square boxes or flat tubes.
Technical Specifications:
- Input: Pigtail Loose tube without connector
- Outputs: Pigtail Loose tube without connector
- Complies with G.657A optical fiber standard
- 1X8 splitter
- Operating temperature: -40 to 85ºC
- Relative humidity: 20~95 (%RH)
Optical properties:
- Operating wavelength: 1260 ~1650nm Maximum
- input power: >300mW
- Directivity: >55dB WDL: <0.5dB PDL: <0.3dB
- Uniformity: <0.8dB
- Insertion loss: ≤7.2dB
- Return loss: > 55dB
Applications:
- FTTx
- LAN, WAN
- CATV
- Testing and measurement
