[ eSmartData ] [METADATA] Panoramic Turret IP 8 MP / POE / Smart Dual

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

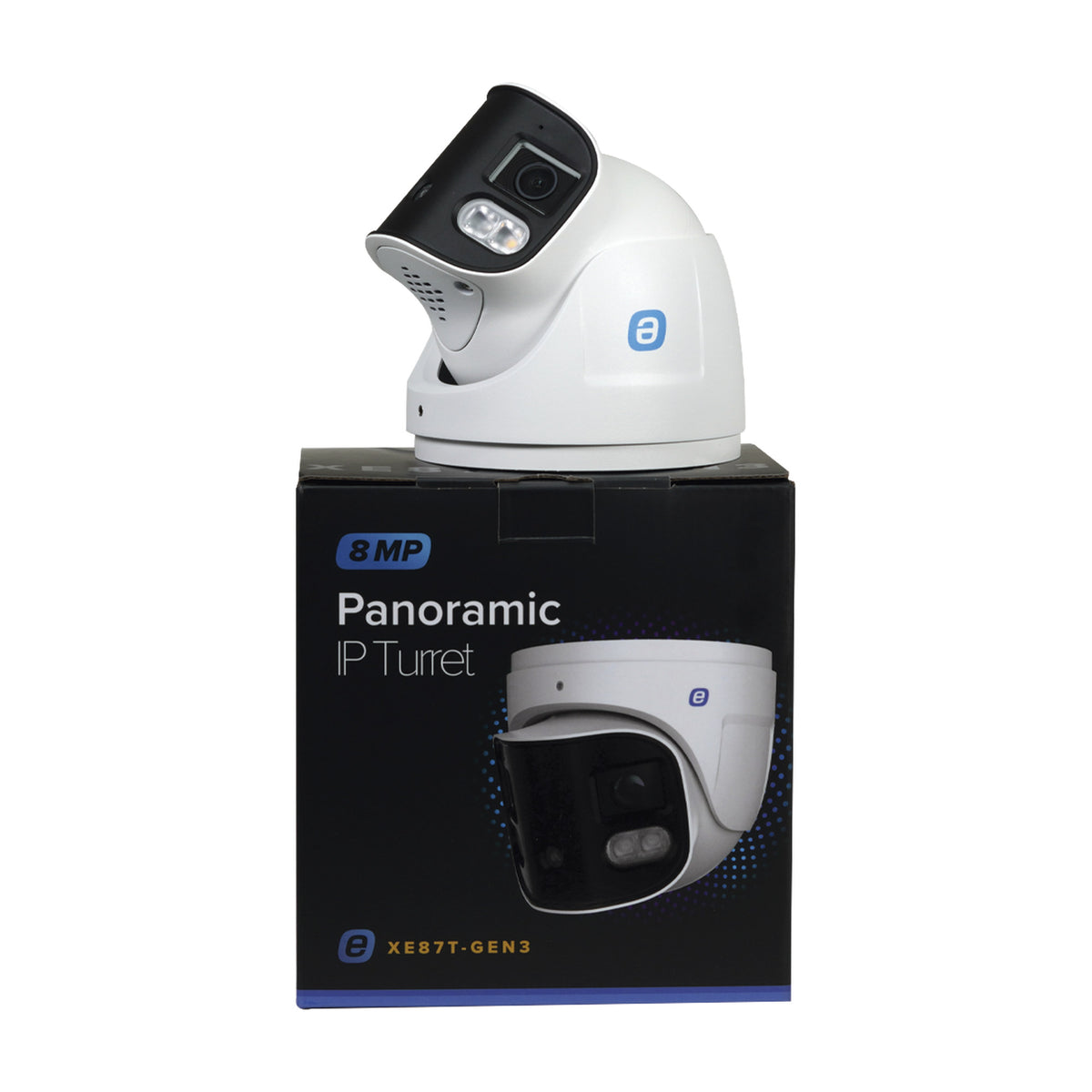

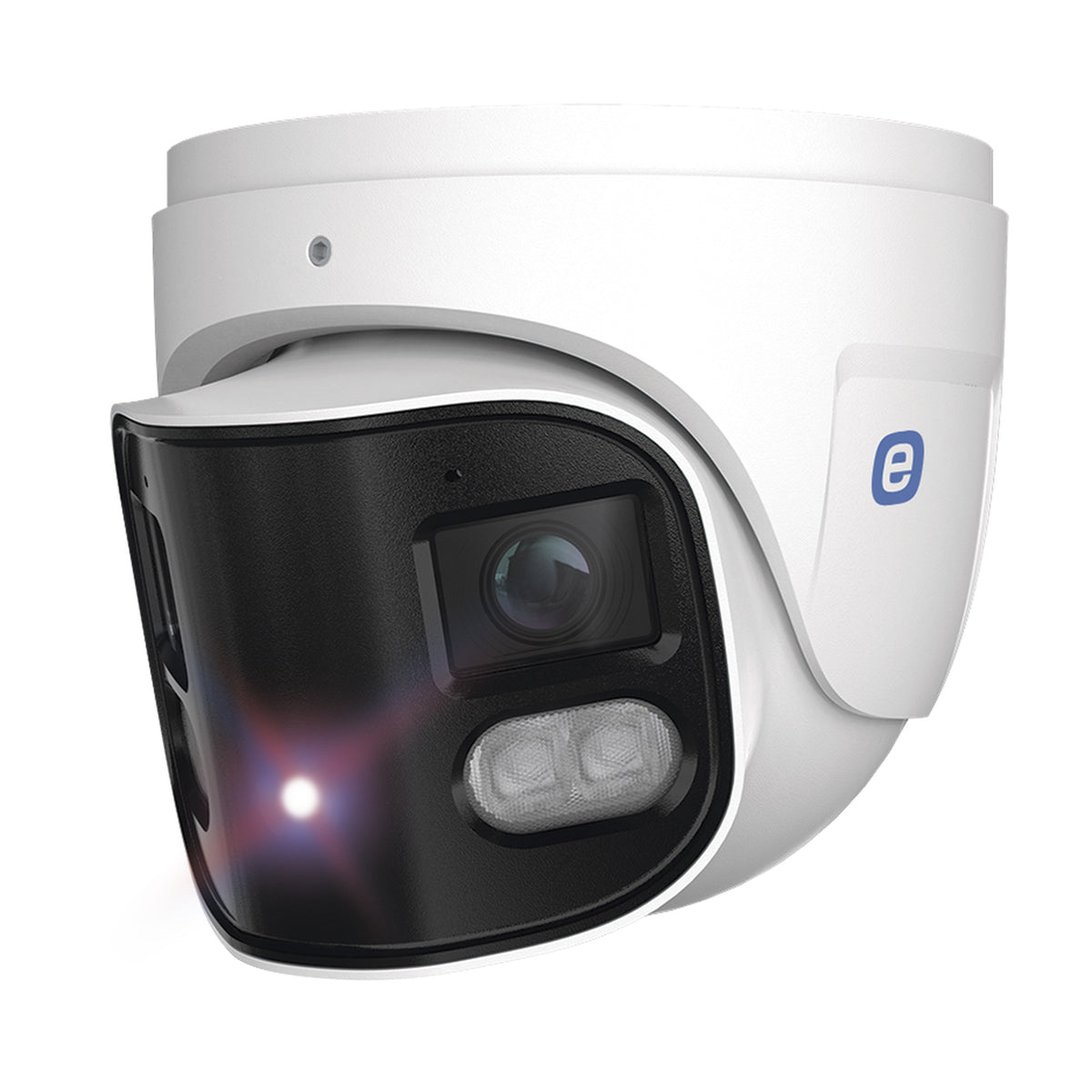

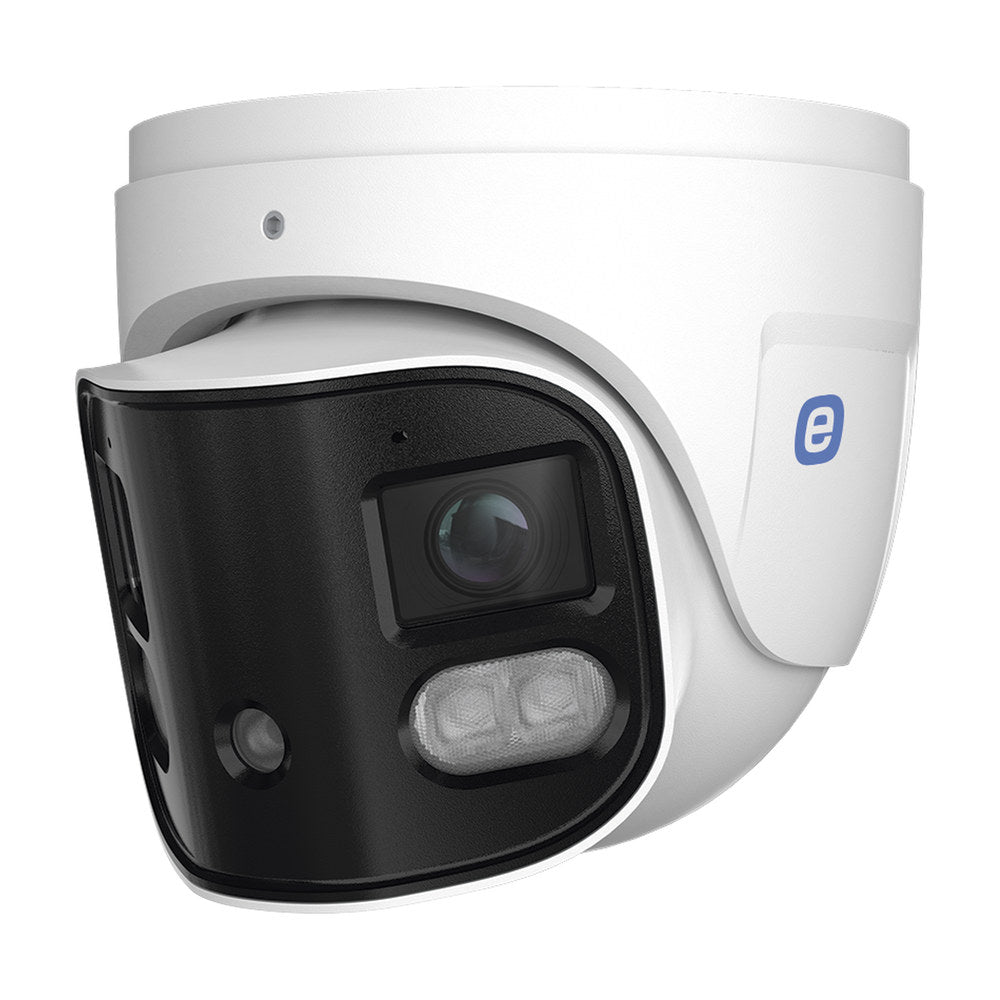

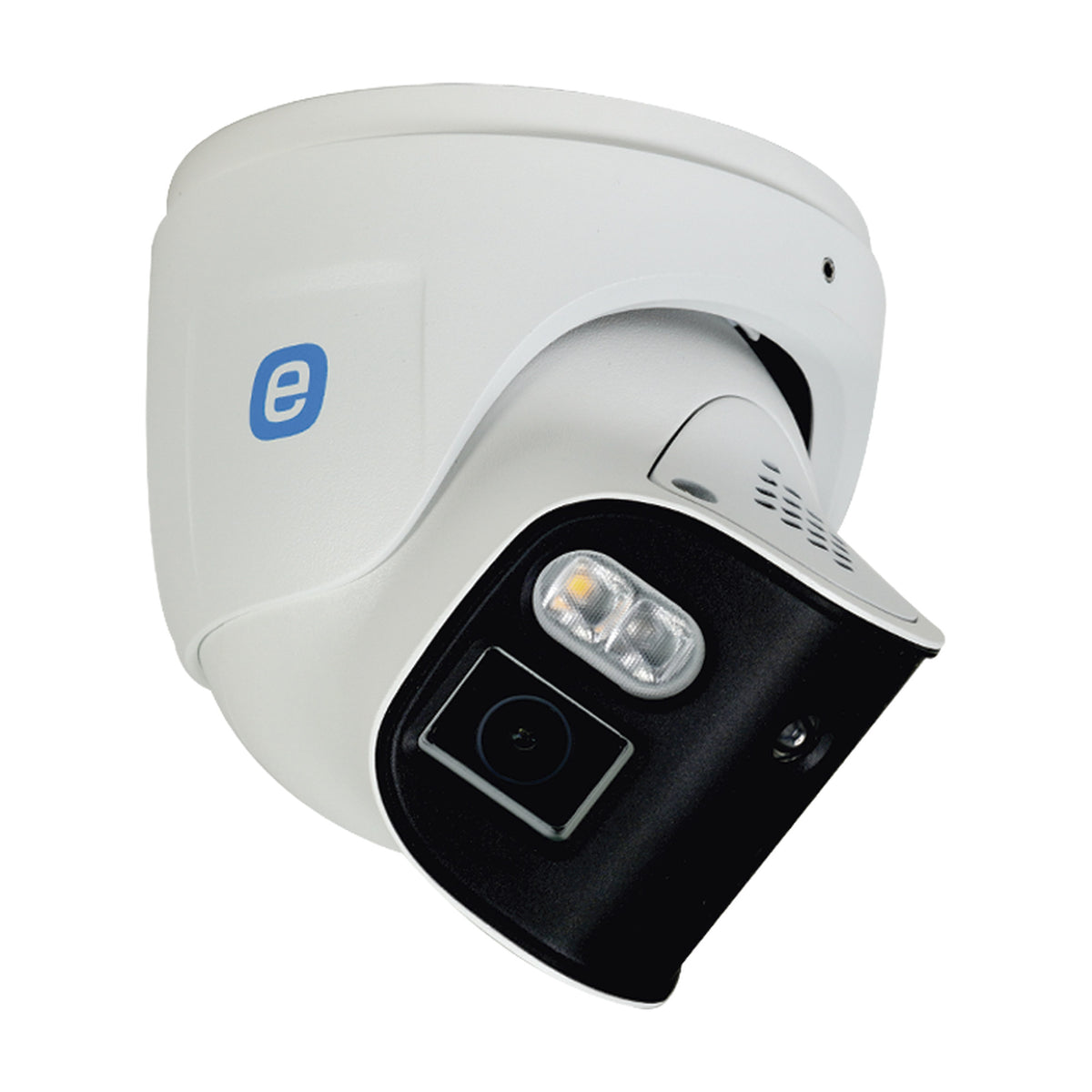

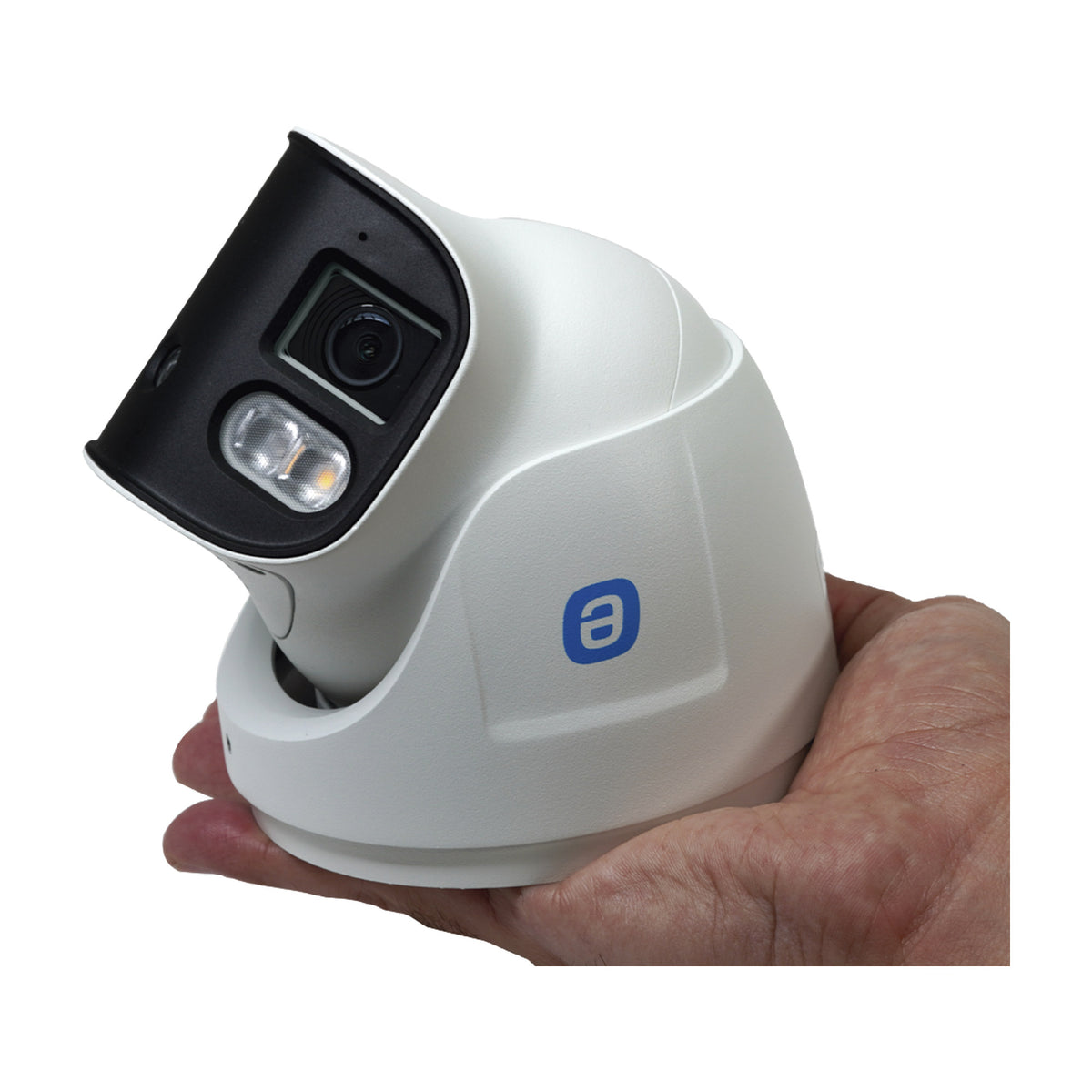

[ eSmartData ] [METADATA] Panoramic Turret IP 8 MP / POE / Smart Dual Light / 65ft (20m) White Light & 98ft (30m) IR / WDR / 180° / Micro SD / Two way audio / IP66 / 2.8 mm Lens / Metal / Supports Smart Events / Red and Blue Light Warning

$739.99

Secure Shipping

We package your products securely.

Warranty

All our products are guaranteed.

180° Panoramic Coverage · Active Deterrence · Made for U.S. Installers

Twice the view.
Built to warn.

Two 8MP-class sensors stitch a single 180° scene, while built-in red & blue lights and two-way audio turn a detection into an on-site warning — before anyone has to review footage.

✓ PoE Plug & Play ✓ IP66 All-Weather ✓ 5-Year Warranty ✓ NDAA Compliant

Request pricing →

8MP · 4640×1760 180° Horizontal FoV IP66 PoE / DC12V -30° to 60°C

180° panoramic view

Two sensors stitch one continuous wide scene, so a single camera covers what would normally take two — without a blind seam down the middle.

Sensors	2 x 1/2.7" CMOS
Combined resolution	8MP (4640 x 1760)
Field of view	180° H · 66° V

Active deterrence

Alternating red & blue warning lights and a built-in speaker let the camera respond in the moment, not just record it.

Warning lights	Red & blue, alternating
Audio	2-way, built-in speaker + mics
Custom warnings	User-defined voice import

Main Features

Max. resolution: 8MP (4640 x 1760)
Lens: 2.8mm @F1.6, 180° H / 66° V
Min. illumination: 0.0032 lux @F1.6, AGC on; 0 lux with LED on
ICR auto switch, true day/night vision
Digital WDR / HLC / BLC / Defog
Smart Dual Light: IR up to 30m, white light up to 20m
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Support P2P
IP66 (indoor / outdoor)

Physical & Electrical

Power supply: DC12V / PoE (IEEE 802.3af)
Power consumption: PoE max. 10.2W · DC12V max. 9W
Operating temp: -30° ~ 60°C (-22° ~ 140°F)
Storage temp: -30° ~ 65°C (-22° ~ 149°F)
Dimensions: Ø111.5 x 102.2 mm (base), 129.1mm mounting width
Weight: approx. 0.719 kg (1.58 lb)
Mount: ceiling or wall

General Features

Interface: RJ45 10M/100M
Storage: micro SD, up to 256GB
Audio: 1 CH in, 1 CH out, built-in speaker, 2 CH built-in mics
Two-way audio (firmware 5.2.3+)
Alarm: 1 CH input, 1 CH output
ONVIF support
Dual system backup
Remote monitoring: web browser / EVMS 2.0 / NVR / mobile app

XE87T-GEN3 180 degree panoramic coverage diagram

How the two sensors split the scene to cover a full 180° without a blind seam

DORI distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	60 m / 196 ft	24 m / 79 ft	12 m / 39 ft	6 m / 20 ft

Intelligent analytics

01

Smart events

Line crossing, region intrusion/entrance/exiting (human/vehicle), loitering, illegal parking, abandoned/missing object.

02

Statistics

Target counting by line or area, plus heat mapping to see where activity concentrates.

03

Face detection & metadata

Detects and captures faces, and extracts 13 human, 4 motor-vehicle and 1 non-motor-vehicle features per pass.

04

Exception detection

Flags scene changes, video blur, abnormal color and audio exceptions — tamper-style alerts included.

Full specifications

Camera & Image
Image sensor	1/2.7" Progressive Scan CMOS x 2
Max. resolution	8MP — 4640 x 1760
Field of view	Horizontal 180° · Vertical 66°
Wide Dynamic Range	Digital WDR
Video compression	H.265+ / H.265 / H.264+ / H.264 (sub & third streams also MJPEG)
Bit rate	64 Kbps – 10 Mbps, VBR/CBR
Audio	1 CH in, 1 CH out, 1 CH built-in speaker, 2 CH built-in mics, G.711 A/U
Network & Storage
Network interface	1x RJ45 10M/100M
Remote monitoring	Web browser / EVM S2.0 / NVR / mobile app (iOS & Android)
Simultaneous users	Up to 10, multi-stream
Local storage	Micro SD, up to 256GB
Protocols	UDP, IPv4/IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPS, P2P, QoS
Functions & Security
Smart alarm	Motion detection, SMD, SD card error/full, IP conflict, network disconnection, sensor alarm, audio alarm, light alarm
Smart event	Line crossing, region intrusion/entrance/exiting (human/vehicle), loitering, illegal parking, abandoned/missing object
PoE	Yes — IEEE 802.3af
Ingress protection	IP66
Security	Video/firmware/HTTPS/configuration encryption, illegal-login lock, IP filtering, 802.1x auth, basic & token auth for HTTP/RTSP
Physical
Power supply	DC12V / PoE
Power consumption	PoE max. 10.2W · DC12V max. 9W
Dimensions	Ø111.5 x 102.2 mm base · 129.1 mm mounting width
Weight	0.719 kg (1.58 lb)
Operating conditions	-30°C ~ 60°C (-22°F ~ 140°F), <95% humidity
Storage conditions	-30°C ~ 65°C (-22°F ~ 149°F), <95% humidity
Certifications	CE, FCC · RoHS, WEEE(2012/19/EU), 94/62/EC, REACH(EC1907/2006)
