Telescopic Mast / 20 ft Extended / 10 ft Retracted / Galvanized Steel

This telescopic mast consists of two 10 ft (3 m) sections that extend to a total height of 20 ft (6 m) and retract to 10 ft (3 m) for transport and installation. Manufactured under ISO 9000 quality norms, it uses industrial-grade 20-gauge galvanized steel tubing for structural integrity in outdoor telecommunications and wireless networking deployments. The mast supports equipment loads up to 13.2 lb (6 kg) and accommodates antennas with diameters up to 9.8 in (25 cm). At 10.3 lb (4.67 kg) unit weight, it provides a compact solution for installers requiring adjustable-height mounting of wireless access points, directional panels, and parabolic antennas.

Main Features

• Two-section telescopic design: 10 ft (3 m) retracted, 20 ft (6 m) extended
• 20-gauge hot-dip galvanized industrial steel tubing
• Maximum load capacity: 13.2 lb (6 kg)
• Compatible with antennas up to 9.8 in (25 cm) diameter
• Unit weight: 10.3 lb (4.67 kg)
• Includes mounting screws
• ISO 9000 certified manufacturing

Typical applications: Wireless ISP installations, point-to-point and point-to-multipoint links, temporary event networks, and surveillance camera elevation.

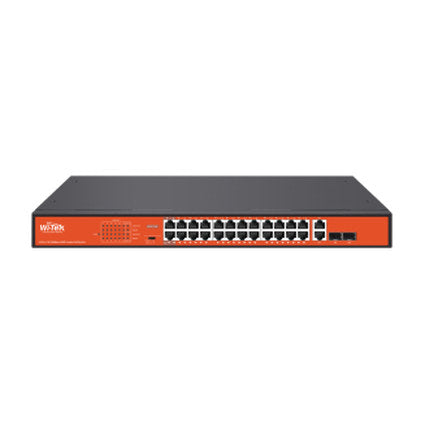

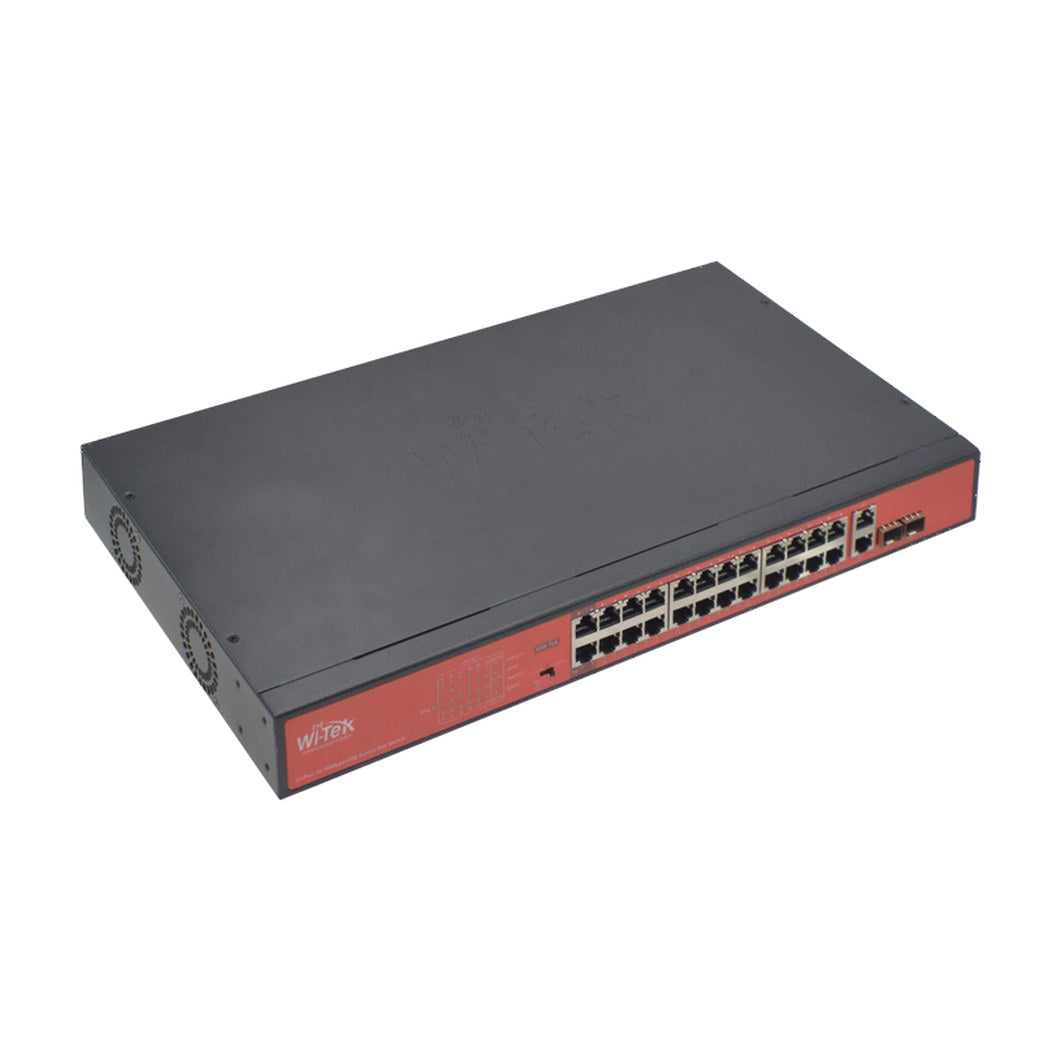

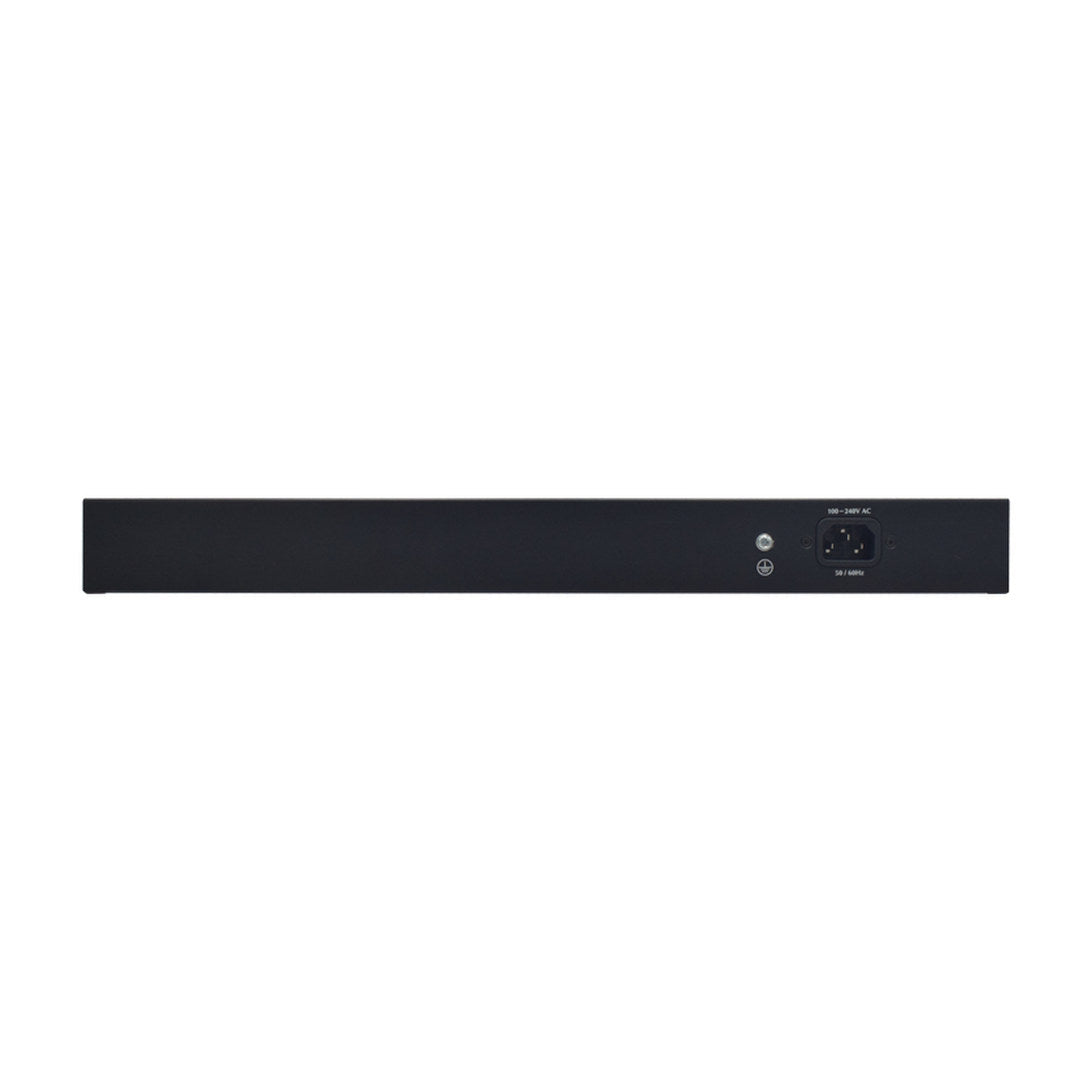

The WI-PS526G-V4 is a non-managed Fast Ethernet PoE switch designed for IP surveillance and access control deployments. It delivers 24 x 10/100 Mbps PoE ports with two Gigabit combo SFP/RJ45 uplinks for fiber or copper backbone connectivity. The switch supports IEEE 802.3af/at/bt standards with Hi-PoE 60 W output on ports 1-2 for high-power devices such as PTZ cameras, while ports 3-24 provide up to 30 W per port. A 250 W PoE budget and internal AC power supply eliminate external adapters. DIP switch controls enable 250 m extend mode, VLAN port isolation, and smart PoE watchdog for automatic camera detection and reset.

Main Features

• 24 x 10/100 Mbps PoE ports + 2 x Gigabit combo SFP/RJ45 uplinks
• Hi-PoE 60 W on ports 1-2 (IEEE 802.3bt); 30 W on ports 3-24 (IEEE 802.3af/at)
• 250 W total PoE budget with internal AC 110-240 V power supply
• 250 m extend mode at 10 Mbps with 7 W PoE per port
• Port VLAN isolation to prevent broadcast storms
• Smart PoE watchdog: automatic IP camera detection and reset
• 6 kV lightning protection and 6 kV ESD contact discharge
• Store-and-forward switching, 8.8 Gbps bandwidth, 8K MAC table

Typical applications include IP surveillance systems with PoE cameras and PTZ units, access control installations with PoE-powered readers and controllers, and remote sensor networks requiring extended cable runs beyond standard 100 m Ethernet limits.

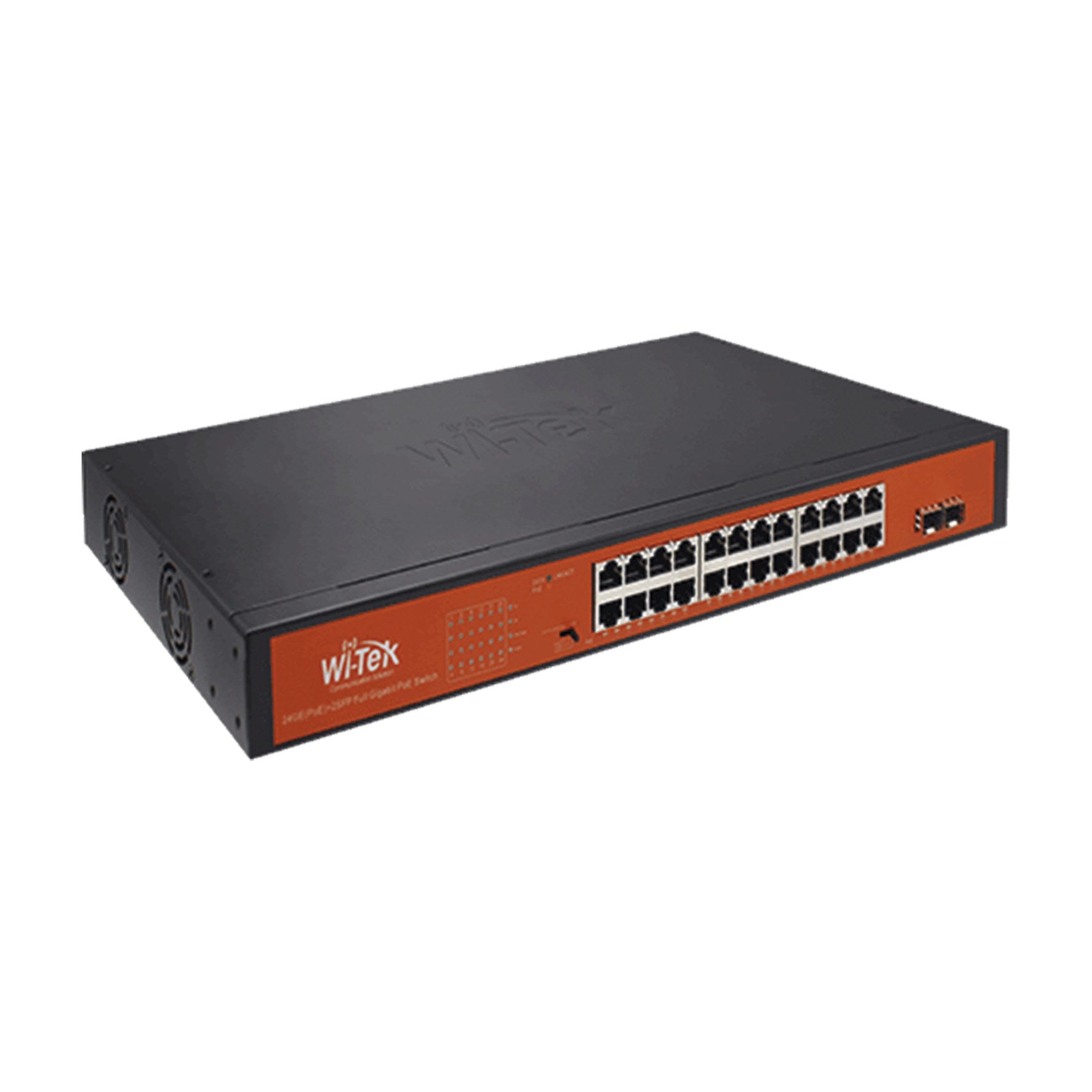

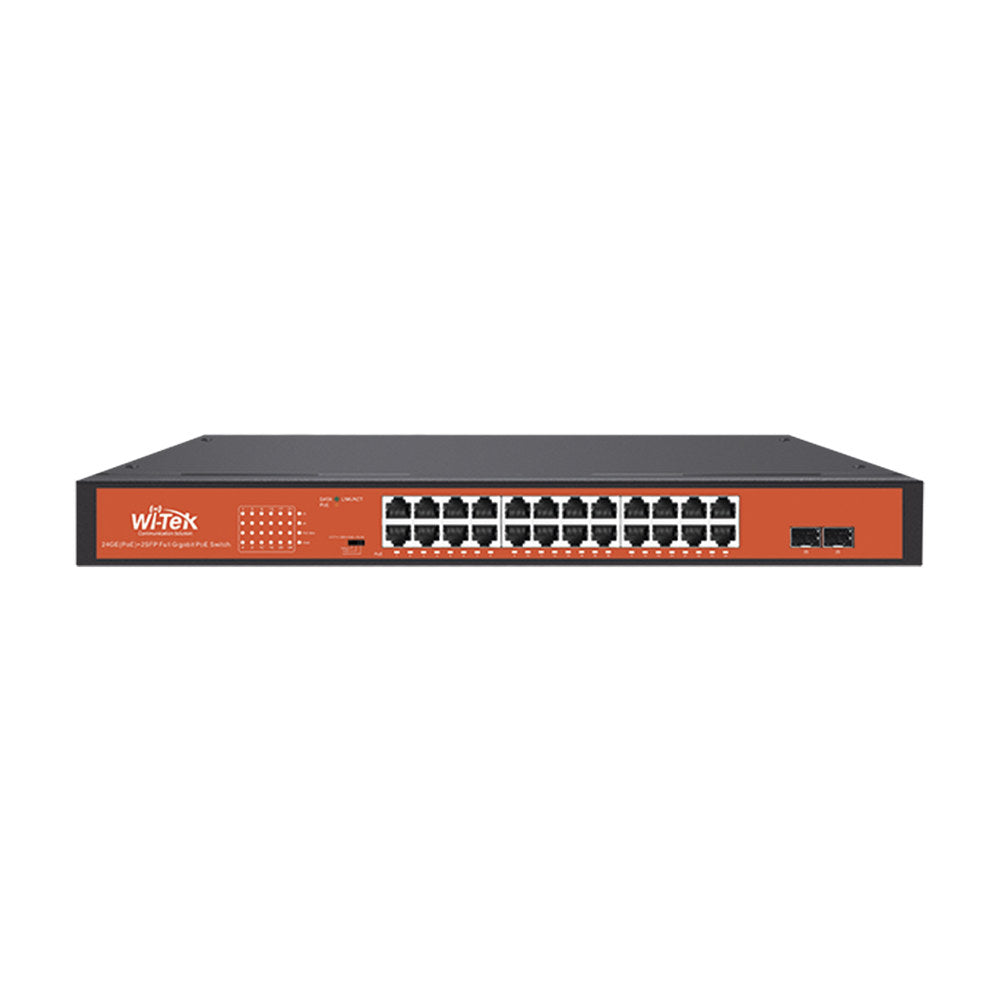

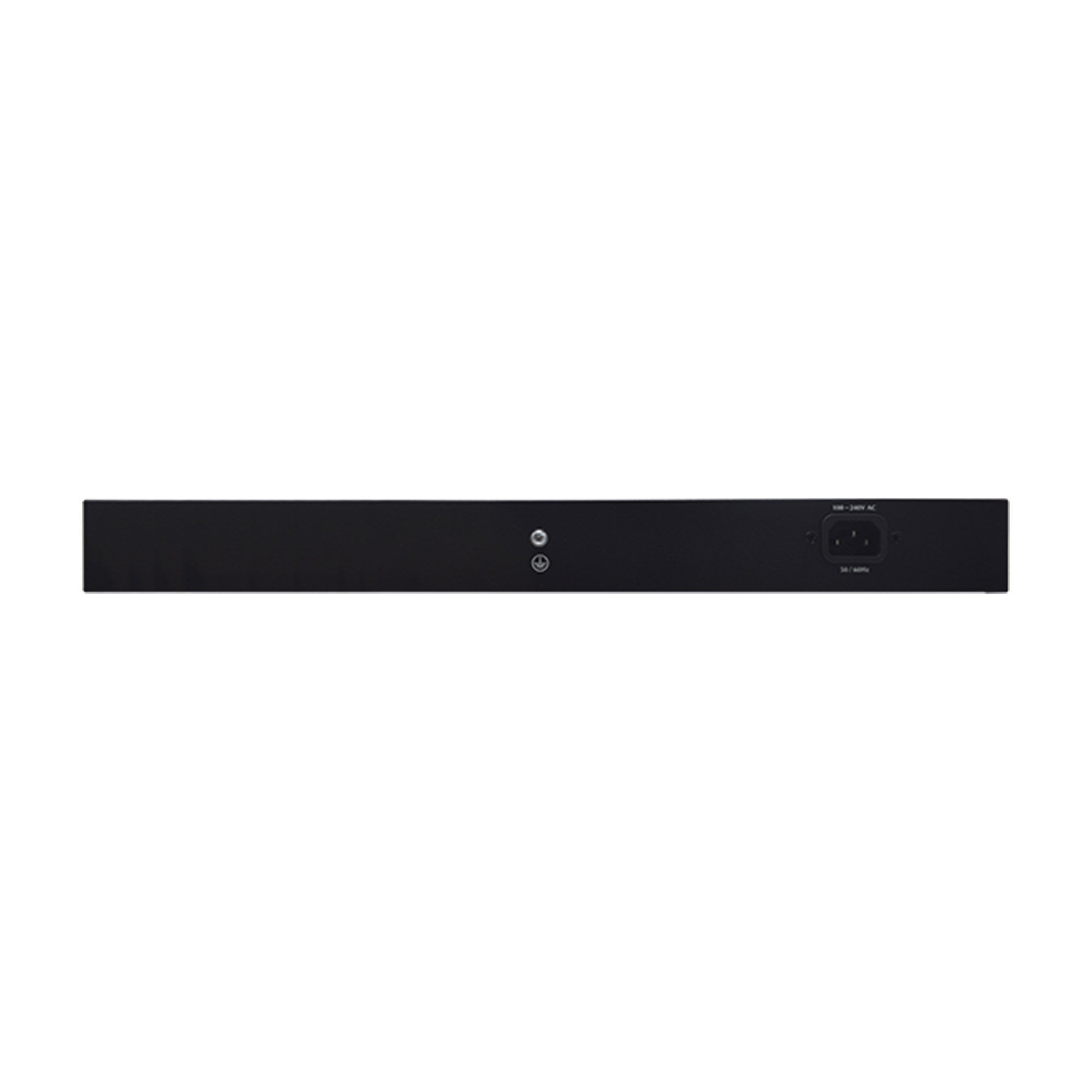

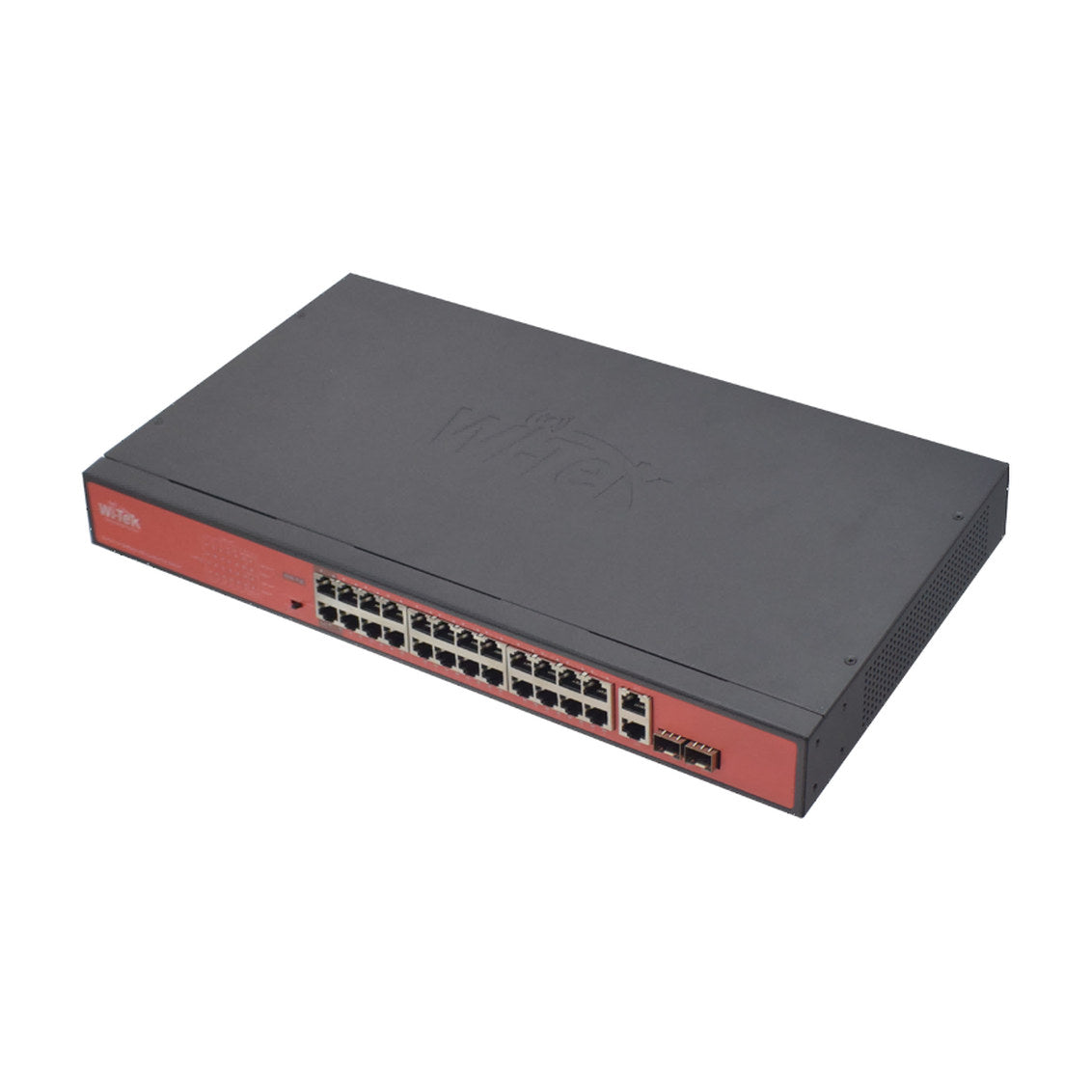

The WI-PS326GFH is a 24-port Gigabit PoE managed switch with 2 SFP fiber uplink slots. It integrates IEEE 802.3af/at PoE+ technology with a 250 W power budget, enabling simultaneous powering of multiple IP devices such as security cameras, access points, and VoIP phones. A dedicated CCTV long-distance mode extends transmission reach to 250 m (820.2 ft) at 10 Mbps, overcoming the standard 100 m Ethernet limitation. The PoE Watchdog system monitors port status and executes automatic reboots upon connection failures, reducing field maintenance interventions.

Main Features

• 24 Gigabit PoE RJ45 ports (10/100/1000 Mbps) with auto-negotiation
• 2 SFP slots at 1 Gbps for fiber optic connectivity
• IEEE 802.3af/at PoE+: up to 30 W per port, 250 W total budget
• CCTV mode: extended range up to 250 m (820.2 ft) at 10 Mbps
• PoE Watchdog: automatic port reboot upon detected failures
• 6 kV surge protection on ports and power input
• 4.1 Mbit buffer for efficient video traffic management
• 8K MAC address table with auto-learning and aging

Typical Applications: Network infrastructure for IP surveillance systems with long-distance PoE cameras, enterprise WiFi deployments with PoE+ access points, and IP telephony in office and industrial environments.

Where can you install it?

With WiFi, PoE, or 12VDC power and support for up to 6 linked monitors / 10 intercoms, the ACVP2W-GEN3 adapts to different types of entryways.

Built-in smart analytics

Compatible access cards

This doorbell reads 13.56 MHz credentials only. Ordering the right card the first time avoids a return and a second trip to the site.

Complete your installation

The ACVP2W-GEN3 is part of the e Series ecosystem. Pair it with these compatible monitors and accessories.

How it all connects

One doorbell can link to multiple indoor monitors and a chime, so the whole property gets the call.

Full specifications

Specifications sourced from the manufacturer's official datasheet. Metric-to-imperial conversions are approximate. Subject to change without notice.

Vehicle barrier arm constructed of aluminum in standard wishbone configuration, consisting of three octagonal sections that form a total length of 27 ft (8.23 m). Designed for operation with DKS Doorking access barrier model 1602. The three-piece assembly facilitates transportation and on-site installation. The octagonal aluminum structure reduces overall weight without compromising the rigidity required for continuous operation cycles. Includes all hardware required for mounting.

Main Features

• 3-piece octagonal aluminum arm
• Maximum length 27 ft (8.23 m)
• Opening speed 5.5 seconds for 90 degrees
• Exclusive compatibility with Doorking 1602 barriers
• Standard wishbone configuration, non-folding
• 60:1 gear system for high durability

Typical applications: vehicular access control at commercial, industrial, and residential facilities requiring extended span coverage.

Replacement lithium-ion battery for TX350 handheld radios. Delivers 3.7 Vdc with 1300 mAh capacity to maintain field operability. Rechargeable cell supports multiple charge cycles based on device usage. Designed for direct installation in the radio battery compartment without modifications.

Main Features

• Battery for TX350
• Voltage: 3.7 V
• Capacity: 1300 mAh

Typical applications: battery inventory maintenance for communication equipment at construction sites, private security, events, and logistics operations.

This telescopic mast extends to 30 ft (9 m) using three 10 ft (3 m) sections of hot-dip galvanized industrial tubing. Designed for wireless communication and electronic security installations, it supports equipment up to 13.2 lb (6 kg) with antenna diameters up to 9.8 in (25 cm). The telescopic design allows compact transport and deployment, with a total weight of 16.9 lb (7.68 kg). Installation requires guy wires or galvanized steel cable for structural stability. The mast is manufactured under ISO 9000 norms and includes mounting screws.

Main Features

• Hot-dip galvanized industrial tube, AWG 20 gauge
• Three 10 ft (3 m) sections, extends to 30 ft (9 m)
• Load capacity up to 13.2 lb (6 kg)
• Total weight 16.9 lb (7.68 kg)
• Compatible with antennas up to 9.8 in (25 cm) diameter
• Includes mounting screws
• Manufactured under ISO 9000 norms

Installation Requirements

This mast requires installation accessories for safe deployment. All masts must be secured with guy wires or at minimum galvanized steel cable of adequate gauge. Do not climb directly on the mast or lean ladders against it. For equipment adjustment, use A-frame ladders or scaffolding with the mast retracted to its minimum 10 ft (3 m) height (first section only).

Typical applications: wireless point-to-point and point-to-multipoint links, WiFi access point elevation, and electronic security device mounting.

Telescopic Mast 40 ft (12 m) / AWG 20 Galvanized Steel / 4 Sections / Requires Installation Accessories

This telescopic mast provides a 40 ft (12 m) extended height for mounting wireless communication equipment and directional antennas. It consists of four 10 ft (3 m) sections that retract for transport and deployment. The structure is manufactured with AWG 20 industrial hot-dip galvanized steel tubing for corrosion resistance in outdoor environments. A maximum load capacity of 13.2 lbs (6 kg) and maximum antenna diameter of 9.8 in (25 cm) accommodate compact wireless radios and small dish antennas. Installation requires guy wires or support cables and appropriate mounting hardware (not included).

Main Features

• Extended height: 40 ft (12 m); retracted height: 10 ft (3 m)
• AWG 20 industrial hot-dip galvanized steel tubing
• 4 telescopic sections, 10 ft (3 m) each
• Maximum load capacity: 13.2 lbs (6 kg)
• Maximum antenna diameter: 9.8 in (25 cm)
• Total weight: 24 lbs (11.19 kg)
• Includes assembly screws
• ISO 9000 manufacturing standards

Typical applications: Wireless ISP installations, point-to-point and point-to-multipoint links, temporary communication deployments, and surveillance camera mounting where elevated positioning is required.

Product Overview

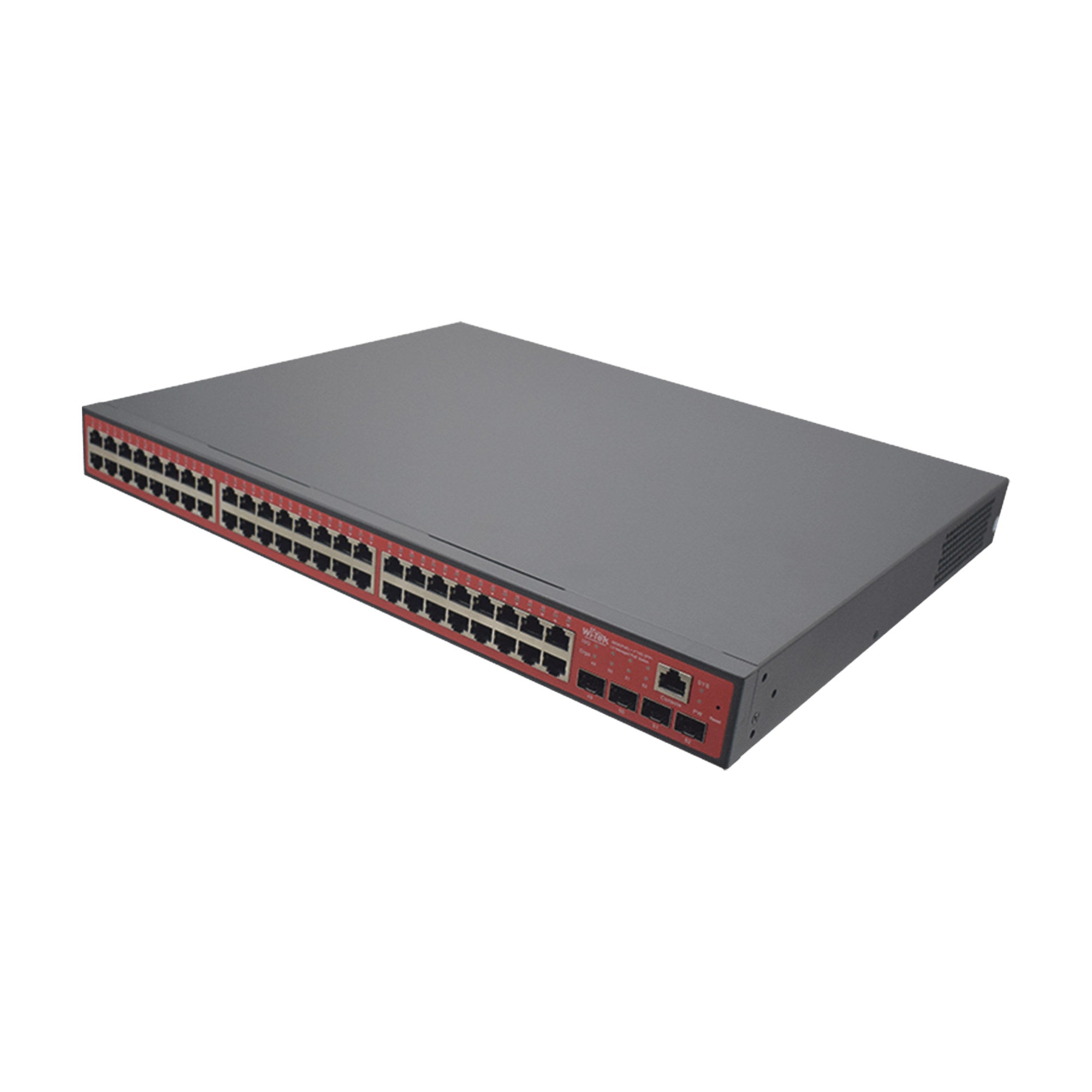

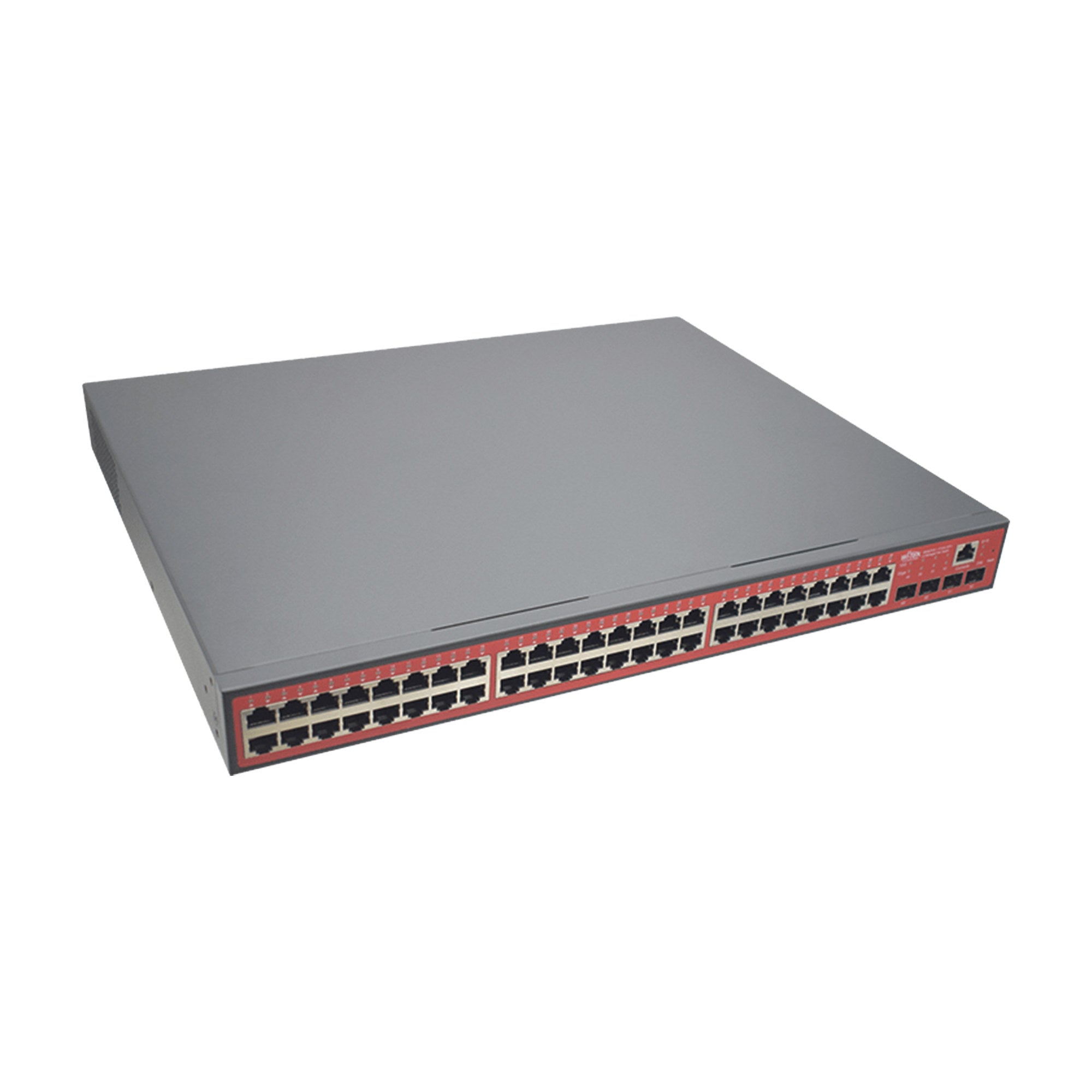

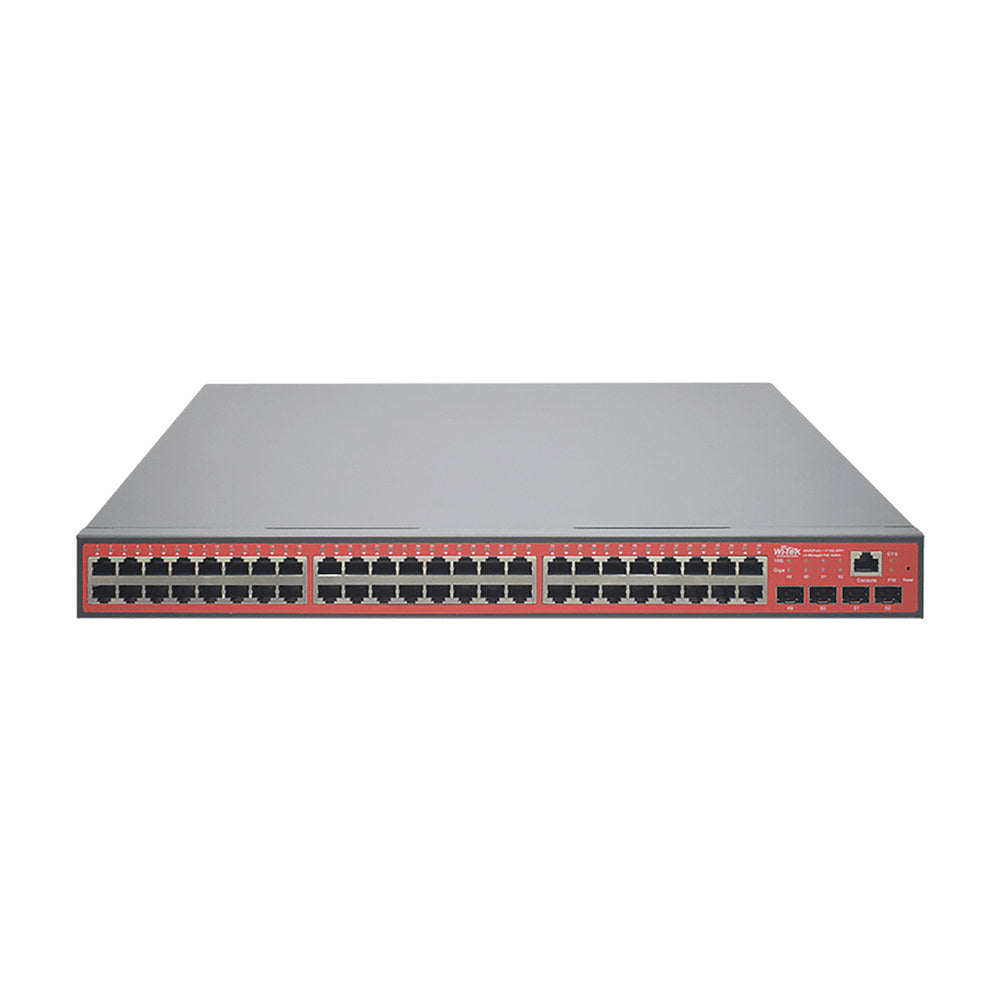

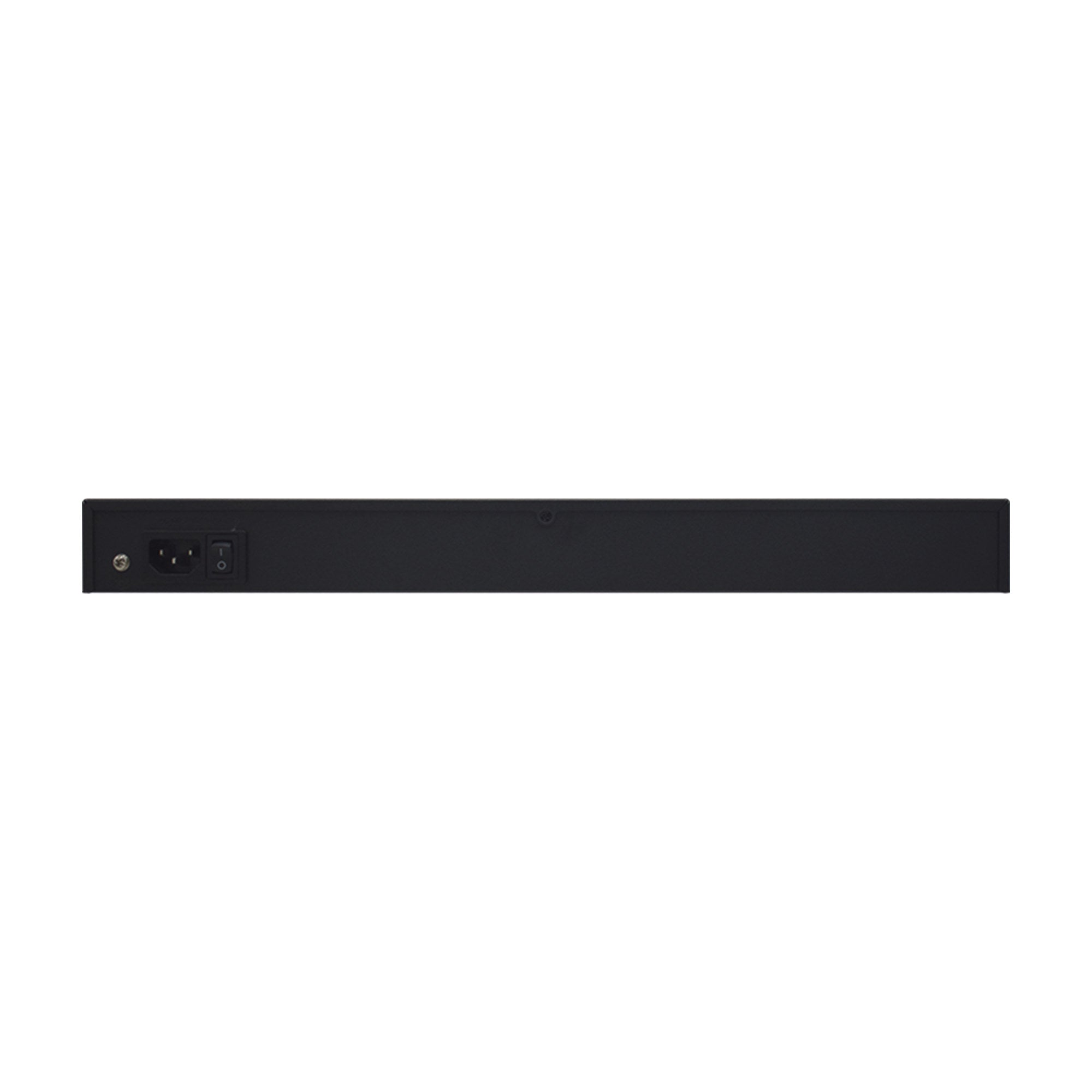

The WI-PMS552F is a Layer 2+ managed PoE switch designed for high-density network deployments requiring both data connectivity and power delivery. It provides 48 Gigabit PoE+ ports compliant with IEEE 802.3af/at standards, supported by a 565W power budget for connected endpoints such as IP cameras, access points, and VoIP devices. Four 10G SFP+ uplink slots enable high-speed aggregation to core switches or servers, while static routing, QoS policies, and ACL-based security extend Layer 2+ functionality for segmented traffic management. Management is available through web interface, CLI via console/Telnet/SSH, SNMP, and RMON, allowing integration into existing network operations workflows.

Main Features

• 48 Gigabit PoE+ ports with 565W total power budget (802.3af/at)
• 4 x 10G SFP+ uplink slots for high-speed fiber connectivity
• 176 Gbps switching capacity and 184.64 Mpps forwarding rate
• Static routing, DHCP server, and link aggregation support
• QoS, ACL policies, and multi-layer security strategies
• Web, CLI (console/Telnet/SSH), SNMP, and RMON management

Typical applications: Enterprise LAN access layer, IP surveillance networks with high PoE density, Wi-Fi access point aggregation in hospitality and education environments, and ISP access network edge deployments.
